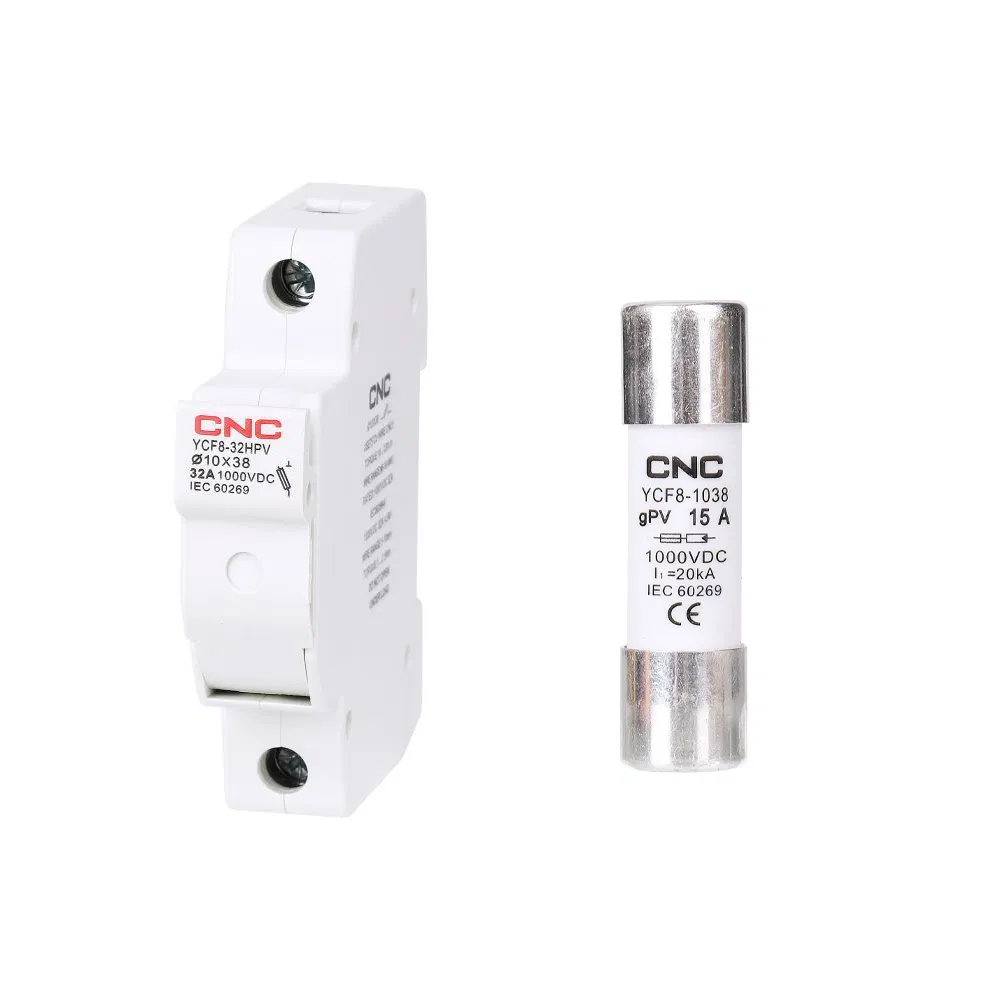

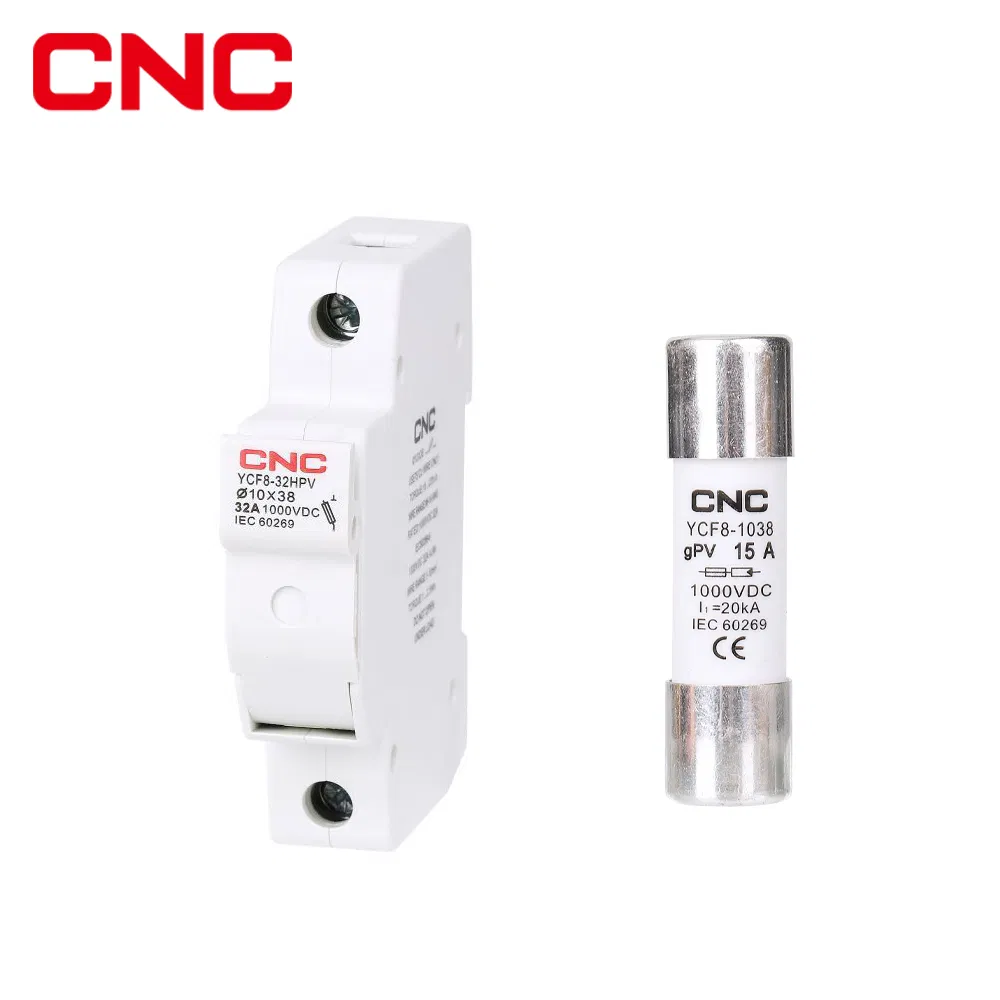

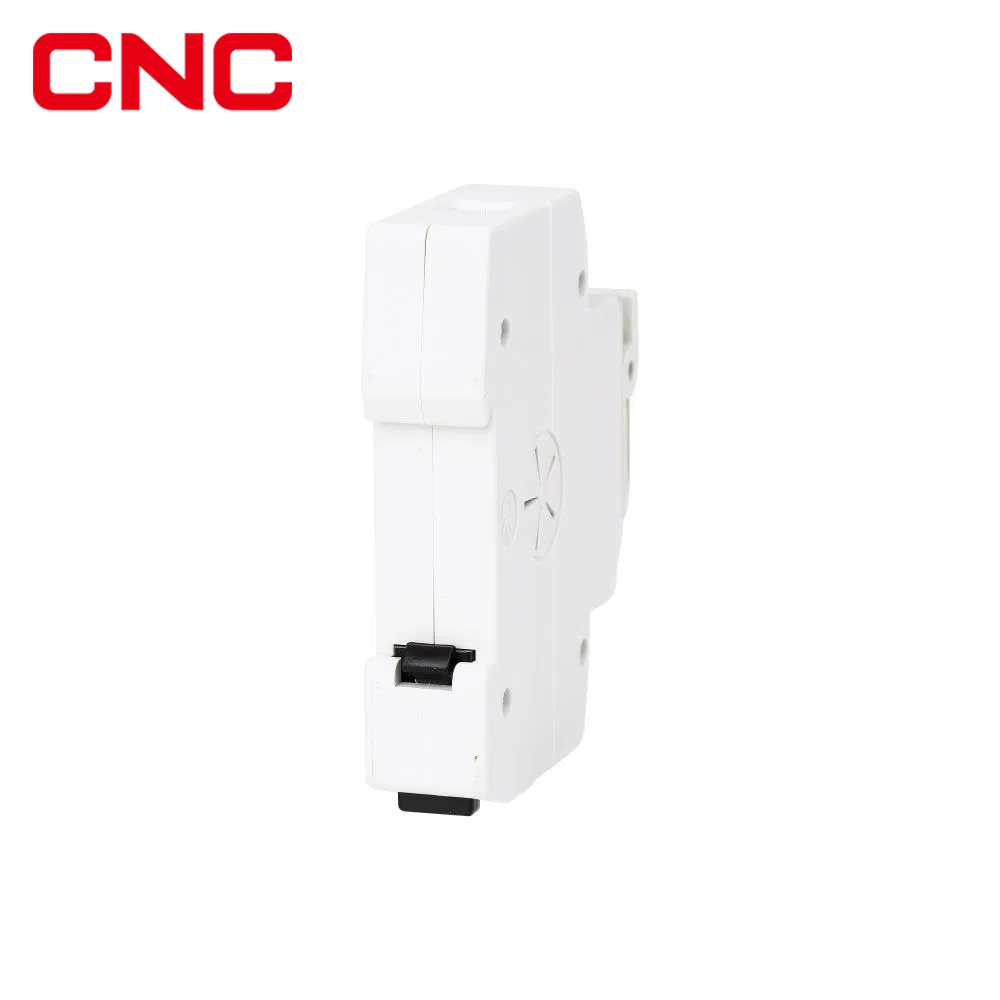

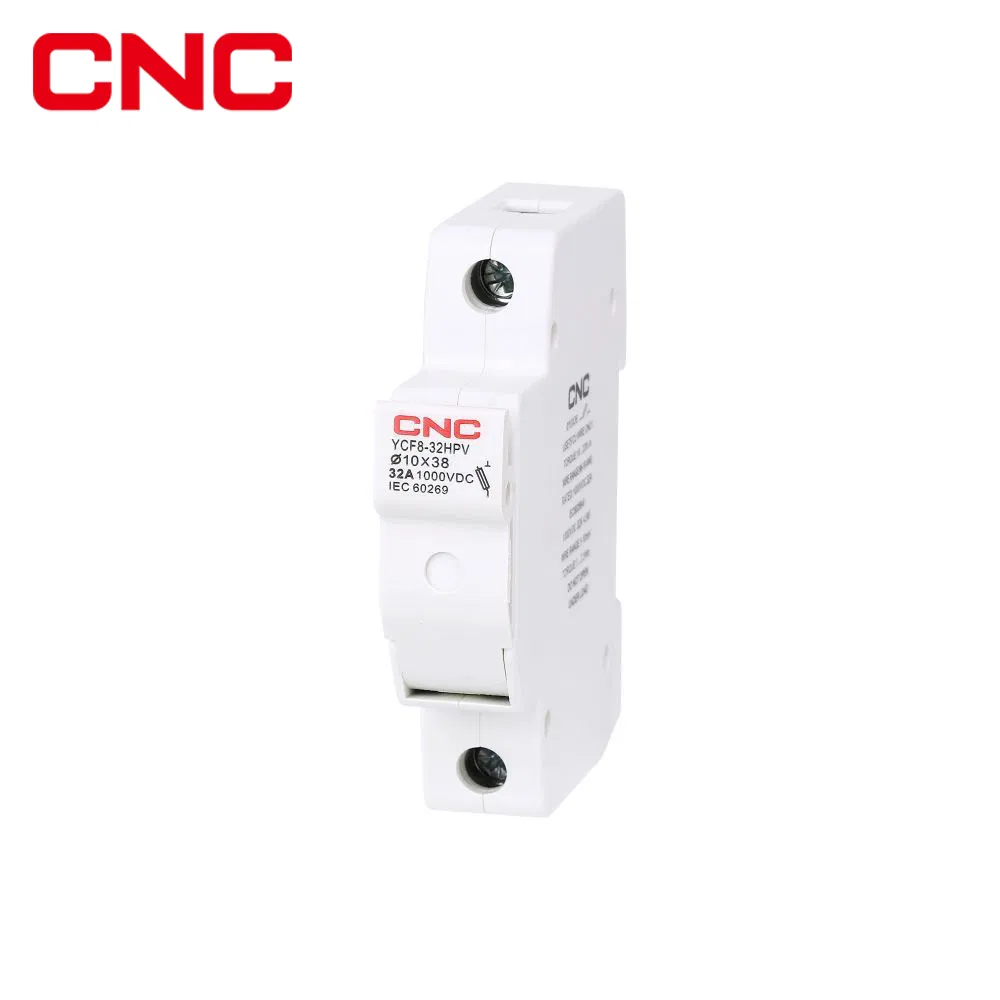

PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
1 / 5
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*
PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*

PV Holder 1000VDC Solar Link High Base 10*38 DC 1000V Fuse 10*

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
YCF8-32HPV
Installation
Th-35 DIN-Rail Installation
Type
Auto Fuse Holder
Shape
Square
Size of Fuse
Trumpet Fuse Holder
Rated Voltage
DC 1000V
Rated Current
1-32A
Number of Poles
1P
Fuse Size
10*38 mm
Standards
IEC60269-6, UL4248-19
Certificate
CE, CB, TUV, etc
Operating Level
gPV
PV Holder 1000VDC
🛠️

Product Description

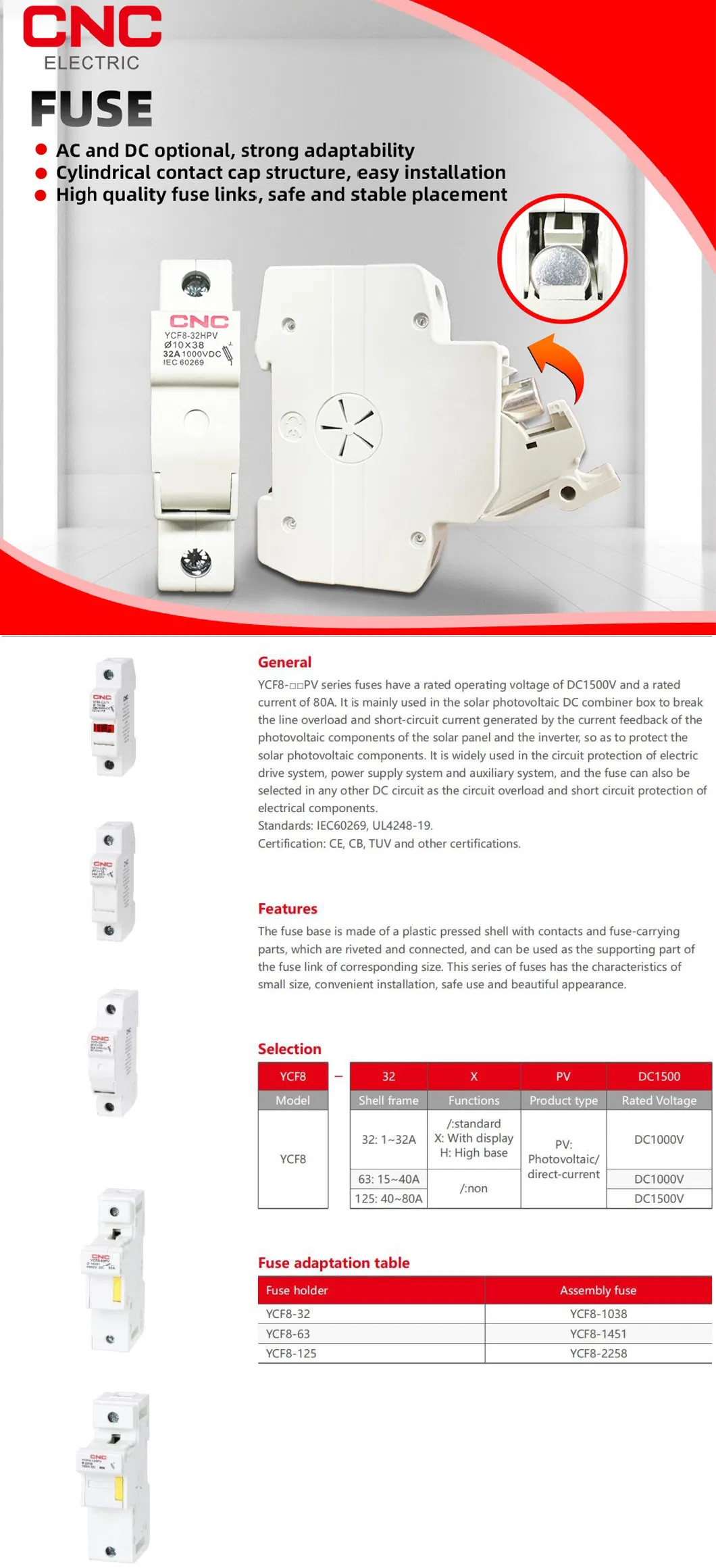

Product Technical Details
Technical Data YCF8-32pV YCF8-63PV YCF8-125PV
Specifications Standard / Display / High base Standard Standard
Fuse size (mm) 10×38 14×51 22×58
Rated voltage Ue(V) DC 1000 DC 1500
Insulation voltage Ui(V) DC 1500
Use category gPV
Working temperature -40ºC ≤ X ≤ +90ºC
Altitude ≤2000m
📂

Product Catalog

Modular Device
Distribution Apparatus
Motor Control
Relay
Industrial Switches
Power Supply
Energy Management
Electrical Accessories
Wall Switch
DC Solar Products
Medium Voltage
Explosion Proof
🏢

Company Profile & Advantages

Factory Overview Core Advantages Manufacturing Power
📦

Packaging & Shipping

Packaging and Logistics
❓

Frequently Asked Questions

What is the primary application of the YCF8-32HPV fuse holder?
The YCF8-32HPV is specifically designed for solar PV systems with a rated voltage up to DC 1000V, providing essential overcurrent protection for solar links.
How is the device installed?
It features a standard TH-35 DIN-rail installation method, making it compatible with most standard industrial and residential distribution boards.
What fuse size is compatible with this holder?
This particular model is designed for 10x38mm cylindrical fuse links, which are common in photovoltaic applications.
Does it meet international safety standards?
Yes, the product complies with IEC60269-6 and UL4248-19 standards, and has obtained certifications such as CE, CB, and TUV.
What is the operating temperature range?
It is designed to operate reliably in harsh environments with a working temperature range of -40ºC to +90ºC.
What is the maximum rated current for this fuse holder?
The YCF8-32HPV series supports a rated operational current ranging from 1A to 32A.
