This is an essential safety switch and is mandated in each photovoltaic power system according to IEC 60364-7-712. To allow maintenance of the PV convertor, means of isolating the PV convertor from the DC side and the AC side must be provided.

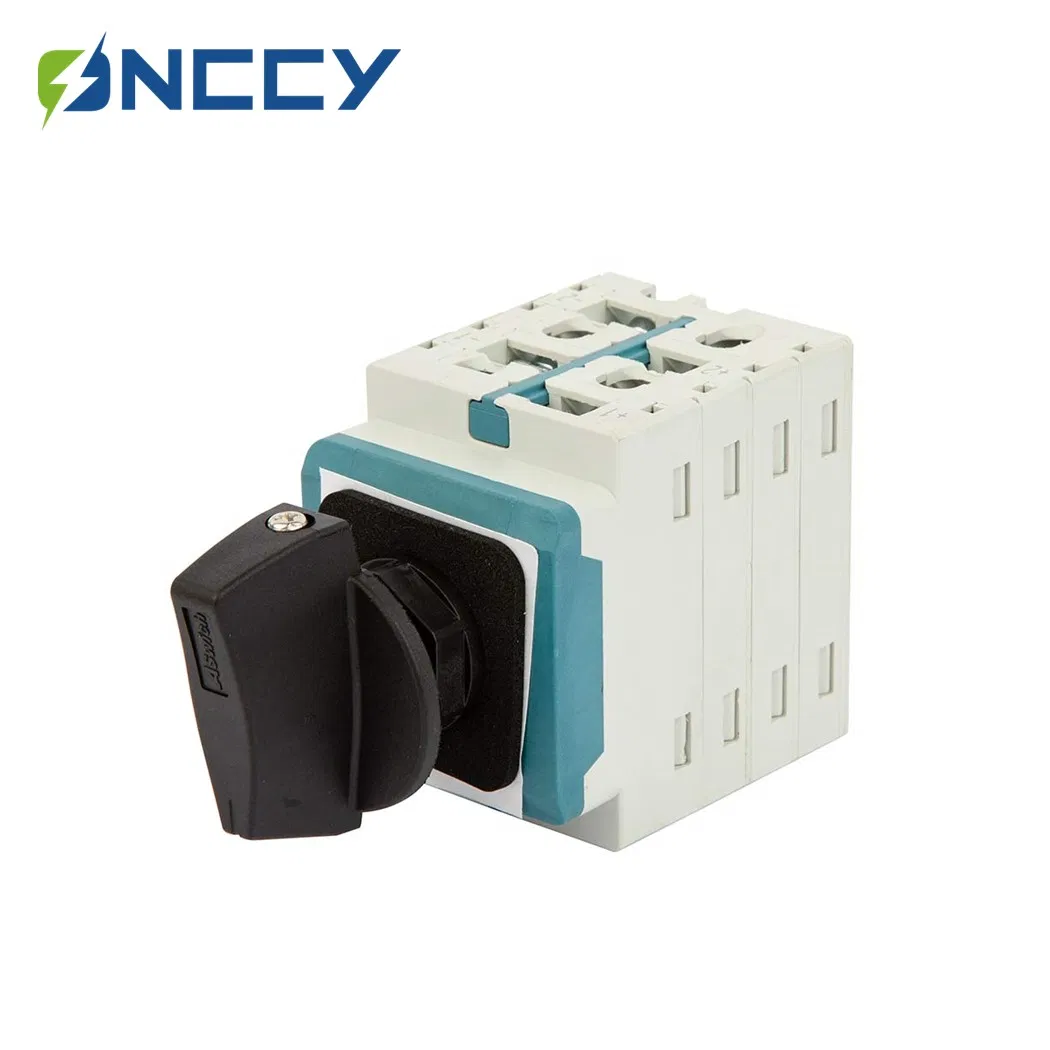

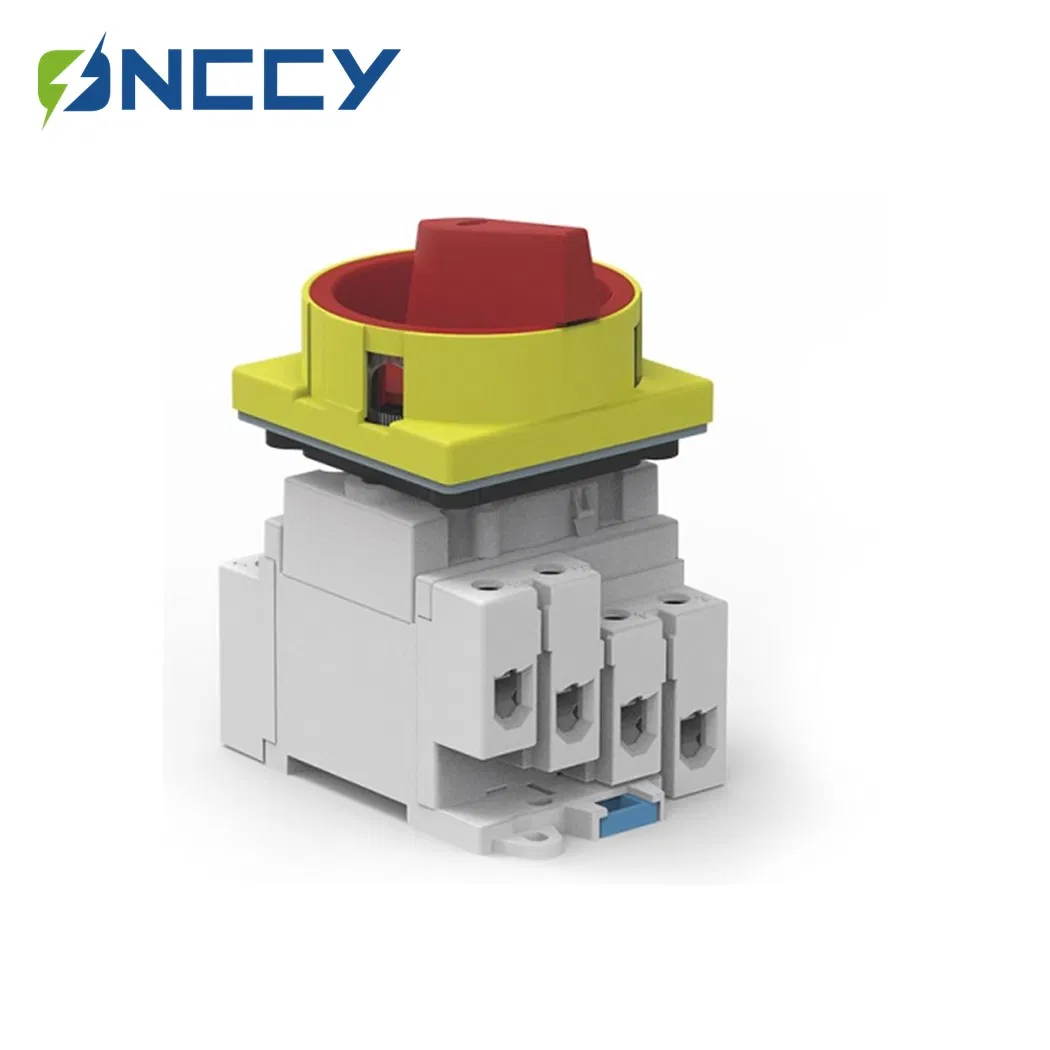

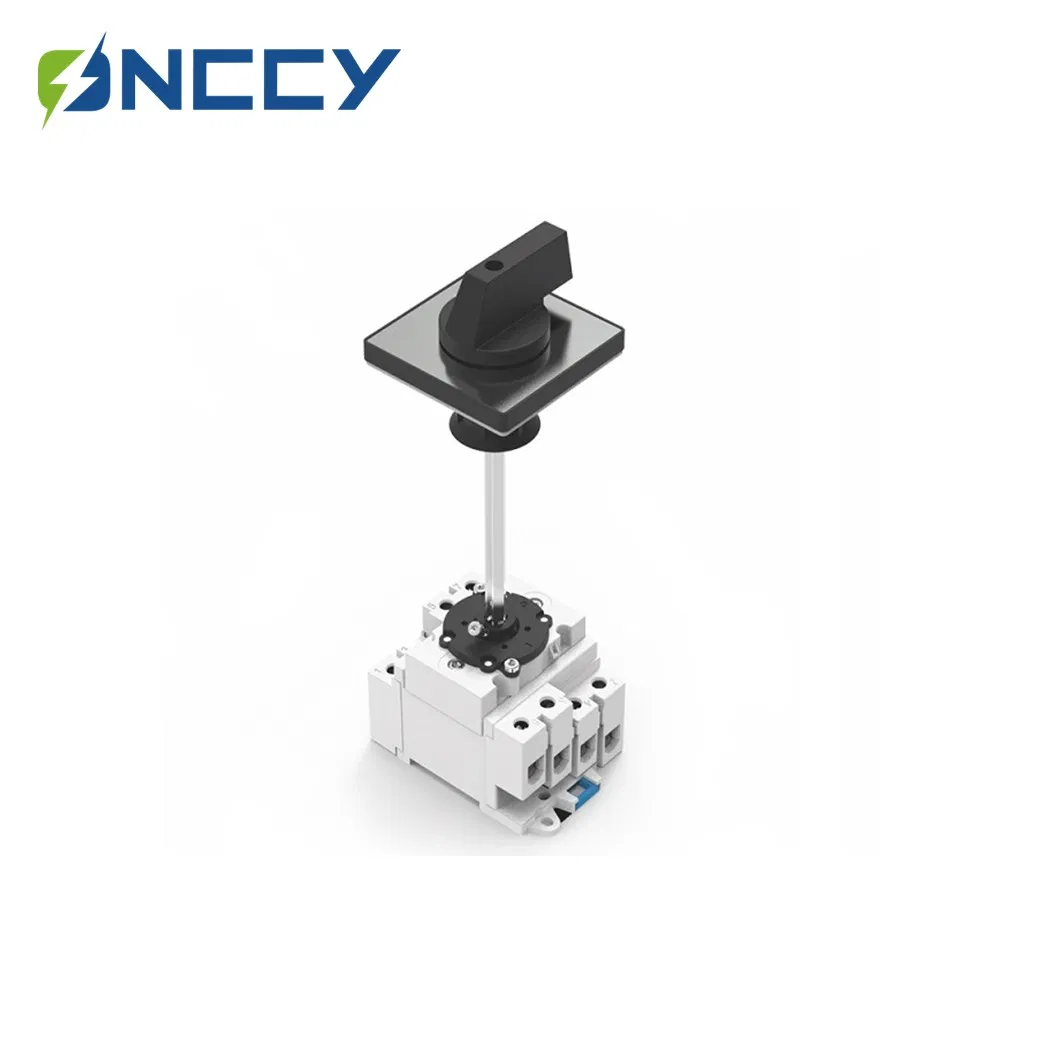

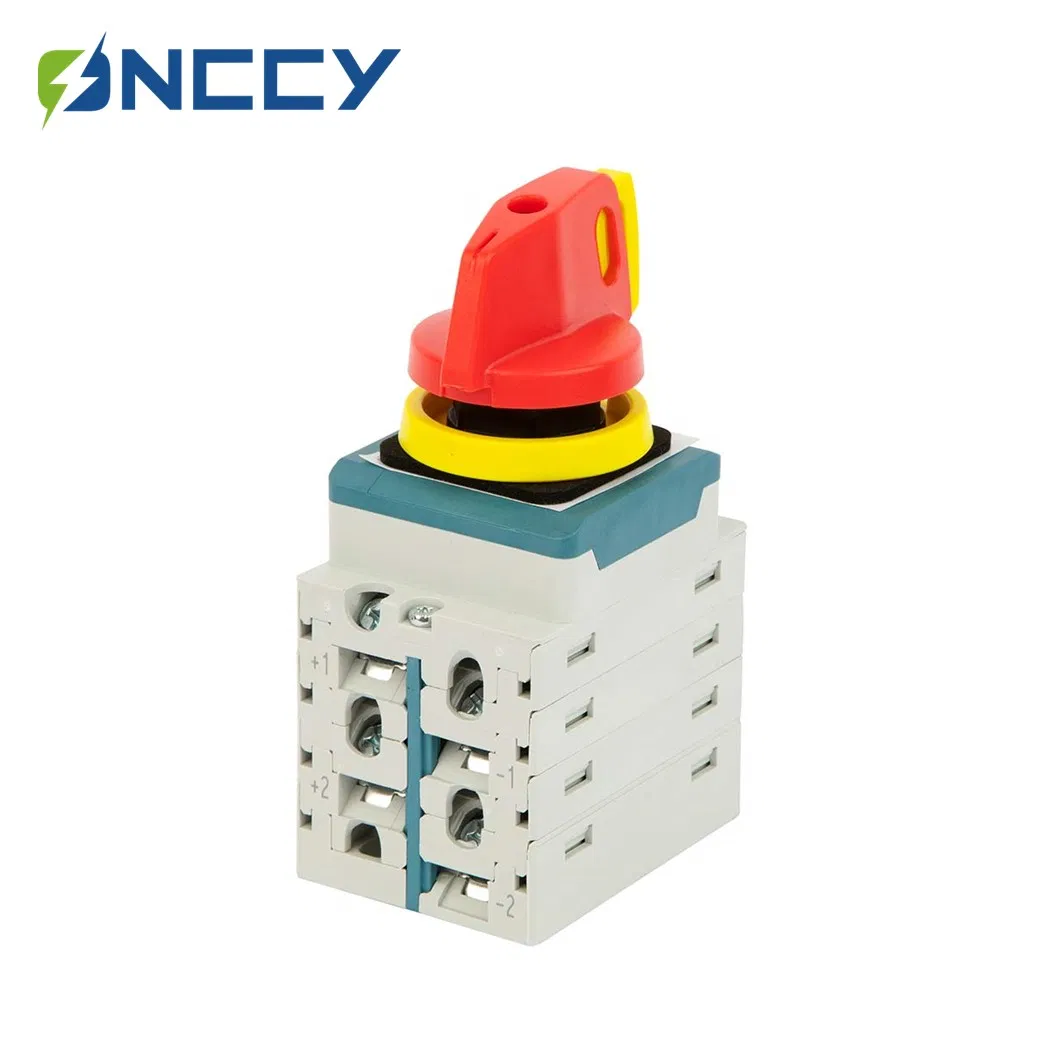

Our DC Isolator is designed for solar inverter DC side disconnect. Combined with other components, our switches can guarantee complete protection from any form of over-voltage and overloading. With a special instruction for arc extinguishing, we offer increased safety, reliability and longer life.

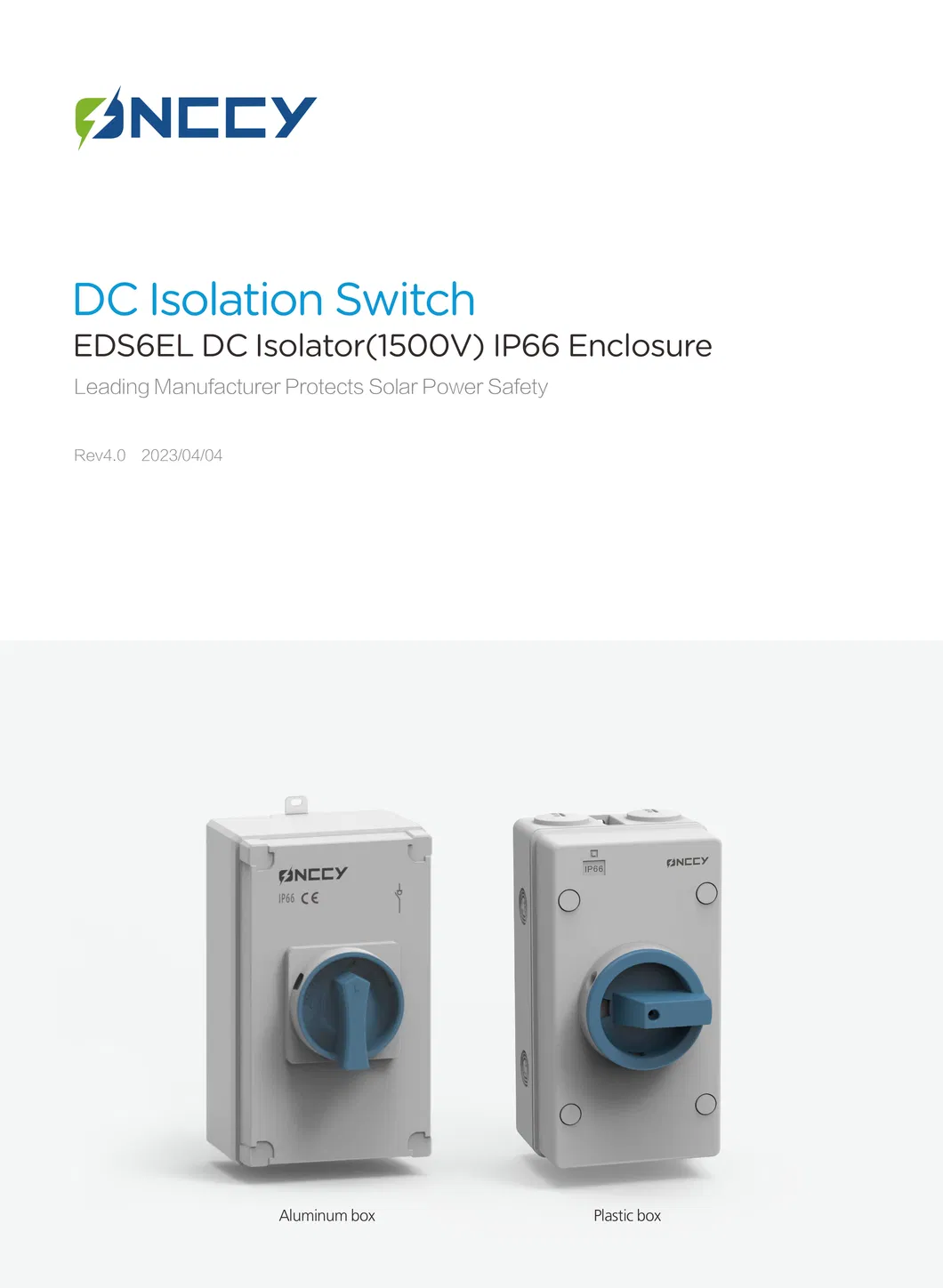

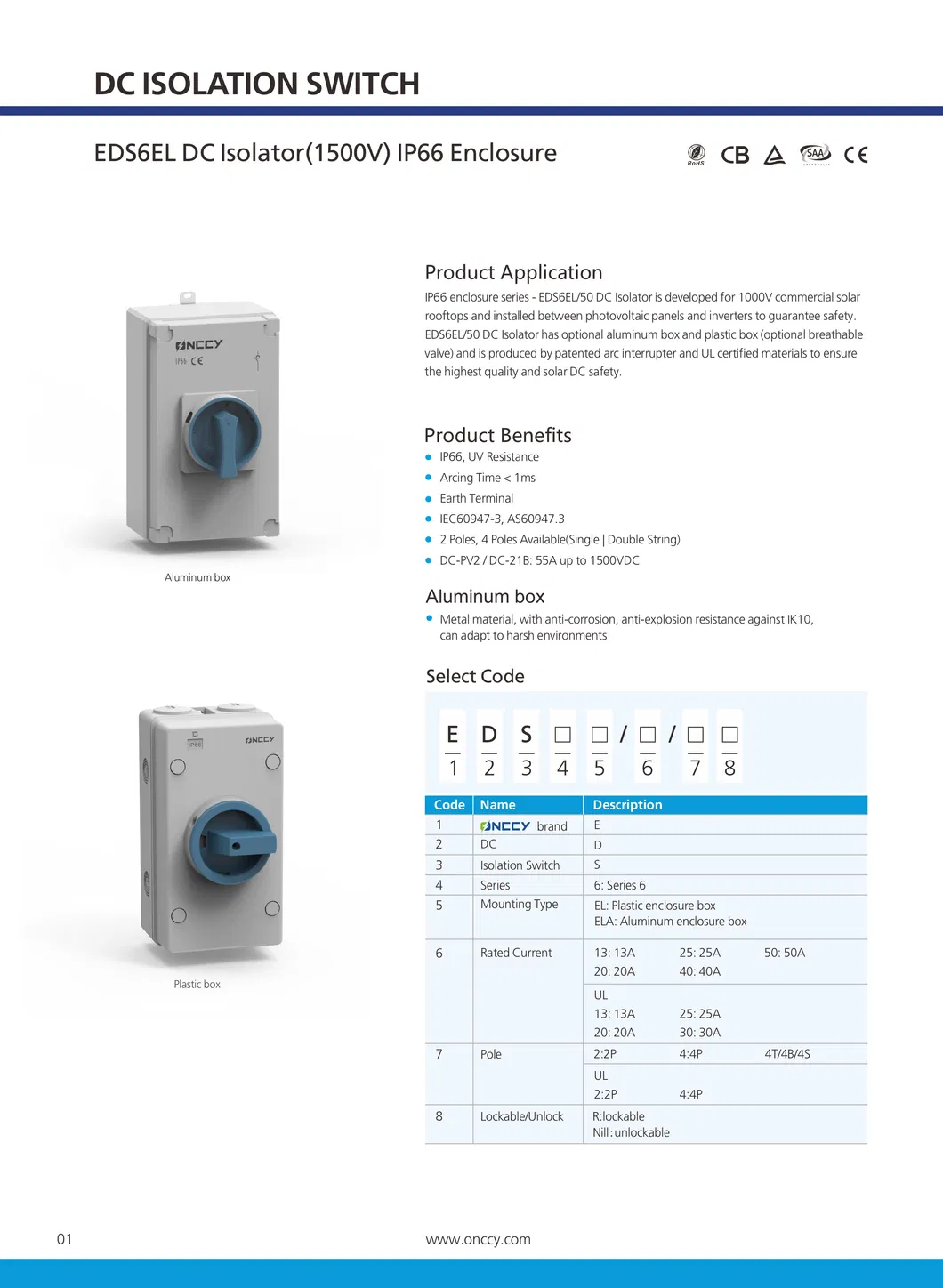

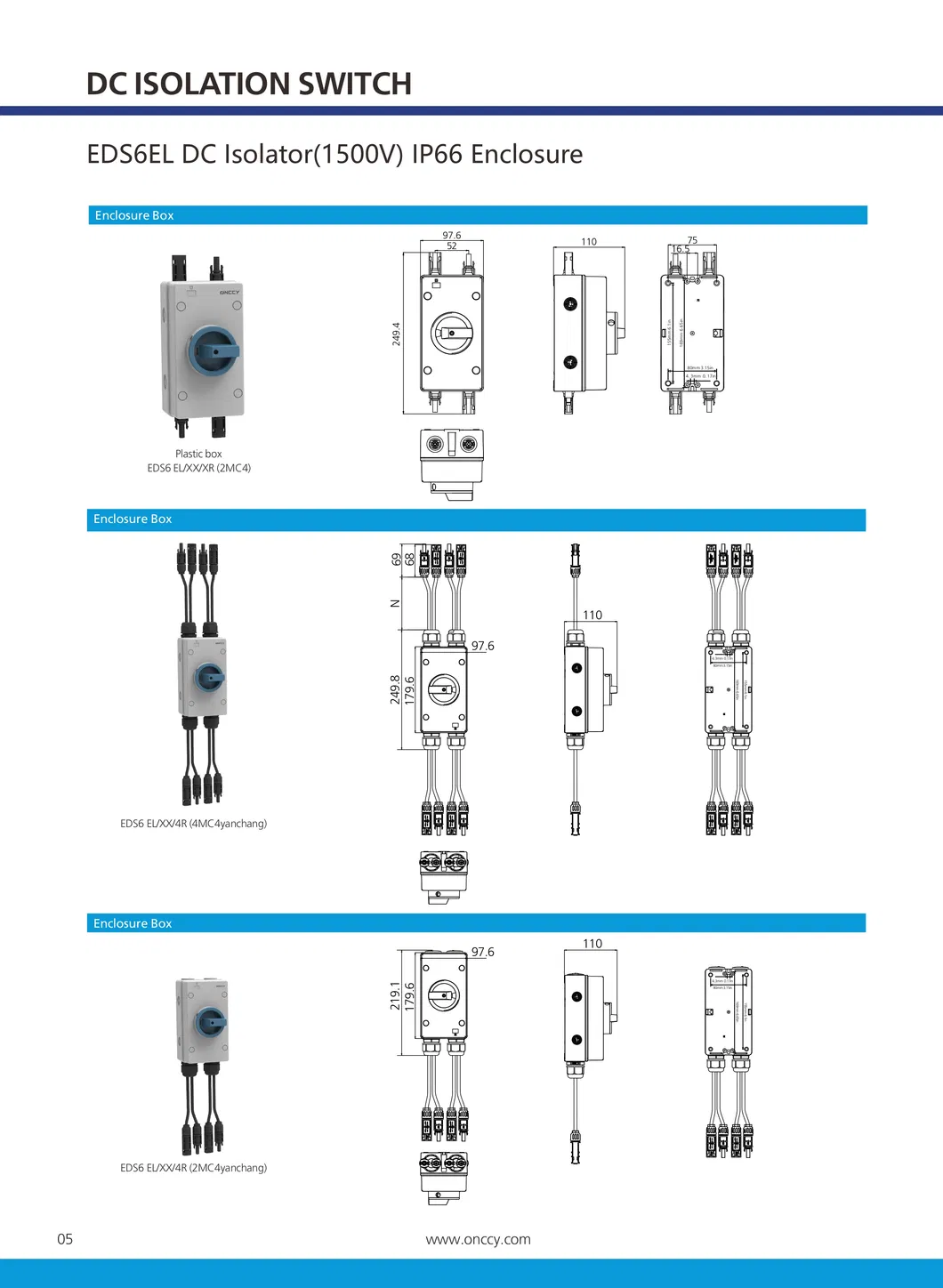

EDS6EL Screw fixing doesn't interfere with the sealing performance; Multiple mechanical seals around the shaft guarantee the reliability of a waterproof and moisture-proof design; Stainless steel rotary screw does not rust nor damp; Standard cable interface available with seal rings.

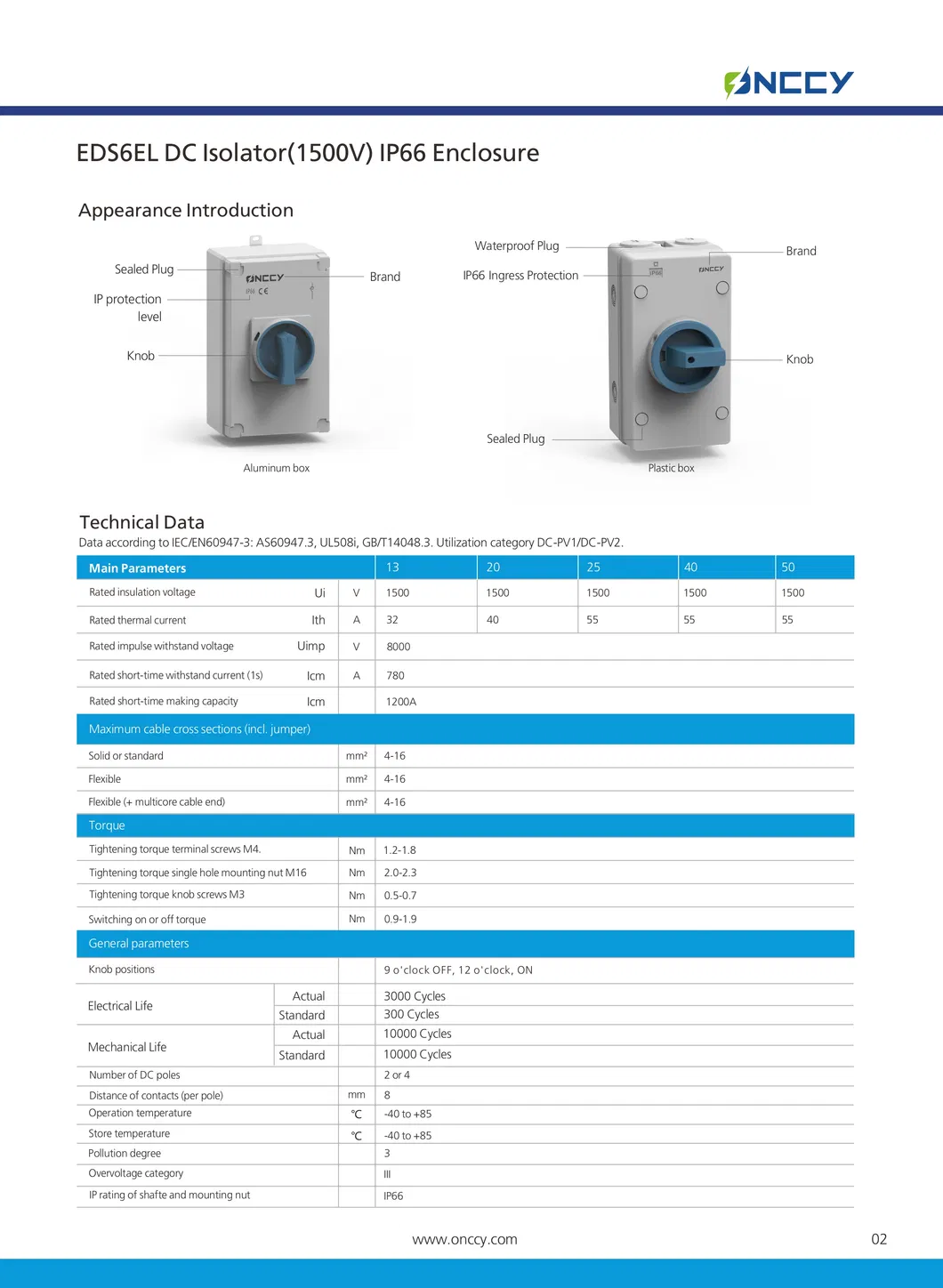

| Main Parameters | 13A | 20A | 25A | 40A | 50A | ||
|---|---|---|---|---|---|---|---|
| Rated insulation voltage | Ui | V | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rated thermal current | Ith | A | 32 | 40 | 55 | 55 | 55 |
| Rated impulse withstand voltage | Uimp | V | 8000 | ||||
| Rated short-time withstand current (1s) | Icw | A | 780 | ||||
| Mechanical Life | Actual | 10000 Cycles | |||||
| Operation temperature | ºC | -40 to +85 | |||||
With a vision of a clean, sustainable future, we strive to lead the solar energy and new energy industry through our rugged technology and reliable products. Our mission is to become the leading choice for getting started with smart energy, making good technology more impactful by ensuring it's accessible to everyone.
Our Main Products: DC/AC Isolator Switch, PV Combiner box, DC circuit breaker, Surge Arrester, DC fuse holder, Rapid Shutdown, and EV Charger, etc.
With our driven engineer team and distribution & service network spanning North America, South America, Europe, Asia, Africa and Oceania, we have empowered homeowners and professionals in more than 100 countries and regions.
Quality is the primary goal among each of our workshops since this leads to the best performance and safety for any Solar, Storage, and EV charging system. Our factory and products comply with UL, SAA, CB, CE, TUV, ISO, and RoHS standards.
