Product Description

Basic Info.

Model NO.
PV002
Sheath Material
PPO
Insulating Material
PC/PA
Conductor Type
Solid
Certification
TUV
Wire Core Material
Tinned Wire
Waterproof
IP67
Transport Package
Polybag+ Carton
Specification
2.5mm2, 4mm2, 6mm2
Origin
China
HS Code
853669000
Production Capacity
300000PCS/Month

Product Description

High Quality Solar Connector for 2.5mm2 / 4.0mm2 / 6.0mm2

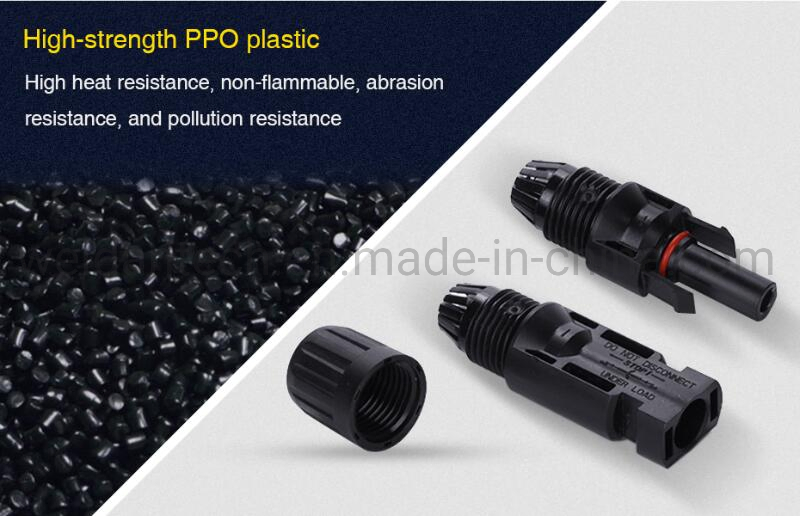

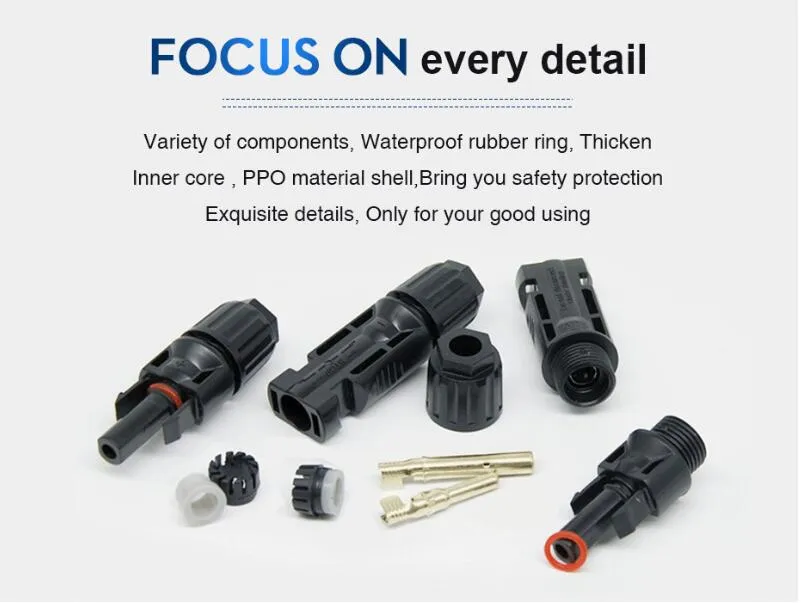

  • ✔ Durable Material: PPO Made shell, and insulation with PC/PA.
  • ✔ Excellent Waterproofing: IP67 rated, internal fixed with Rubber Ring for maximum protection.
  • ✔ Premium Core: Thick Inner Cores made of Silver-plated Copper material.
Professional PV Cable Solar connectors, Waterproof IP67
Solar Connector Specifications

Technical Specifications

Cable Suitability14AWG / 12AWG / 10AWG (2.5mm2 / 4.0mm2 / 6.0mm2)
Rated Current24A (2.5mm2), 30A (4mm2 & 6mm2)
Rated Voltage1000V
Test Voltage6KV (50Hz)
Waterproof GradeIP67
Contact MaterialCopper, Silver plated
Insulation MaterialPC/PA
Operating Temperature-40ºC ~ +90ºC
Safety ClassII
Flame ClassUL94V-2
Contact Resistance≤ 5m ohm
Insertion/Withdrawal Force≤ 50N / ≥ 50N
Locking SystemSnap-in

Frequently Asked Questions

Q1: Which cable sizes are compatible with this solar connector? A: This connector is compatible with 2.5mm2, 4.0mm2, and 6.0mm2 cables (14AWG, 12AWG, and 10AWG).
Q2: Is the solar connector waterproof for outdoor use? A: Yes, it features an IP67 waterproof rating and includes a rubber ring seal to ensure reliable performance in outdoor environments.
Q3: What is the maximum voltage this connector can handle? A: The connector is rated for a voltage of 1000V, with a test voltage capacity of 6KV (50Hz).
Q4: What material is used for the contact points? A: The contact points are made of high-quality copper with silver plating for optimal conductivity and durability.
Q5: What is the operating temperature range? A: The connector is designed to operate efficiently in temperatures ranging from -40ºC to +90ºC.
Q6: Does the connector have a locking mechanism? A: Yes, it utilizes a secure snap-in locking system to ensure a stable and safe connection.
