📋 Basic Info.
Model NO.
Combiner box monitoring device
Application
Solar Power System Monitoring
Specification
Mini, 210*30*67.3mm
📦 Packaging & Delivery
Package Size
21.00cm * 3.00cm * 6.73cm
Lead Time
10 days (1 - 1000 Pieces)
🔍 Product Description

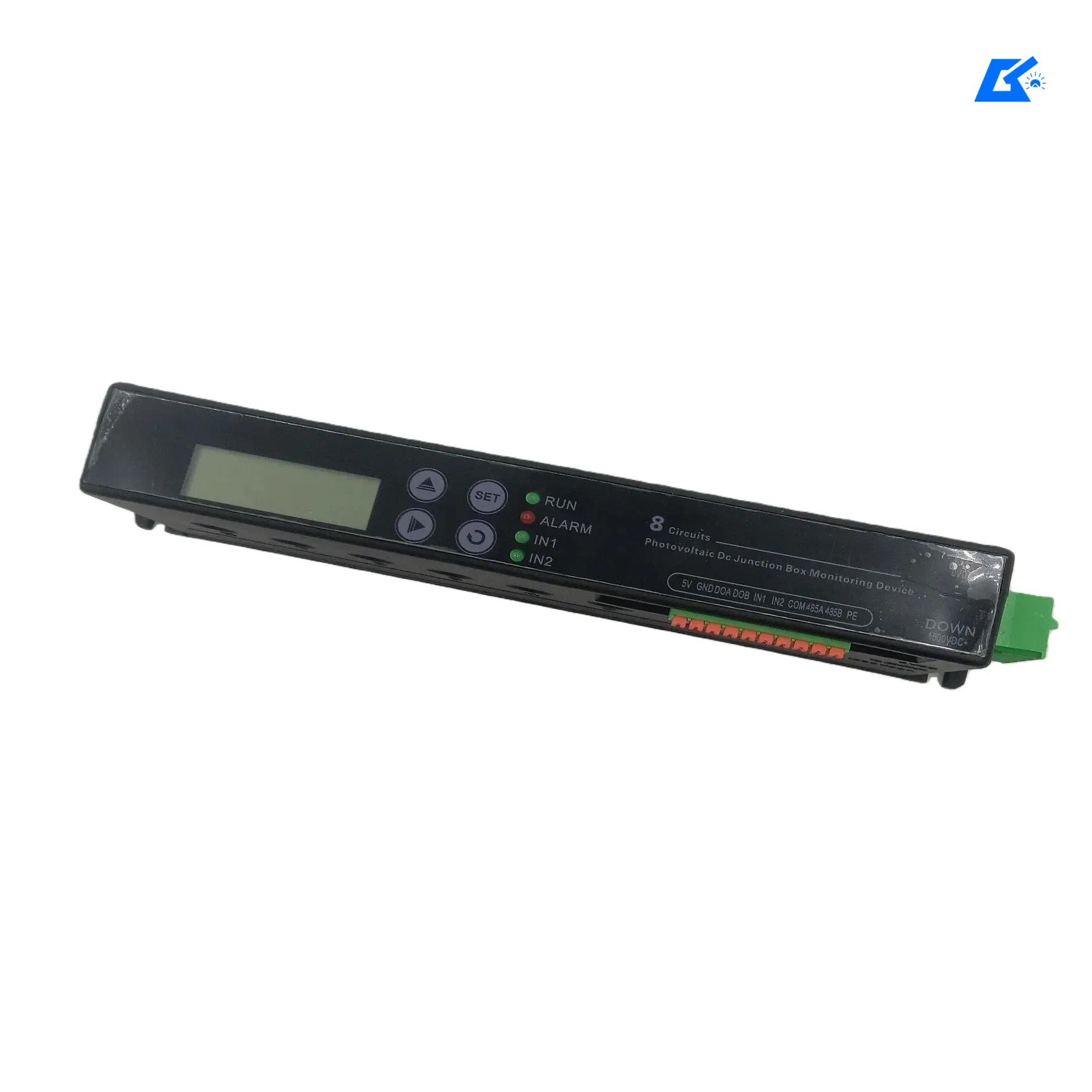

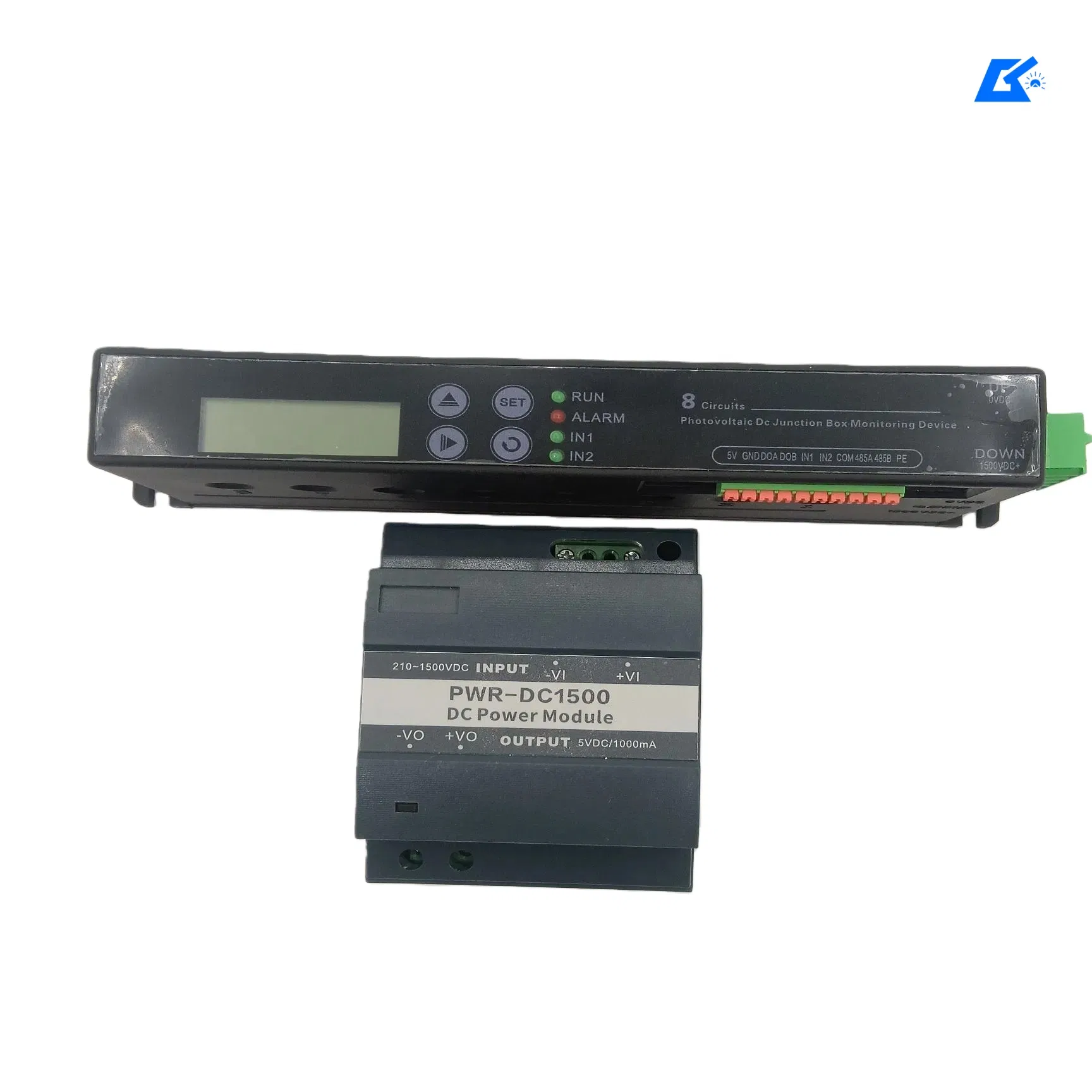

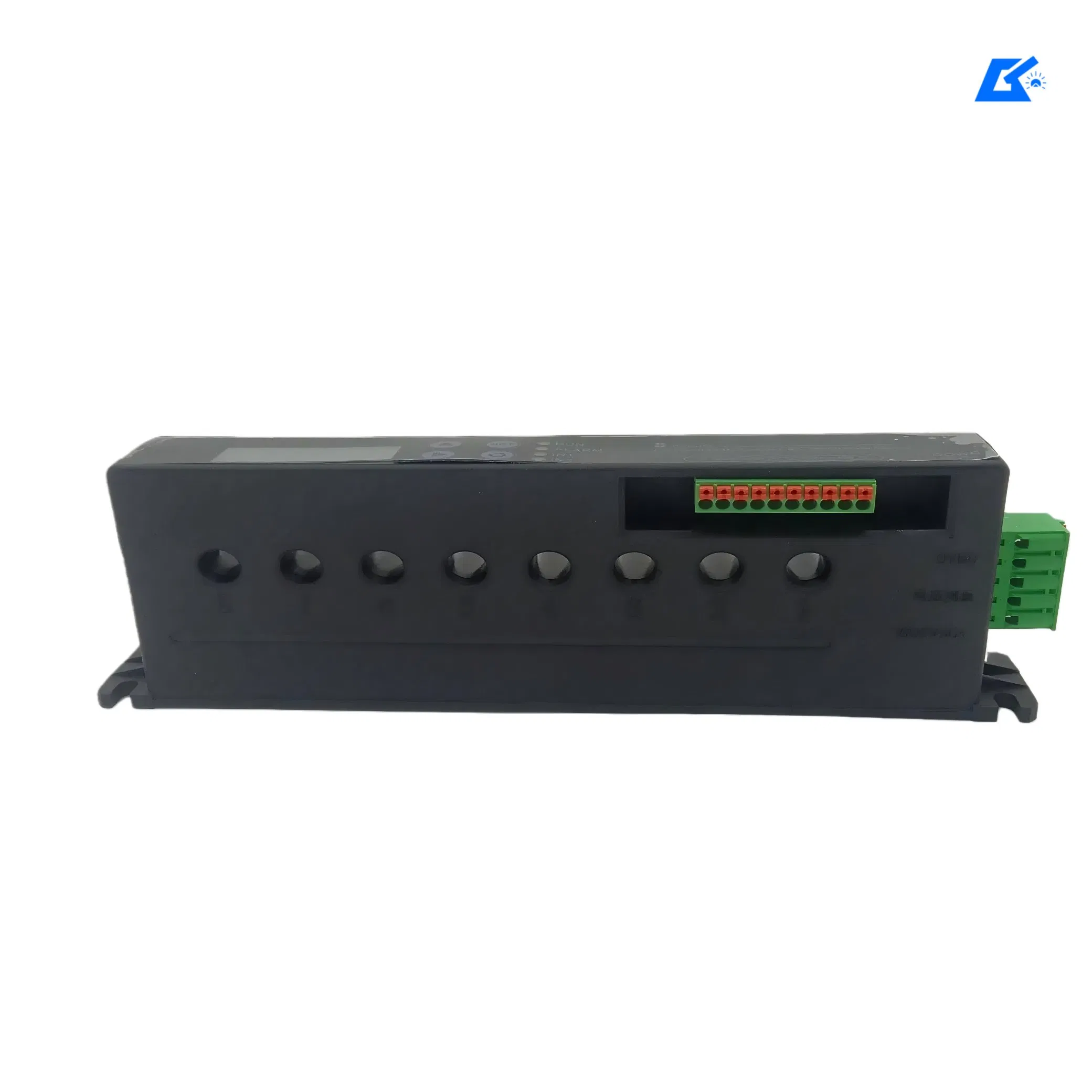

PV Combiner Box Intelligent Monitoring Device is designed to monitor and manage the operating status of photovoltaic DC systems in real time. It provides reliable data acquisition and alarm functions to ensure safe and efficient operation of solar power plants.
The device supports multi-circuit monitoring and can collect key parameters such as string current, DC voltage, power status, and fault signals. With a clear LCD display and LED indicators, system status and alarms can be checked easily on site. When abnormal conditions occur, the device triggers visual and remote alarm signals, allowing quick response and preventive maintenance.
Integrated with RS485 communication, it enables seamless connection to upper-level monitoring systems or SCADA platforms for centralized management. This helps reduce operation and maintenance costs while improving system reliability.

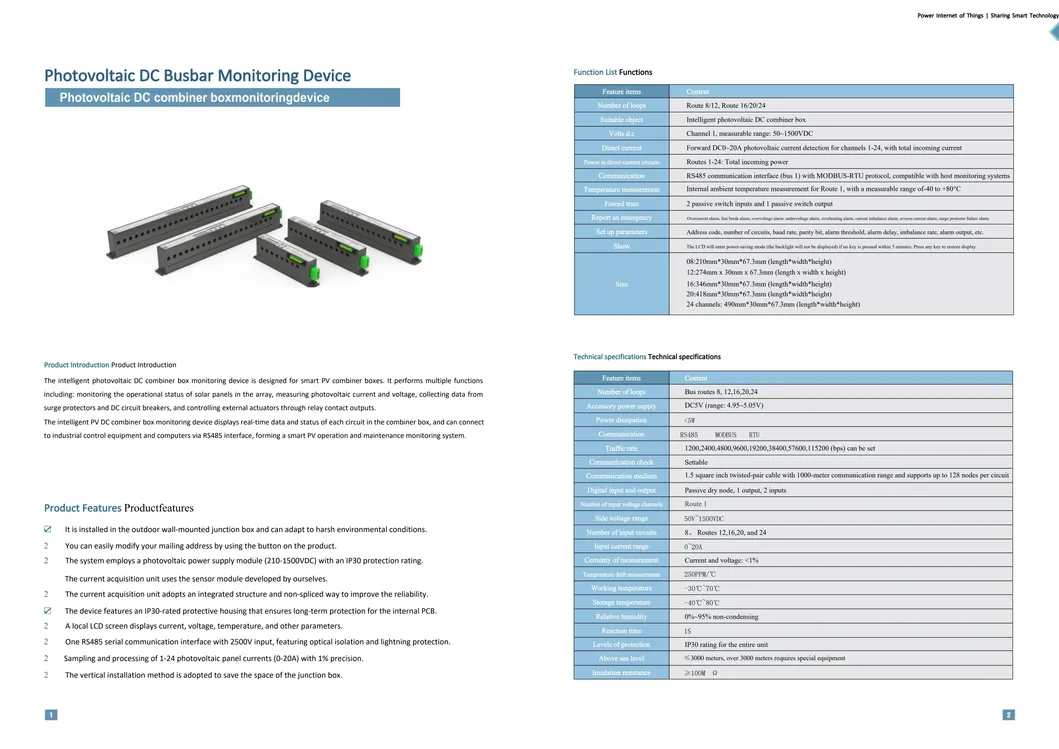

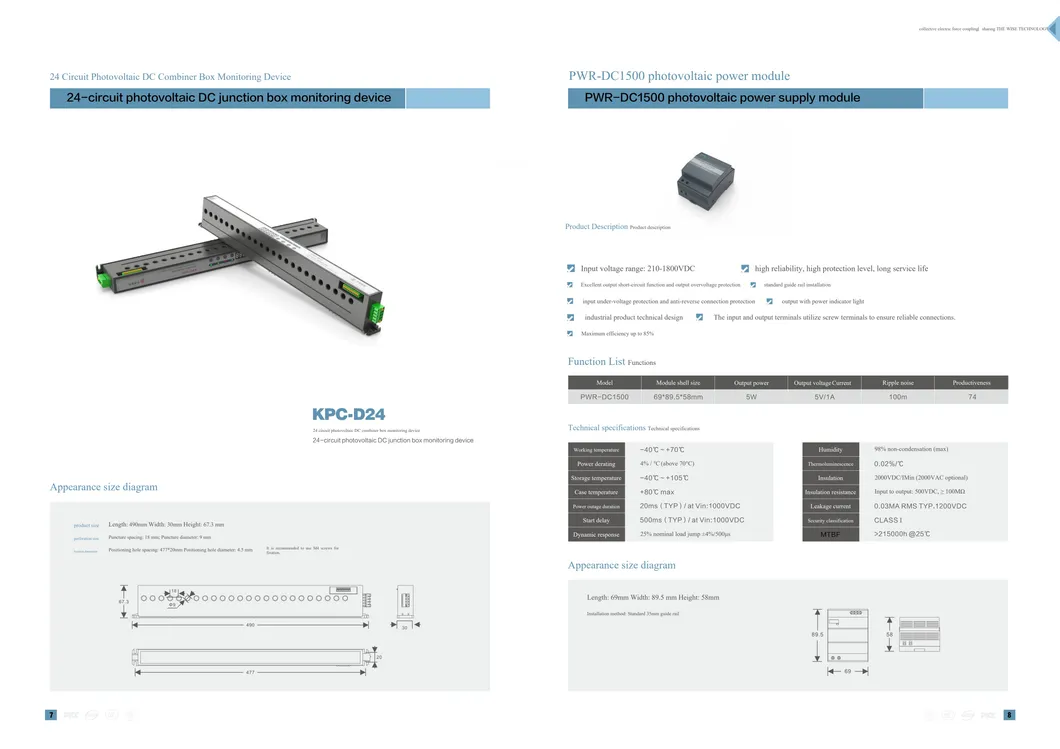

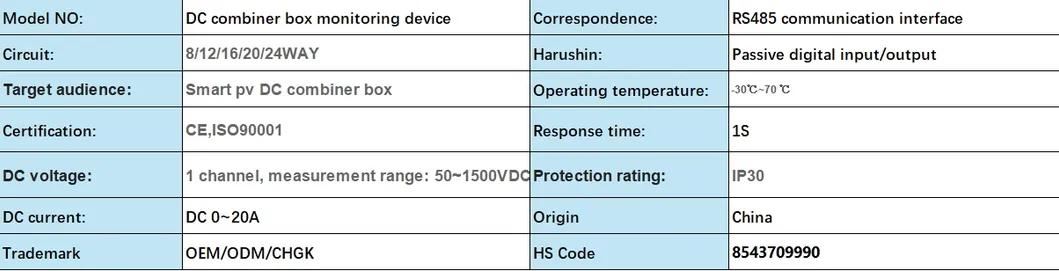

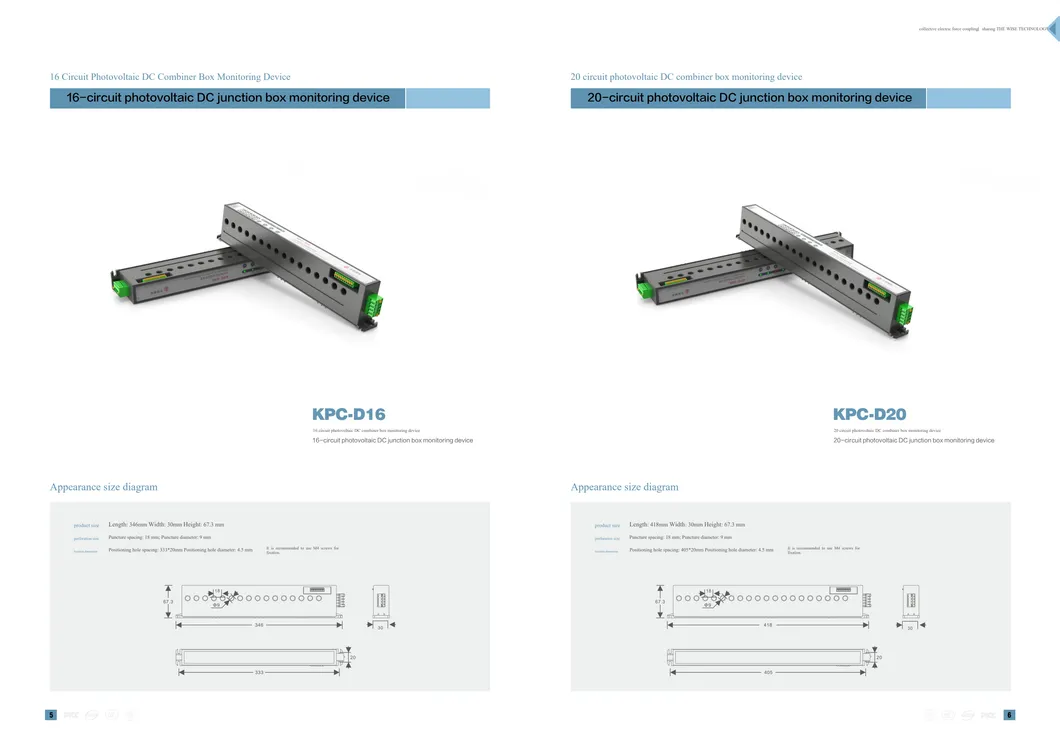

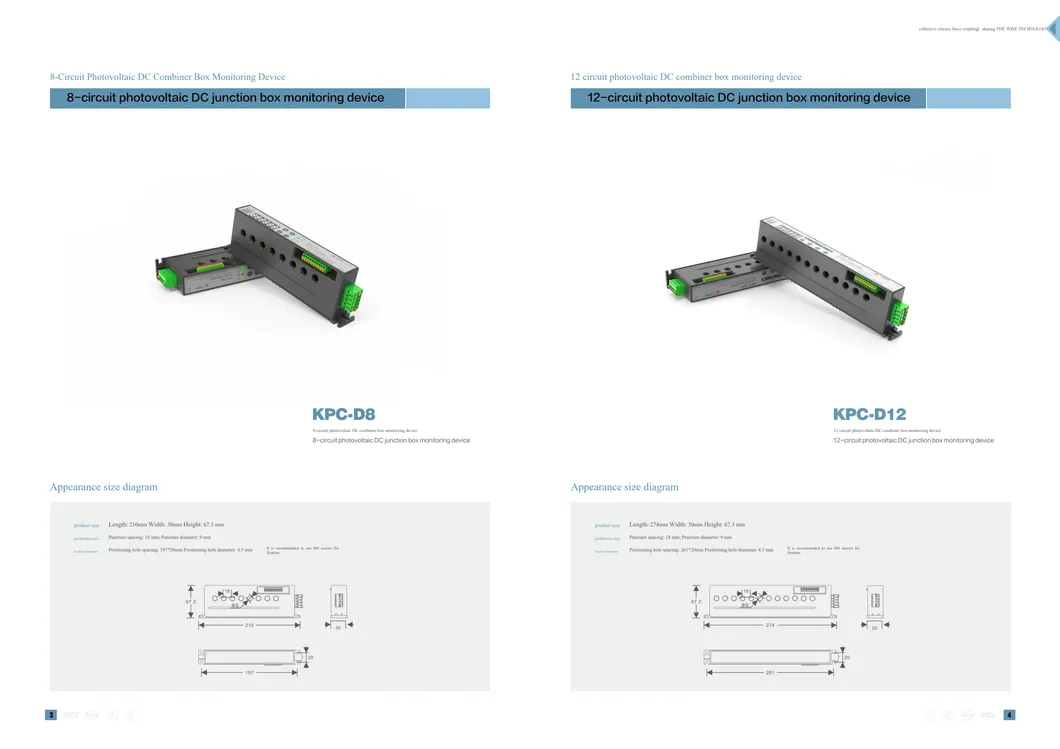

⚙️ Product Parameters & Visuals

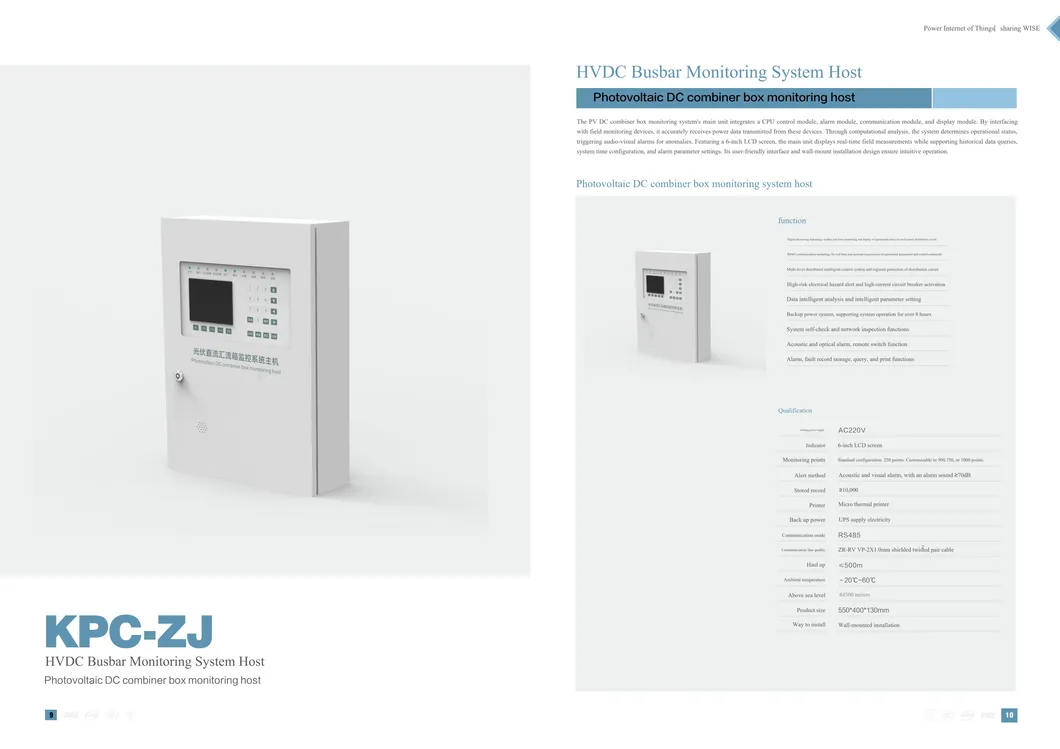

🏢 System Integration & Applications
❓ Frequently Asked Questions
What is the main function of this monitoring device?
It is designed to monitor and manage the operating status of PV DC systems in real time, collecting data like string current, voltage, and power status.
Does the device support remote communication?
Yes, it features integrated RS485 communication, allowing it to connect to upper-level monitoring systems or SCADA platforms.
How can I check the system status on-site?

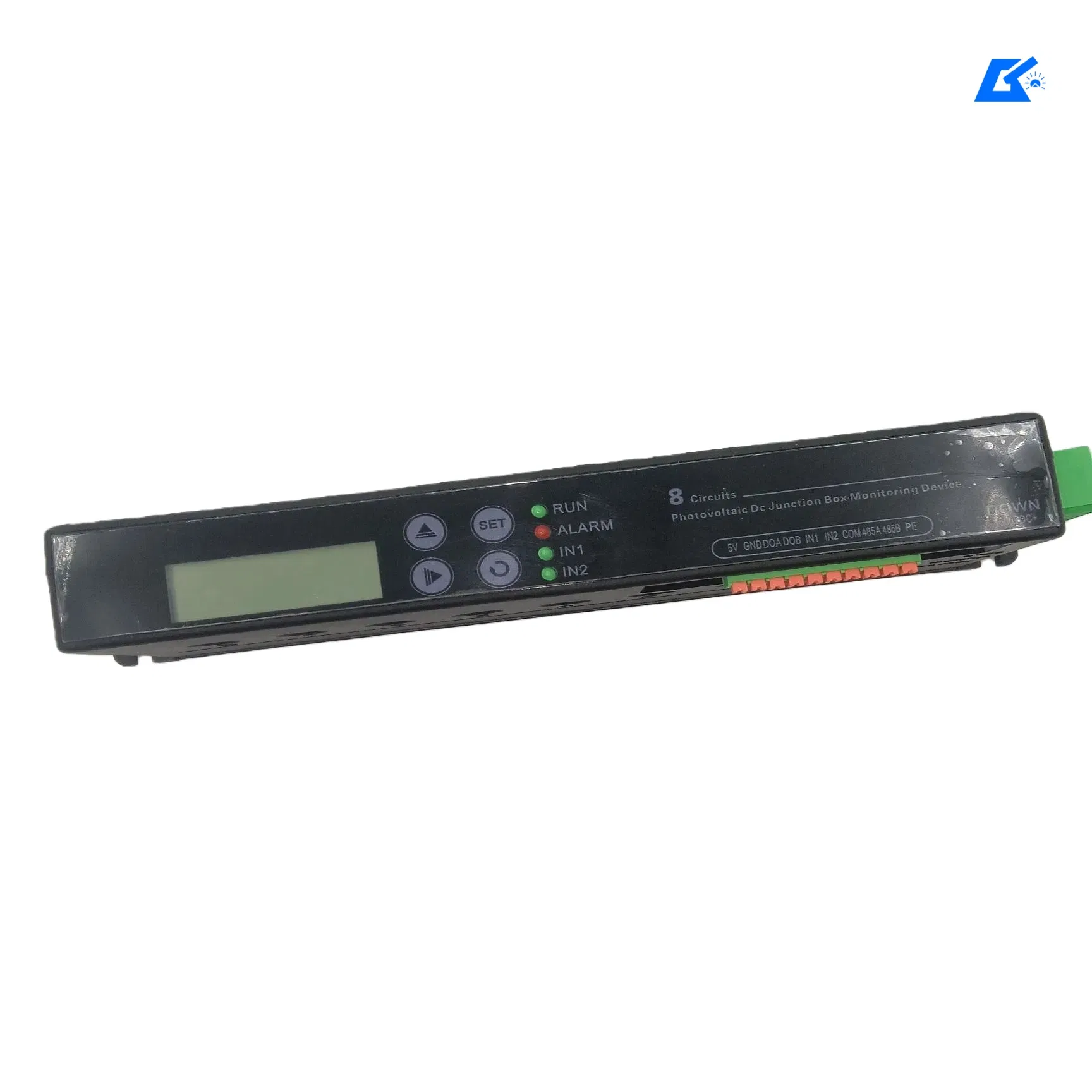

The device is equipped with a clear LCD display and LED indicators for easy on-site status and alarm checking.
What happens when a fault is detected?
The device triggers both visual on-site alarms and remote alarm signals to ensure quick response and preventive maintenance.
What are the typical applications for this product?
It is widely used in PV combiner boxes, solar inverters, rooftop PV systems, and large-scale utility photovoltaic power plants.
What standards does the device comply with?

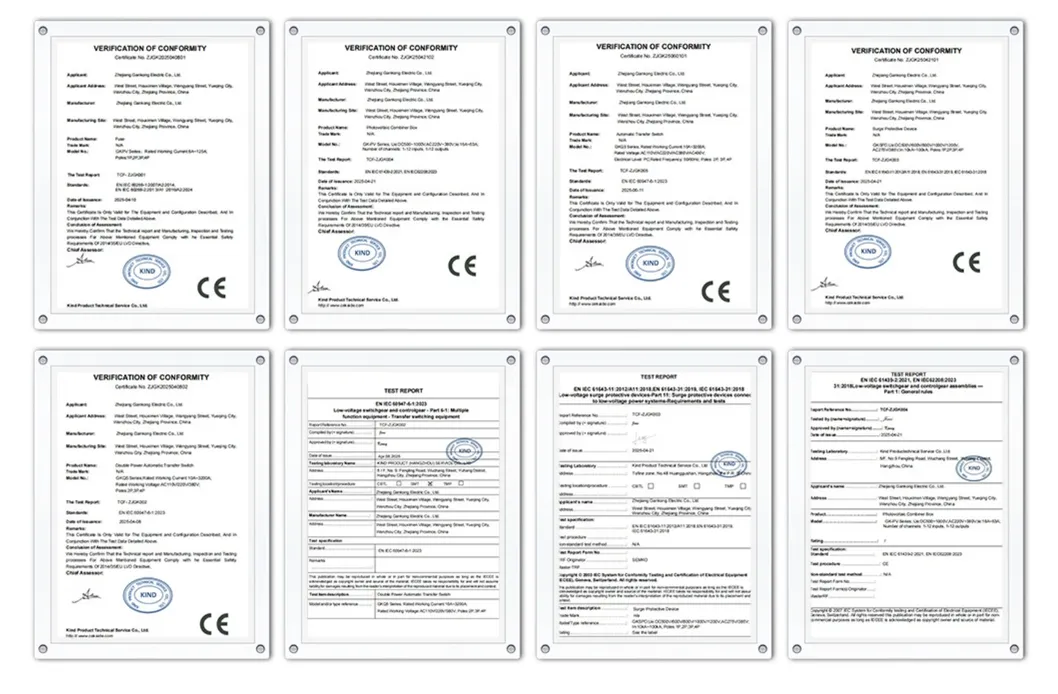

The monitoring device complies with international standards, including En IEC 61643-11 and is CE and ISO certified.
