SDEV Charger
1 / 5

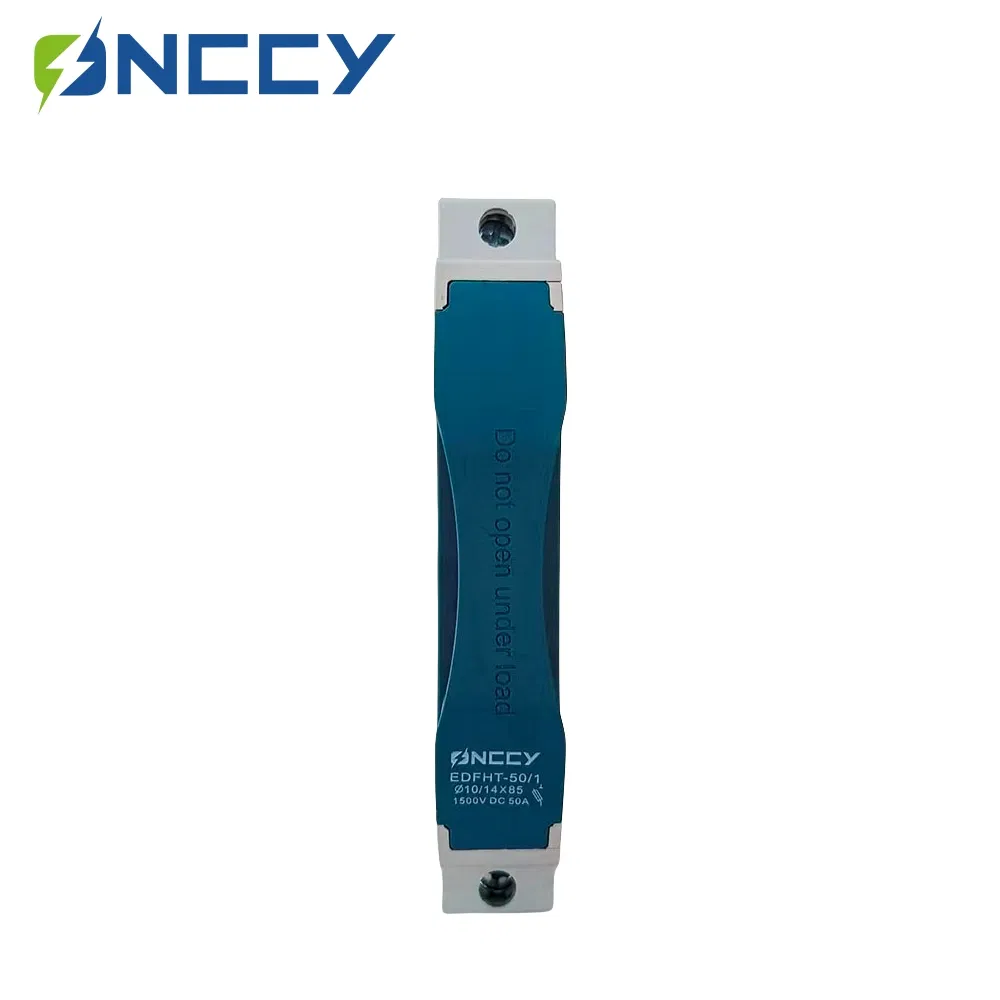

| Model NO. | EDFHT |
| Type | Auto Fuse Holder |
| Size of Fuse | Medium Fuse Holder |
| Execution Standard | European Standard |
| Rated Voltage Ue | 1500VDC |
| Rated Current | 2~32A, 30~50A |
| Poles | 1p |
| Breaking Capacity | 50ka |
| Max Power Dissipation | 3W |
| Degree of Protection | IP20 |
| Terminal Screws | M4 |
| Fuse Size | 10*85mm, 14*85mm |
| Operating Temperature Range | -40℃~+90℃ |

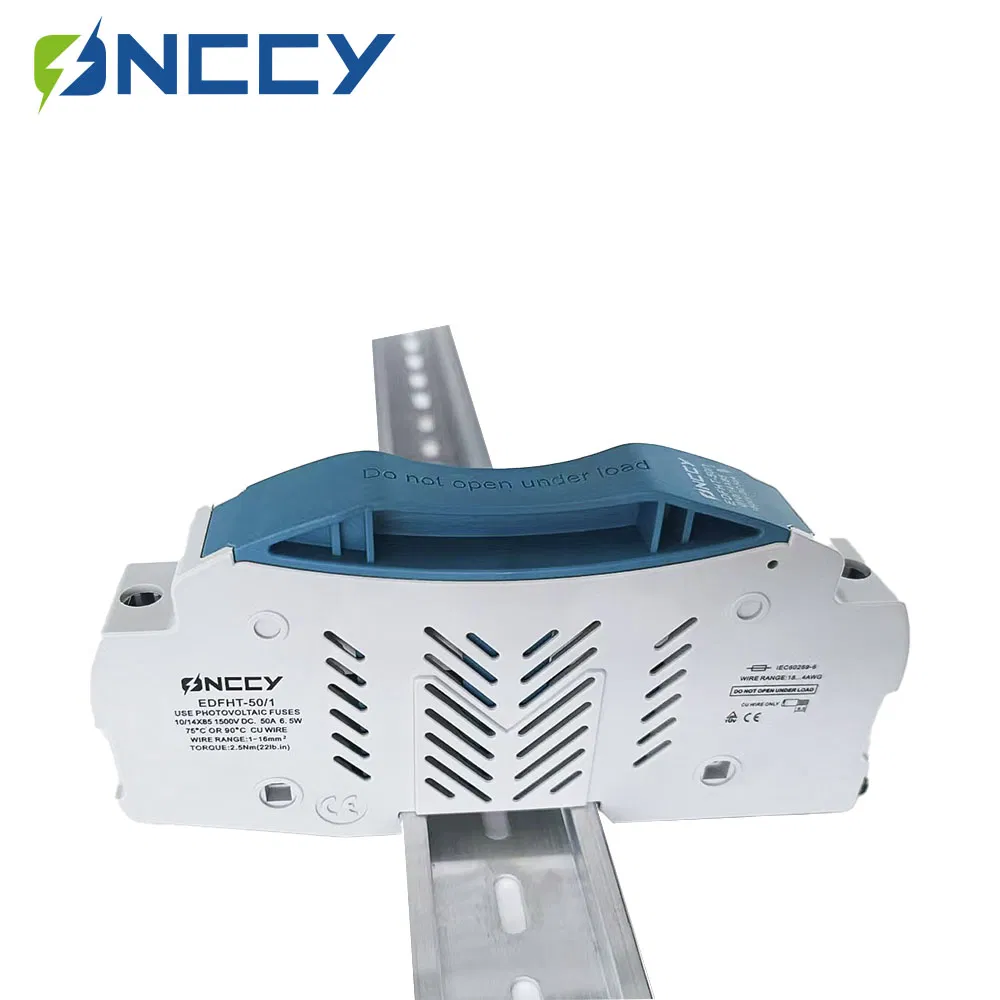

| Mounting | DIN Rail IEC/En 60715 |
| Pollution Degree | 3 |
| Installation Class | Three |
| Class | Gpv |
| Torque | 2.5n·m |
| Standard | IEC60269-6 |
| HS Code | 85361000 |

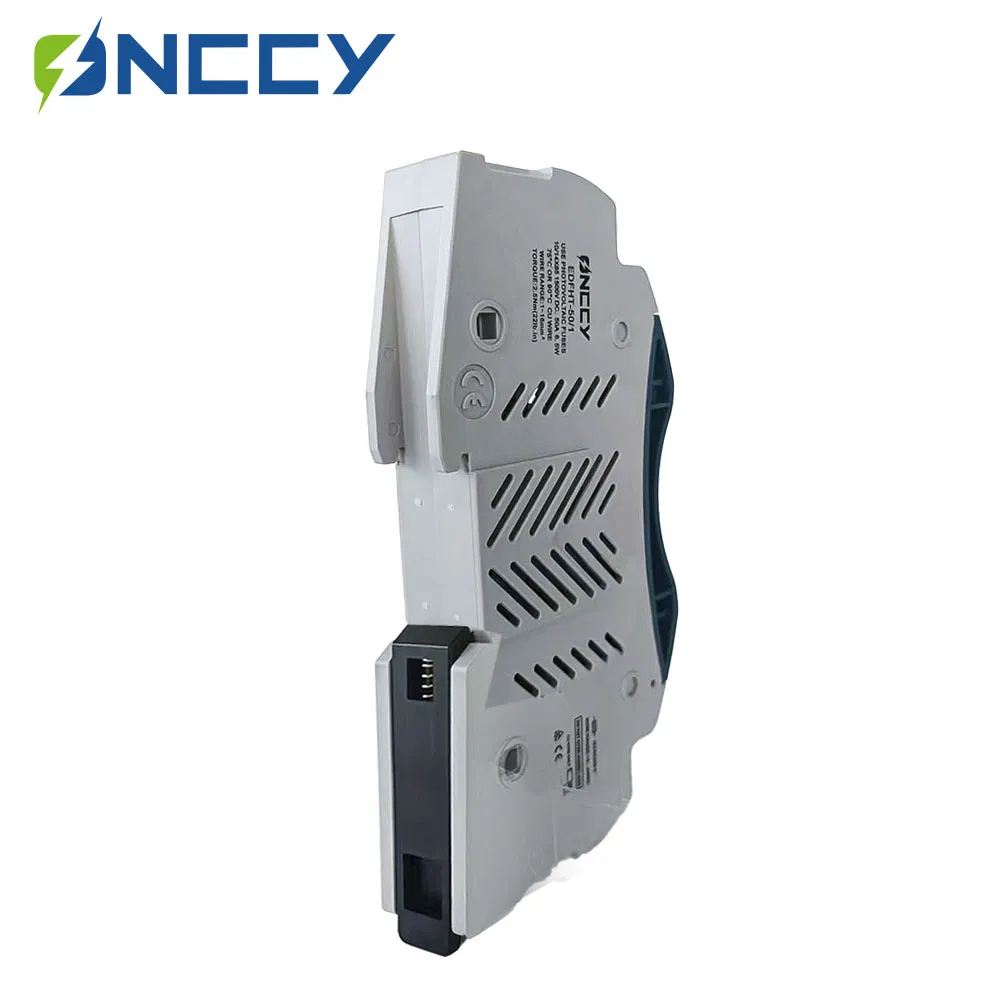

As a leading manufacturer of DC Fuse Holders for solar systems, we provide reliable circuit protection solutions for your photovoltaic installations. Our high-quality DC Fuse Holders are designed to ensure safe and efficient operation, protecting your solar panels and other components from overcurrent conditions.

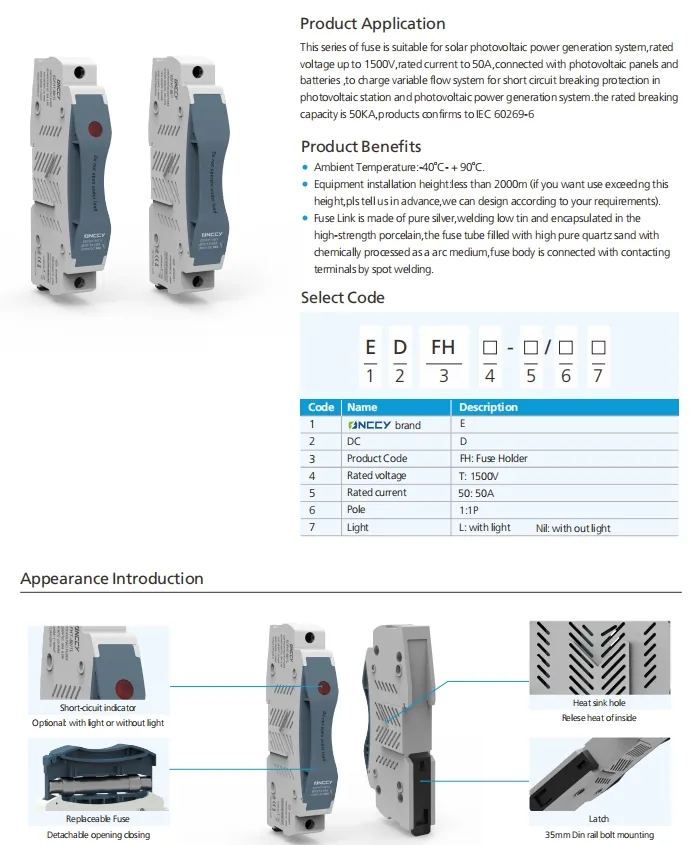

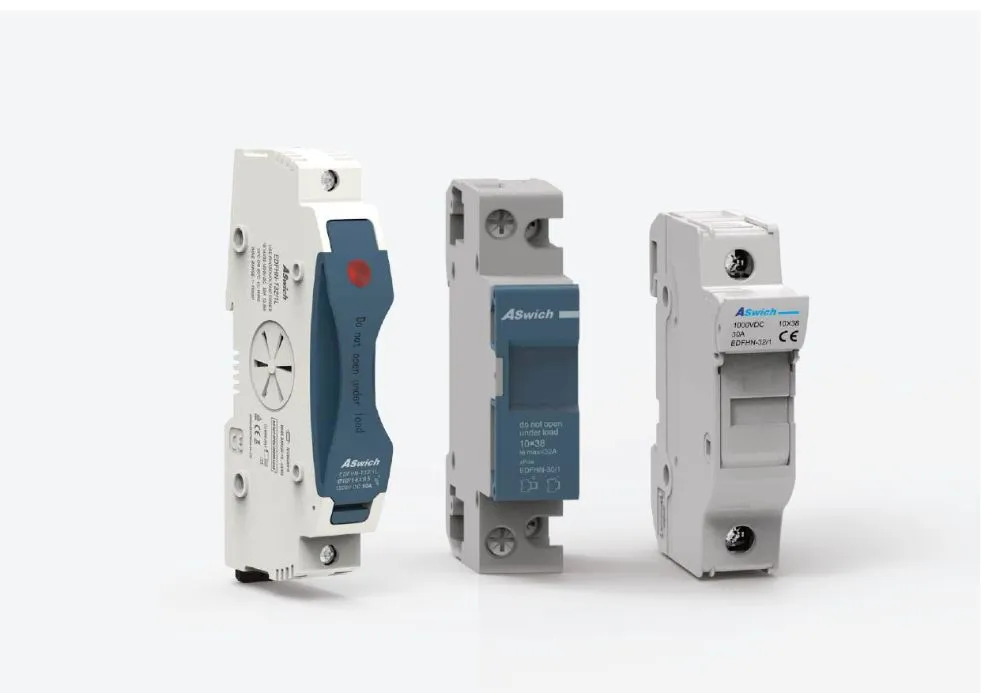

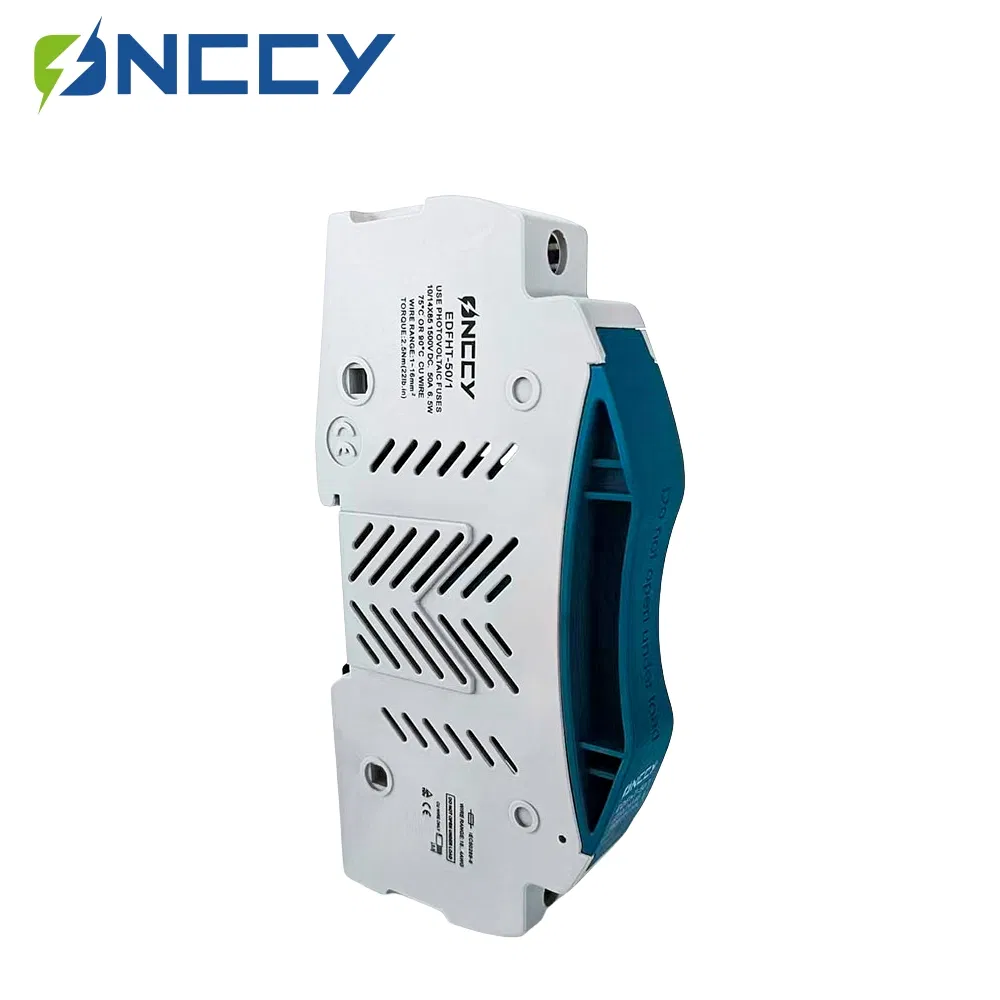

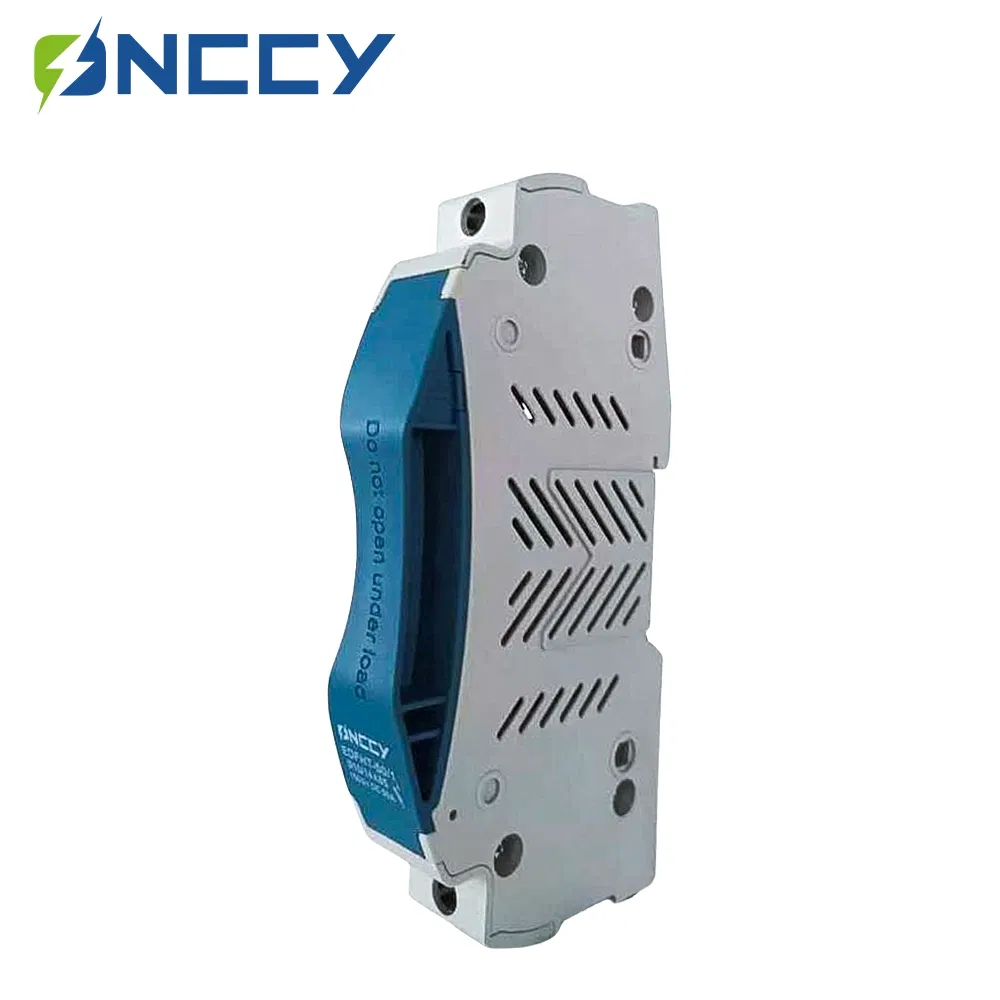

The PV Modular fuse holders support 10×38mm, 10*85mm, and 14*85mm fuse links up to 1000V DC & 1500V DC rated voltages. They have been developed to offer a compact, safety and economic protection solution in photovoltaic installations where no-load voltages above 1000VDC/1500VDC can be achieved.
| Model | EDFH Series |
| Rated voltage Ue | 1500VDC |
| Rated current | 2A~32A, 30~50A |
| Poles | 1P |
| Degree of protection | IP20 |
LED Indicator Feature: Includes LED Indicator for fast diagnostics. When the fuse fails and the solar panel is not working, the red LED lights are turned on, allowing for immediate identification of system faults.

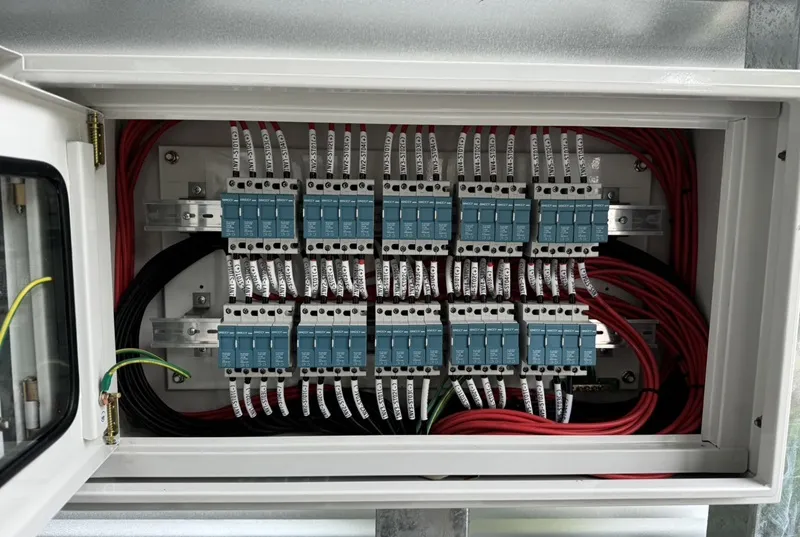

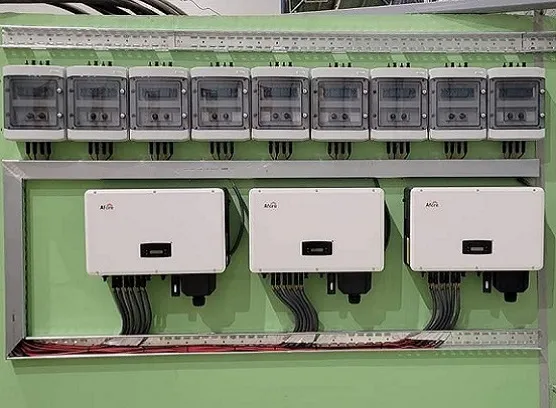

Designed for comprehensive protection in photovoltaic (PV) systems, including PV string and array levels, combiner boxes, PV modules, inverters, and battery charge controllers. Ideal for off-grid, grid-tie, and hybrid systems globally.
