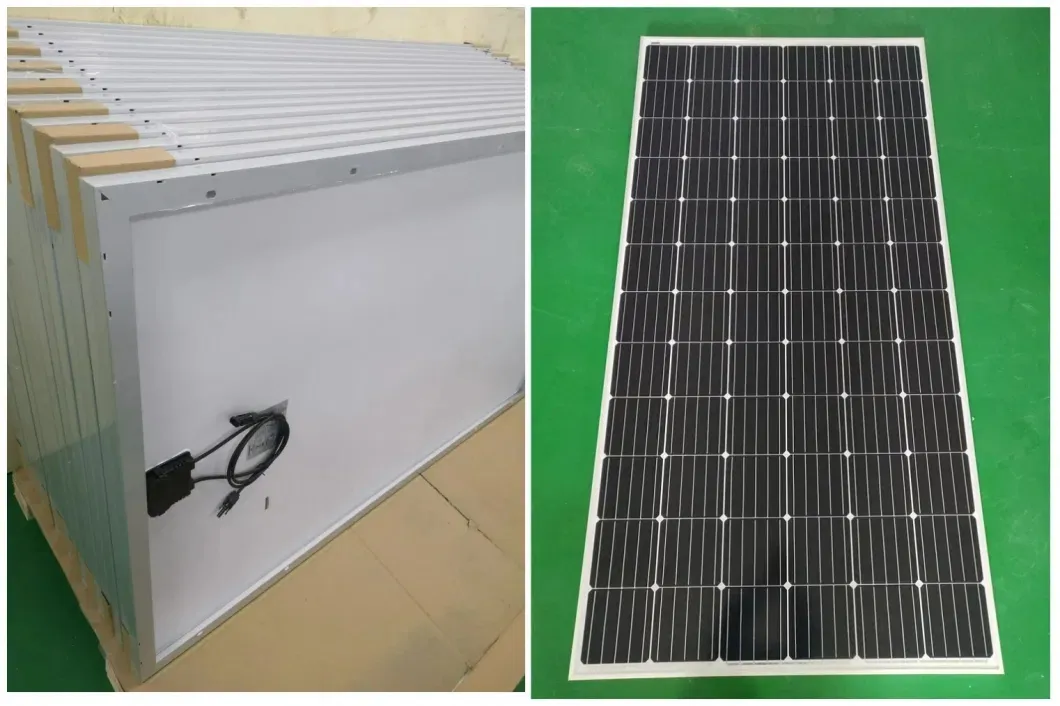

Perc Monocrystalline module 144 cells 166mm

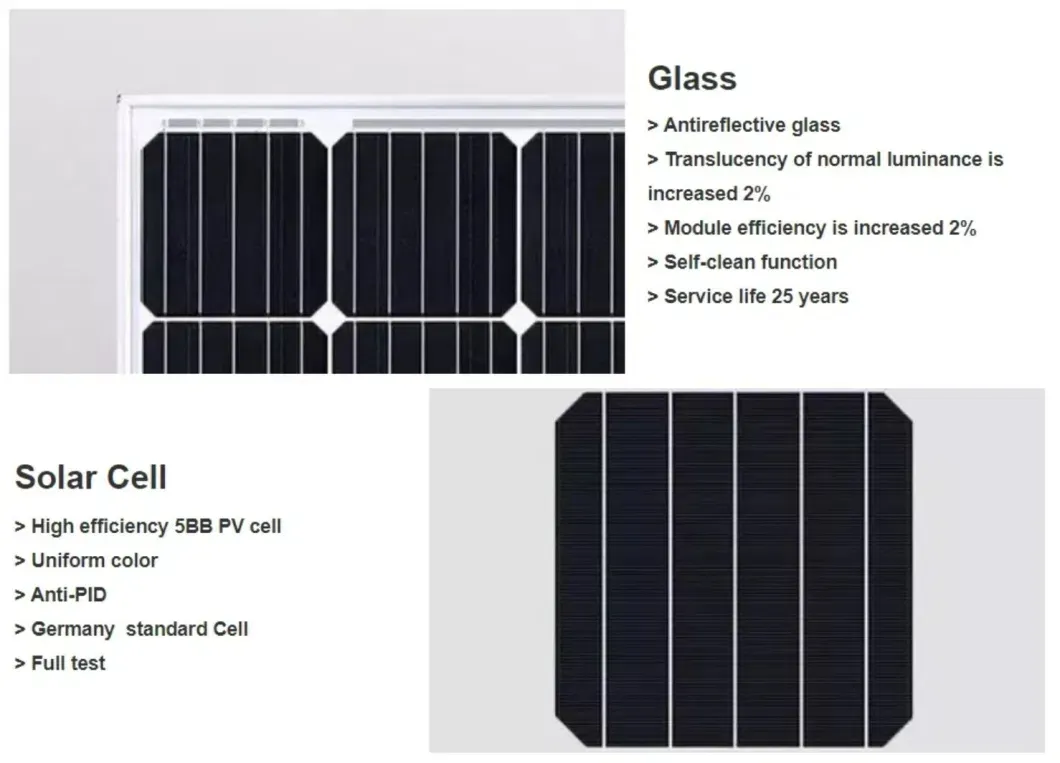

Half Cell Module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, the affected working areas will be 50% less. By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
| Model | M350W-72 | M370W-72 | M380W-72 | M400W-72 | M410W-72 |
|---|---|---|---|---|---|
| Rated Max Power (STC) | 350W | 370W | 380W | 400W | 410W |
| Max Power Voltage (Vmp) | 39.1V | 39.9V | 40.3V | 41.1V | 41.5V |
| Max Power Current (Imp) | 8.94A | 9.27A | 9.43A | 9.74A | 9.87A |
| Open Circuit Voltage (Voc) | 47.5V | 48.4V | 48.8V | 49.7V | 50.2V |
| Module Efficiency | 18.04% | 19.07% | 19.59% | 20.61% | 21.13% |
*STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5

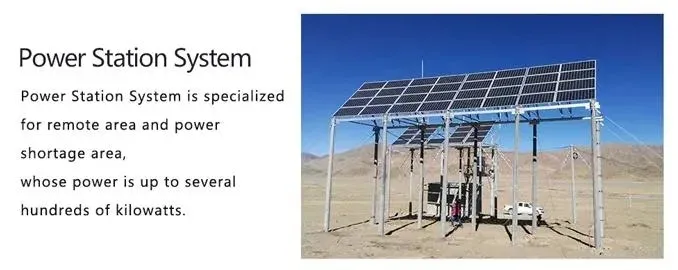

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, batteries (including battery cabinets), and inverter.
