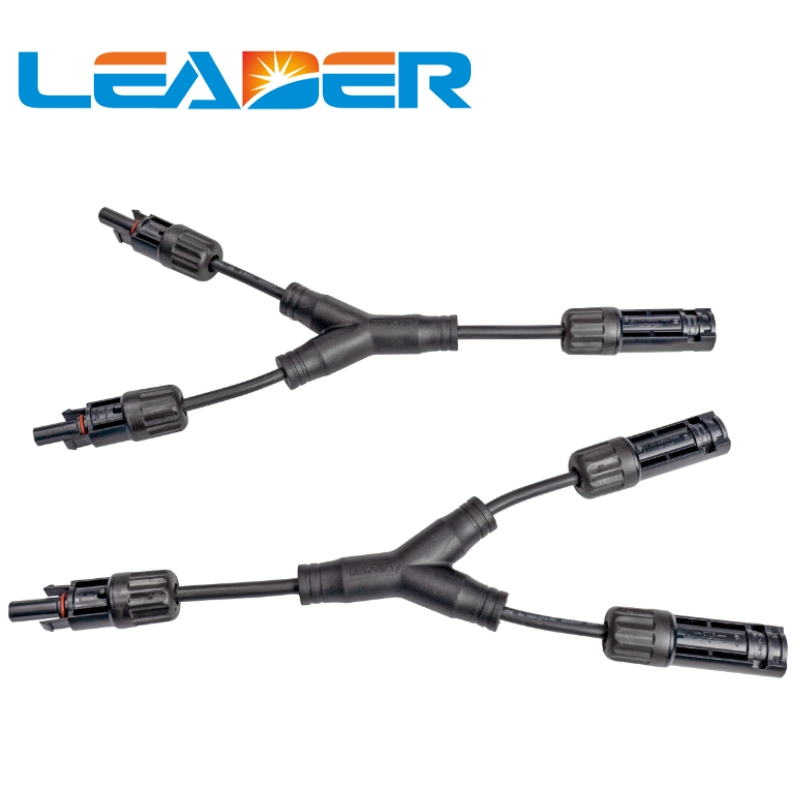

PV Parallel Connector 1500V 2Y Y-Branch Cable Connector for Solar Panels
| Rated Current | 22A(2.5mm2), 30A(4mm2, 6mm2) |
| Withstanding Voltage | 1000V DC(TUV), 600V(UL) |
| Contact Resistance | ≤5mΩ |
| Dia. of pin or socket | 4mm |
| Protection Class | Class II |
| Temperature Range | -40° C ~ +85°C |
| Protection Degree | IP2X unmated; IP67 mated |
| Wire Size Range | 2.5/4/6mm2 (14AWG, 12AWG, 10AWG) |
| Unmating Force | 200 Newton |
| Insulation Material | PC/PA |
| Contact Material | Copper, tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
| Locking system | Snap in |
