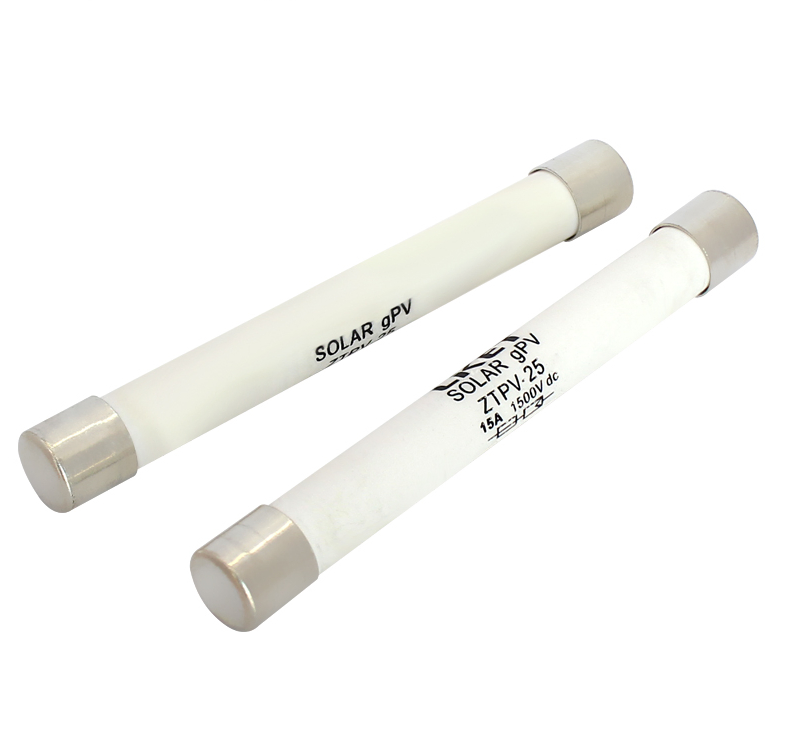

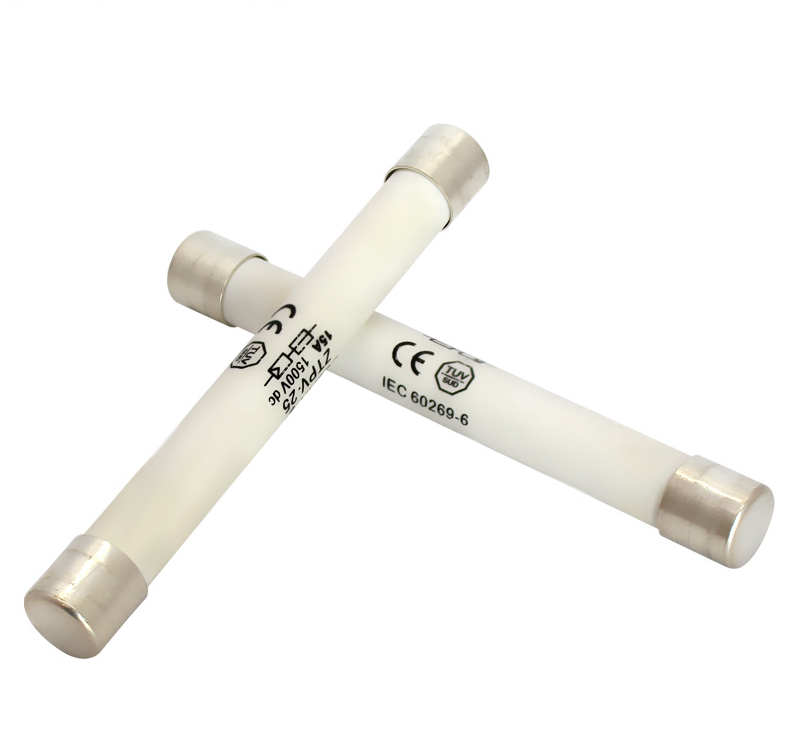

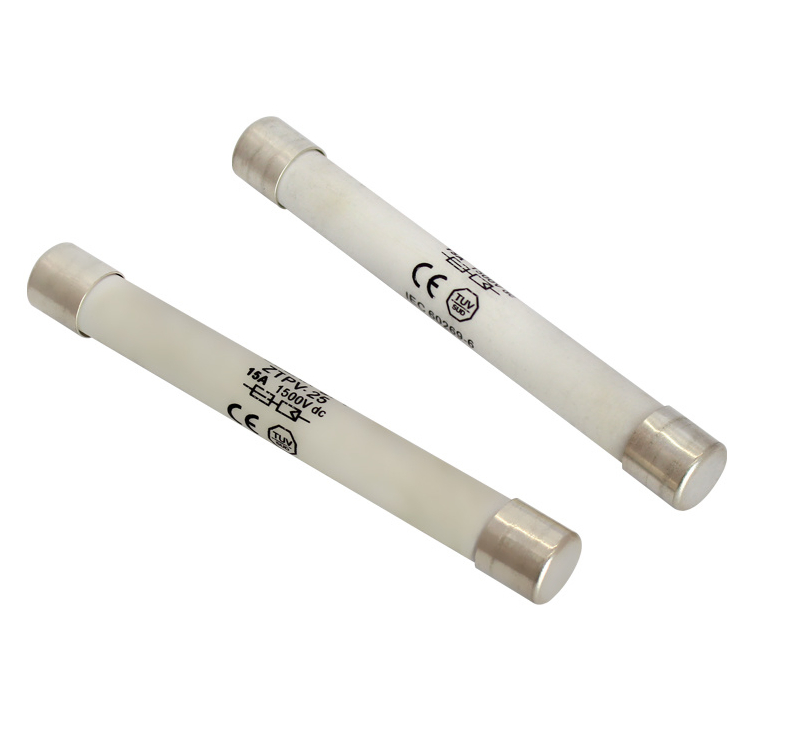

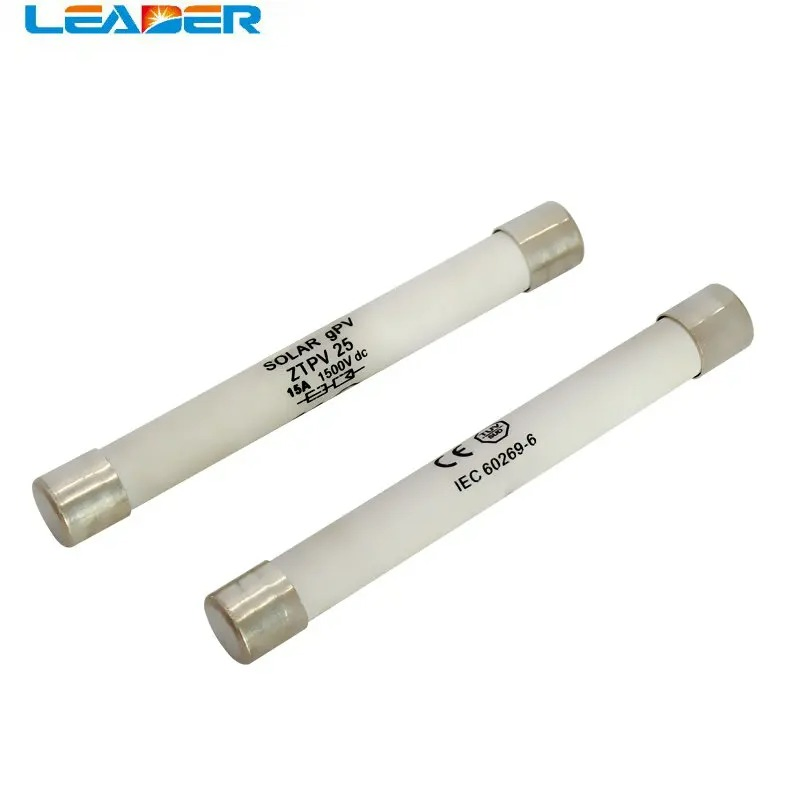

Leader 4A~16A 1500V 10*85mm PV DC Solar Fuse for Photovoltaic System

Still deciding? Get samples of $ !
Order Sample

Product Description

🔹 Basic Information
Model NO.
FSKDC15AL
Usage
High Voltage
Shape
Insert
Fusing Speed
FF
Fusing Device
Pop-up Solid
Standard
JIS
Quality
High
Ampere
4A~16A
Transport Package
Carton
Specification
1500V DC
Origin
China
HS Code
8535100000
Production Capacity
1000000 Pieces/Year
Package Size
30.00cm * 30.00cm * 20.00cm

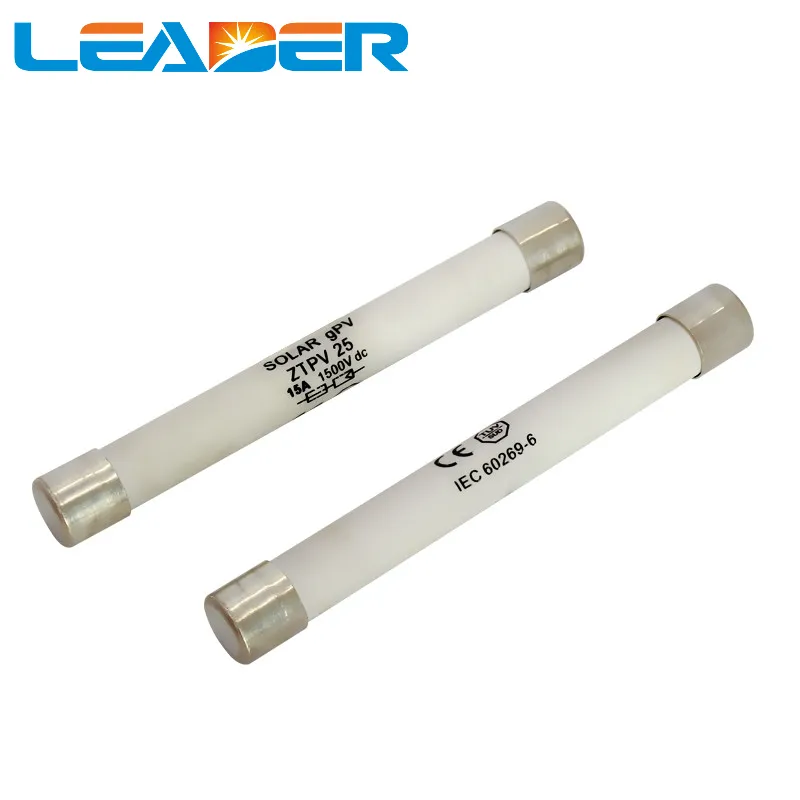

PV DC Solar Fuse

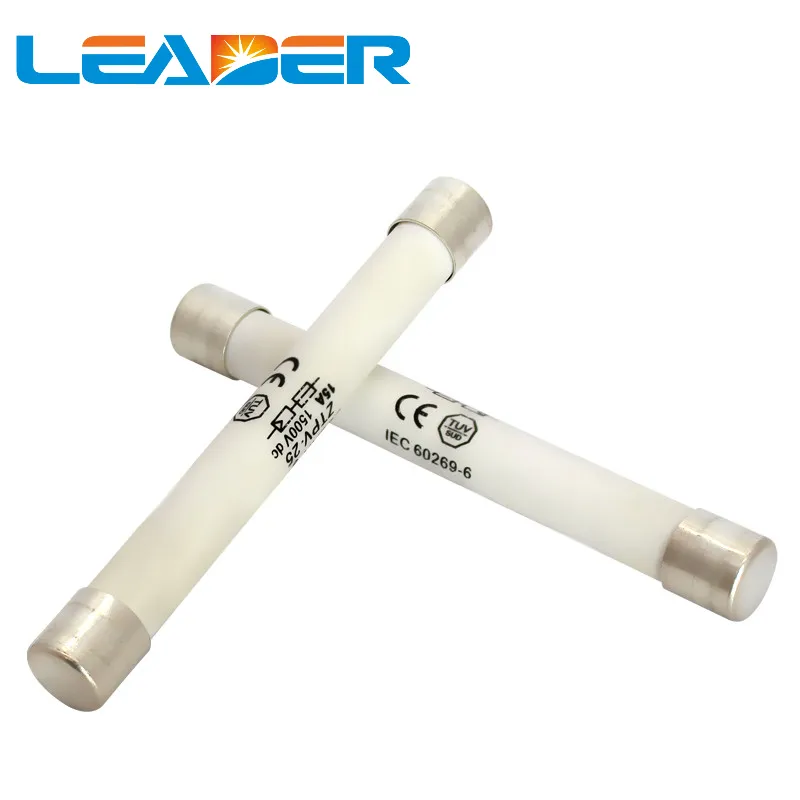

PV DC Solar Fuse View

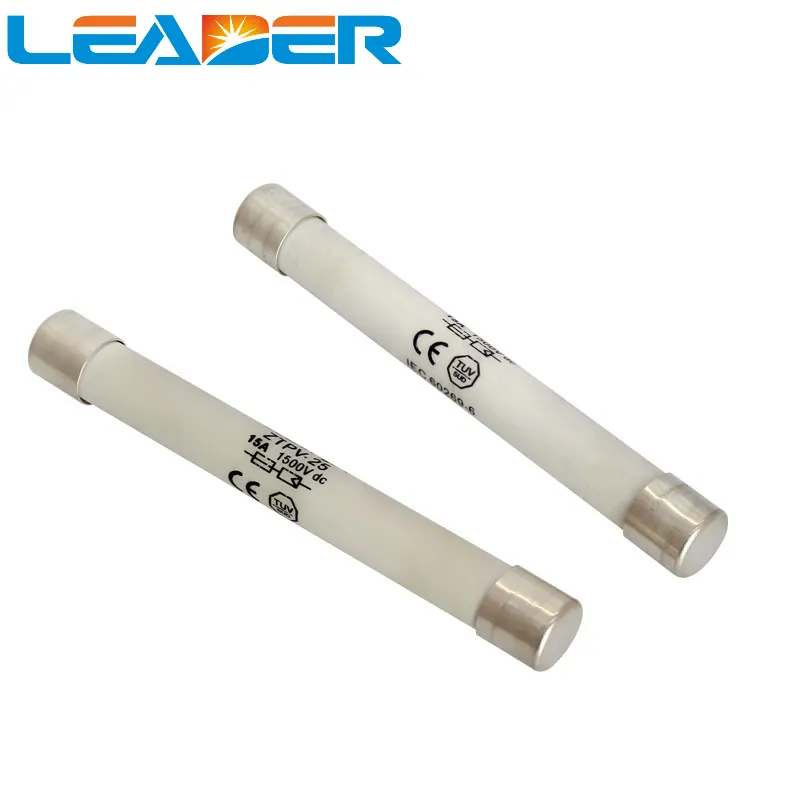

PV DC Solar Fuse Detail
📋 Product Specifications

4A~16A 1500V 10*85mm PV DC Solar Fuse

1500 VDC, 10x85mm PV fuse link
Approvals: UL 2579 Listed (File: E490190)
Reference Standard: UL248-19(2579)
Rated current (fuse): 1A/2A/30A/32A
Rated Breaking Capacity: 30KA
Rated voltage: DC1500 V
Fuse size: 10x85mm
Time Constant: ≤1ms
Special design with silver plated caps for high-power PV applications

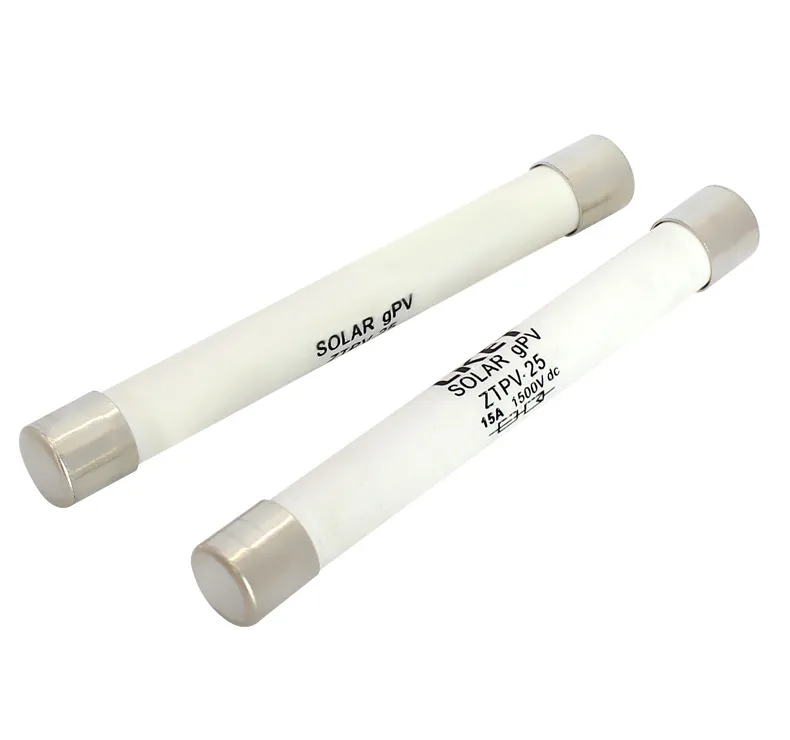

Technical Drawing 1

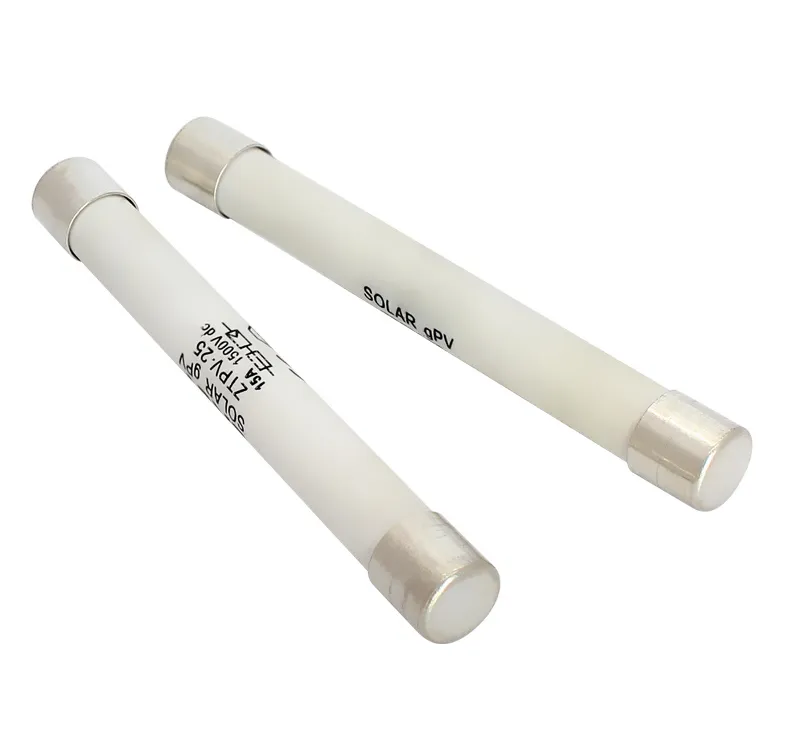

Technical Drawing 2

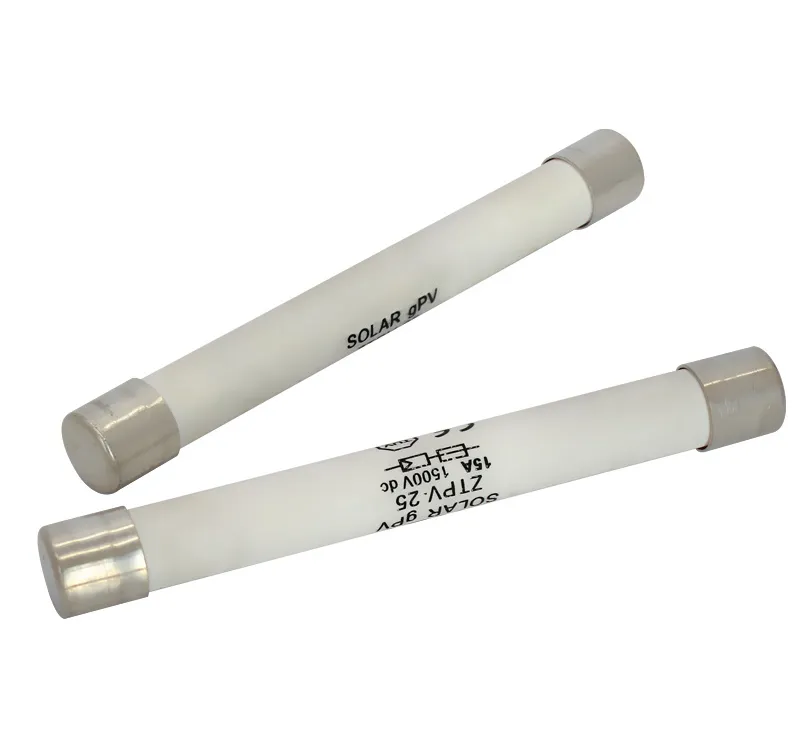

Technical Drawing 3
Technical Drawing 4
Technical Drawing 5

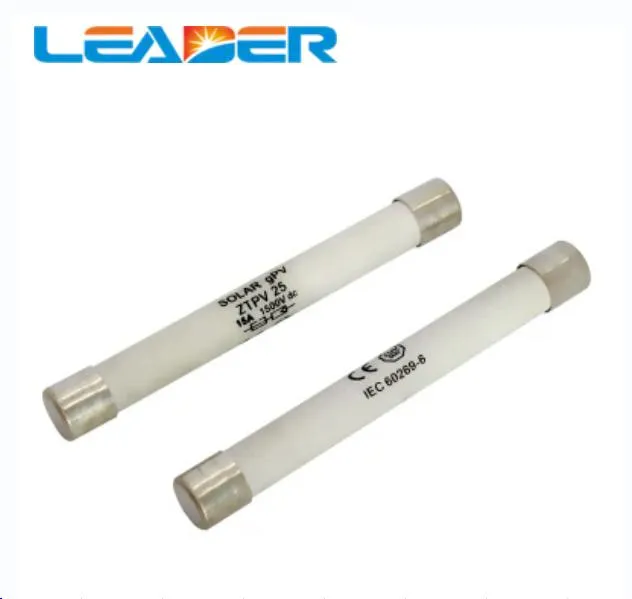

Technical Drawing 6
🛡️ Our Services

Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products, provided the products remain intact and original. Any returns arising from freight and customs costs will be borne by the buyer.

We believe our quality and service will satisfy your needs. If any issues occur, please contact us immediately, and we will make every effort to resolve the problem promptly.

  • ✅ Reply inquiries within 24 hours.
  • ✅ Detailed answers to technical questions.
  • ✅ Fast, safe, and convenient logistics support.
  • ✅ Reasonable pricing for all high-quality items.
❓ Frequently Asked Questions
What is the rated voltage of this PV solar fuse?
The fuse is specifically designed for photovoltaic systems with a rated voltage of 1500V DC.
What certifications does this product hold?
This solar fuse is UL 2579 Listed (File: E490190) and complies with the UL248-19 reference standard.
What is the breaking capacity of the FSKDC15AL model?
It features a high rated breaking capacity of 30KA, ensuring safety in high-power applications.
What are the physical dimensions of the fuse link?
The standard fuse size for this series is 10x85mm.
What makes this fuse suitable for solar energy systems?
It features a special design with silver-plated caps and a fast fusing speed (FF) specifically optimized for high-power PV strings.
Is there a return policy if the quality is not satisfactory?
Yes, products can be returned within 3 days of receipt if they are intact and in original condition; however, freight and customs costs are the responsibility of the buyer.
