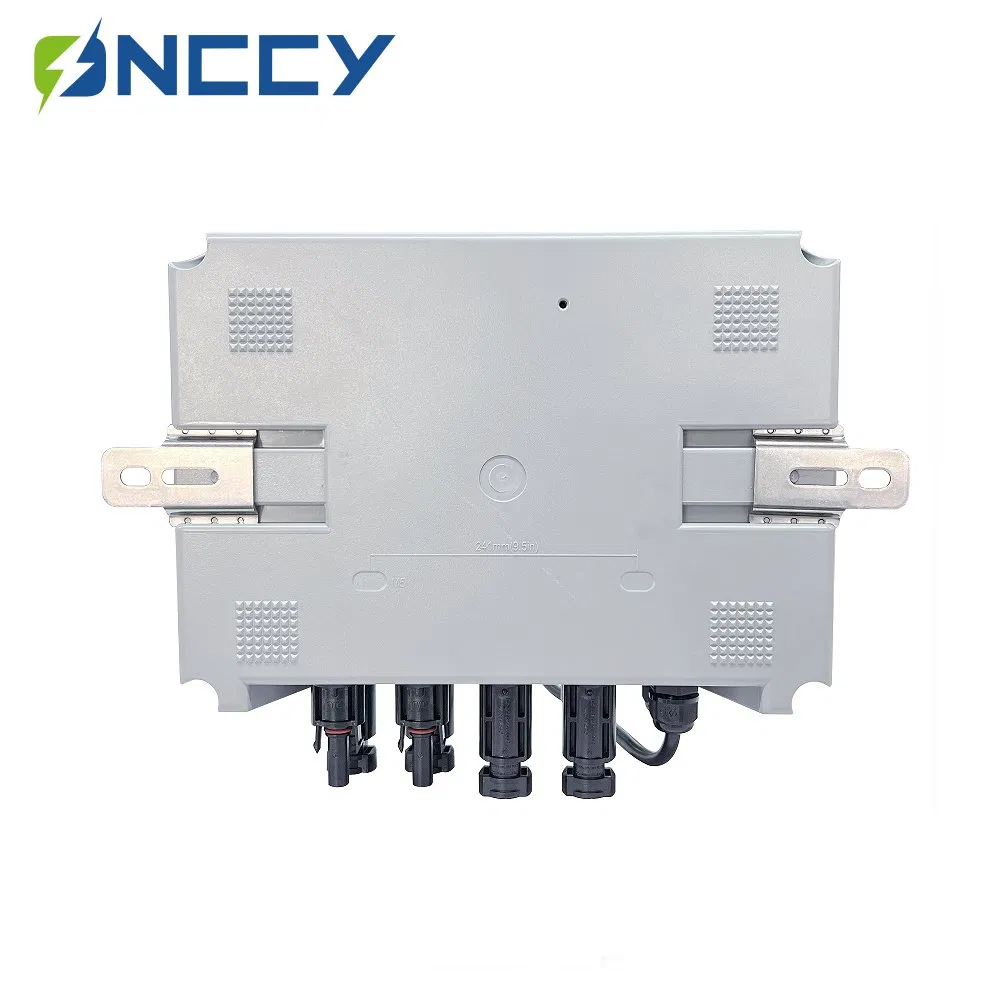

IP66 1600V 63A IP66 Solar Rapid Shutdown Safety Switch

1 / 5

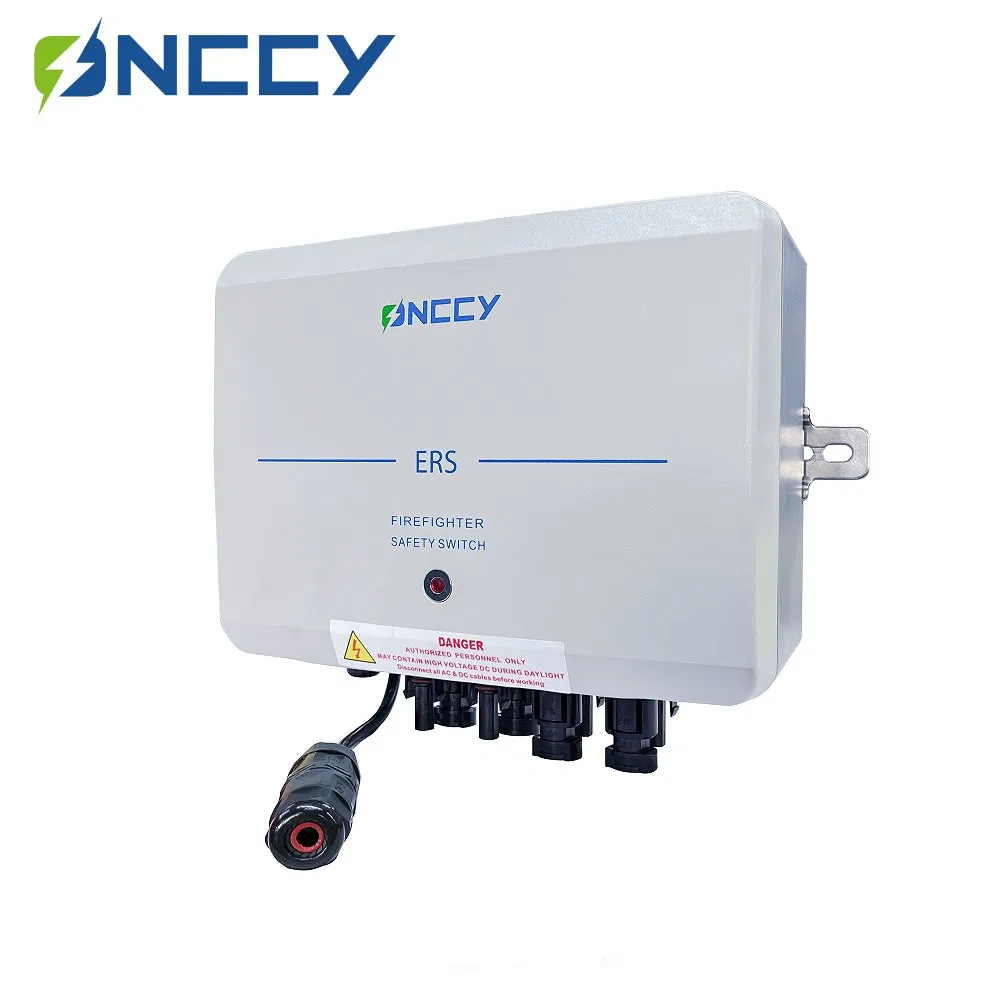

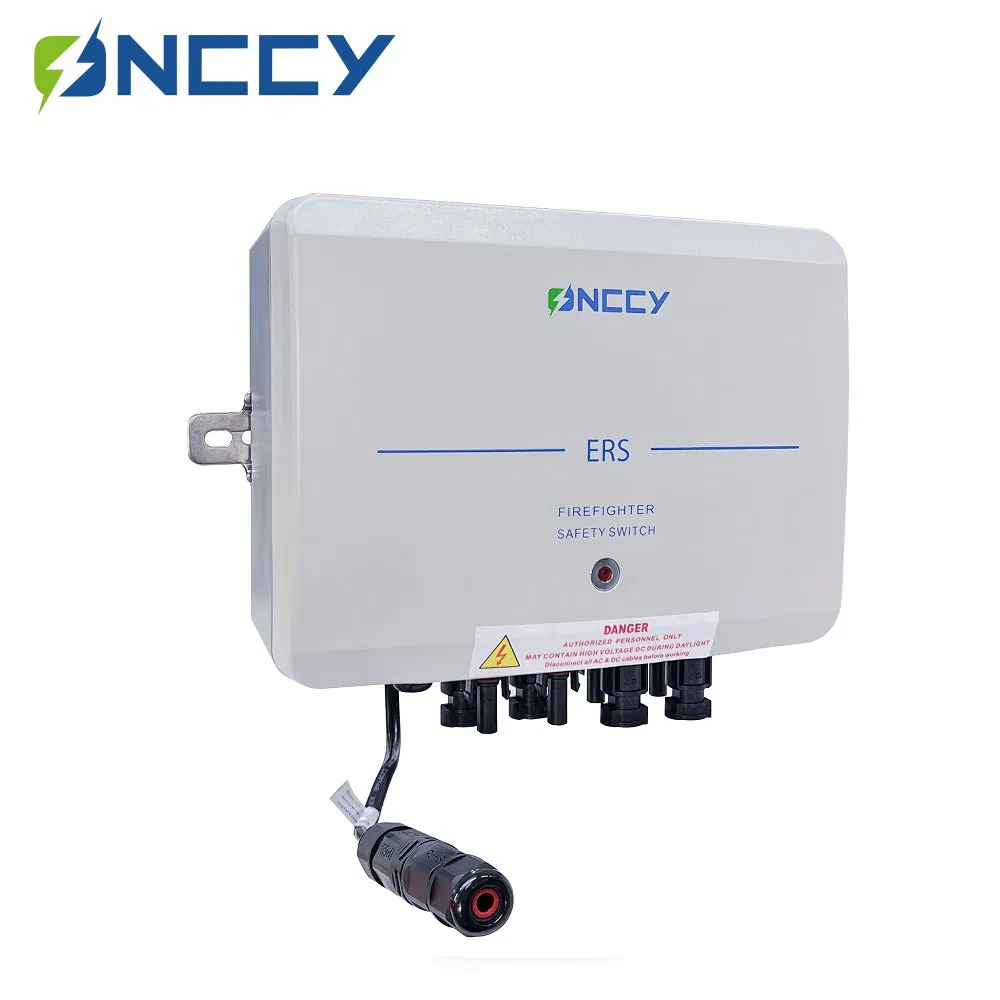

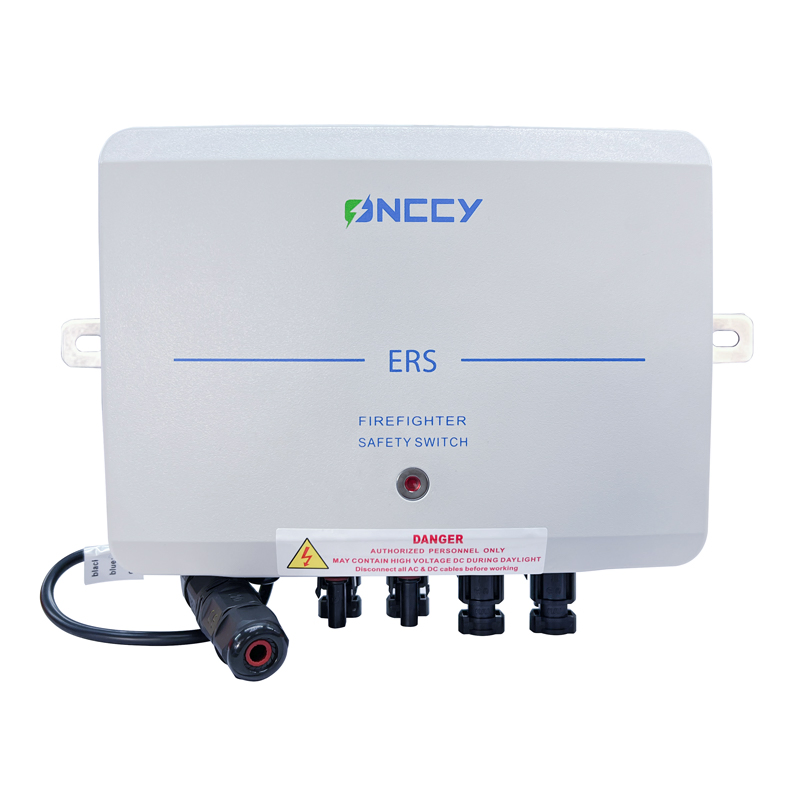

IP66 1600V 63A IP66 Solar Rapid Shutdown Safety Switch

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ERS

Warranty

5 years

Voltage Ui

1500V

Rated Current

40A

Connector

Glands/Mc4/Knock Outs

IP Code

IP66

Authentication

Working Voltage

100VAC-270VAC

Origin

China

Package Size

10.00cm * 10.00cm * 10.00cm

Product Description

⚡

Rapid Shutdown Technology

A safety technology that rapidly halts system operation in emergencies to prevent damage or danger. Operates via hardware or software mechanisms to cut power supply immediately upon fault detection.

Application Fields:

Industrial Automation: Urgent production line stop.
Power Systems: Overload and short-circuit protection.
Solar Systems: Firefighter safety switch for PV panels.
Automobiles: Fuel supply cutoff during collisions.

Key Advantages:

Safety: Significantly reduces accident risks.
Protection: Prevents expensive equipment damage.
Response: Completes shutdown within milliseconds.

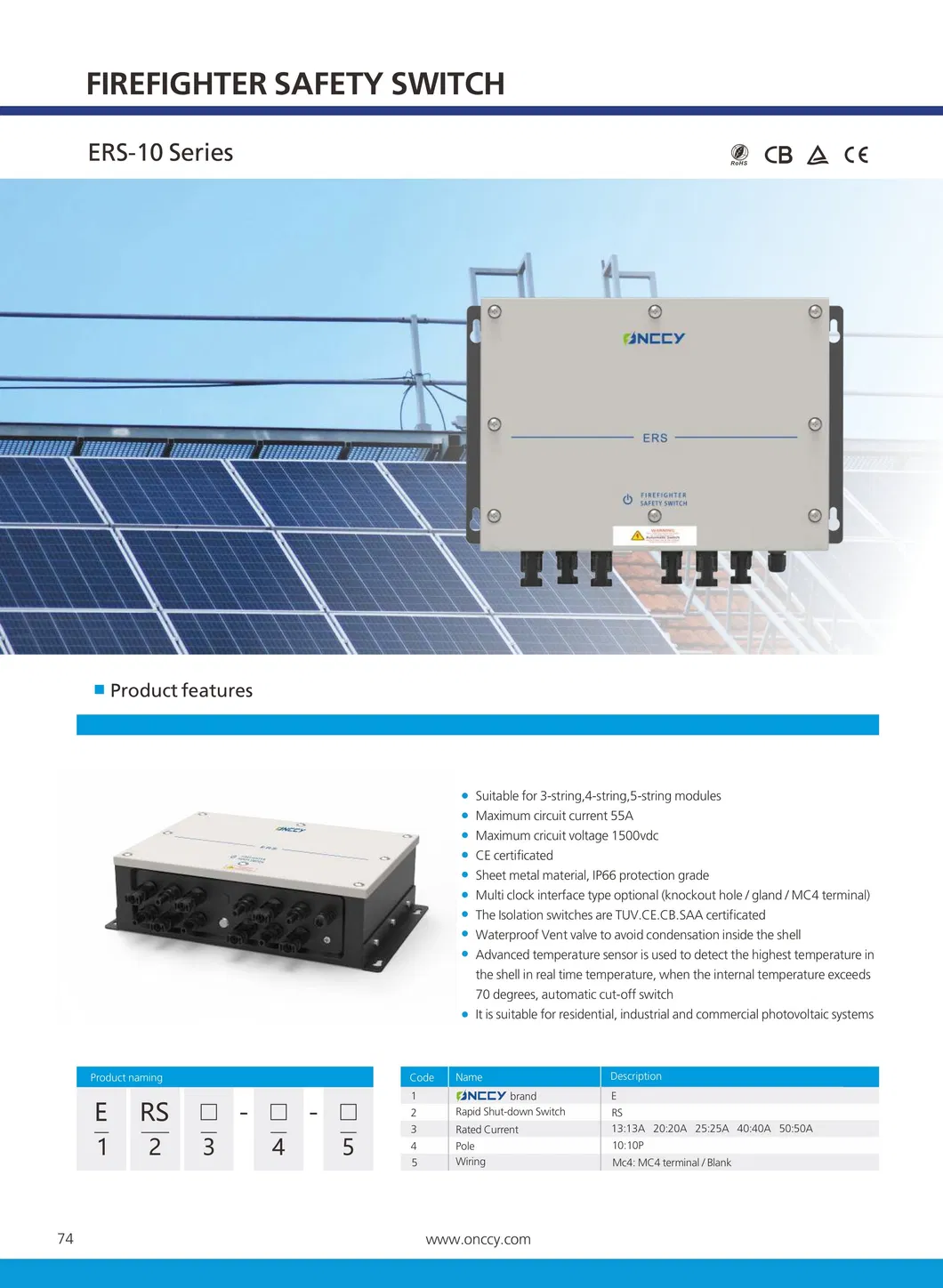

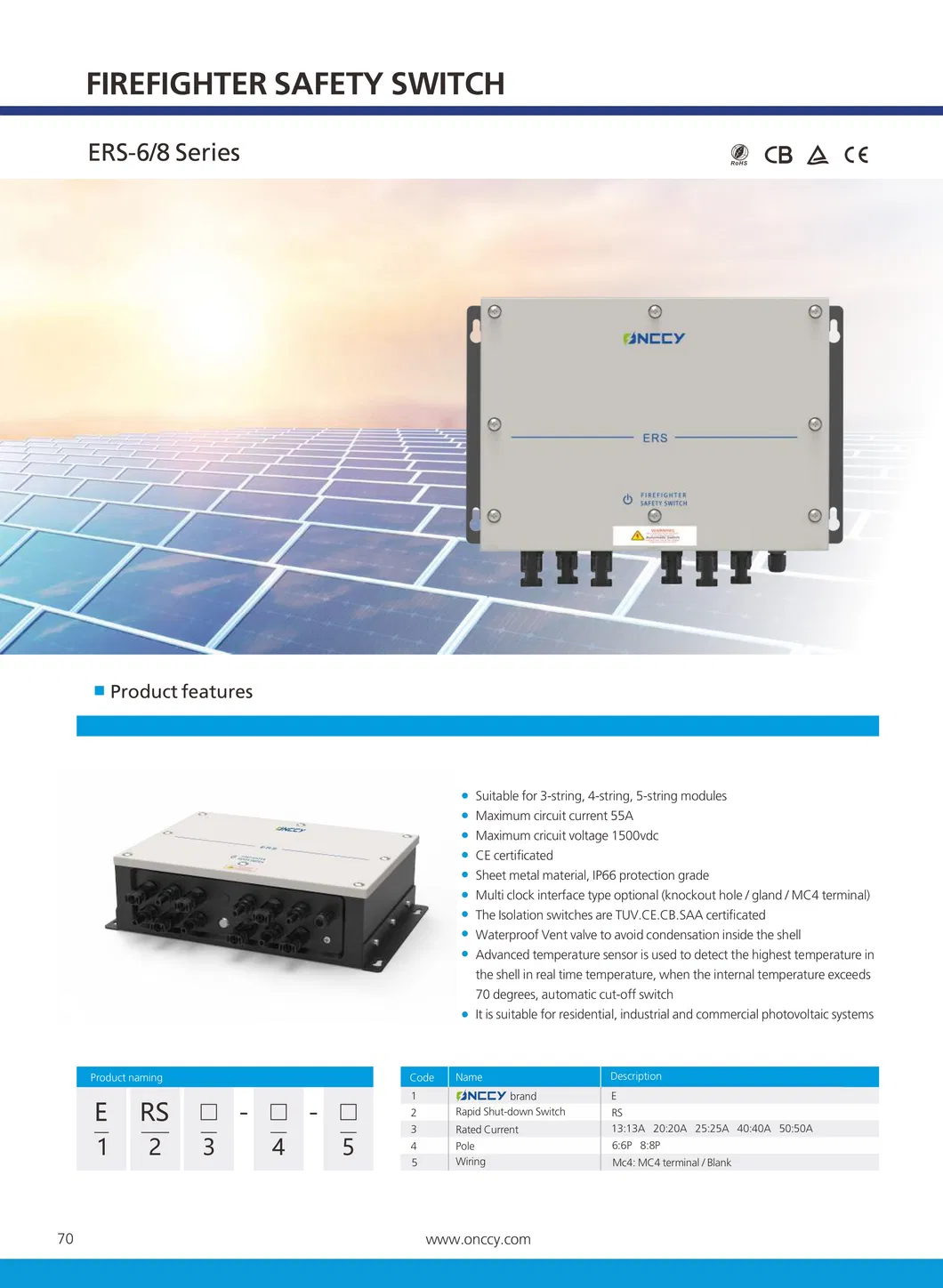

Product Benefits

Suitable for 3-string, 4-string, 5-string modules
Maximum circuit current 55A
Maximum circuit voltage 1500vdc

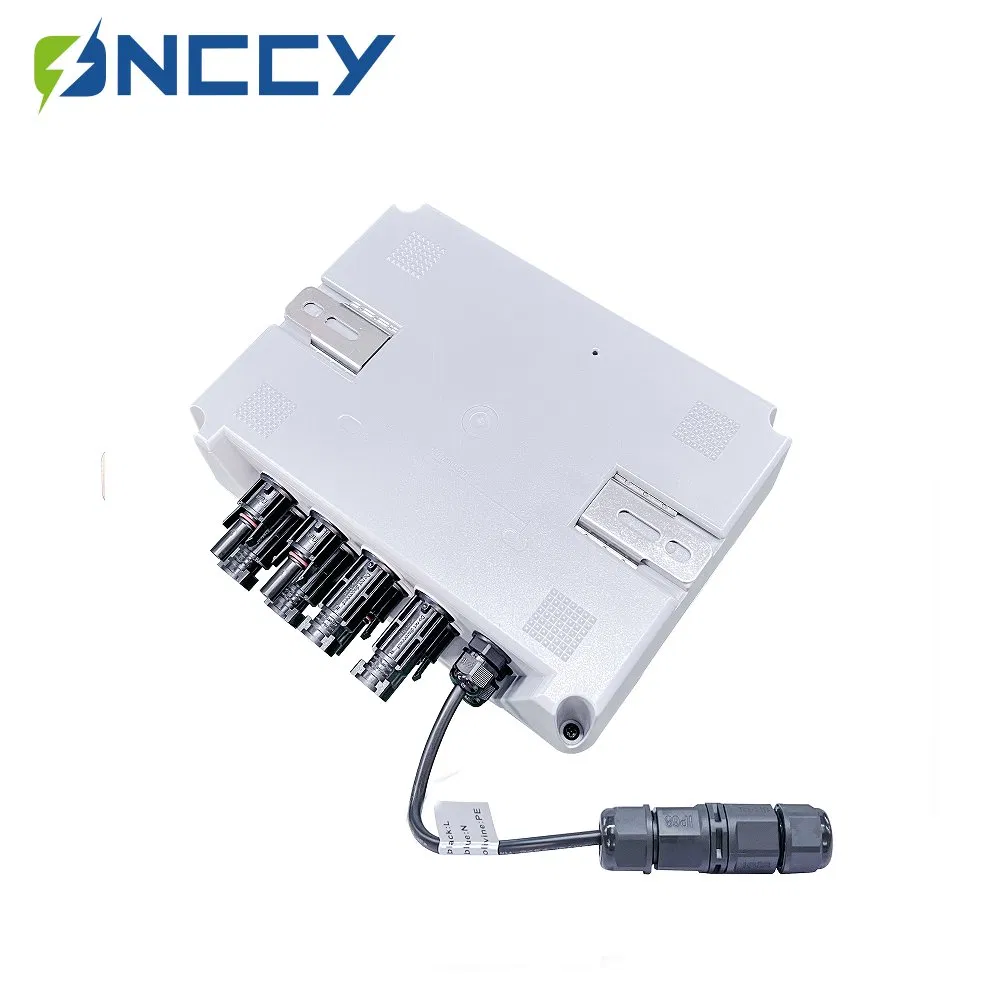

Multi clock interface (knockout hole / gland / MC4)
TUV, CE, CB, SAA certificated switches
Waterproof Vent valve to avoid condensation

Technical Parameters

String Voltage (VDC)	300~1500
String Current (A)	9~55
Circuit	3/4/5
Working Voltage	100Vac - 270Vac
Rated Voltage	230Vac
Operating Temperature	-20°C - +50°C
Max Temp Before Auto-Shutdown	+70°C
Protection Level	IP66
Mechanical Life	10000 operations
DC Isolation Standard	EN 60947-1&3
