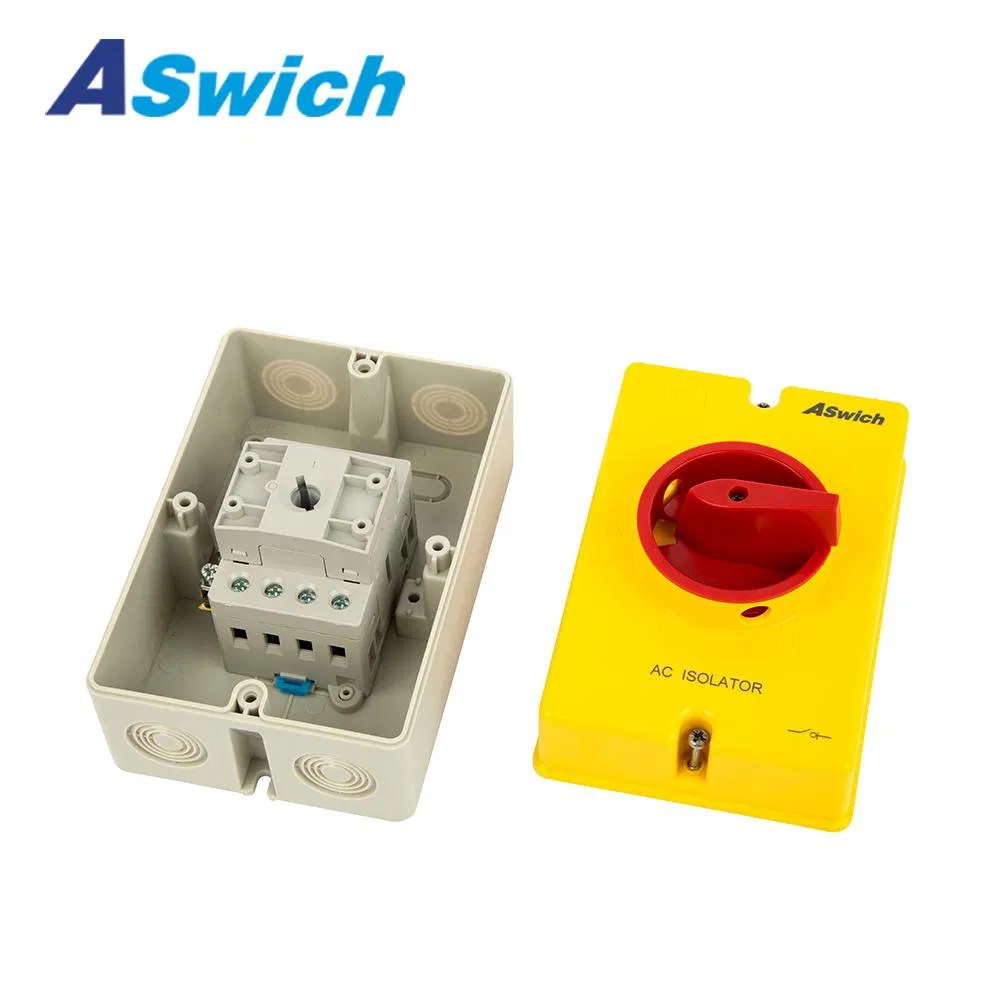

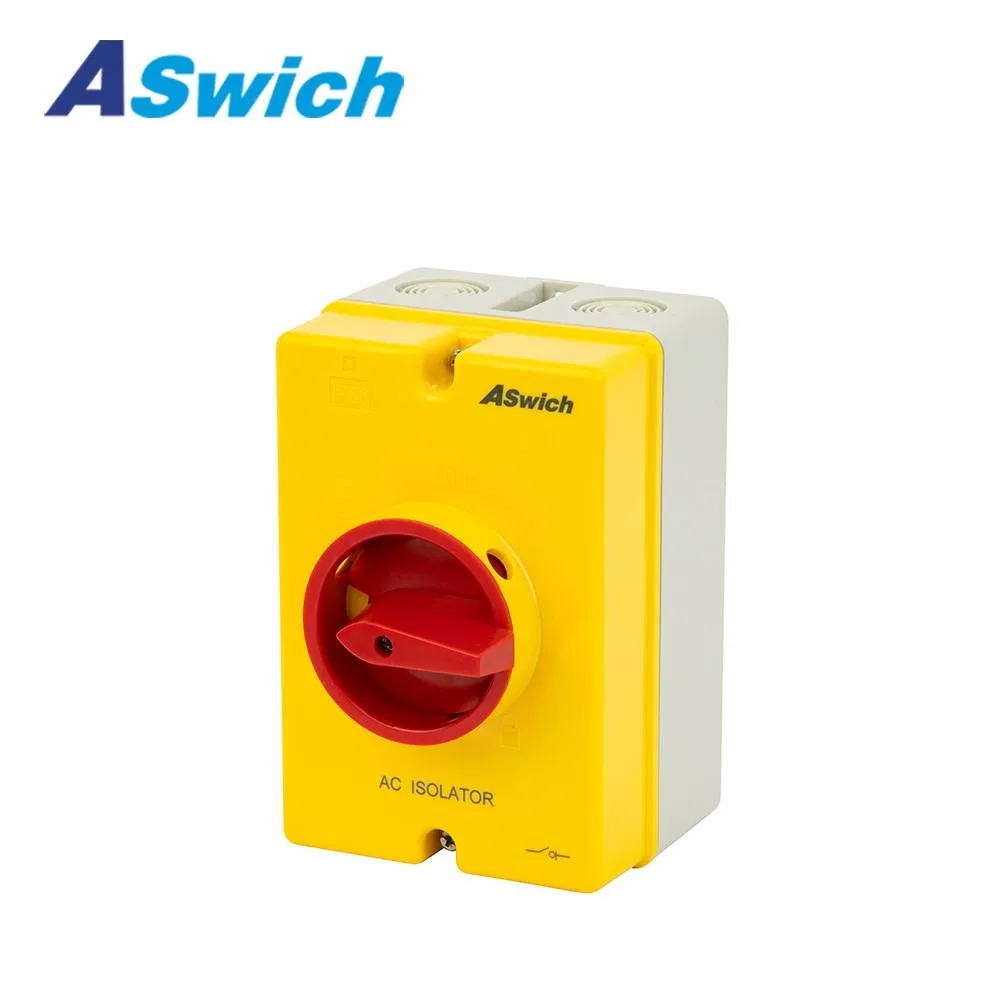

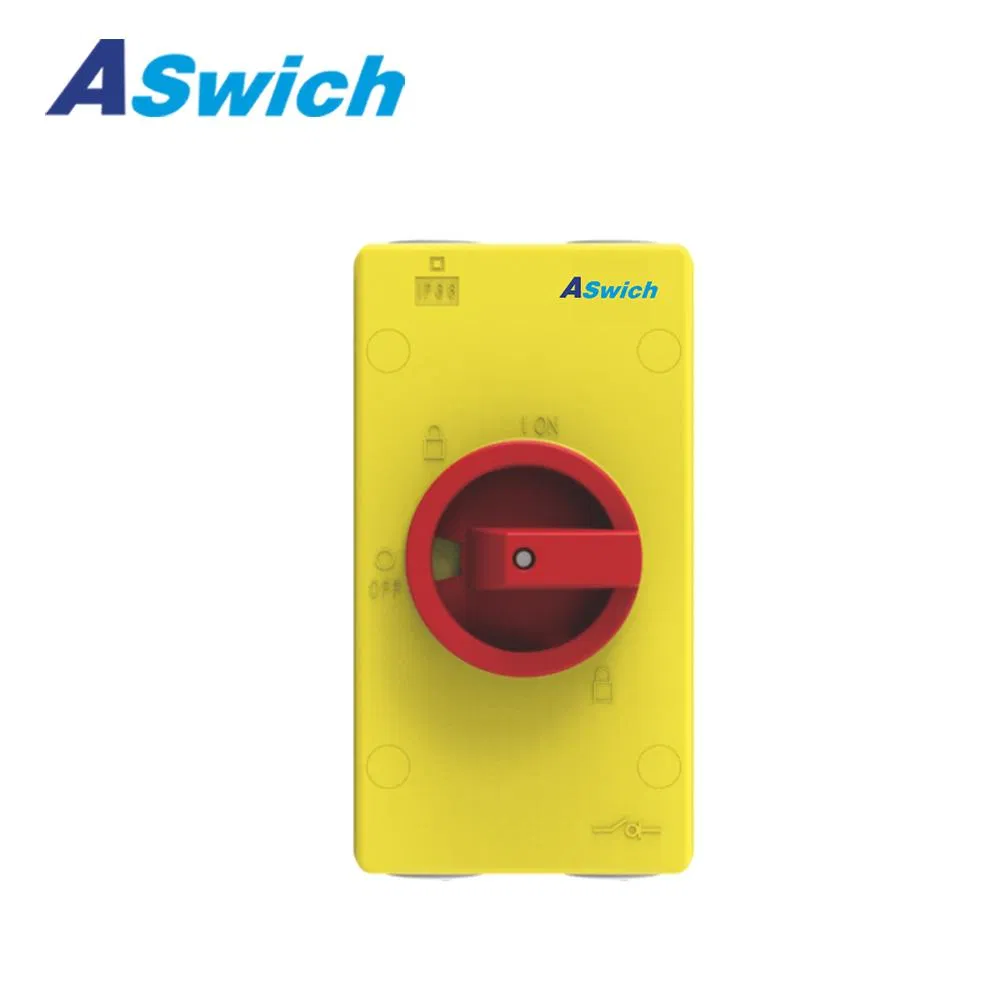

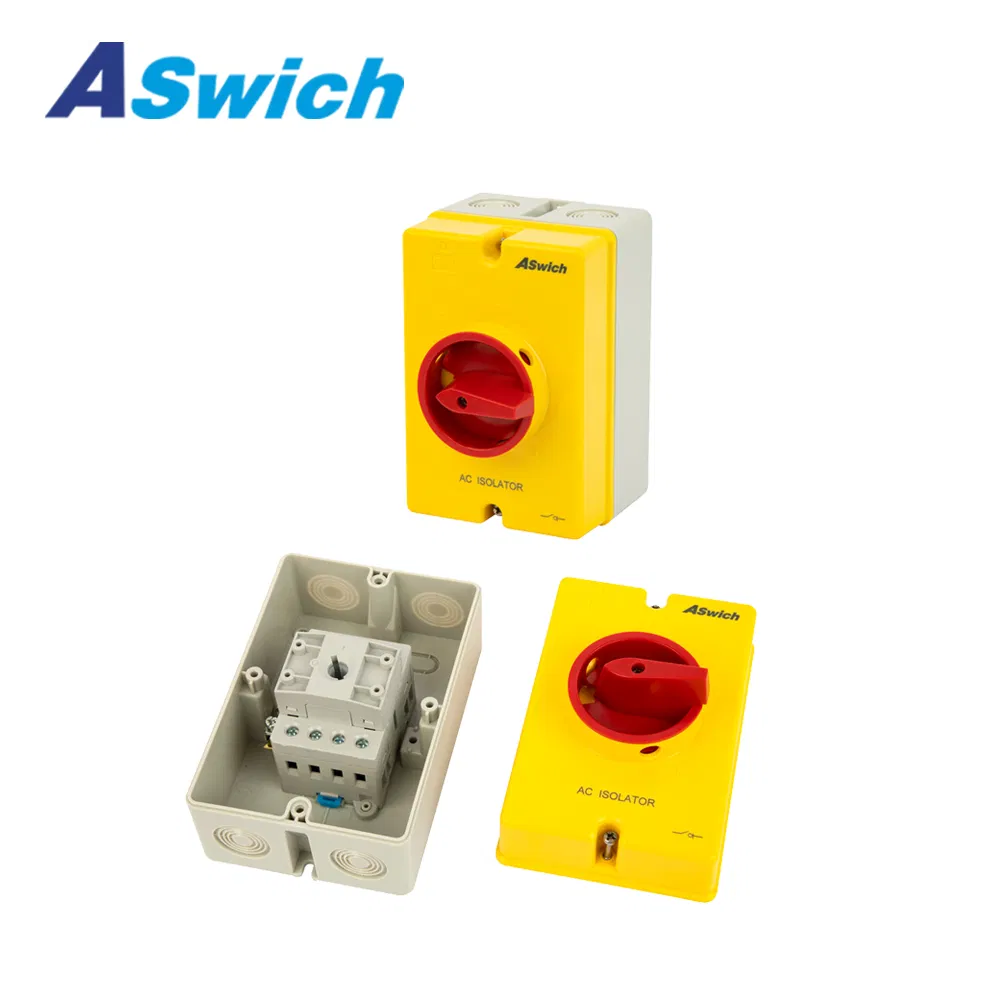

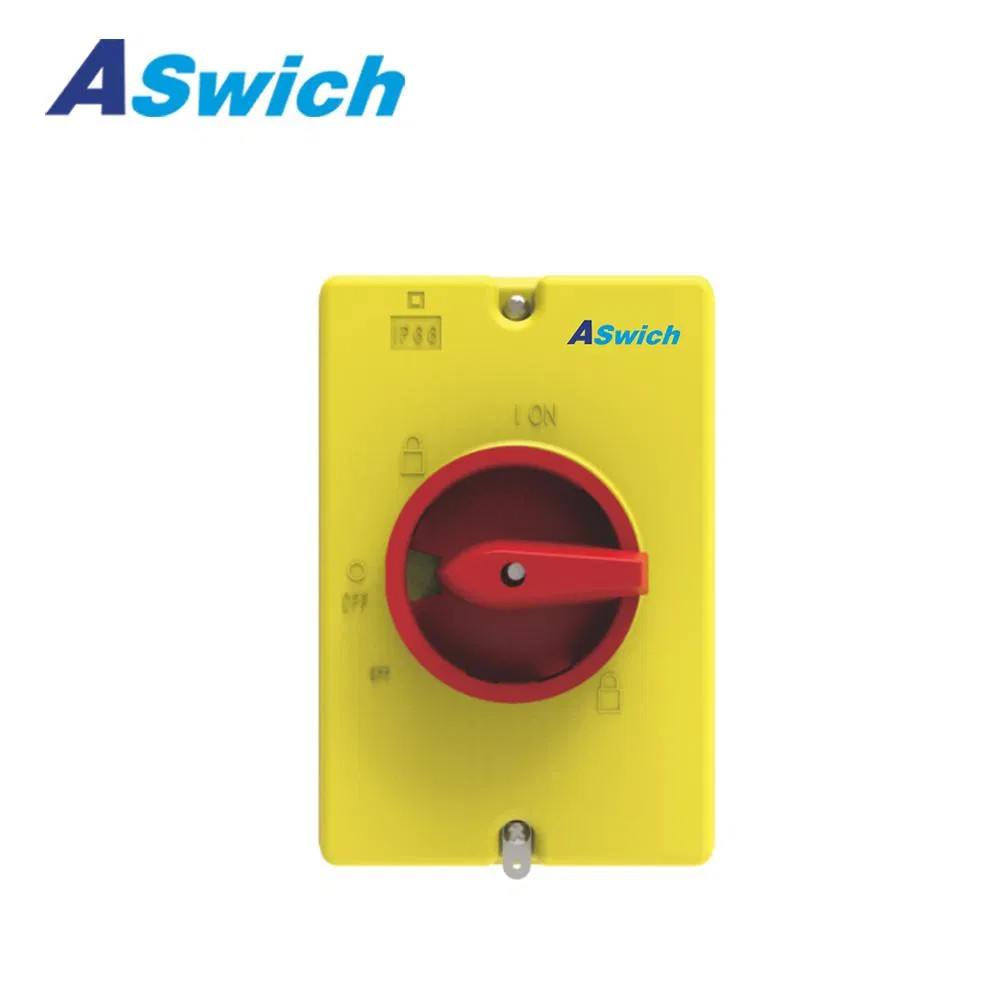

IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
1 / 5
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch

IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
JHAS69
Installation
DIN Rail
Operation
Manual
Grounding Mode
Grounding
Movement Mode
Vertical Rotary Type
Number of Poles
3p/4p
Switching Mode
Single Throw-in
Certification
ISO, RoHS, CE
Voltage Ui
690V AC
Current Range
20A/32A/40A/63A/80A
Application
Solar PV System/EV Charger System
IP Degree
IP66/IP20
Quality Assurance
5 Years
HS Code
8536500000

Product Description

AC EAS69 Series AC Isolator

  • No polarity easy wiring
  • Multiple mounting types
  • Complete disconnect indication
  • Lockable design for safety
  • Auxiliary contact can be connected

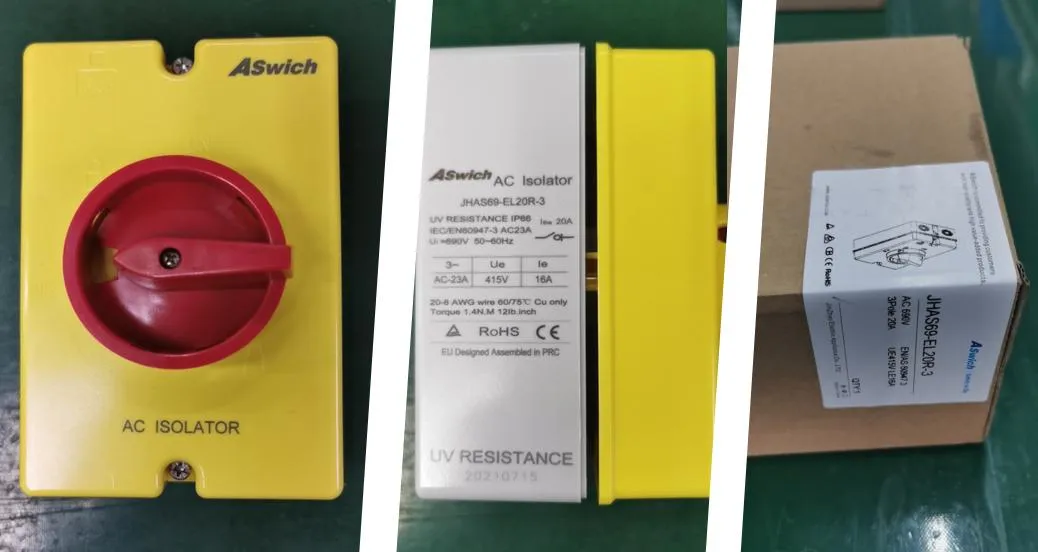

AC Isolator 1

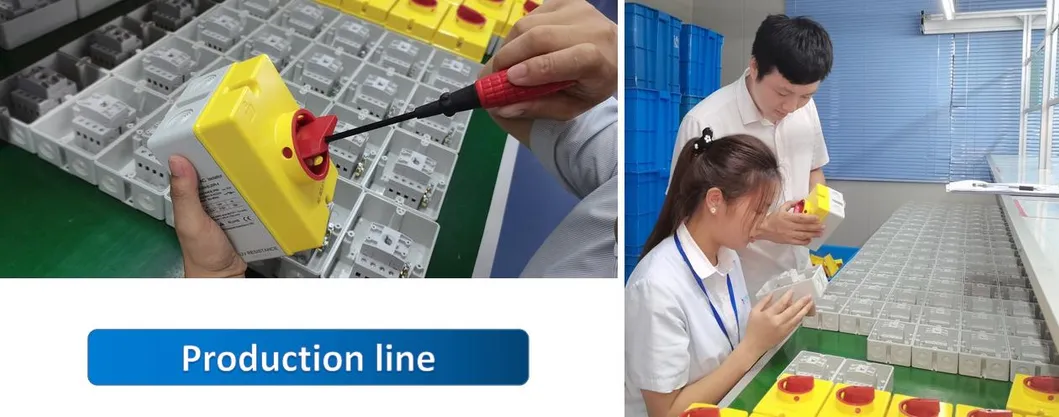

AC Isolator 2

Technical Data

Current 20A 32A 40A 63A 80A
Type EAS6-EL20R-4 EAS6-EL32R-4 EAS6-EL40R-4 EAS6-EL63R-3 EAS6-EL80R-3
Rated carry current 20A 32A 40A 63A 80A
Rated operating current AC-23A 16A 25A 32A 45A 45A
Rated power control (AC-23A) 240V 4KW 7.5KW 9KW 15KW 15KW
440V 7.5KW 12.5KW 16KW 22KW 22KW
Rated short-time withstand current 250A 400A 500A 600A 850A
Rated insulation voltage 690V
Production Image 1
Production Image 2

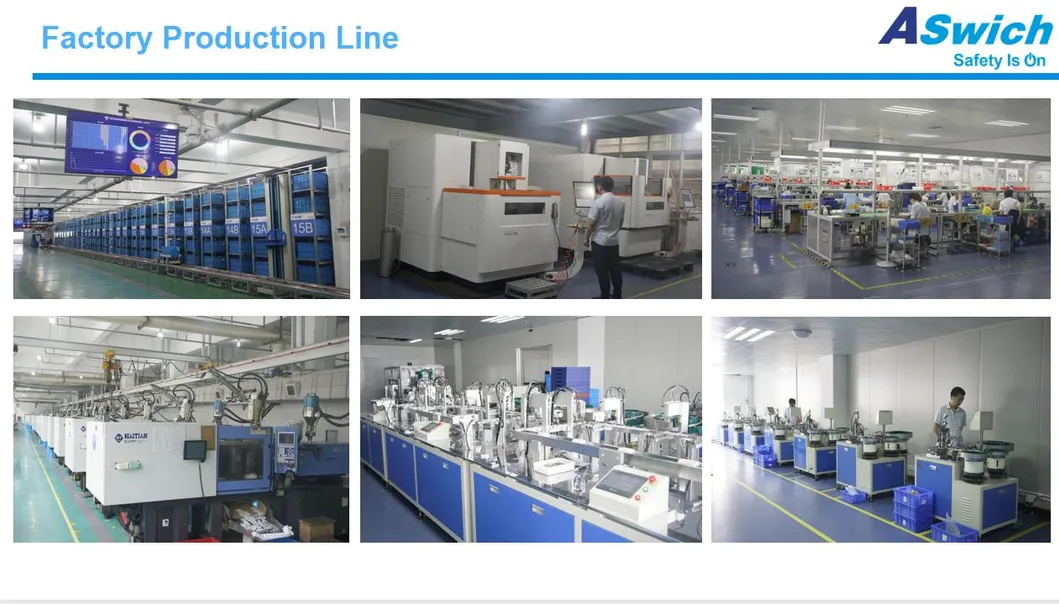

Production Image 3
Technical Drawing
Certification Showcase

Frequently Asked Questions

Q: When can I receive a quotation and detailed information after sending an enquiry? A: All your enquiries will be replied to within 24 hours.
Q: What is the difference between your isolators and other cheaper suppliers? A: Our isolators feature an IP66 degree of protection and are high-quality customized. For solar systems, comparing quality before price is the best approach for long-term safety.
Q: Can I get a sample before placing an order to check the quality? A: Of course! We believe sample orders are the best way to build trust and verify product performance.
Q: How long does delivery take for urgent orders? A: For sample orders, delivery takes 3-7 days. For regular orders, we promise delivery within 7-10 days.
Q: What is the warranty period for the JHAS69 AC Isolator? A: We offer a 5-year warranty for our customers, depending on the specific product configuration.
Q: What certifications do your products hold? A: All our isolator switches and related products carry TUV, CE, and CB certificates, with some also holding SAA certification.
