SDEV Charger
1 / 5
| Model NO. | NDR |
| Input Voltage | 110-220V |
| Connection Mode | Series Switching Power Supply |
| Starting Mode | Self-excited Switching Power Supply |
| Voltage Regulating Mode | Frequency Modulation Type |
| Power Supplying System | Terminal Power Distribution Equipment |
| Energy Transmission | Two-way Transmission |
| Modulation System | PFAW |
| Certification | CE, RoHS, ISO, CCC, CB, FCC |

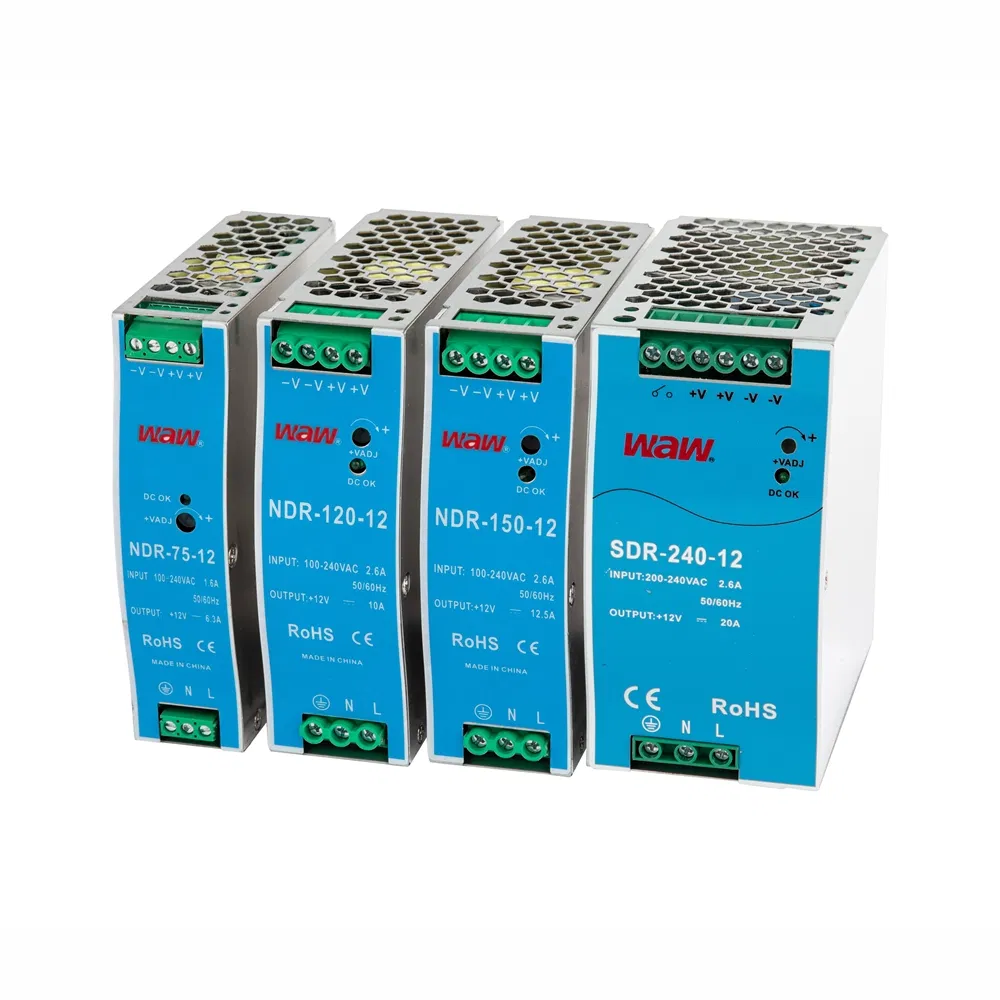

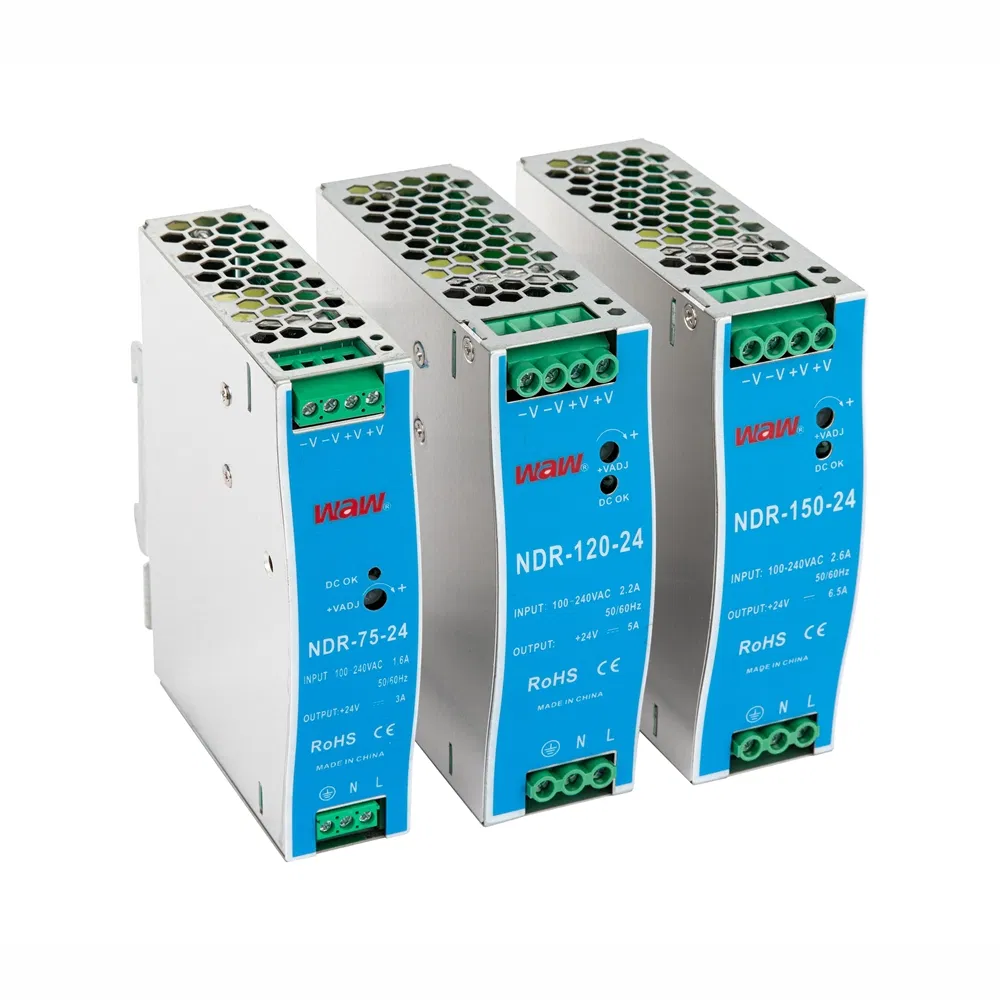

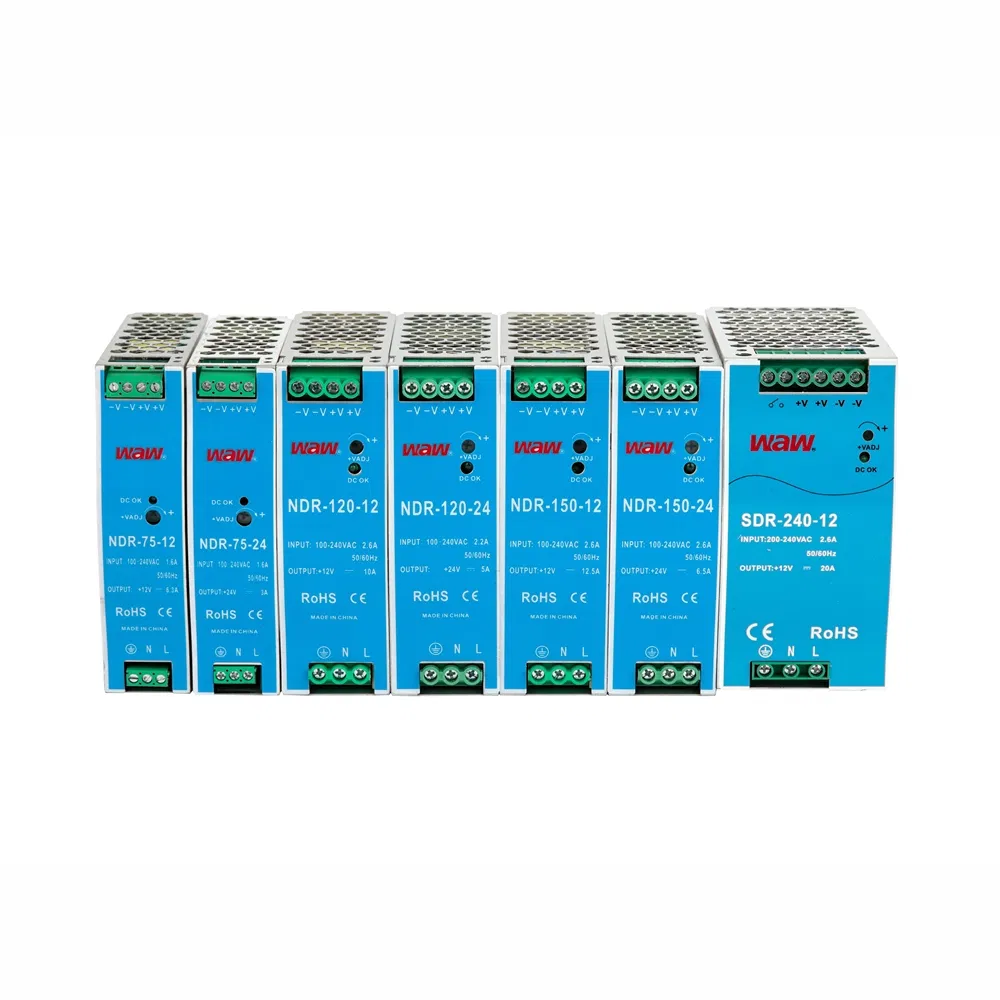

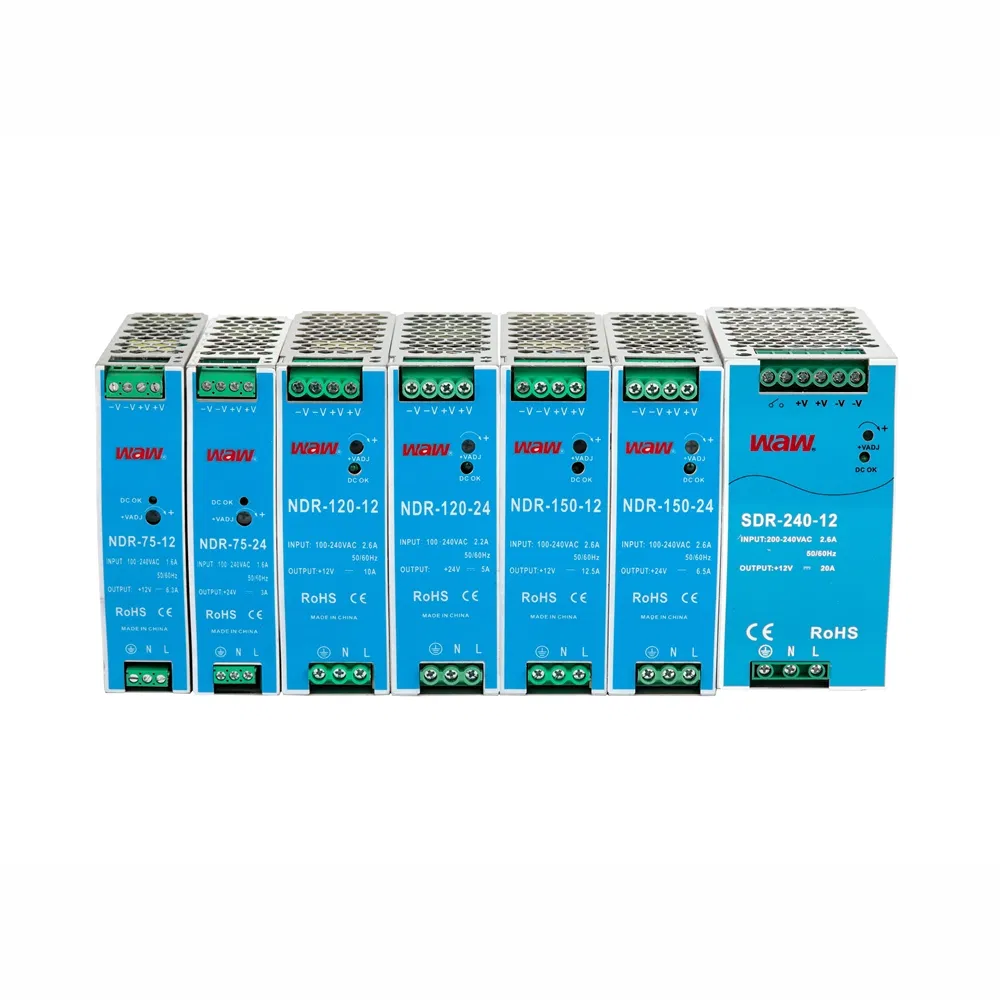

| Product Name | DIN Rail Power Supply |
| Protection | Short Circuit/Overload/Overvoltage |
| Working Temperature | -10celsius-+60celsius, 20%-90% Rh |
| Current | 15A |
| Application | Mechanical Engineering, Industrial Automation |
| Production Capacity | 5000000 Pieces/Year |

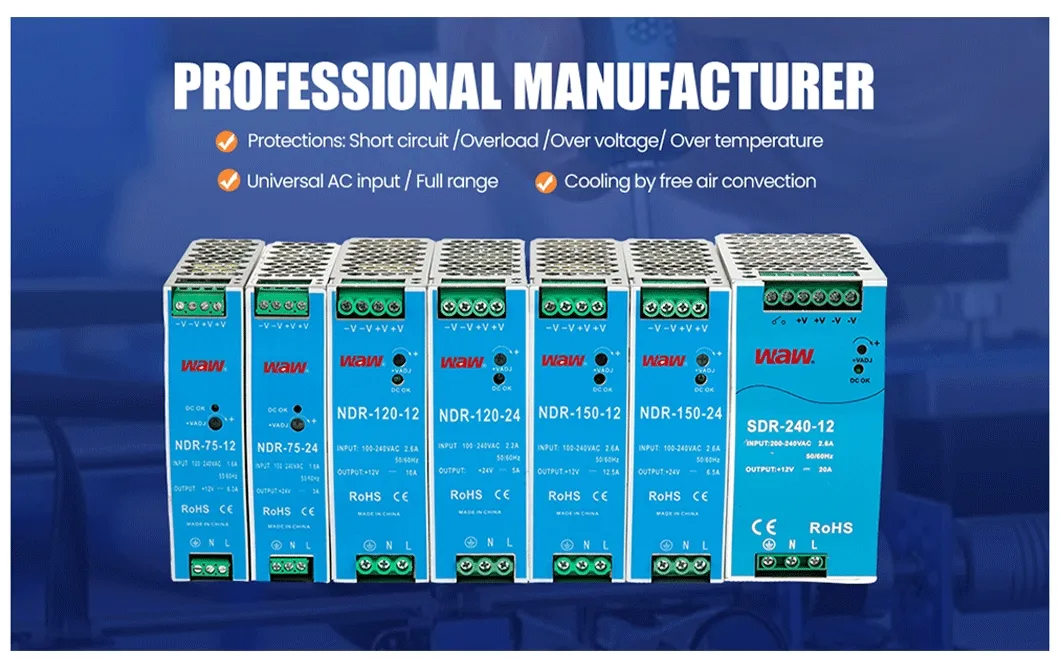

A DIN rail power supply is a specific type of switching power supply, named for its specialized mounting capability. Optimized for industrial environments, these units are designed to be mounted directly onto standard TS-35 DIN rails, offering a stable and efficient power solution for control cabinets.
| Working Temperature | -10ºC to +60ºC, 20%-90% RH |
| Vibration Resistance | 10-500Hz, 2G 10Min / 1 Cycle |
| Protection Grade | Short Circuit / Overload / Overvoltage |
| Efficiency | Up to 85% |
| Input Range | Universal AC Input (90-264VAC) |
| Payment Methods | T/T, L/C, Western Union |
| Customization | OEM & ODM, Logo, Color Support |

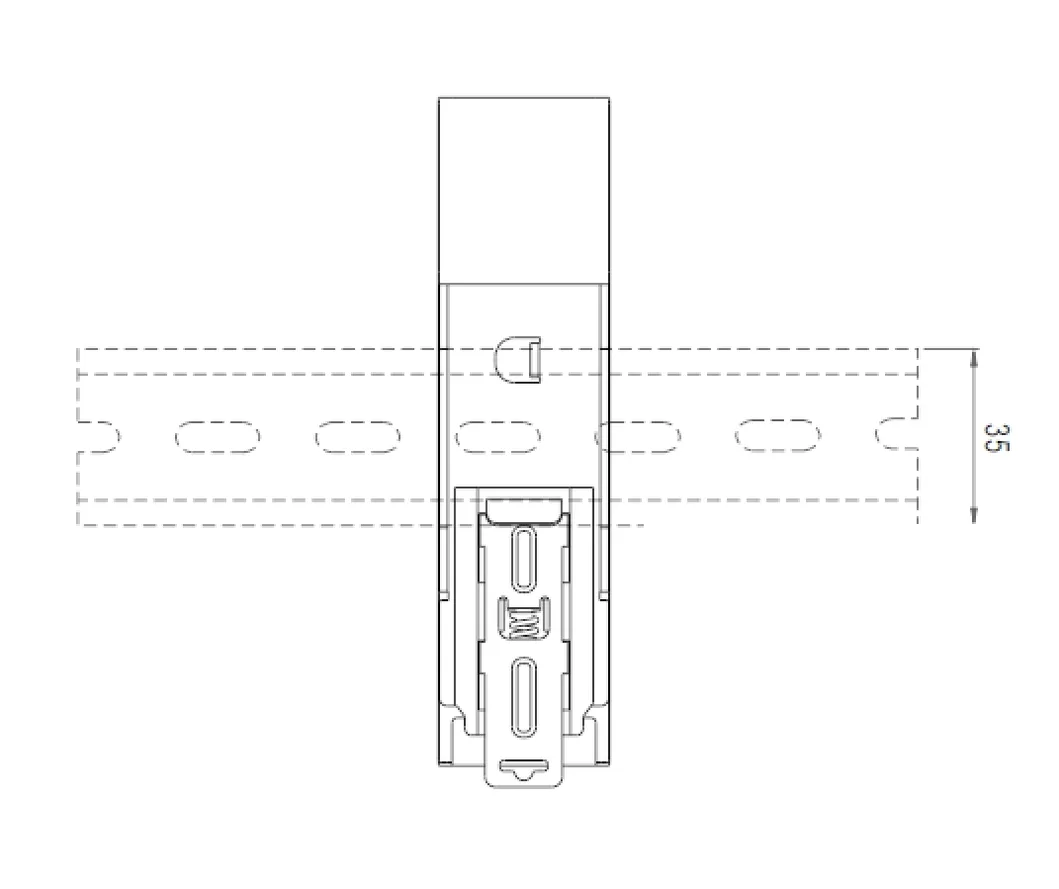

Slim form factor (32-85.5mm width) designed for high-density installations in control cabinets. Compatible with TS-35/7.5 or TS-35/15 rails.

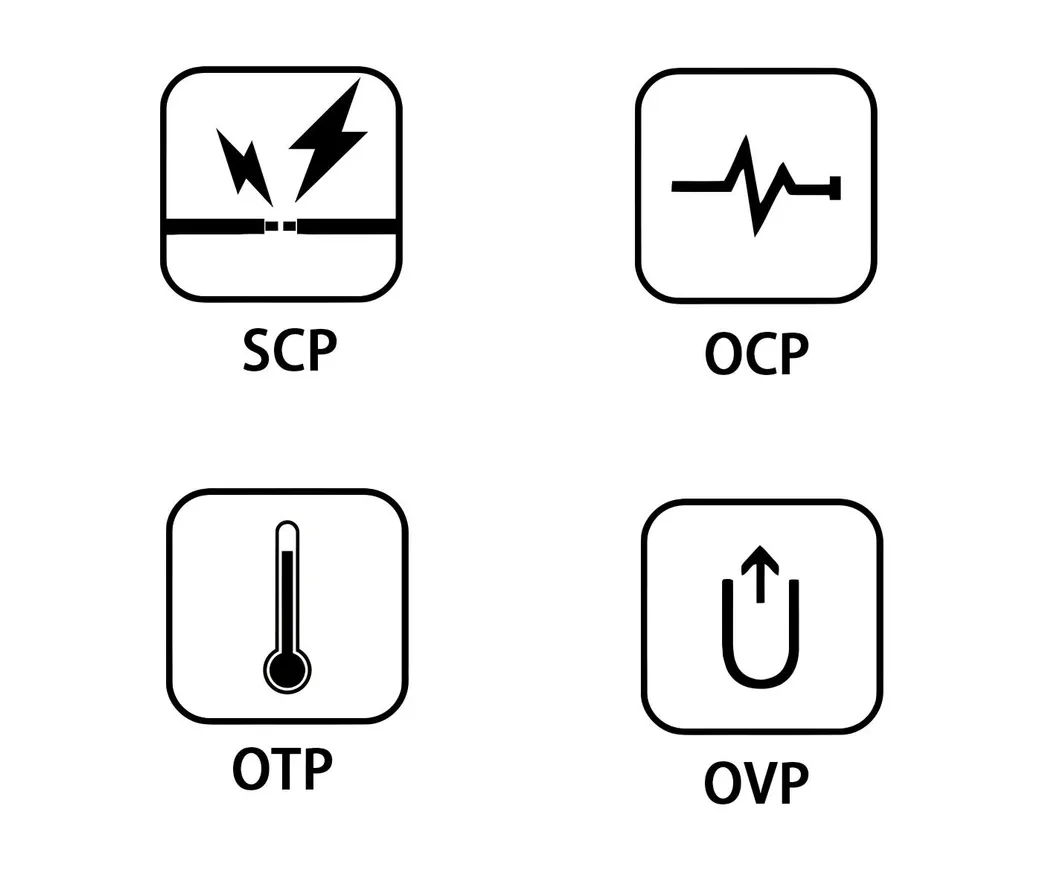

Built-in safeguards against short-circuits, overvoltage, and overtemperature. Features surge resistance (300VAC/5s) and auto-recovery functionality.

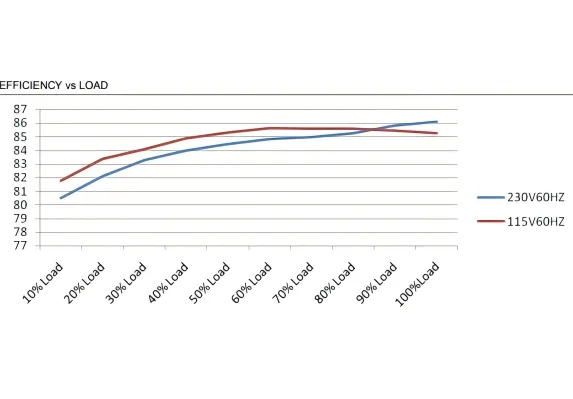

3. High Efficiency: Up to 85% efficiency with low no-load power consumption (<0.5W).

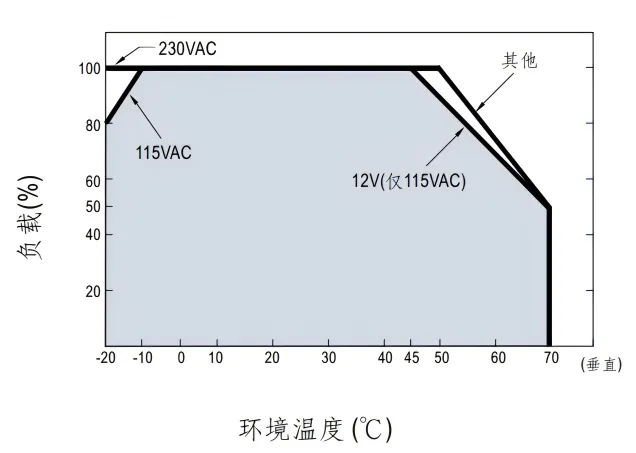

4. Industrial Reliability: 100% full-load burn-in tested with convection cooling for long-term stability.
Supports 12V/24V/48V DC outputs for PLCs, sensors, and relays. Features low ripple and noise (<150mVp-p) for sensitive equipment.
