Hot Selling PV-CQ112 Junction Box for Solar Cells Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GD-PV-CQ112

Certification

CCC, CE, TUV

Power Range

285-350W

Rated Voltage

1500V DC

Rated Current

15A

Cable Section

1*4mm²

Insulation

PPO

Temperature

-40~ +85℃

HS Code

8537209000

Capacity

5000/Month

Packaging & Delivery

Package Weight

1.500kg

Transport

Carton/Pallet

Product Description

The PV-CQ112 junction box has obtained the TUV certificate. Its maximum current capability can be adjusted according to different diode configurations, ensuring flexibility for various solar cell panel requirements.

Adopts glue-filling sealing method: simple, convenient, and safe installation.
Superior electrical performance with low contact resistance.
Extremely low power loss for high efficiency.
Shell features excellent high/low temperature resistance.
Anti-aging and anti-ultraviolet (UV) performance, perfectly suitable for long-term outdoor use.

Parameter	Specification
Power for PV module	285-350W
Rated Voltage	1500V DC
Rated Current	15A
Contact Resistance	≤ 5mΩ
Cable Cross Section	1×4mm²
Insulation Material	PPO
Temperature Range	-40~ +85ºC

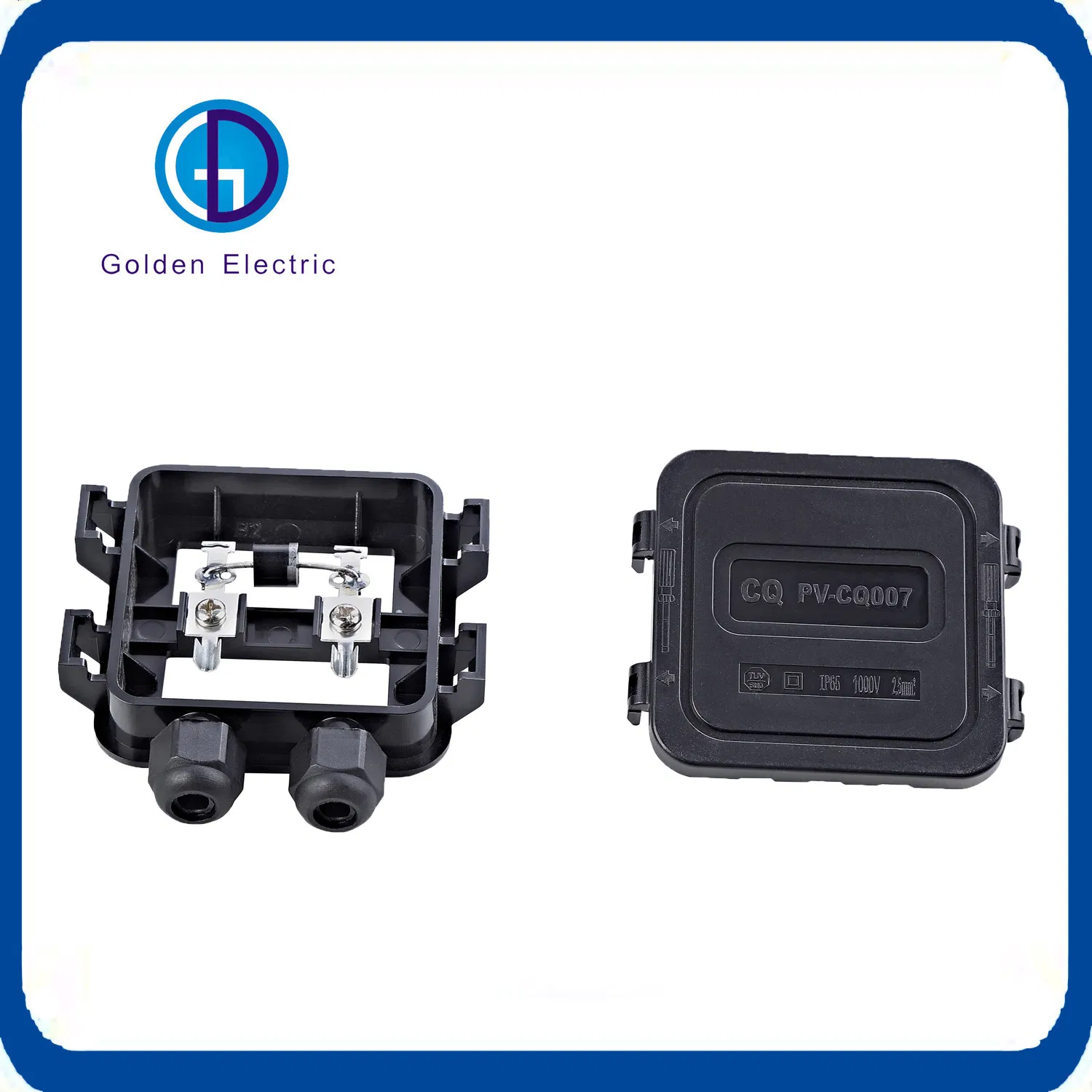

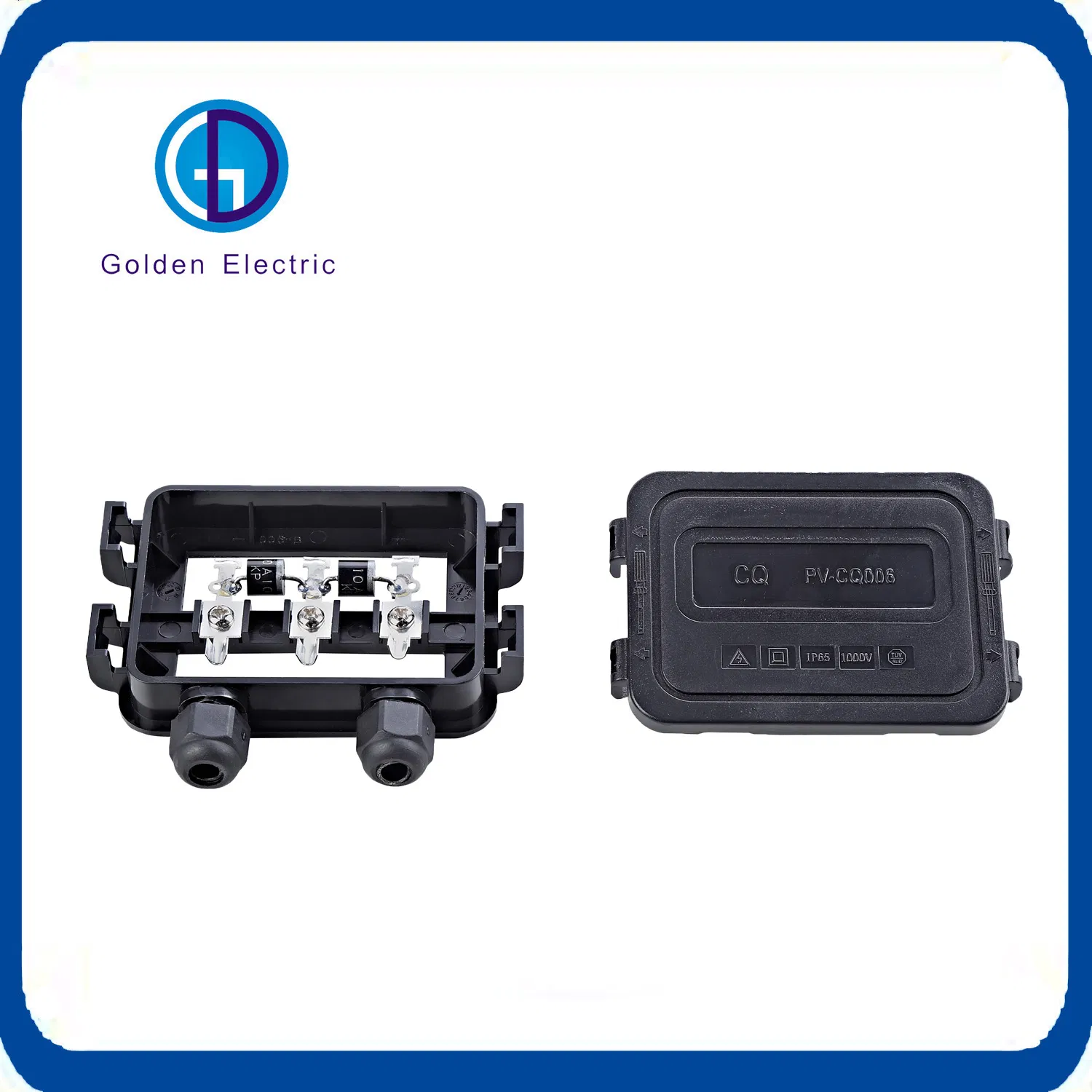

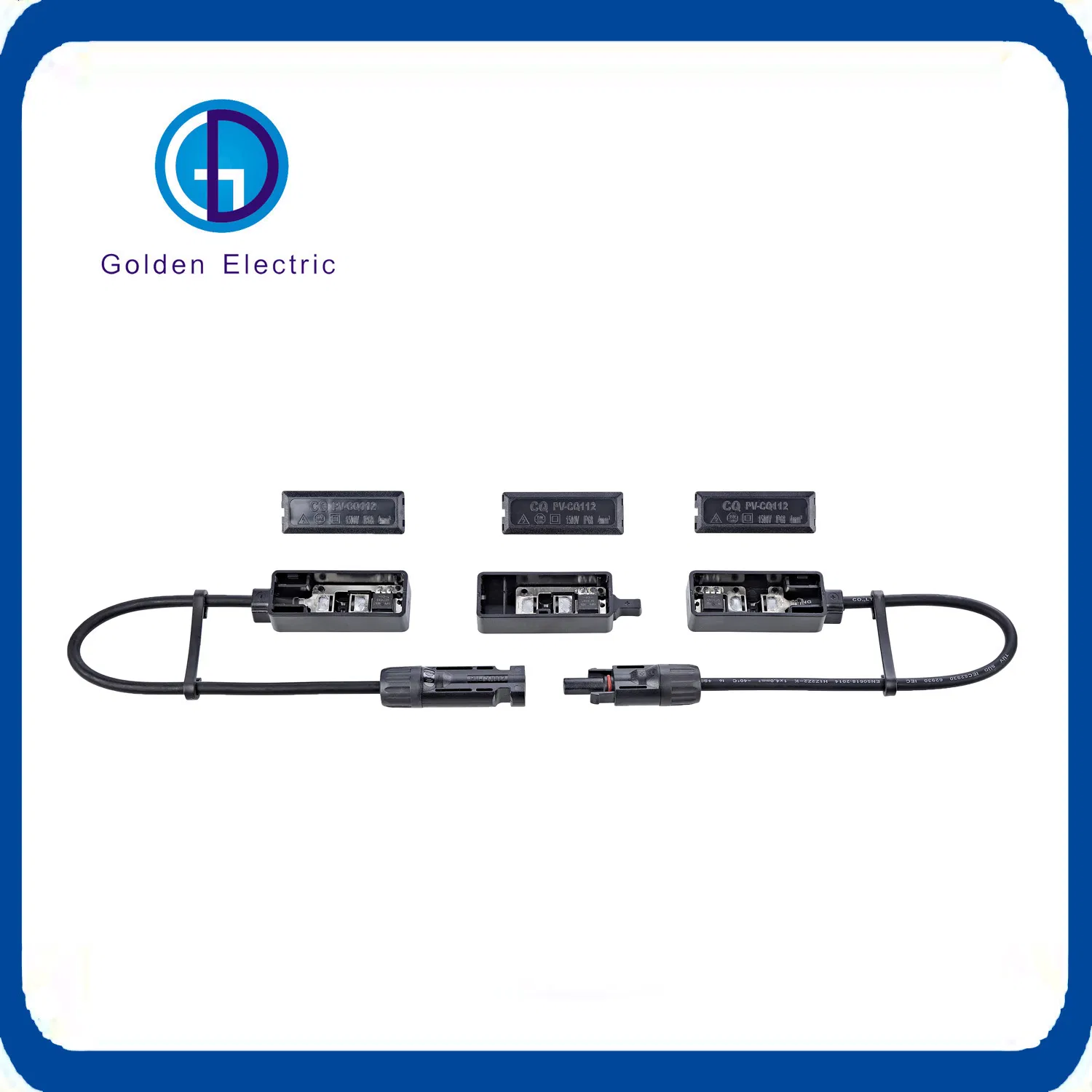

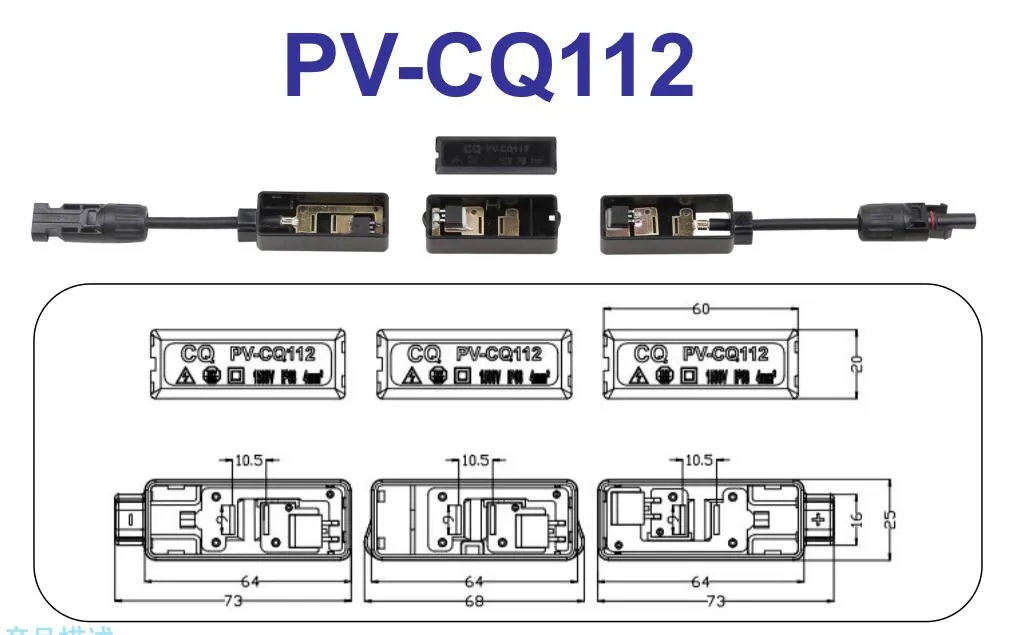

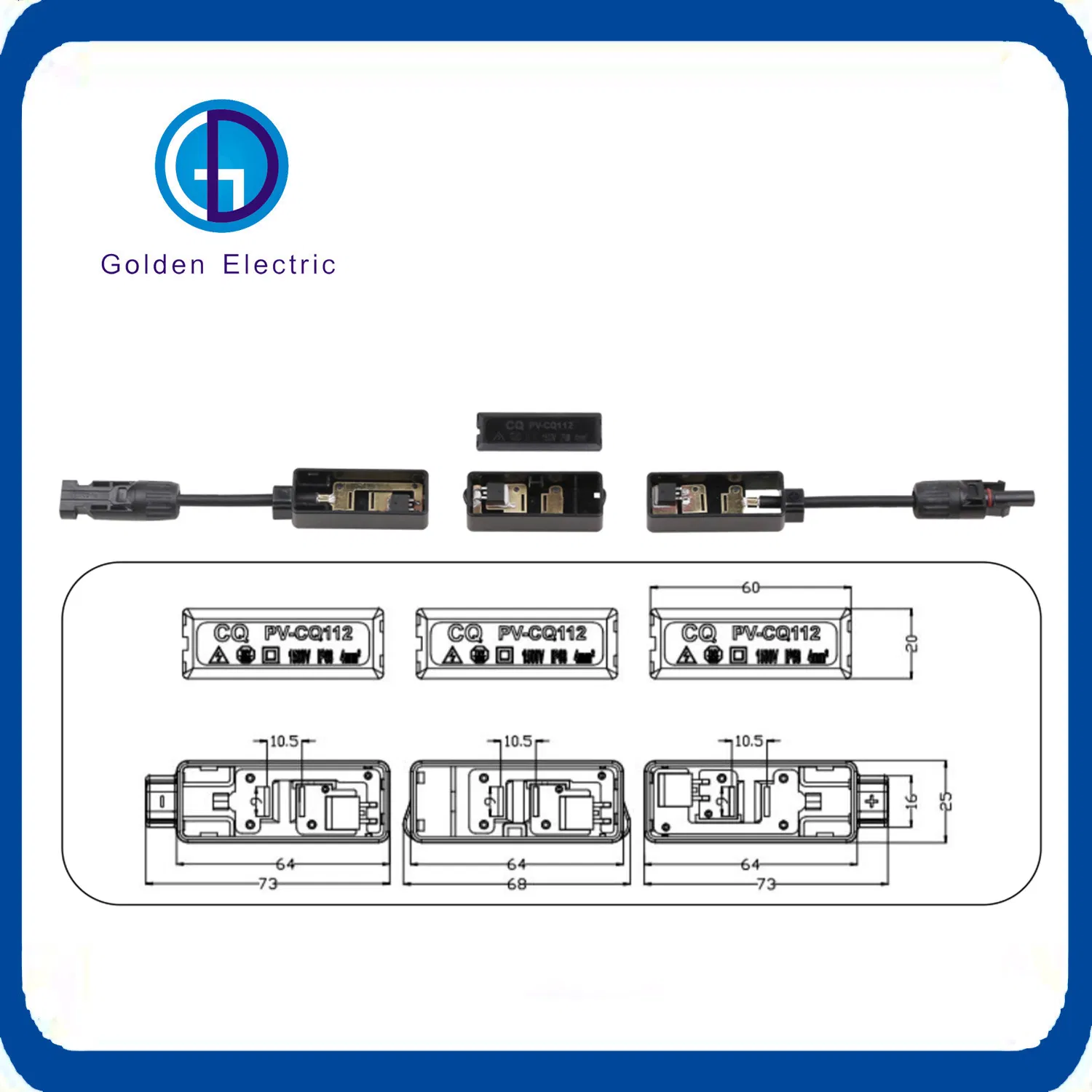

Visual Display

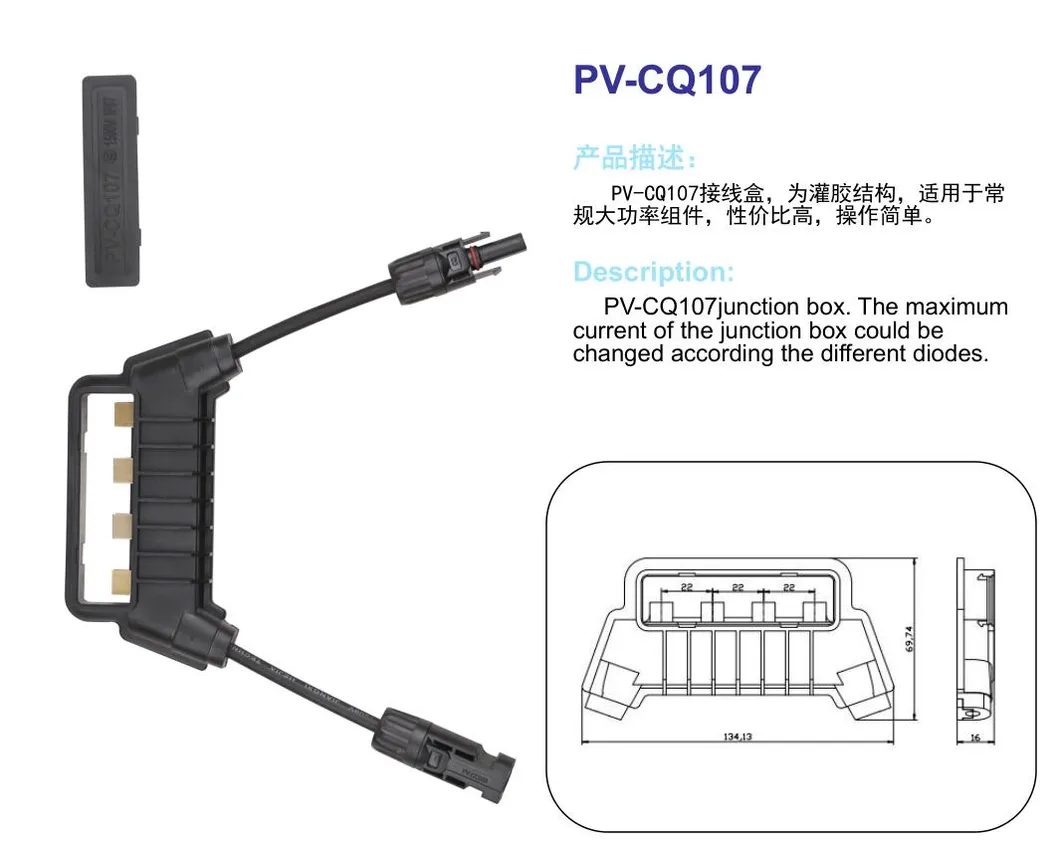

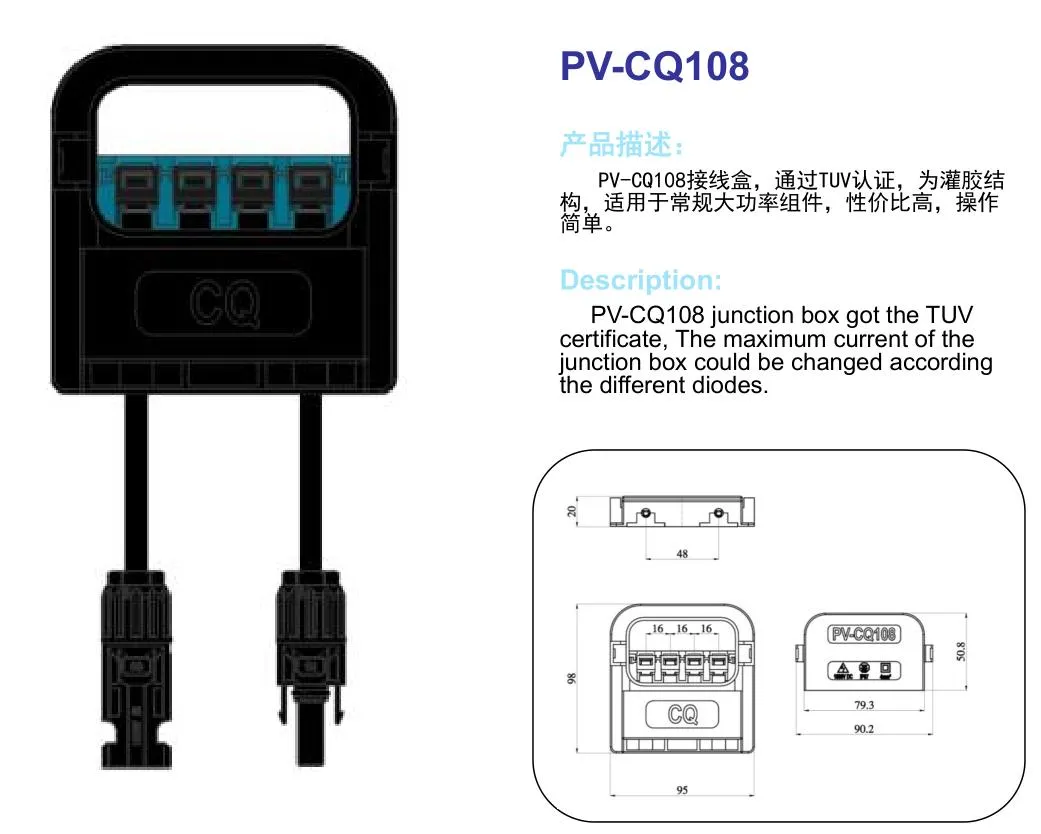

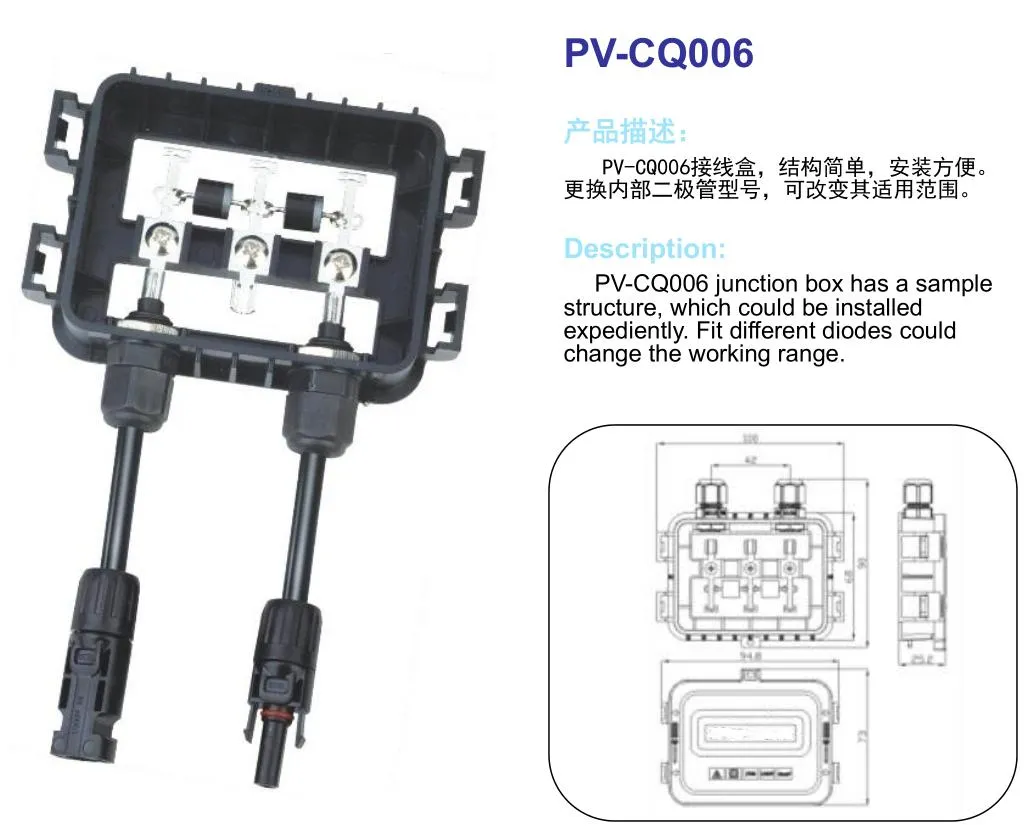

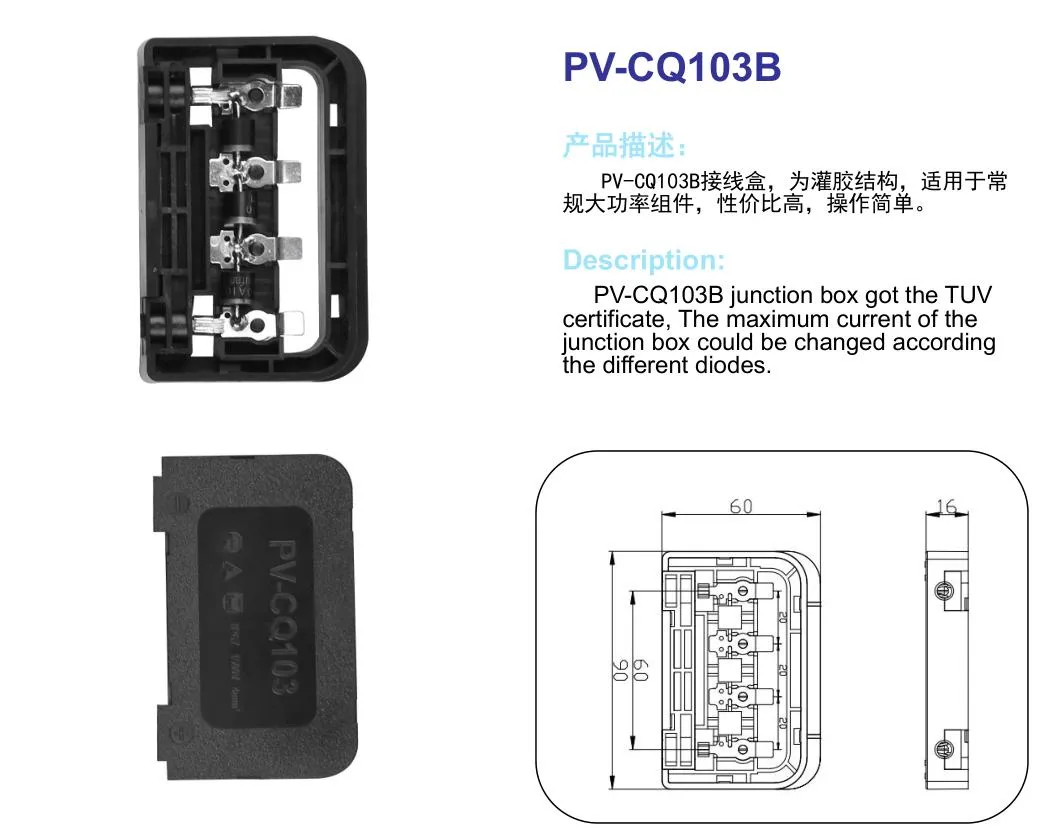

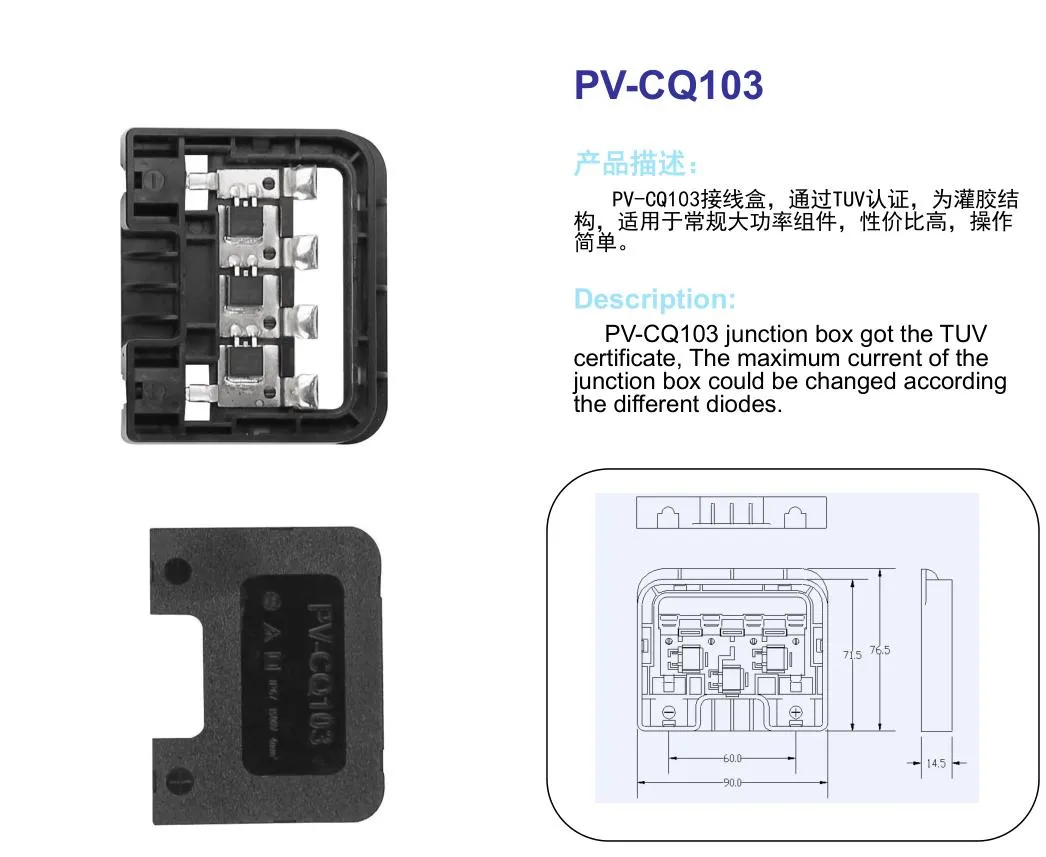

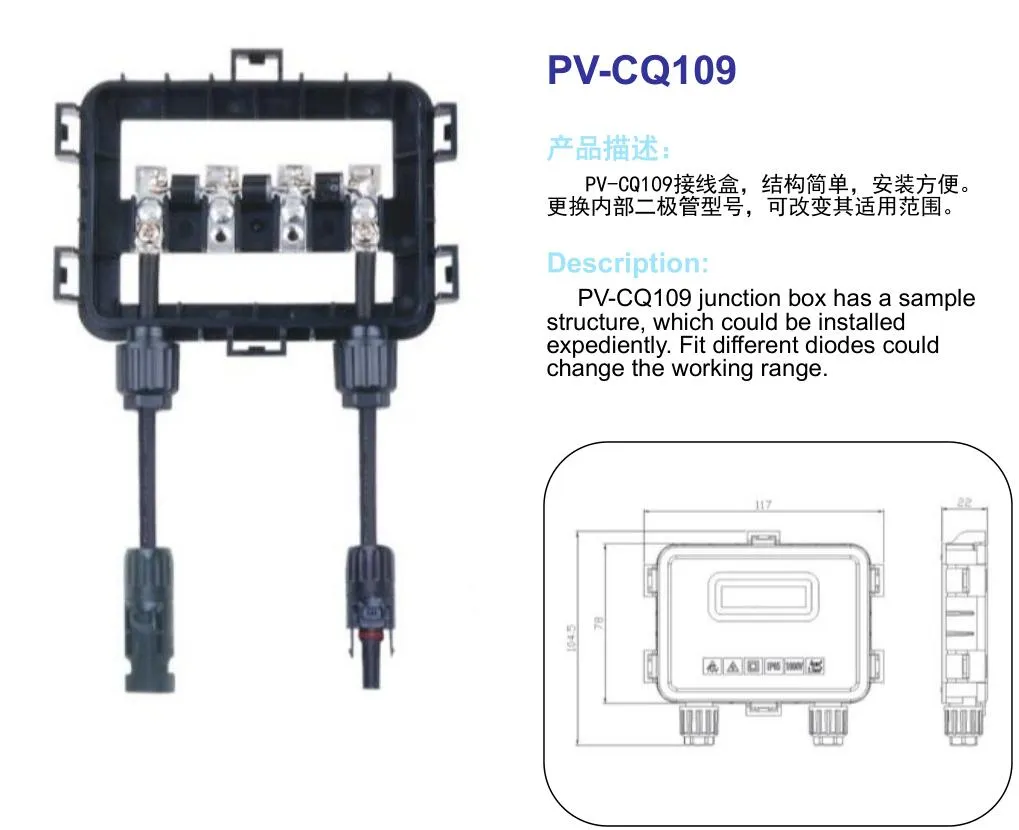

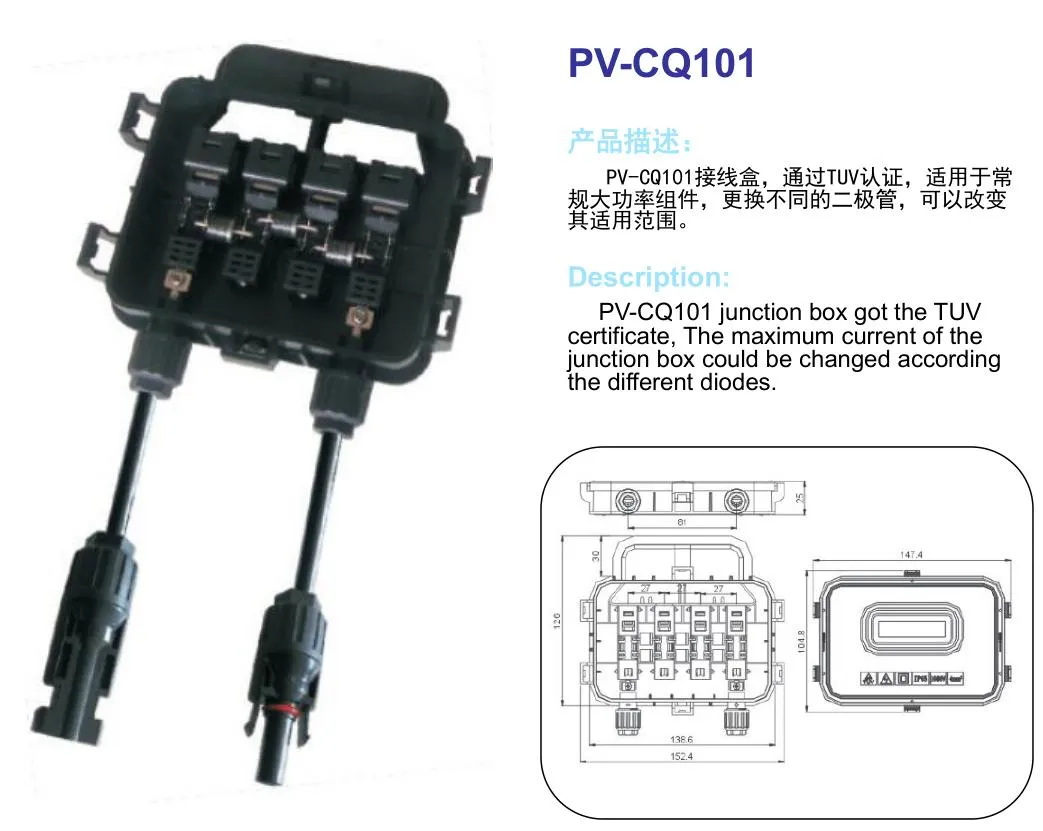

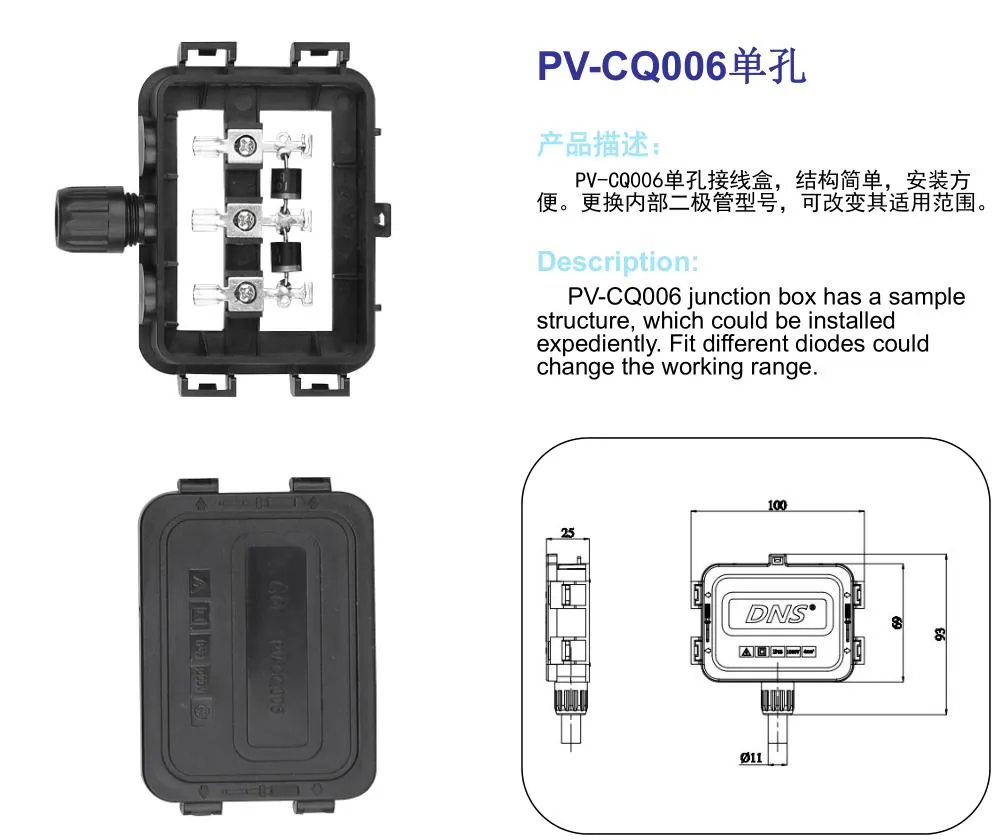

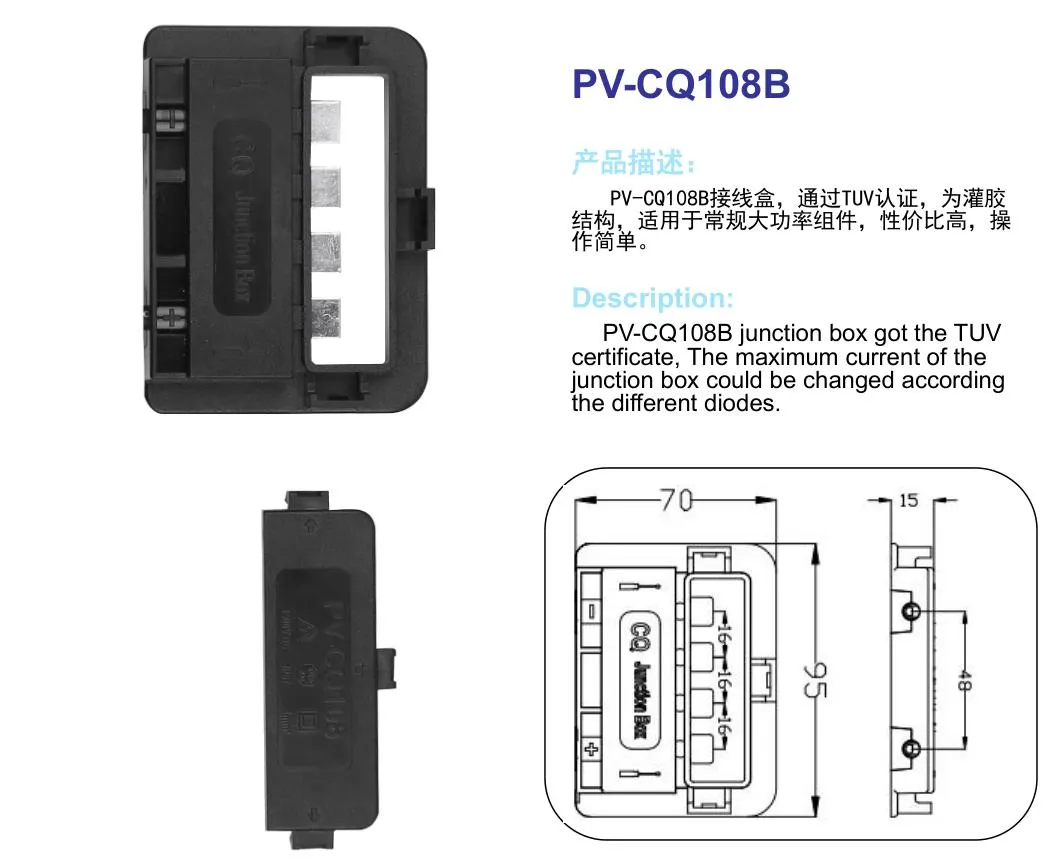

Other Model Variations:

Frequently Asked Questions

Q1: What is the rated voltage for the PV-CQ112 junction box? The rated voltage for this model is 1500V DC.

Q2: Can the maximum current be changed? Yes, the maximum current of the junction box can be adjusted by utilizing different diodes.

Q3: Is this product suitable for harsh outdoor environments? Yes, the shell is designed with anti-aging and anti-ultraviolet properties, making it ideal for long-term outdoor use within a temperature range of -40 to +85℃.

Q4: What type of sealing is used for installation? It uses a glue-filling sealing method, which provides a simple, convenient, and highly secure installation process.

Q5: What certifications does the product hold? The PV-CQ112 junction box holds TUV, CE, and CCC certifications.

Q6: What is the insulation material used? The product utilizes high-quality PPO as its primary insulation material.
