Hot Mv Pole Mounted Fuse Switch Disconnector (3P+N) Leakage Circuit Breaker

Basic Information

Model NO.	SM025	Arc-extinguishing Medium	SF6
Installation	Fixed	Structure	MCB
Poles Number	4	Type	Fuse
Function	Conventional Circuit Breaker	Certification	ISO9001-2000
Material	Plastic and Rubber	Shape	Square
Production Capacity	200000 Per Month	HS Code	8536200000

Product Description

Usage: Electronic | Material: Premium Plastic and Rubber

Installation: Effortlessly Pole Mounted | Design: Sleek Square Design

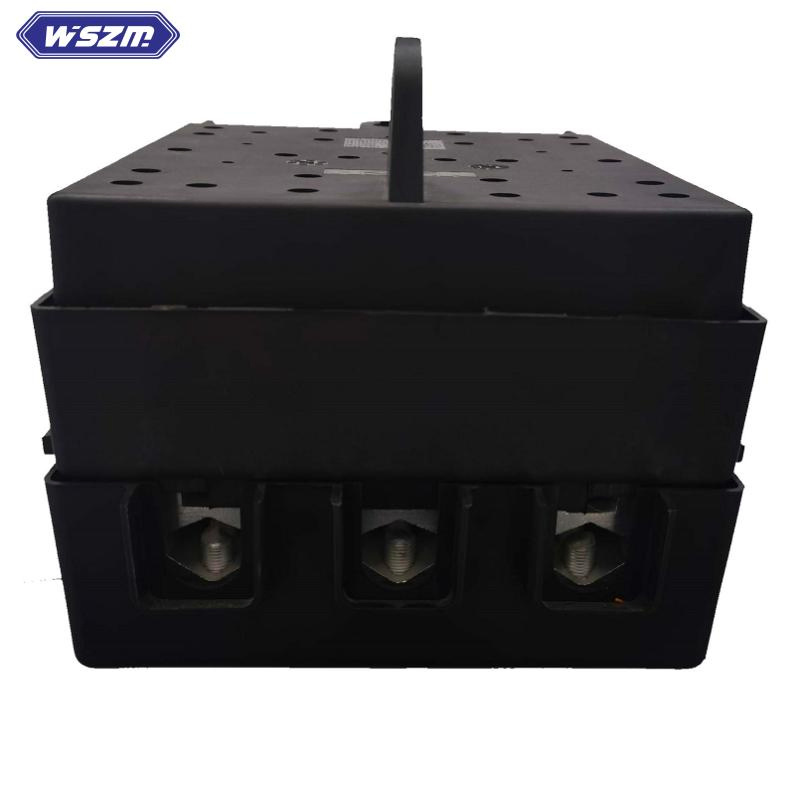

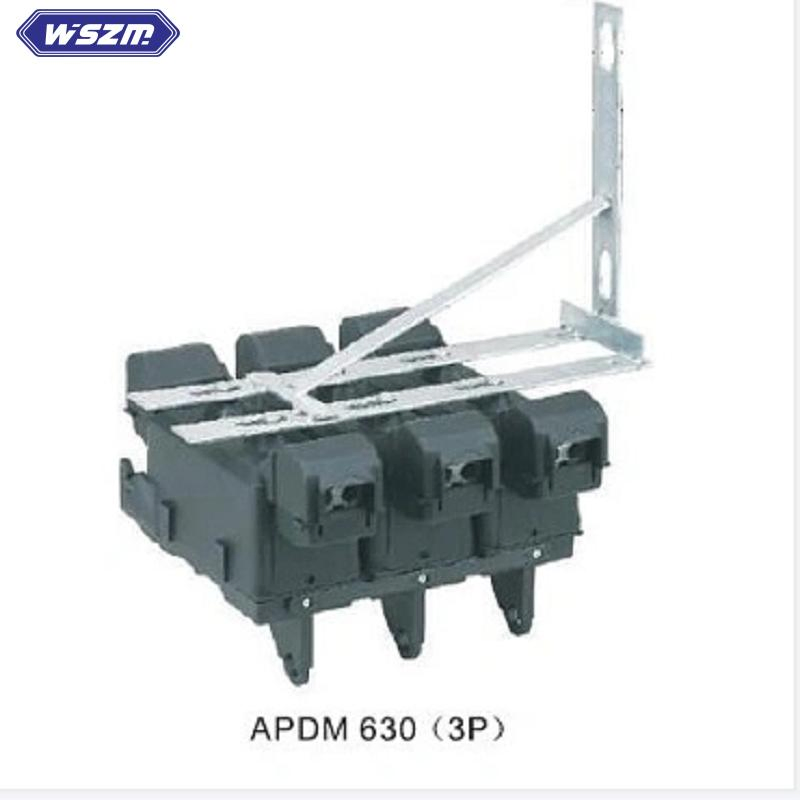

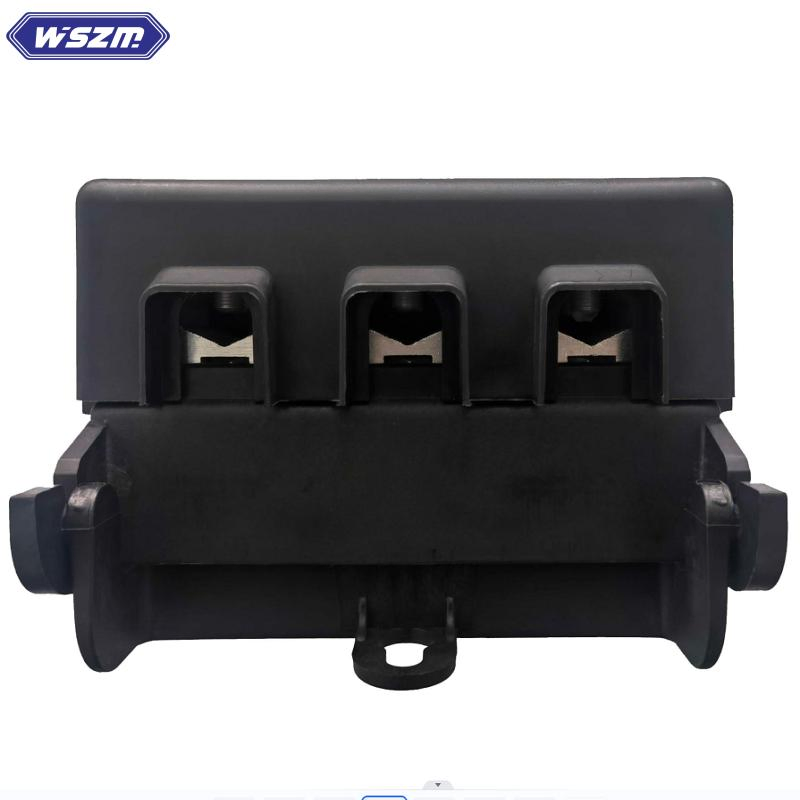

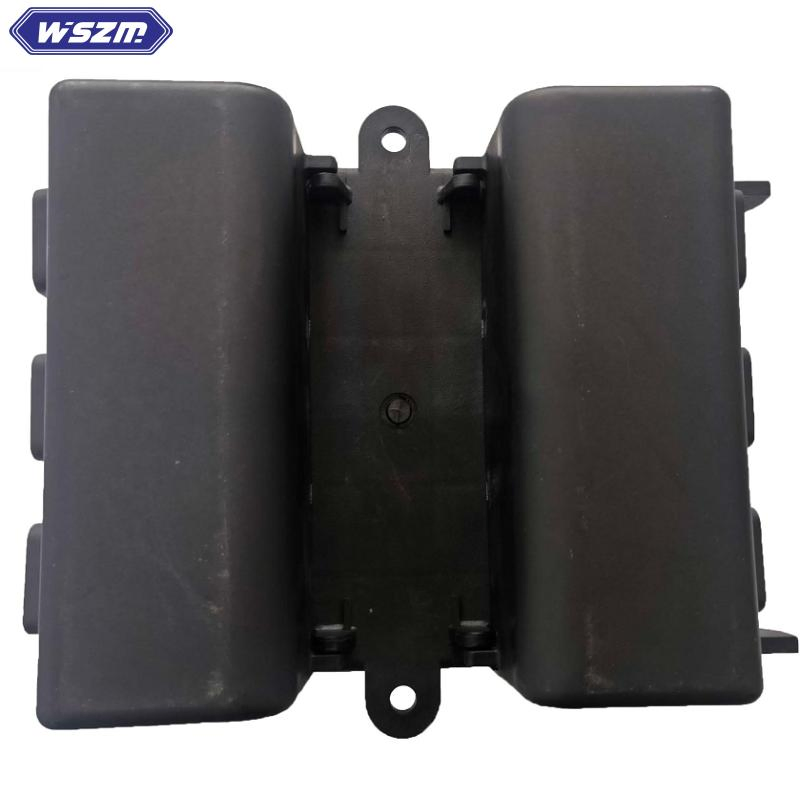

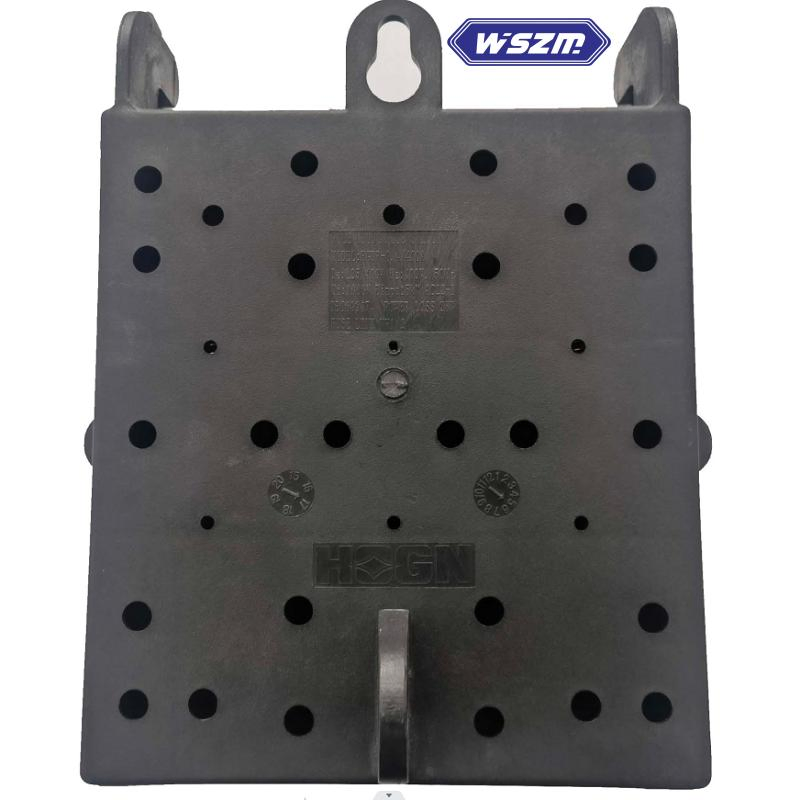

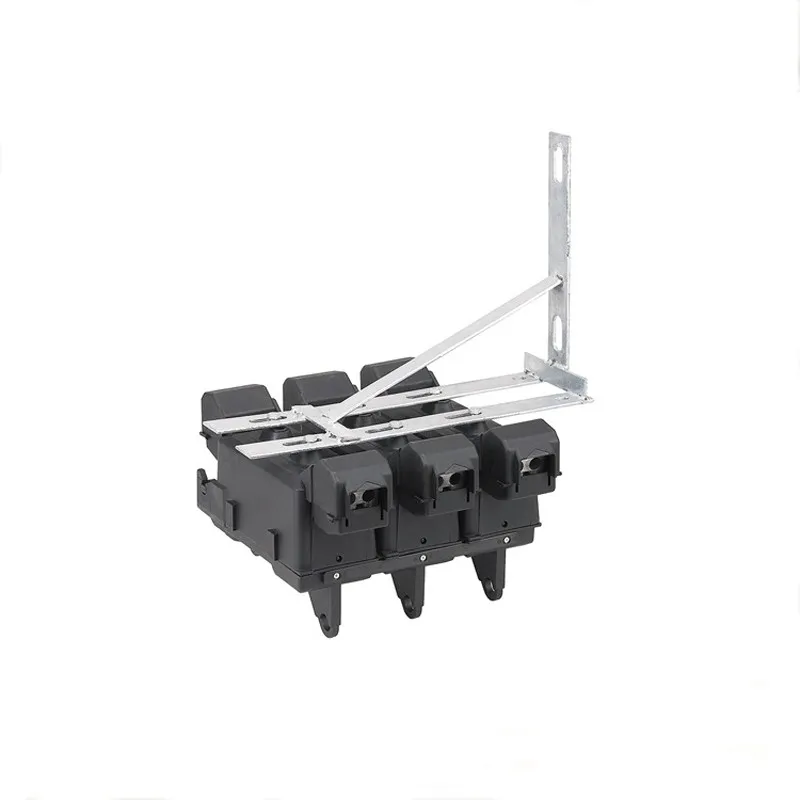

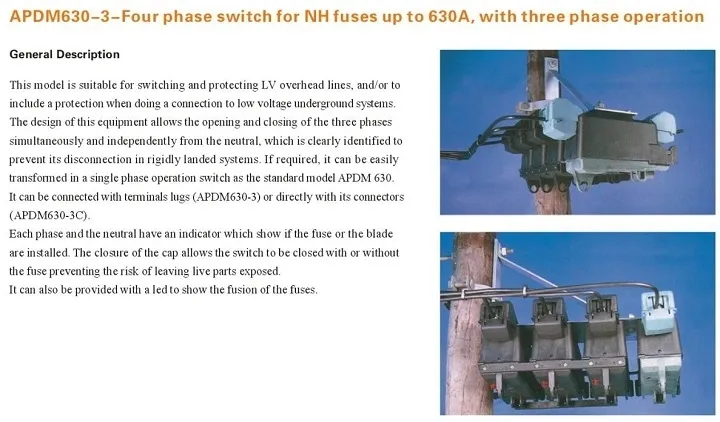

The fundamental duty of the 630A Fuse Switch Disconnector is to accommodate NH1, NH2, or NH3 fuse links, ensuring network protection and disconnection during faults. This unit is expertly crafted for on-load switching, providing a dependable medium for both disconnection and protection of fully insulated open wire networks. Its versatile design is perfectly suited for direct mounting onto poles, transformers, and cross arms.

Voltage	500V
Insulation Level	1000V
Frequency	50/60HZ
Operational Current with Fuse	630A
Interruption Capacity	100KA
Protection Range	IP23

Detailed Photos

Core Features

Engineered to perform full load switching with fuse links of disconnector blades up to the rated current.

Innovative modular design facilitates easy mounting (SP, TP, or TPN systems).

Manufactured from fully insulated, corrosion-proof, impact-resistant, weather & UV-resistant glass fiber reinforced polymide.

Upper housing is hinged and can be withdrawn using an insulated operation rod for safe ground-level replacement.

Robust contacts crafted from ETP grade copper, duly plated, ensuring consistent performance.

Equipped with both electrical and mechanical fuse indicators for clear status updates.

Manufacturing Excellence

We offer a comprehensive range of electrical products including power fittings, cable accessories, silicon rubber insulators, lightning arrestors, and circuit breakers. Our mission is to provide superior quality electrical products with dedicated quality assurance and innovative solutions.

Packaging & Shipping

Package Size	20.00cm * 20.00cm * 10.00cm
Package Gross Weight	1.000kg
Packaging Details	Securely packed in standard Export Cartons, or tailored to customer specifications
Lead Time	1 - 50,000 Pcs: 25 Days; >50,000 Pcs: To be negotiated

Frequently Asked Questions

1. Could we have the price of the products? Absolutely! Please contact us via inquiry for detailed pricing information.

2. Can we print our logo/brand name on the products? Yes, we offer OEM services with minimum order quantity requirements.

3. What's the lead time for a regular order? For regular products with an order quantity of less than 5000 pcs, the lead time is approximately 10-15 days.

4. Can we request sourcing services for products not listed? Yes, many of our products are not listed online. Feel free to provide pictures or data sheets for a prompt quotation.

5. Do you inspect the finished products? Yes, we conduct in-line inspections during production and a final inspection before shipping, handled by our QC department.

6. How do you pack the goods? We use standard export packaging. Customized packaging options are also available upon request to meet specific safety needs.
