High Voltage 200A 300A 500A Three-Phase Aircraft Ground Power Unit 28.5V 270V Frequency Converter
| # | Function Description |
|---|---|
| 1 | Designed to provide continuous high-quality DC power (28.5V & 270V Series). |
| 2 | Ideal for crew training, aircraft servicing in workshops, ramp operations, and pre-flight checks without draining onboard batteries. |

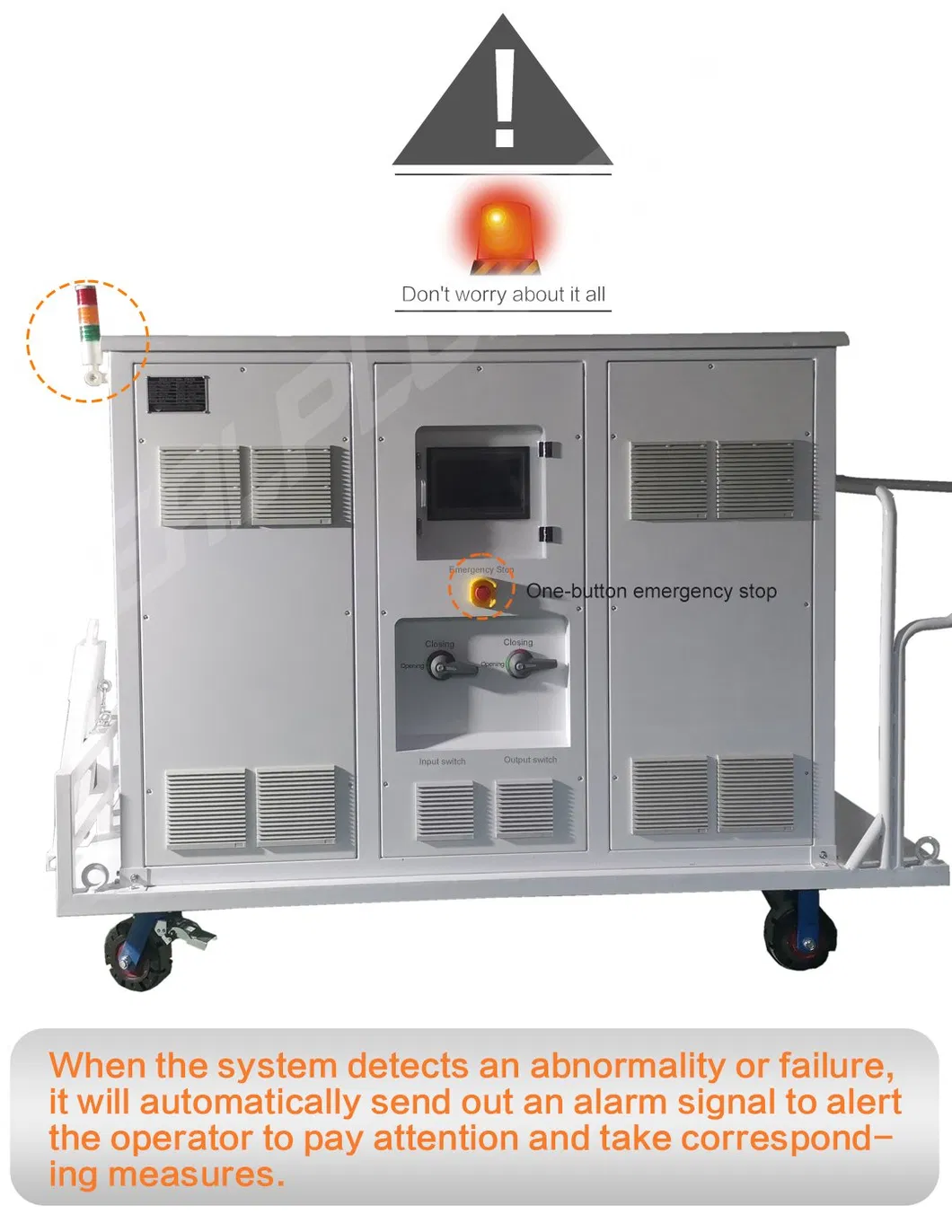

| 3 | Advanced safety features: Over Voltage, Overload, Internal Thermal, and Short Circuit protection. Conforms to EMC standards. |
| Parameter Item | Details | |
|---|---|---|
| Model Specification | IPS-ATDA270-500 or customize | |
| Input | Standard | Single-phase two-wire + ground |
| Voltage/Freq | AC 220V±10% 400Hz±5% | |
| Output | Rated Voltage | 270VDC (Range 0-270V) |
| Power | 135000W | |
| Current | 500A (Customizable) | |
| Voltage Ripple | ≤ 0.5% FS (Vrms) | |
| Efficiency | ≥85% | |
| Interface | Communication RS485, Modbus RTU protocol | |

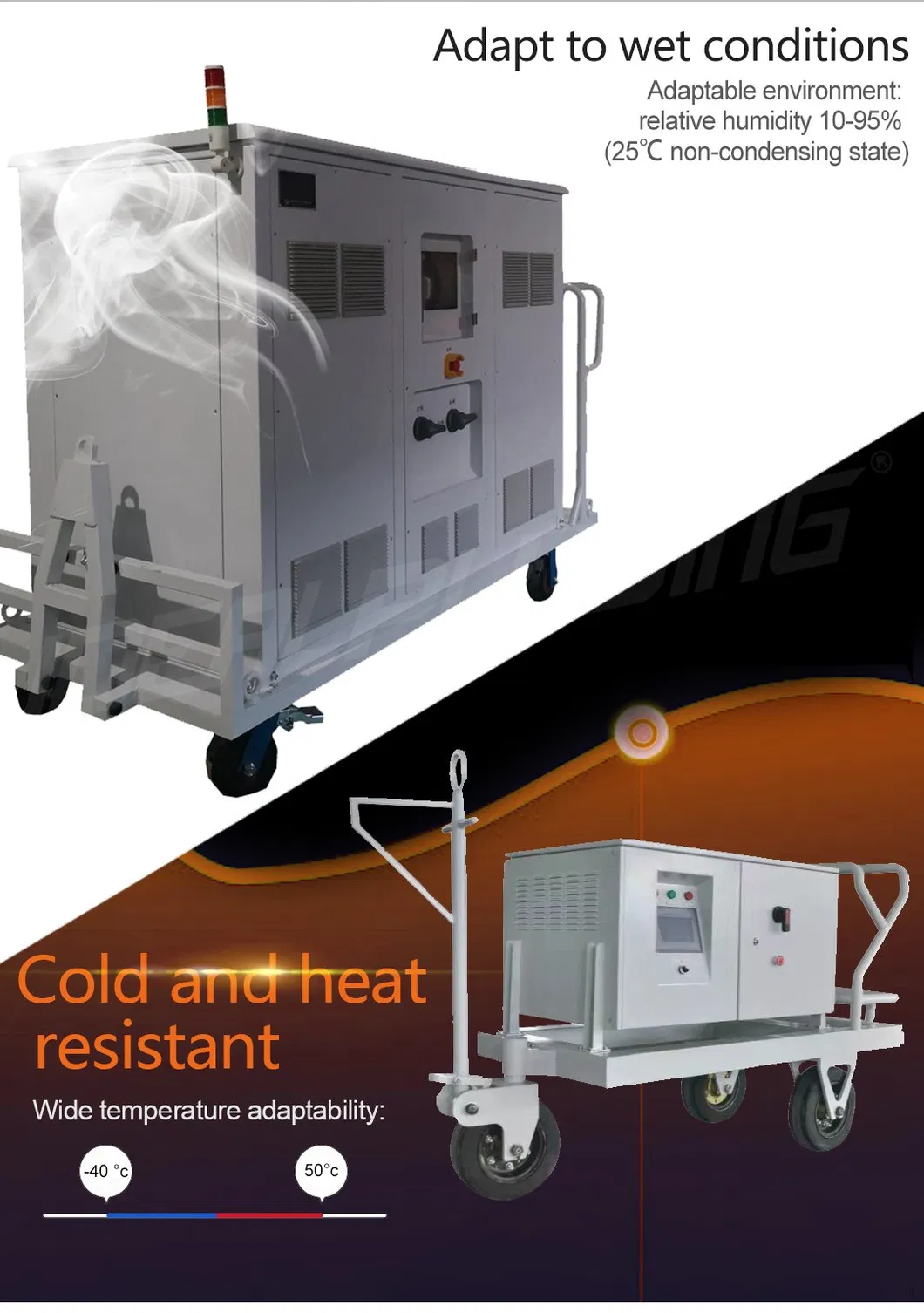

| Ambient Temp | -10ºC to 45ºC | |
| 28.5VDC Series (Range 0-33V) | |||
|---|---|---|---|
| Model | Input (VAC) | Output (Amps) | Capacity (Watts) |
| IPS-ATDA28.5-100 | 220VAC 1PH | 100A | 2850W |
| IPS-ATDA28.5-500 | 380VAC 3PH | 500A | 14250W |
| IPS-ATDA28.5-1000 | 380VAC 3PH | 1000A | 28500W |
| IPS-ATDA28.5-2000 | 380VAC 3PH | 2000A | 57000W |
| 270VDC Series (Range 0-330V) | |||
|---|---|---|---|
| Model | Input (VAC) | Output (Amps) | Capacity (Watts) |
| IPS-ATDA270-30 | 380VAC 3PH | 30A | 8100W |
| IPS-ATDA270-100 | 380VAC 3PH | 100A | 27000W |
| IPS-ATDA270-300 | 380VAC 3PH | 300A | 81000W |
| IPS-ATDA270-500 | 380VAC 3PH | 500A | 135000W |
| IPS-ATDA270-800 | 380VAC 3PH | 800A | 216000W |
IPS-ATDA28.5-180
IPS-ATDA28.5-600
IPS-ATDA28.5-1300
IPS-ATDA270-80
IPS-ATDA270-120
IPS-ATDA270-750
