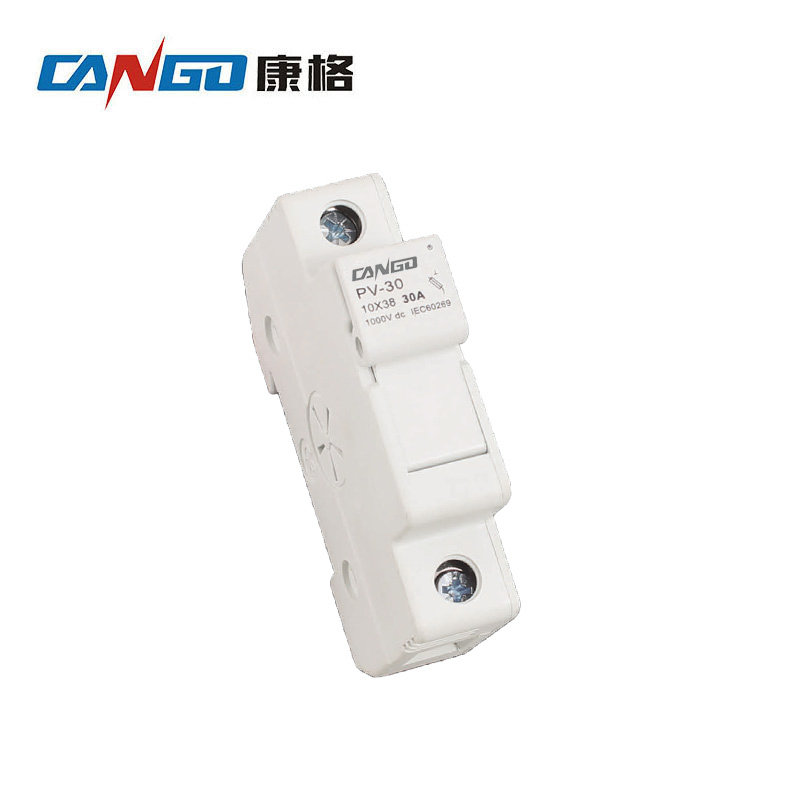

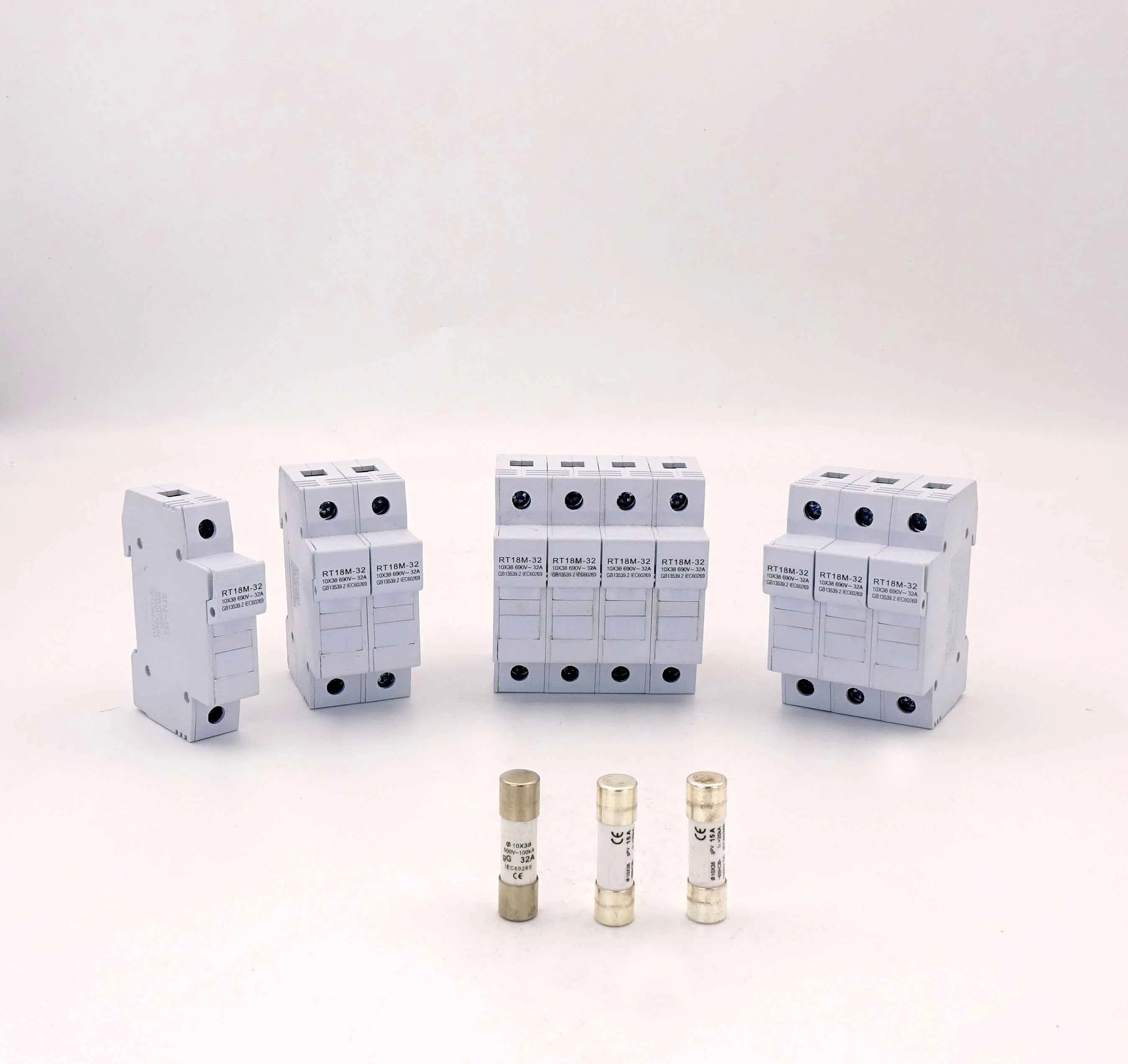

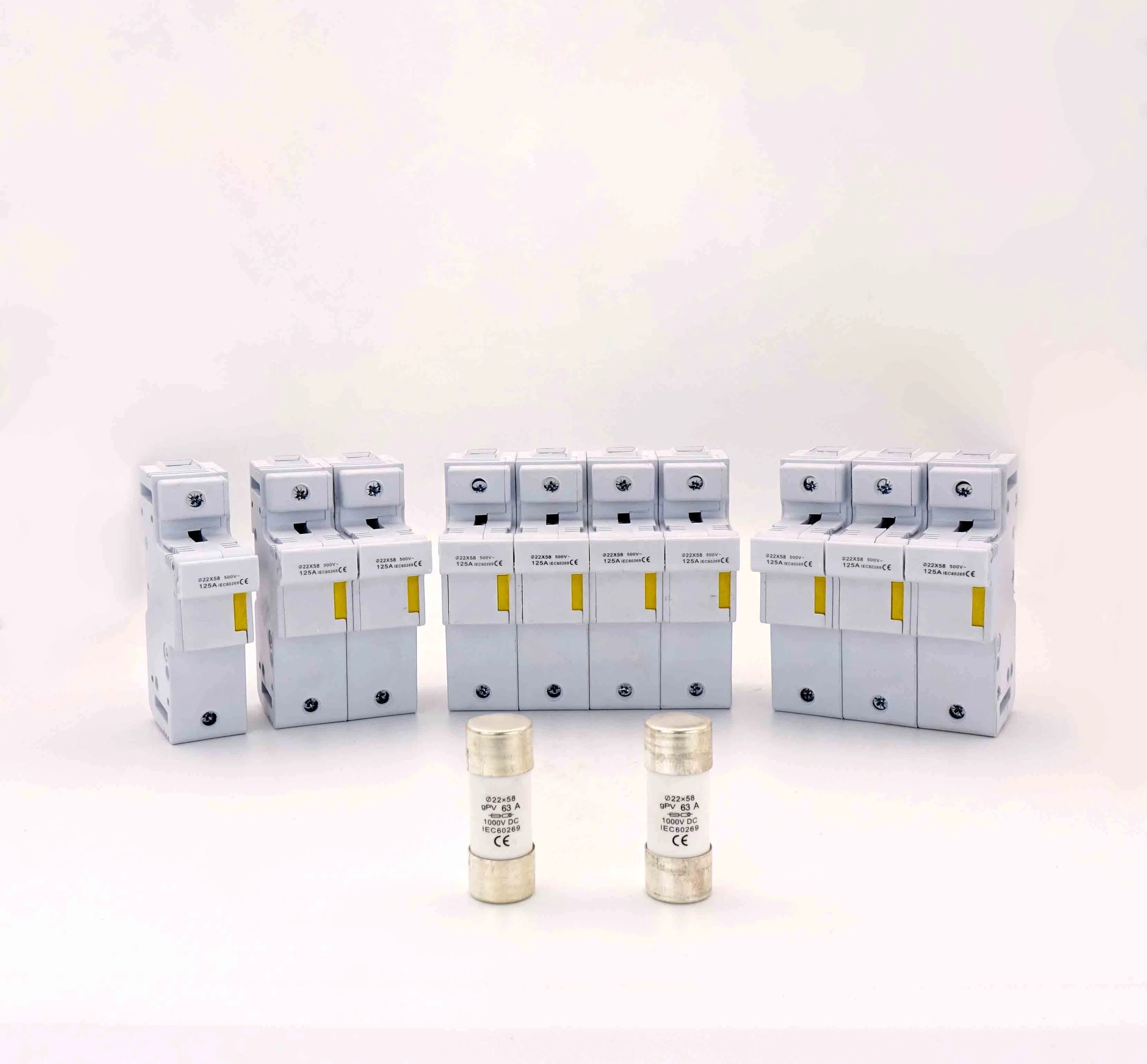

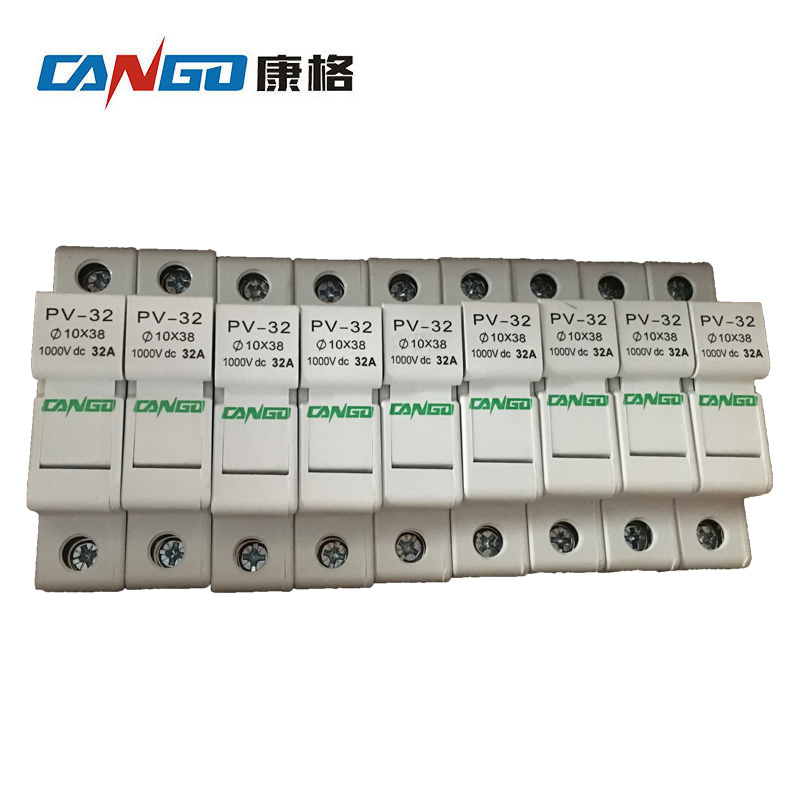

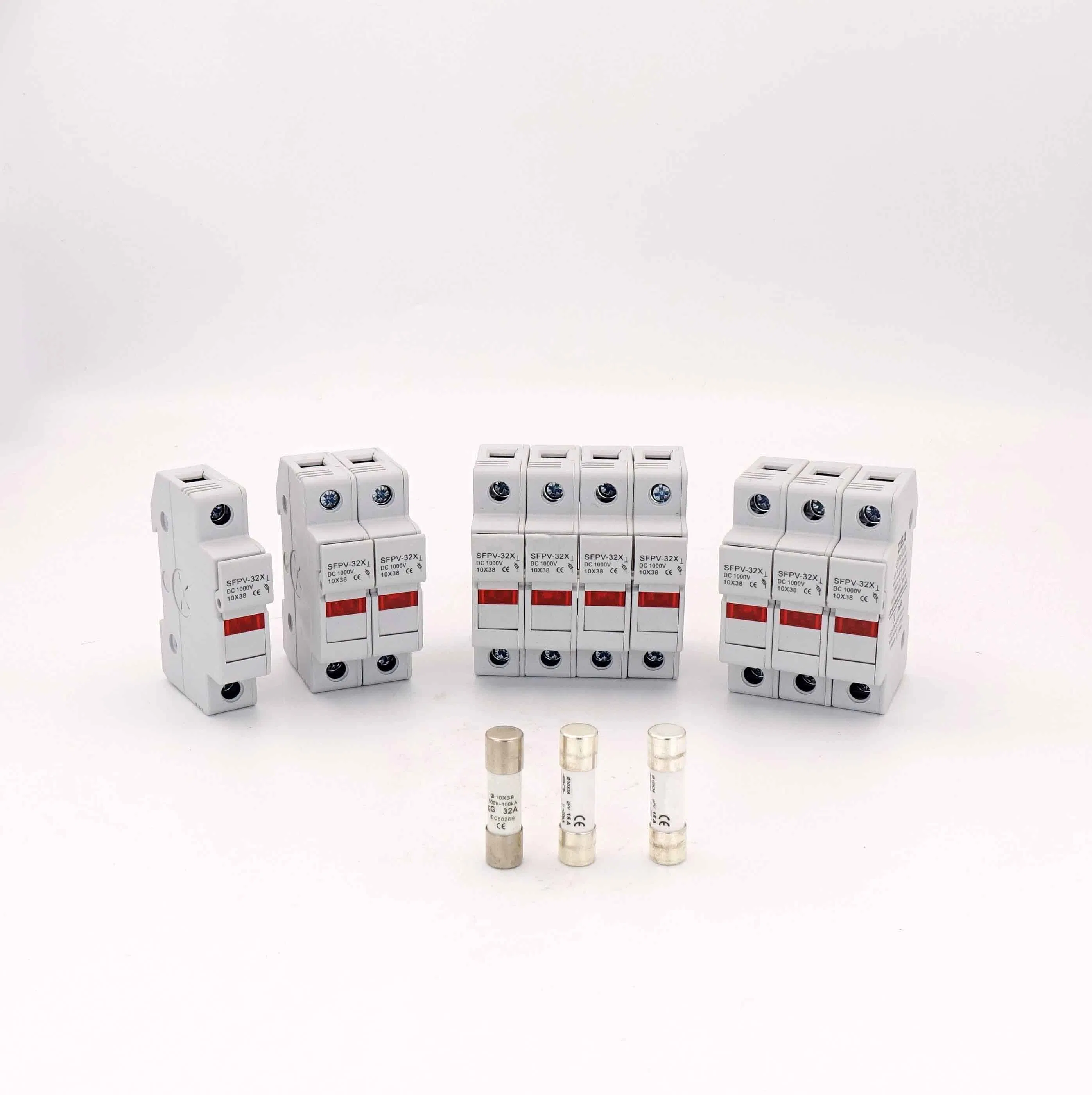

High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
1 / 5
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems
High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems

High-Performance PV Series 10X38 Dedicated DC Fuse for Solar Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PV series
Usage
Low Voltage
Shape
Insert
Fusing Speed
FF
Fusing Device
Pop-up Solid
Standard
IEC
Rated Voltage
1000VDC
Max. Running Voltage
5301060VDC
Rated Current
1-25A
Breaking Capacity
6ka
Curve Type
B C
Ambient Temp
-25℃~+40℃
Pole
1p 2p 3p 4p
Package Size
25.00cm * 30.00cm * 40.00cm
Product Description
PV Series DC Fuse
PV Series DC Fuse:
PV series DC fuses are primarily designed for solar PV combiner boxes, shaped solar panels, and photovoltaic string inverters. These fuses are capable of managing current feedback generated by circuit overloads and effectively breaking short circuit currents. This critical function helps protect PV module plates and can also serve as a reliable component for electrical circuit overload and short circuit protection in various other DC circuit applications.
Technical Parameters
Item Rated Current Rated Voltage Energy Integrals Watts Loss (W)
Pre-Arcing Total @1000V 0.8In In
10x38mm1A1000VDC0.150.40.81.5
10x38mm2A1000VDC1.23.40.61.0
10x38mm4A1000VDC9.5261.01.5
10x38mm10A1000VDC7701.22.3
10x38mm20A1000VDC343502.13.6
10x38mm25A1000VDC32518601.652.91
Application & Production
Fuse Application
Production Facility:
Factory Production Line
Frequently Asked Questions
What is the primary application of the PV series DC fuse?
It is mainly used for solar PV combiner boxes, solar panels, and photovoltaic string inverters to provide overload and short circuit protection.
What is the rated voltage for these fuses?
The PV series is rated for 1000VDC, making it suitable for high-voltage solar power systems.
Does this product comply with international standards?
Yes, these fuses are manufactured in accordance with the IEC standard for low-voltage electrical components.
What current ratings are available?
We provide a wide range of rated currents from 1A to 25A to accommodate different system requirements.
What is the breaking capacity of the PV series fuse?
The rated breaking capacity is 6ka, ensuring effective circuit interruption during fault conditions.
