Product Description

📋

Basic Specifications

Model NO.
LS-RSK-H1-S
Mathematical Model
Linear
Signal
Hall Sensors
Function
Automatic Control
Certification
CE, FCC
Material
Plastic, Circuit Boards, Wires
Voltage
12 to 28VDC
Color
Black
Capacity
8000PCS/Month
HS Code
8537109090
⚙️

Product Description

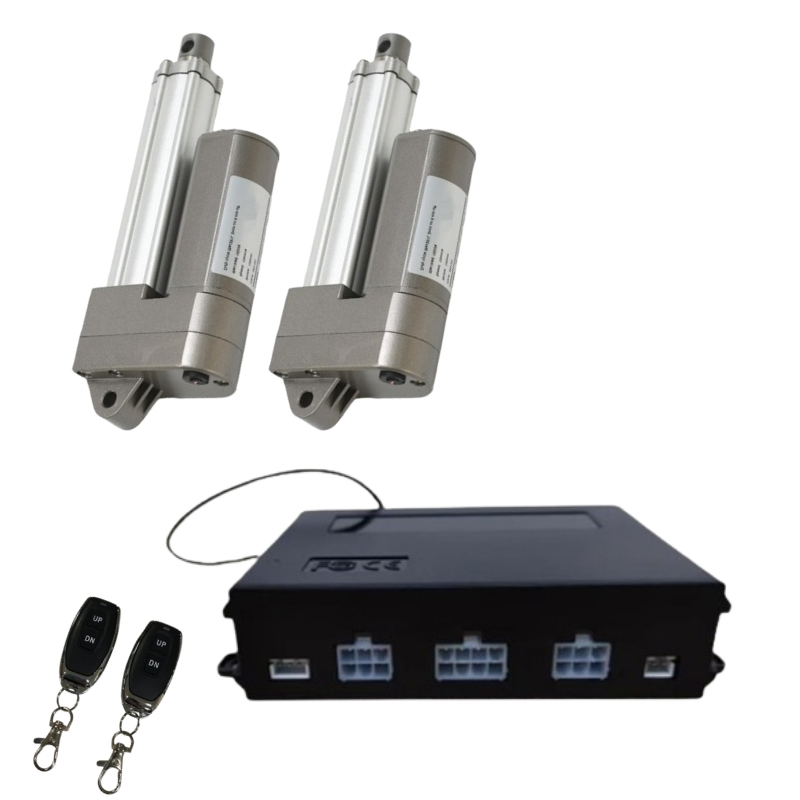

2 Hall Sensors Effect Electric Actuator Control Unit with Inbuilt Safety Overcurrent Protection

Main Functions & Features:

  • Control 2 Hall linear actuators motion in 100% synchronous operation.
  • Safety overcurrent inbuilt for controller board, motor, and application protection.
  • Maintains synchronization under any conditions, even with unbalanced loading.
  • Dual operation support: Wireless remote and wired rocker switch.
  • Suitable for multiple hall linear actuators.
  • Certified by SGS (CE, FCC).
📊

Technical Parameters

Voltage Supply12V DC (24V, 28V optional)
Max Current25A
Remote Frequency433.92 HMz
Remote RangeUp to 50 meters
Working Temp-35ºC ~ +65ºC
Remote CapacityProgrammable, Max 4pcs
Waterproof RatingIP54
Operation ModeMomentary and Non-momentary switchable
🖼️

Product Visuals

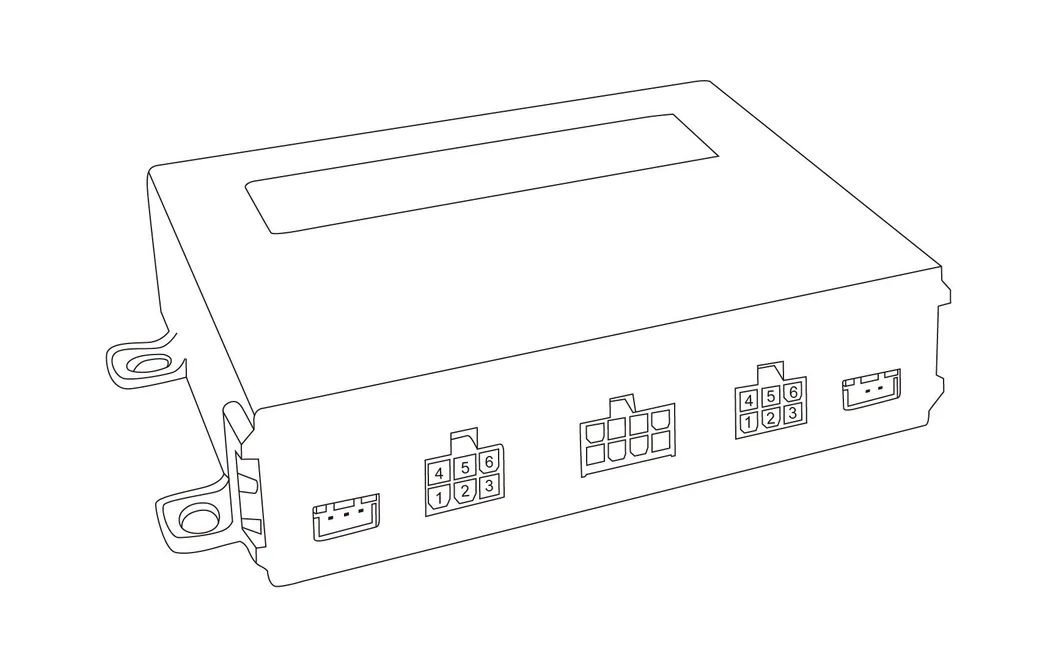

Actuator Control Unit Main View

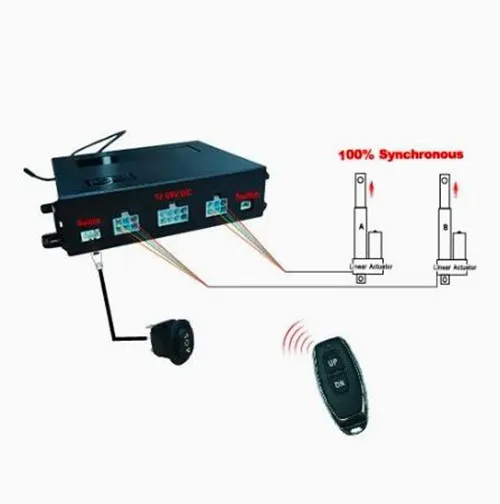

Actuator Control Unit Side View

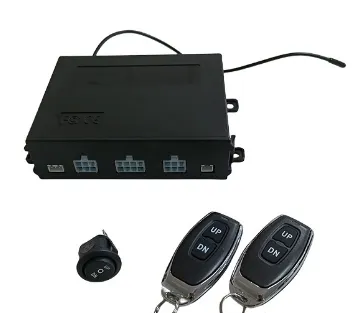

Control Unit Details
🛠️

Support & Services

Expertise in auto motion and motion remote control systems for more than 10 years. All products undergo strict quality control with an experienced R&D team of engineers to support OEM/ODM projects.

Warranty: All products come with a one-year warranty. Technical troubleshooting and support are available for all control boxes and linear actuator controllers.

Packaging: Securely packaged in paper gift boxes (50PCS/Carton) and sealed for safe transit via international couriers.

❓

Frequently Asked Questions

1. How does the synchronization feature work?
The controller uses Hall sensor signals to monitor the position of both actuators in real-time, ensuring they move at the exact same speed and position (100% synchronous) even if they carry different loads.
2. What safety protections are built into the unit?
The control unit features inbuilt safety overcurrent protection. This protects the controller board, the actuator motors, and the overall application from damage due to electrical surges or mechanical obstructions.
3. Can I use both a remote and a manual switch?
Yes, this model supports dual operation. It can be operated via the included wireless remote control (433.92 MHz) or through a wired rocker switch for manual control.
4. What is the maximum number of remotes I can use?
The control unit is programmable and can support a maximum of 4 wireless remote controls simultaneously.
5. Is the control unit waterproof for outdoor use?
The unit is rated at IP54, which provides protection against dust and light water splashes. However, it is considered non-waterproof for heavy rain or immersion and should be housed in a protected area.
6. What voltage range does the controller support?
Standard voltage is 12V DC, but it can be configured for 24V or 28V DC supply depending on your specific requirements.
