Product Description

🔵 Product Overview

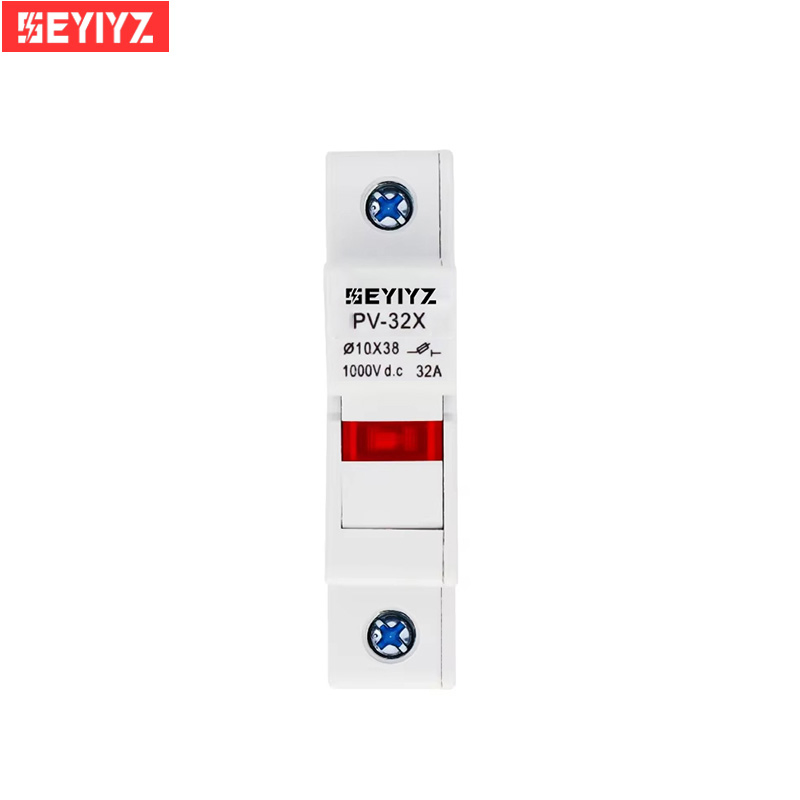

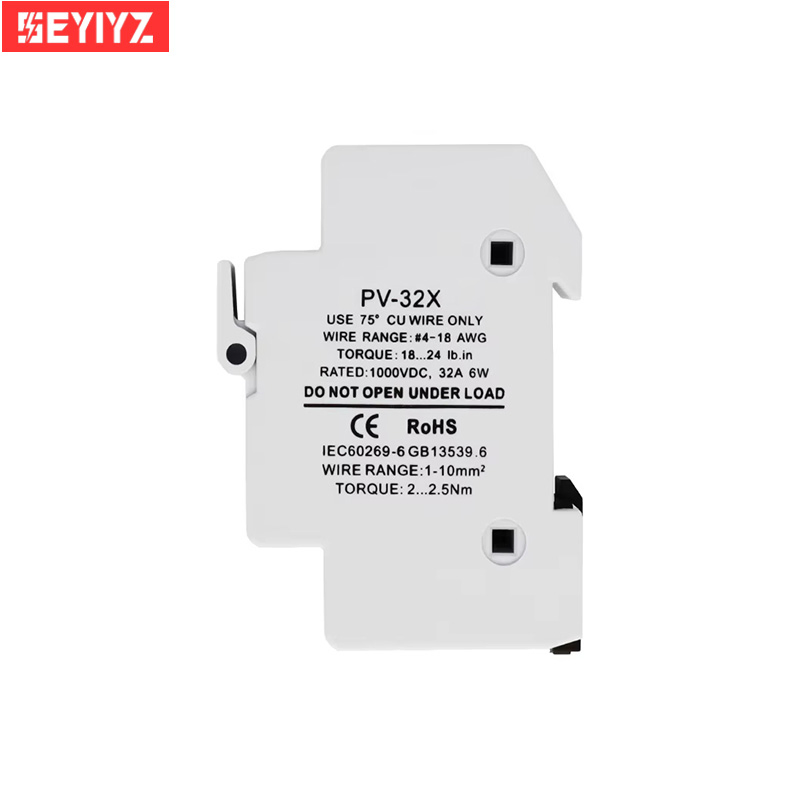

DC Fuse Holder / Solar PV Fuse Holder for Solar PV Fuse 1000V DC

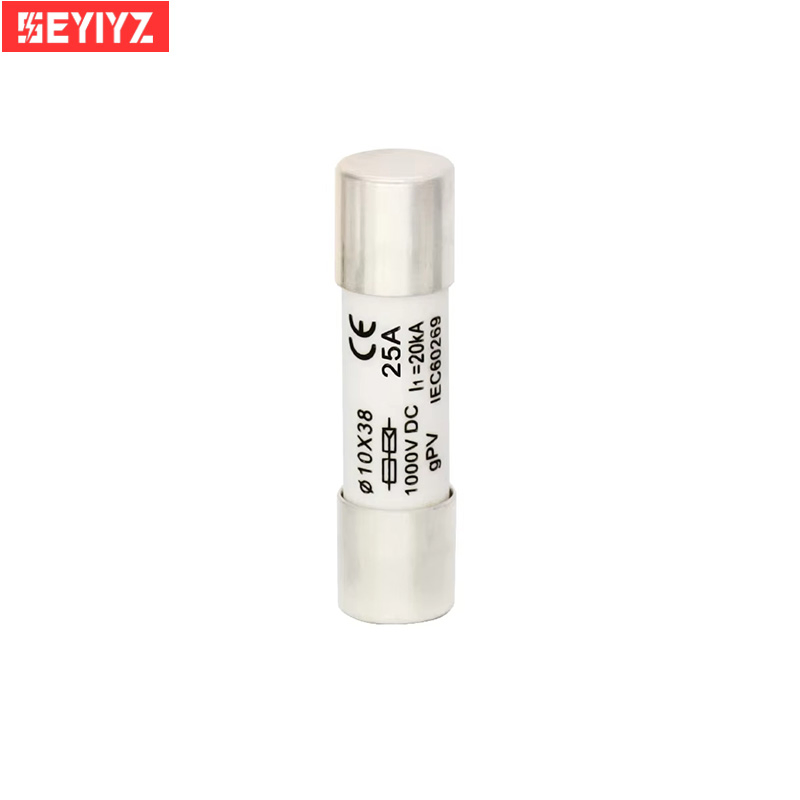

A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
📋 Basic Specifications
Model NO.
PV32 Fuse link 10A -32A
Shape
Circle
Standard
IEC60269-6
Rated Voltage
DC1000V
Size
10X38
Rated Current
1A to 32A
Breaking Capacity
DC 20ka
Working Temp.
-30~+70 (℃)
Time Constant
1-3ms
Protection Class
IP20
⚙️ Technical Parameters
Pole 1P
Rated Current (In) 1A, 2A, 4A-10A, 12A-16A, 20A, 25A, 30A, 32A
Fuse Link Size 10x38 mm
Class Operation gPV
Installation Class III / DIN rail
🖼️ Product Display

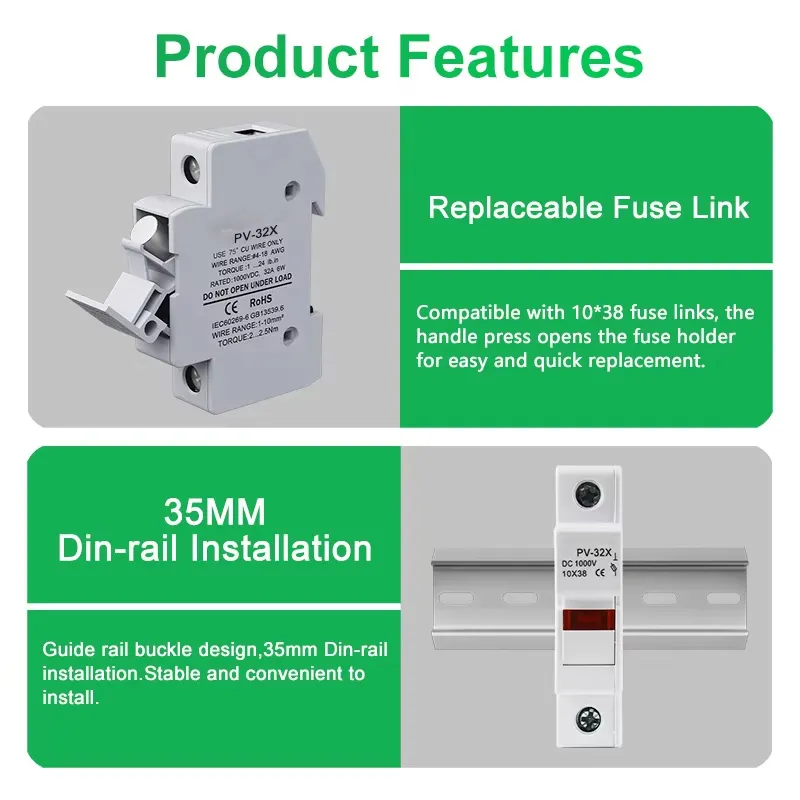

Solar PV Fuse Holder 1

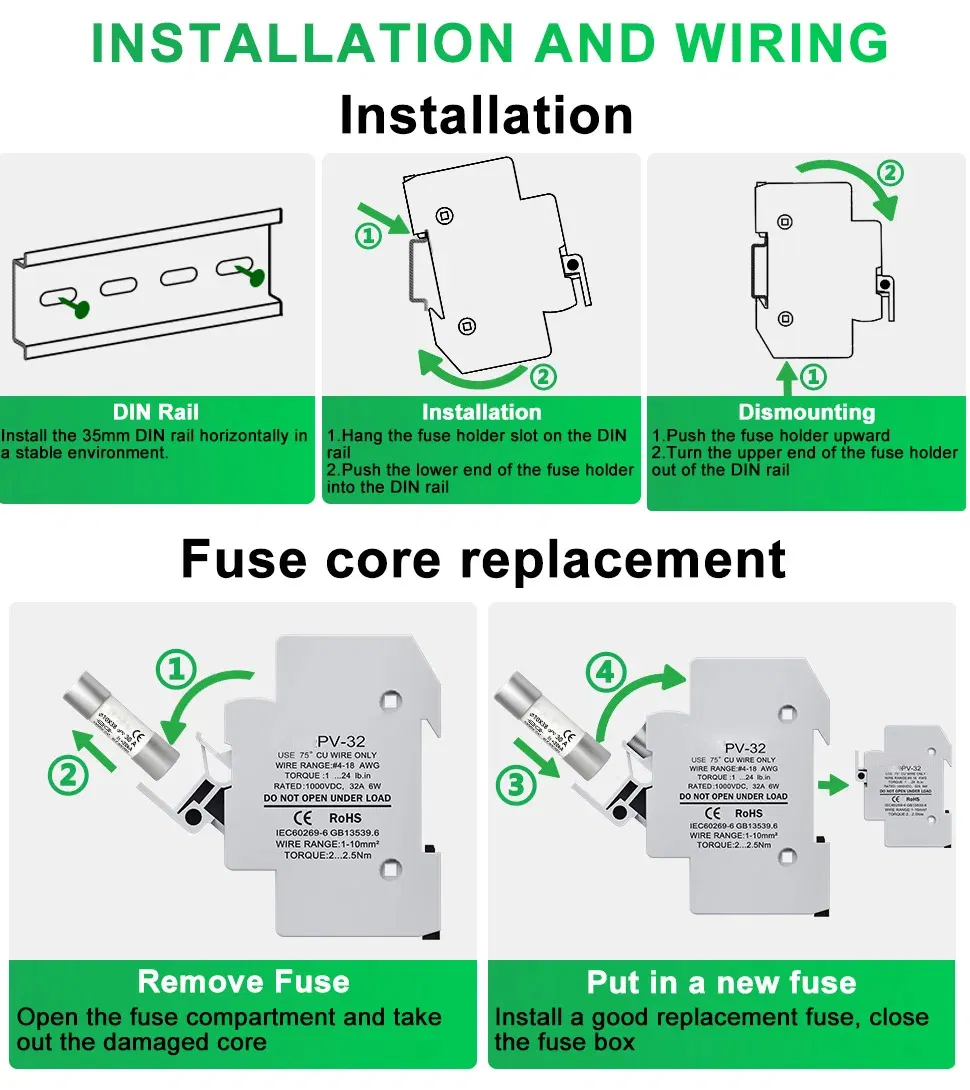

Solar PV Fuse Holder 2

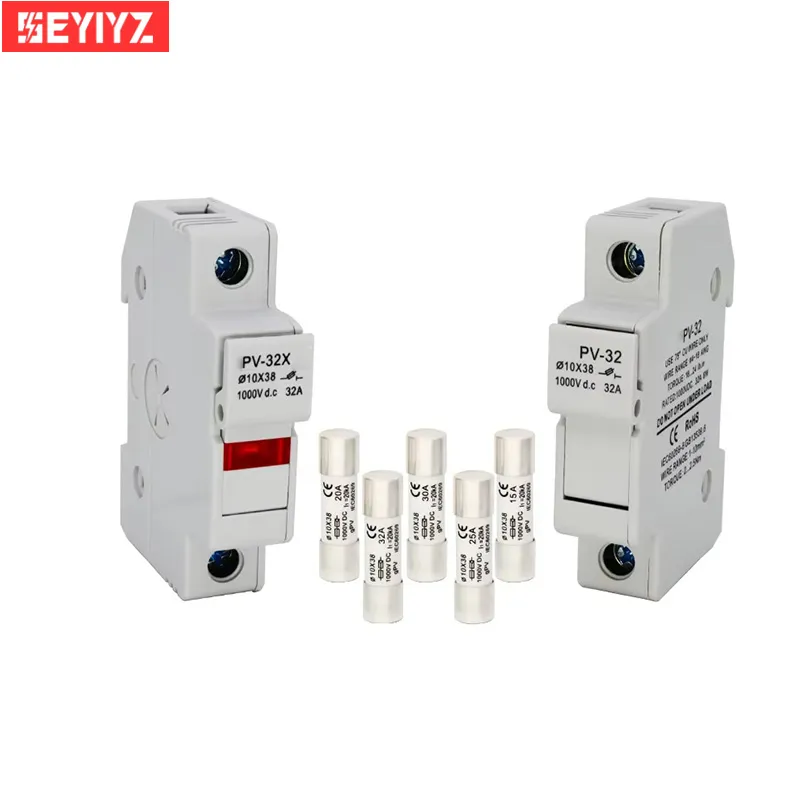

Solar PV Fuse Holder 3

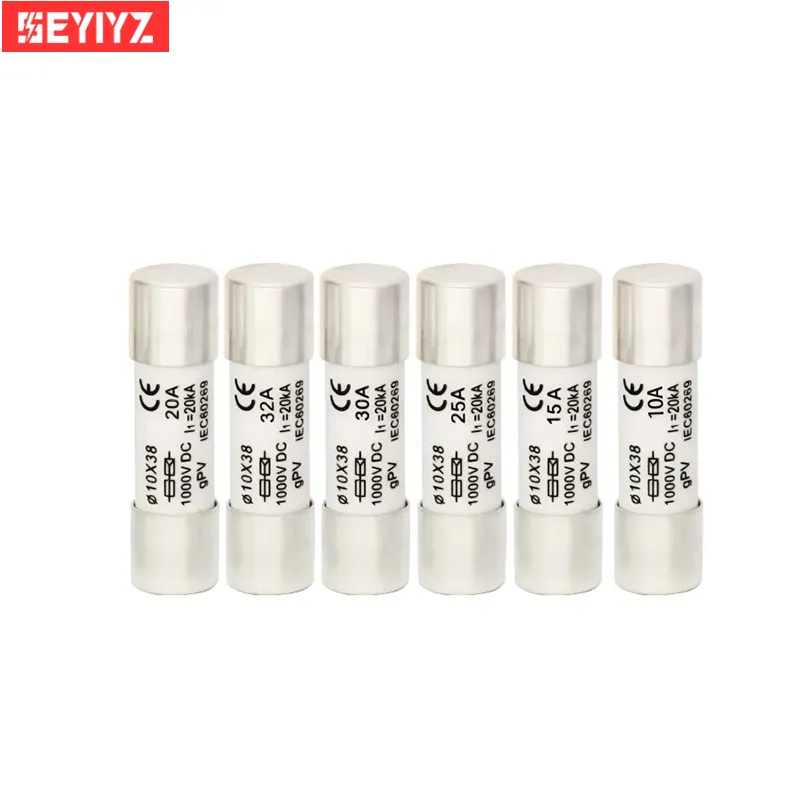

Solar PV Fuse Holder 4
Solar PV Fuse Holder 5
Solar PV Fuse Holder 6
Frequently Asked Questions
How long is your delivery time?
It is according to the order quantity. Generally, we arrange the lead time within 5-7 days for standard orders.
What is your manufacturing status?
We are a direct factory specializing in the production of solar protection components, ensuring competitive pricing and quality control.
How do you ensure product quality?
Quality is our priority. We manufacture high-quality products strictly according to international standards (IEC60269-6) to meet your satisfaction.
What are the primary applications for these fuses?
These fuses are specifically designed for protecting photovoltaic strings against low overcurrents, reverse currents, and multi-array faults in solar systems.
What is the rated breaking capacity?
The rated breaking capacity for this range of DC solar fuses is 20kA at DC 1000V.
How are these components installed?
The fuse holders are designed for easy Class III installation on standard DIN rails.
