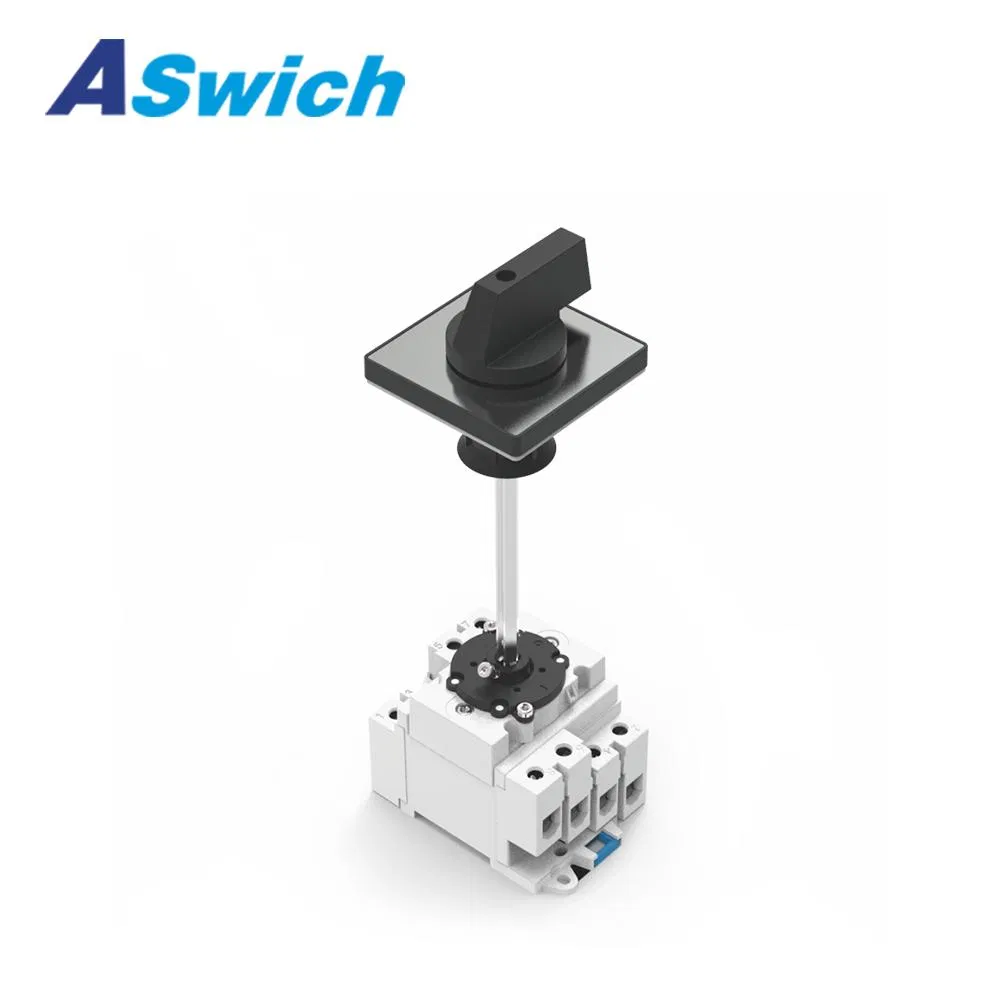

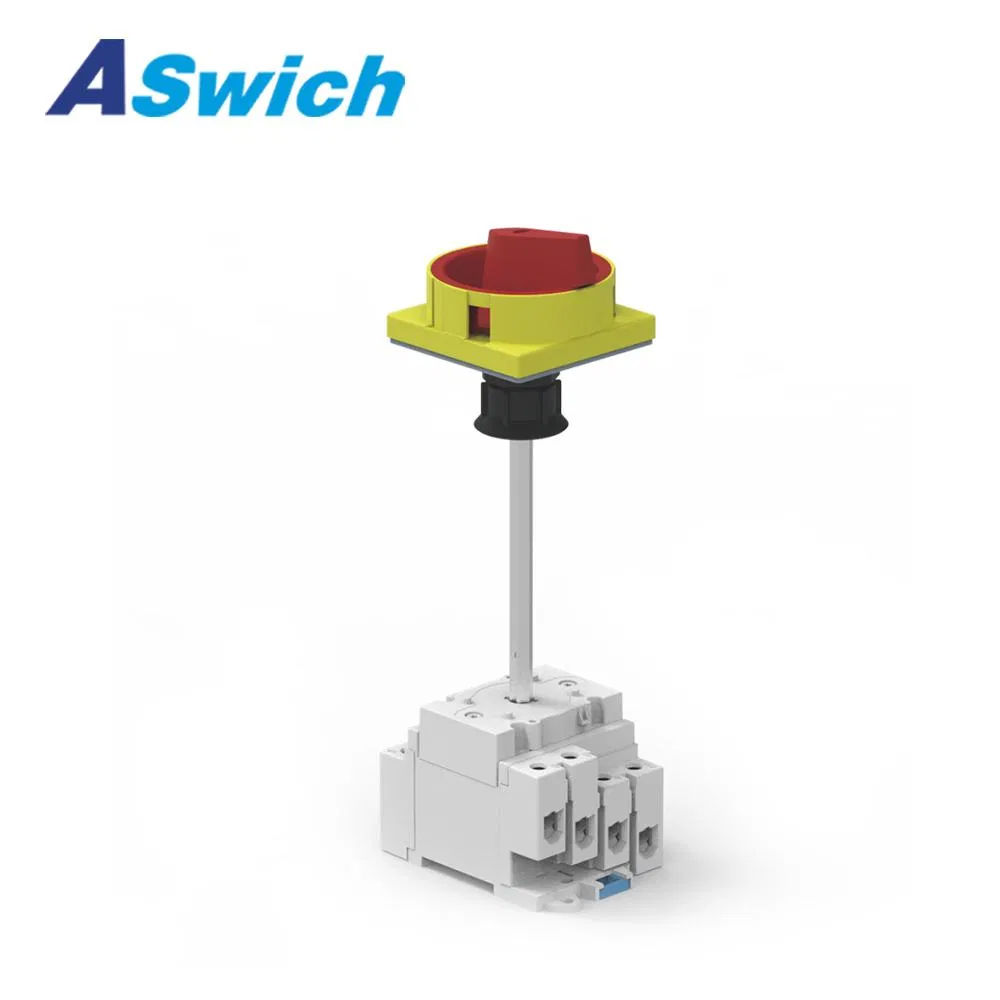

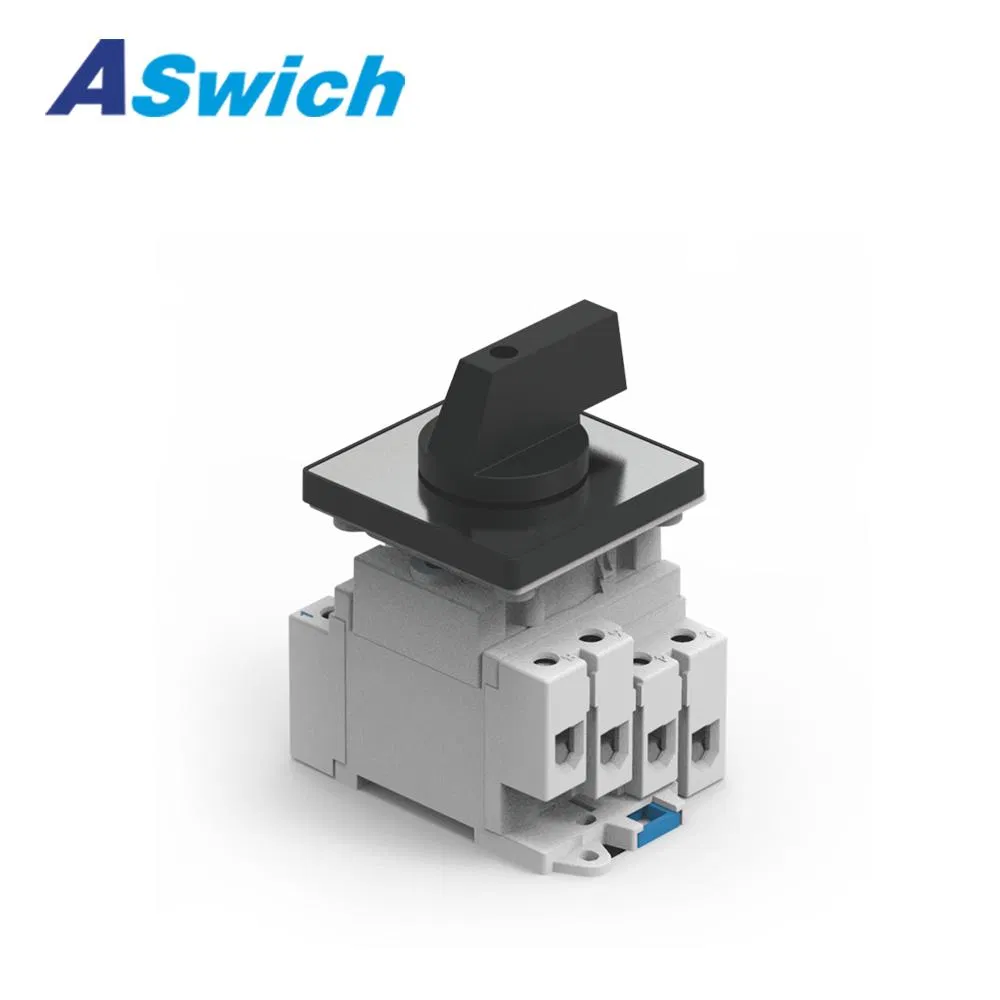

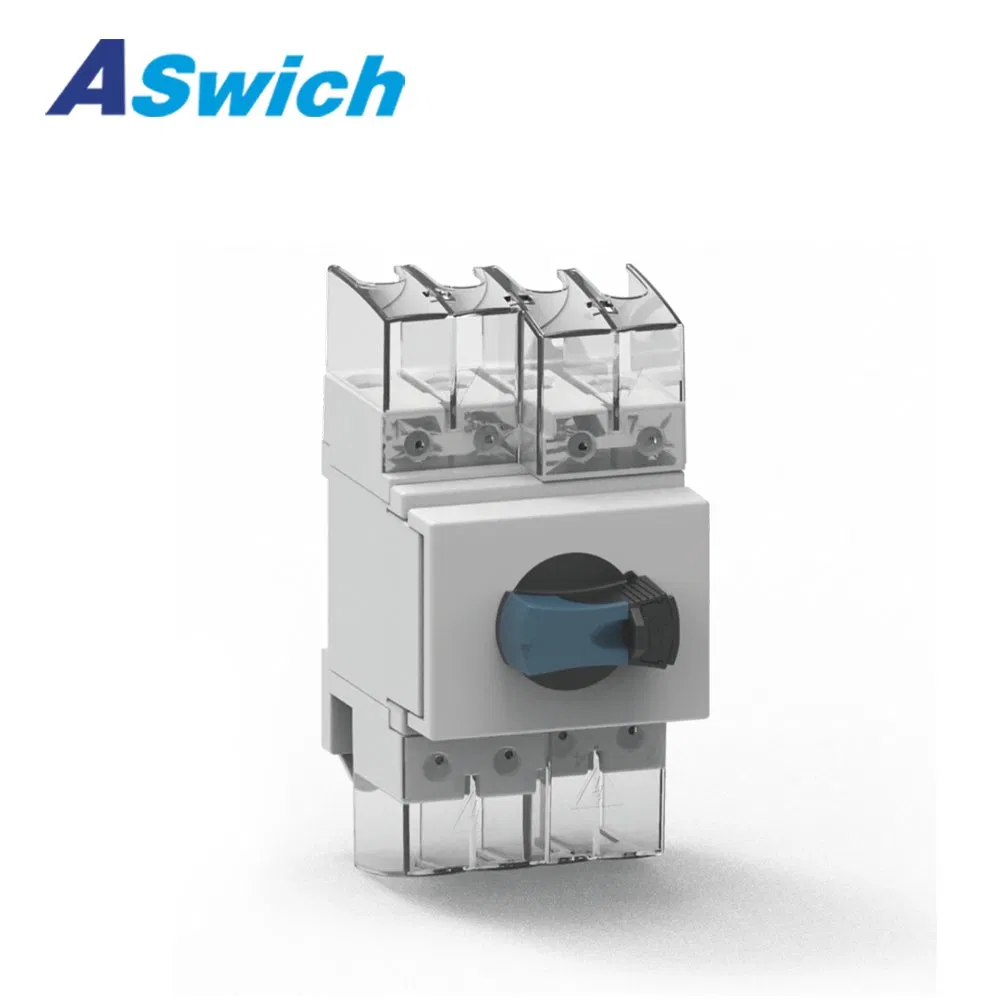

Energy Storage System Door Interlock Disconnect Switch 1000V DC Isolator for Solar PV

1 / 5

Energy Storage System Door Interlock Disconnect Switch 1000V DC Isolator for Solar PV

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EDS1

Installation

35mm DIN-Rail

Operation

Manual

Grounding Mode

Not Grounding

Movement Mode

Plug-in Type

Number of Poles

1p/2p/3p/4p

Grounding

Double Ground

Run

Plug-In

Structure

Manual Operation

Certification

ISO, RoHS, CE, ISO9001, CB, SAA

Standard

DC-PV2

Wiring

Upside Input, Downside Output

Wiring Methods

Mc4/M20/M25

IP Grade

IP20/IP66

On-Off

Rotary

Polarity

No Polarity

Mounting Type

DIN Rail/Panel/Door Lock/Enclosure

1000V/1200V

Max Current

32A

Origin

China

HS Code

853650

Capacity

1,000,000 PC/Year

Product Description

✓ Easy to install

✓ Added security

✓ Enhanced safety

✓ Flexible installation options

✓ Arcing time <3ms

✓ IP66NW Protection

DC disconnects are switches that complete or interrupt a flow of DC electricity. In a solar PV system, the DC disconnect is placed between the solar panel array and the power inverter so it can easily be thrown if you need to shut off solar power to the house.

The new enclosed DC isolating switch has been designed, engineered and developed for 1~20kW residential and commercial rooftop solar applications. This DC isolating switch provides a safe means of isolating your PV array during installation or maintenance while keeping you and your solar system from harms way. For all installations up to 1500V DC, the switch is fully compliant to AS 60947.3 and AS/NZS IEC 60947.1. In addition, the polycarbonate enclosure consists of an injected TPE gasket for IP66NW protection - ensuring best protection against damaging dust and moisture ingress.

Frequently Asked Questions

When can I receive a quotation and detailed information after sending an enquiry?

All your enquiries will be replied to within 24 hours.

What is the difference between your DC Isolator and other suppliers?

Our DC Isolator features an IP66 protection degree and high-quality customization. For solar systems, we recommend comparing quality first as the best way to ensure safety.

Can I get a sample before placing a formal order?

Of course! We believe a sample order is the best way to build trust and verify the quality of our products.

What is the expected delivery time for urgent orders?

For sample orders, 3-7 days is standard. For regular production orders, we promise delivery within 15 days.

How long is the warranty period for the DC Isolator?

We offer a 2-5 year warranty for our customers, depending on the specific product configuration.

Are these switches compliant with international standards?

Yes, the switches are fully compliant with AS 60947.3 and AS/NZS IEC 60947.1, suitable for installations up to 1500V DC.
