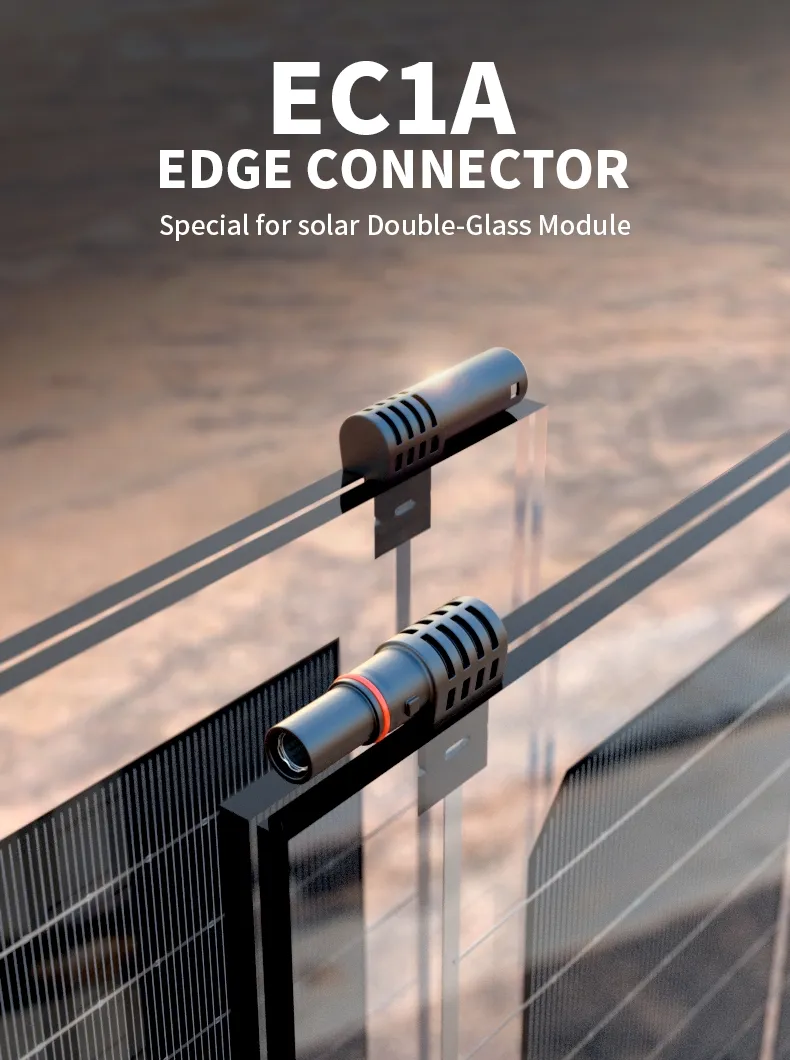

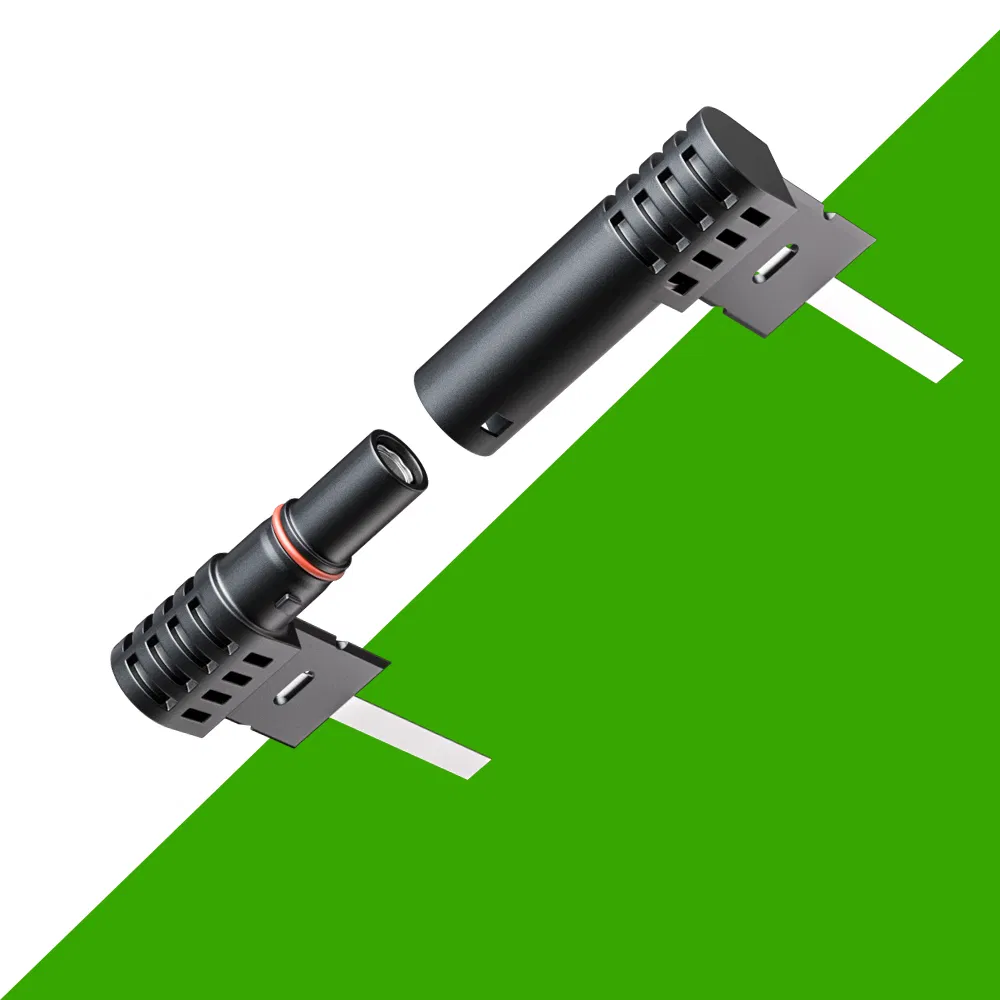

Ec1a Nspv Brand New Solar PV Panels Mini Junction Box Plug Connector

Customization:	Available
Type:	Waterproof Junction Box
Material:	PA/Cu

Send Inquiry

Product Description

📋 Product Overview

Model NO.

EC1A

IP Rating

IP67

Certification

ISO, CE

Insulation Material

PA/Cu

Rated Voltage

1000V & 1500VDC

Rated Impulse Voltage

16kv

Contact Resistance

≤ 0.25 MΩ

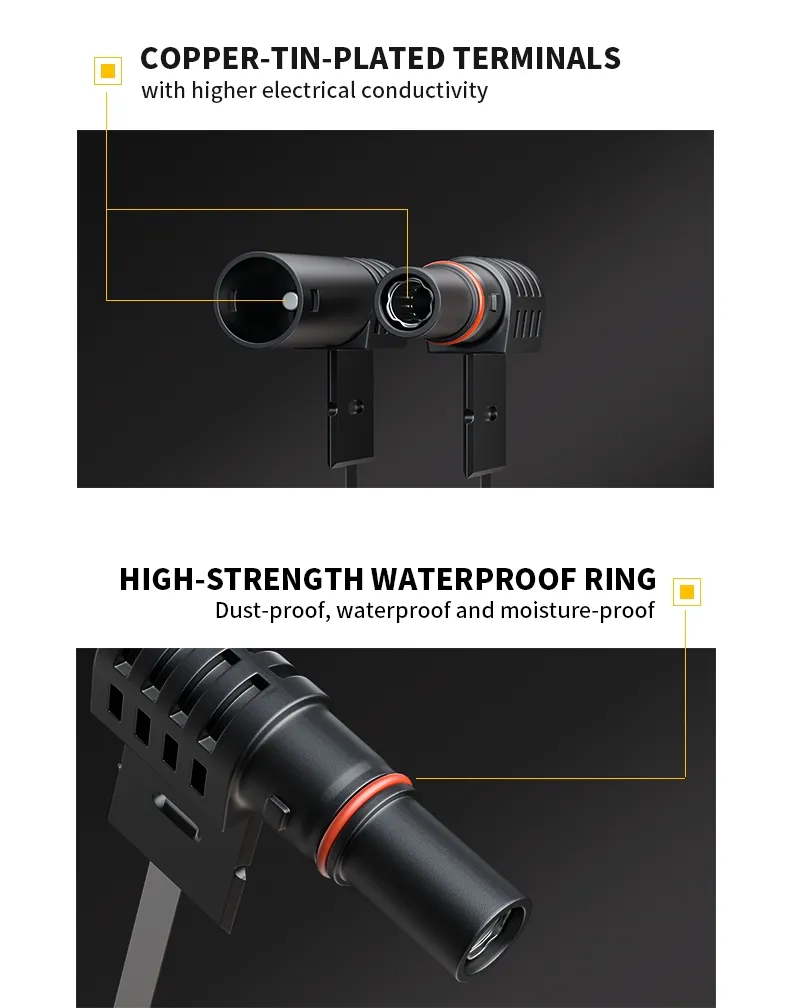

Contact Material

Copper, Tin Plated

Package Size

50.00cm * 50.00cm * 35.00cm

Gross Weight

15.000kg

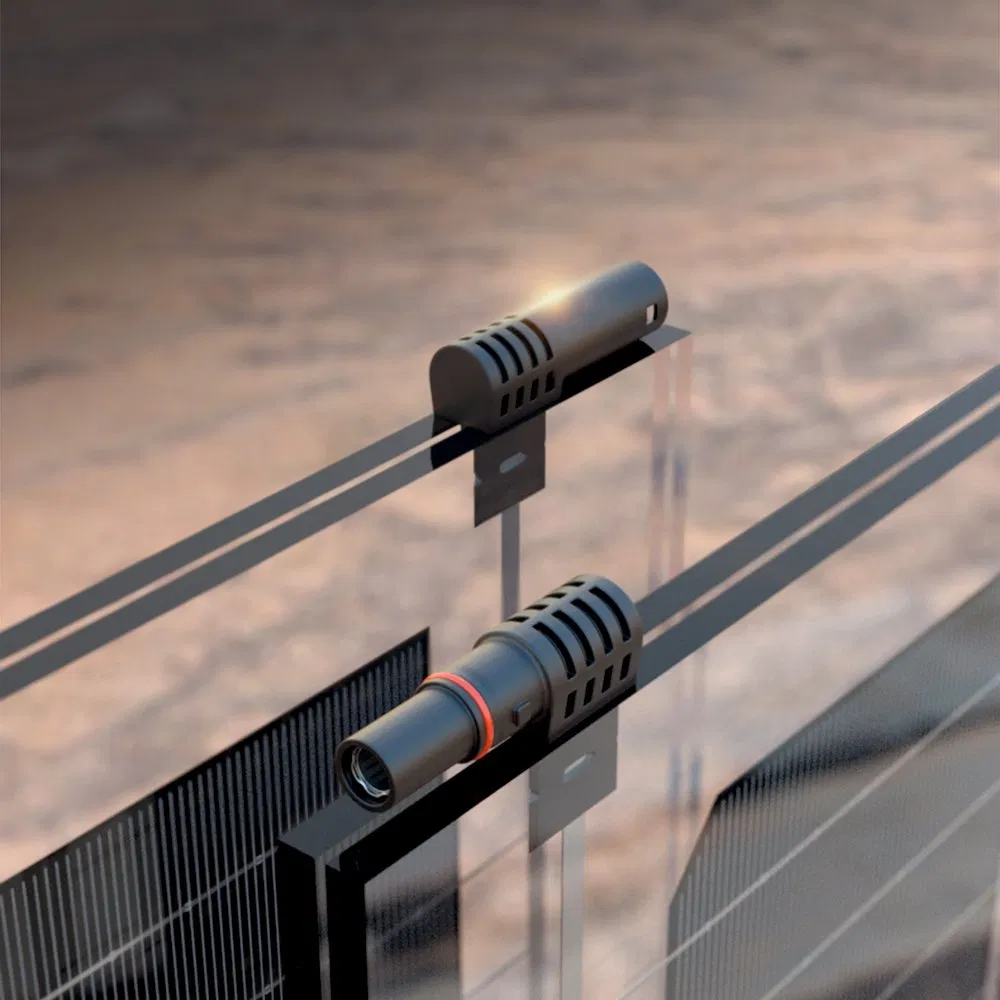

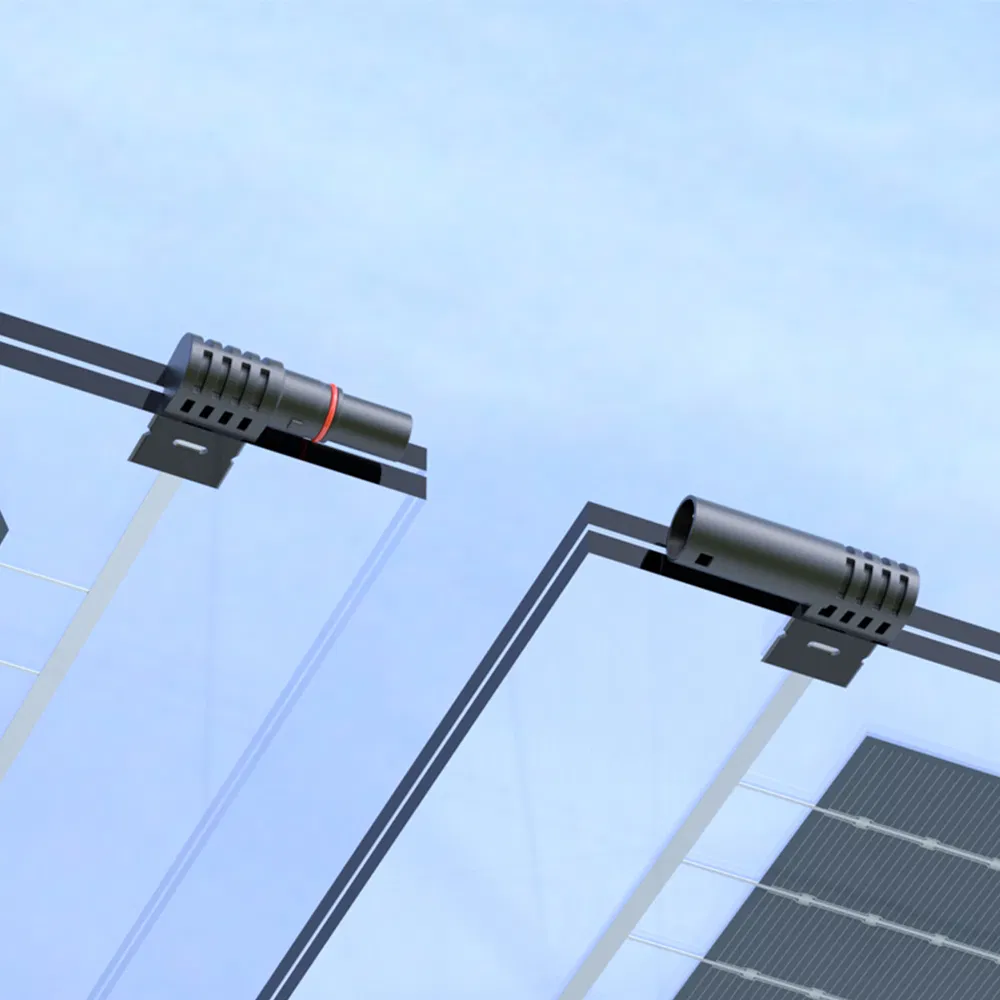

🖼️ Product Display

⚙️ Technical Specifications

Parameter	Details
Insulation material	PA/CU
Rated voltage	1000V & 1500VDC
Rated Impulse voltage	16KV
Test voltage	8kV (50Hz, 1min)

🎥 Manufacturing Process

❓ Frequently Asked Questions

How much experience does your company have in this field?

With over 20 years of experience, we are a trusted manufacturer of PV cables and panel connectors. We hold international certifications like TUV and IEC, ensuring top-quality products and proven performance tailored to your needs.

What shipment methods do you offer?

We provide versatile shipping options including express delivery, air freight, and sea freight, depending on your specific requirements and urgency.

How can I get a price quote for DC Cable Connectors?

Please provide your order details including the number of each size, connector type (panel or cable), and the intended application such as residential, hospital, school, or large-scale power projects.

What is the typical lead time for an order?

We maintain a safe level of stock for common items. Our automated production facility has a capacity of 20,000 pieces per day to ensure timely delivery.

How do you guarantee product quality?

Quality is our priority. We can provide all necessary certifications and comprehensive testing reports that meet international standards and your specific project needs.

What certifications do your products hold?

Our products are fully compliant with ISO and CE standards, designed for high-voltage environments up to 1500VDC with IP67 protection ratings.
