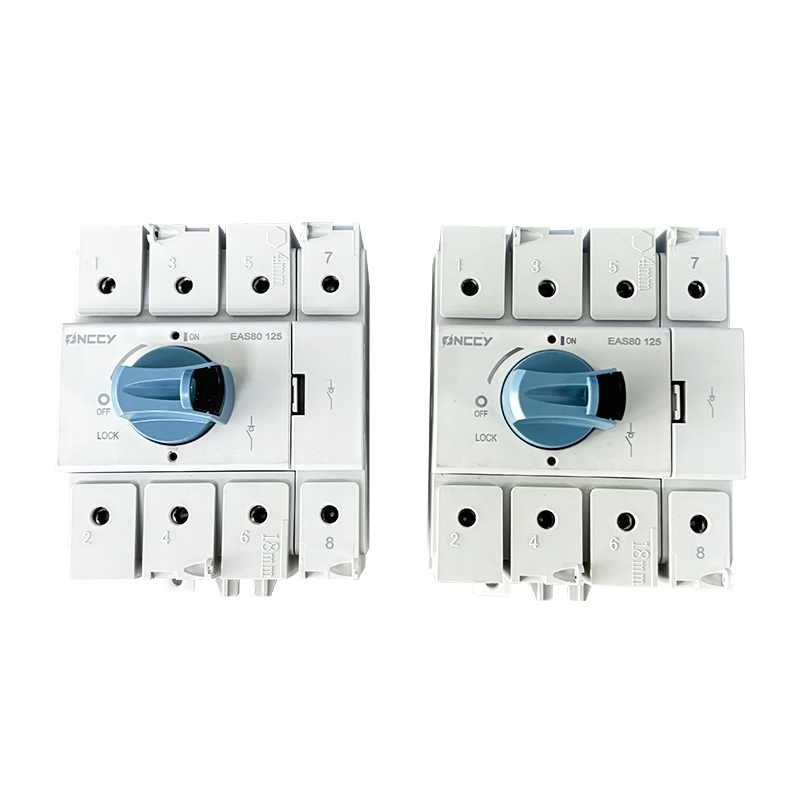

Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
1 / 5
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications
Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications

Reliable EAS80 Series AC Switch-Disconnectors for 800V Applications

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
EDS80
Installation
Indoor High-voltage
Operation
Manual
Grounding Mode
Grounding
Number of Poles
Three Pole
Voltage Ui
800V
Rated Current
40A/80A
Certification
RoHS, CE
Warranty
5 Years
Application
Solar PV / EV Charger System

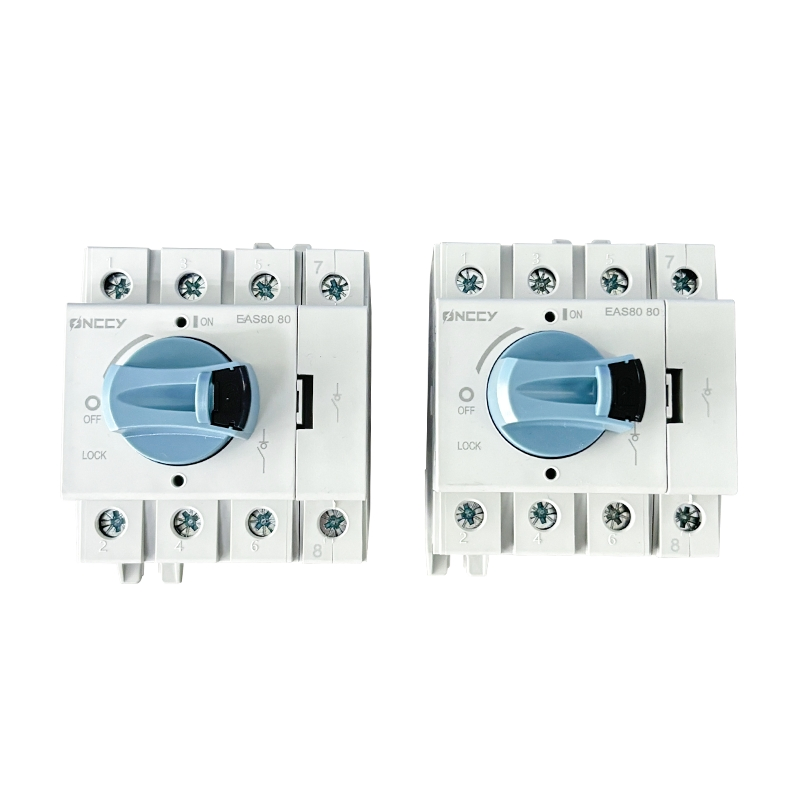

EAS80 Series AC Switch-Disconnectors

The EAS80 series AC switch-disconnectors epitomize strength and dependability, boasting current ratings from 16A to 125A with an impressive maximum voltage capacity of 800V. Perfectly tailored for external box mounting, these switch-disconnectors are equipped with 4 robust sealing plugs and proudly carry an IP66 waterproof rating, ensuring steadfast performance in diverse conditions. With options in both plastic and aluminum enclosures, the EAS80 series is available in 40A, 80A, and 125A variants, offering unmatched flexibility and adaptability.

Key Features

  • 800V Operating Voltage (16A-125A)

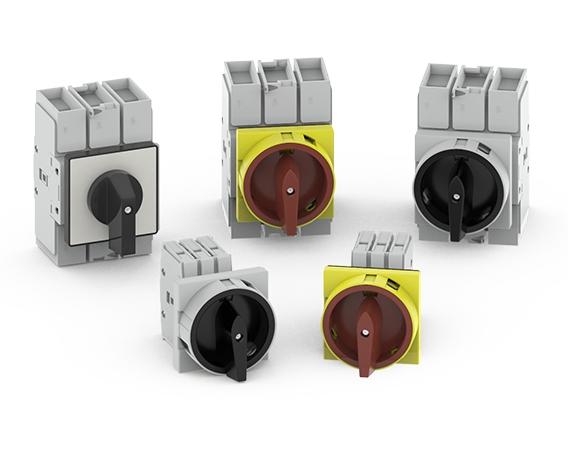

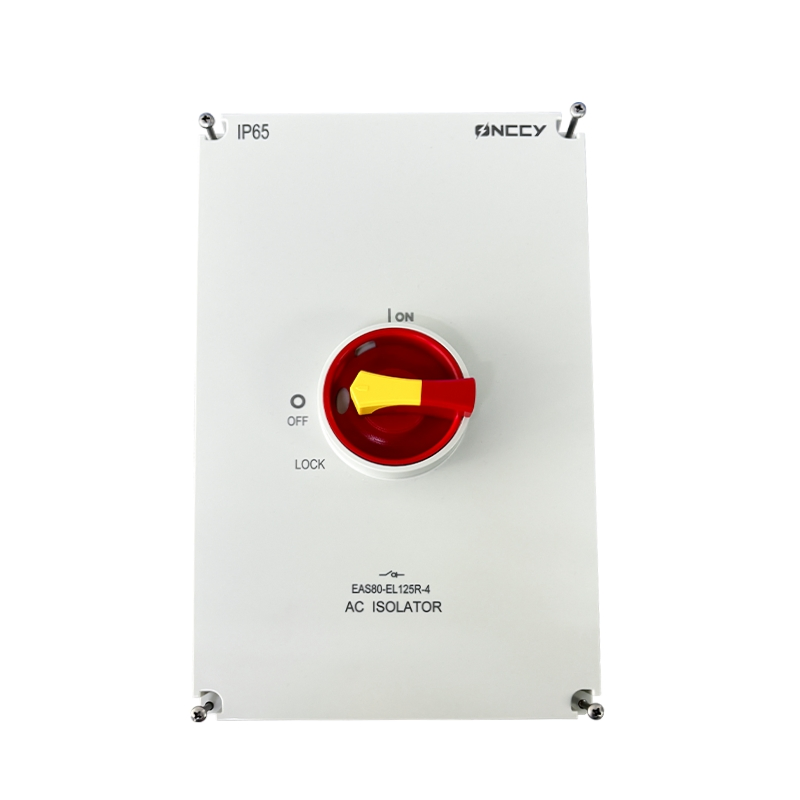

  • 5 distinct mounting types: DIN rail, panel, door interlock, plastic/aluminum enclosures
  • IP66 professional protection rating
  • Configurations: Direct without lock or direct lockable
  • Certified with IEC/EN60947-3 (DC-PV1 and DC-PV2 compliant)

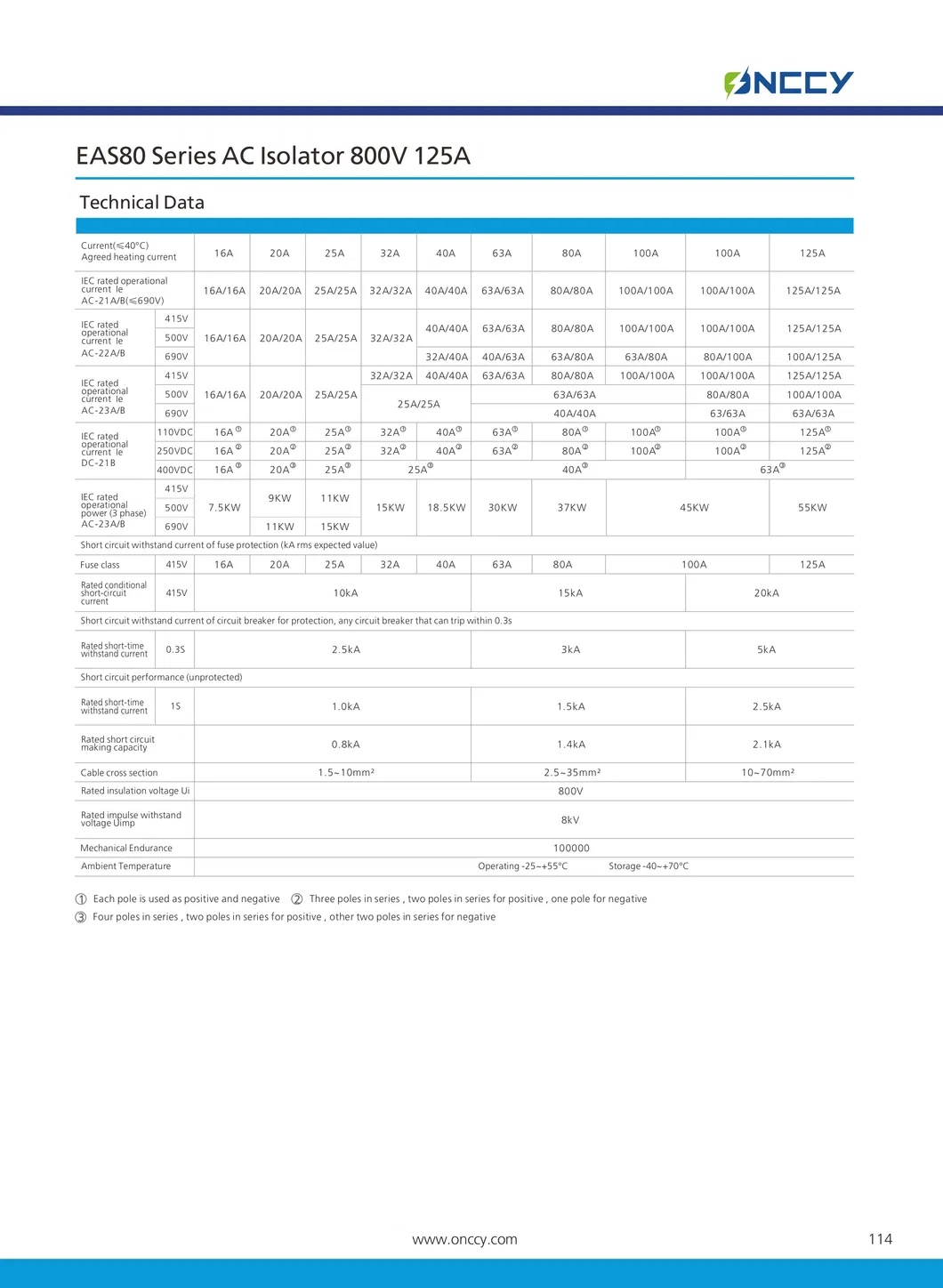

Technical Parameters

Description Specification
Rated Insulation Voltage (Ui)800V
Rated Impulse Withstand Voltage (Uimp)8kV
Mechanical Endurance100,000 cycles
Ambient Temperature (Operating)-25°C to +55°C
Ambient Temperature (Storage)-40°C to +70°C
Cable Cross Section Range1.5mm² to 70mm²

Product Visualization

EAS80 Overview
Detailed View
Key Component Highlights:
  • Auxiliary Contacts: Integrated system for pre-disconnect functions.
  • Terminal Shrouds: Transparent PC material, flame-retardant and waterproof.
  • Switch Body: Advanced compression contact technology with clear disconnection indication.
  • Rotating Handle: Anti-misoperation padlock feature for maximum safety.

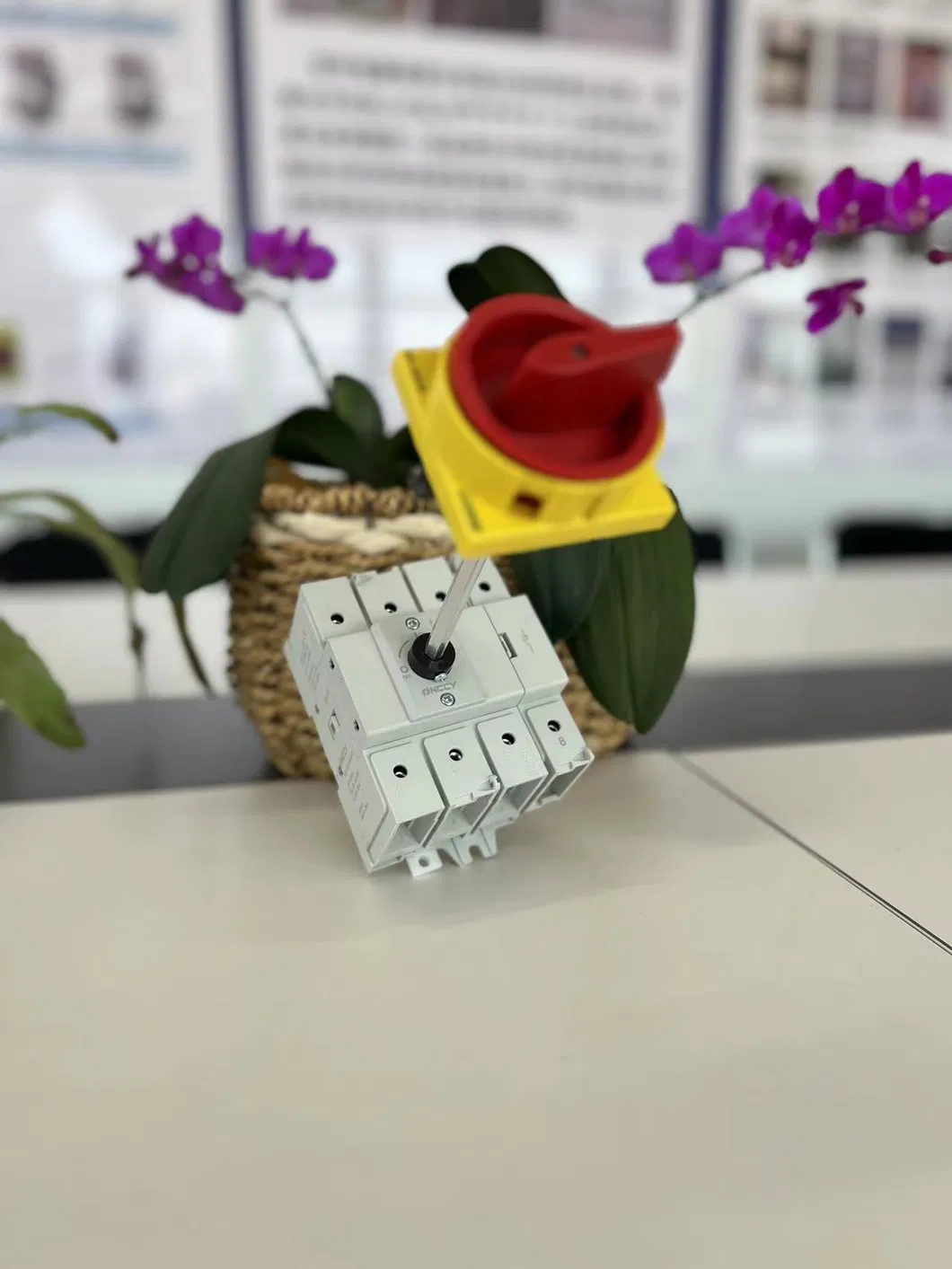

  • Rod Extension: High-carbon steel with corrosion-resistant treatment.
Technical Layout

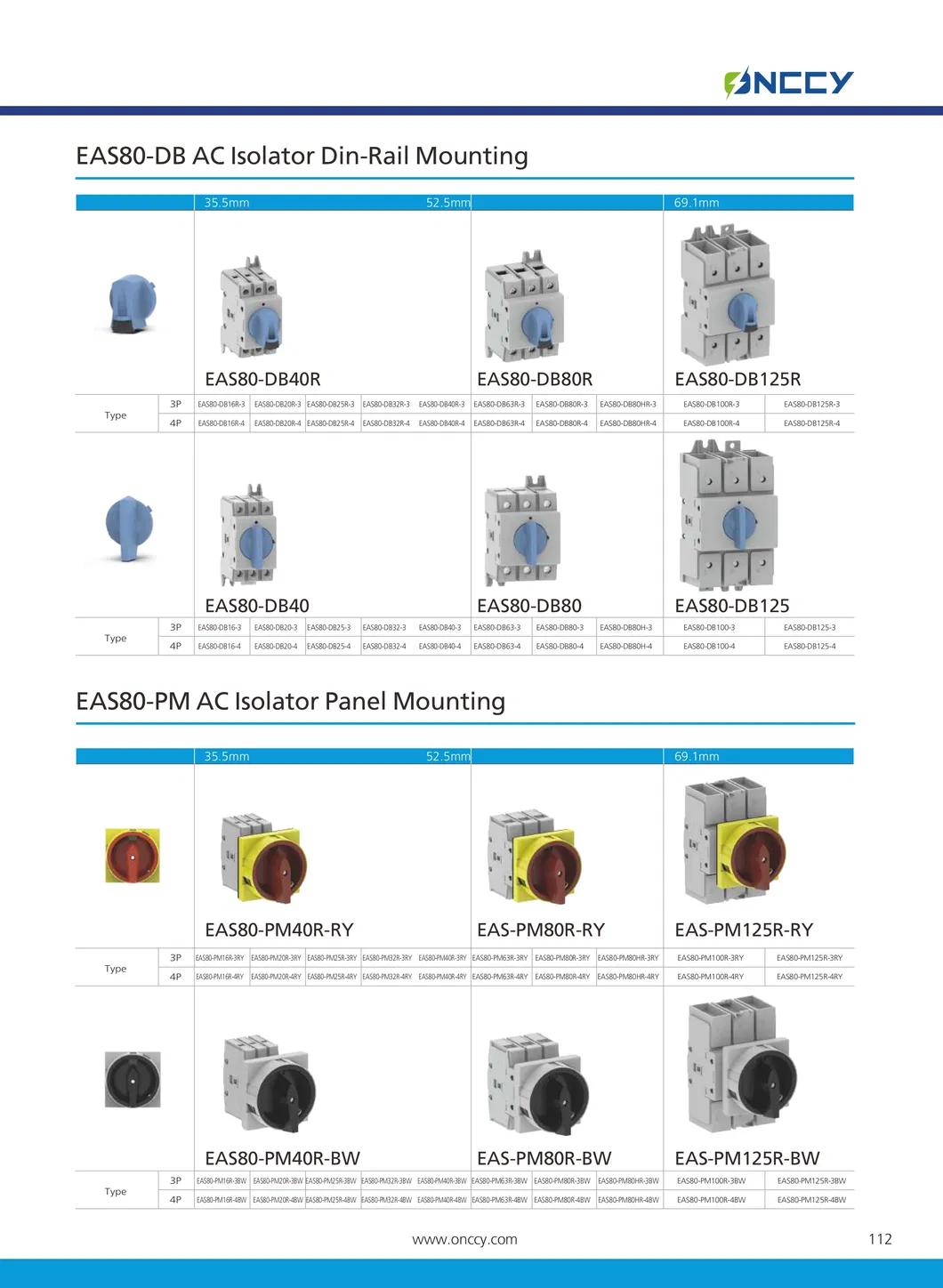

Dimensions

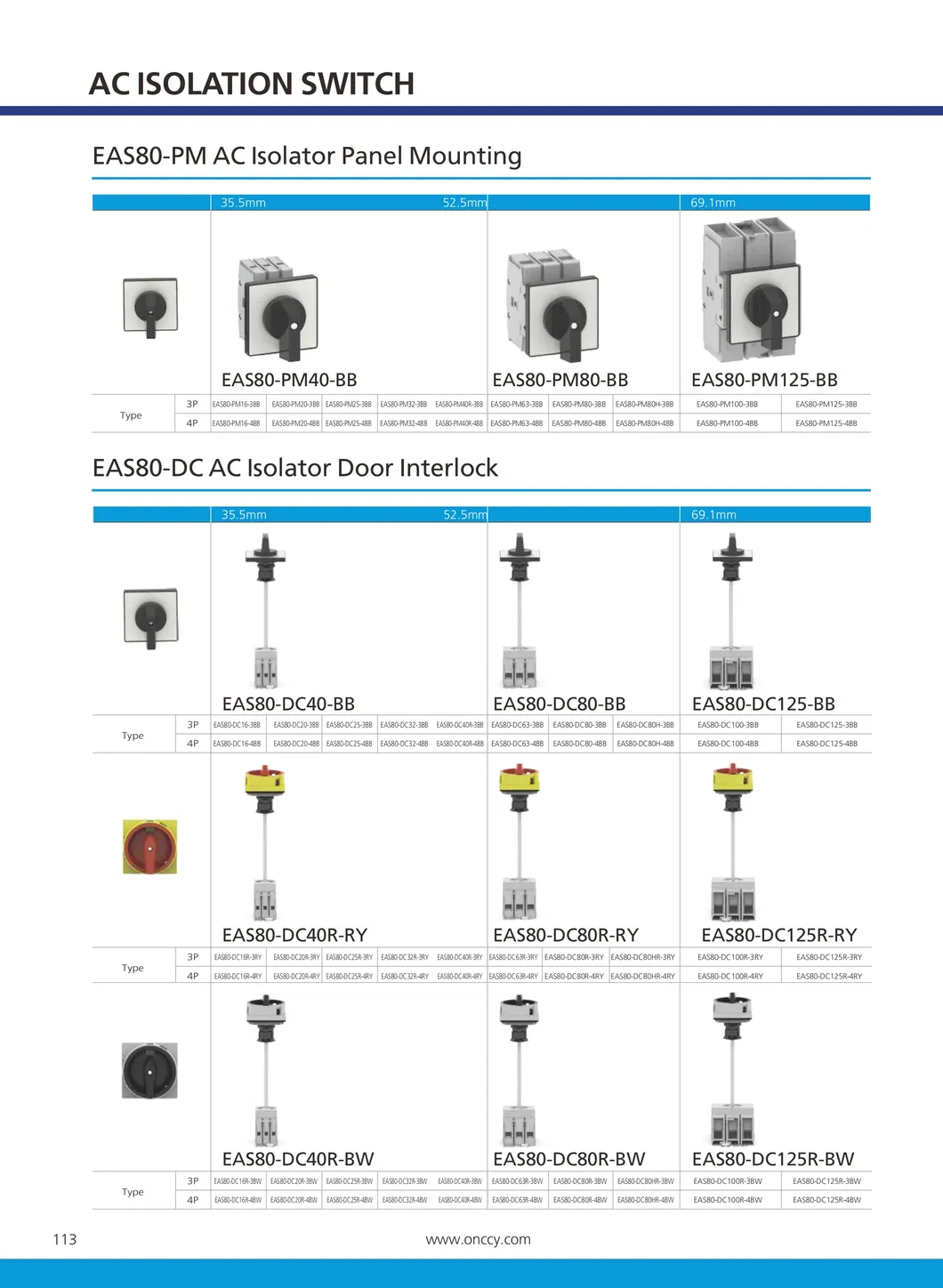

Mounting Types

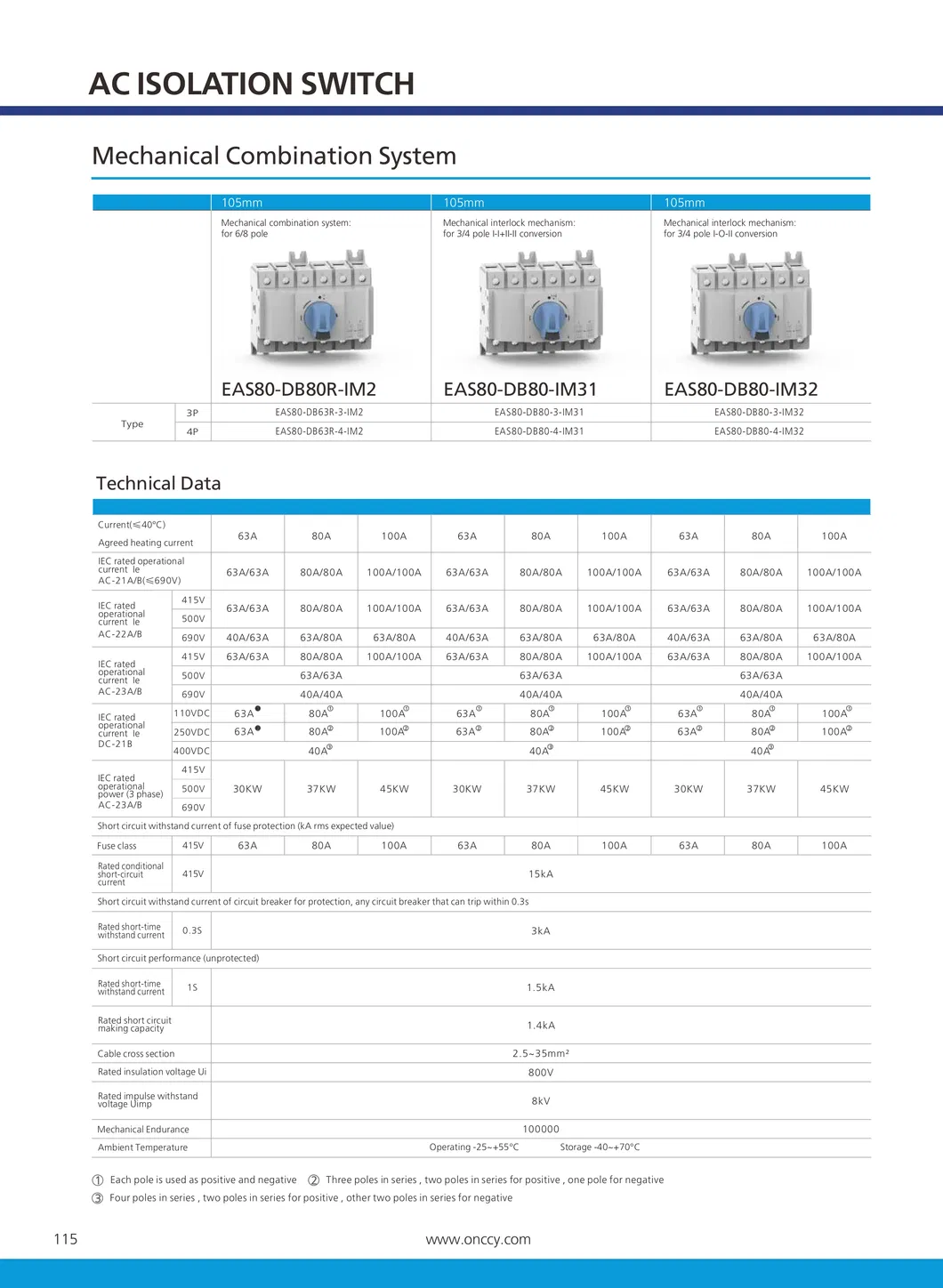

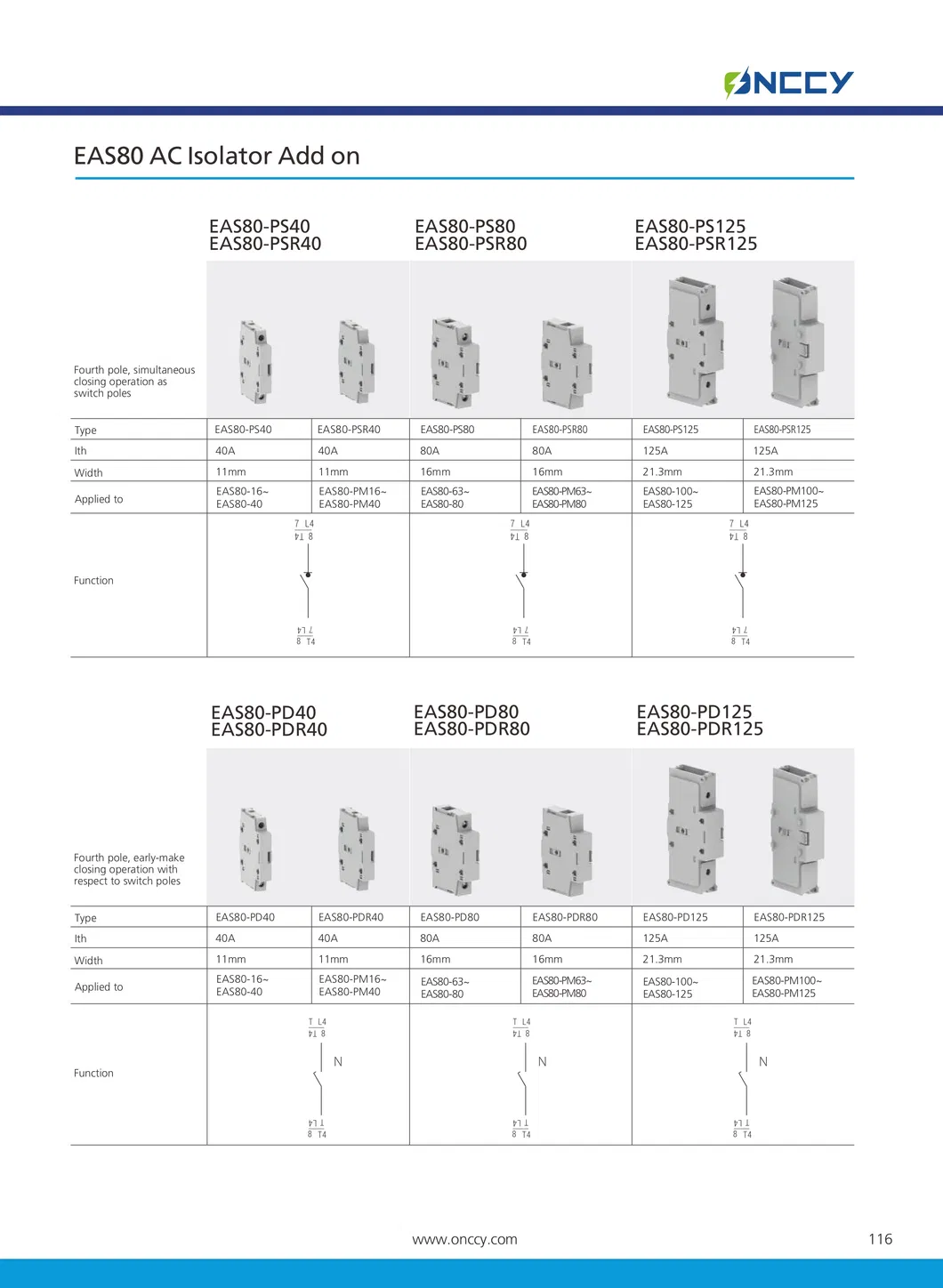

Feature details
Feature details
Feature details

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a distinguished manufacturer with a 30,000 square meter production facility.
Q: What certifications do your products hold? A: Our products hold comprehensive certifications including UL, TUV, CB, SAA, CCC, and CE.
Q: Can you provide samples for quality inspection? A: Yes, we provide samples upon request for checking specifications and quality.
Q: What is the typical delivery time? A: Smaller quantities are typically delivered within 3 days. Larger orders range between 15-20 days.
Q: How do you ensure product quality? A: We maintain a rigorous inspection system from raw materials to end products, including mechanical life and transient tests.
Q: Do you offer customized packaging for exports? A: Yes, our goods meet standard export requirements, and we can provide special packaging based on customer needs.
