| Model NO. | E18F |
| Phase | 1 |
| Electricity Type | AC |
| Number of Pole | 2 |
| Load | Sealed Relay |
| Action Principle | Electromagnetic Type |
| Size | Miniature |
| Insulation Voltage | 440 VAC |

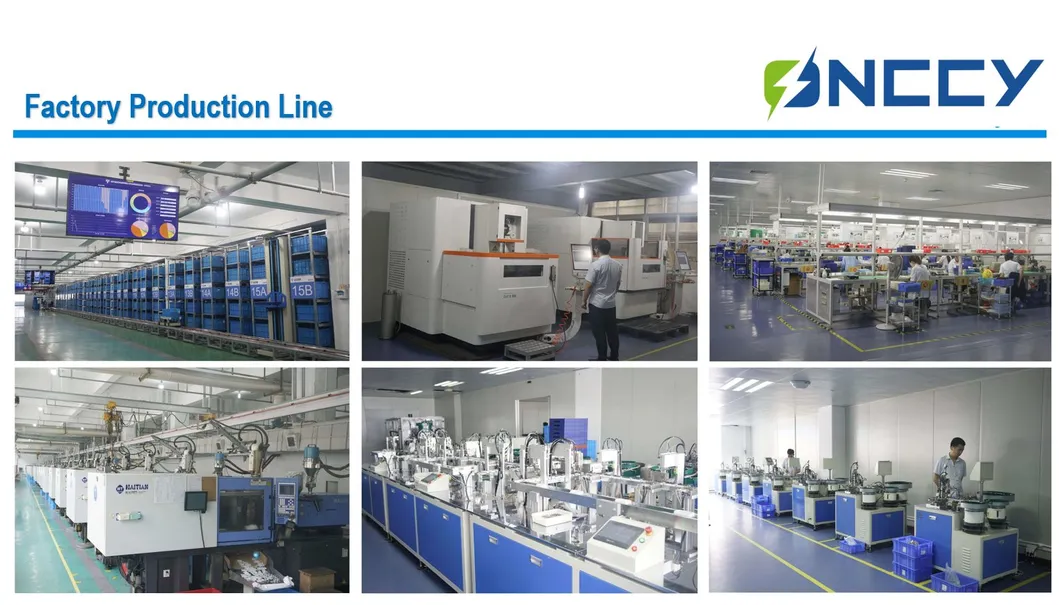

| Production Capacity | 1,000,000 PCS/Year |

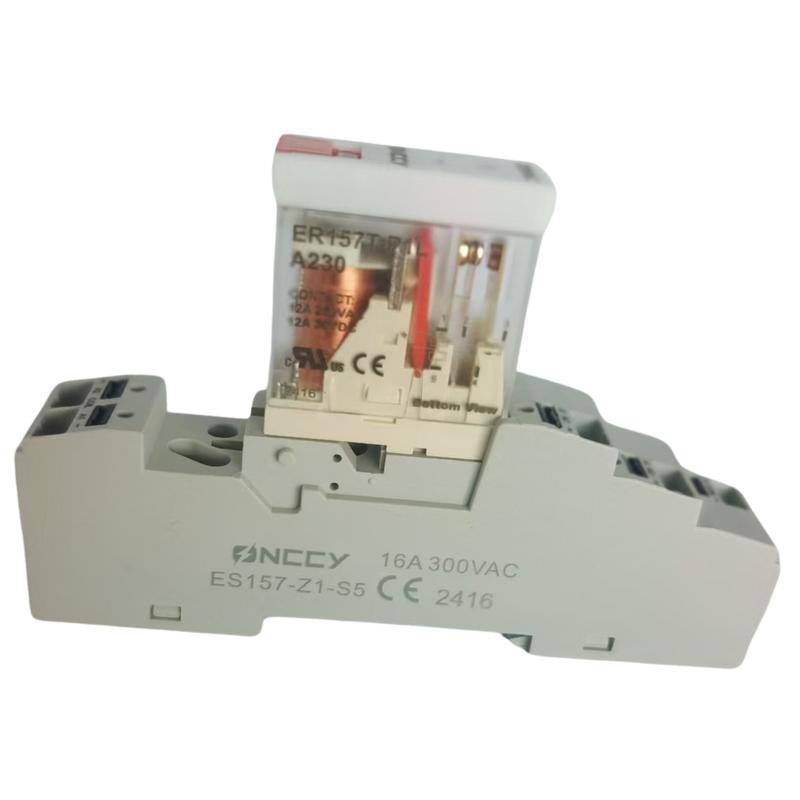

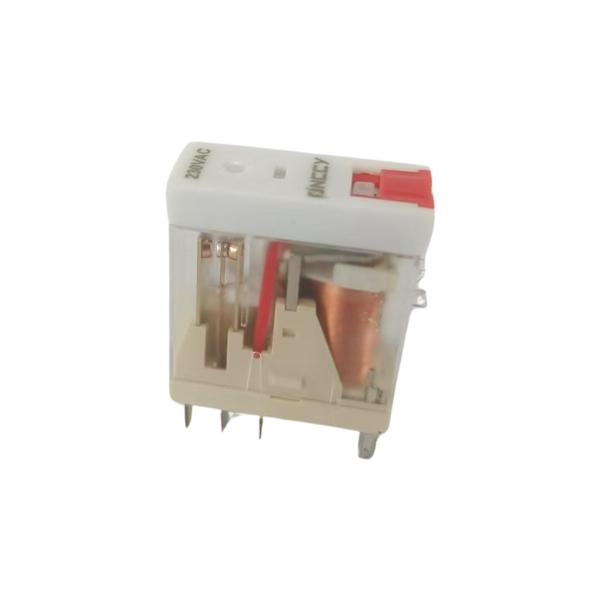

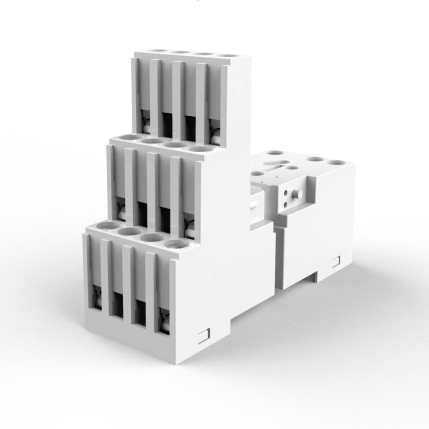

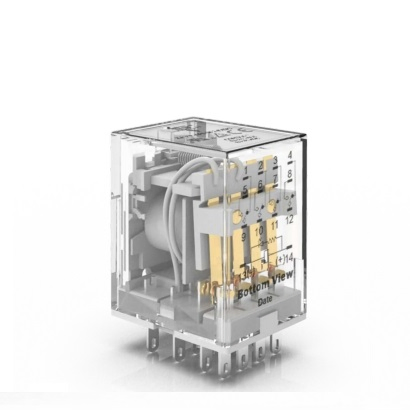

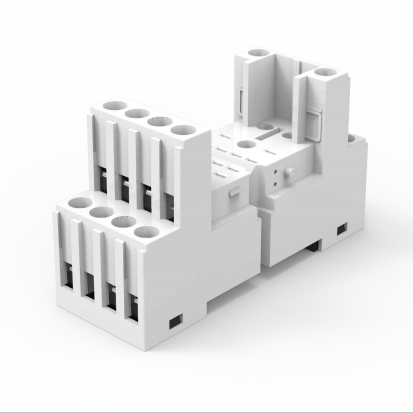

The E18f-2P Interface Relay is a marvel of engineering designed for effortless utility and peak performance. This relay and its base can be swiftly installed or removed without the need for any tools, ensuring a straightforward and efficient operation. Renowned for its reliability and adaptability, the E18F-2P is a general-purpose powerhouse featuring premium silver alloy contacts that guarantee supreme conductivity and remarkable resistance to corrosion.
With its 2P (double-pole) contact configuration, this versatile device enables simultaneous management of multiple circuits. It stands as an ideal choice for diverse applications, including automation control and power supply regulation, delivering excellence across the board.
| Parameter | Value | Unit |
|---|---|---|
| Contact Arrangement | 2P (Large Current) | - |
| Contact Material | Silver Alloy | - |
| Load (Resistive) | 6.6A / 10A @ 250VAC/30VDC | A, V |
| Rated Voltage | 250VAC / 30VDC | V |
| Pickup Voltage | DC: ≤ 75%, AC: ≤ 80% | % |
| Electrical Endurance | 1 x 10^7 | Times |
