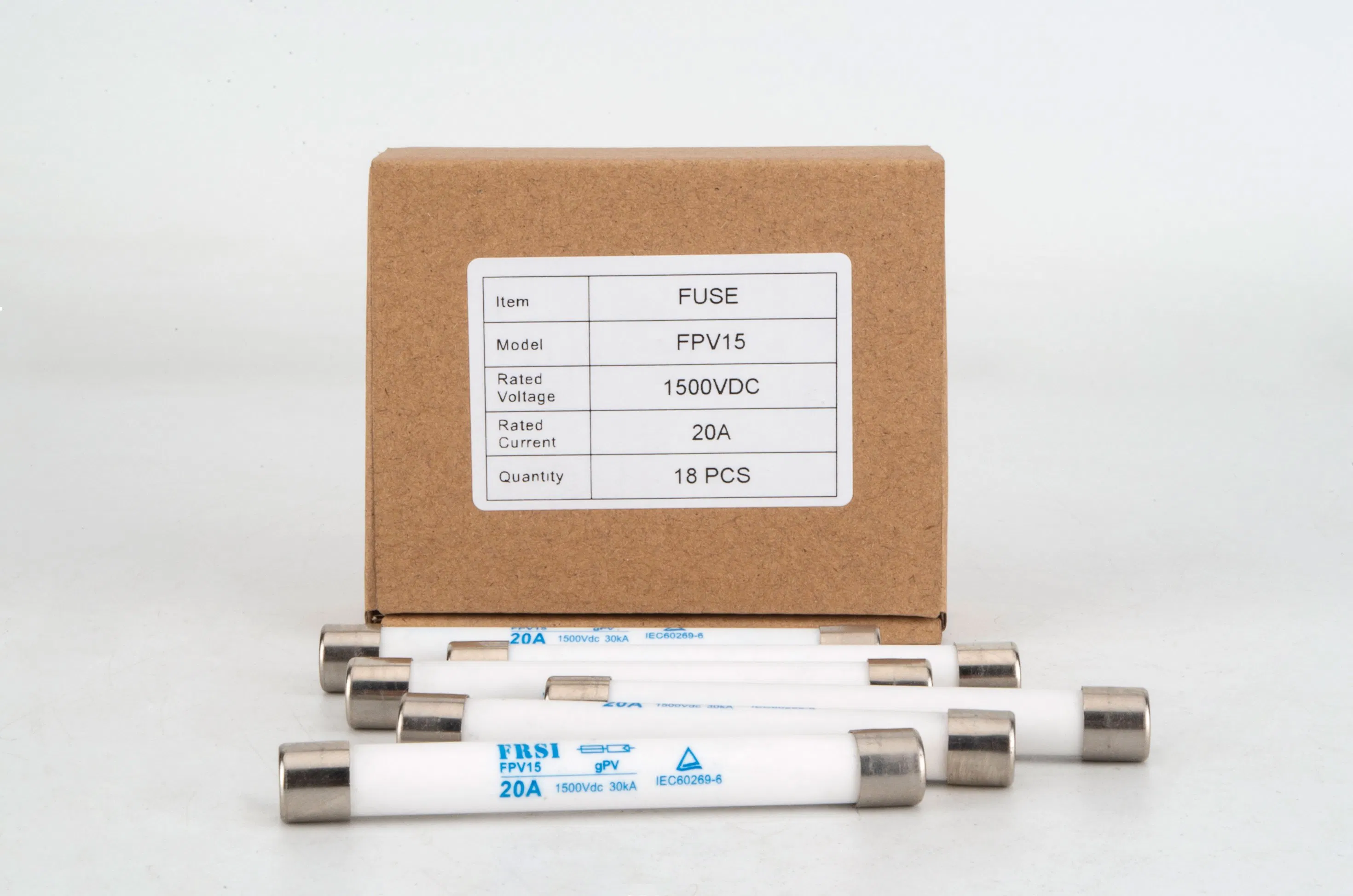

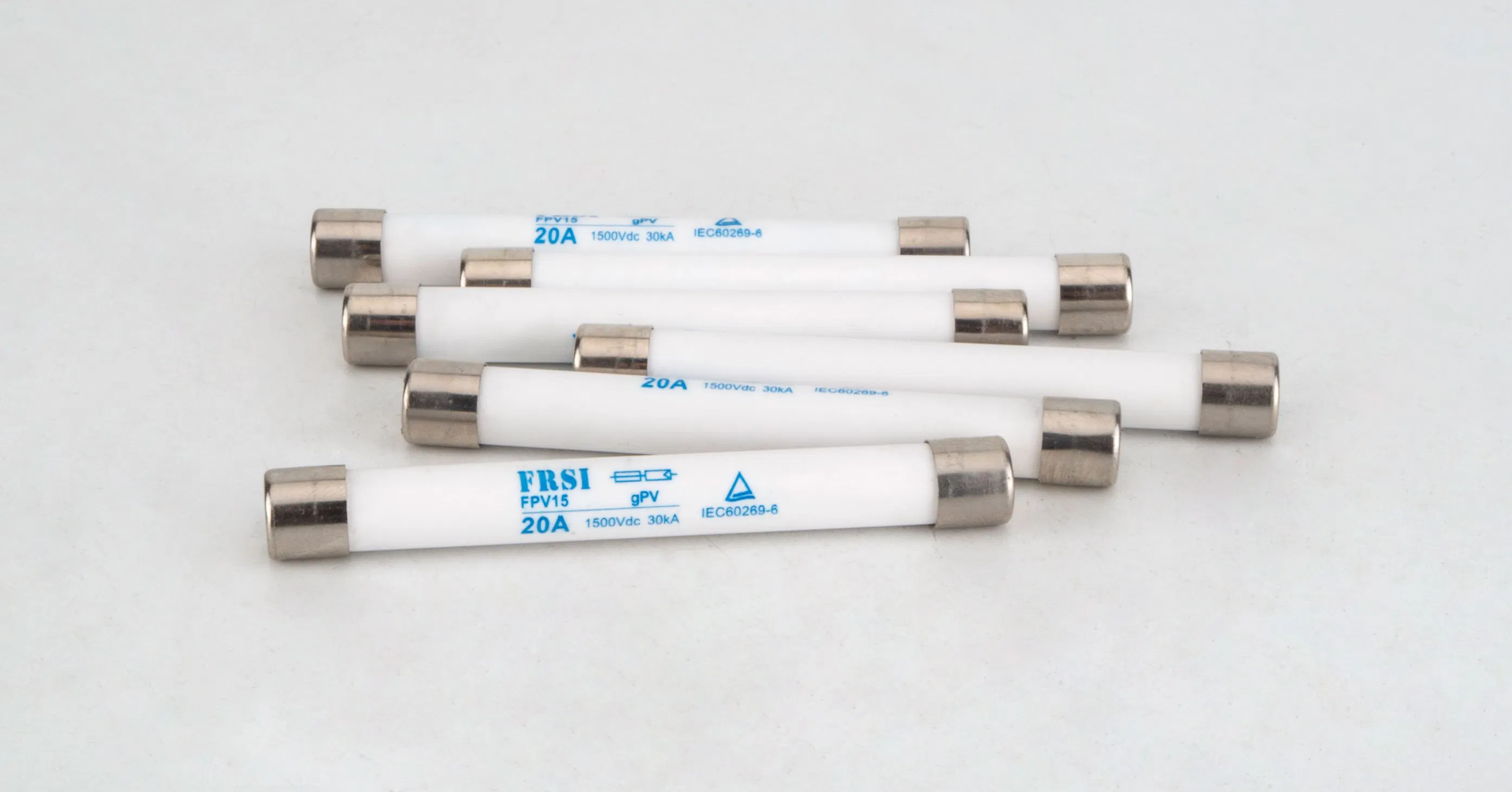

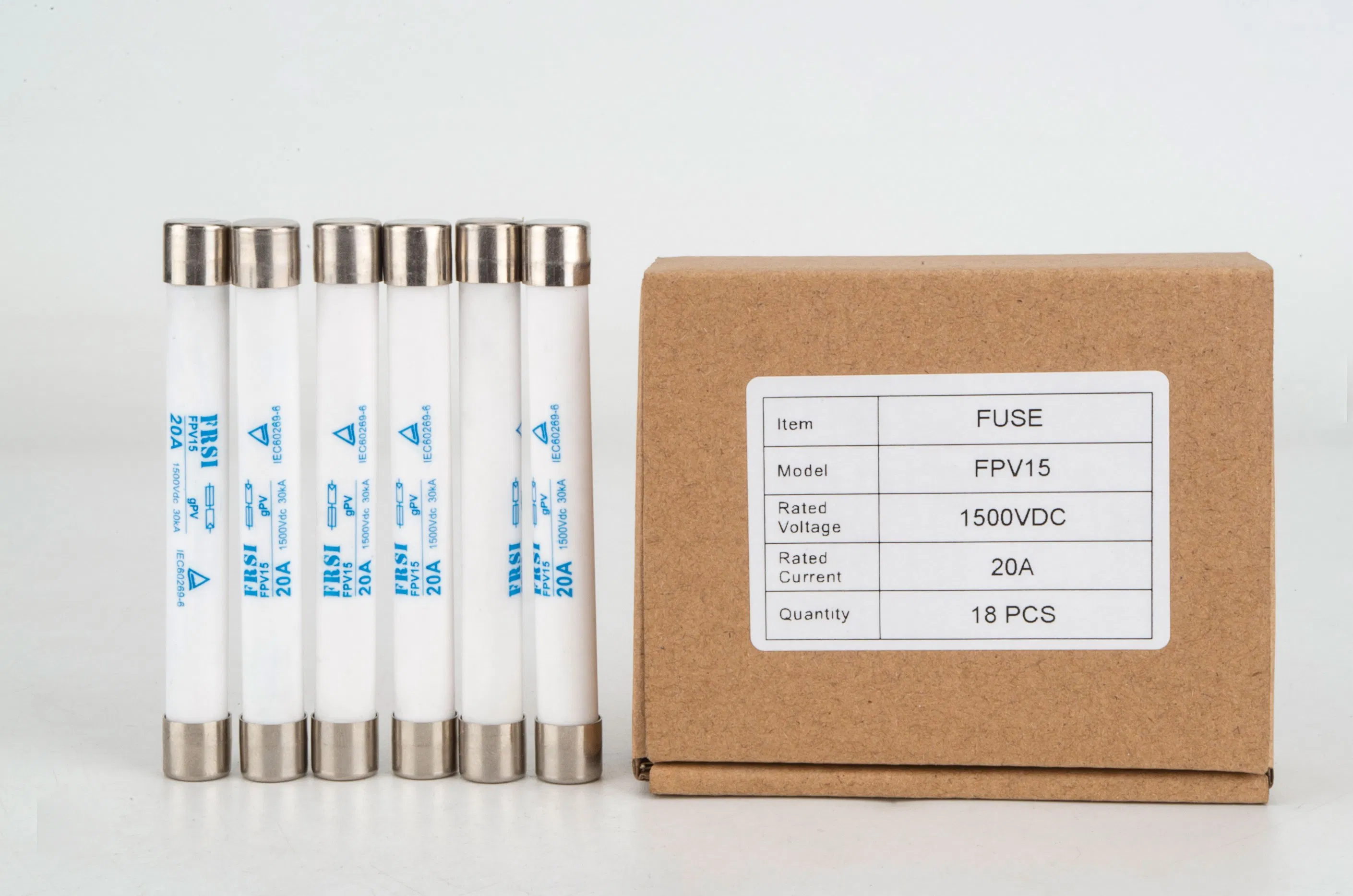

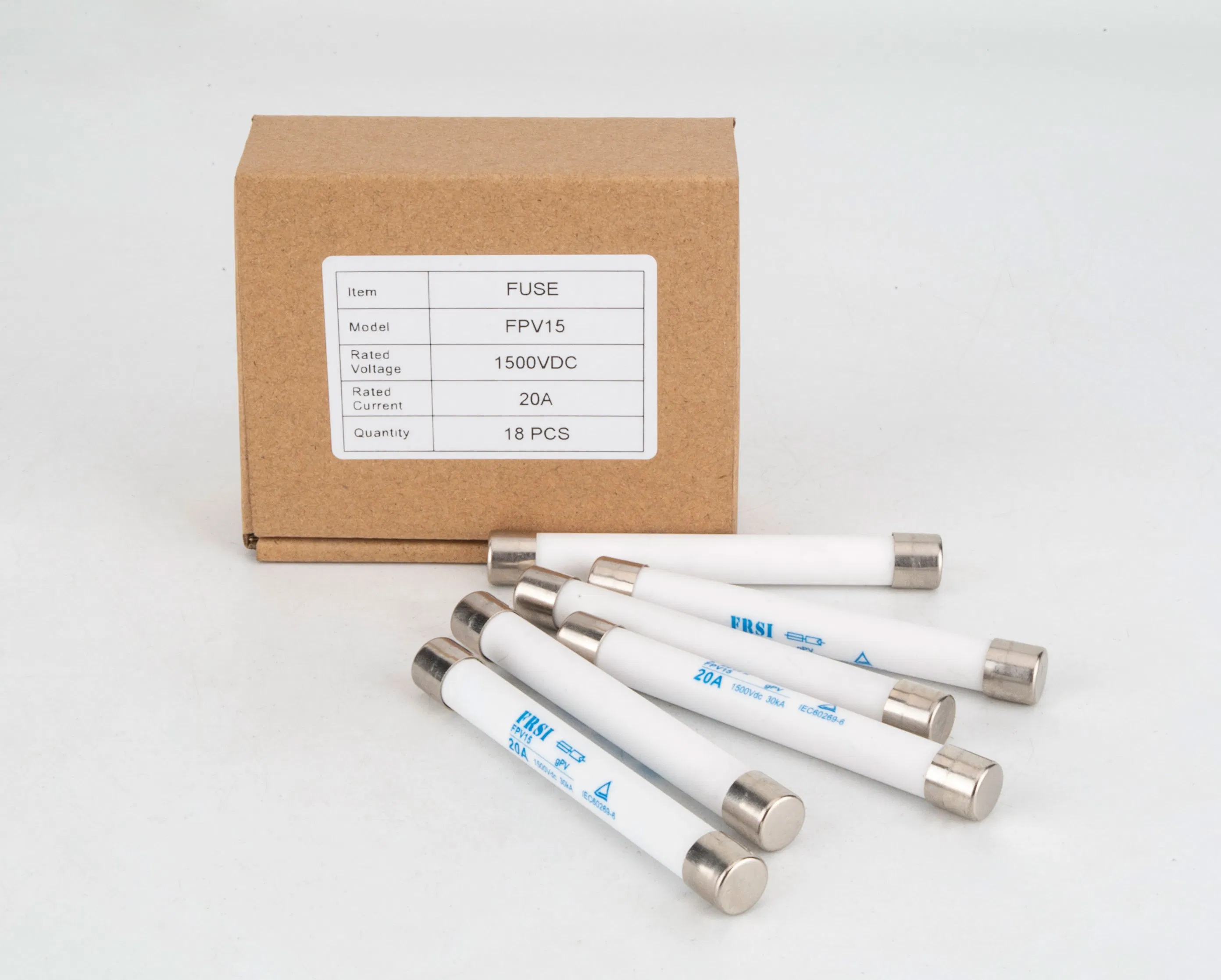

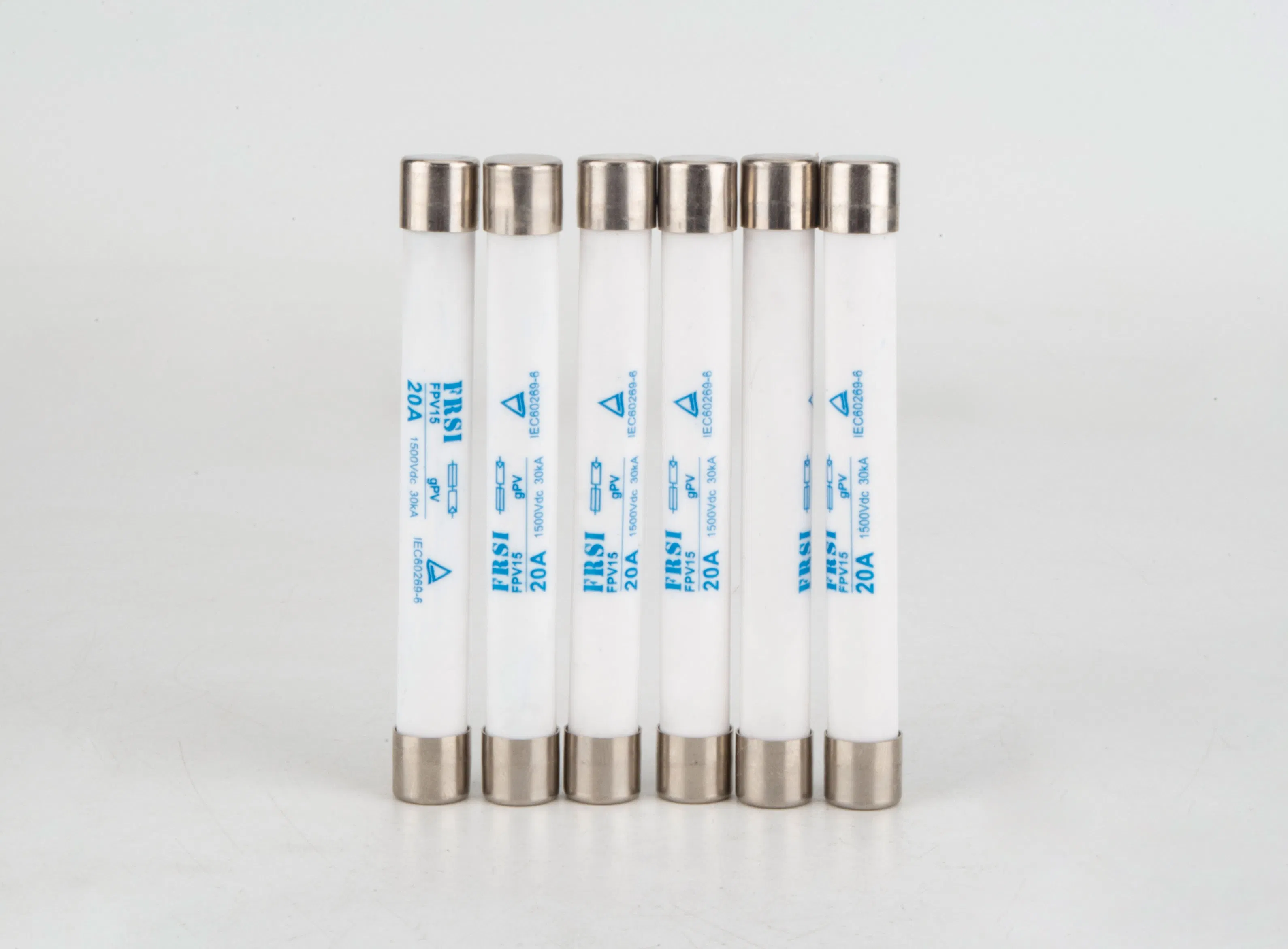

Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
1 / 5
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety
Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety

Durable 10X85 14X85 Solar PV Ceramic Fuse for Safety

Customization: Available
Breaking Capacity: High
Type: Current Fuse
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
FPV15
Usage
Low Voltage
Shape
Circle
Fusing Speed
F
Fusing Device
All
Standard
IEC60269.6
Specification
14x85mm
🔍 Product Description

The FPV15 fuse and FCH15 fuse holder, conforming to the IEC60269.6 standard, are specifically designed for solar photovoltaic power generation systems. With a rated voltage of up to 1500V DC and a rated current of up to 32A, these components are essential for connecting photovoltaic panels and batteries. They provide critical short-circuit breaking protection for variable flow systems in photovoltaic stations, featuring a rated breaking capacity of 33KA.

💎 High-Quality Construction: The FPV15 fuse is crafted from pure silver with low-tin welding, encapsulated in high-strength porcelain. The fuse tube is filled with high-purity chemically processed quartz sand as an arc medium, with the fuse body connected to contacting terminals via precision spot welding.
Specification Parameter Details
TypeFPV15
Fuse Size14x85mm (10x85mm)
Rated Voltage1500V DC
Rated Current10A - 32A
Short-circuit Breaking Capacity30kA
Weight0.027 kg
🖼️ Product Display

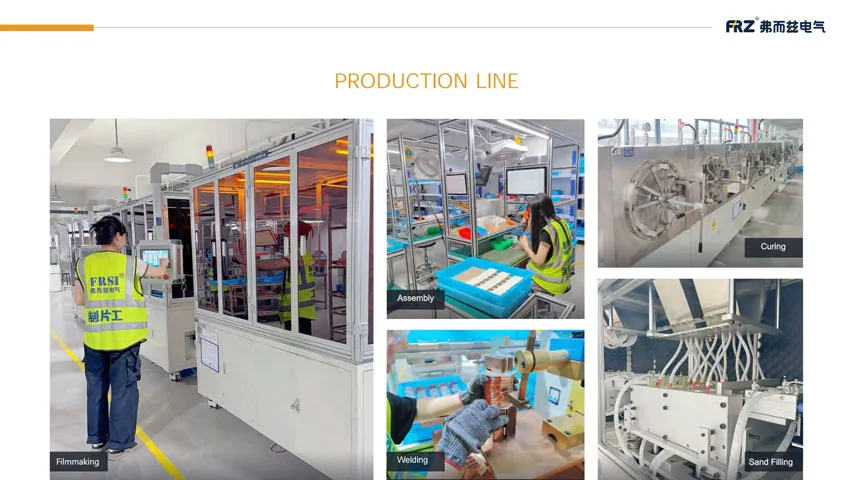

Solar PV Ceramic Fuse 1
Solar PV Ceramic Fuse 2
Solar PV Ceramic Fuse 3
Solar PV Ceramic Fuse 4
❓ Frequently Asked Questions
How long is the product warranty?
The warranty period for our products is 36 months, ensuring long-term reliability for your solar installations.
What materials are used in the construction?
The fuse utilizes pure silver and high-strength porcelain. Any plastic components use class V0 inflaming retarding materials for maximum safety.
What quality inspections do the products undergo?

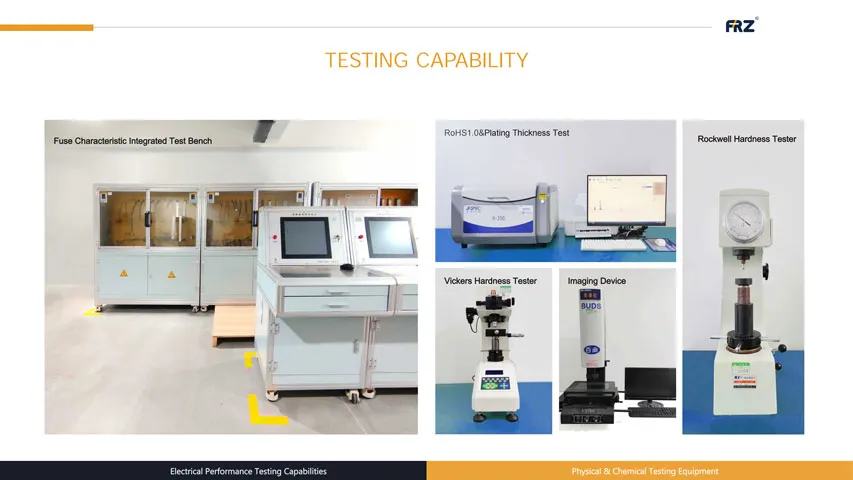

We implement a comprehensive inspection system from raw materials to finished products, including temperature rise tests, salt spray tests, and mechanical life tests.
Which international standards do these fuses meet?
Our products are manufactured and certified according to CE, IEC (IEC60269.6), and UL standards.
What payment terms are typically accepted?
We accept various payment methods including T/T, PayPal, Western Union, and L/C.
Can you provide customized technical solutions?
Yes, our professional engineering team can design and develop molds to meet specific customer requirements and technical needs.
