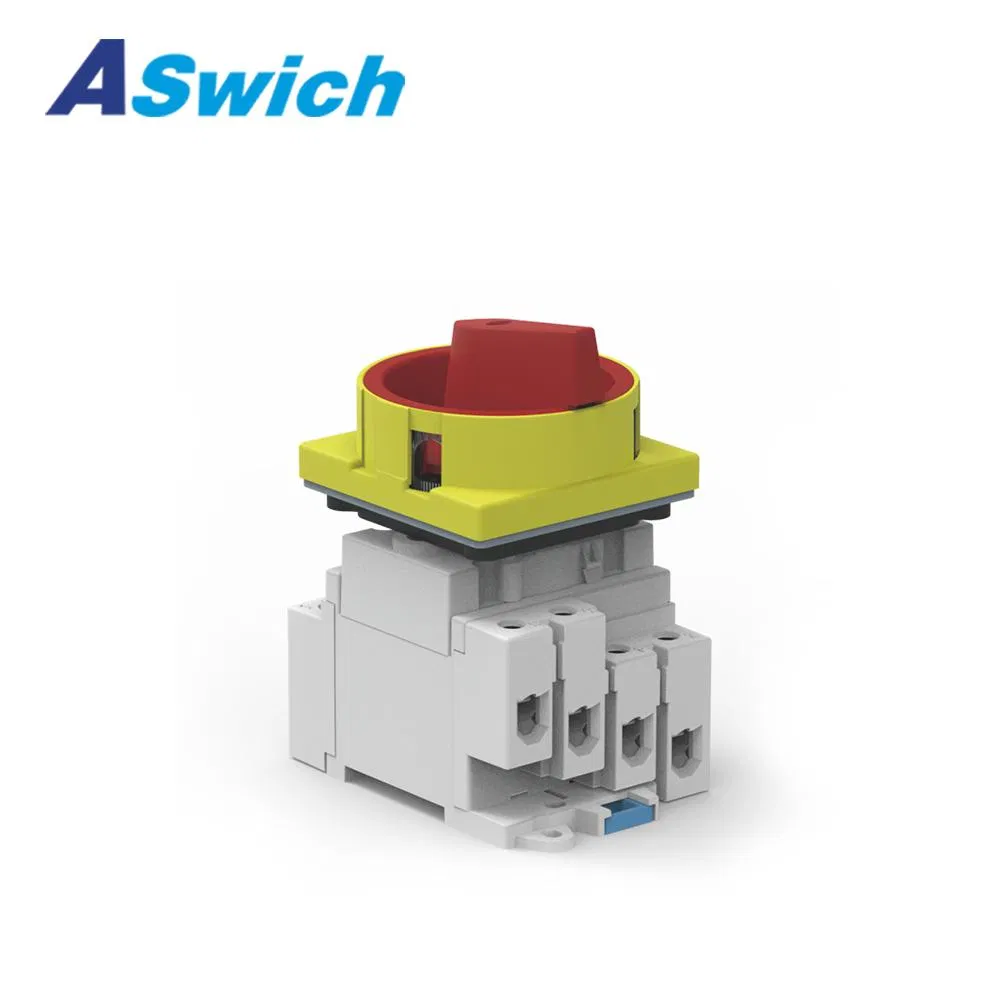

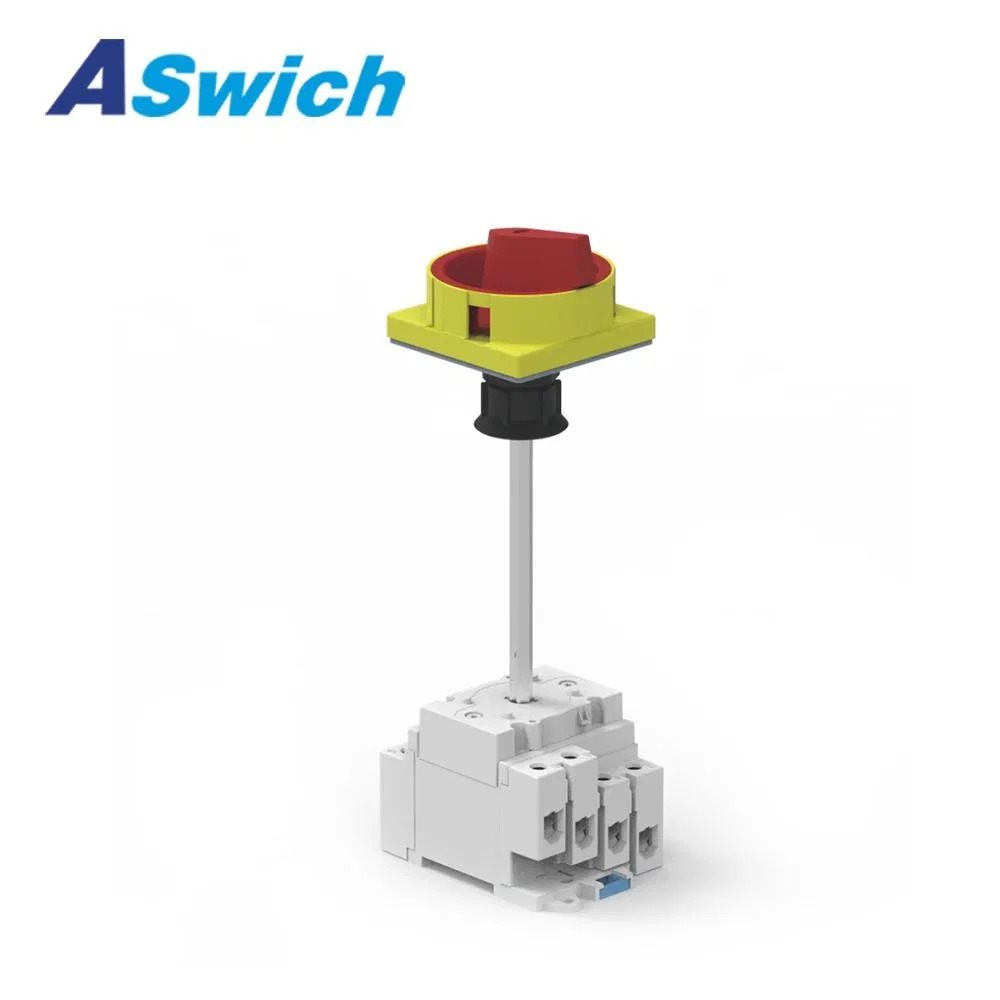

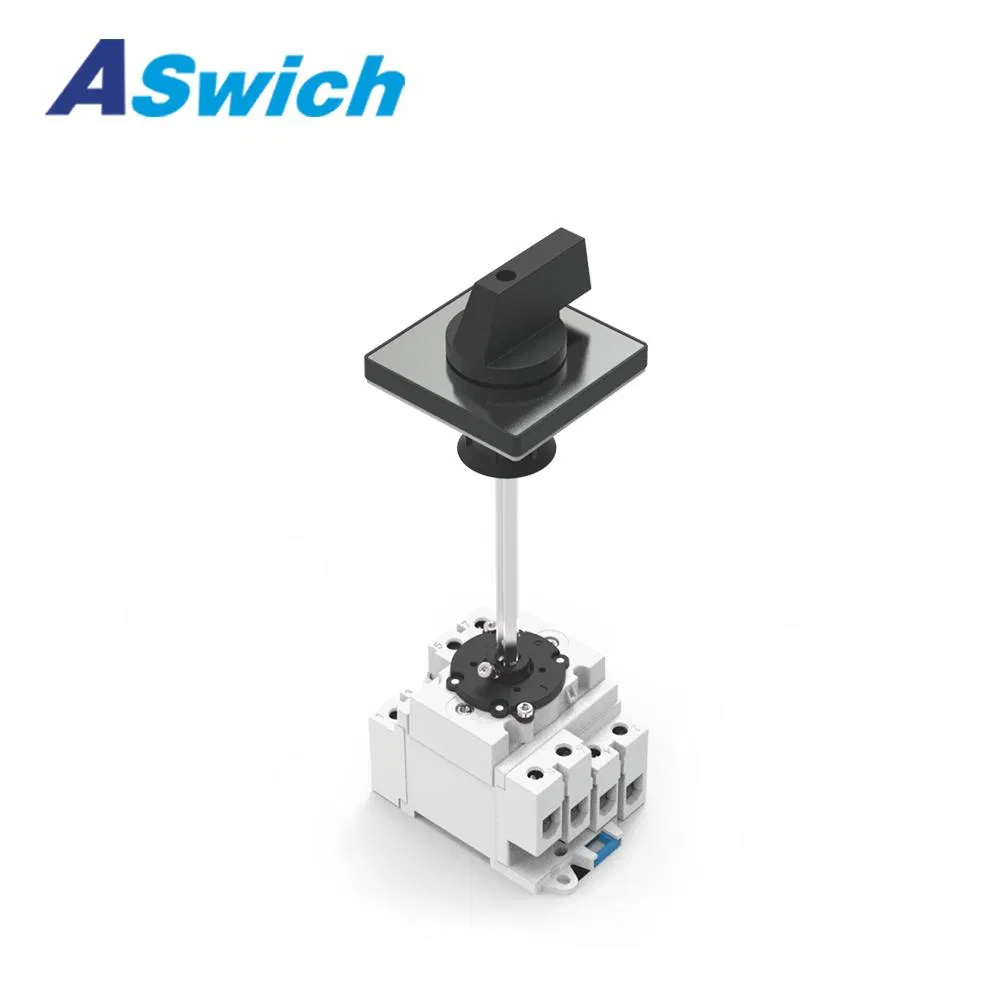

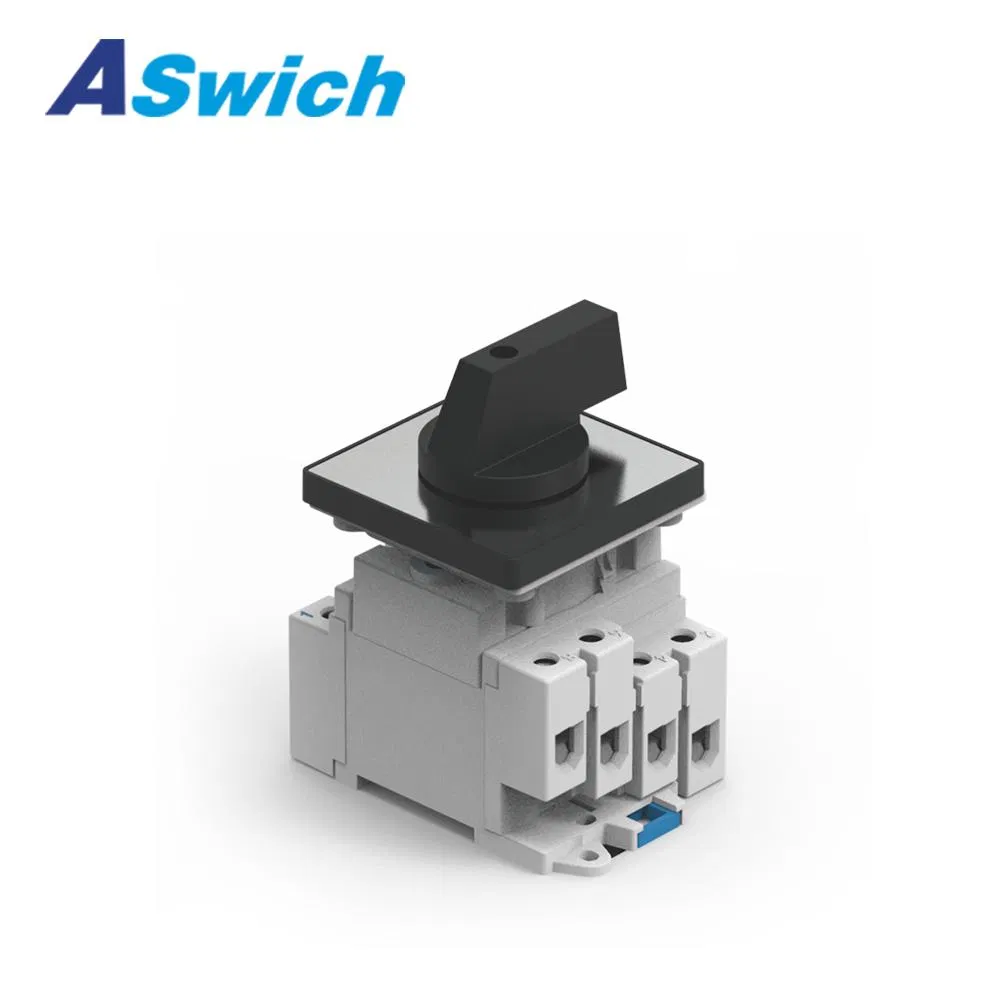

Door Interlock Rotary Lockable Disconnect Switch 1000V DC Isolator for Solar PV Energy Storage System

1 / 5

Door Interlock Rotary Lockable Disconnect Switch 1000V DC Isolator for Solar PV Energy Storage System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

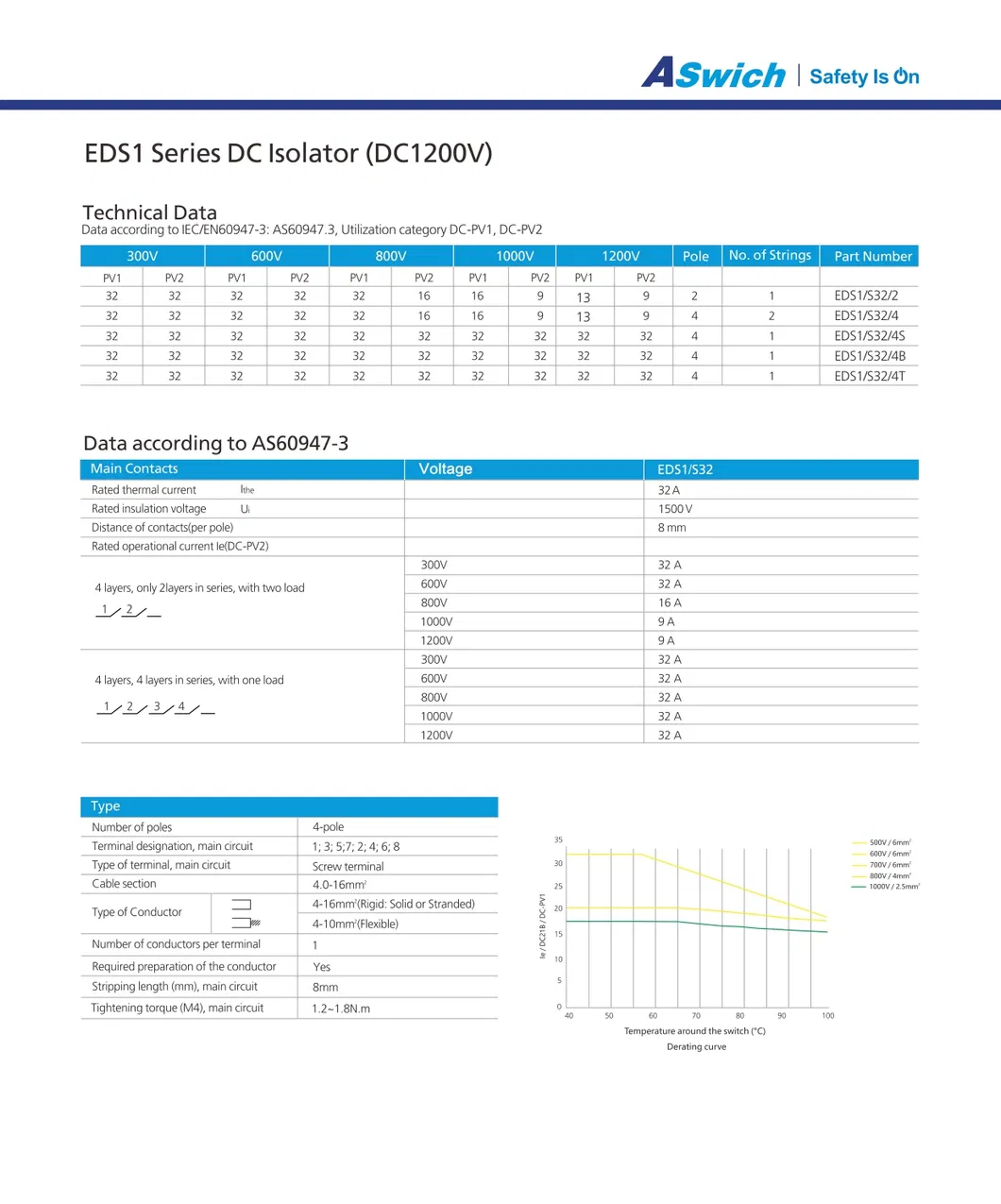

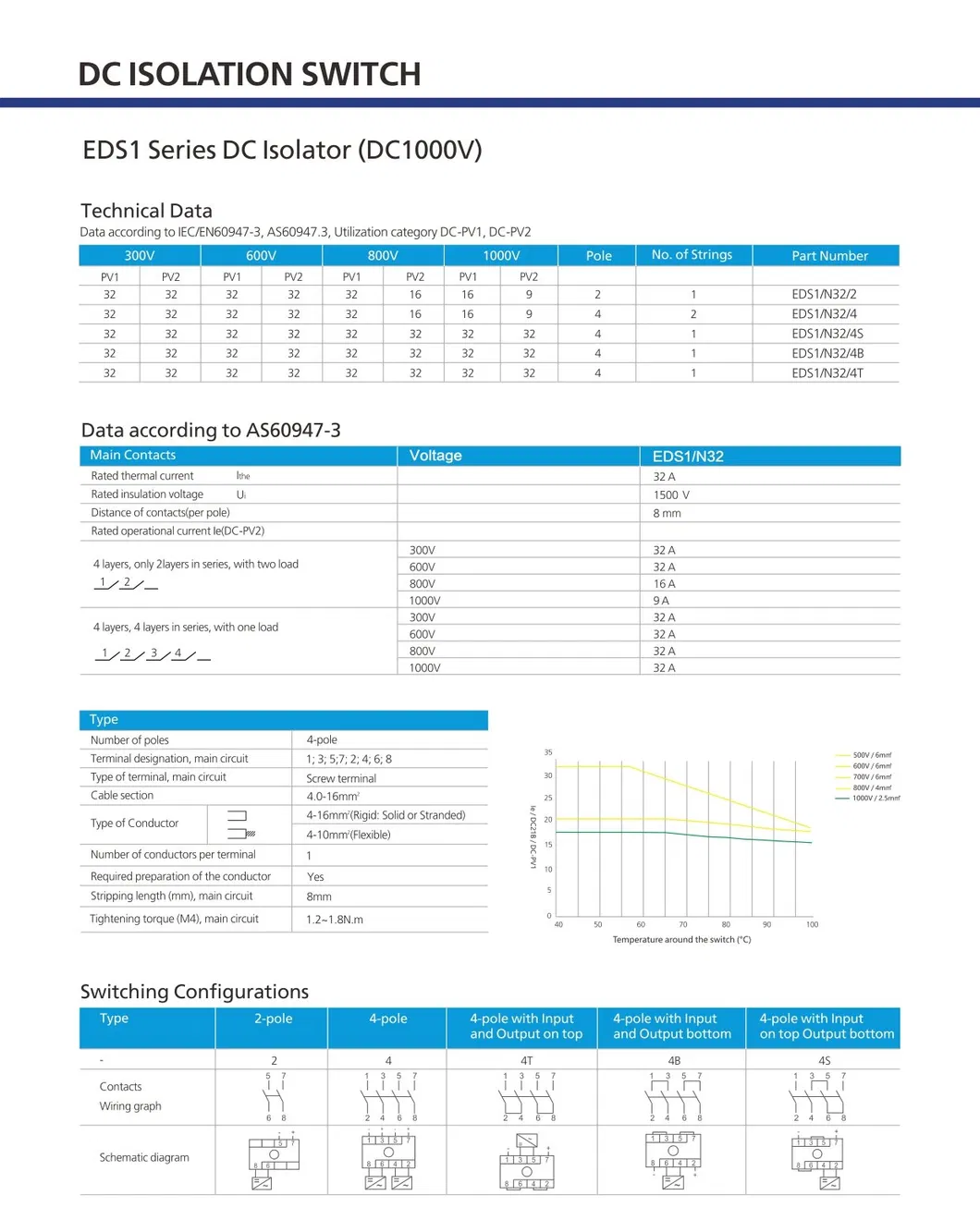

Basic Specifications

Model NO.

EDS1

Installation

35mm DIN-Rail

Operation

Manual

Number of Poles

1p/2p/3p/4p

Certification

ISO, RoHS, CE, ISO9001, CB, SAA

Standard

DC-PV2

Wiring

Upside Input, Downside Output

IP Grade

IP20/IP66

1000V/1200V

Max Current

32A

Mounting Type

DIN Rail/Panel/Door Lock/Enclosure

HS Code

853650

Core Features

🛠️

Easy to install

🛡️

Added security

✅

Enhanced safety

⚙️

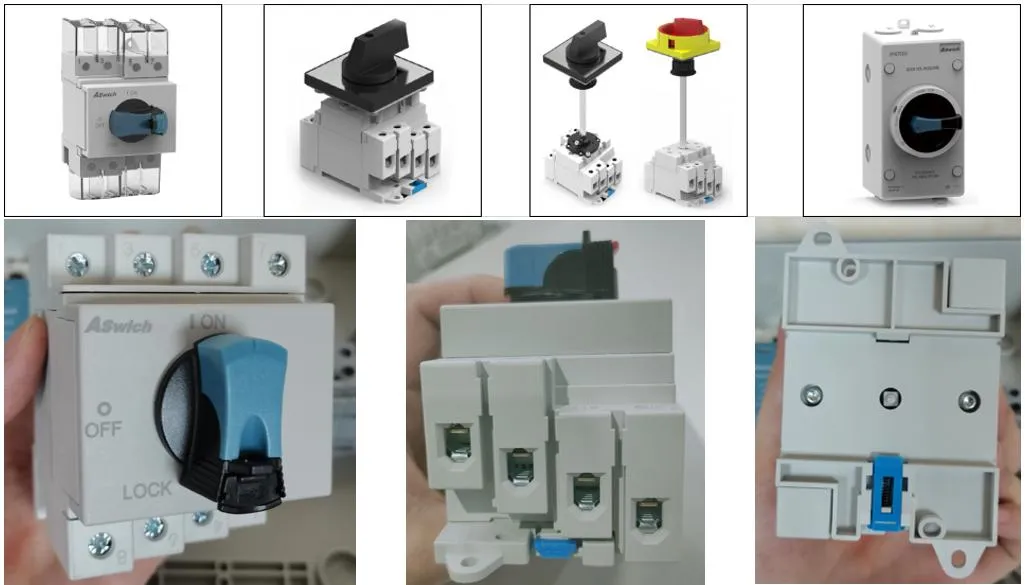

Flexible installation options

⚡

Arcing time <3ms

💧

IP66 Protection

DC disconnects are switches that complete or interrupt a flow of DC electricity. In a solar PV system, the DC disconnect is placed between the solar panel array and the power inverter so it can easily be thrown if you need to shut off solar power to the house.

The enclosed DC isolating switch has been designed, engineered and developed for 1~20kW residential and commercial rooftop solar applications. This DC isolating switch provides a safe means of isolating your PV array during installation or maintenance while keeping you and your solar system from harms way. For all installations up to 1500V DC, the switch is fully compliant to AS 60947.3 and AS/NZS IEC 60947.1. In addition, the polycarbonate enclosure consists of an injected TPE gasket for IP66NW protection - ensuring best protection against damaging dust and moisture ingress.

Frequently Asked Questions

How soon can I receive a quotation after sending an enquiry?

All enquiries will be replied to within 24 hours.

What distinguishes your DC Isolators from cheaper alternatives?

Our DC Isolators feature an IP66 protection degree and are high-quality customized solutions. For solar systems, prioritizing quality ensures long-term safety and performance.

Can I request a sample to test the quality before placing an order?

Yes, we believe sample orders are the best way to build trust and verify product quality.

What is the estimated delivery time for urgent orders?

Sample orders typically take 3-7 days, while regular orders are promised within 15 days.

What is the warranty period for the DC Isolator?

We offer a 2-5 year warranty depending on the specific product model.
