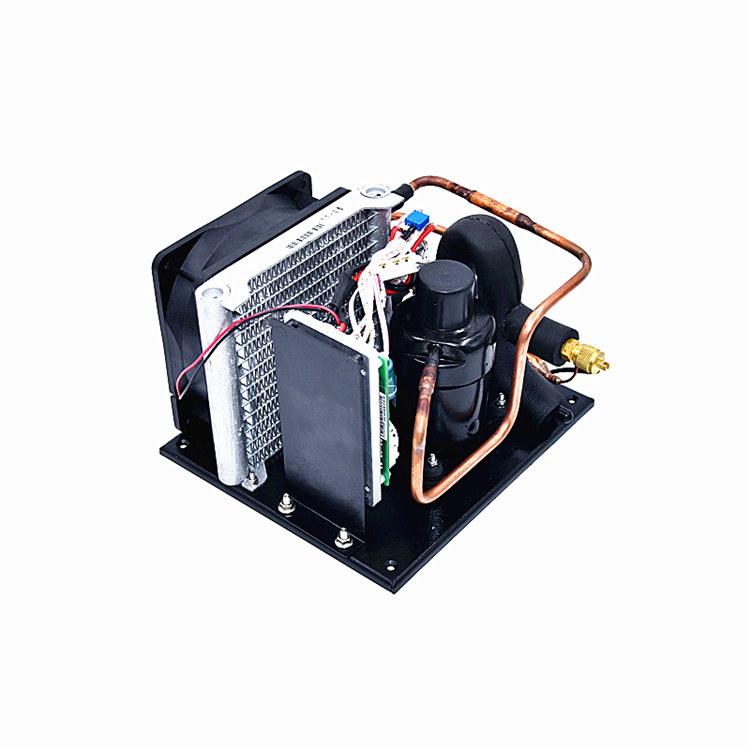

DC12V 300W Low Noise Smallest Condensing Unit for Mini Fridge Freezer Portable Air Conditioner Micro Chiller

1 / 5

DC12V 300W Low Noise Smallest Condensing Unit for Mini Fridge Freezer Portable Air Conditioner Micro Chiller

Customization:	Available
After-sales Service:	Yes
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

FSCD019Z12

Type

Air-Cooled

Cooling System

Compact Mini Cooling System

Cooling Capacity

300 Watt

Refrigerant

R134A

Compressor

DC Inverter Rotary Mini Compressor

Voltage

DC 12V 24V 48V

Net Weight

3kg

Temp Range

-18c ~ 25c

Condenser Type

Micro Channel

Product Description

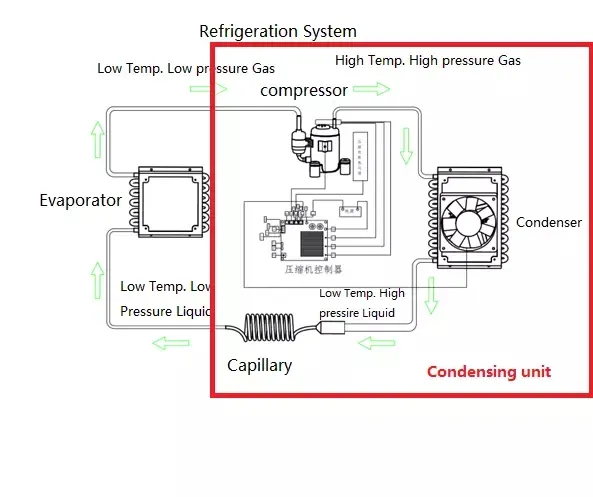

This smallest tiny refrigeration condensing unit utilizes a miniature compressor refrigeration system designed for micro cooling systems. The integrated system includes a Miniature Compressor, Compressor Driver, Mini Condenser, and Capillary.

Key advantages include its compact size, light weight, and compatibility with DC 12V, 24V, and 48V power supplies. It offers high COP with reduced power consumption and provides excellent cooling performance for confined spaces and high-ambient environments.

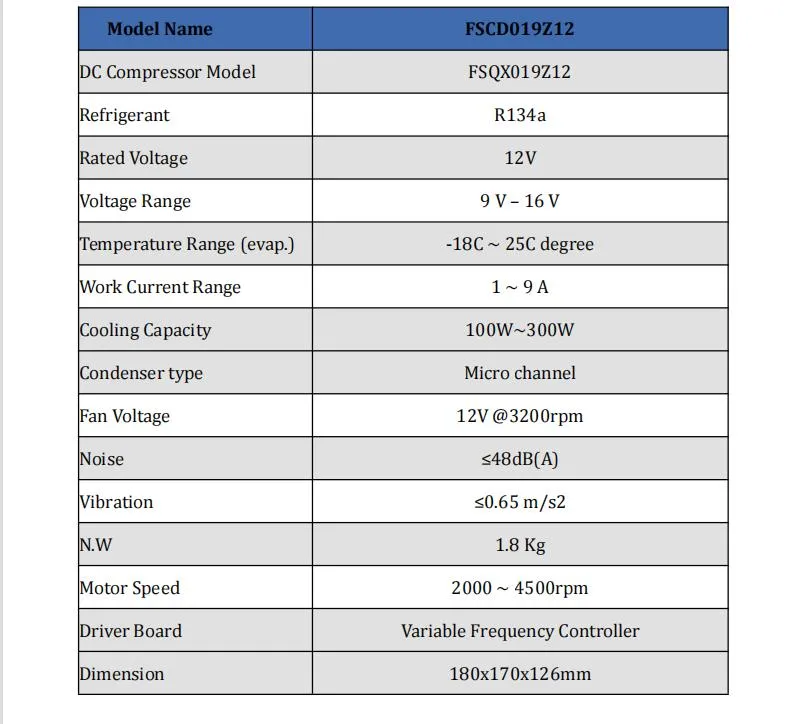

Parameter	Details
Name	Mini condensing unit
Model	FSCD019Z12
Components	Mini rotary compressor & driver, mini condenser, axial flow fan, capillary
Dimensions	180 * 170 * 126 mm
Cooling Capacity	100~400W (360~1444Btu)
Power Supply	Electric DC Power, Battery, Solar Power

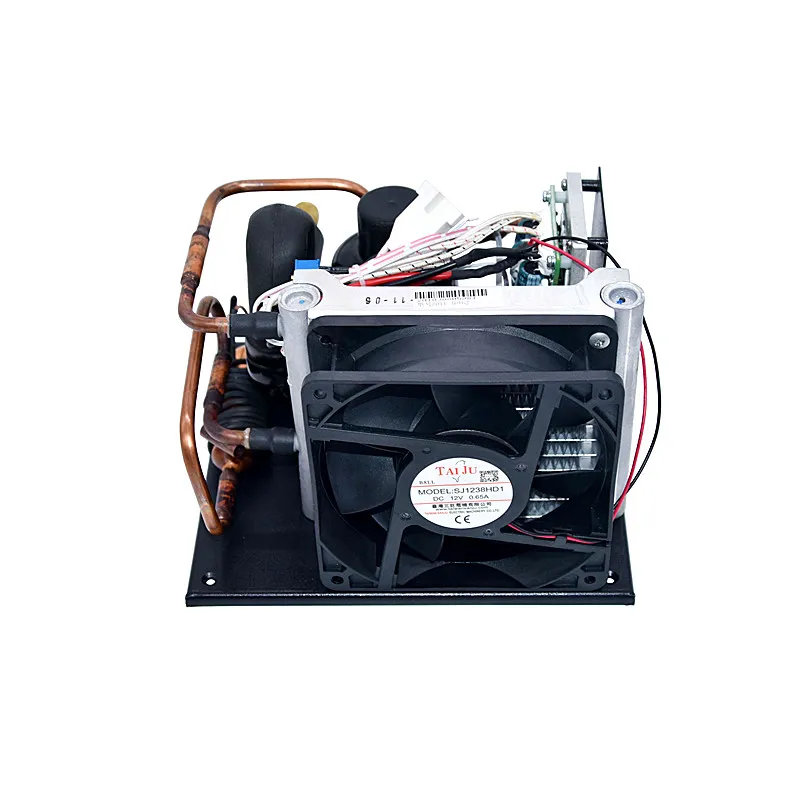

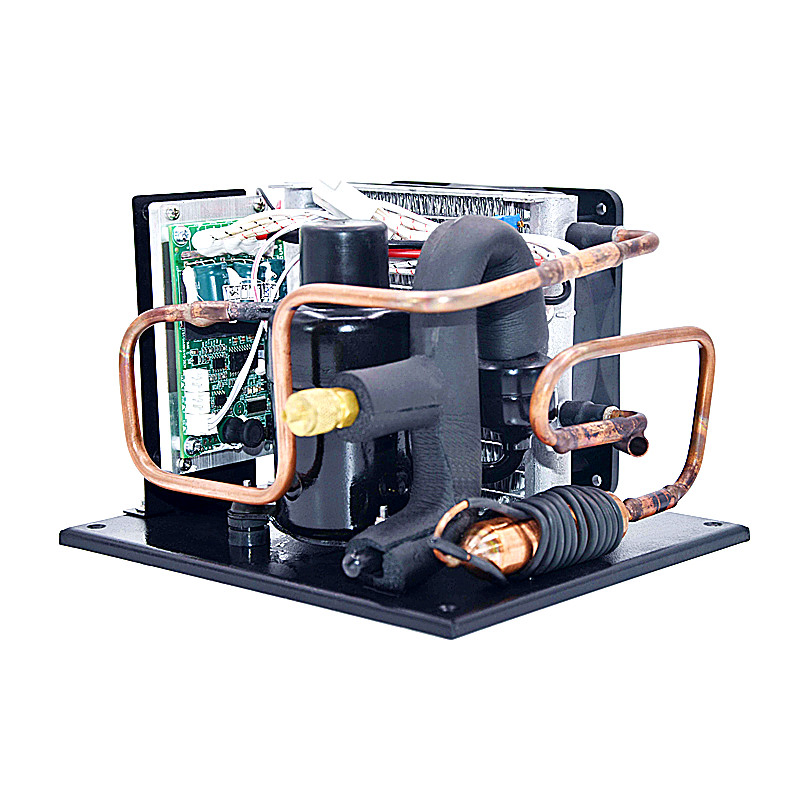

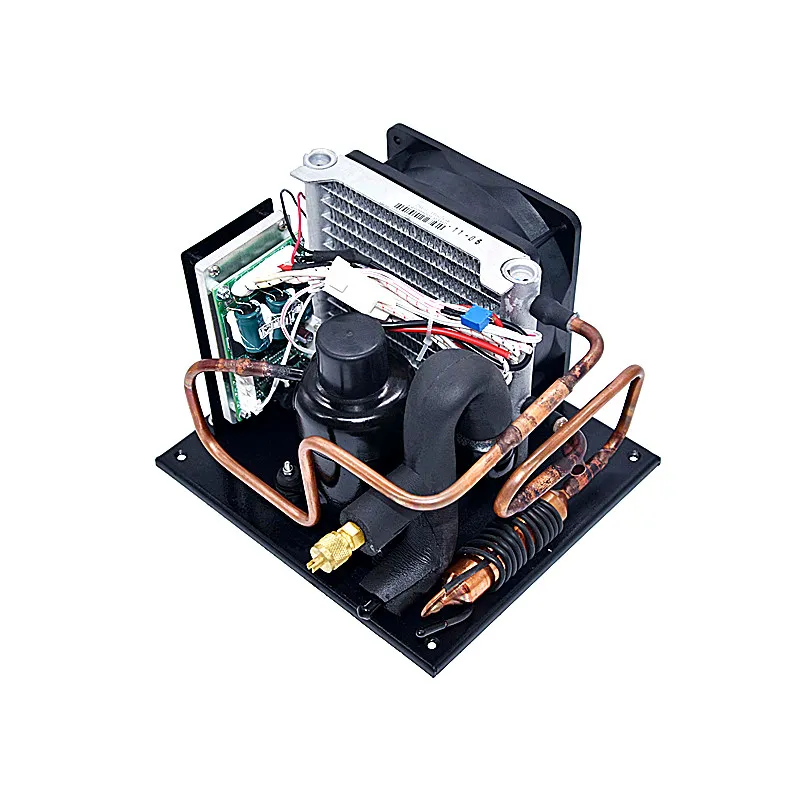

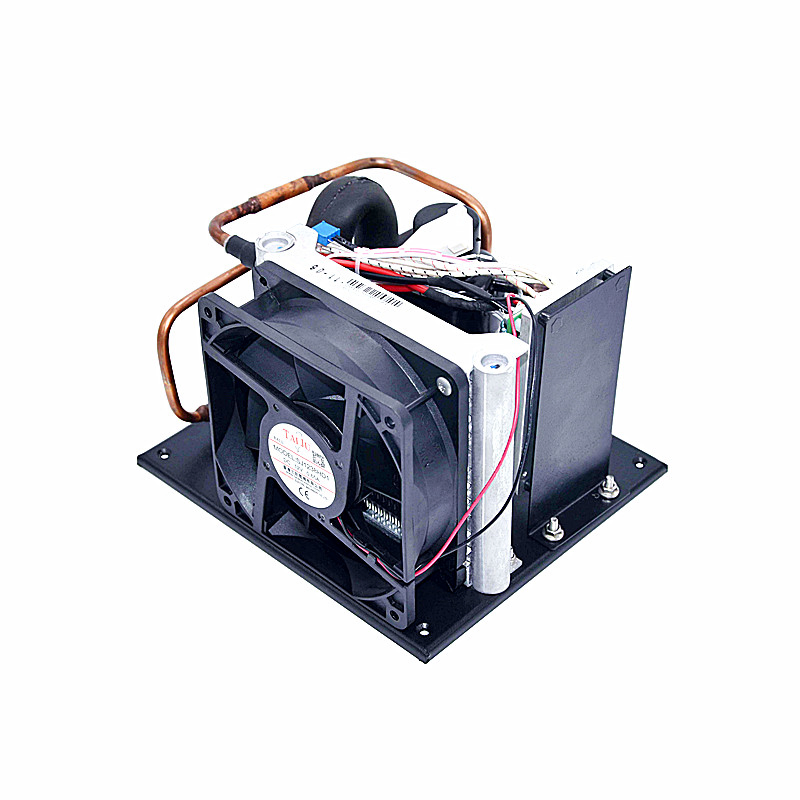

Product Gallery

Series Models Comparison

Model	Voltage	Input Power (W)	Capacity (W)	Condenser	Dimensions (mm)	Weight (kg)
FSCD019Z12	12V	150	405	Fin-tube	190160200	2.3
FSCD019Z24L	24V	80	115	Fin-tube	320110200	2.3
FSCD0325Z24	24V	168	550	Fin-tube	250160260	3.5
FSCD0325Z24-W	24V	168	550	Microchannel	250160170	3
FSCD035Z48-W	48V	197	650	Microchannel	-	3

Key Characteristics

Smallest size & most compact
Low profile height & light weight
High COP & Low energy consumption
Eco-friendly R134a refrigerant
Low noise and vibration
High reliability & efficiency
Compressor overcurrent protection
Hybrid power: DC, Battery, Solar

Versatile Applications

Laboratory device cooling & Mini glycol systems
Laser machine & Electronic component cooling
PC, chip, and beauty machine cooling
Personal cooling vests & race car driver cooling
Mini beverage, wine, or beer coolers
Automotive climate control & portable spot coolers

Packaging & Logistics

Sample Package

Individual carton with non-fumigated wooden support

Bulk Order

Packed in non-fumigated pallets

Package Size

25.00cm * 25.00cm * 18.00cm

Gross Weight

5.000kg

Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)? The MOQ for our mini condensing units is 1 piece, making it accessible for sample testing and DIY projects.

2. How long is the delivery lead time? Sample orders are typically ready within 10 days after payment. Bulk orders usually take approximately 25 days.

3. What power sources can be used with this unit? The unit is highly versatile and can be powered by DC electrical power, batteries, solar power, and car power systems (12V/24V/48V).

4. What are the main applications for the micro chiller module? It is ideal for laser cooling, lab devices, PC/chip cooling, portable air conditioners, and personal body cooling systems.

5. What payment methods are accepted? We accept various payment methods including T/T (Telegraphic Transfer), Western Union, PayPal, and L/C (Letter of Credit).

6. Are these units suitable for transport refrigeration? Yes, due to their DC power compatibility and compact size, they are excellent for transport refrigeration and commercial cooling needs.
