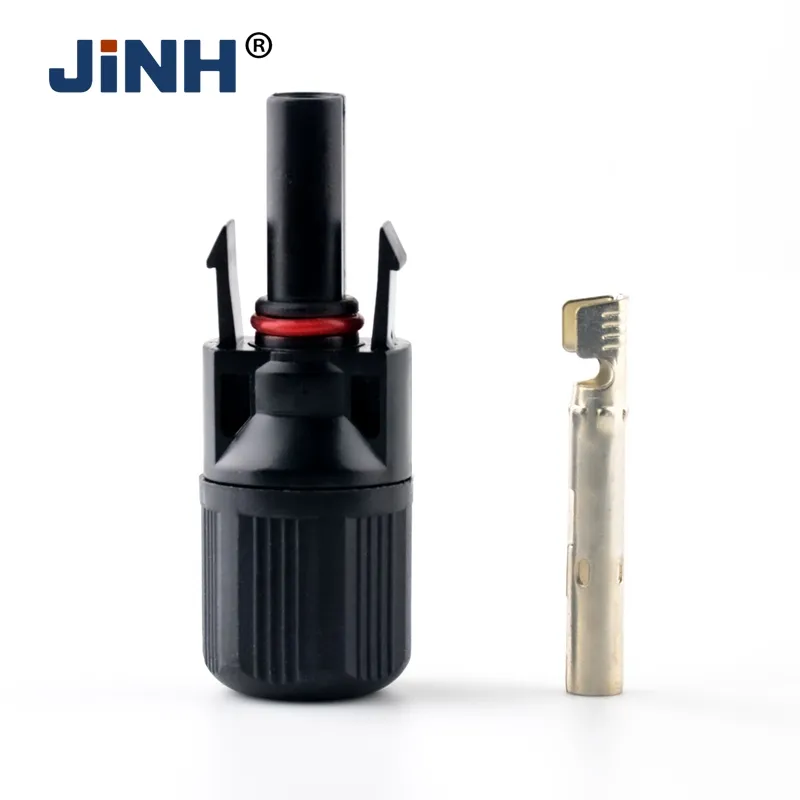

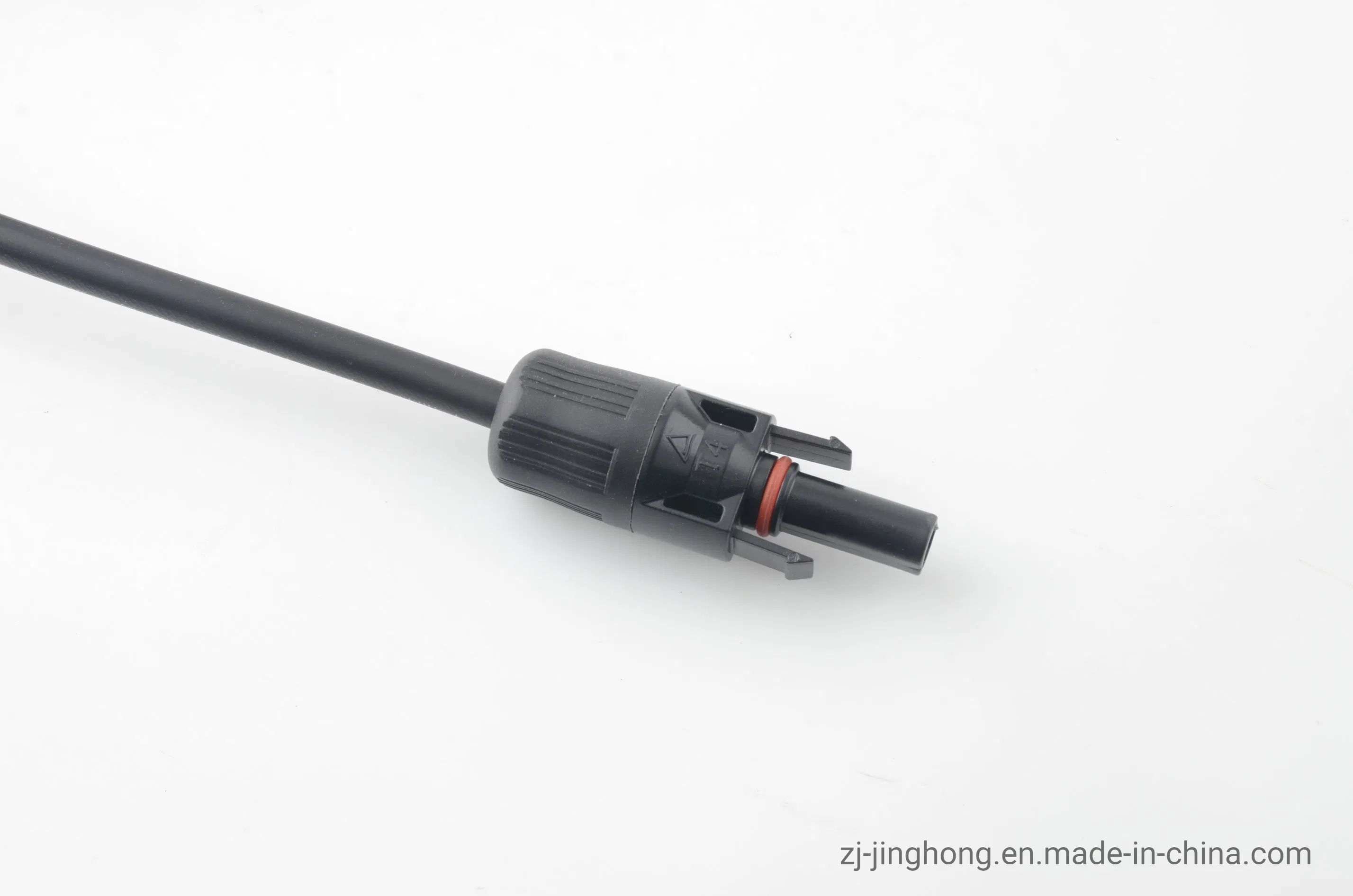

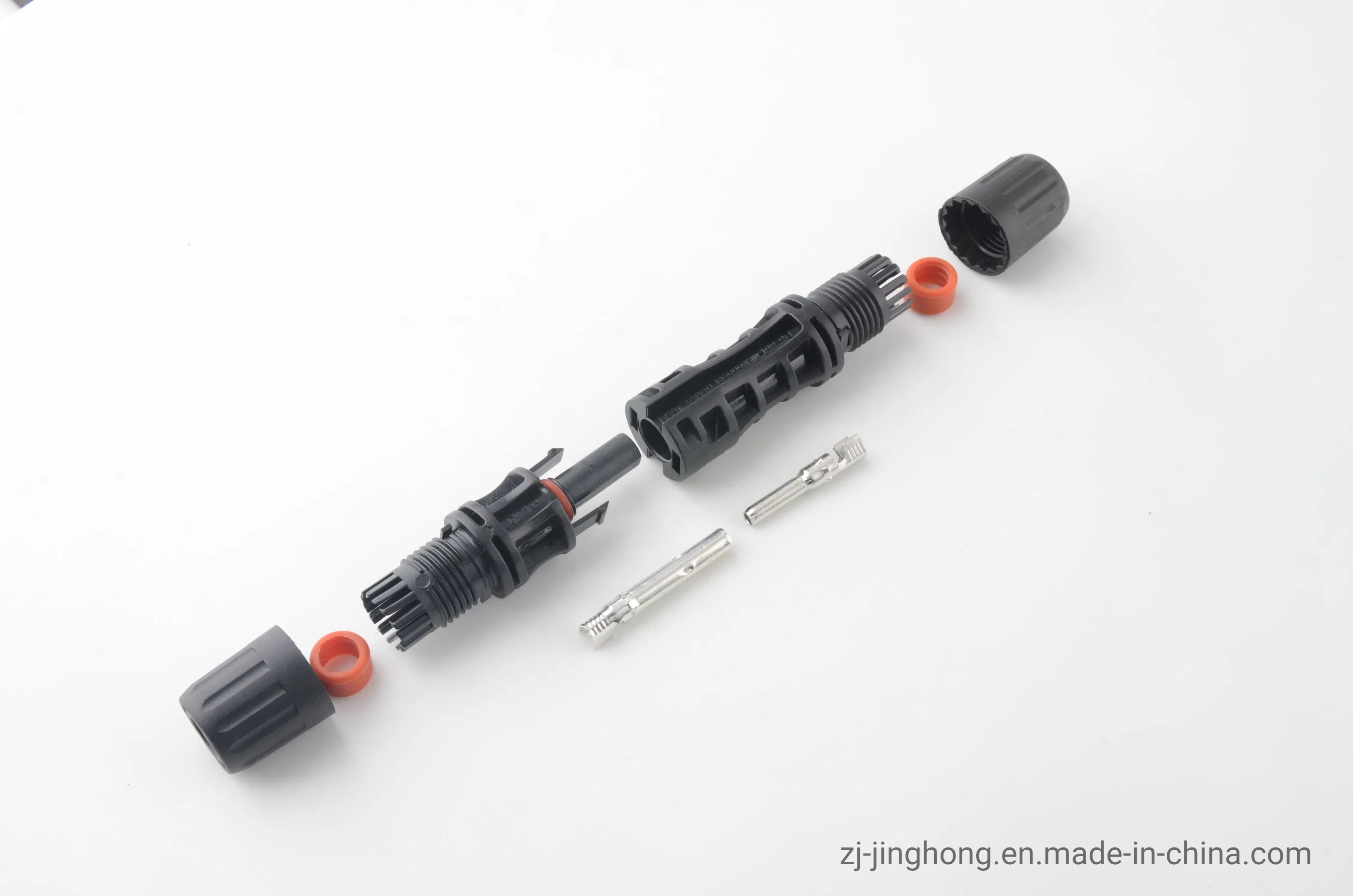

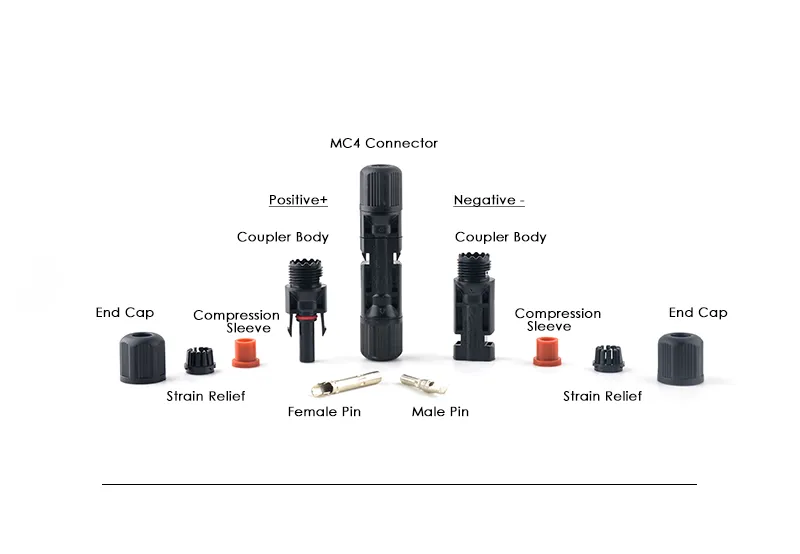

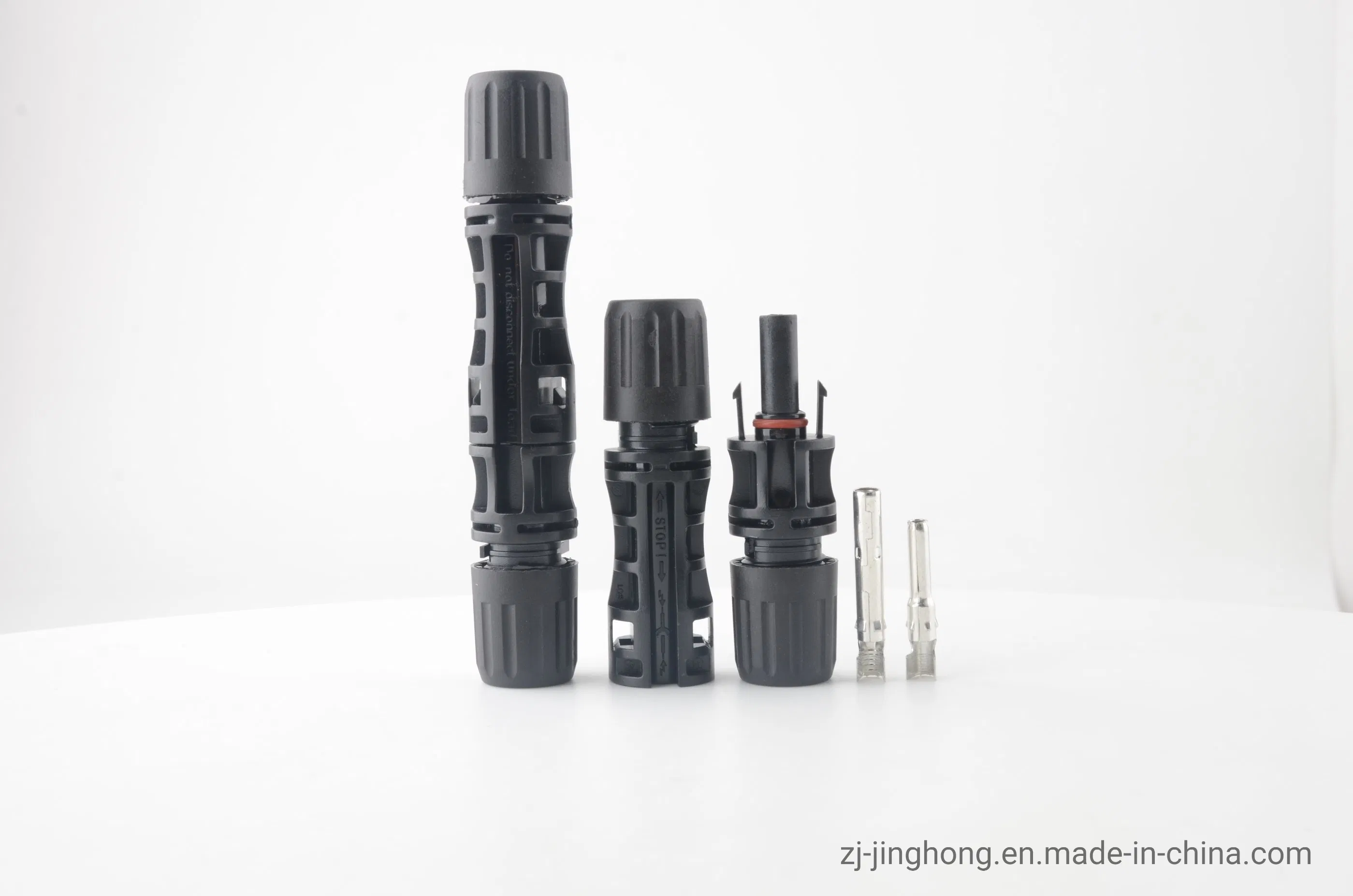

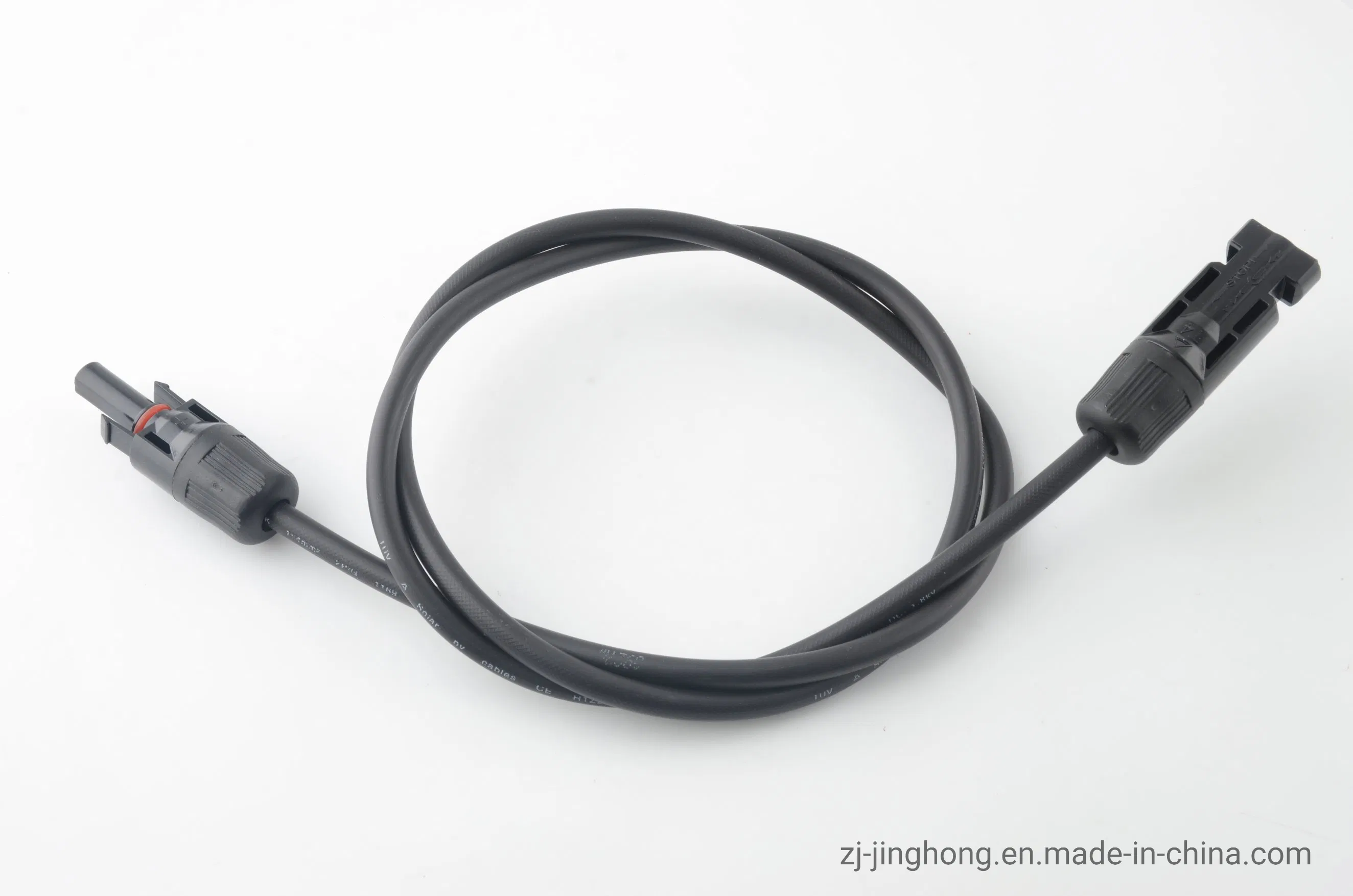

1500V 30A Waterproof High Quality DC Mc 4 Solar PV Connector with Cable

1 / 5

1500V 30A Waterproof High Quality DC Mc 4 Solar PV Connector with Cable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

MC4-30A 1500V

Certification

Application

Industrial

Contact Material

Copper, Silver Plated

Safety Class

Suit Cable

2.5/4/6mm2 (14/12/10AWG)

Temperature Range

-40~+125

Insulation Material

PPO

Rated Voltage

DC1000/1500V

Flame Class

UL94-Vo & UL94-5va

Protection Degree

IP67

Salt Mist Test

IEC60068-2-52

Rated Current

30A/40A/50A

HS Code

853669000

Production Capacity

300000/Week

Packaging & Delivery

Package Size

20.00cm * 15.00cm * 15.00cm

Gross Weight

2.500kg

Transport Package

50 Pairs Per Cartoon Box

Product Features

Simple assembly, easy to use
Suitable for different sizes of PV cable
Waterproof grade: IP67
Housing made of PPO material, anti-UV
High current carrying capacity
Contact material: Copper Tin Plated
High heat resistance, wear-resisting

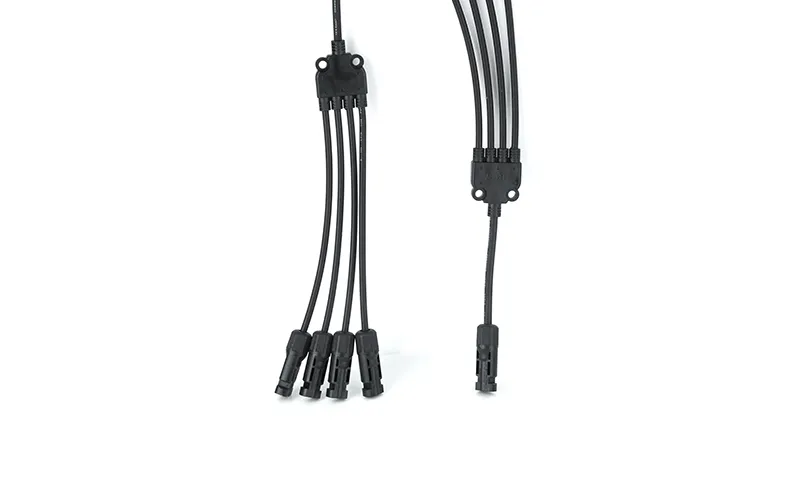

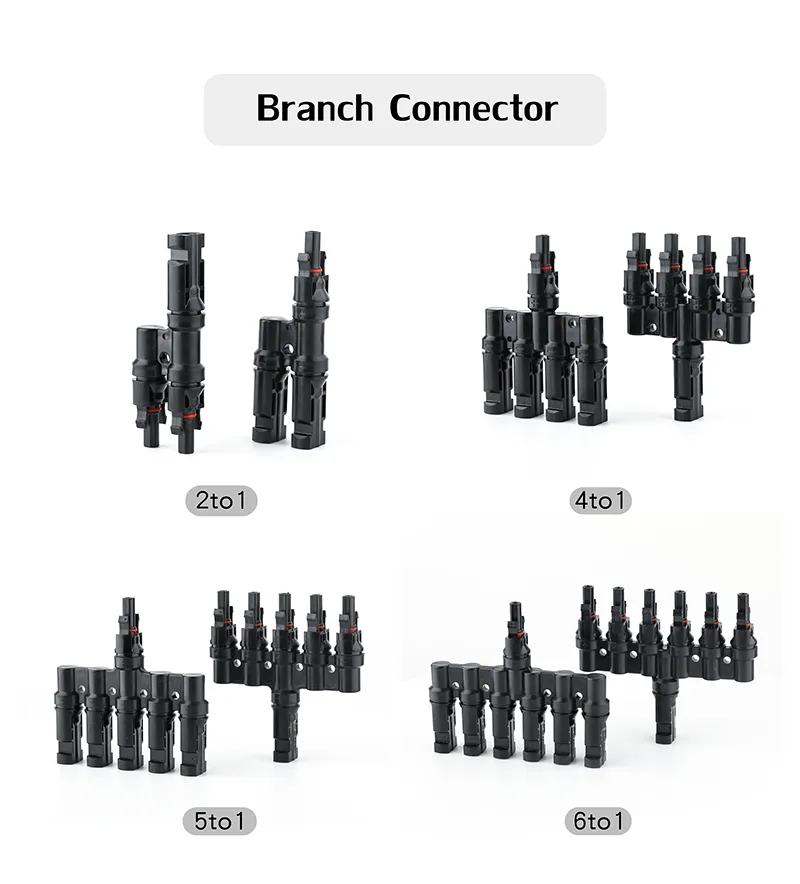

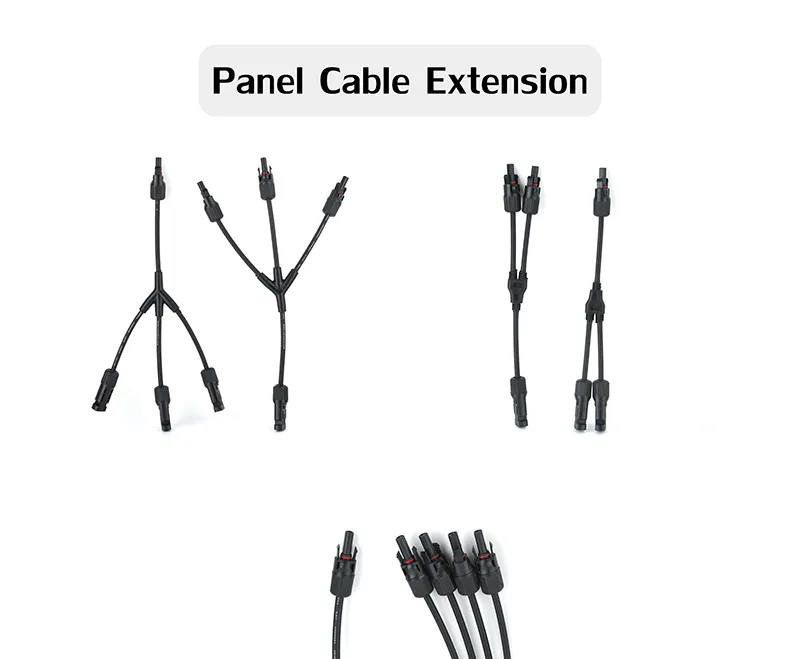

Item	MC4 T branch connector
Rated current	30A (1.5-10mm²)
Rated voltage	1500V DC
Test voltage	6000V (50Hz, 1min)
Contact resistance	1mΩ
Contact material	Copper, Tin-plated
Insulation material	PPO
Degree of protection	IP67
Flame class	UL94-VO
Insertion force	≤50N
Withdrawal force	≥50N
Temperature Range	-40ºC~+110ºC

Frequently Asked Questions

1. What is the waterproof rating of this MC4 connector?

The connector is rated IP67, providing excellent protection against dust and temporary immersion in water, making it ideal for outdoor industrial environments.

2. Which cable sizes are compatible with these connectors?

These connectors are compatible with PV cables of 2.5mm², 4mm², and 6mm² (14AWG, 12AWG, and 10AWG).

3. What is the maximum voltage these connectors can handle?

They are designed to handle a rated voltage of up to 1500V DC, suitable for modern high-voltage solar systems.

4. What material is used for insulation and contact?

The insulation material is high-quality PPO (anti-UV), and the contact material is Copper with Tin or Silver plating for optimal conductivity.

5. Can these connectors withstand extreme weather conditions?

Yes, they have a temperature range of -40ºC to +110/125ºC and are made with anti-UV materials to ensure durability in harsh climates.

6. Are these connectors compliant with international safety standards?

Yes, they are CE certified and meet the Safety Class II standard for solar PV cable connectors.
