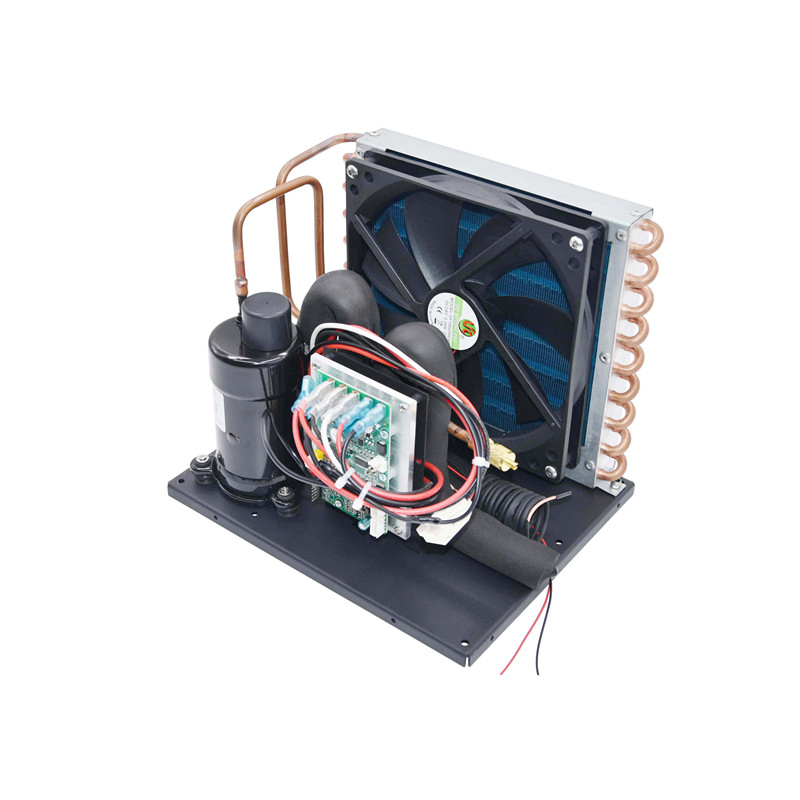

DC 12V 24V Portable Cooling System Condensing Unit for Ice Cream Cabinets Dispensers Ice Storage Bins Chests Marine Refrigerators

1 / 5

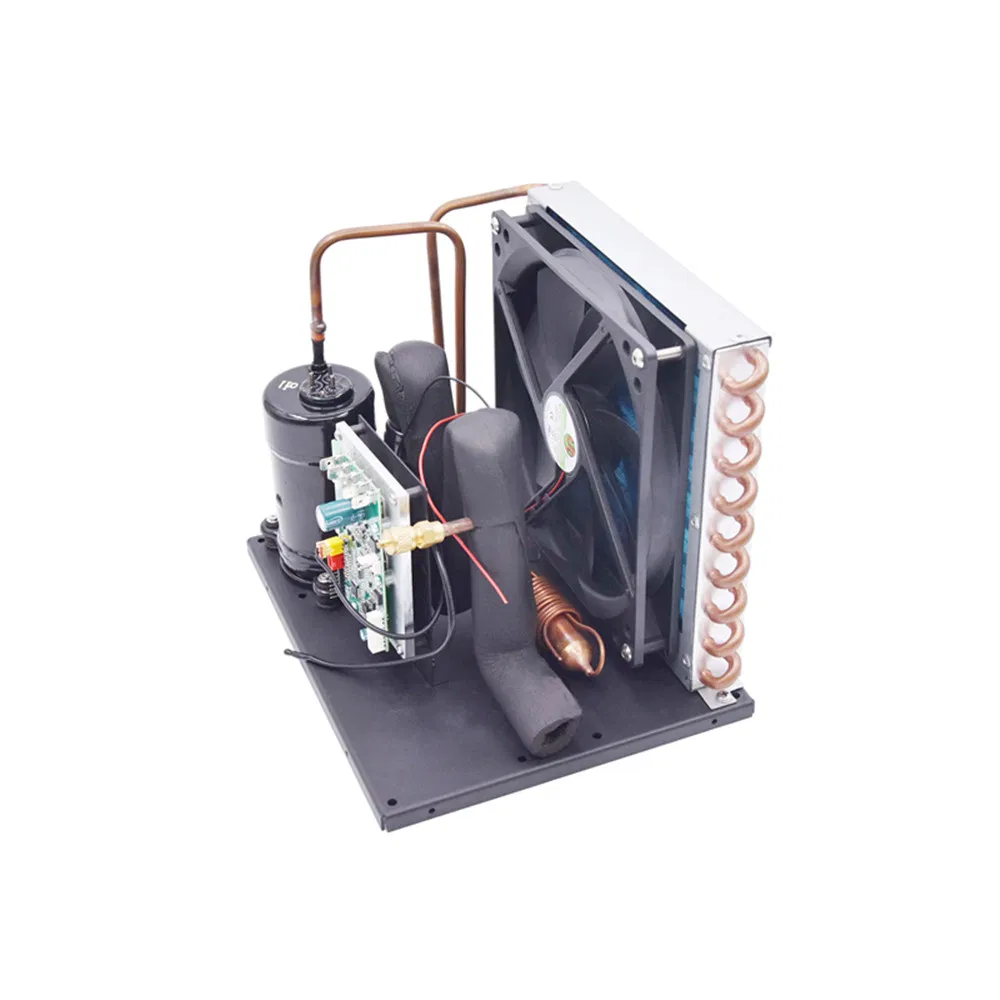

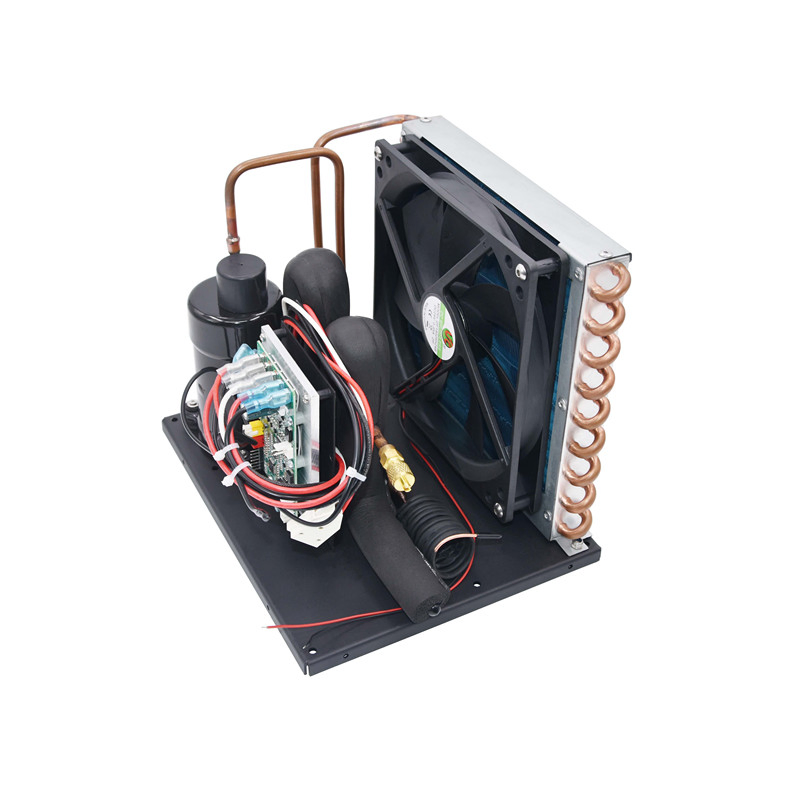

DC 12V 24V Portable Cooling System Condensing Unit for Ice Cream Cabinets Dispensers Ice Storage Bins Chests Marine Refrigerators

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

1 Basic Info

Model NO.

FSCD027Z24

Type

Air-Cooled

System Type

Combined

Fans Species

Frequency Fan

Noise Level

Low (≤45dB)

Application

Compact Mini Cooling System

Certification

ISO, CVC, CE

Cooling Capacity

500~600watt

Refrigerant

R134A

Power Supply

DC 24V (Battery, Solar, Car Power)

2 Product Description

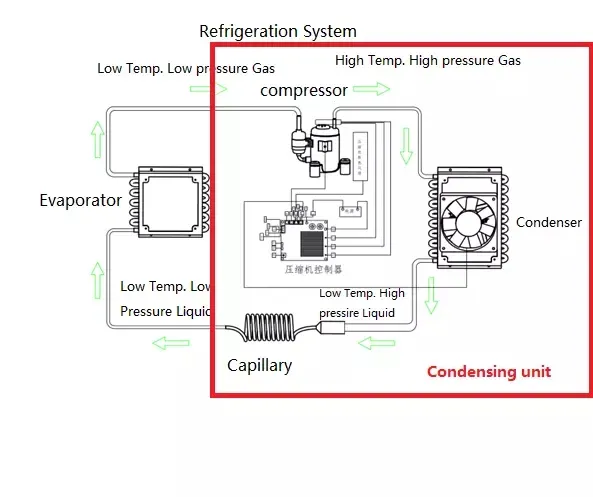

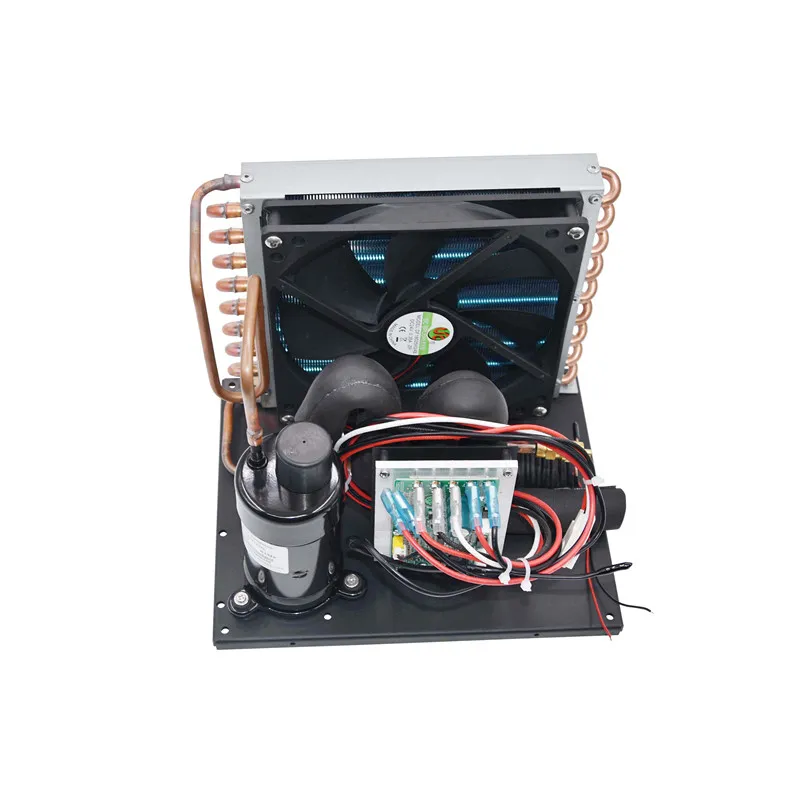

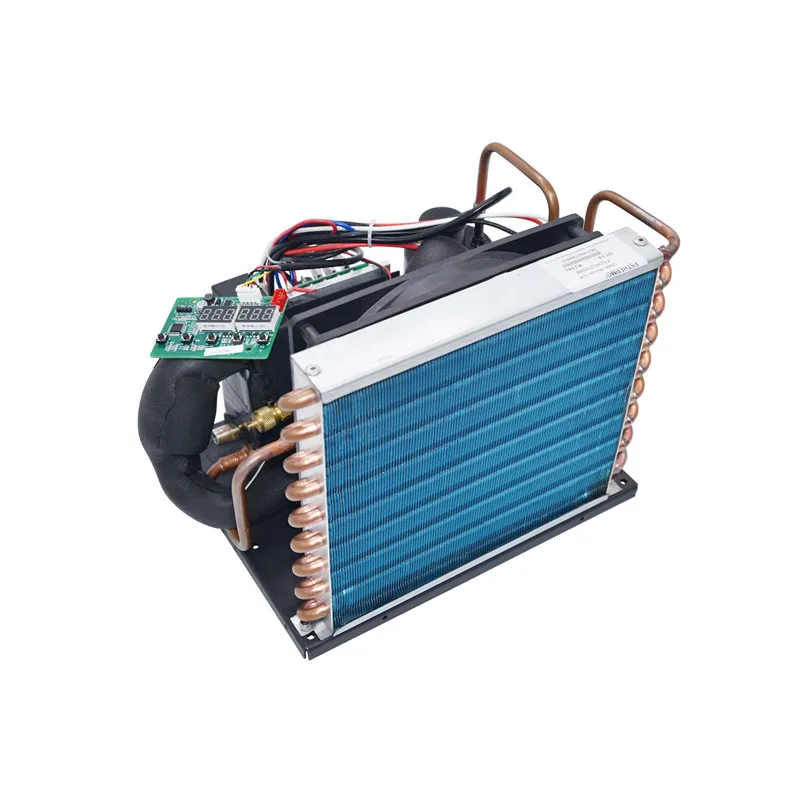

This portable cooling system condensing unit is designed for Ice Cream Cabinets, Dispensers, Ice Storage Bins, Marine Refrigerators, and other micro cooling applications. It features a miniature compressor refrigeration system including a Compressor Driver, Mini Condenser, and Capillary.

Advantages: Small size, light weight, DC power supply, high COP with low power consumption, and excellent performance in confined spaces or hot ambient environments.

Product Name	24V Mini Condensing Unit
Model	FSCD024Z24
Refrigeration Parts	Mini rotary compressor & driver, mini condenser, axial flow fan, capillary
Voltage	DC 24V
Dimensions	420x90x220mm / 250x200x180mm
Net Weight	3.6kg - 5kg
Cooling Capacity	200 ~ 600W
Compressor Type	DC Inverter Rotary Mini Compressor

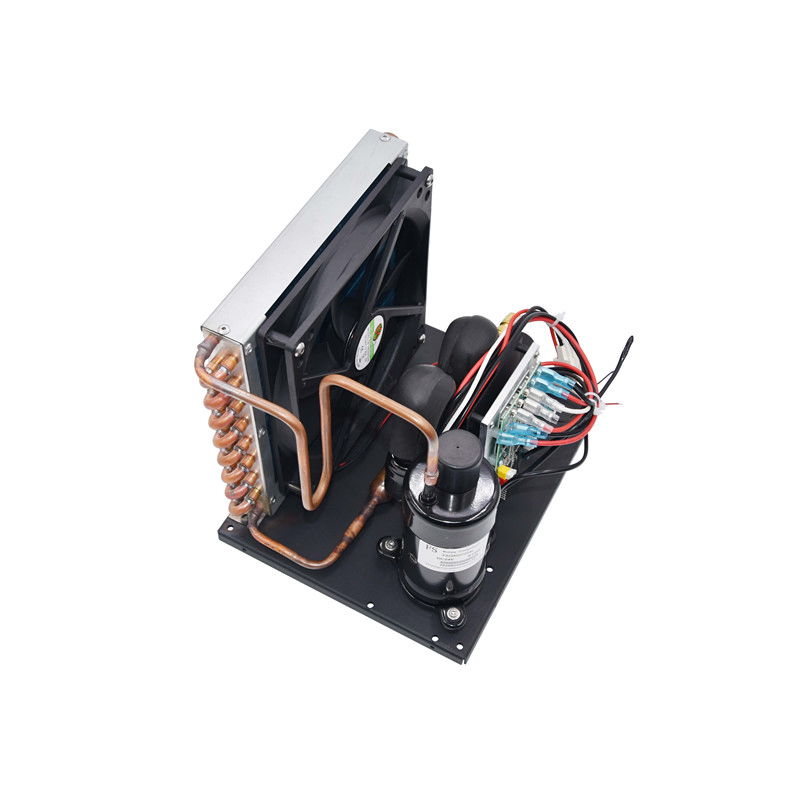

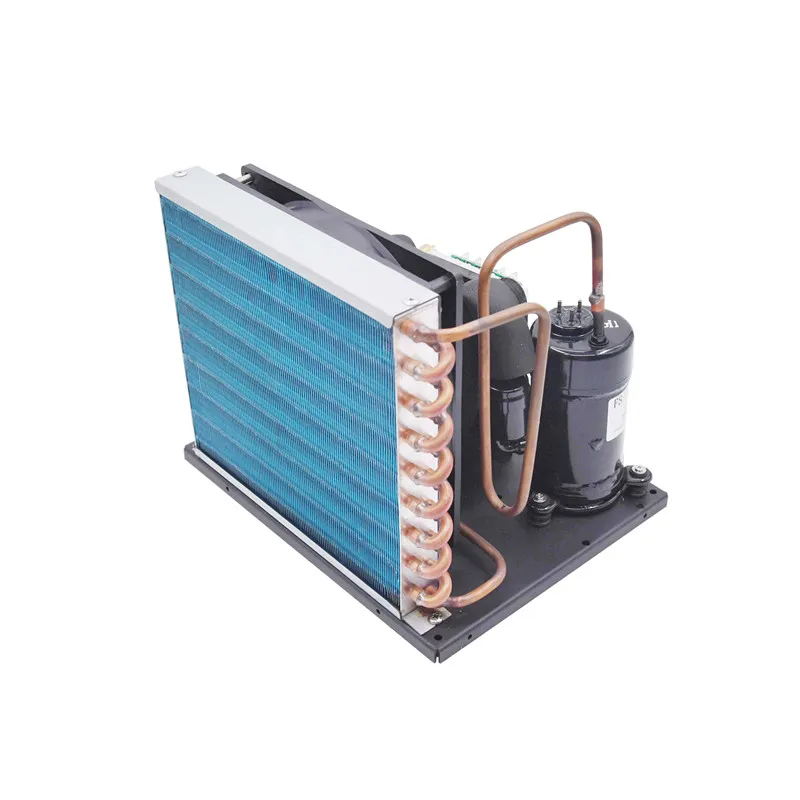

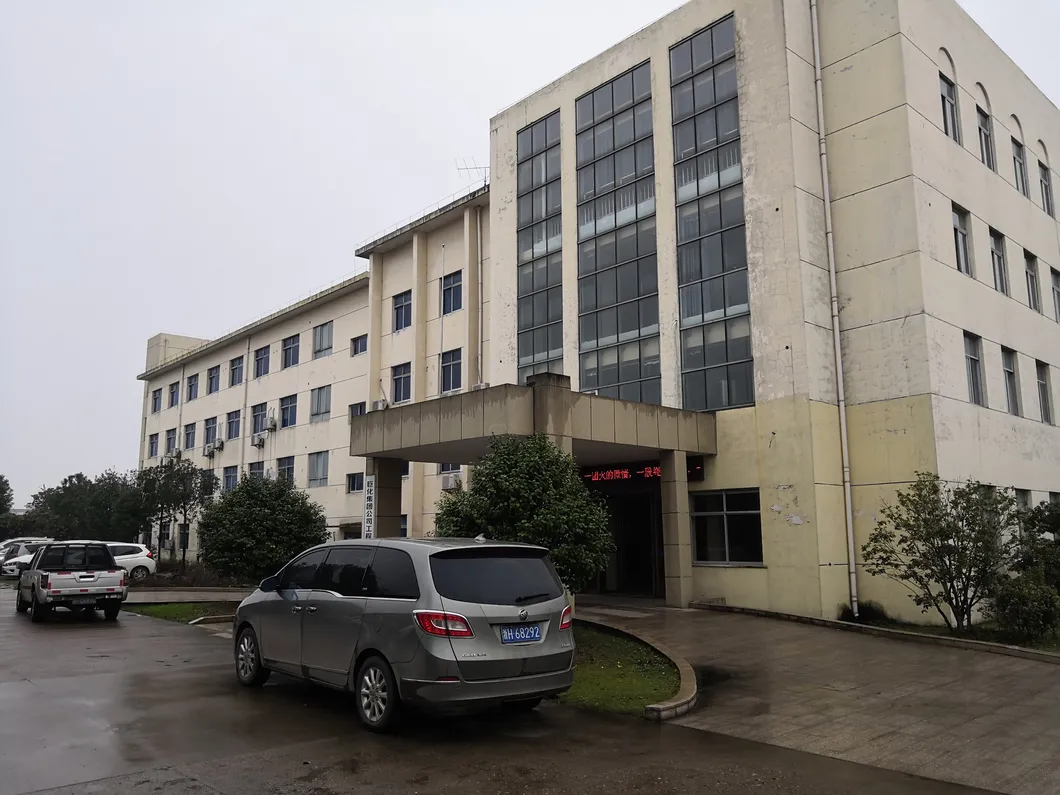

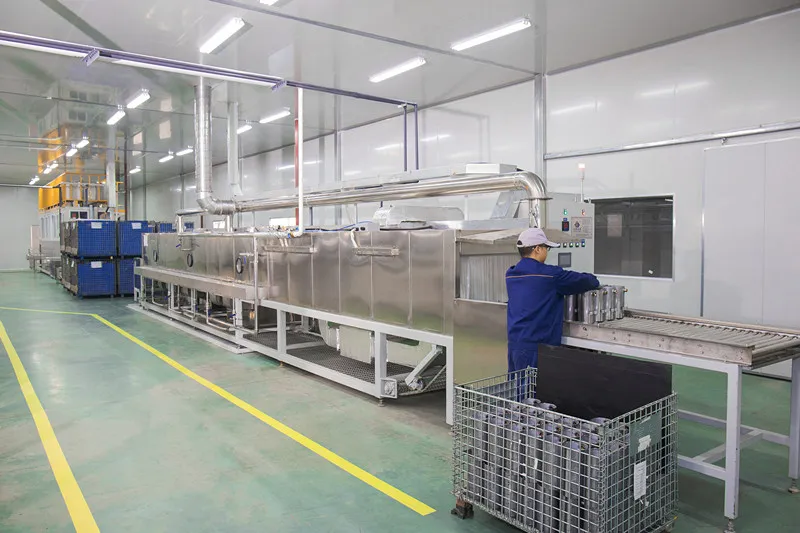

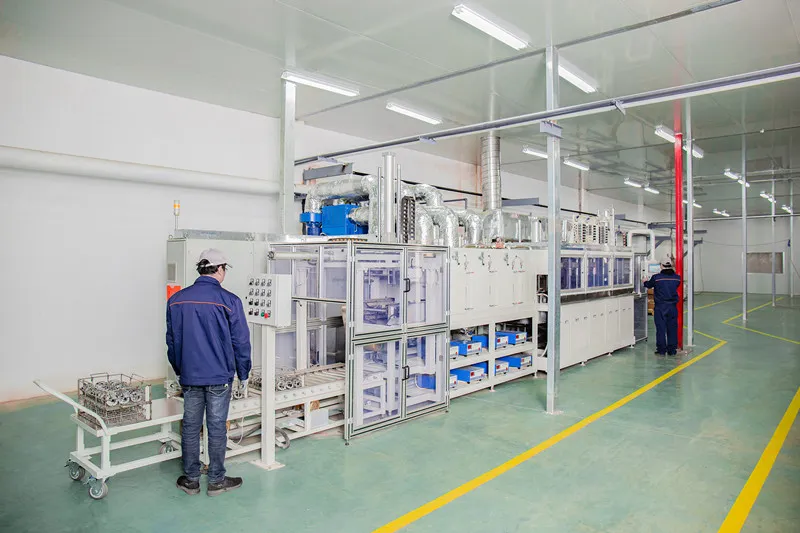

3 Production Show

4 Characteristics & Main Features

Compact & Light: Smallest size and low height for portable applications.

High Efficiency: High COP with low energy consumption and variable speed.

Reliability: Features compressor overcurrent protection and low vibration.

Eco-Friendly: Uses R134a refrigerant and safe DC power.

Intelligent Control: Equipped with a microprocessor-based controller for precision.

Hybrid Power: Compatible with DC electrical, battery, and solar power.

5 Application Fields

✓ Laboratory device cooling
✓ Mini glycol cooling
✓ Laser machine cooling
✓ PC and chip cooling
✓ Personal body cooling vest
✓ Beauty machine cooling
✓ Medical cooling systems
✓ Automotive climate control
✓ Portable spot cooler
✓ Beverage/Wine cooling

FAQ

? What is the Minimum Order Quantity (MOQ)?

The MOQ for our mini condensing units is 1 piece.

? What is the standard delivery time?

Sample orders are typically ready within 10 days after payment, while bulk orders take approximately 20-25 days.

? What power sources can be used with this unit?

The unit operates on DC 12V/24V/48V power and can be powered by batteries, solar panels, or car power systems.

? What are the core components of the system?

The system includes a mini DC rotary compressor, a compressor driver, a mini fin-tube condenser, and an axial flow fan.

? What refrigerants do these units use?

Our systems primarily use environmental-friendly R134a refrigerant.

? In what fields can this micro cooling system be applied?

It is ideal for medical cooling, portable spot cooling, laser devices, electronics cooling, and compact mobile refrigeration.
