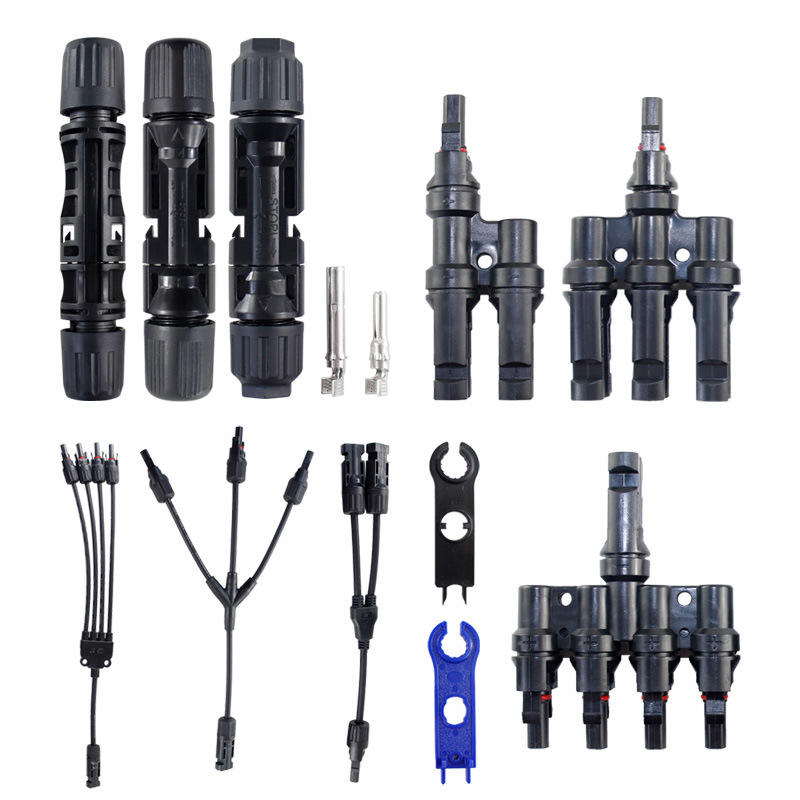

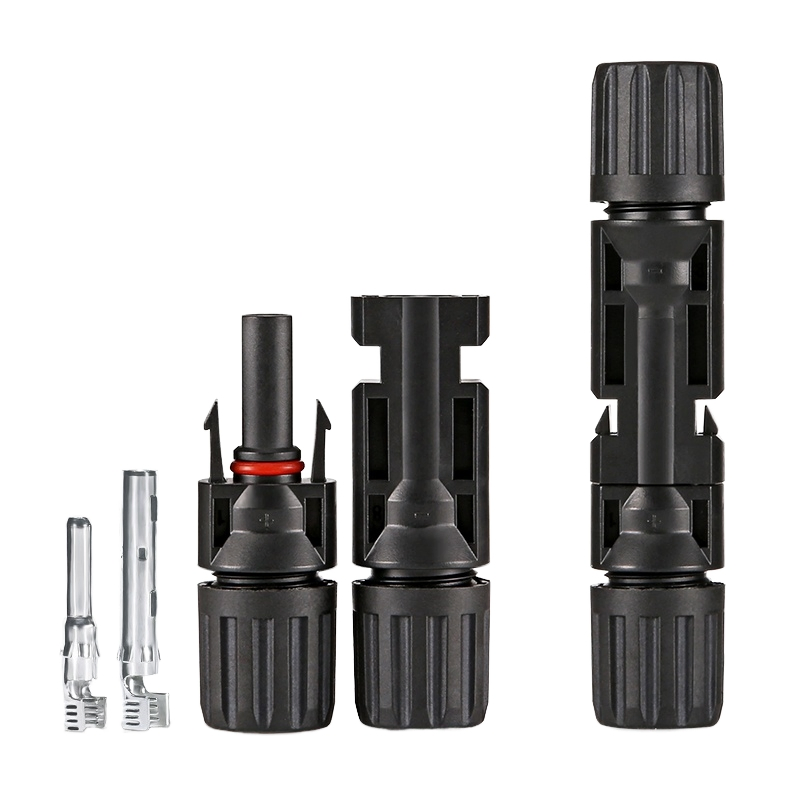

Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
1 / 5
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable

Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information Overview
Model NO.
PV-LTN4
Application
PV System
Certification
TUV
Terminal Material
Iron
Interface Type
DC/DC
Cable Cross Sections
2.5~10mm2 /14~8AWG
Ambient Temp
-40°C to +85°C
Flame Class
UL94-V0
Protection Degree
IP68 (1m, 1h)
Warranty
25 Years
Rated Voltage
1500V
Rated Current
30A/50A
Product Description

High Stability MC4 Solar Cable Connectors
Enhanced with Premium Tin Copper Pins for Photovoltaic Systems

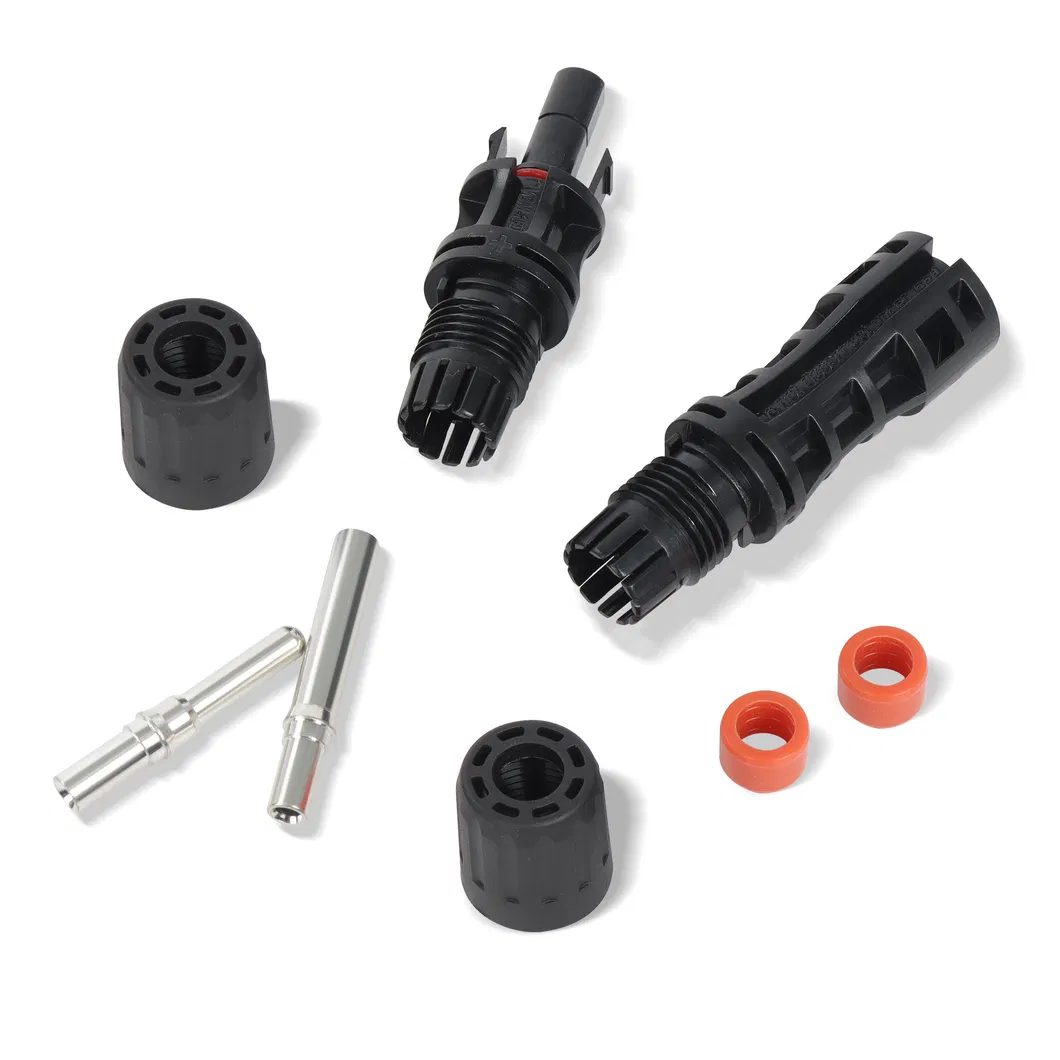

High Stability MC4 Solar Connector

Outstanding Features:

  • Effortless on-site processing for seamless installation.
  • Capable of accommodating PV cables with a variety of insulation diameters.
  • Secure mating safety with intelligently keyed housings.
  • Engineered for enduring performance with multiple plugging cycles.
  • Designed to support a high current carrying capacity for robust performance.
  • Globally recognized with TUV and UL approvals for maximum reliability.
Technical Specifications
Parameter Item Technical Data
Model NumberWSPVCC
Rated Voltage1000V/1500V DC
Test Voltage6000V (50Hz, 1min)
Overvoltage Type/PollutionCAT III / 2
Contact Resistance≤0.5mΩ
Contact MaterialCopper, Tin-plated
Insulation MaterialPPO
Degree Of ProtectionIP2X / IP68
Flame ClassUL94-V0
Safety ClassII
Suitable CableOD 4.5-8.5mm (2.5-6.0mm2)
Insertion / Withdrawal Force≤ 50N / ≥ 50N
Temperature Range-40ºC ~ +125ºC
Detailed Photos

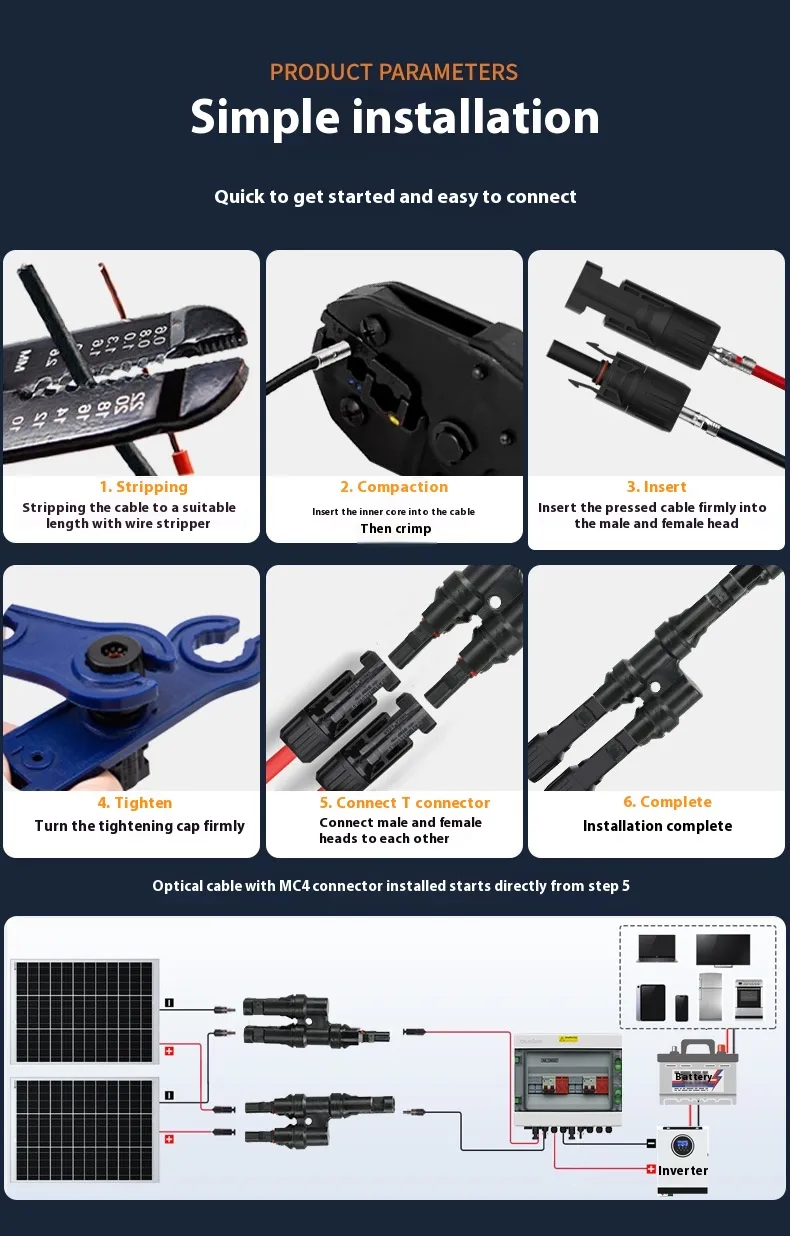

Detailed Photo 1

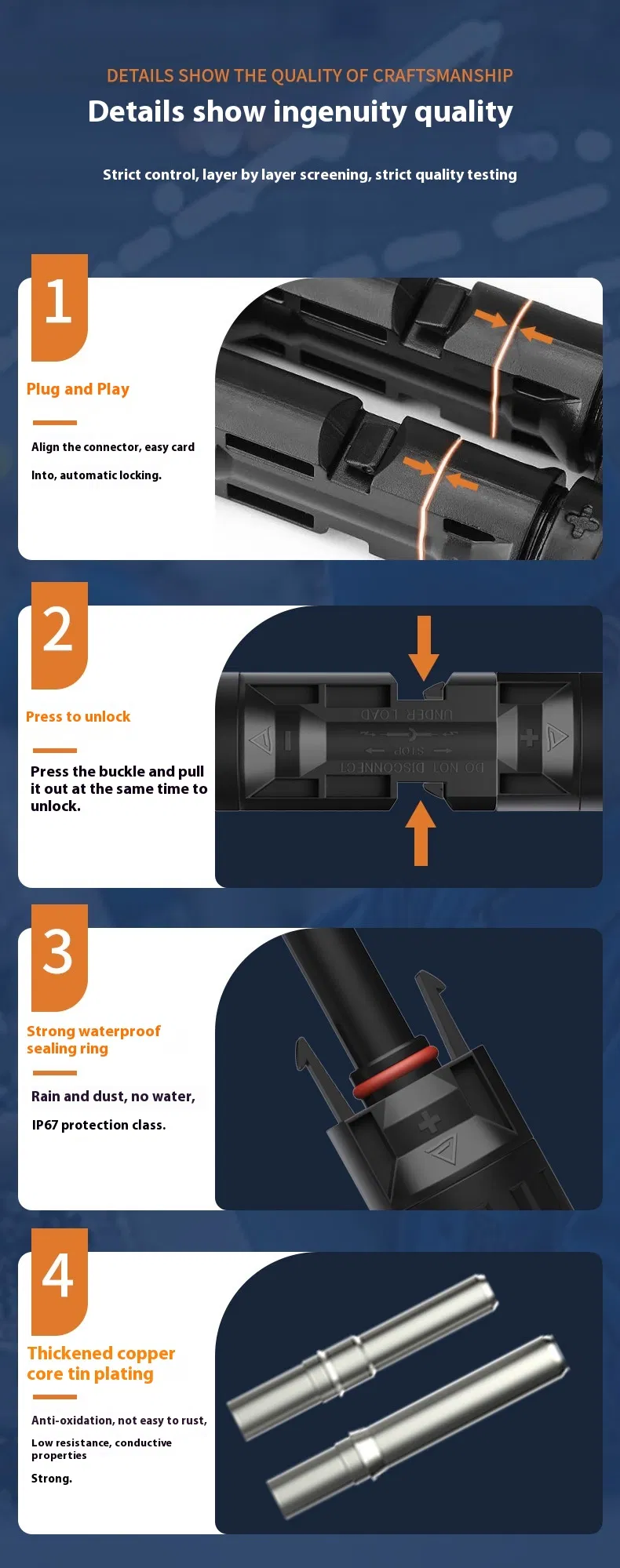

Detailed Photo 2
Detailed Photo 3

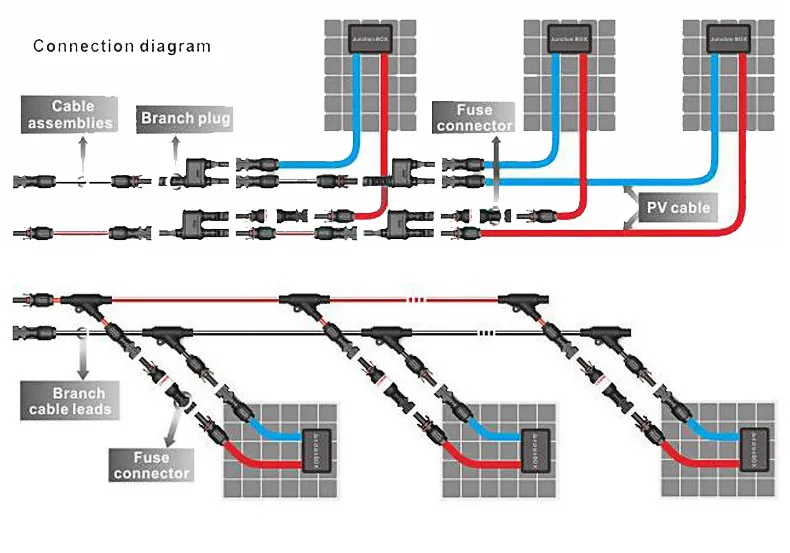

Detailed Photo 4

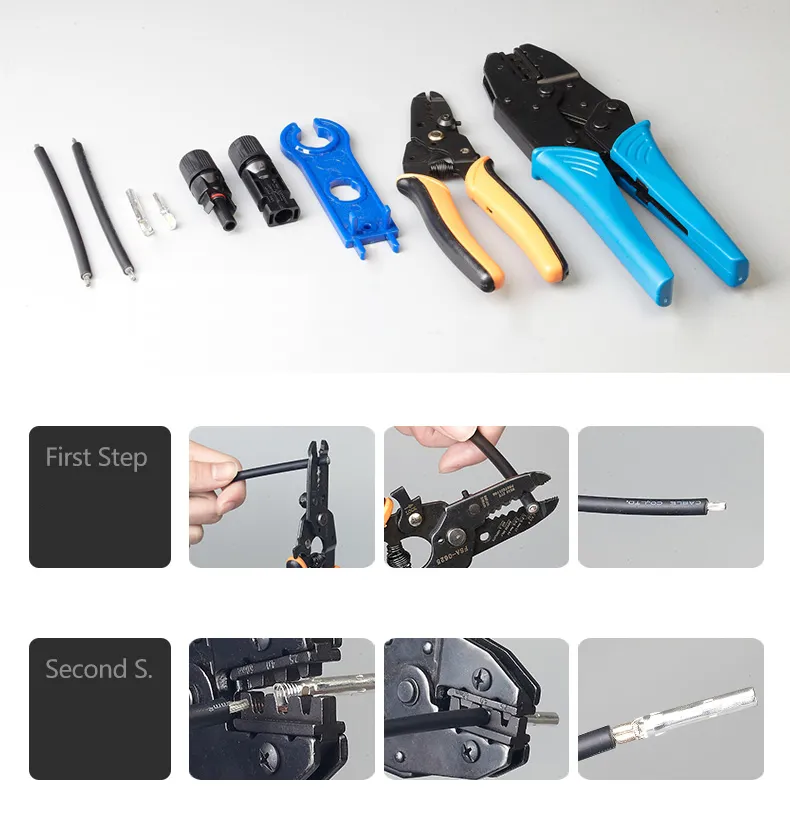

Detailed Photo 5
Installation Instructions

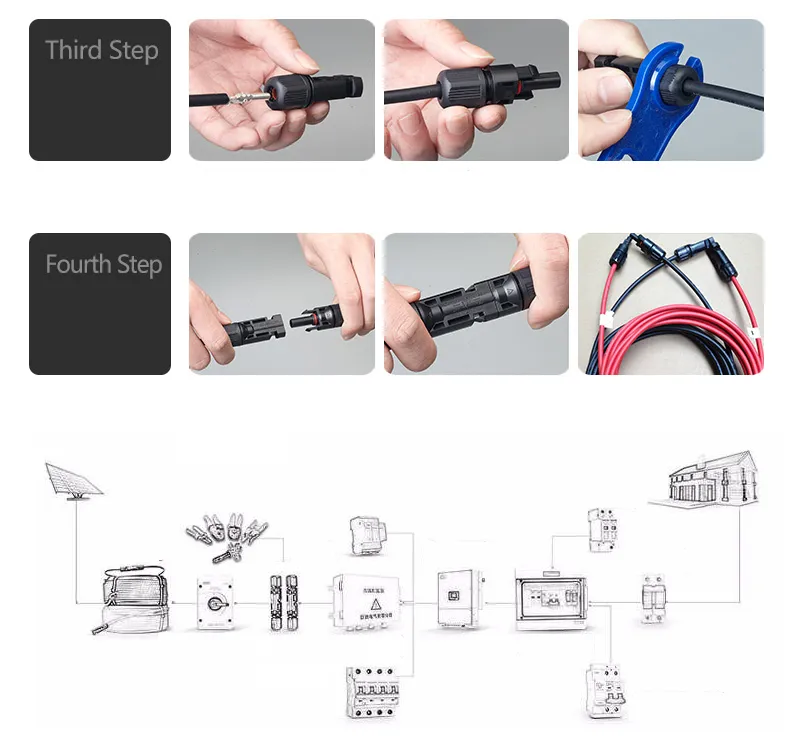

Installation 1

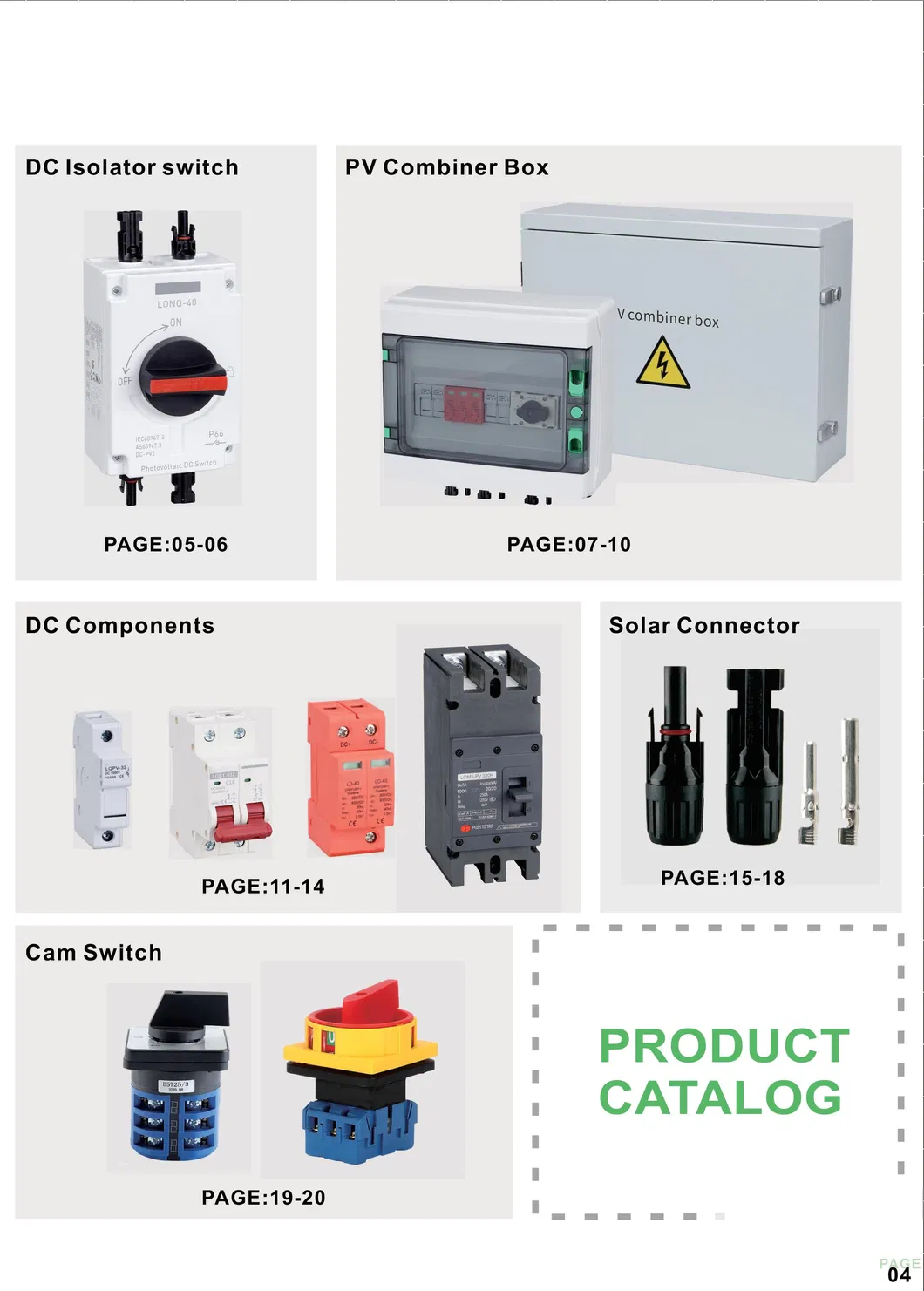

Installation 2
Packaging & Shipping
Package 1

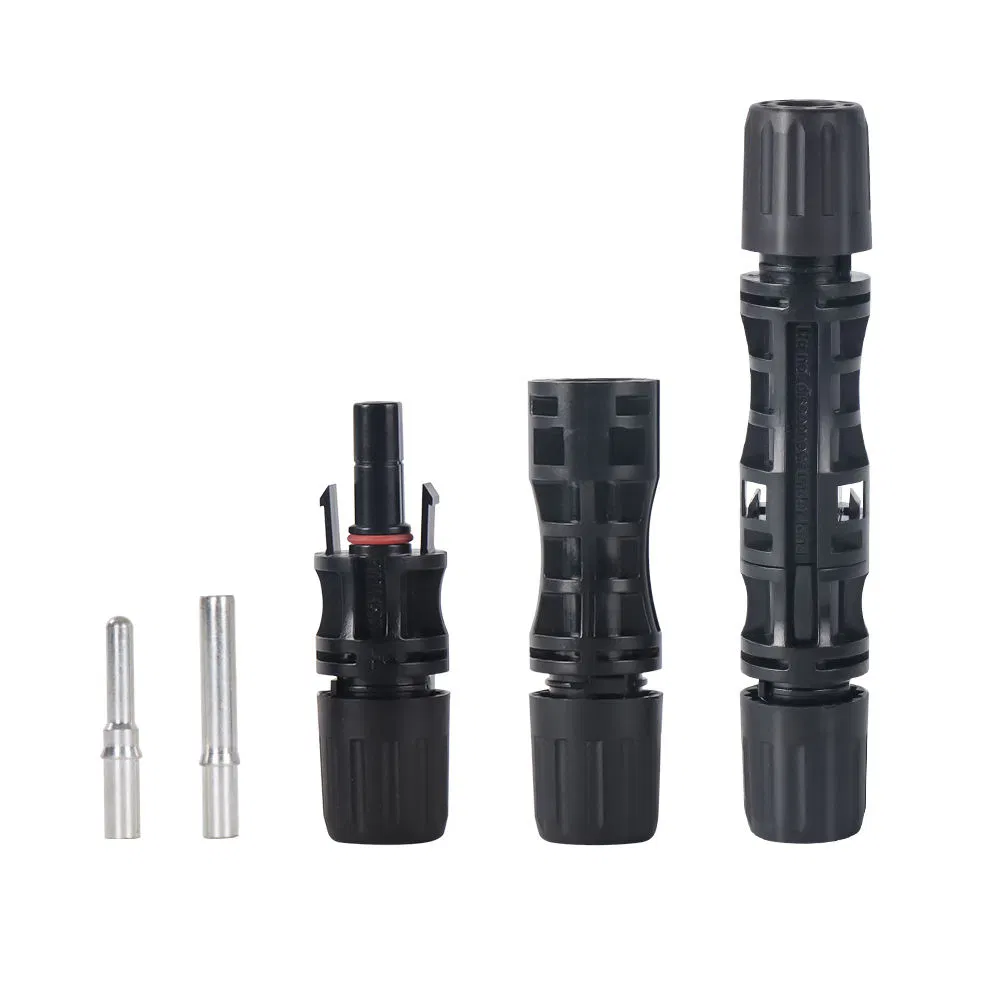

Package 2

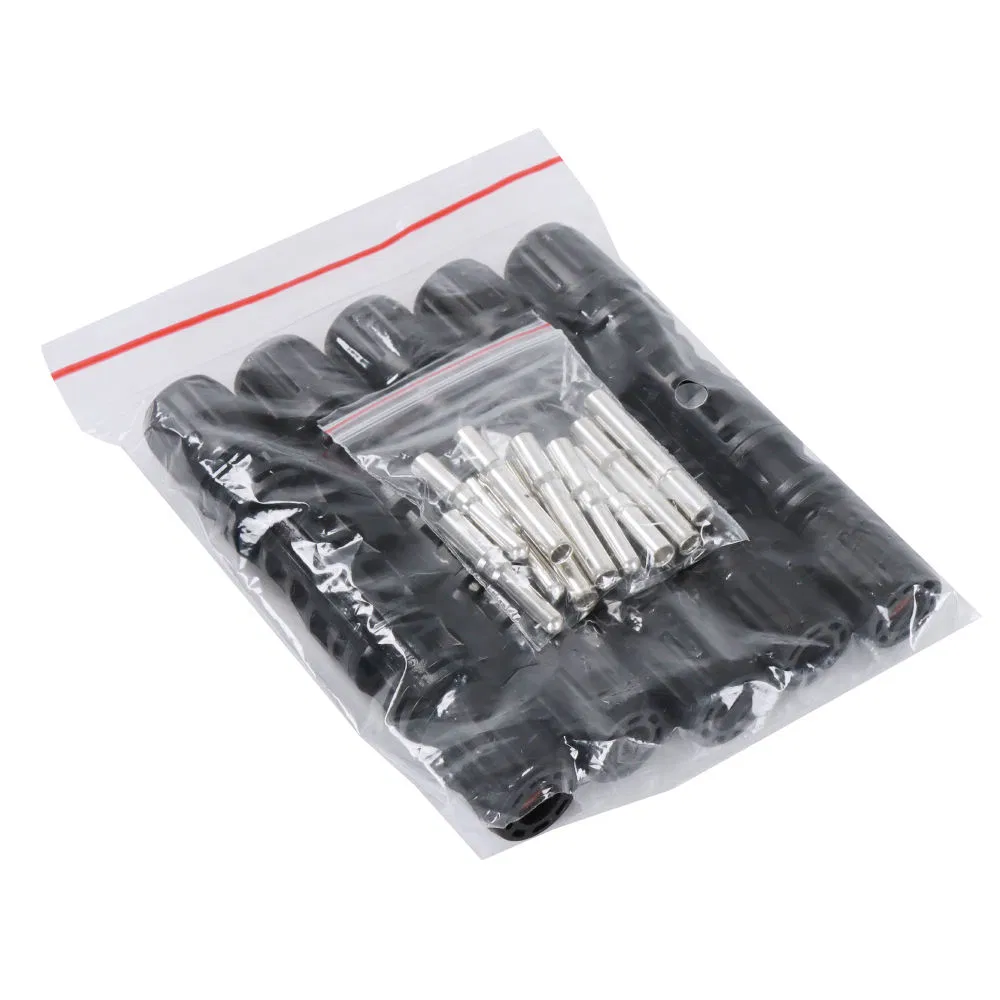

Package 3
Service & Support
  • Expedited responses: Average reply time of just 2.75 hours.
  • Swift delivery: Delivering up to 10,000 pairs in less than 7 days.
  • Photography service: Free high-quality product photos and videos.
  • Production transparency: Synchronized progress updates on creation process.
  • Professional communication: English proficiency for maximum efficiency.
  • Warranty: Peace of mind with a 25-year warranty service.
Quality Assurance
Frequently Asked Questions
What is the maximum rated voltage for these connectors?
The connectors are rated for high-voltage photovoltaic systems up to 1500V DC.
Are these connectors waterproof and suitable for outdoor use?
Yes, they feature an IP68 protection rating, making them completely waterproof and durable for harsh outdoor environments.
What cable sizes can be used with the PV-LTN4 model?
It is compatible with a wide range of PV cables, specifically cable cross-sections from 2.5mm² to 10mm² (14~8AWG).
What materials are used for the contact pins?
The contact pins are made of high-quality copper with tin plating to ensure excellent conductivity and corrosion resistance.
How long is the warranty for this product?
We provide a comprehensive 25-year warranty for these solar connectors, reflecting their long-term reliability.
Do these connectors meet international safety standards?
Yes, they are TUV approved and comply with UL94-V0 flame retardant standards for maximum safety.
