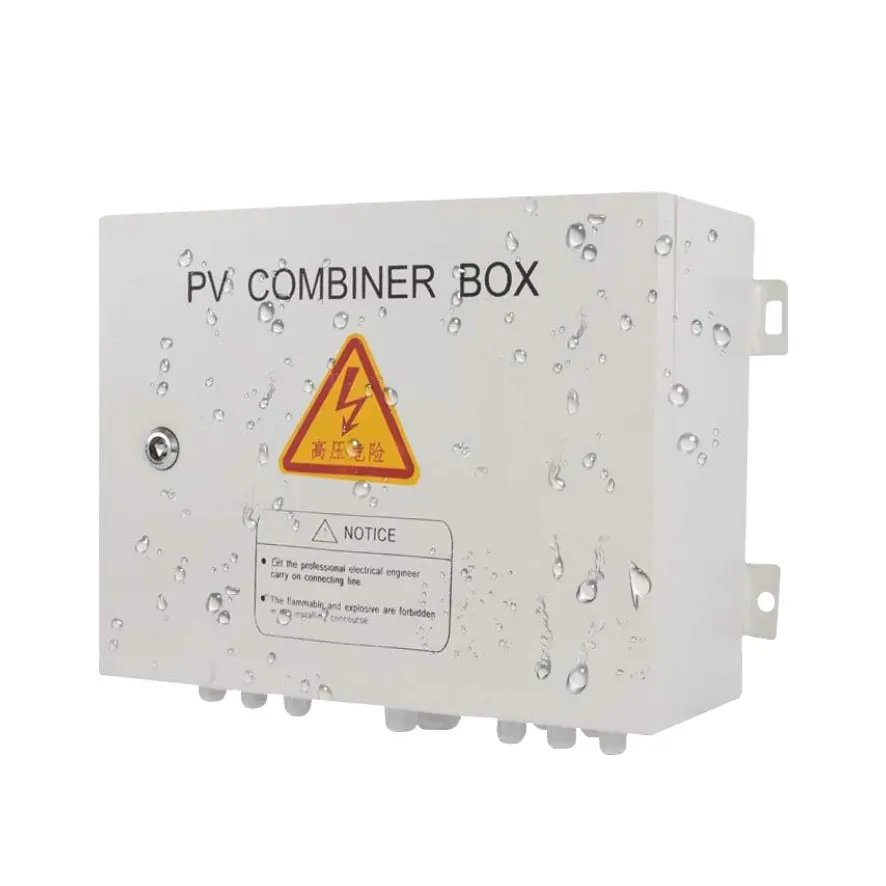

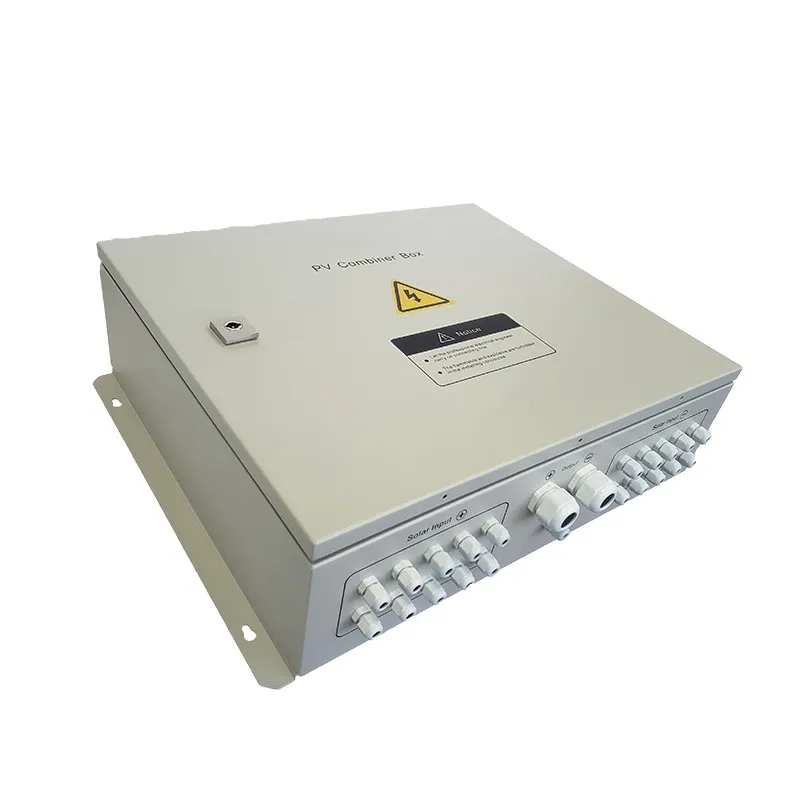

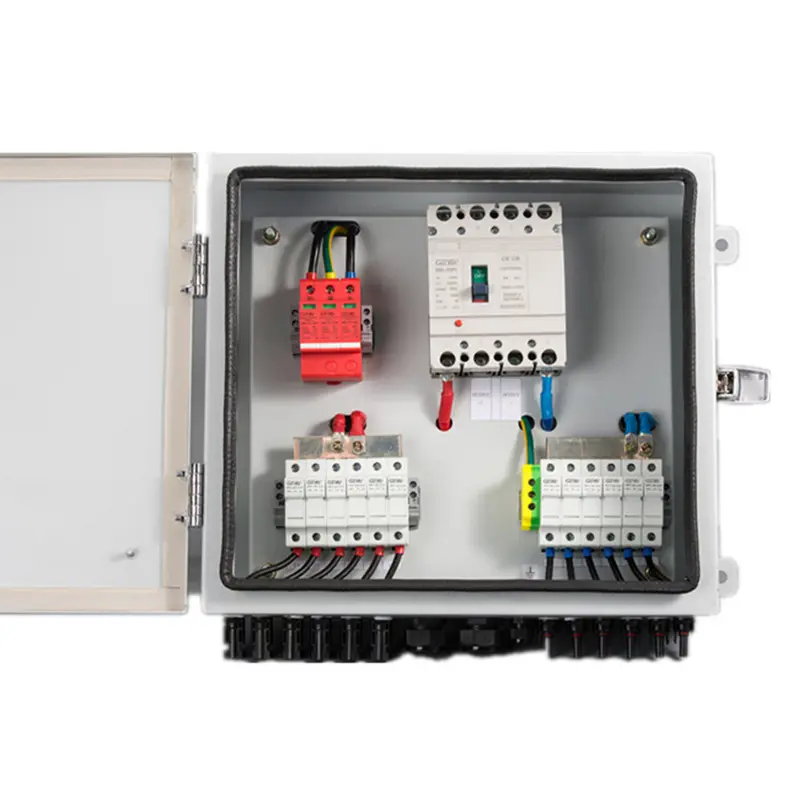

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
1 / 5
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
CSPVB/16-1
IP Rating
IP65
Certification
ISO, CCC, CQC, CE
Shape
Rectangle
Keyword
Slew Worm Gear Drive
Product Name
Solar Combiner Box
Color
Customized
Installation Site
Rooftop
Transport Package
Carton
Specification
pallets
Production Capacity
300/M
Packaging & Delivery
Package Size
900.00cm * 480.00cm * 200.00cm
Gross Weight
30.000kg
Lead Time
3 days (1 - 1 pieces)
10 days (2 - 10 pieces)
30 days (11 - 100 pieces)
To be negotiated (> 100 pieces)
Product Description

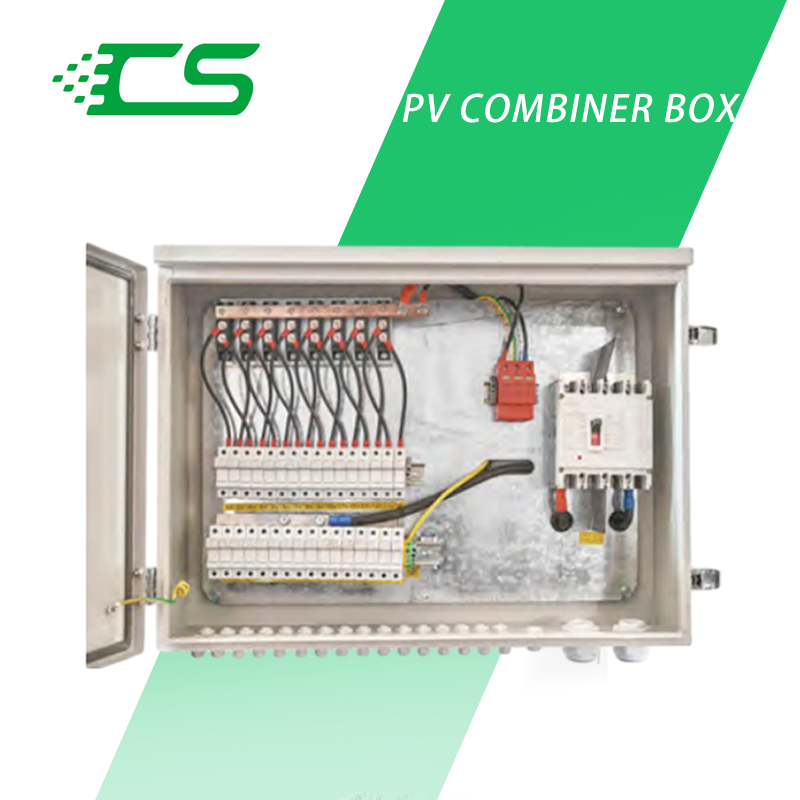

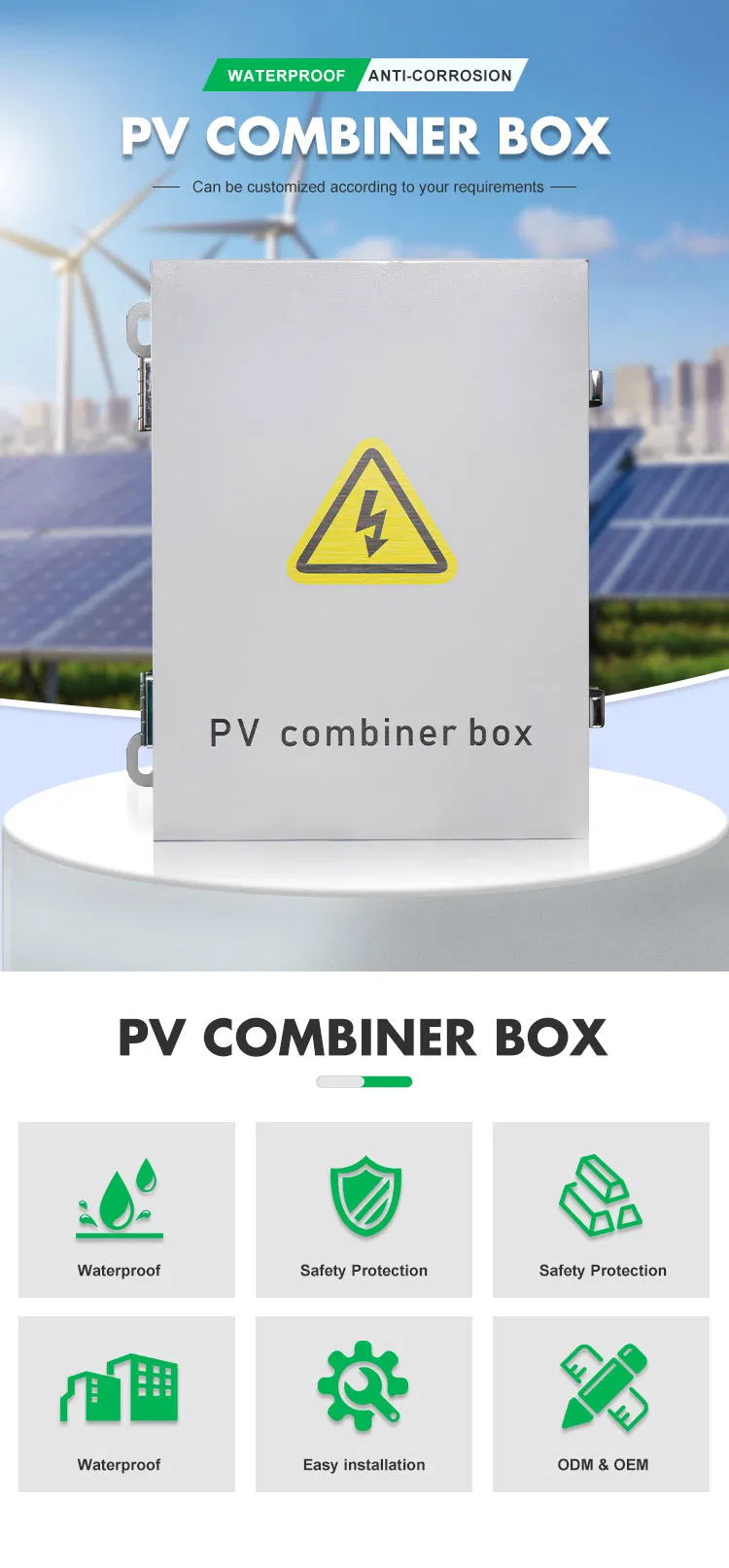

Solar Combiner Box Detail

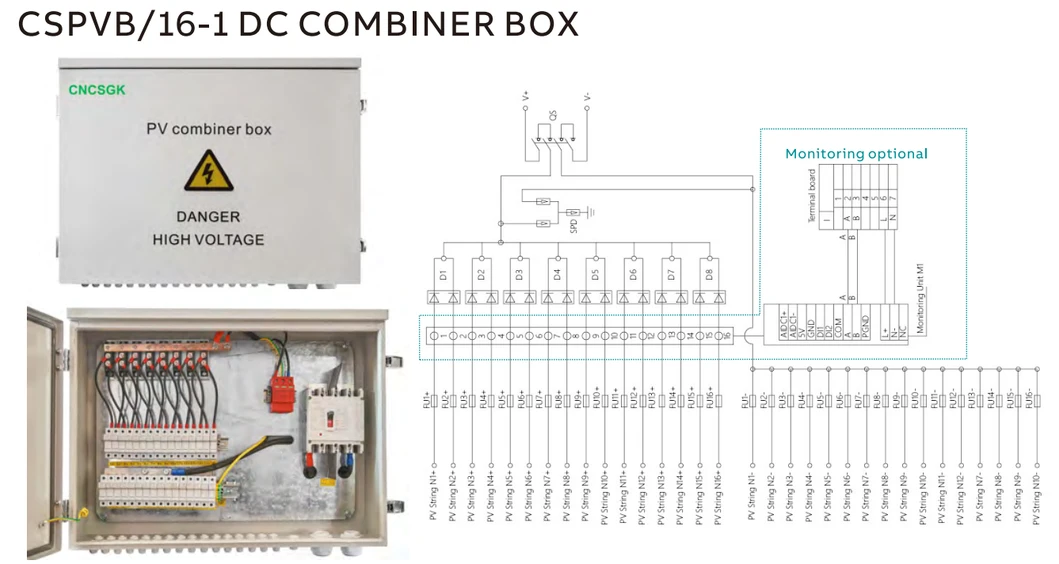

Solar Combiner Box Overview
Model CSPVB/16-1
Electric parameter
System maximum DC voltage 1000V
Maximum input current for each string 15A
Maximum input strings 16
Maximum output switch current 240A
Maximum inverter MPPT 1
Number of Output strings 1
Lightning protection
Category of test Grade 2 protection
Nominal discharge current 20kA
Maximum discharge current 40 kA
Voltage protection level 3.8kV
Max continuous operating voltage Uc 1050V
Poles 3P
System
Protection grade IP65
Output switch DC circuit breaker
Box material Engineering plastics
Installation method Wall mounting type
Operating Temperature -40°C ~ + 85°C
Combiner Box Size Options:
2-way: 400 * 400 * 180 | 3-way: 400 * 400 * 180 | 4-way: 440 * 400 * 180 | 6-way: 500 * 400 * 180 | 8-way: 600 * 460 * 180 | 12-way: 750 * 460 * 180 | 16-way: 750 * 560 * 200 | 24-way: 800 * 560 * 200

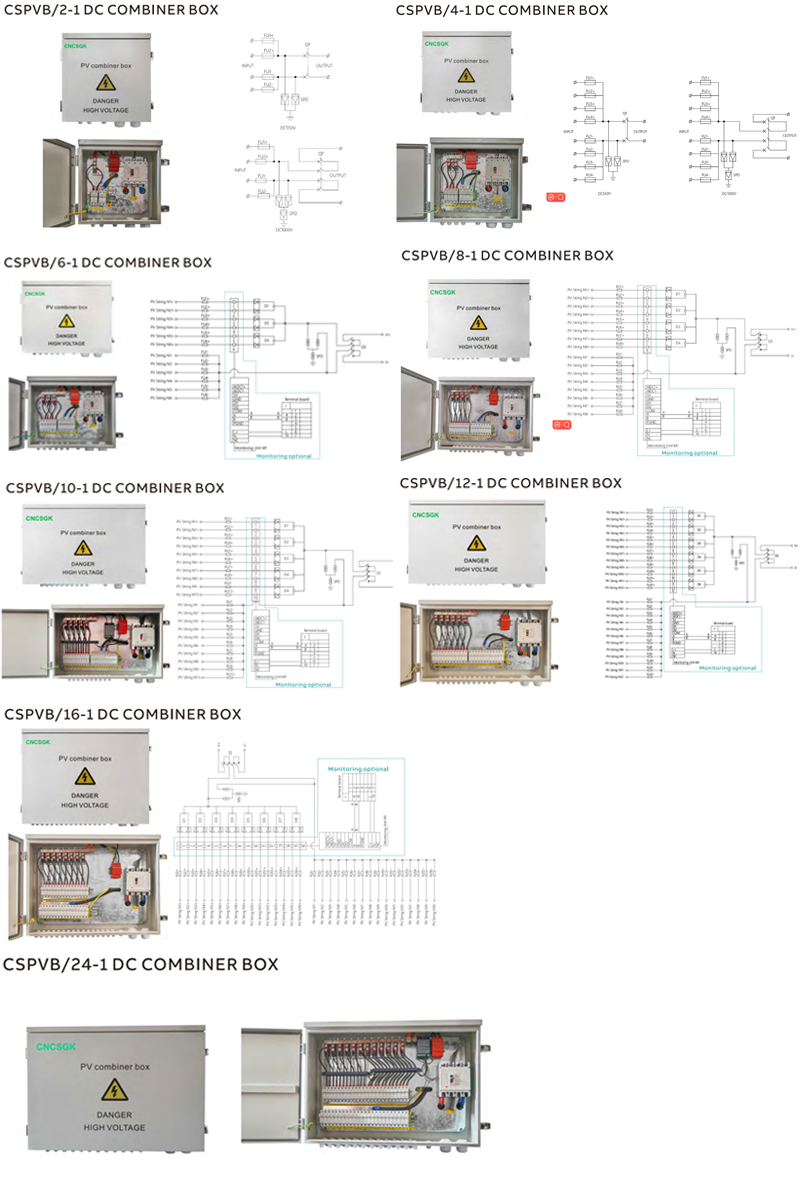

Solar Array Box
Component Detail
Installation View
Wiring Diagram

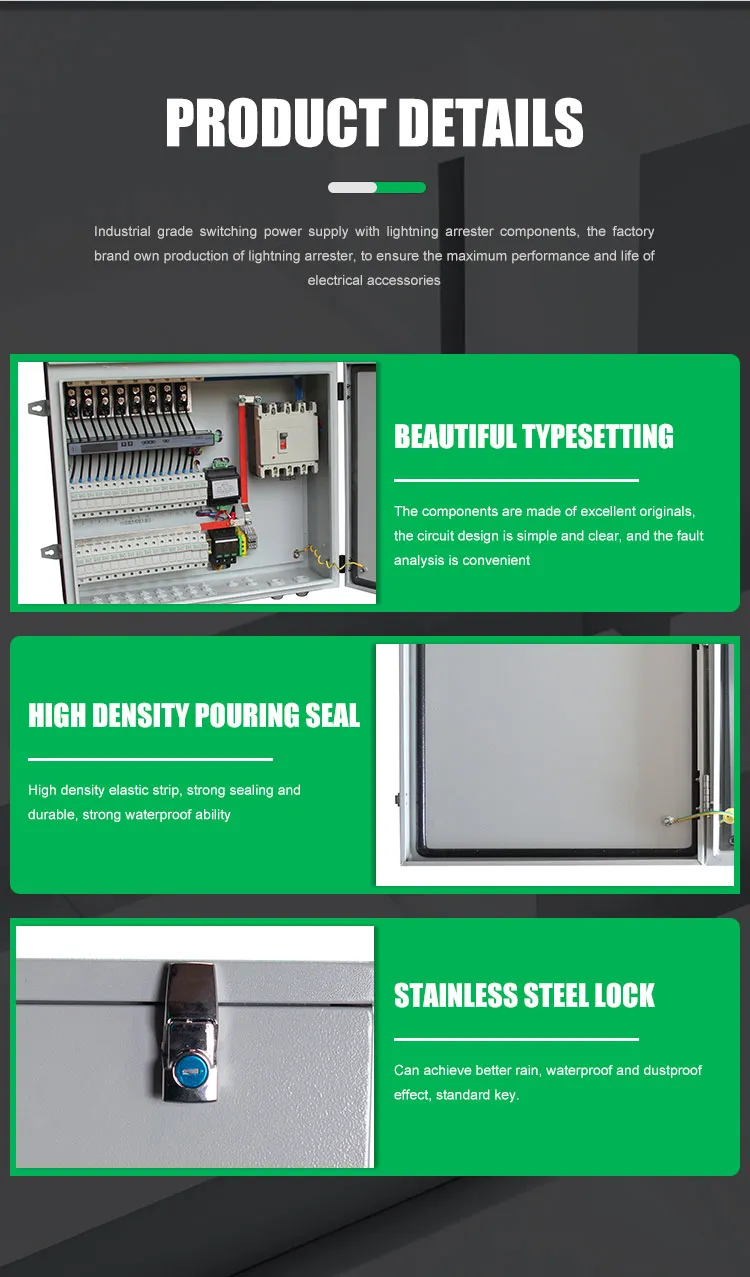

Circuit Breaker
Connector Detail

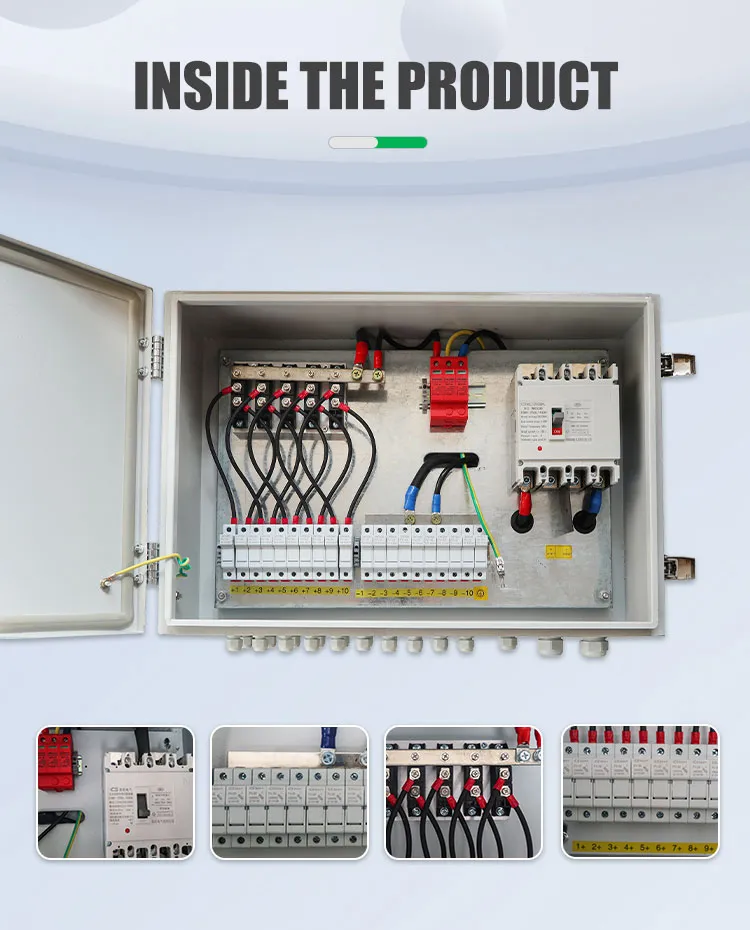

Internal Structure

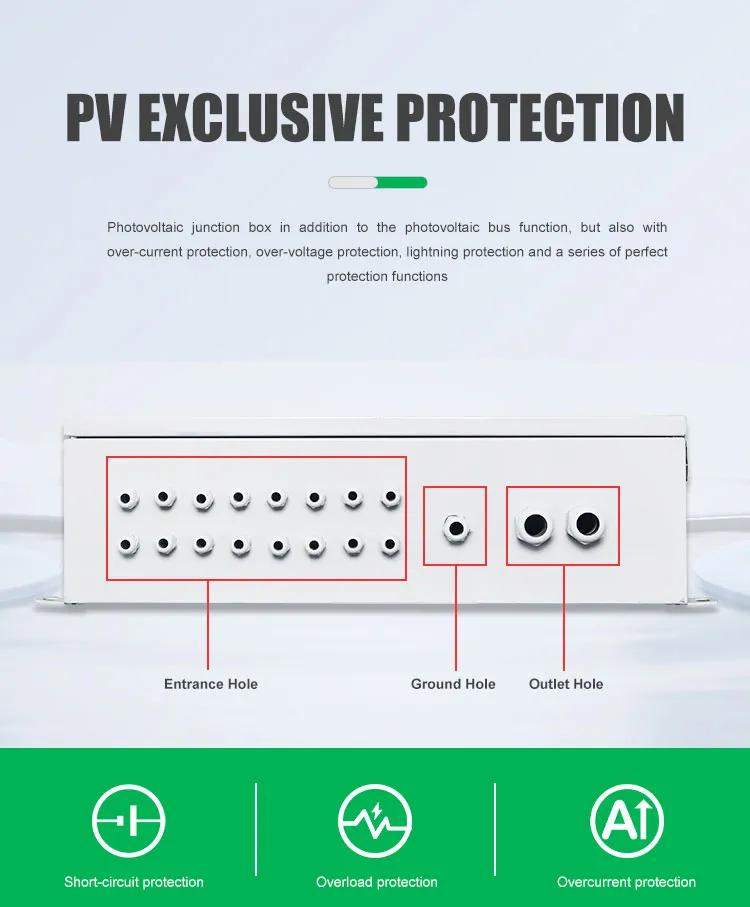

Protection Features
Back View
Side Profile
Outdoor Testing
Final Assembly
Certificates
Frequently Asked Questions
What is the main function of this Solar Combiner Box?
The solar combiner box brings the output of several solar strings together. Each string conductor lands on a fuse terminal and the output of the fused inputs are combined onto a single conductor that connects the box to the inverter.
Is this combiner box suitable for outdoor installation?

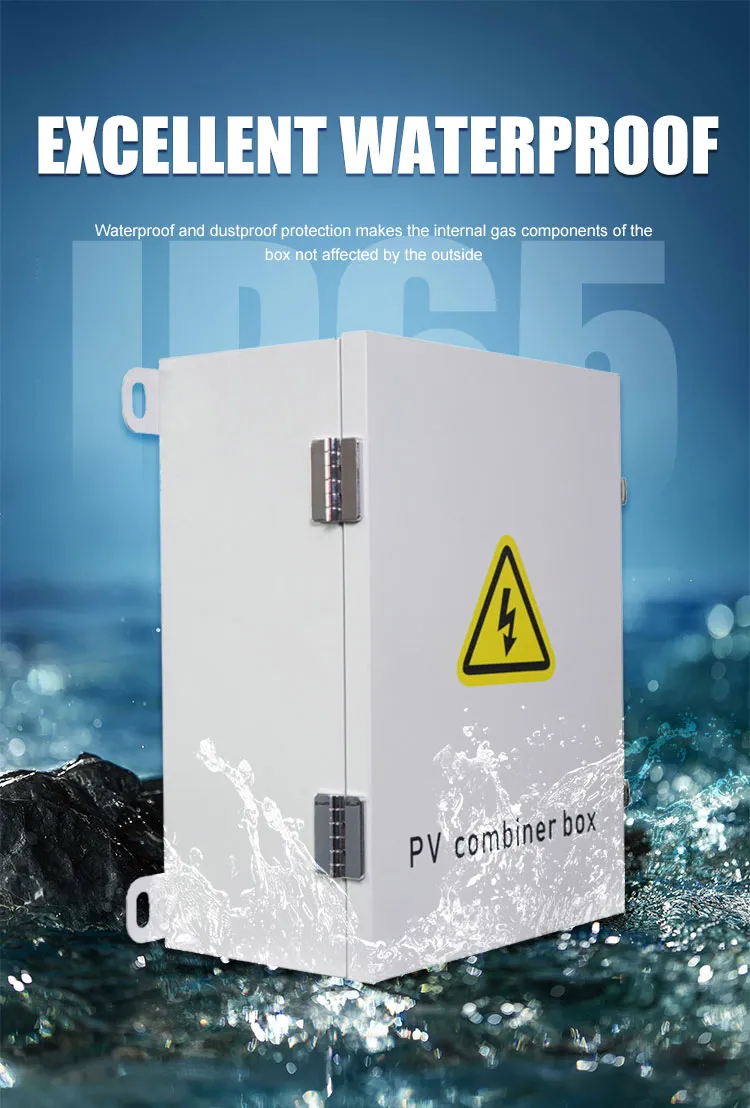

Yes, the box features an IP65 rating, making it dust-tight and protected against water jets, which is ideal for rooftop and outdoor solar array environments.
What kind of protection does it offer against lightning?
It includes a Grade 2 surge protection device (SPD) with a maximum discharge current of 40kA and a nominal discharge current of 20kA to protect your system from atmospheric overvoltages.
Can I customize the number of input strings?
While this specific model is designed for 16 strings, we offer a range of sizes from 2-way up to 24-way to suit different project requirements.
What is the maximum operating voltage?
This unit is rated for a maximum DC system voltage of 1000V, compatible with most modern high-efficiency solar panel arrays.
What material is the box made of?
The box is constructed from high-quality engineering plastics, which provide excellent durability and resistance to environmental stress and corrosion.
