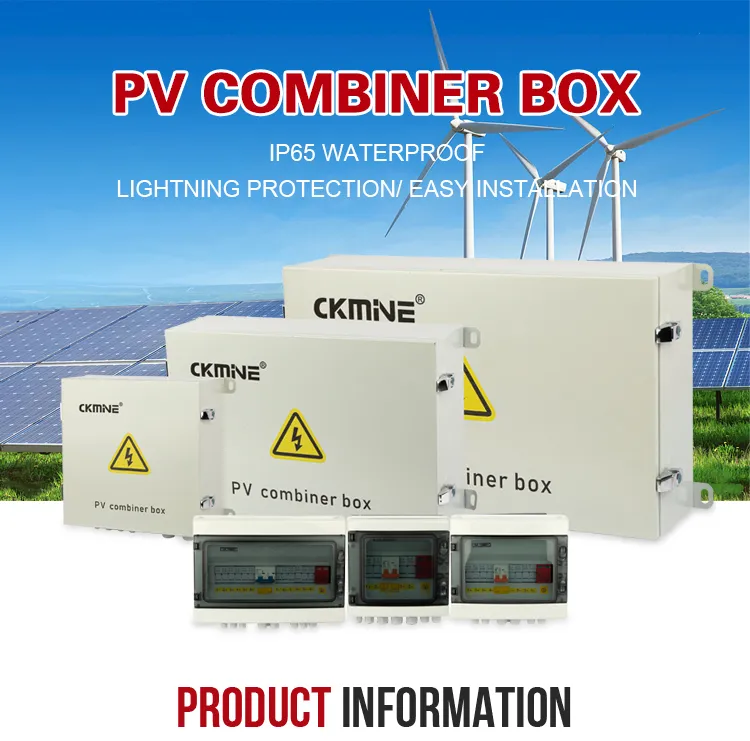

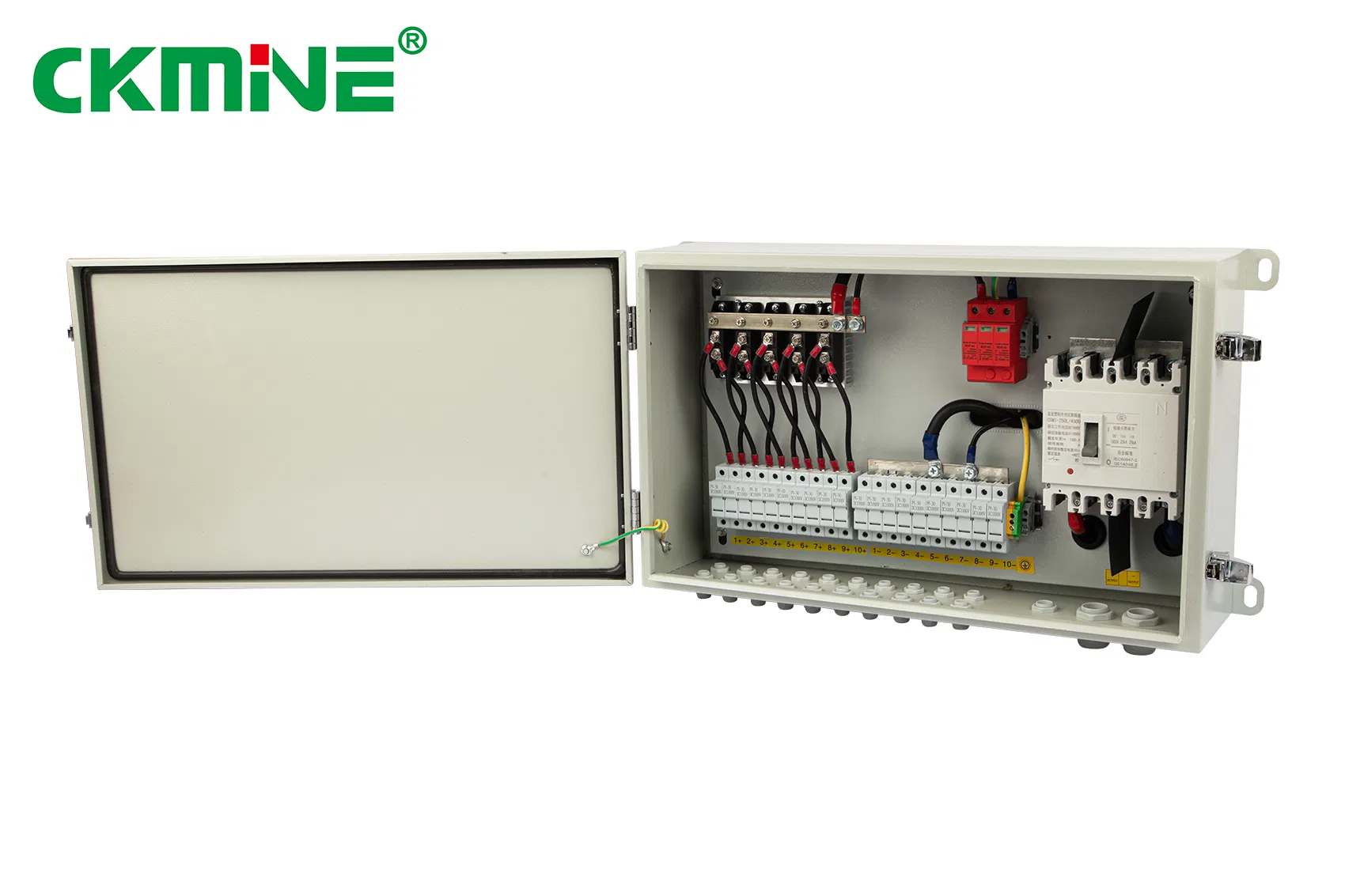

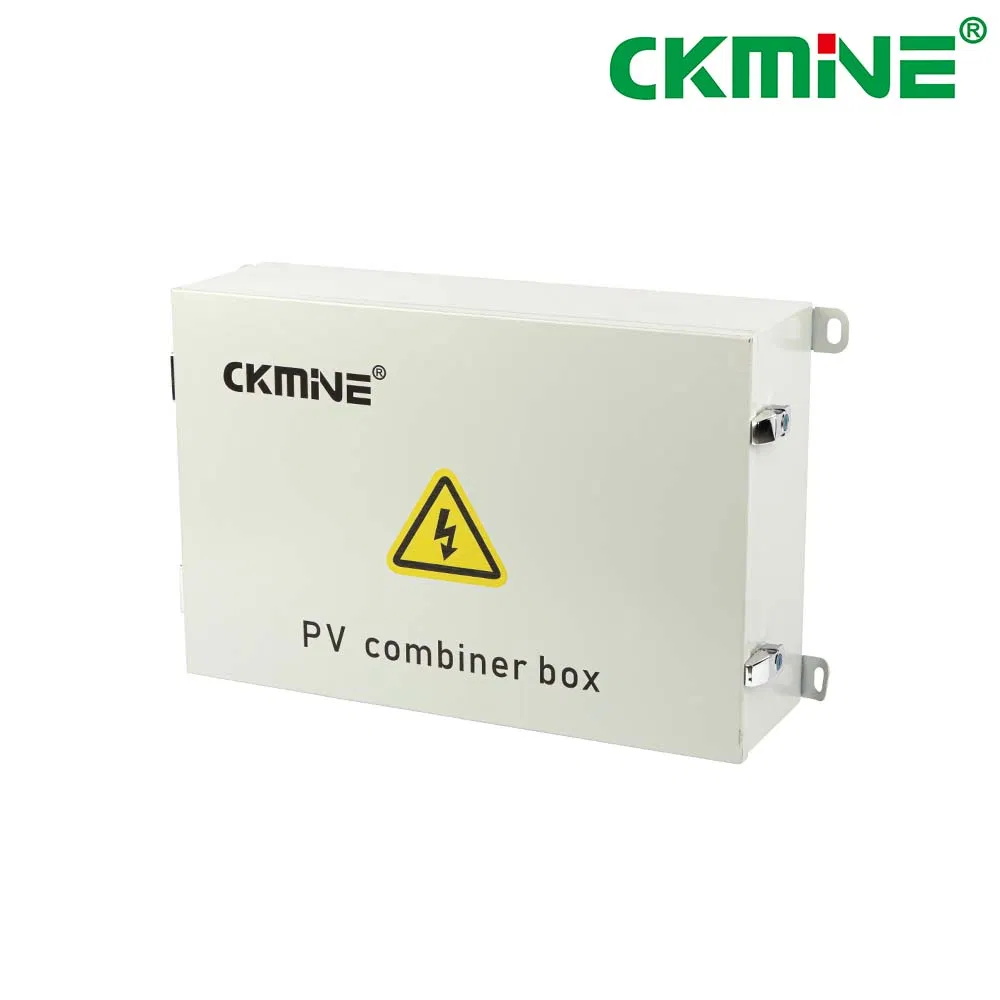

Ckmine IP65 250A 1000V DC AC 16 String 16 in 1 out Array Surge Protector PV Power Junction Box for Solar Panel

1 / 5

Ckmine IP65 250A 1000V DC AC 16 String 16 in 1 out Array Surge Protector PV Power Junction Box for Solar Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Info

Model NO.

KMS-16M

Certification

ISO9001:2000, VDE, CCC

Form

All-packaged Type

Operation Voltage

Low Voltage

Application Range

Industrial, Solar PV System

Shell Material

Coated Iron

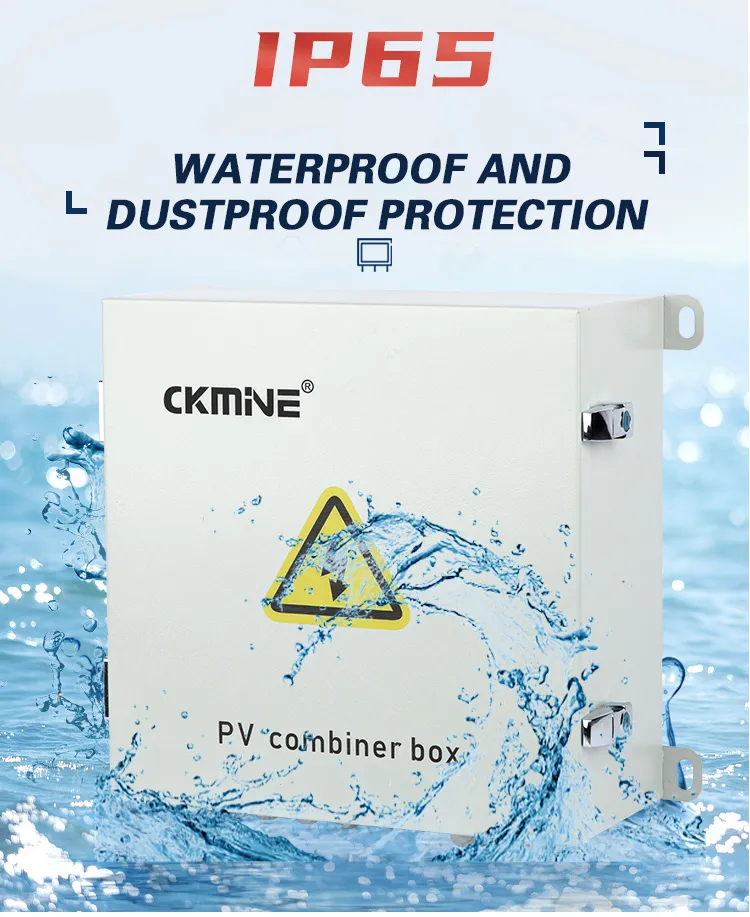

Shell Protection Grade

IP65

Installation Method

Wall Mounting Type

Maximum DC Voltage

1000VDC

Max Fuse Capacity

15A

Category of Test

II Grade Protection

Production Capacity

40000PCS/Year

📊

Product Parameters

Drive Model	KMS-02M	KMS-04M	KMS-06M	KMS-08M	KMS-12M	KMS-16M	KMS-24M
Max. DC Voltage	1000VDC
Parallel Input Strings	2	4	6	8	12	16	24
Output Switch Current	32A	63A	100A	125A	180A	250A	350A
Fuse Capacity (A)	15A
Protection Grade	IP65
Box Material	ABS and Coated Iron

🔍

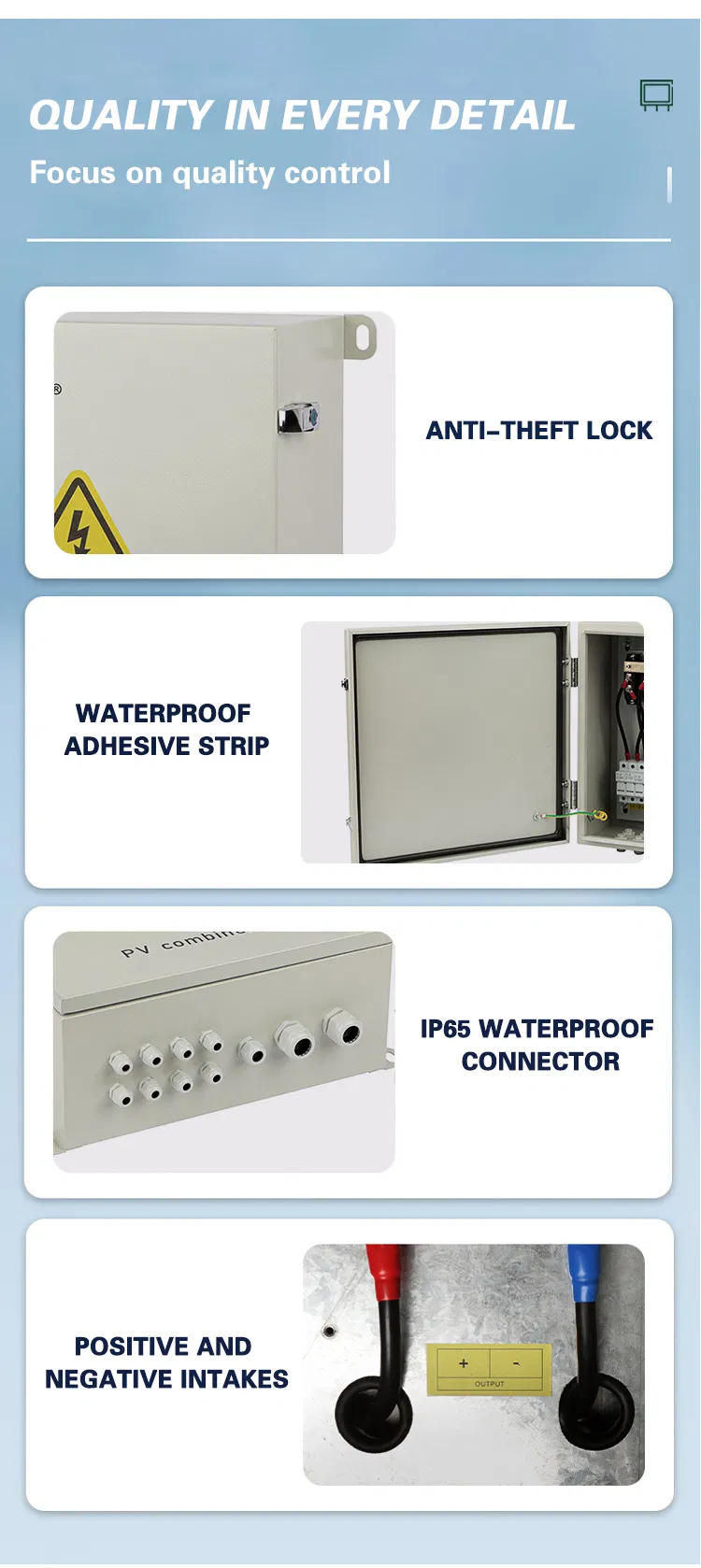

Product Details

🛡️

Certifications & Quality

💡

FAQ

Is the output voltage stable?

Absolutely. Our device is designed with a high-quality regulator circuit to ensure consistent voltage output.

What should be noticed when installing the unit?

Place the product in a well-ventilated, cool, dry, and waterproof environment. Ensure the unit is turned on before the connected appliances.

Can I get samples for testing?

Yes, sample orders are available for quality verification and market testing.

Do you accept OEM/ODM?

Yes, we provide full OEM and ODM services with proper authorization.

How long is the delivery time?

Generally, it takes 5-10 days for regular types. For bulk orders or custom OEM projects, please negotiate specific timelines.

What is the warranty period?

We offer a 12-month warranty service along with lifetime technical support for all our products.
