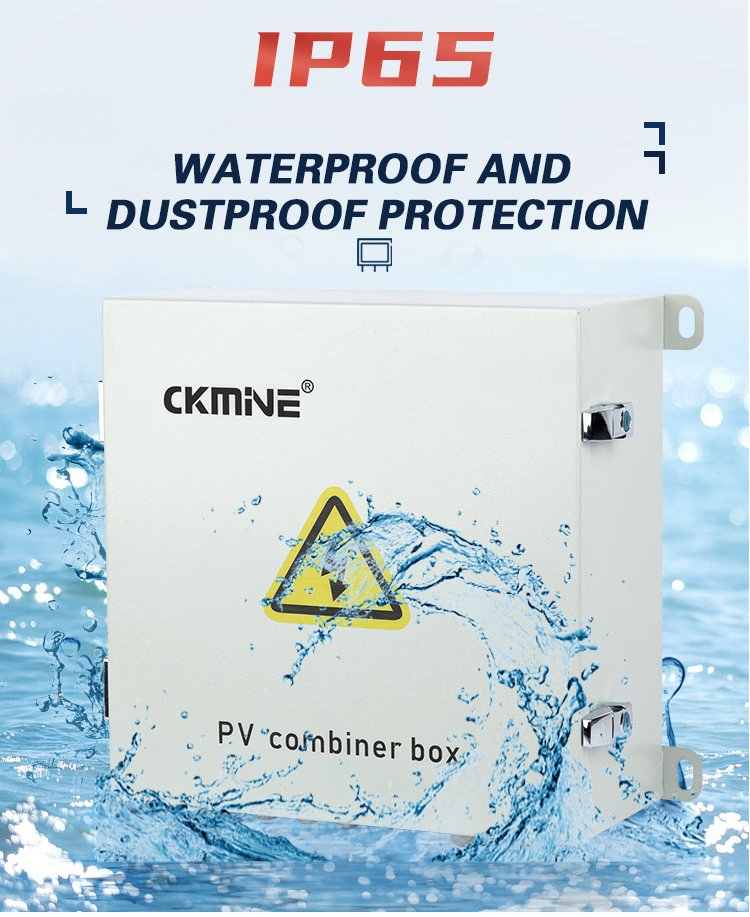

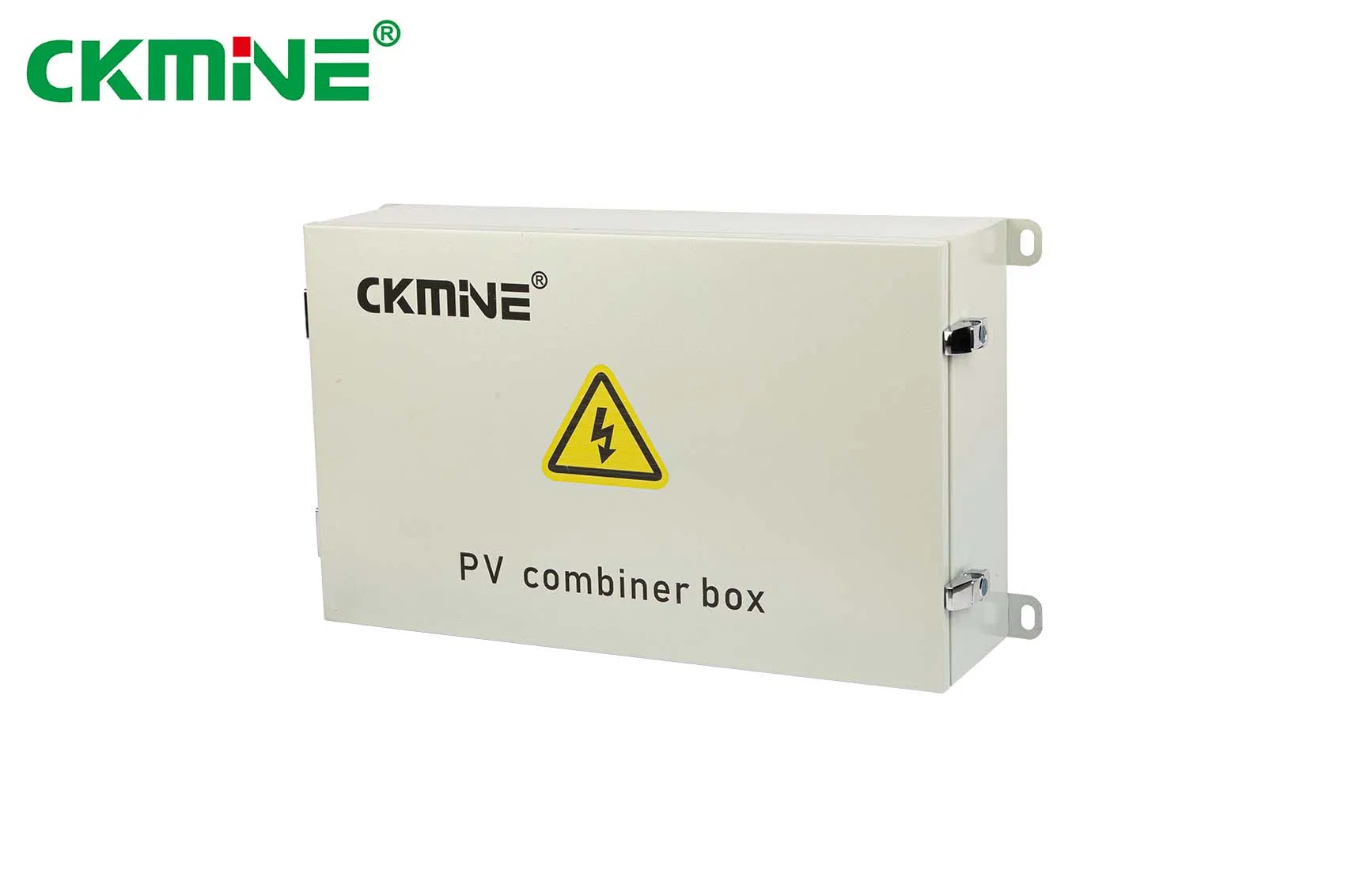

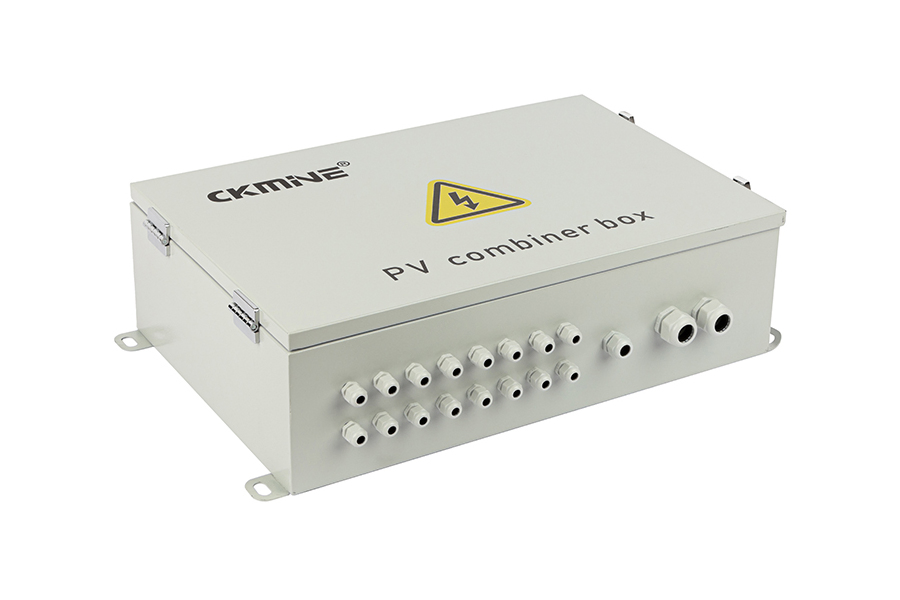

Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
1 / 5
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel
Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel

Ckmine High Quality 24 Strings IP65 PV Junction Box 24 in Array for Solar Power System Stainless Steel Combiner Box for Solar Panel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
KMS-24M
Certification
ISO9001:2000, VDE, CCC
Form
All-packaged Type
Operation Voltage
Low Voltage
Application Range
Industrial, Solar PV System
Shell Material
Coated Iron
Protection Grade
IP65
Installation Method
Wall Mounting Type
Maximum DC Voltage
1000VDC
Parallel Input String
1, 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 24
Max Output Current
350A
Category of Test
II Grade Protection
⚙

Technical Parameters

Drive Model KMS-02M KMS-04M KMS-06M KMS-08M KMS-10M KMS-12M KMS-16M KMS-24M
Max. DC Voltage 1000VDC
Input Strings 2 4 6 8 10 12 16 24
Max. Switch Current 32A 63A 100A 125A 160A 180A 250A 350A
Fuse Capacity 15A (Standard)
Surge Protection Type II / In=20KA, Imax=40KA, Ucpv=1000VDC
Protection Grade IP65
Operating Temp -20ºC ~ +60ºC
Permissible Humidity 0-95%, no condensation
✔

Product Gallery

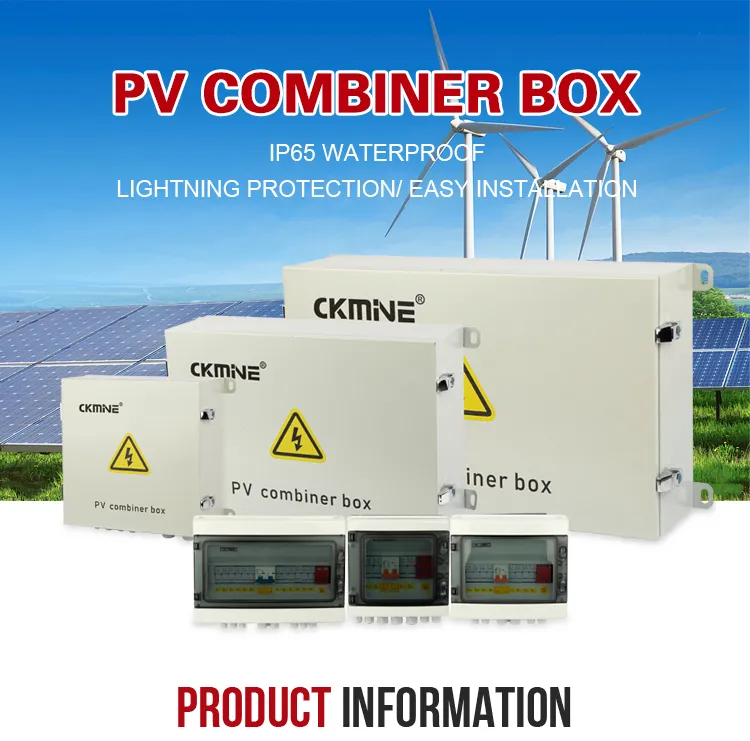

PV Junction Box Overview
Internal Components

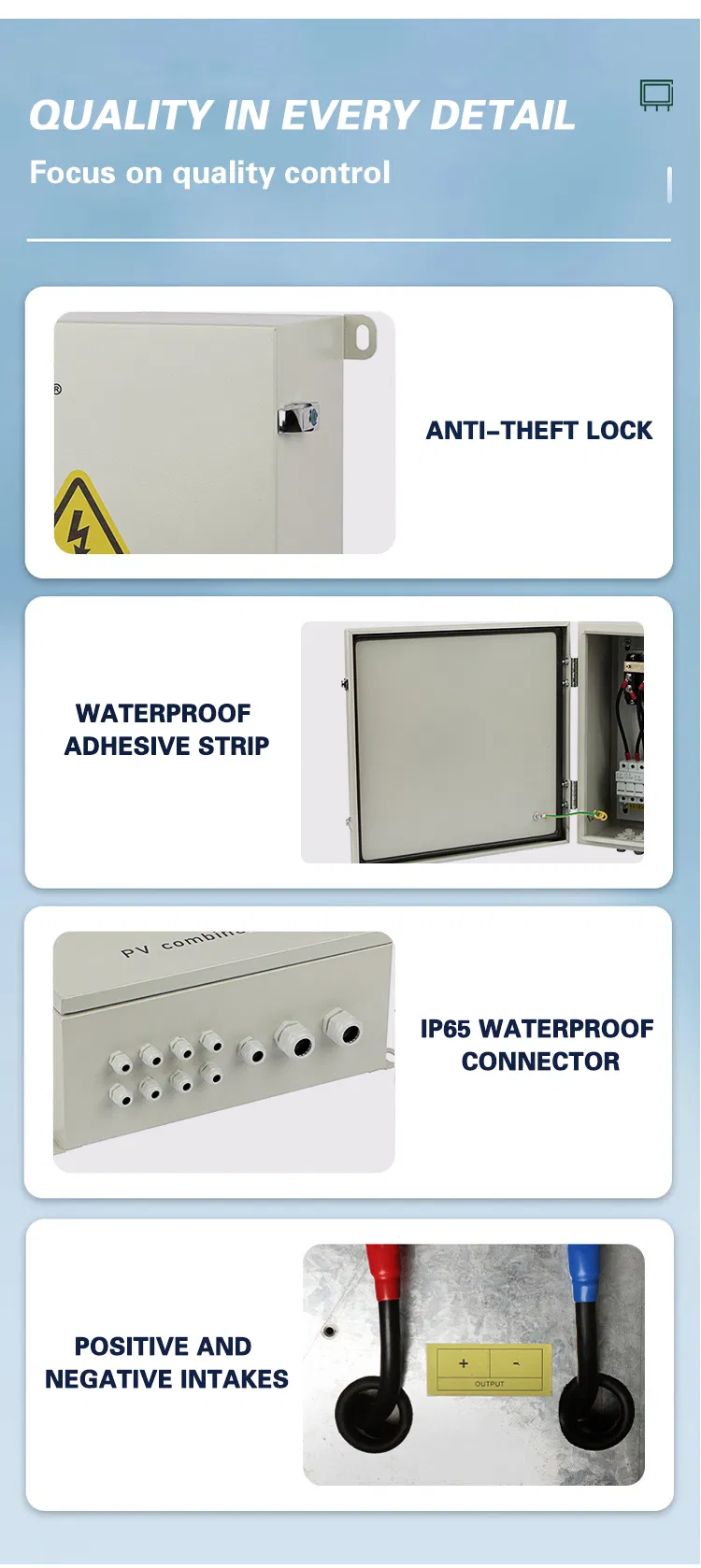

Technical Specifications Detail

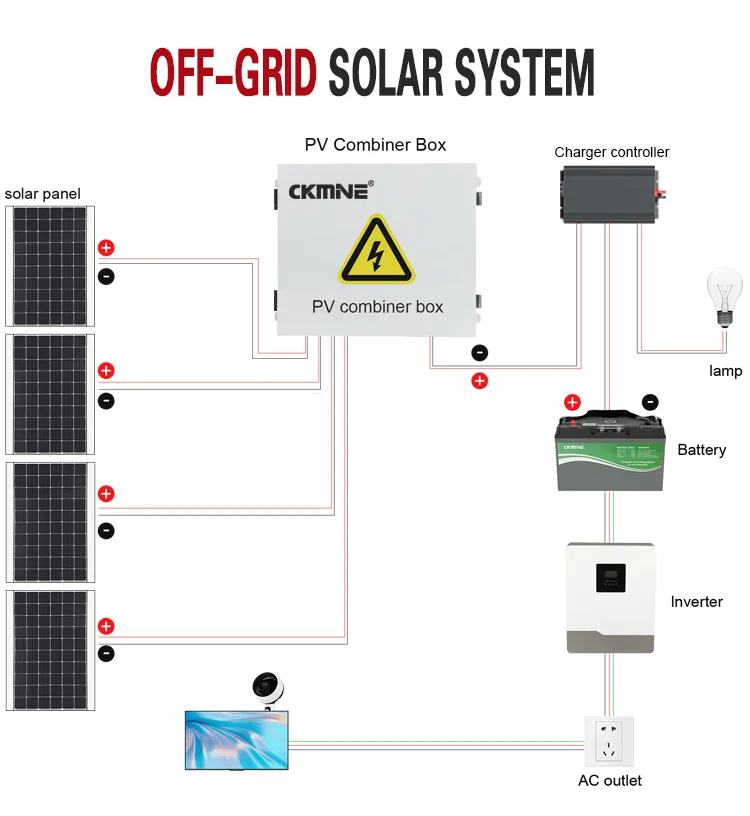

Interface View
★

Quality Assurance & Certifications

Production Facility
Certificate 1
Certificate 2
Certificate 3
?

Frequently Asked Questions

Is the output voltage of our inverter stable?
Absolutely. Our equipment is designed with a high-performance regulator circuit to ensure consistent voltage output, which can be verified using a standard multimeter.
What should be considered during installation?
Install the product in a well-ventilated, cool, dry, and waterproof location. Avoid placing foreign objects on the device and always turn on the equipment before connecting the appliances.
Are samples available for quality testing?
Yes, we provide sample orders for quality verification and market testing purposes.
Do you provide OEM/ODM services?
Yes, we accept OEM and ODM projects based on your specific requirements and proper authorization.
What is the standard delivery timeline?
Regular types generally take 5-10 days. For large quantities or specialized OEM/ODM orders, timelines can be negotiated with our team.
How is quality control managed in your facility?
Quality is central to our production. We maintain a strict quality control department that supervises every stage of the process, from initial assembly to final shipping.
