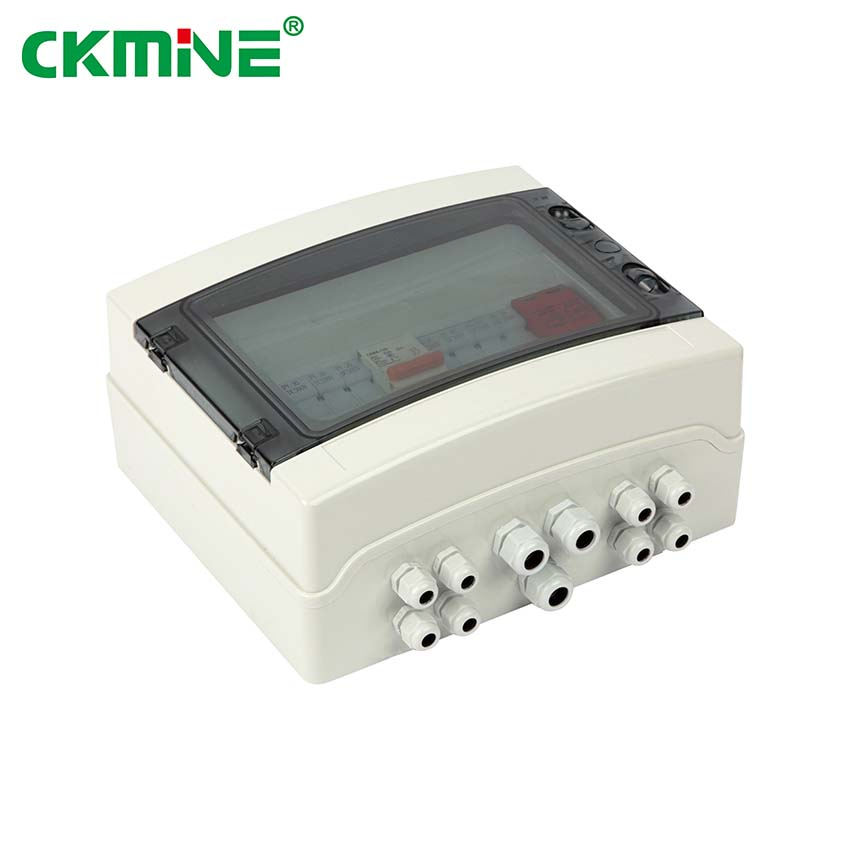

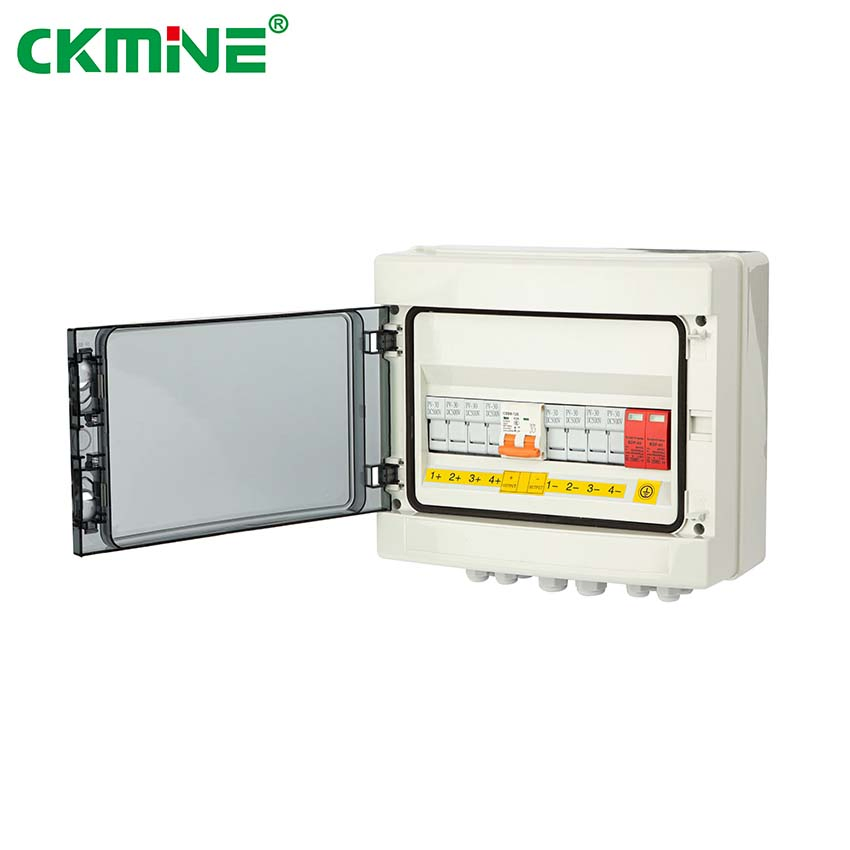

Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
1 / 5
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box
Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box

Ckmine 1 Output with DC Circuit Breaker for Solar Power System PV Array 4 String IP65 Protector Junction Box

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
KMS-04M
Certification
ISO9001:2000, VDE, CCC
Form
All- packaged Type
Operation Voltage
Low Voltage
Application Range
Industrial, Solar PV System
Shell Material
ABS or Customized
Shell Protection Grade
IP65
Installation Method
Wall Mounting Type
Maximum DC Voltage
1000VDC
PV Array Parallel Input
4 or 6,8,10,12,14,16
Output Switch Current
63A or Customized
Max Fuse Capacity
15A
Origin
China
Production Capacity
40000PCS/Year
📊 Product Parameters
Drive Model KMS-02M KMS-03M KMS-04M KMS-06M KMS-08M KMS-10M KMS-12M
Max. DC Voltage 1000VDC
Parallel Input Strings 2 3 4 6 8 10 12
Output Switch Current 32A 50A 63A 100A 125A 160A 180A
Surge Protection DC Type 11/1n=20KA, 1max=40KA, Ucpv=1000VDC
Protection Grade IP65
Operating Temperature -20ºC~+60ºC
🖼️ Product Description

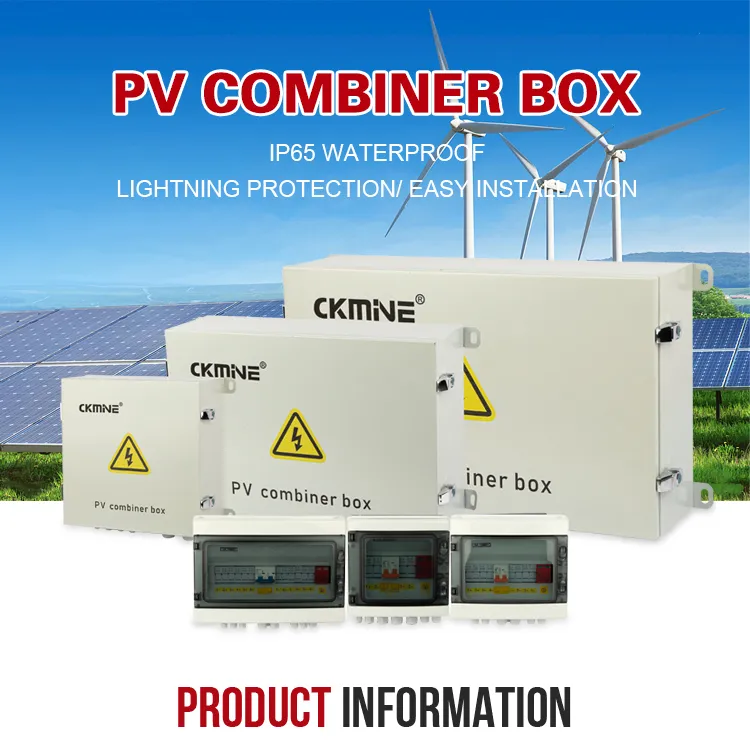

Protector Junction Box Detail

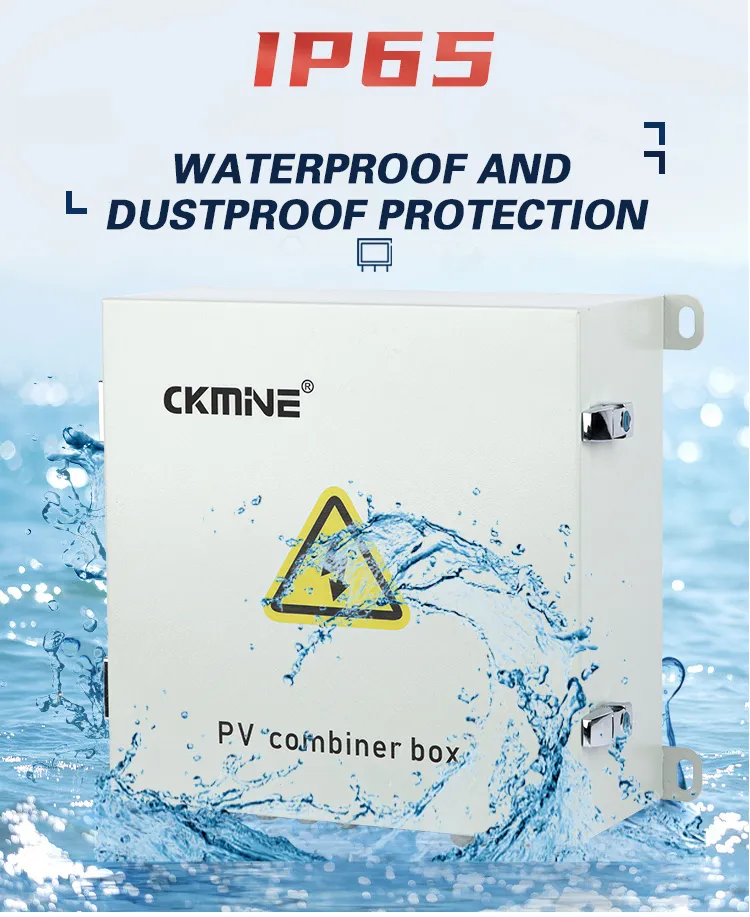

Solar Power System Component

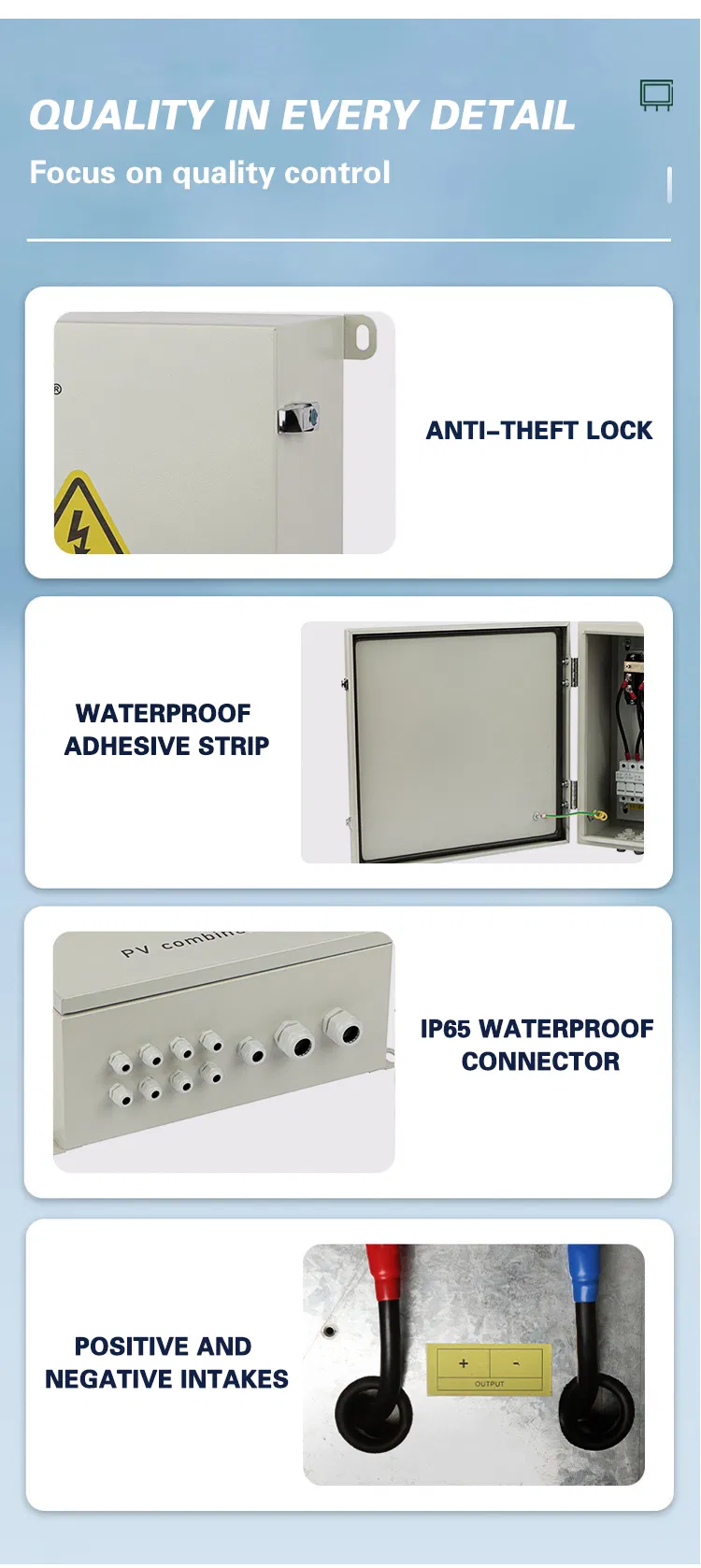

PV Array String Protection
DC Circuit Breaker View
🏢 Manufacturing Excellence
Production Facility
📜 Quality Certifications
Certification Documents
Compliance Certificate
Industry Standards
❓ Frequently Asked Questions
Is the output voltage of the inverter stable?
Absolutely. Our inverter is designed with a high-quality regulator circuit to ensure stable output values.
What should be noticed when installing the inverter?
Install the product in a well-ventilated, cool, dry, and waterproof location. Avoid foreign objects and always turn on the inverter before the appliances.
Can I get samples for testing?
Yes, sample orders are available for quality verification and market testing.
Do you accept OEM/ODM?
Yes, we accept OEM and ODM projects with proper authorization.
How is the delivery time?
Generally, it takes 5-10 days for regular types. For large quantities or custom orders, please negotiate with our team.
What are the payment terms?
We accept T/T, L/C, Western Union, Trade Assurance, and cash.
