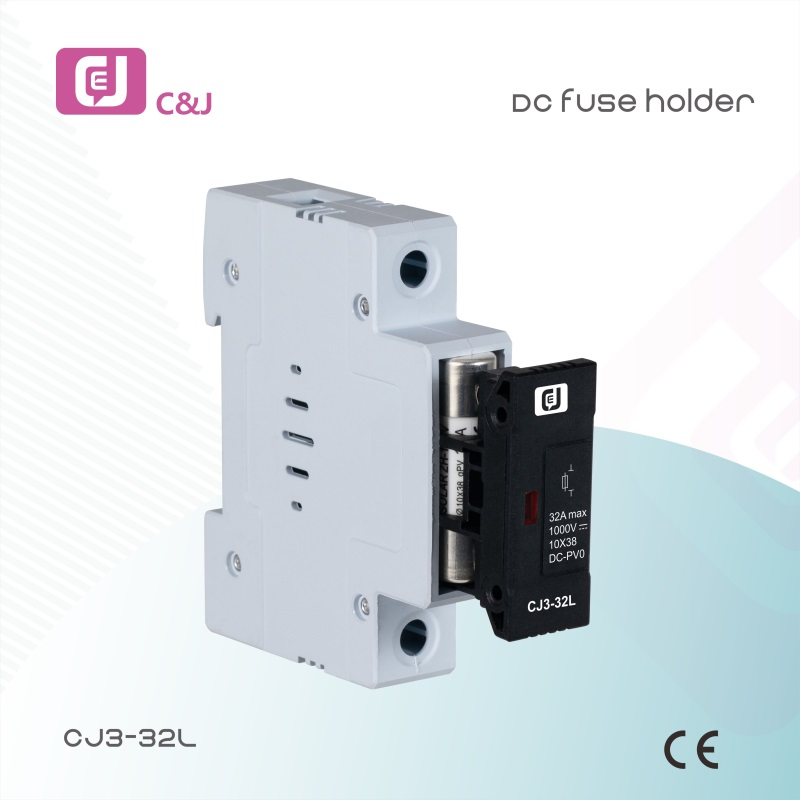

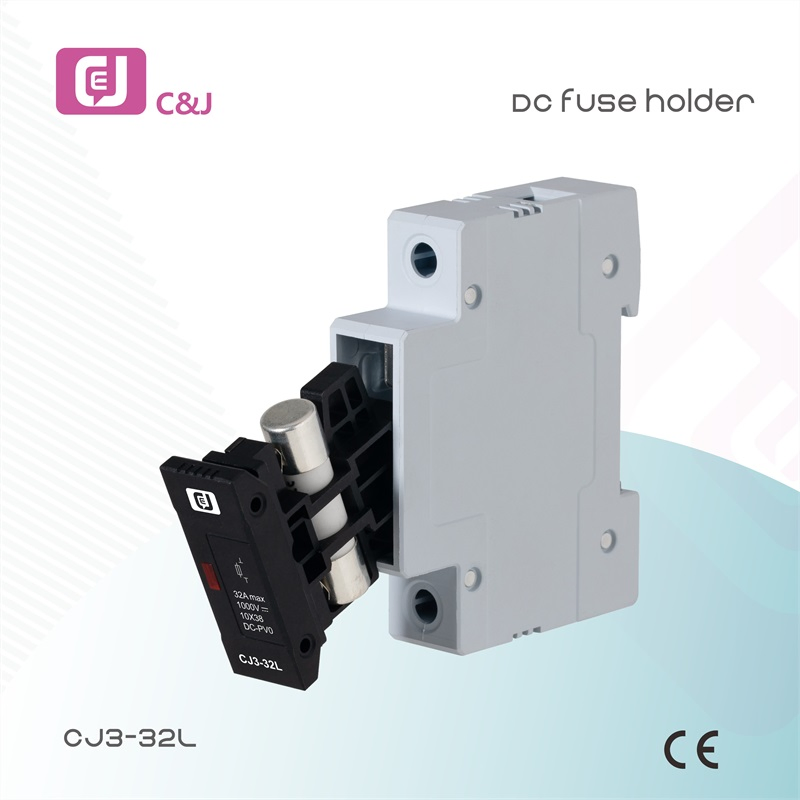

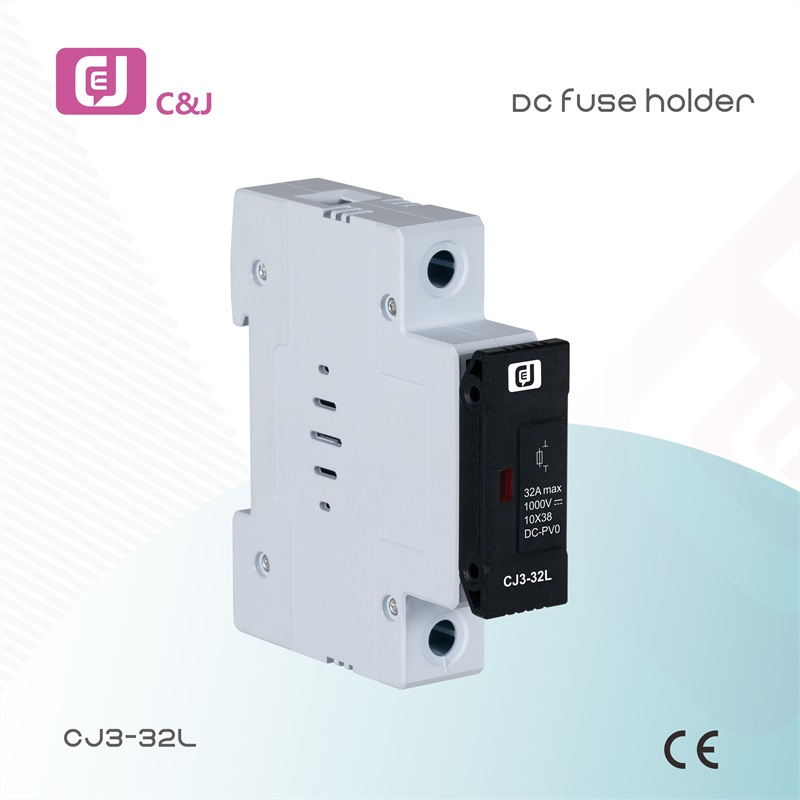

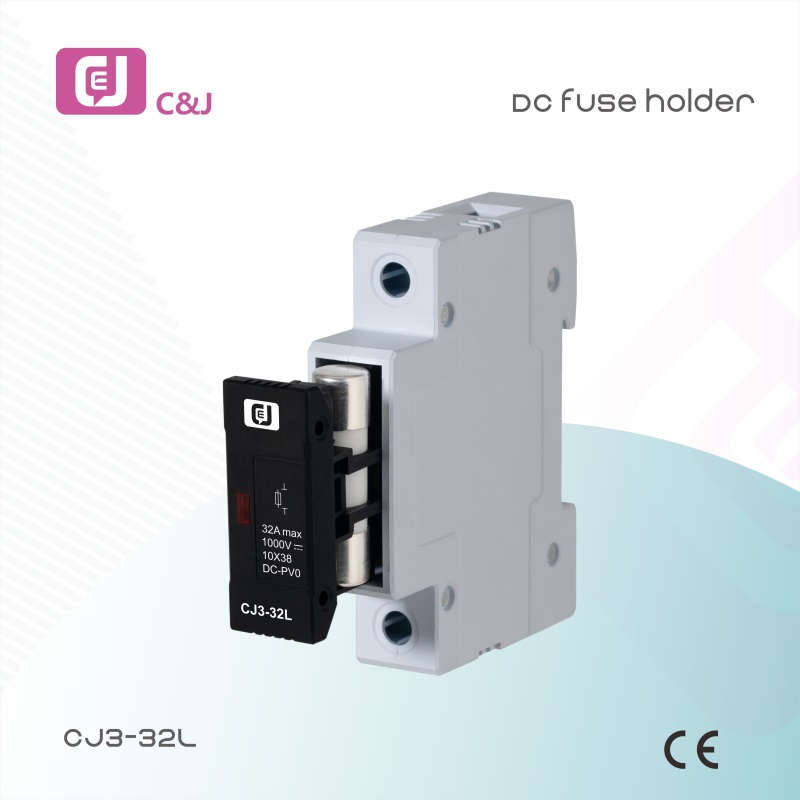

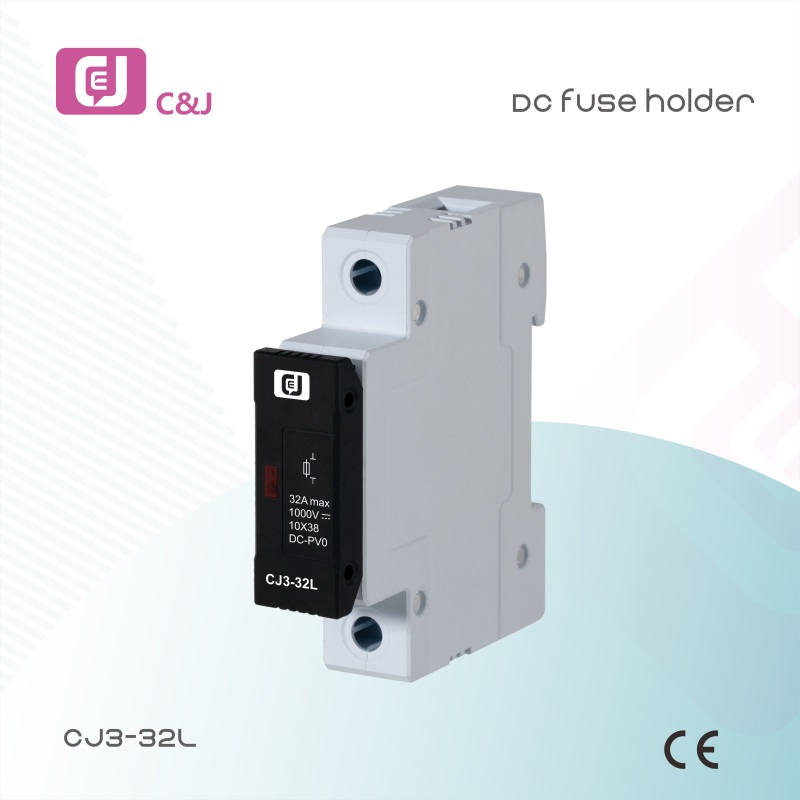

| Model NO. | CJ3-32L |
| Usage | Low Voltage |
| Shape | Insert |
| Fusing Speed | F |
| Fusing Device | Discoloration |
| Standard | IEC60947-3 |
| PV DC Fuse Holder Pole | 1P |
| Rated Working Voltage | 1000VDC |
| Rated Current | 32A |
| Max Power Dissipation | 3W |
| Package Size | 44.50cm * 38.50cm * 24.50cm |
| Gross Weight | 21.000kg |
Scope of Application:
The series fuse holder is made of refractory material and meets the IEC 60947-3 standard. With a maximum rated voltage of 1000V and current of 30A, it serves as an essential short circuit and over-current protector. It is widely utilized in high and low voltage distribution systems, control systems, and electrical equipment such as distribution boxes and inverters.
| Breaking Capacity | 20kA |
| Connection Wire | 2.5mm² - 6.0mm² |
| Terminal Screws | M3.5 |
| Torque | 0.8~1.2N.m |
| Degree of Protection | IP20 |
| Fuse Size | 10x38mm |
| Operating Temp | -30°C to +70°C |

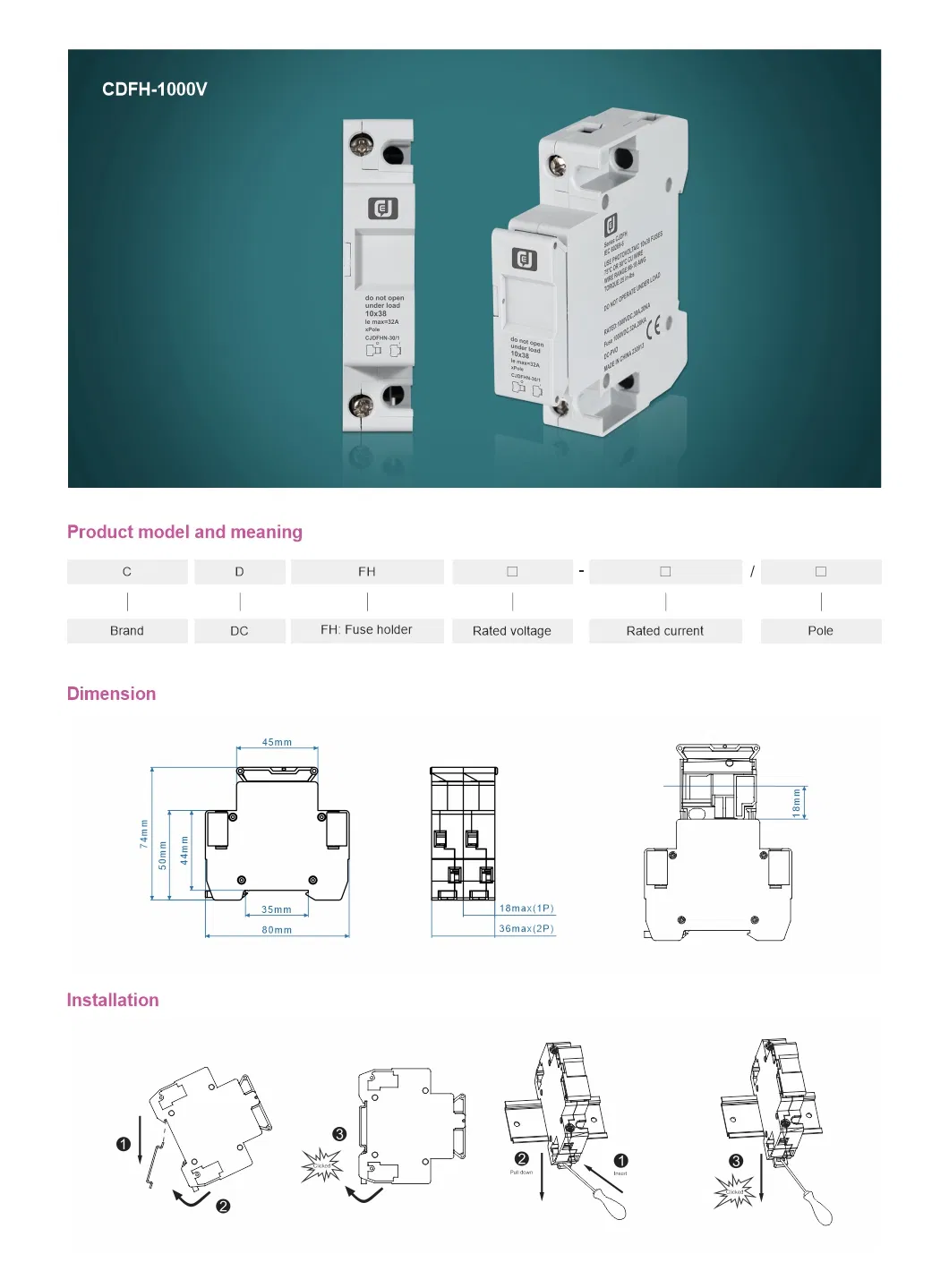

| Mounting | DIN rail IEC/EN 60715 |
| Relative Humidity | +20°C ≤95%, +40°C ≤50% |

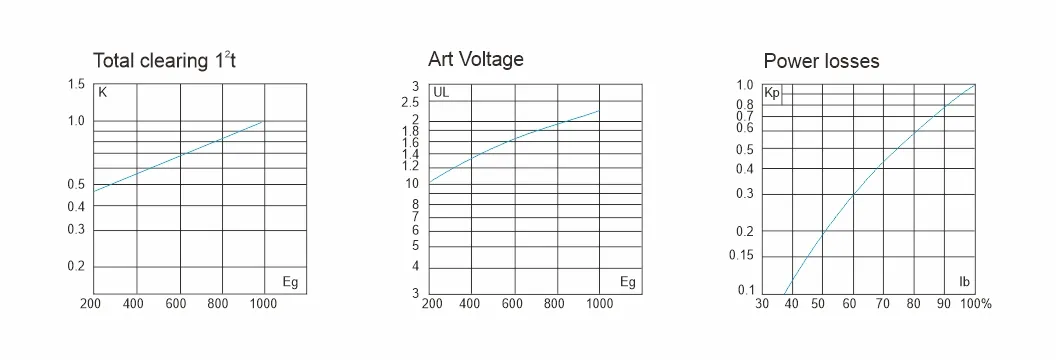

Our PV fuses offer excellent DC performance with low power loss and compact design.

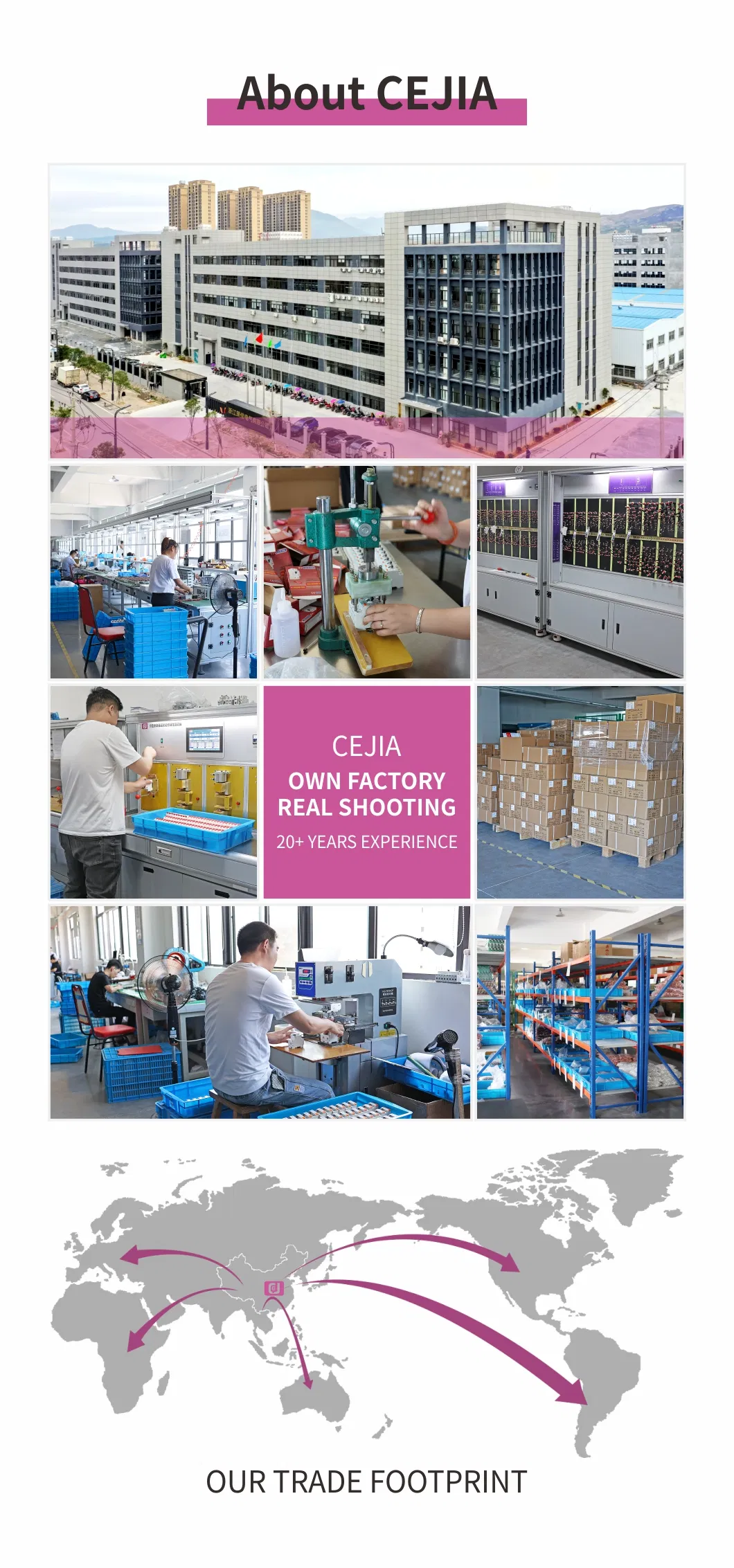

With over 20 years of industry experience, we have built a reputation for providing high-quality electrical equipment. We implement strict quality control from raw material procurement to final packaging. Our state-of-the-art manufacturing facility allows for high-volume production at competitive prices, delivering the latest technology to meet global standards.
