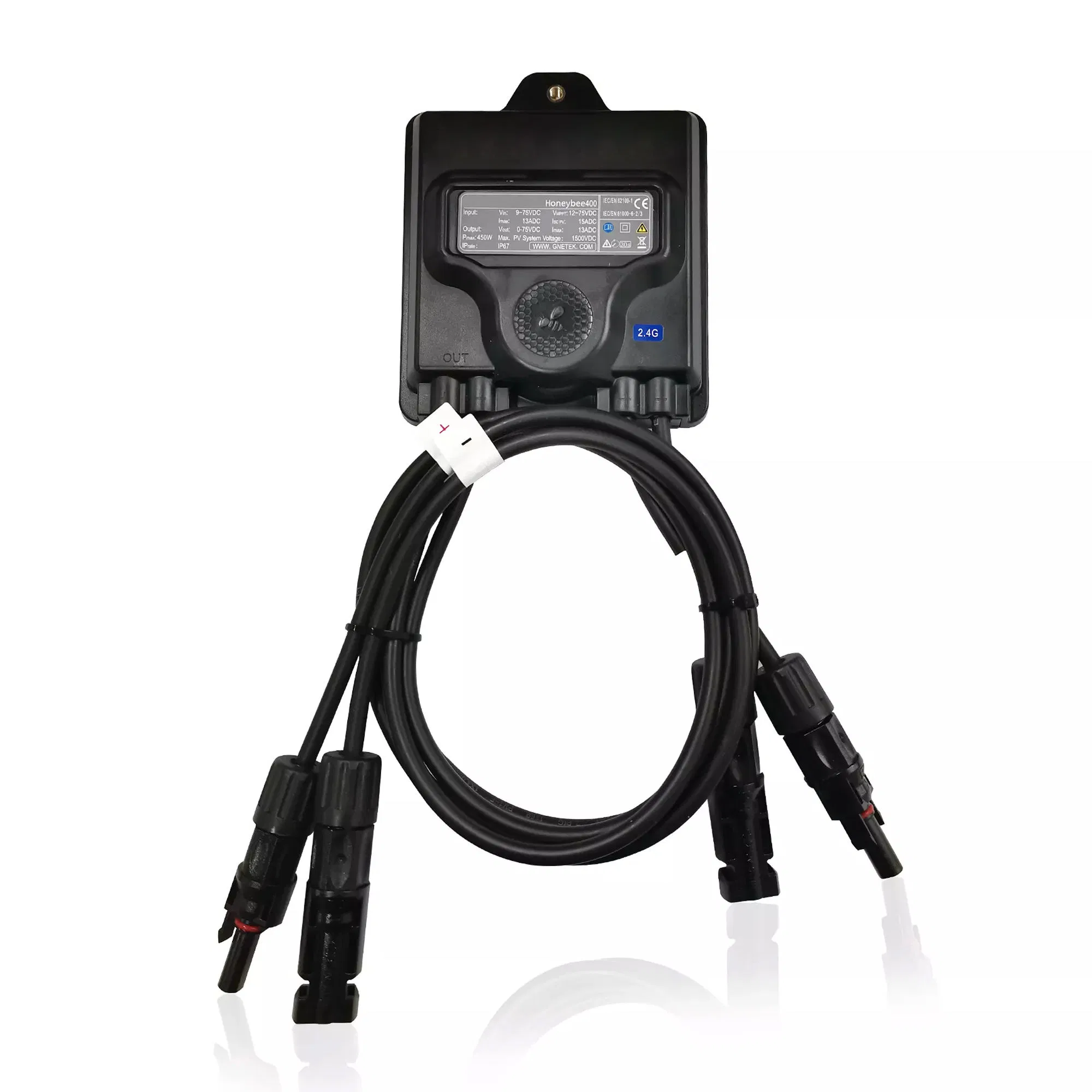

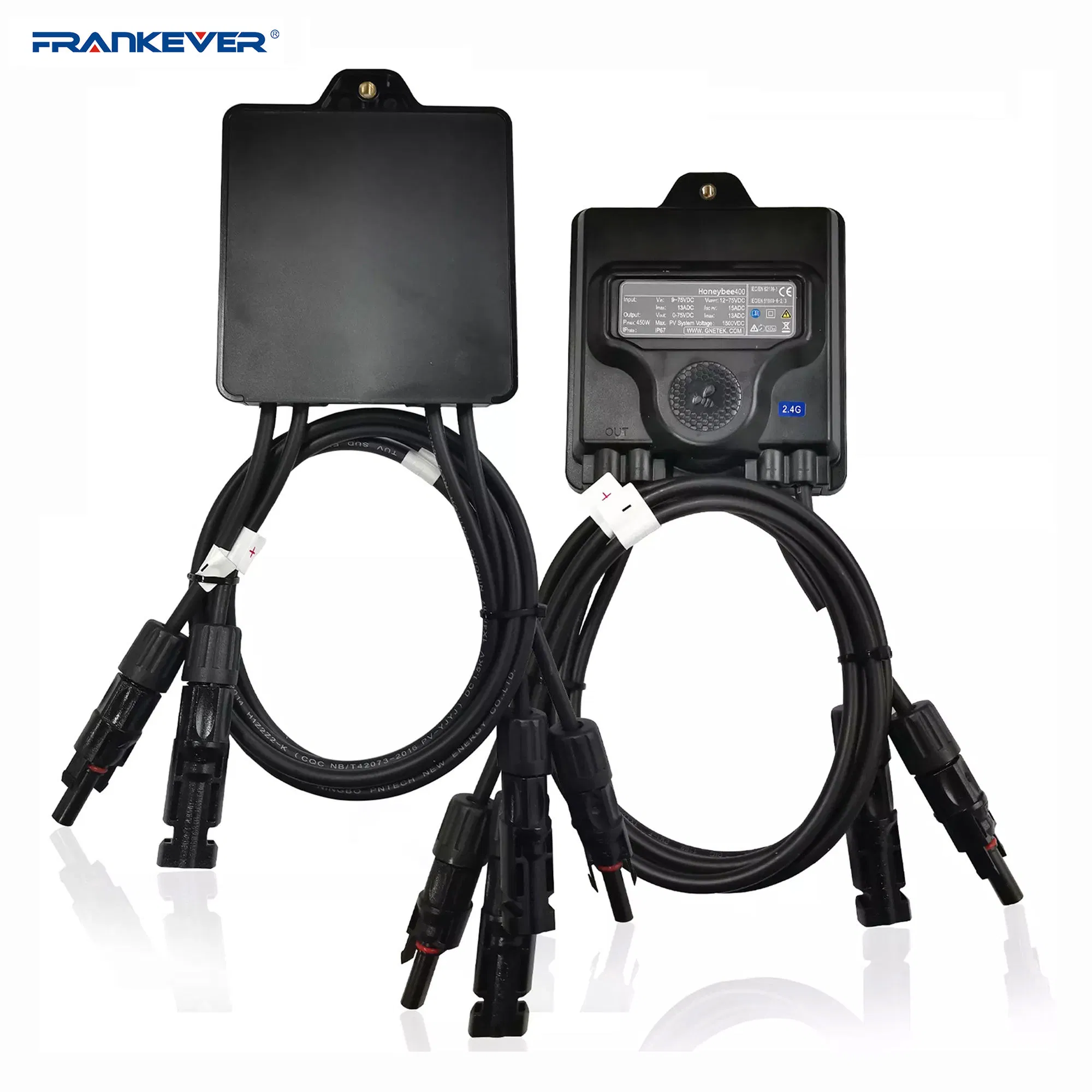

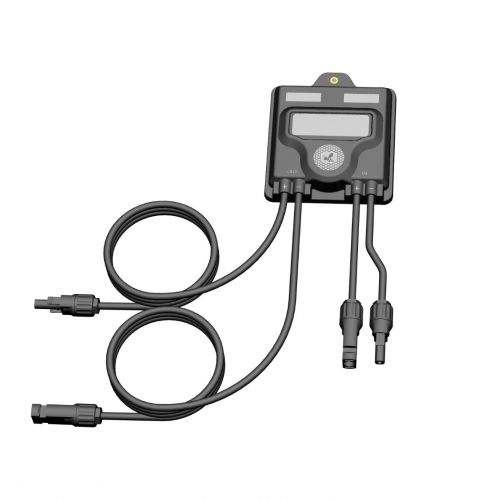

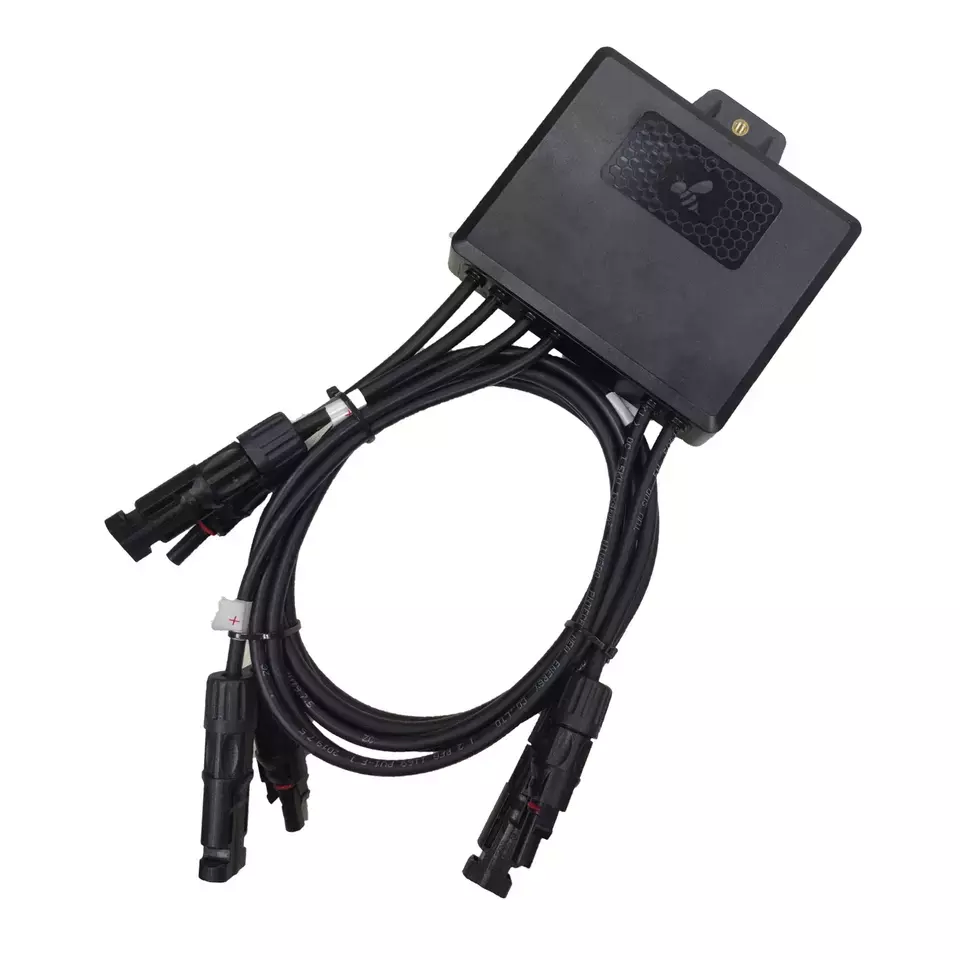

450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
1 / 5
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device
450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device

450W 600W 650W 700W 800W China-Solar-Power-Optimizer Gne Honeybee PV Solar Panel DC Optimizer Rapid Shutdown Device

Customization: Available
Max Input Power: 450-800W
Related Humidity: 0~100%
Send Inquiry

Product Description

Basic Information
Model NO.
honeybee
Product Name
Solar Power Optimizer
Ingress Protection
IP67
Max Efficiency
99.6%
Mechanical Load
Front Side Max. 5400PA, Rear Side Max. 2400PA
Max Input Current
13A
Weight
800g
Max Input Voltage
75VDC
Communication
915m/2.4G/PLC
Transport Package
Master Carton
Product Description

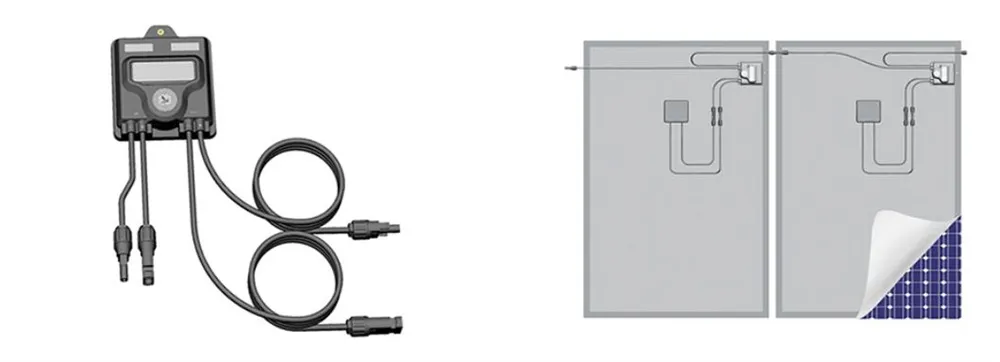

Solar Power Optimizer Overview

Key Features

  • Module-level shutdown to shut off the source of string high voltage, completely reduce the risk of personal shock.
  • Default shutdown state to ensure the personal safety of installation and maintenance personnel.
  • PLC communication, no need for additional communication cables, making installation convenient.
  • Safe and reliable with output short circuit protection, eliminating high-temperature risks.
  • 25 years lifespan, perfectly matching solar modules.
Product Code Honeybee 400 Honeybee 650 Honeybee 850
Max Input Power450W650W850W
Max Input Voltage75VDC75VDC60VDC
Operating Voltage Range12~75VDC12~75VDC14~60VDC
MPPT Voltage Range12~70VDC12~75VDC14~60VDC
Max. Input Current13A15A21A
Max. Efficiency99.6%99.6%99.5%
IP RatingIP67IP68IP68

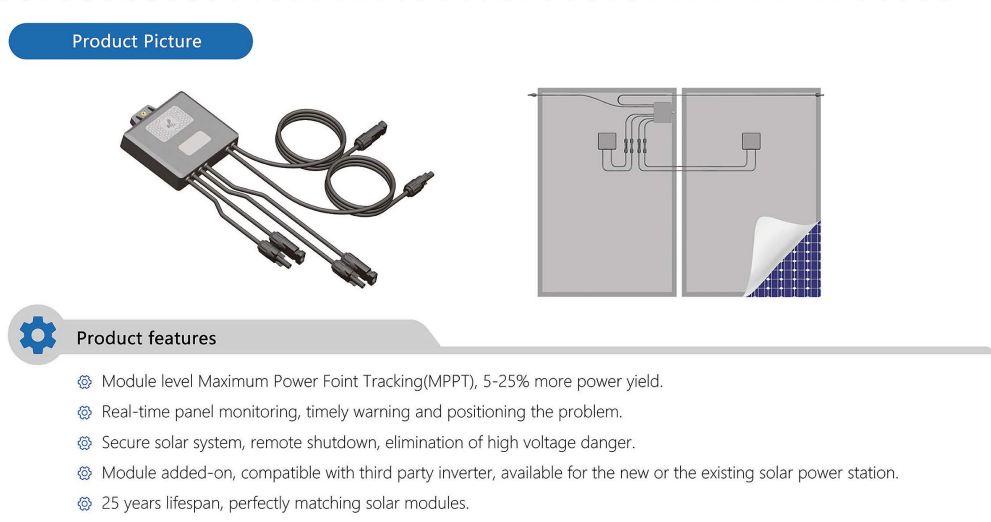

Dual Power Optimizer
Product code Honeybee 800 Honeybee 1600
Support Modules2pcs2pcs
Max. Input Power2*450W2*800W
Max Output Current13A18A
Max system Voltage1000/1500VDC1000/1500VDC
Communication915M/2.4G
PV Module Level Optimization & Monitoring Solution

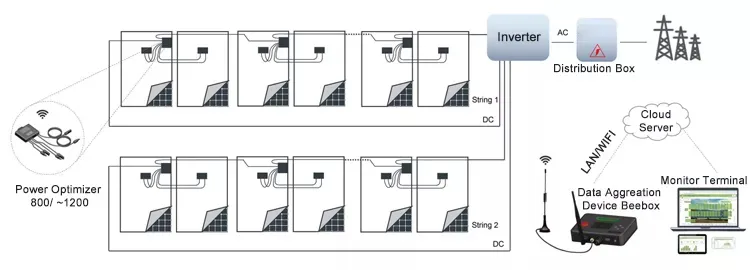

Case: 10KW PV Station: 26Pcs of 390W Solar Panel, 2 Strings using 800W-1200W Solar Optimizers.
Diagram

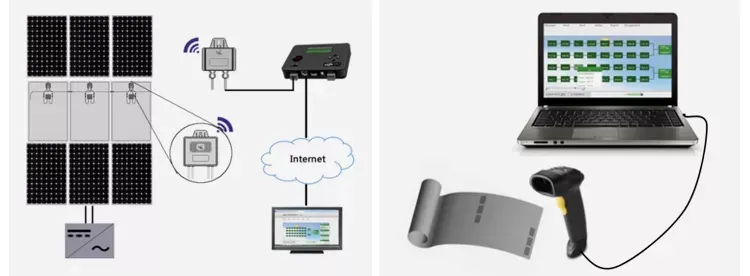

Step 1 & 2

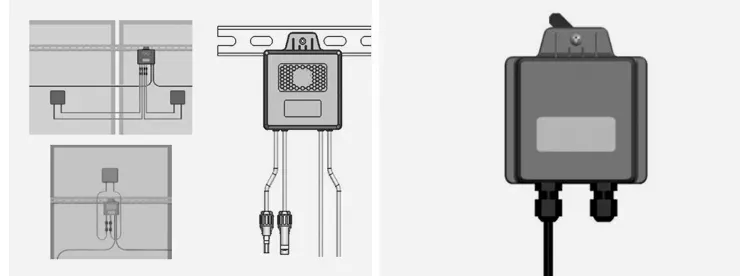

Step 3 & 4

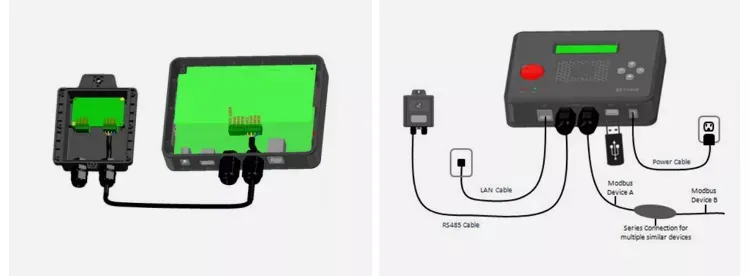

Step 5 & 6

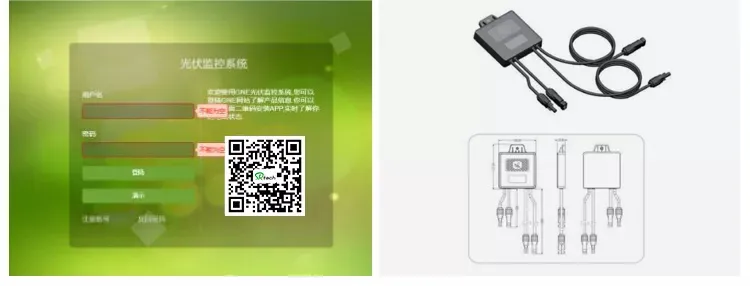

Step 7 & 8
Packing & Project Installation

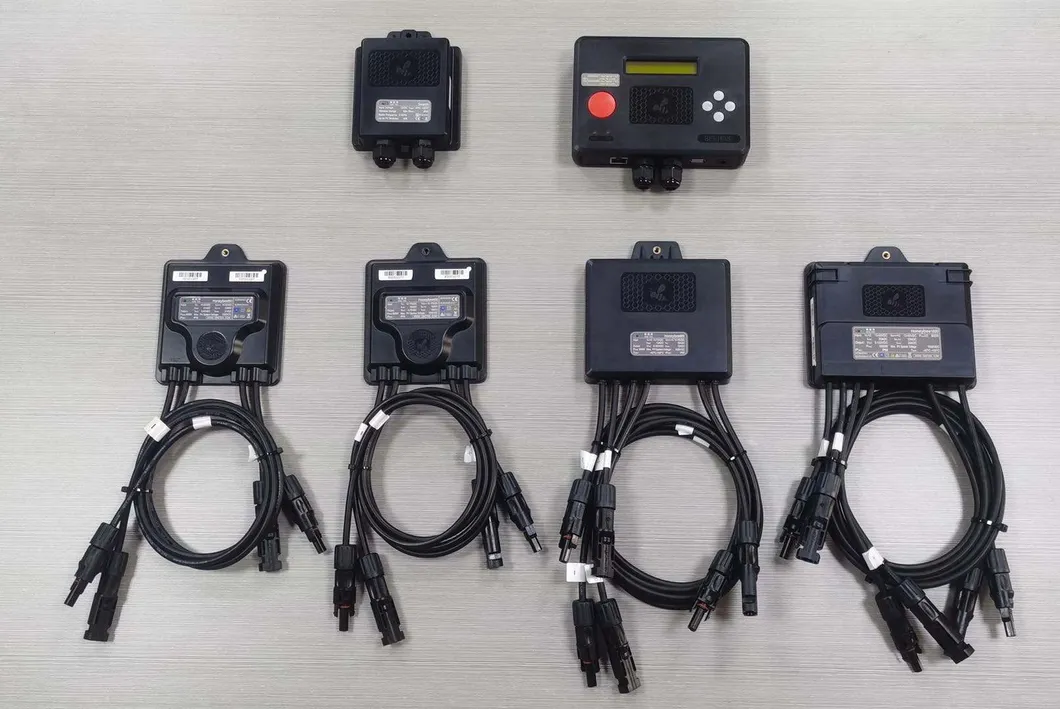

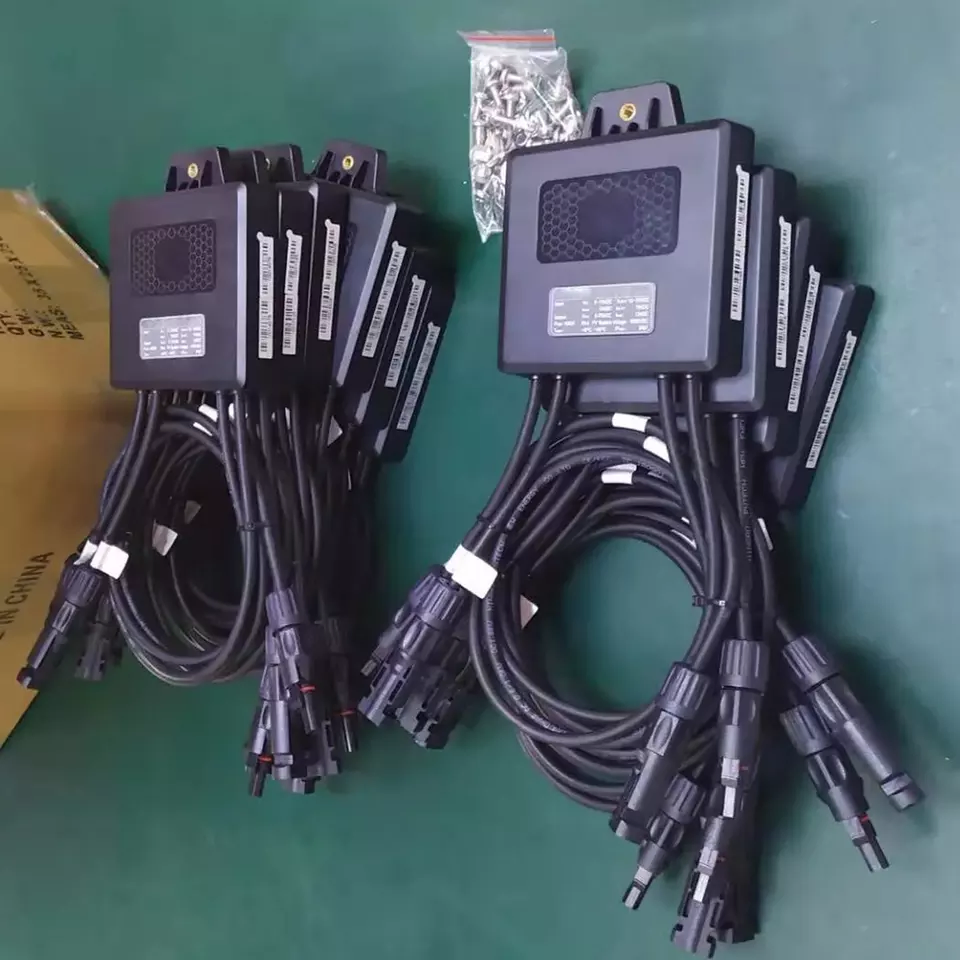

Packing

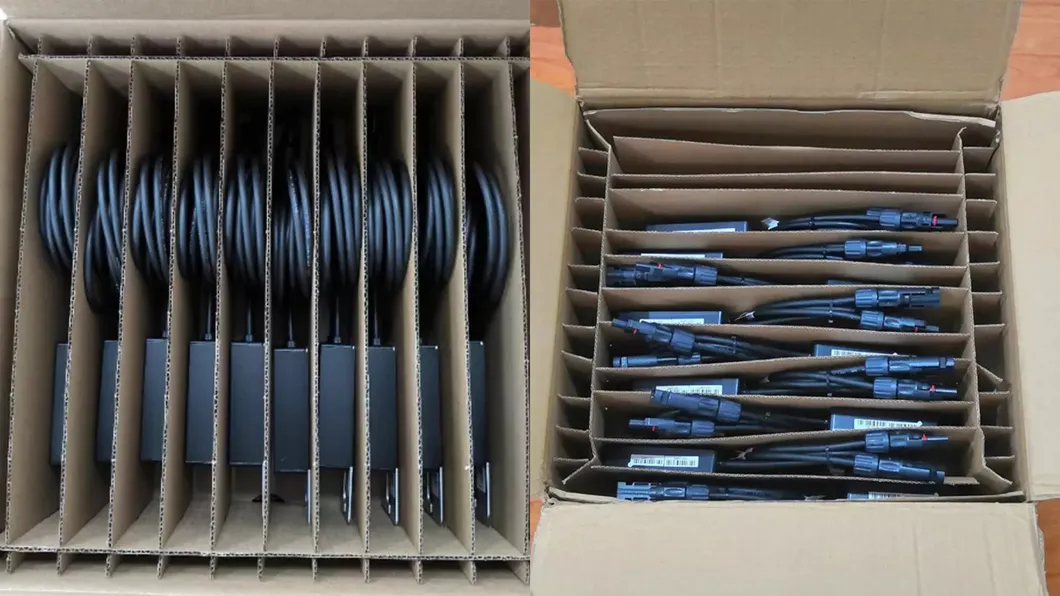

Delivery
Global Project References:

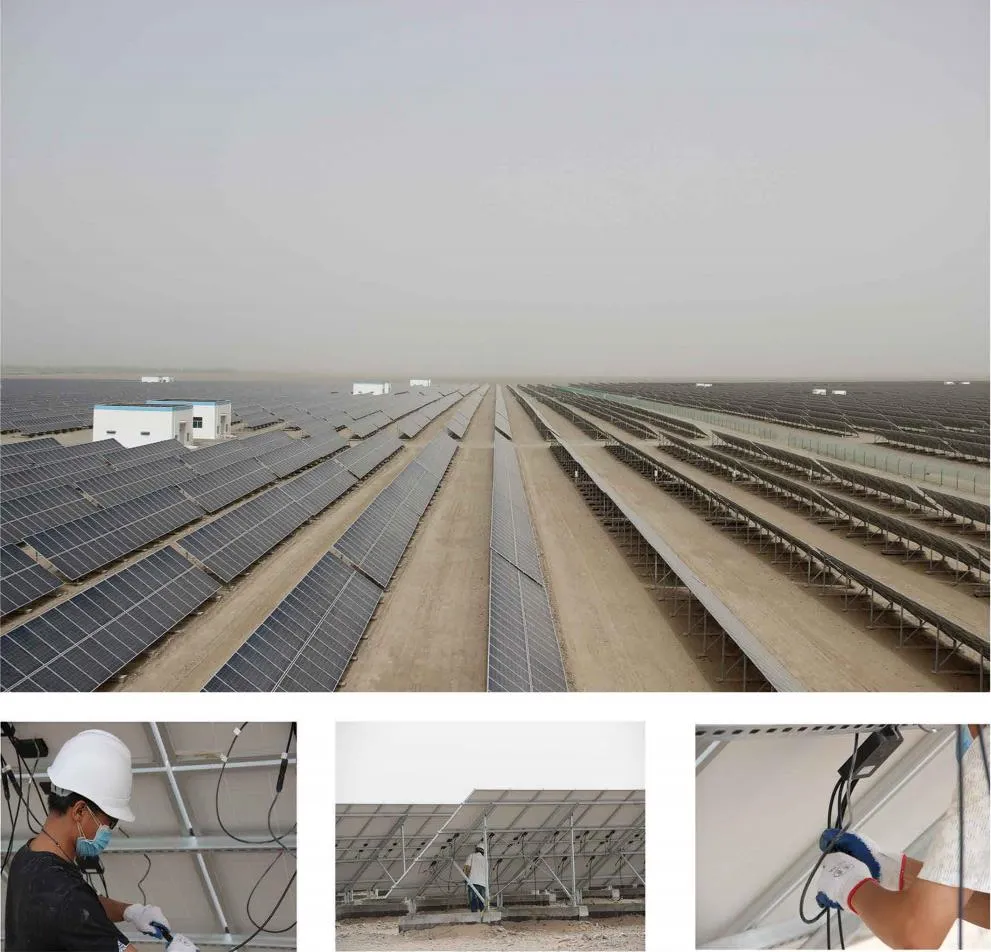

20MW PV Station

20MW PV Station in China

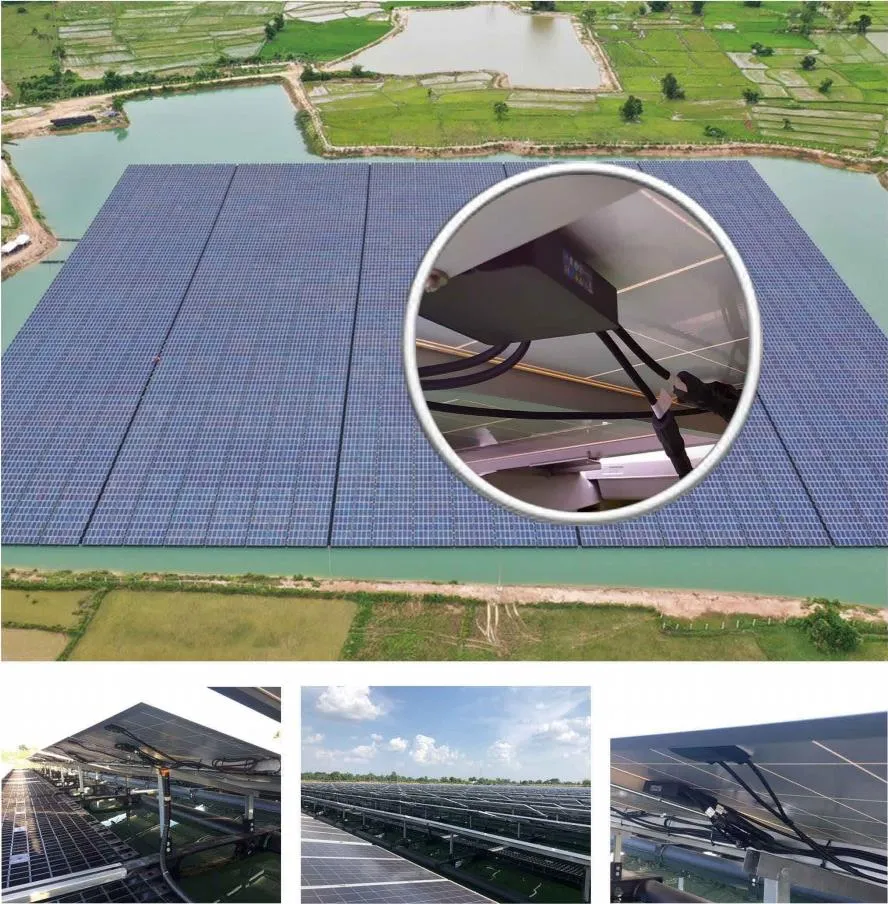

7MW Floating Project

7MW Floating Project in Laos

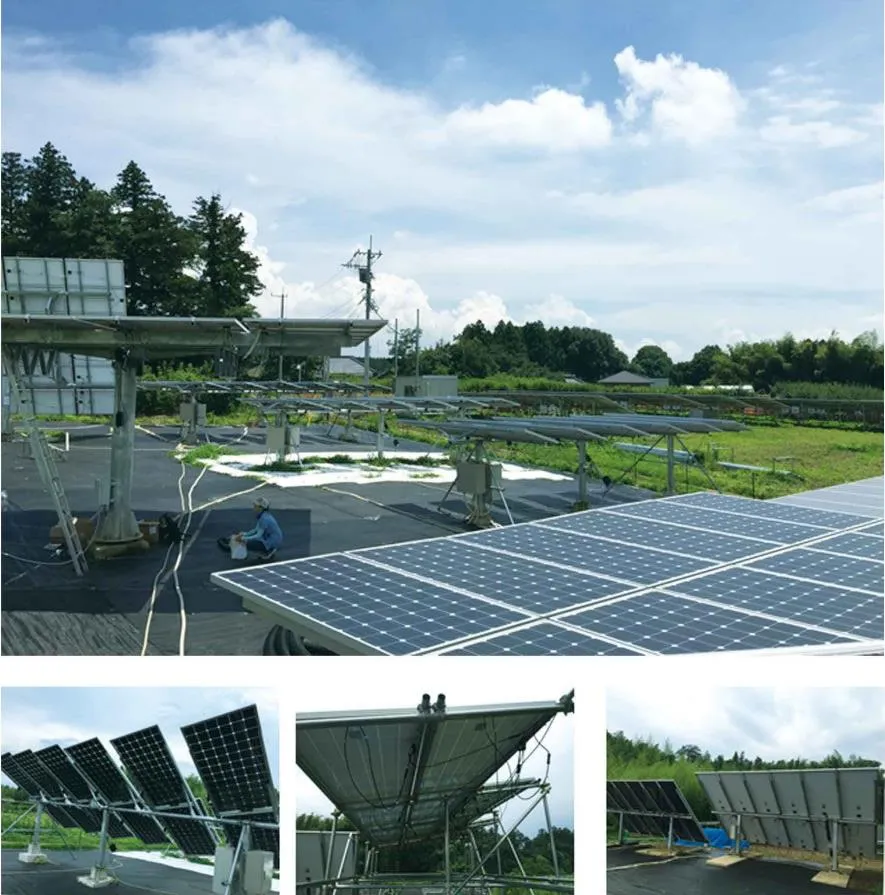

50KW PV Station

50KW PV Station in Ibaraki, Japan

Frequently Asked Questions
What are your advantages?
We offer factory-direct sales with a professional team, ensuring timely delivery, high-quality standards, and comprehensive customization services.
Can I request a sample?
Yes, once the price is confirmed, you can request a sample to check the quality. Samples are typically ready for delivery within 3-7 days.
What is the lead time for mass production?
The lead time depends on the order quantity and season. For a standard MOQ of 1000pcs, the lead time is approximately 30-35 days.
Do you accept customized designs?
Yes, we have an experienced manufacturing team that can produce products according to your specific requirements.
What is the preferred payment method?
T/T is preferred due to quick transfer and lower bank fees. Our standard terms are 30% in advance and 70% before delivery.
Are the products certified for international markets?
Yes, our products comply with safety and EMC directives, including CE certification and IEC/EN 62109 standards.
