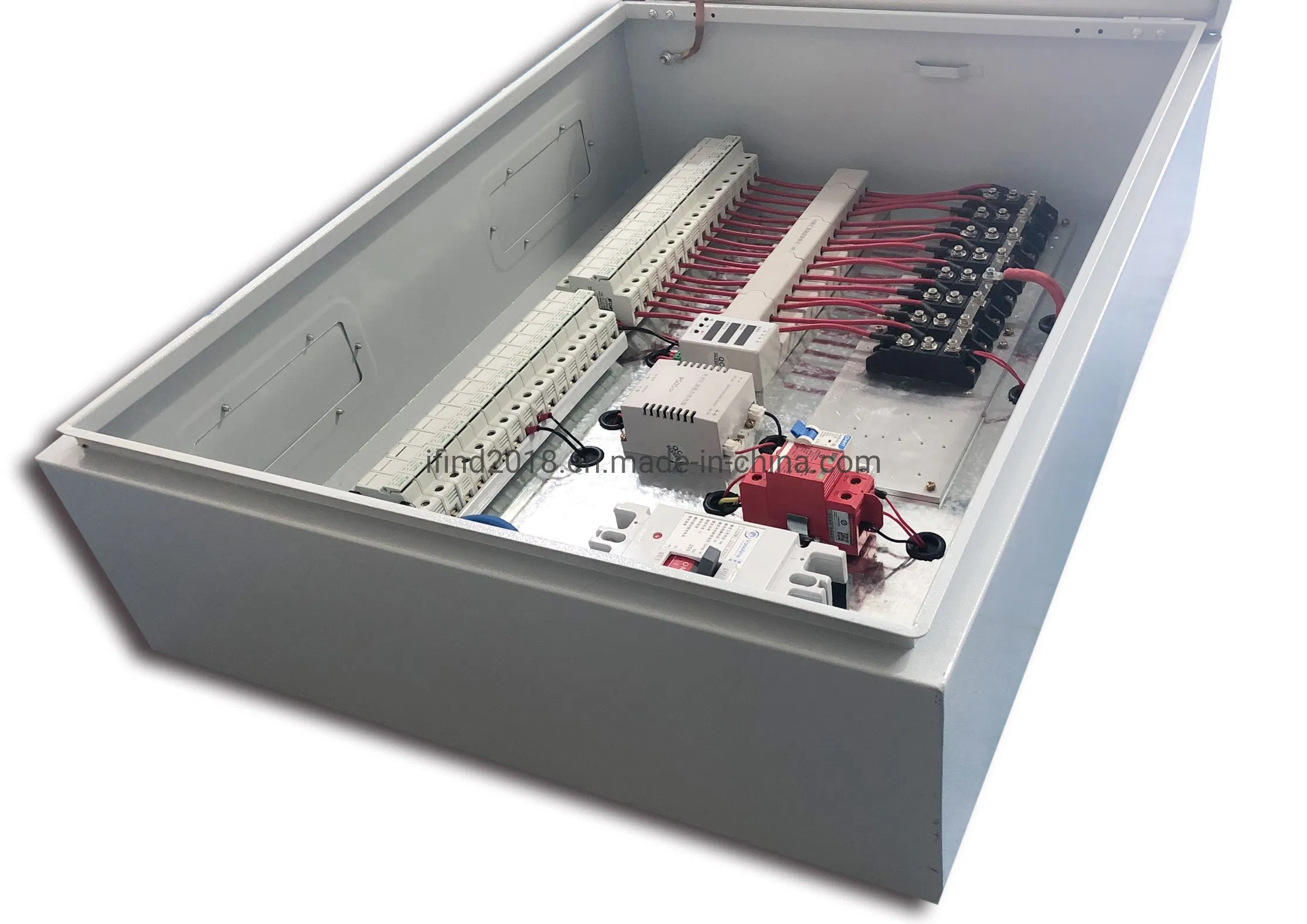

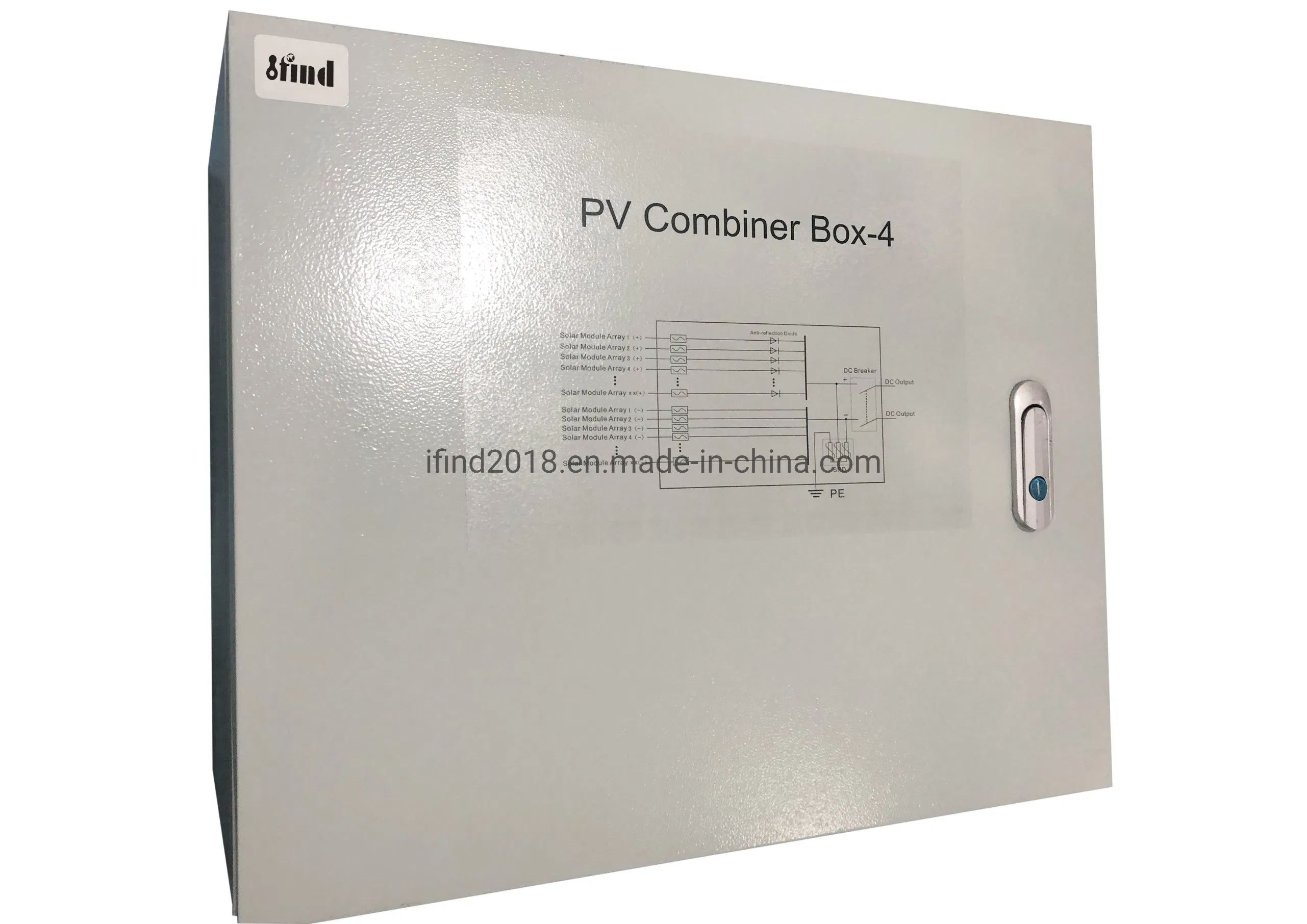

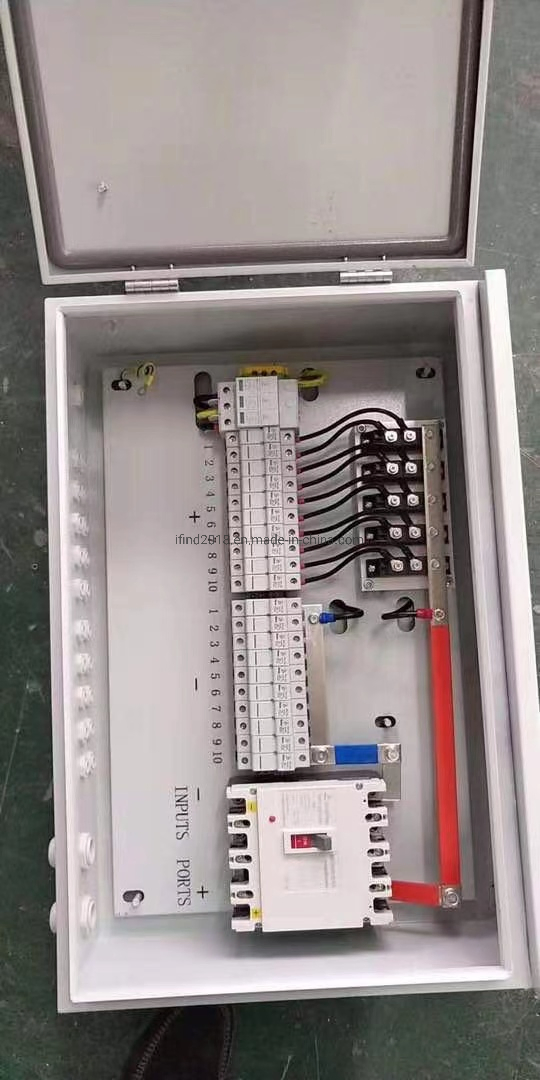

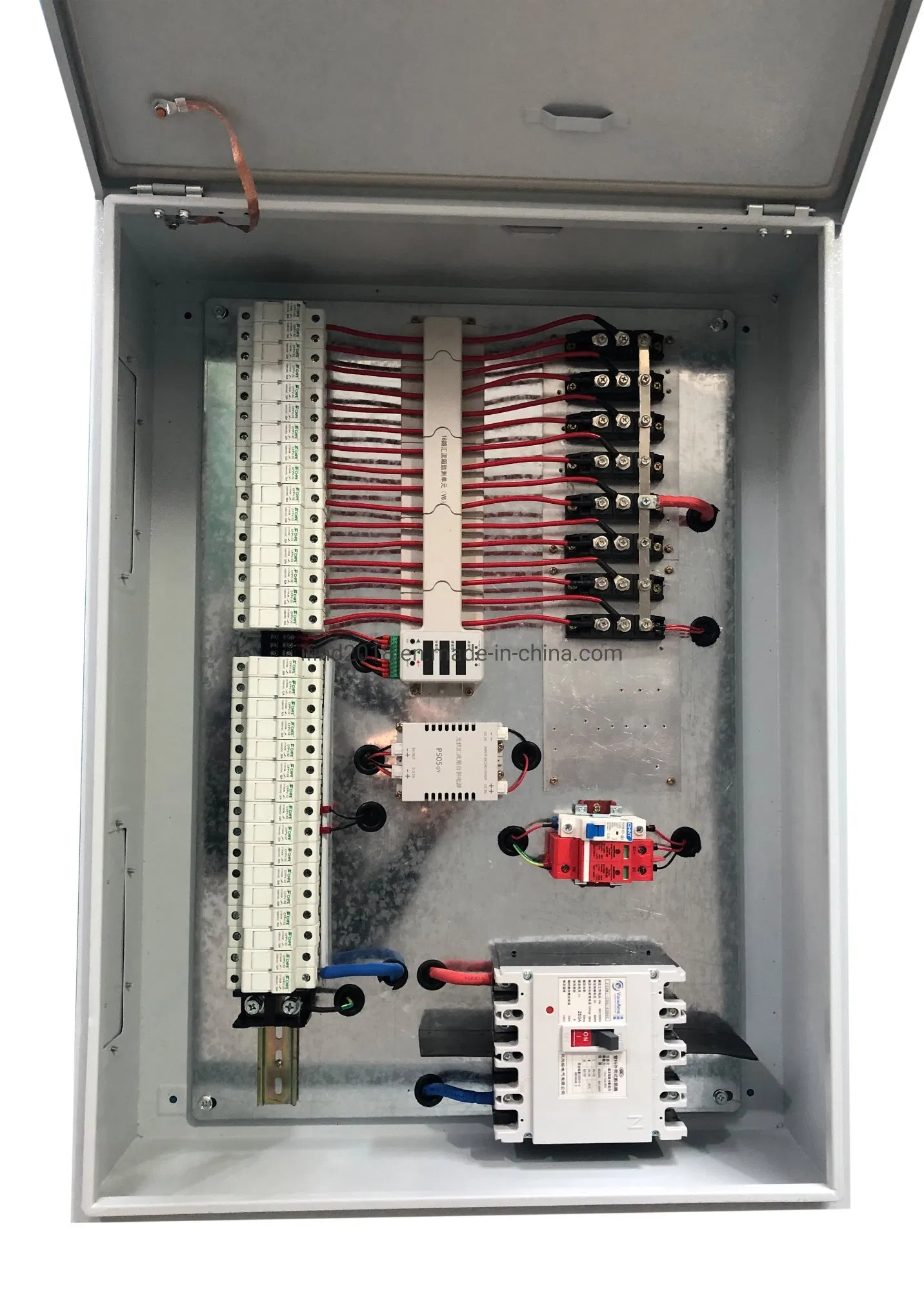

China Smart Junction Box 12 Input Lighting Surge Protection Use for Solar PV Combiner Box

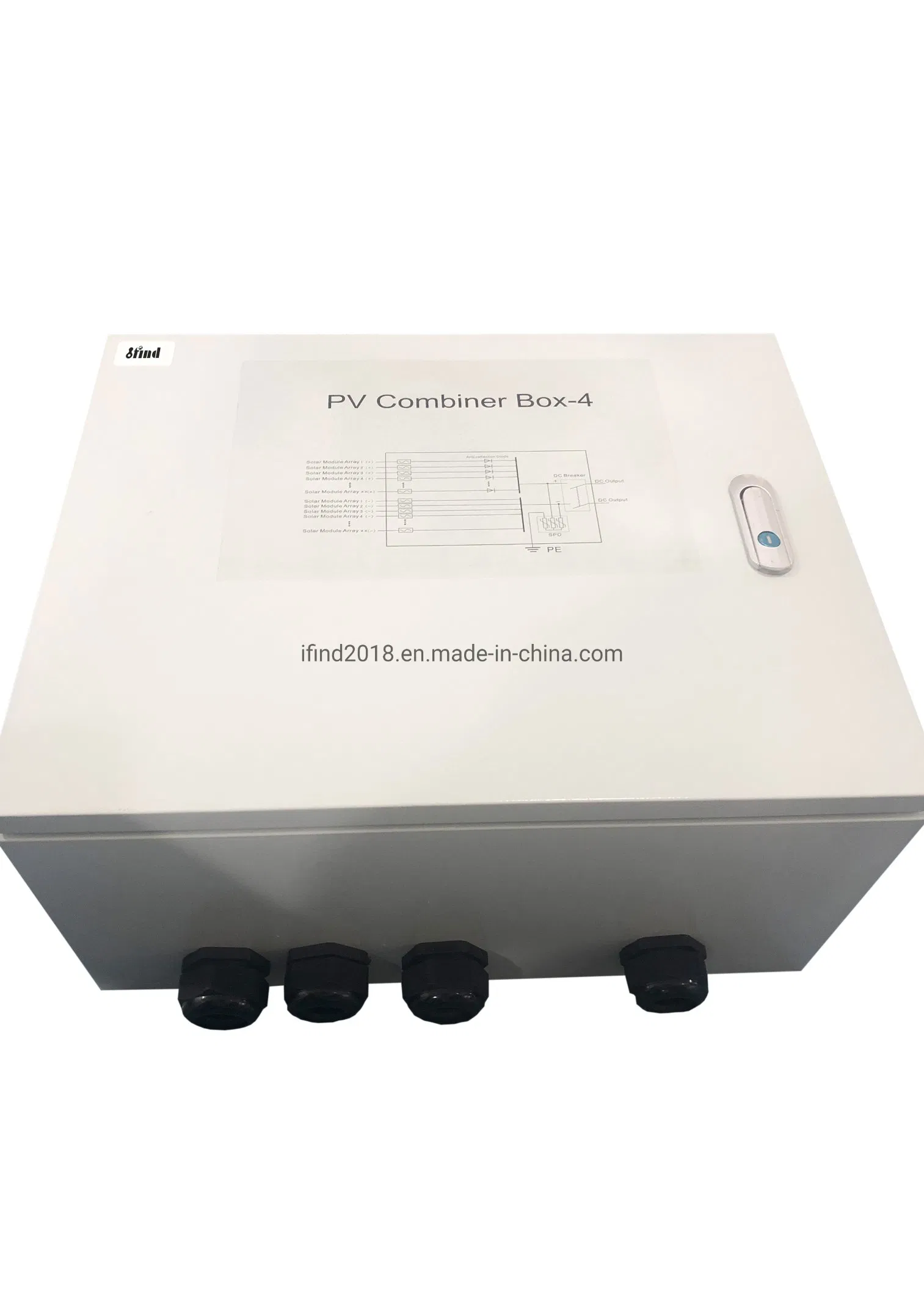

Smart Junction Box 12 Input Lighting Surge Protection for Solar PV Combiner Box

In order to reduce the connection line between photovoltaic (solar) modules and inverter, easy maintenance, improve reliability, increase the DC convergence equipment between photovoltaic (solar) modules and inverter; The advanced digital technology is used to monitor the electrical parameters of the bus box and to realize data communication through cable.

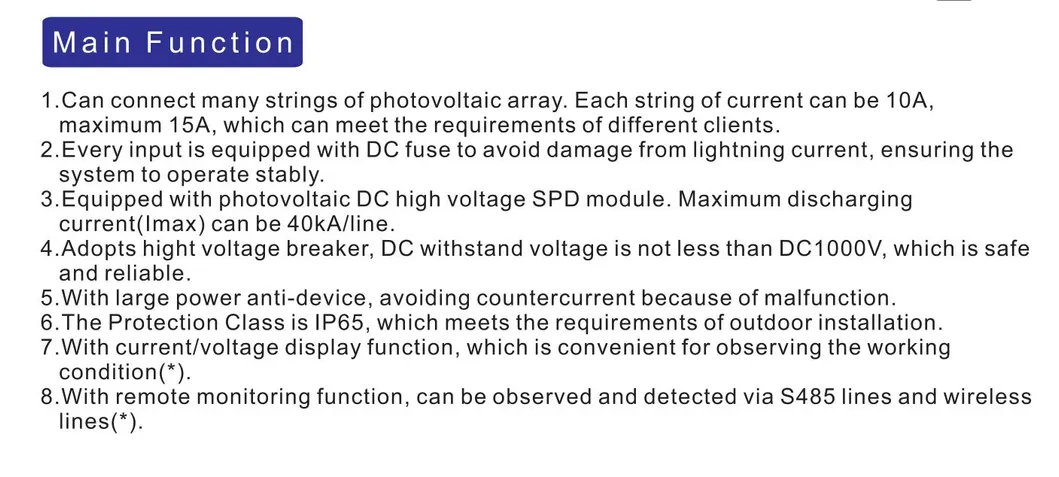

Functional Features

• Integrated photovoltaic special lightning protection device, full range of lightning protection, anti-connection reverse function, 16 channels monitoring system
• Equipped with special photovoltaic fuse overcurrent protection device, the system is more secure
• IP65 high protection level, suitable for complex outdoor environment
• With 8/16 series of products, flexible scheme configuration
• Internal power, no need for external auxiliary power supply; To meet the application requirements in areas without electricity

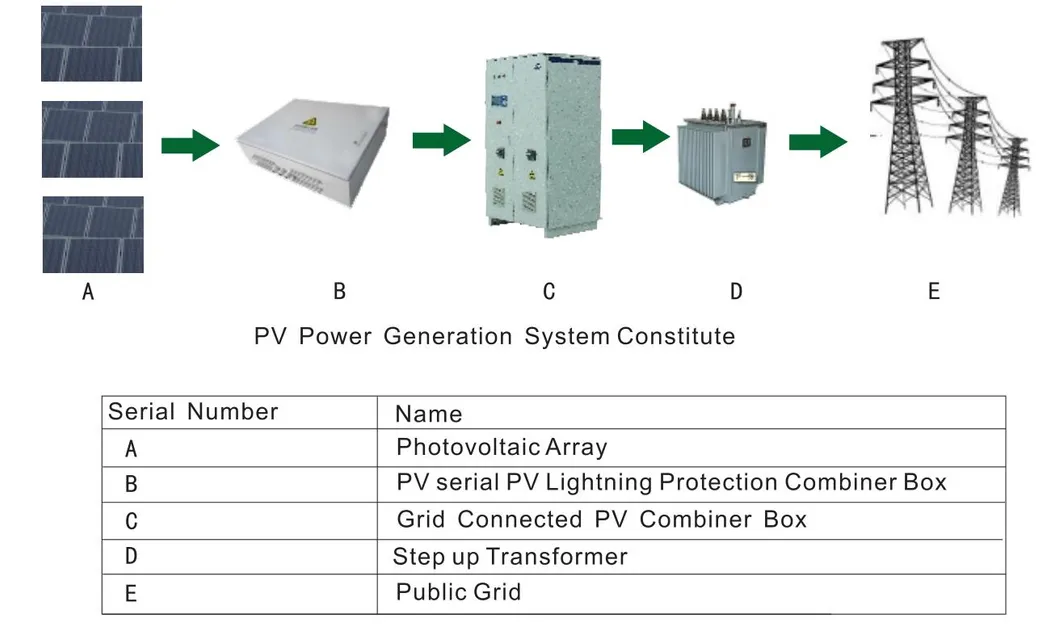

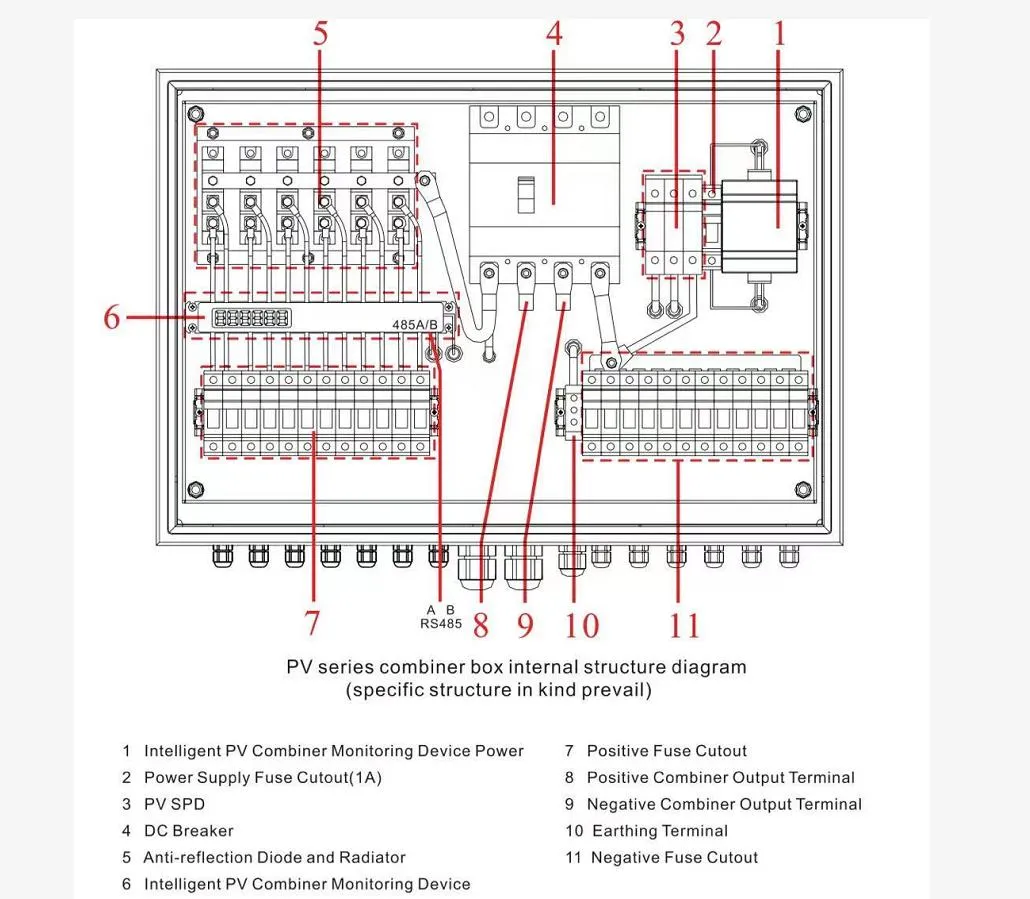

Technical Drawing & Application

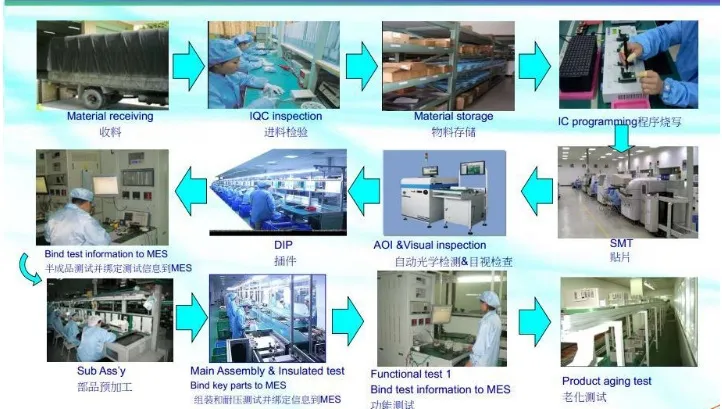

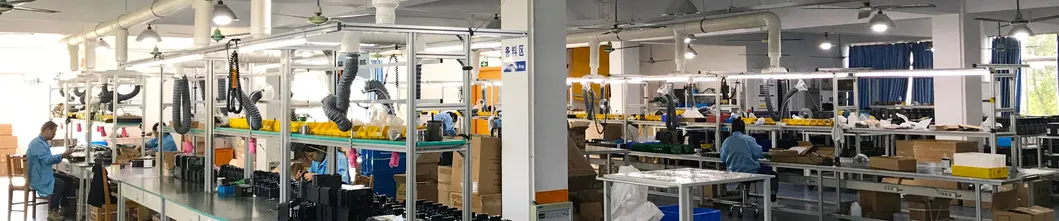

Production Process

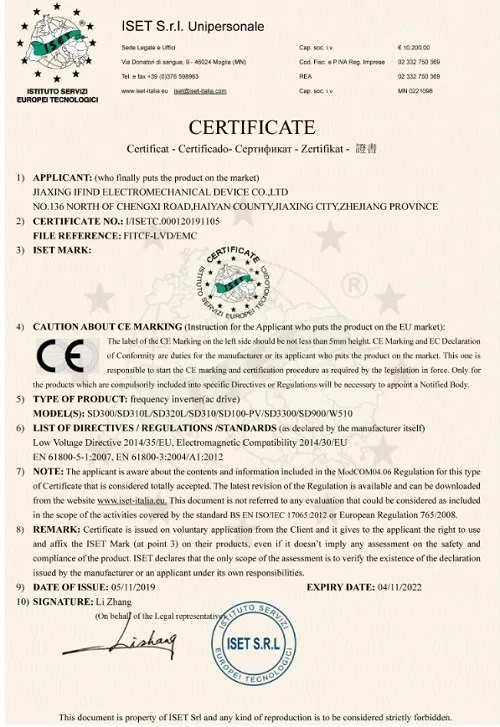

CERTIFICATES
