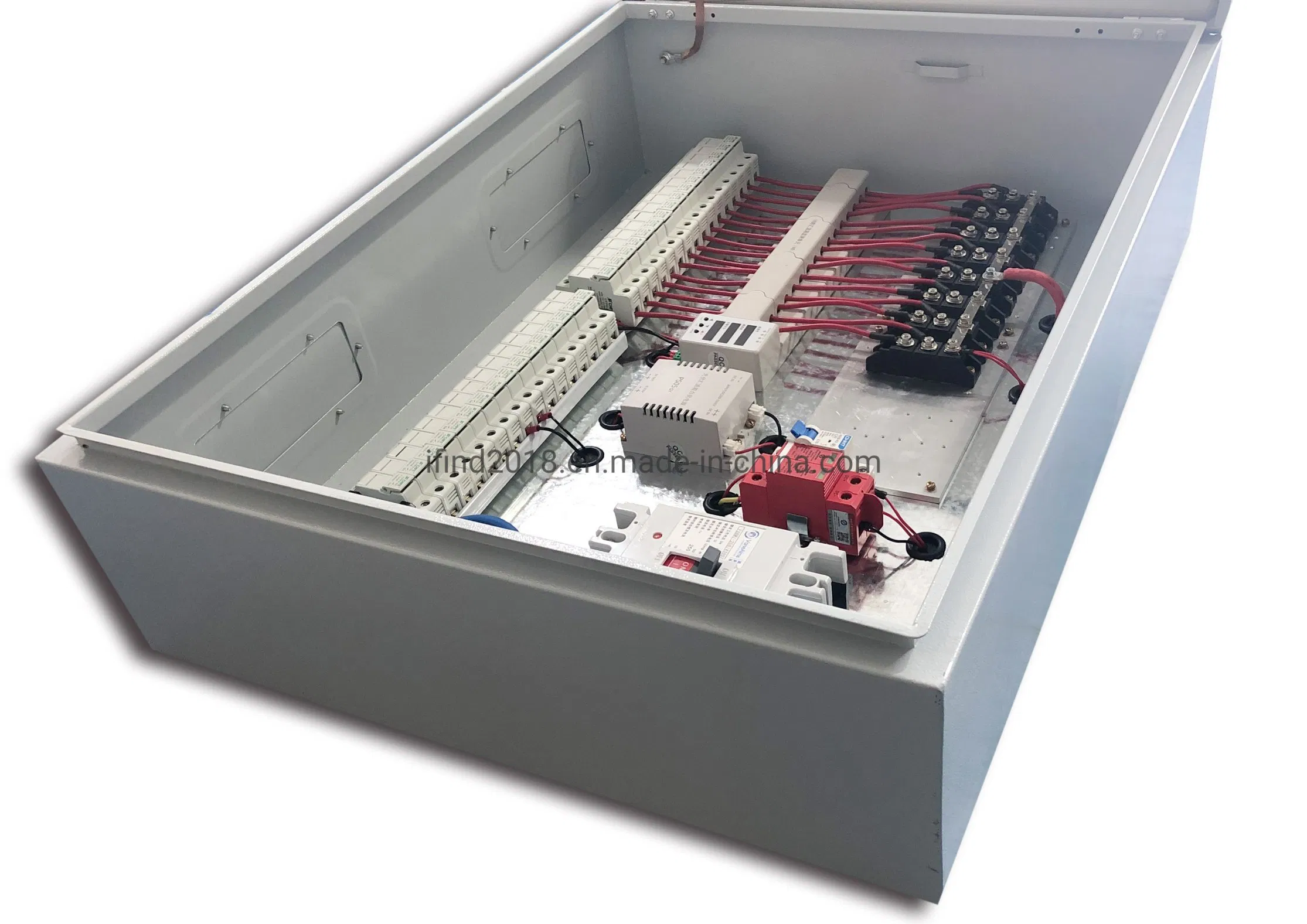

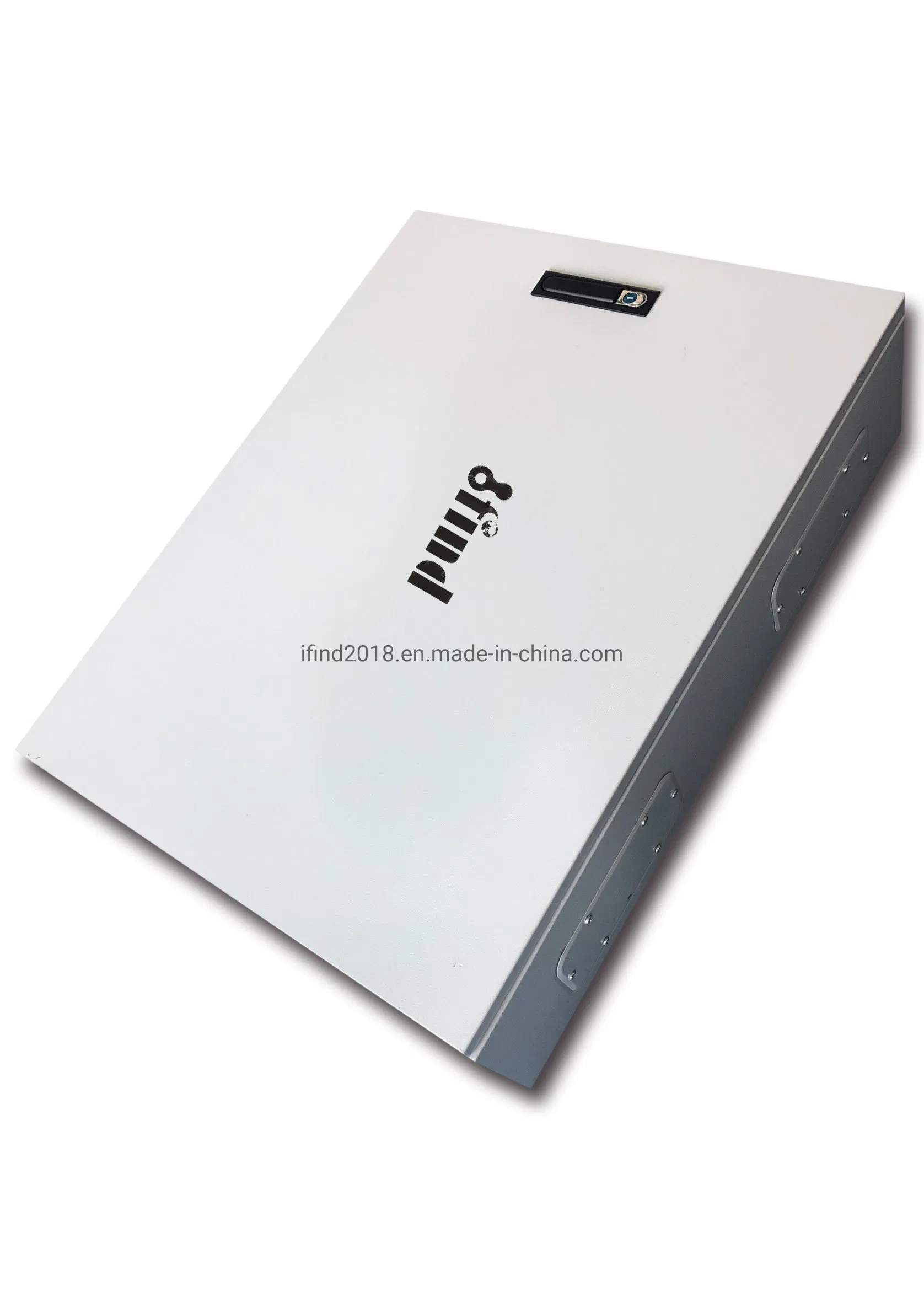

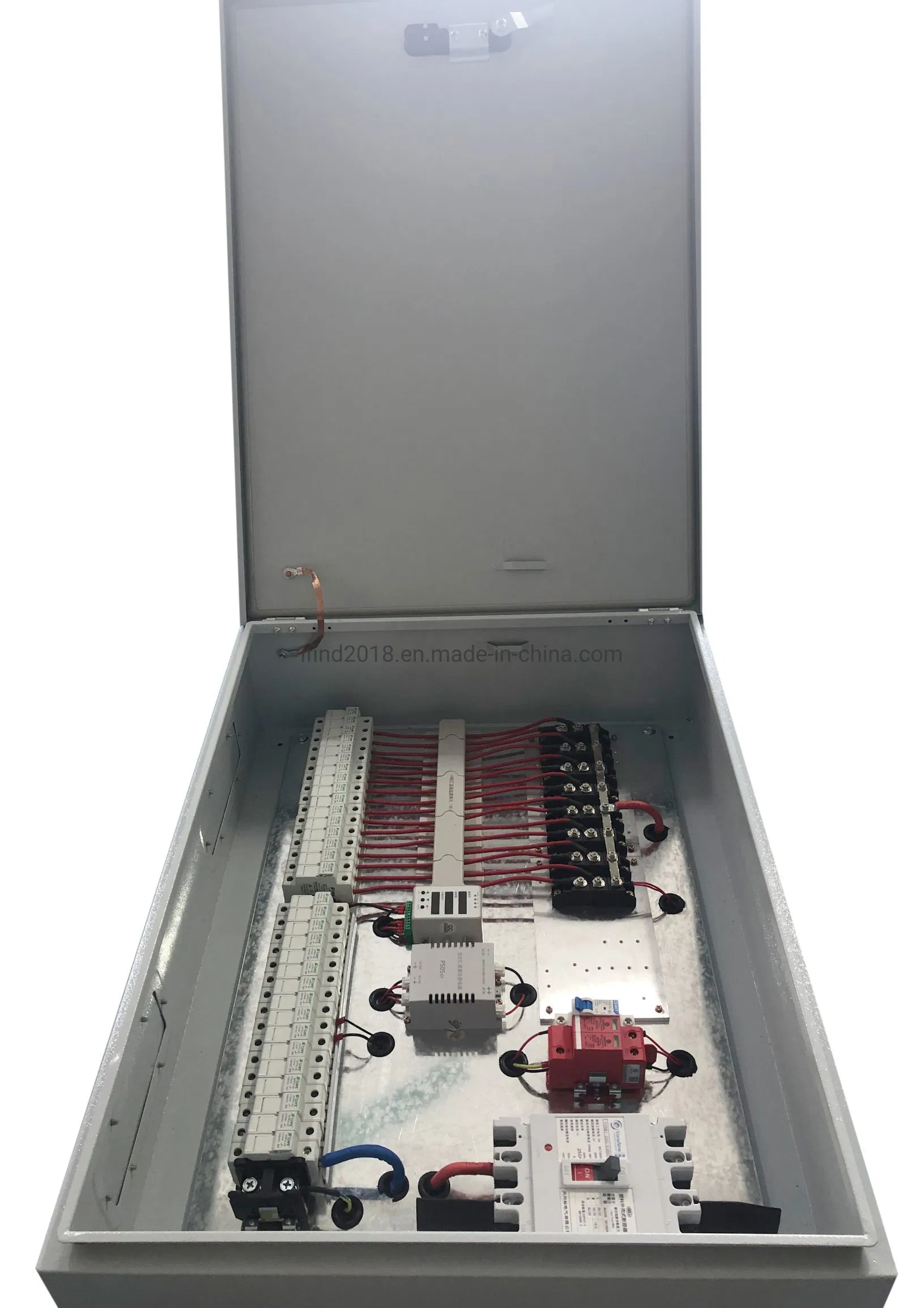

China PV Smart Junction 16 Input Lighting Surge Protection off Gird Solar Monitor Combiner Box

1 / 5

China PV Smart Junction 16 Input Lighting Surge Protection off Gird Solar Monitor Combiner Box

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SD600

Certification

Form

All-packaged Type

Operation Voltage

Low Voltage

Size

1 Unit

Application Range

Power Plants

Shell Material

Stainless Steel

Protection Grade

IP65

Color

White

Number of Output

1/16

Product Description

In order to reduce the connection line between photovoltaic (solar) modules and inverter, facilitate maintenance, and improve reliability, this DC convergence equipment is essential. Advanced digital technology is utilized to monitor electrical parameters and realize seamless data communication.

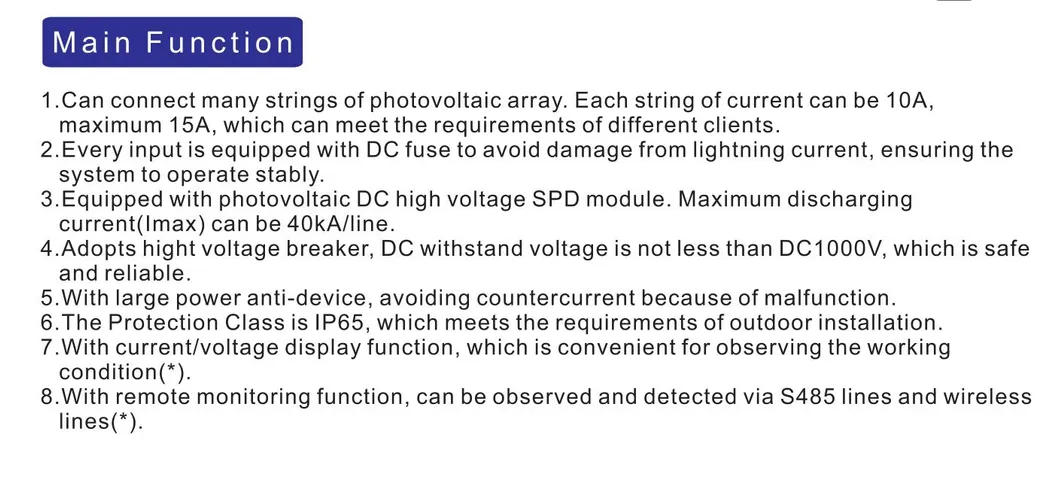

Functional Features

Integrated photovoltaic special lightning protection device with 16 channels monitoring system.
Equipped with special photovoltaic fuse overcurrent protection for enhanced system security.
IP65 high protection level, specifically designed for complex outdoor environments.
Flexible scheme configuration with support for 8/16 series of products.
Internal power supply design; no external auxiliary power needed for remote areas.

Specifications

Electric Parameters
System Maximum DC Voltage	1000/1200V
Maximum Input Current for each string	15A
Maximum Inputs Strings	16
Maximum Output Switch Current	180A
Number of Inverter MPPT	1
Lightning Protection
Category of Test	Grade 2 Protection
Nominal Discharge Current	20kA
Maximum Discharge Current	40kA
Voltage Protection Level	3.8kV
System & Mechanical
Protection Grade	IP65
Output Switch	DC Isolator Switch (Standard) / DC Circuit Breaker (Optional)
Box Material	PVC / Stainless Steel
Dimensions (WHD)	800mm * 600mm * 200mm
Operating Temperature	-25ºC to +55ºC

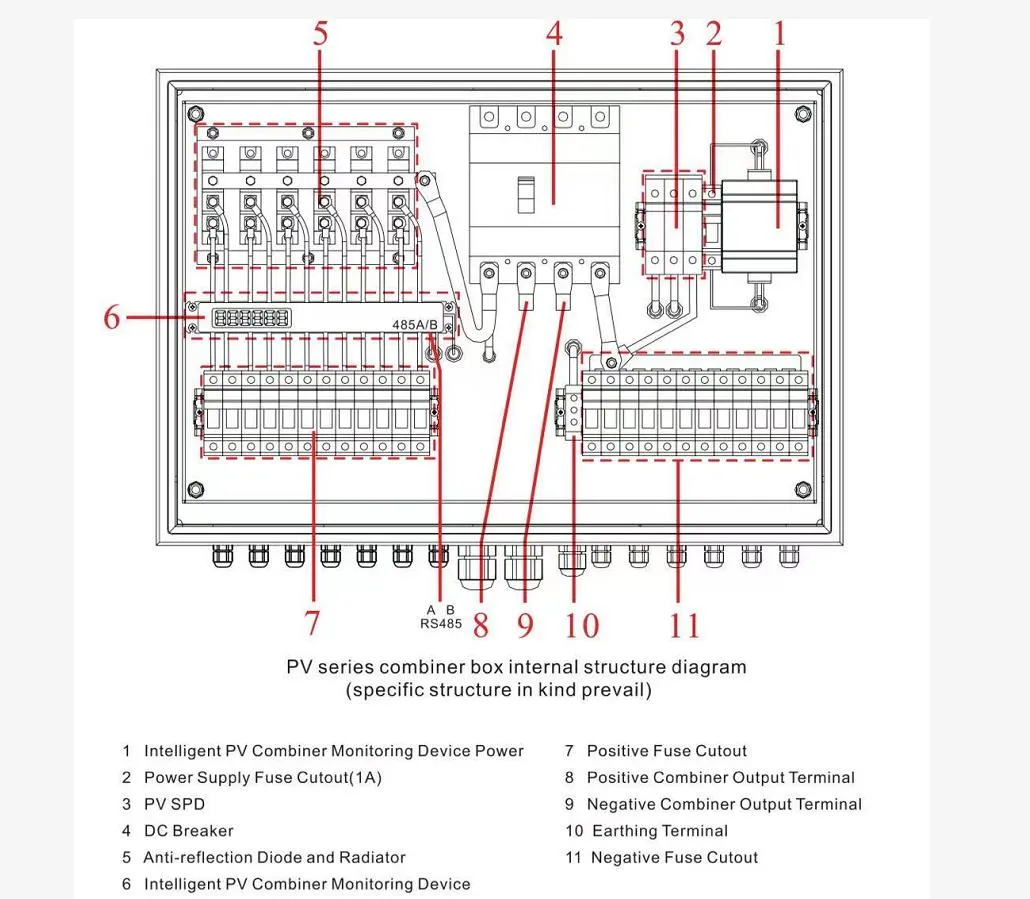

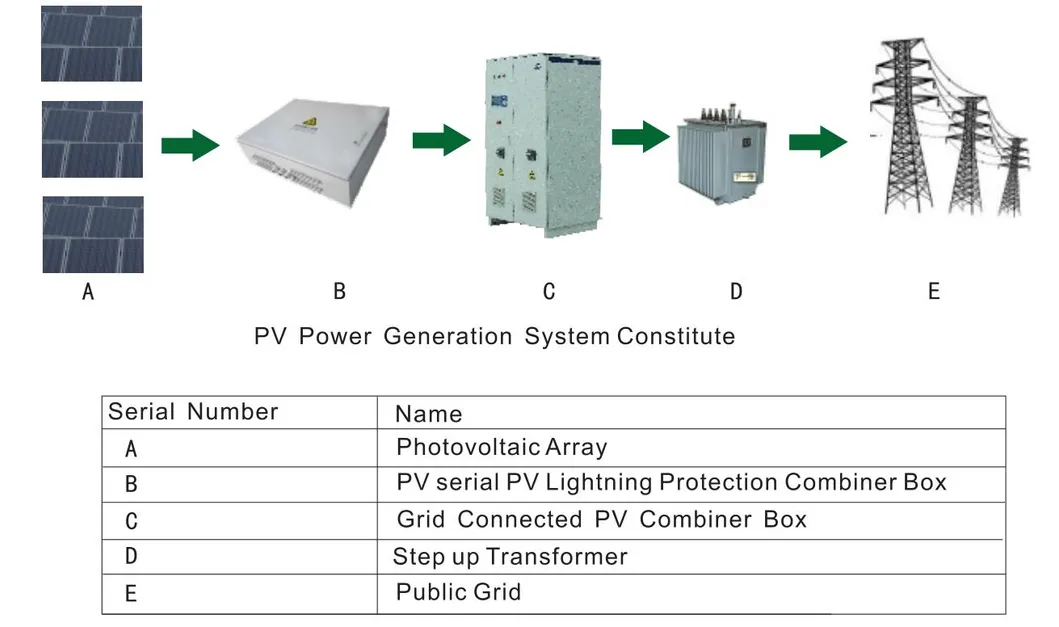

Technical Drawing & Application

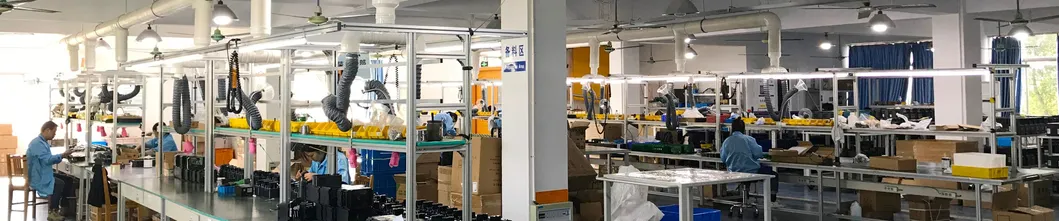

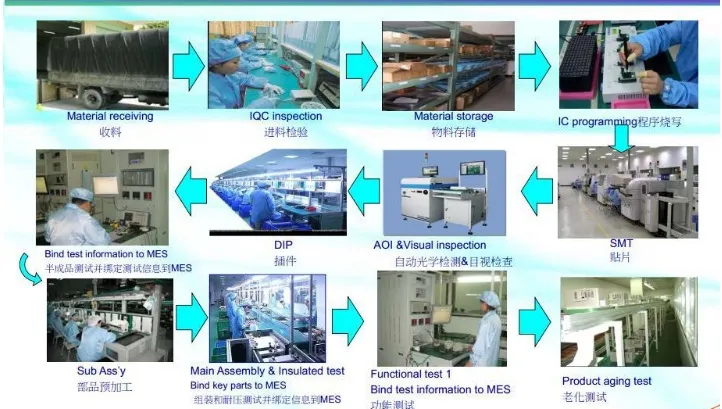

Production Process

Certificates

Frequently Asked Questions

Can I get some samples?

Yes, sample orders are available for quality checks and market testing.

What is the typical delivery time?

It usually takes about 3-5 working days for small orders and 10-15 days for larger bulk orders.

What are your payment terms?

We accept various payment methods including T/T, L/C, Western Union, PayPal, and Cash.

What is the warranty period?

We offer an 18-month warranty on our products.

How is quality control handled?

Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping to ensure the highest standards.

Are products kept in stock?

We maintain stock for standard models. Special products and large orders are produced according to specific requirements.
