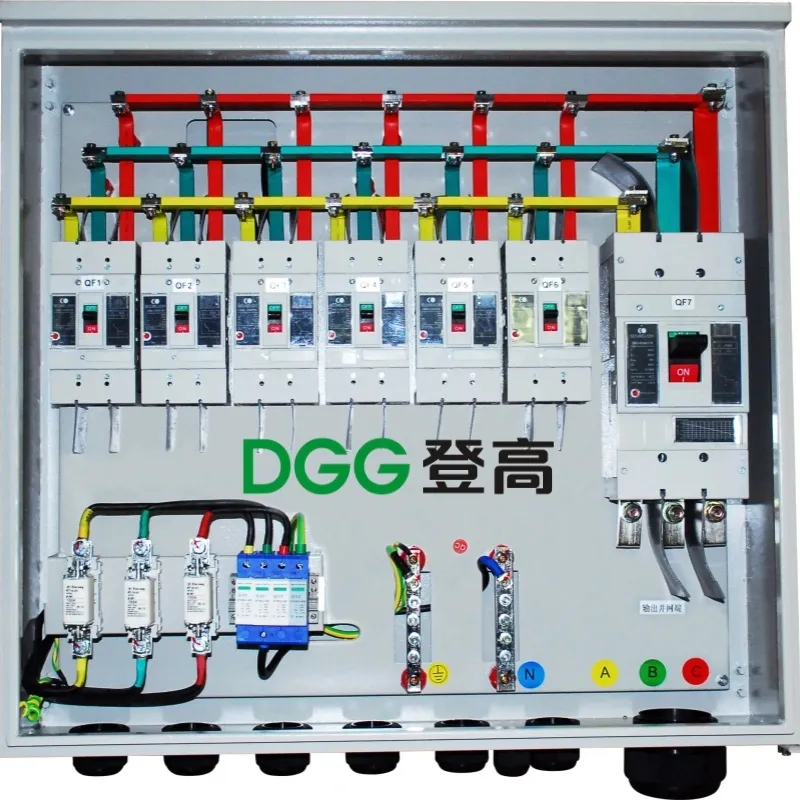

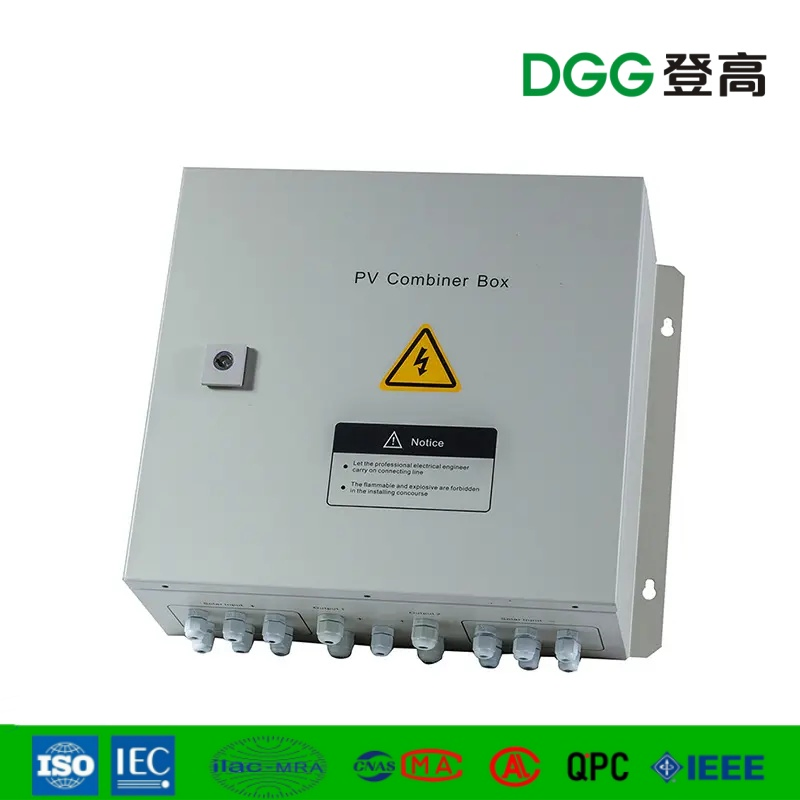

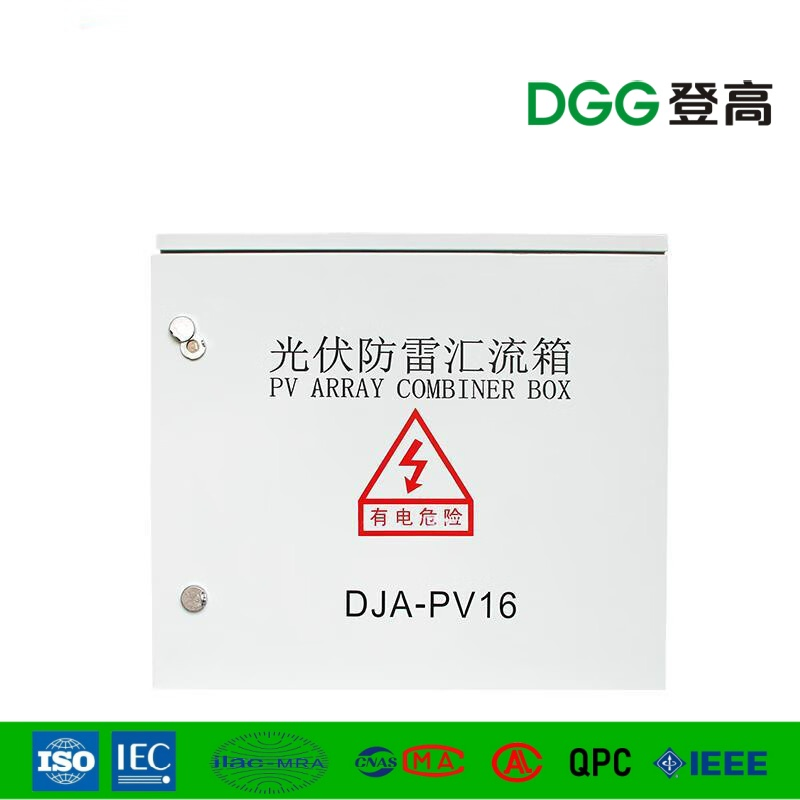

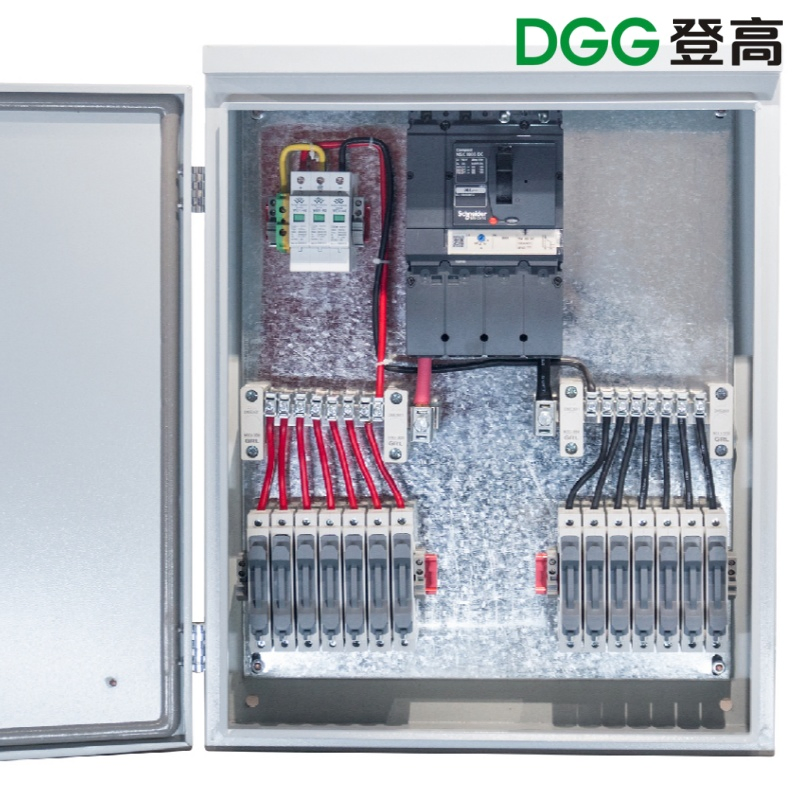

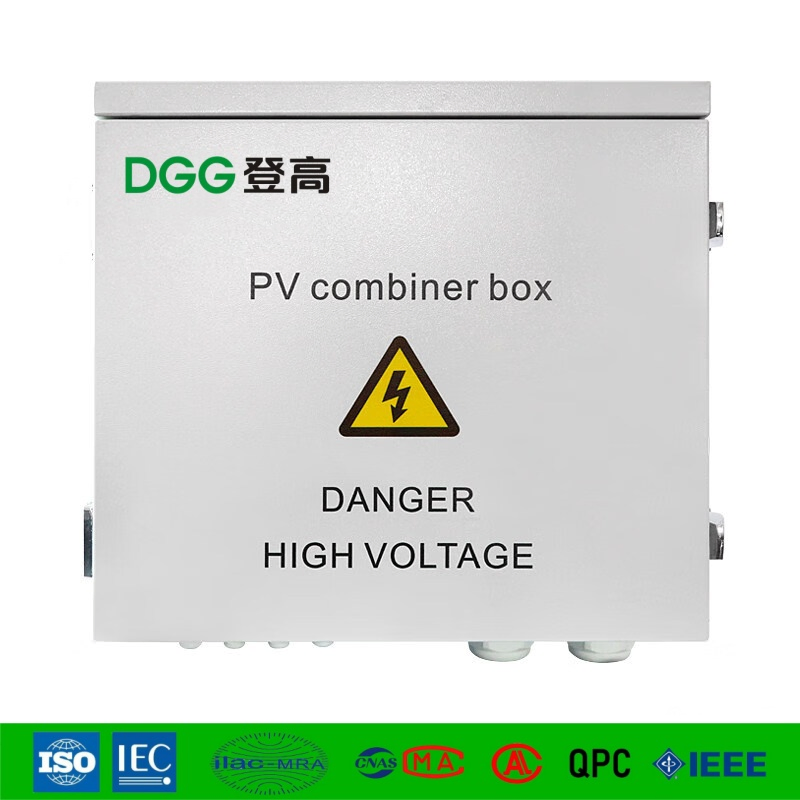

A combiner box refers to a system where users can connect a certain number of photovoltaic cells with the same specifications in series to form a series of photovoltaic cells. Then, several photovoltaic series are connected in parallel to the photovoltaic combiner box. After converging in the photovoltaic combiner box, a controller, DC distribution cabinet, photovoltaic inverter, and AC distribution cabinet are used together to form a complete photovoltaic power generation system, achieving grid connection with the mains power supply.
| Model | PVAC-10 | PVAC-13 | PVAC-20 |
|---|---|---|---|
| PV Array input | ≤12 | ≤16 | ≤24 |
| Analog input | 1 channel, 4-20mA/0-5V | 1 channel, 4-20mA/0-5V | 1 channel, 4-20mA/0-5V |
| Digital input | 2 channel, passive dry contract | 2 channel, passive dry contract | 2 channel, passive dry contract |
| Communication port | 1*RS485, 2500V isolation | 1*RS485, 2500V isolation | 1*RS485, 2500V isolation |
| Digital display | Accurate to 0.01 error≤5% | Accurate to 0.01 error≤5% | Accurate to 0.01 error≤5% |
| Power supply | 85-264V ac or 120-370V dc or 18-36V dc (selectable) | ||
| Working temperature | -35ºC to +70ºC (-30ºF to +158ºF) | ||
| Humidity | 5-95% no condensation | ||
| Surge immunity | GB/T17626-4-5 class 3 | ||
| Dimensions (W*H*D) | 317mm*44mm*80mm | 360.5mm*41mm*88.2mm | 317mm*44mm*88mm |
