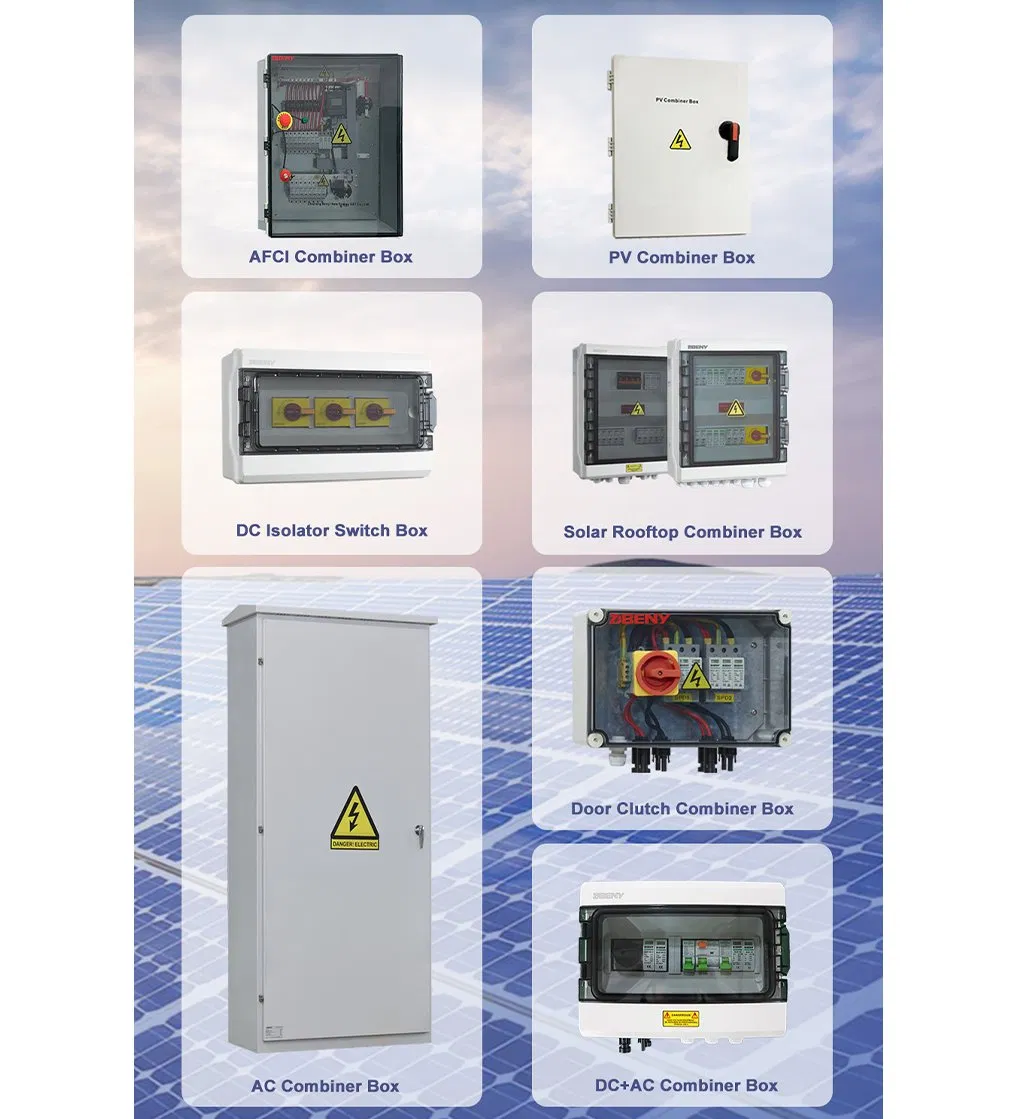

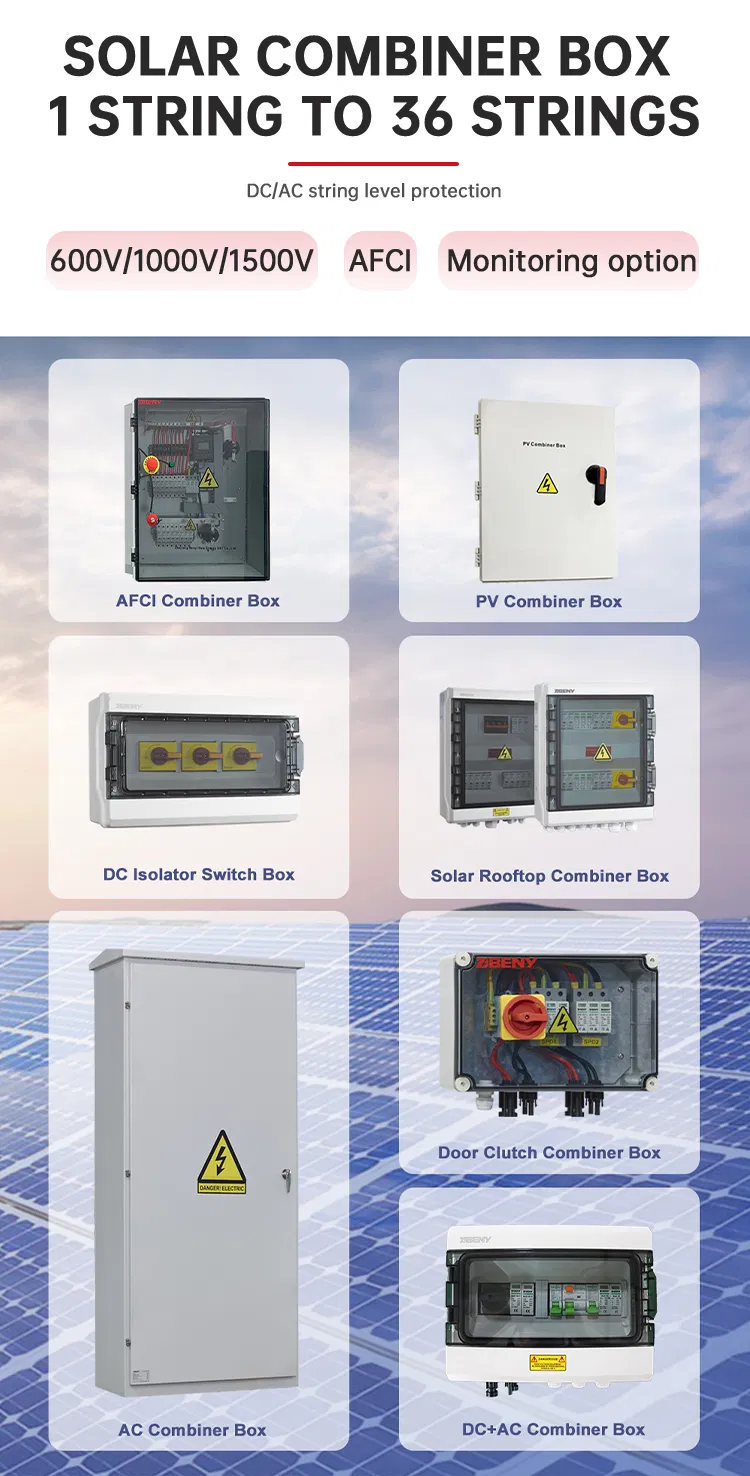

With over 30 years of experience in the electrical industry, we offer a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
Our production lines produce over 200w annually. We carry out rigorous quality testing to ensure durability under extreme environmental conditions.
Professional support in custom manufacturing stages, from design to material costing.
Each PV combiner box is checked thoroughly to ensure IP-rated, waterproof, and dustproof standards.
Utilizing the latest tools for automated manufacturing to fulfill bulk orders efficiently.

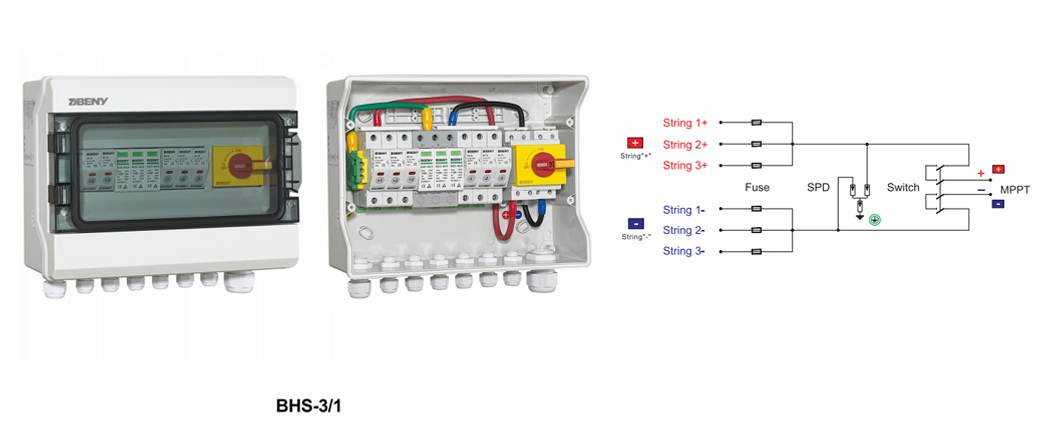

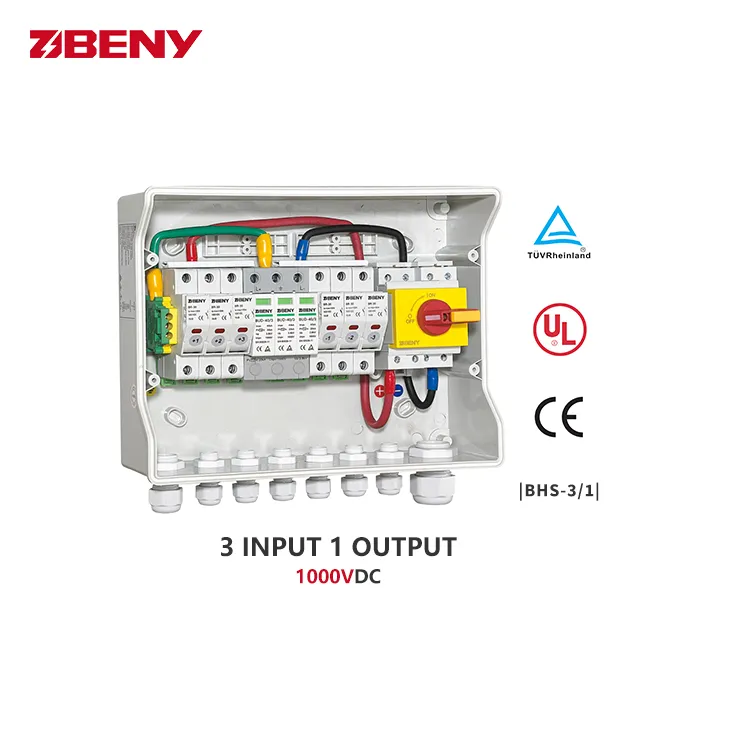

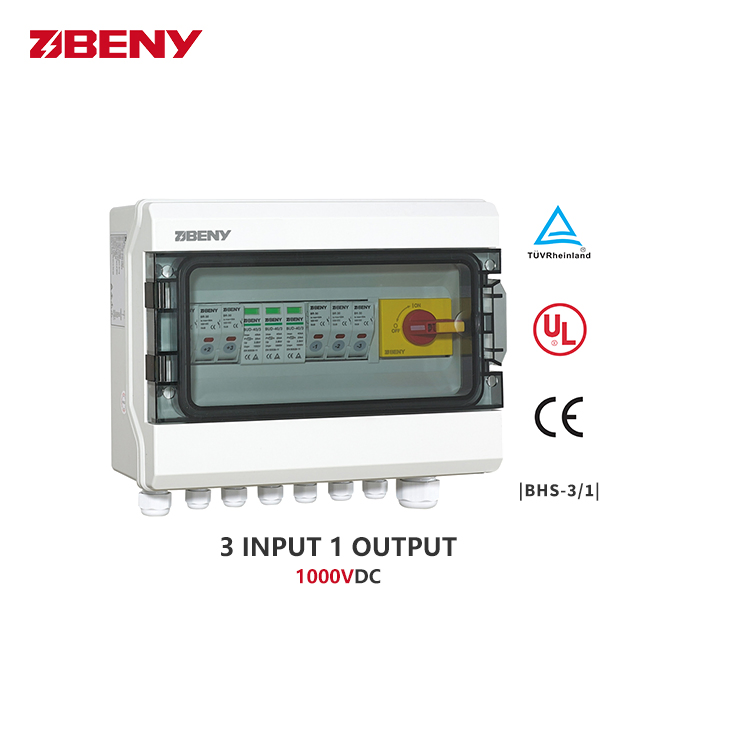

| General Data - Model BHS-3/1 | |
|---|---|
| Input / Output | 3 strings / 1 string |
| Maximum Voltage | 1000V |
| Max DC Short Circuit Current Per Input | 15A (Changeable) |
| Maximum Current Output | 32A |
| Enclosure Material | Polycarbonate/ABS (BX-13) |
| Degree of Protection | IP65 / IK10 |
| Dimensions (W*H*D) | 292*220*120mm |
| DC Switch Disconnector | BYT.2-32 (1000V 32A) |
| DC Surge Arrester | BUD-40/3 (1000V 40KA) |
| DC Fuse Holder | BR-30 (1000V 15A Link) |
| Certifications | UL, TUV, KEMA, SAA, CE, CB |
Waterproof, dustproof and anti-corrosion for long-term outdoor use.
Multiple strings input up to 24 solar strings, max 30A per string.
Pluggable surge protector device for system safety.
High-quality circuit breakers prevent damages and accidents.

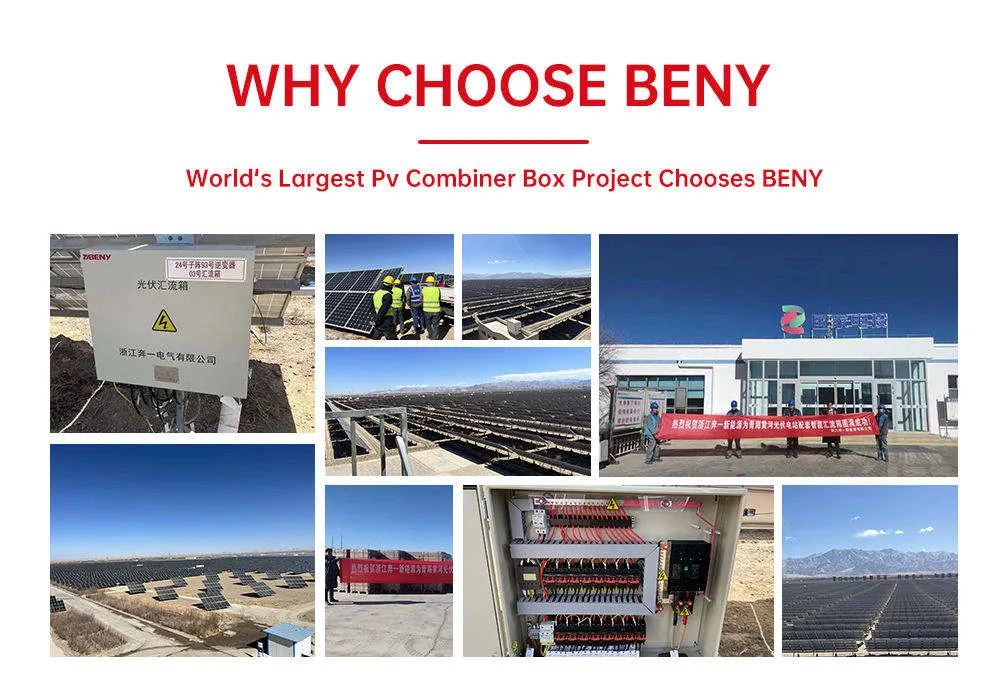

Our solutions are instrumental in the success of numerous photovoltaic, battery storage, and EV charging projects across Australia, Europe, USA, Brazil, and Asia. We attend major exhibitions annually to keep pace with cutting-edge technology and market demands.
