| Model NO. | Solar-BHS-3-1 |
| Certification | CE/UL/TUV |
| Operation Voltage | High Voltage (1000V) |
| Application Range | PV Solar |
| Shell Protection Grade | IP65 |
| Input / Output | 3 Inputs / 1 Output |
| Warranty | 5 Years |
With 30+ years of experience in the electrical industry, we offer a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
Our production capacity exceeds 200w annually, supported by over 10 production lines to handle orders of any volume with rigorous quality testing.
| General Data - BHS-3/1 | |
|---|---|
| Maximum Voltage | 1000V |
| Max DC Short Circuit Current Per Input | 15A (Changeable) |
| Maximum Current Output | 32A |
| Enclosure Material | Polycarbonate/ABS (IP65) |
| Impact Resistance | IK10 |
| Dimensions (W*H*D) | 292*220*120mm |
| DC Switch Disconnector | BYT.2-32 (1000V, 32A) |
| DC Surge Arrester | BUD-40/3 (1000V, 40KA) |
| DC Fuse Holder | BR-30 (1000V, 15A Link) |
We provide tailored features to meet specific inverter requirements, including:

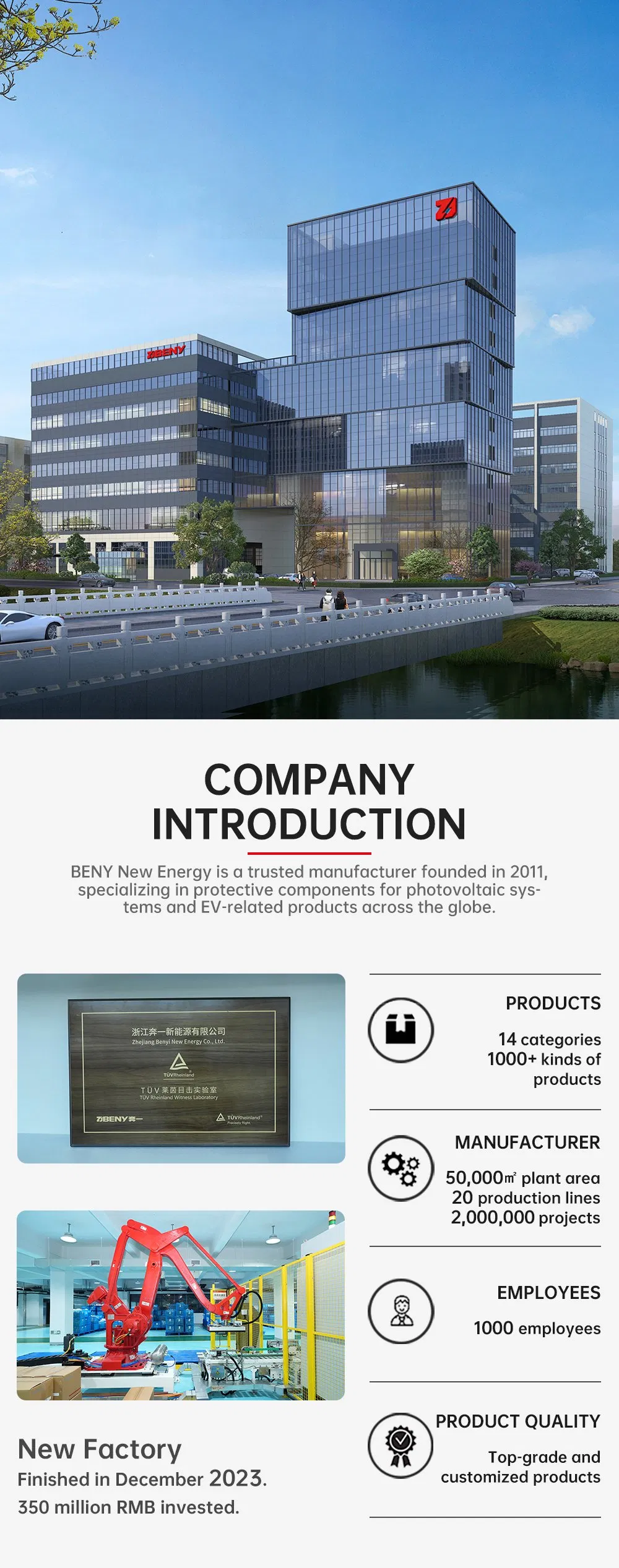

A trusted global manufacturer of protective components for photovoltaic systems. With over 30 years in the electrical industry, we produce solar DC components that comply with the latest international standards.
Our solutions are instrumental in projects across Australia, Germany, France, USA, Brazil, South Africa, and Southeast Asia. We support solar power system manufacturers, project contractors, and EV charging operators worldwide.
