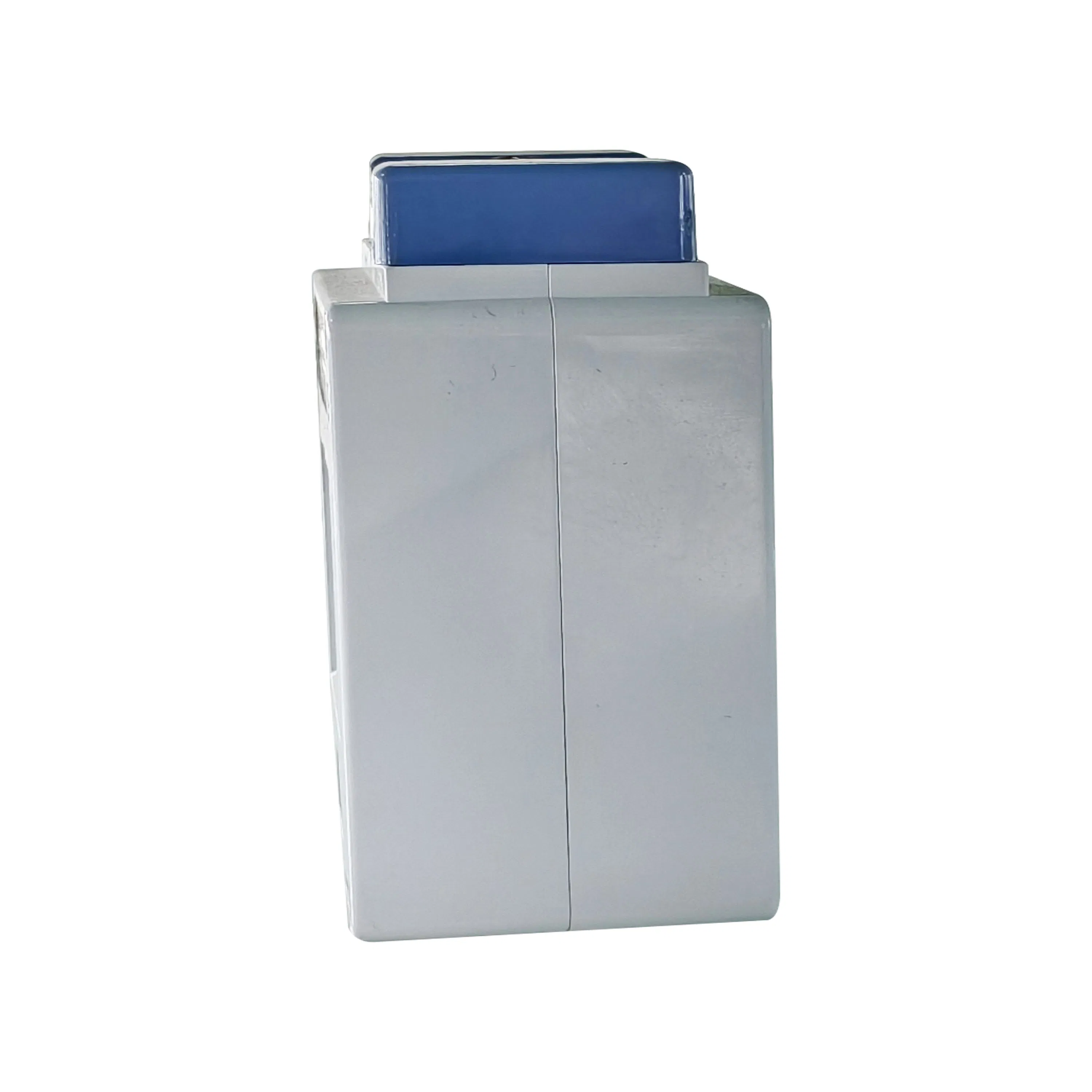

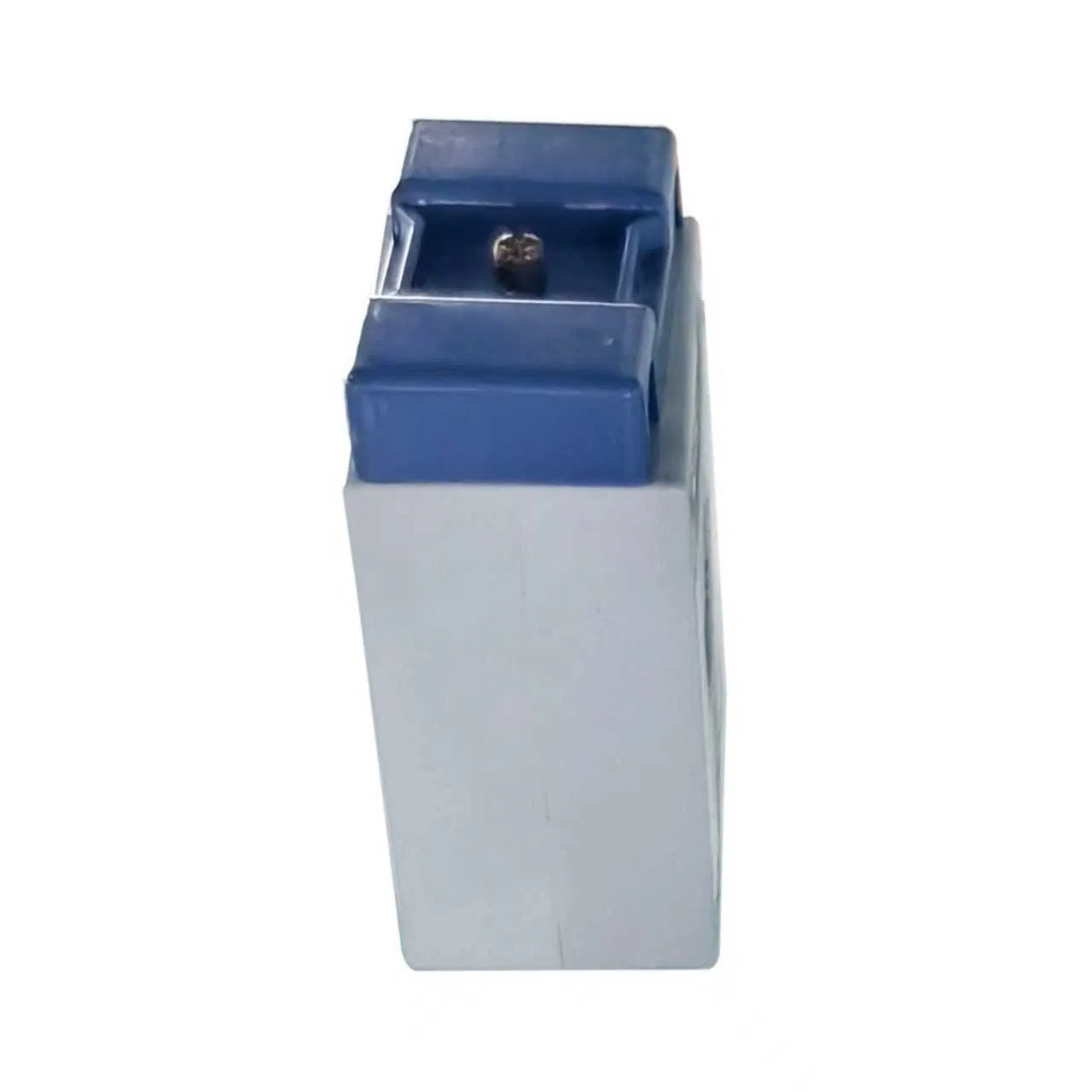

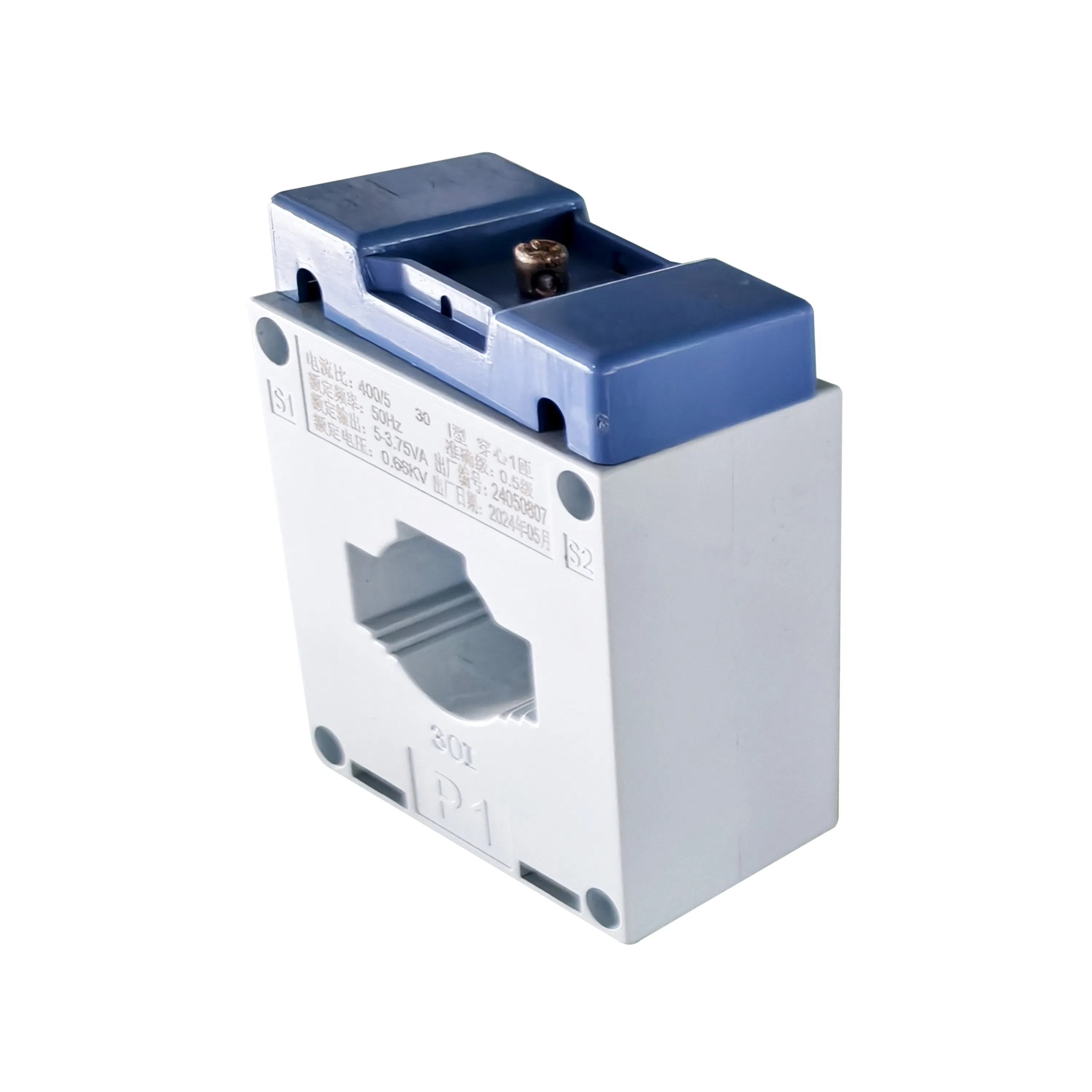

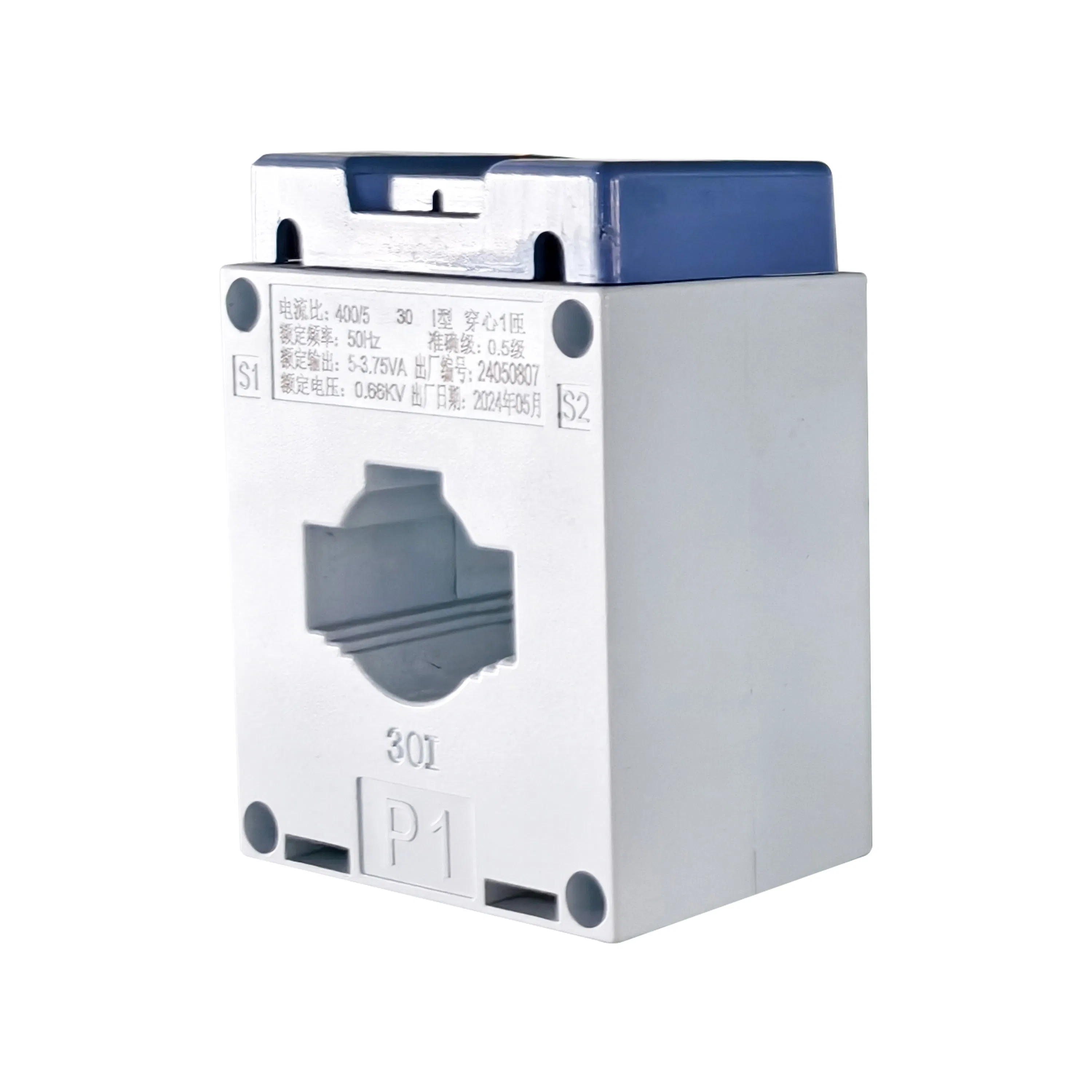

Gas Filled Affordable Transformer with Customizable Options and Quick Delivery

Customization:	Available
Breaking Capacity:	Cabinet
Operation:	Electric Type

Technical Specifications

Model NO.

LXZ

Speed

Normal Type Circuit Breaker

Arc-extinguishing

Air

Installation

Fixed

Structure

ACB

Poles Number

1

Type

CT

Function

Overcurrent Protection

Certification

VDE, ISO9001-2000, CCC

Warranty Period

12~24 months

Customized

Yes

Material

Plastic

MOQ

1 PC

HS Code

85043110

Packaging & Logistics

Package Size

40.00cm * 30.00cm * 15.00cm

Gross Weight

15.000kg

Delivery Time

1-2 Weeks

Transport Package

Wooden Case

Product Overview

Discover the groundbreaking Gas Filled Cabinet Core Balance CT, a stellar innovation engineered with flawless precision for robust three-phase cable grounding protection, tailor-made for small grounding current systems. Ideally designed for indoor applications, it adeptly supports a rated frequency of 50 or 60Hz and a rated voltage of up to 35kV. Seamlessly integrated with relays, it offers superior functionality and unmatched precision.

The LXZ-Φ type Gas Filled Cabinet Core Balance CT distinguishes itself with a superior primary insulation system. It rigorously assesses the insulation performance of its secondary winding to withstand a voltage of 3KV to the ground for an entire minute, ensuring exceptional, unwavering reliability.

■

Model Meaning: L (Current Transformer), XZ (Design Series), Φ (Through Hole Diameter in mm).

■

Magnetic Core Material: Transformative blend of Nanocrystalline Alloy and Silicon Steel for exceptional performance.

■

Insulation System: Vacuum Cast Epoxy Resin ensures durability, moisture-proofing, and corrosion resistance.

■

Installation Method: Versatile Guide Rail Installation (DIN-Rail Mount) and Panel Mount options.

Application Scenarios

✔

Distribution Cabinet Monitoring

✔

Energy Management Systems (EMS)

✔

Photovoltaic Inverters (PV Inverters)

✔

Motor Protection Systems

Technical Parameters

Transformation Ratio(A)	Relay Type	Connection Type	Relay Scale Value	Primary Residual Acting Current(A)	Weight(Kg)
60/1	DD-11/60	Series	151 / 301	2.4 - 4.5	4.5
		Parallel	152 / 302	3 - 5
		Series	151 / 301	3 - 6
		Parallel	152 / 302	3 - 6

Frequently Asked Questions

What is the primary function of the Gas Filled Cabinet Core Balance CT?

It is primarily used for robust three-phase cable grounding protection in systems with small grounding currents, suitable for indoor environments up to 35kV.

What materials are used for the core and insulation?

The magnetic core utilizes a blend of Nanocrystalline Alloy and Silicon Steel, while the insulation system is made of Vacuum Cast Epoxy Resin for moisture and corrosion resistance.

How can this transformer be installed?

It offers flexible installation options, including Guide Rail (DIN-Rail) mounting and Panel mounting.

What is the rated frequency and voltage capacity?

The device supports a rated frequency of 50Hz or 60Hz and is designed for systems with a rated voltage of up to 35kV.

What is the insulation performance level?

The secondary winding is tested to withstand a power frequency voltage of 3KV to the ground for one minute without failure.

What does the "Φ" in the model name represent?

The Φ symbol represents the through-hole diameter in millimeters (e.g., Φ50 indicates a 50mm diameter hole).
