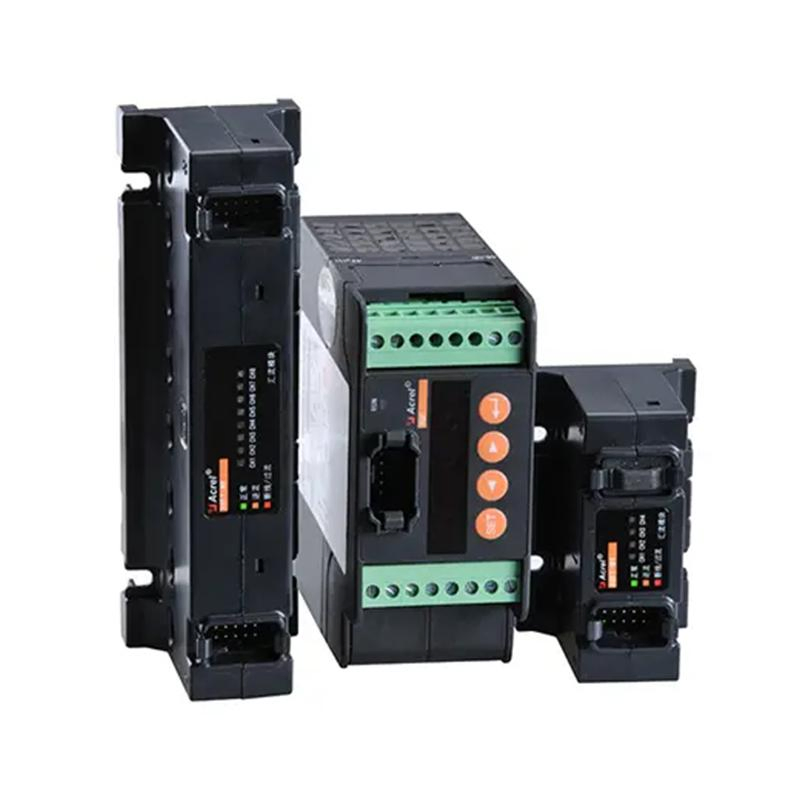

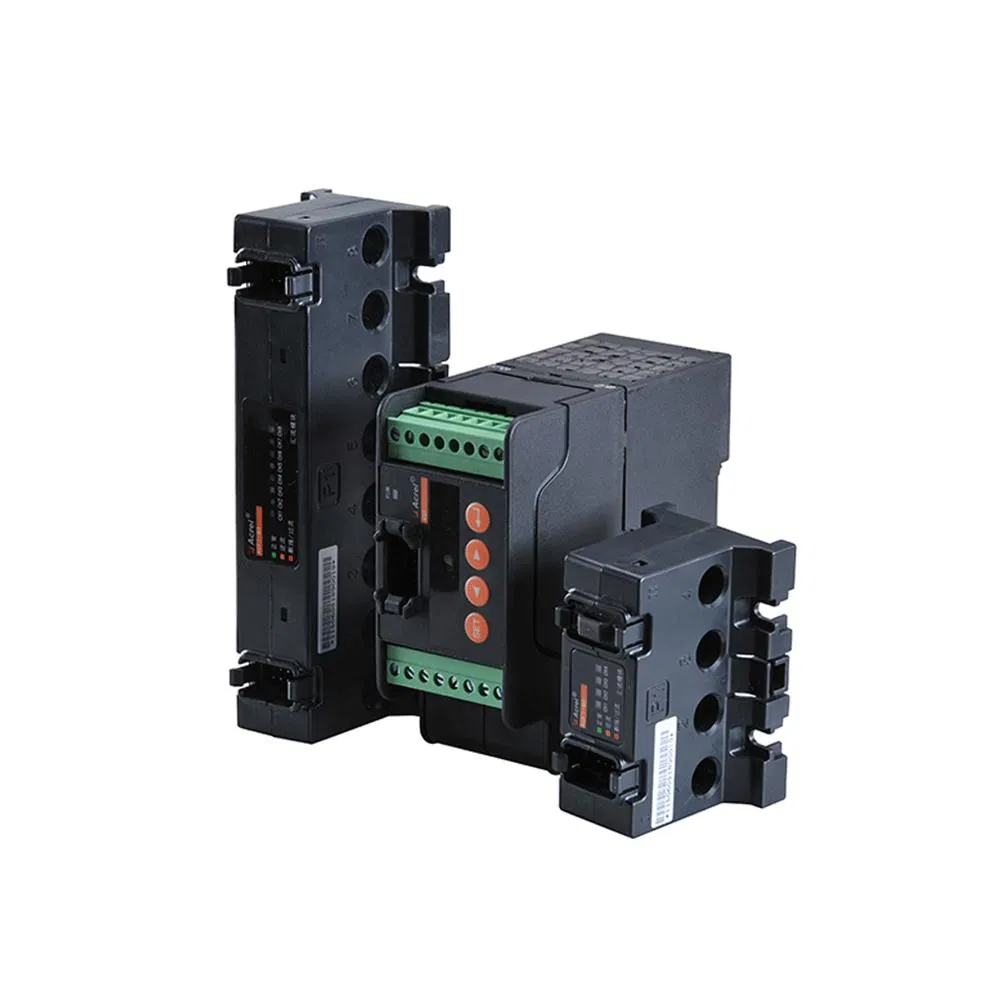

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box
| Type | Description | Standard Function | Optional Function |
|---|---|---|---|
| AGF-M4T - M24T | 4 to 24 circuits DC0-20A Photovoltaic confluence detection | 1. 3.5KV hall isolation 2. RS485 Modbus-RTU 3. Accuracy 0.5 class 4. 0-1000V voltage measurement 5. 3 sets status inputs 6. Power: DC1000V/DC1500V |

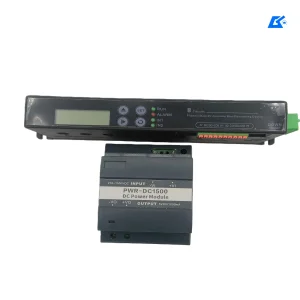

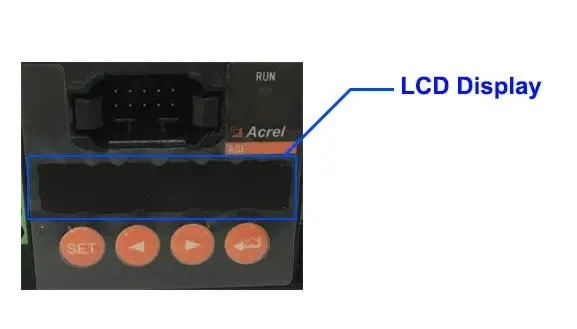

1. MJ (Analog input + Relay output) 2. B (Power filter module) 3. L (LCD) 4. P2/P3 (Auxiliary power options) |

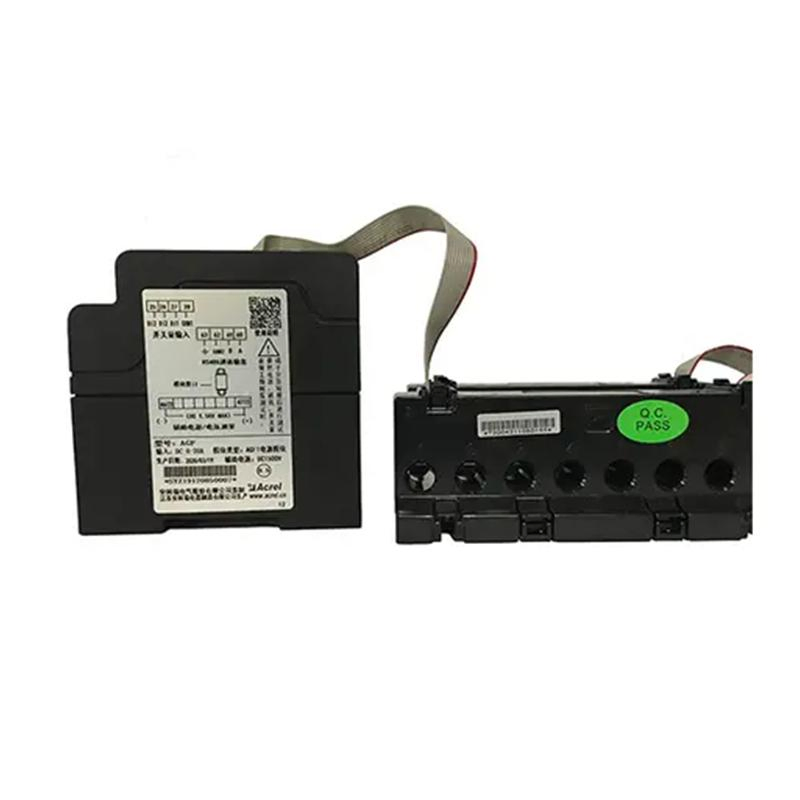

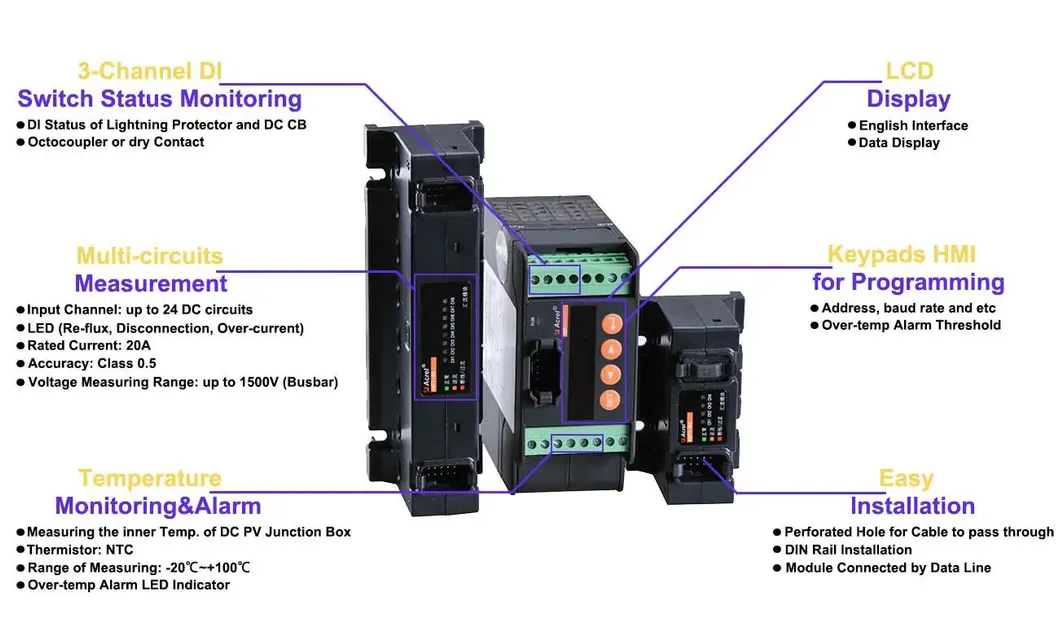

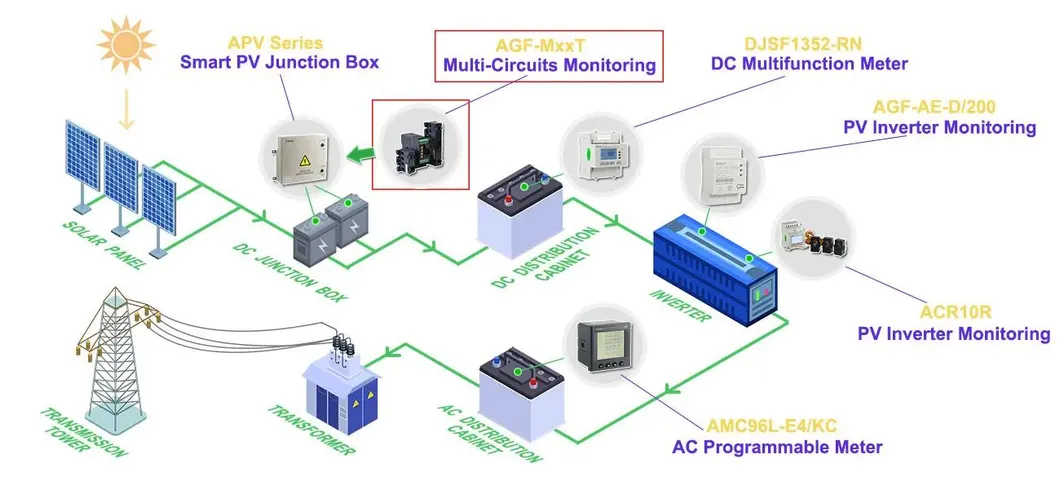

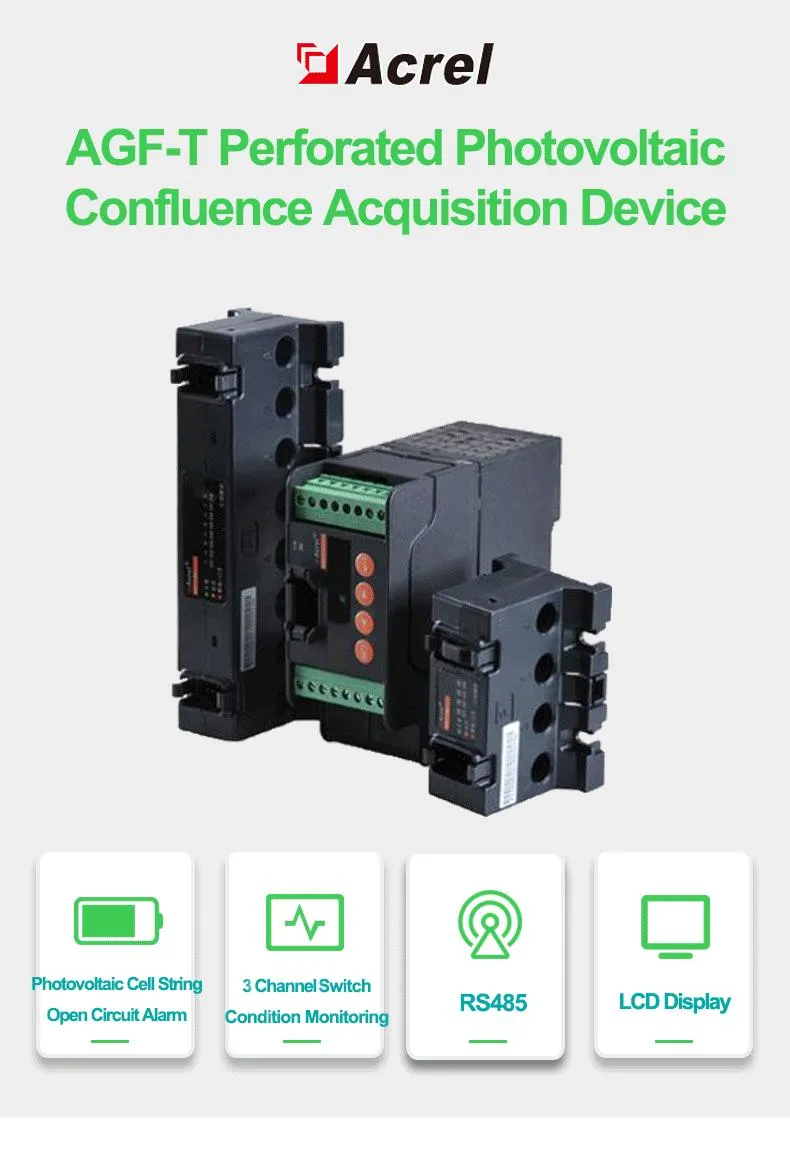

AGF-T Perforation types PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels, measuring currents, and detecting surge protection device states.

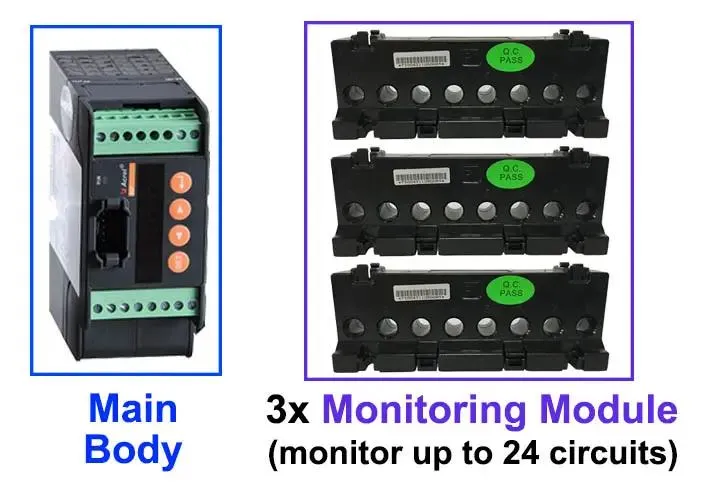

Input Channel: up to 24 Circuits

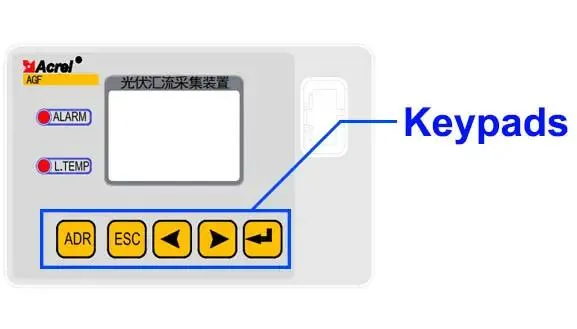

LED Indicator for Re-flux, Disconnection, Over-current
Rated Current: 20A | Accuracy: 0.5 Class
Voltage Measuring Range: up to 1500V

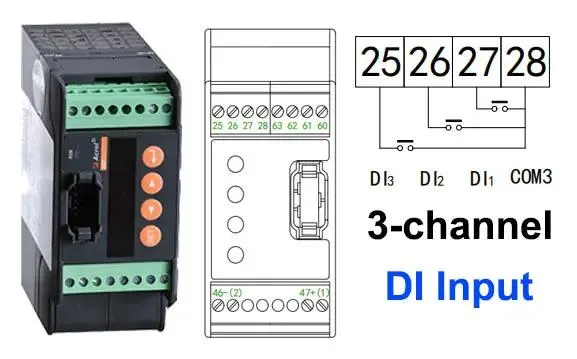

DI Status of Lightning Protector and DC Circuit Breaker
Supports Optocoupler or Dry Contact modes.

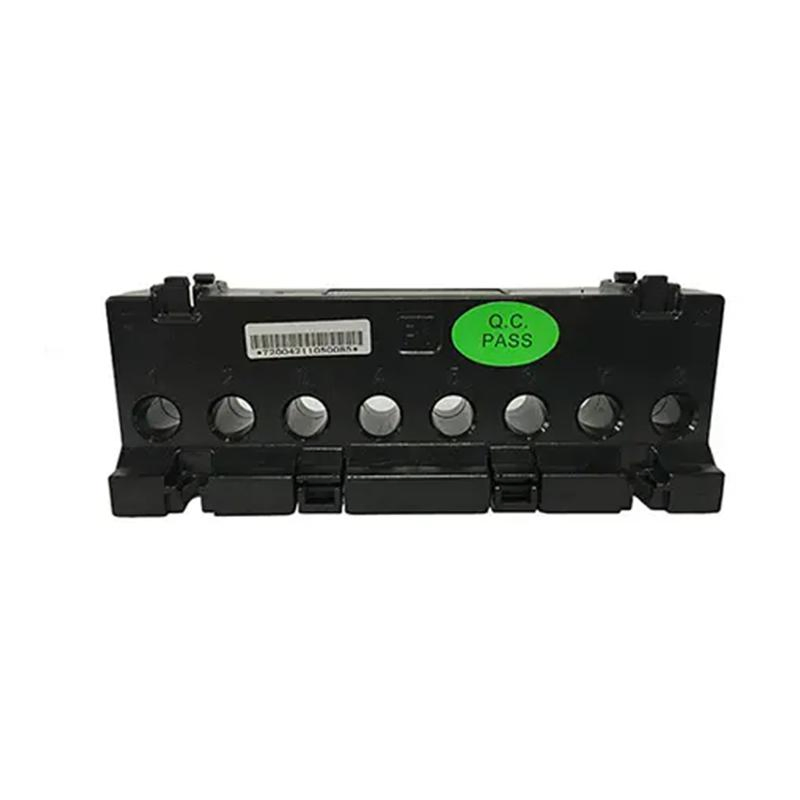

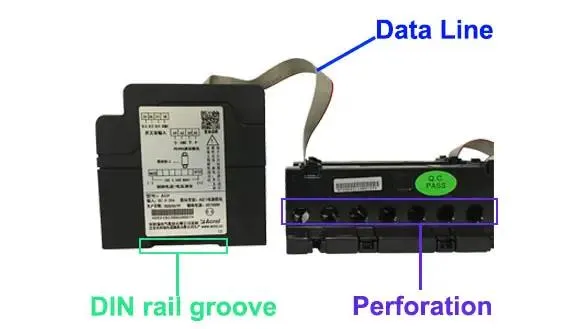

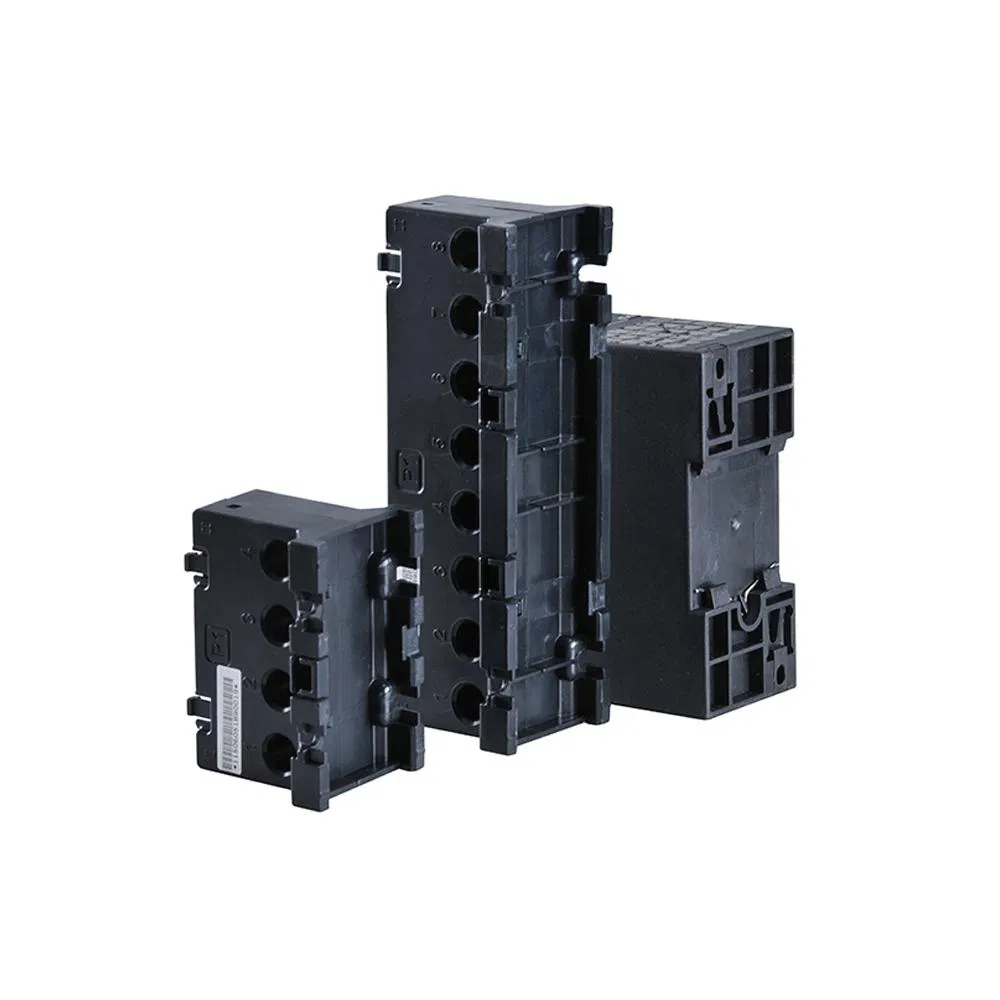

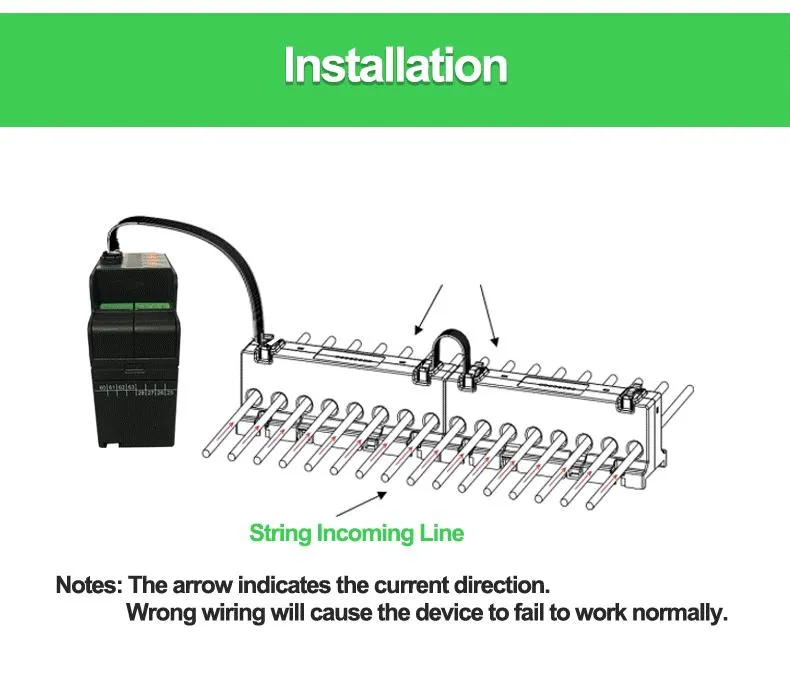

Perforated Hole for cable passing through.

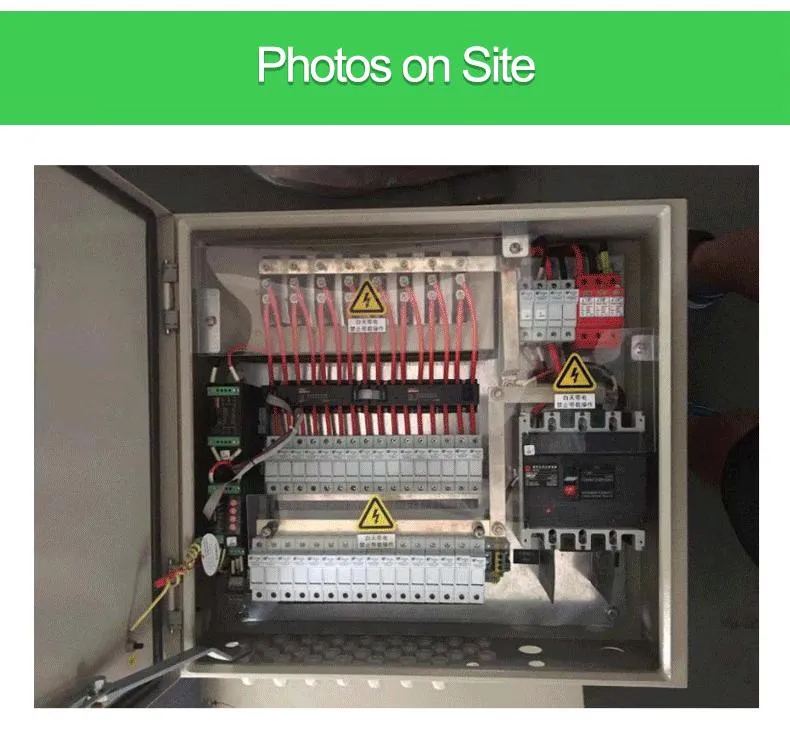

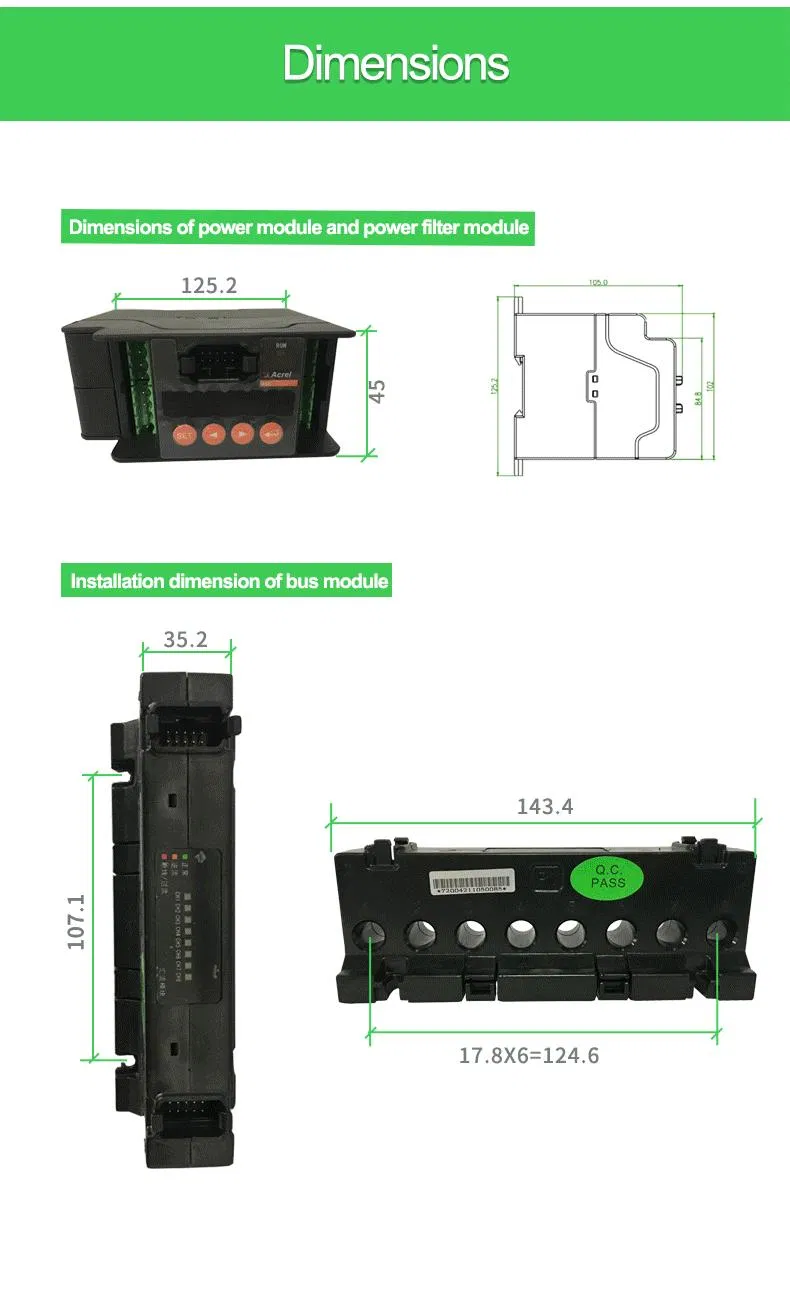

Standard DIN Rail Installation.

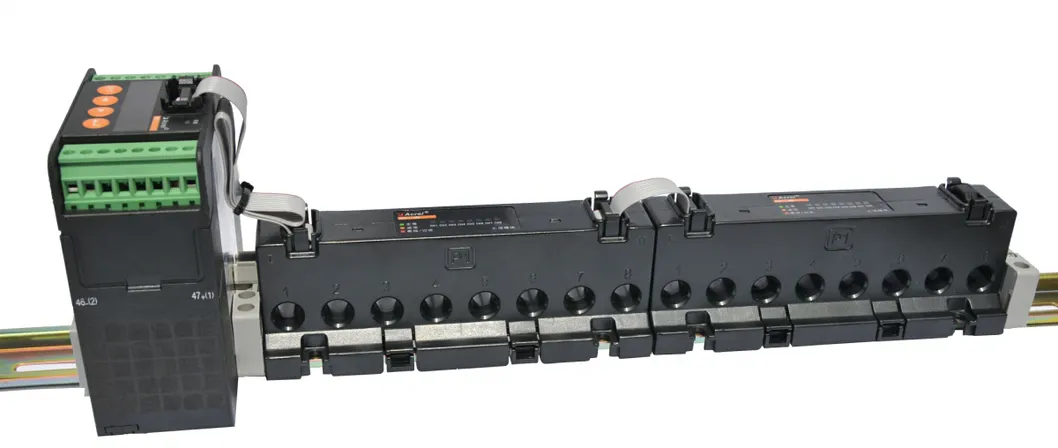

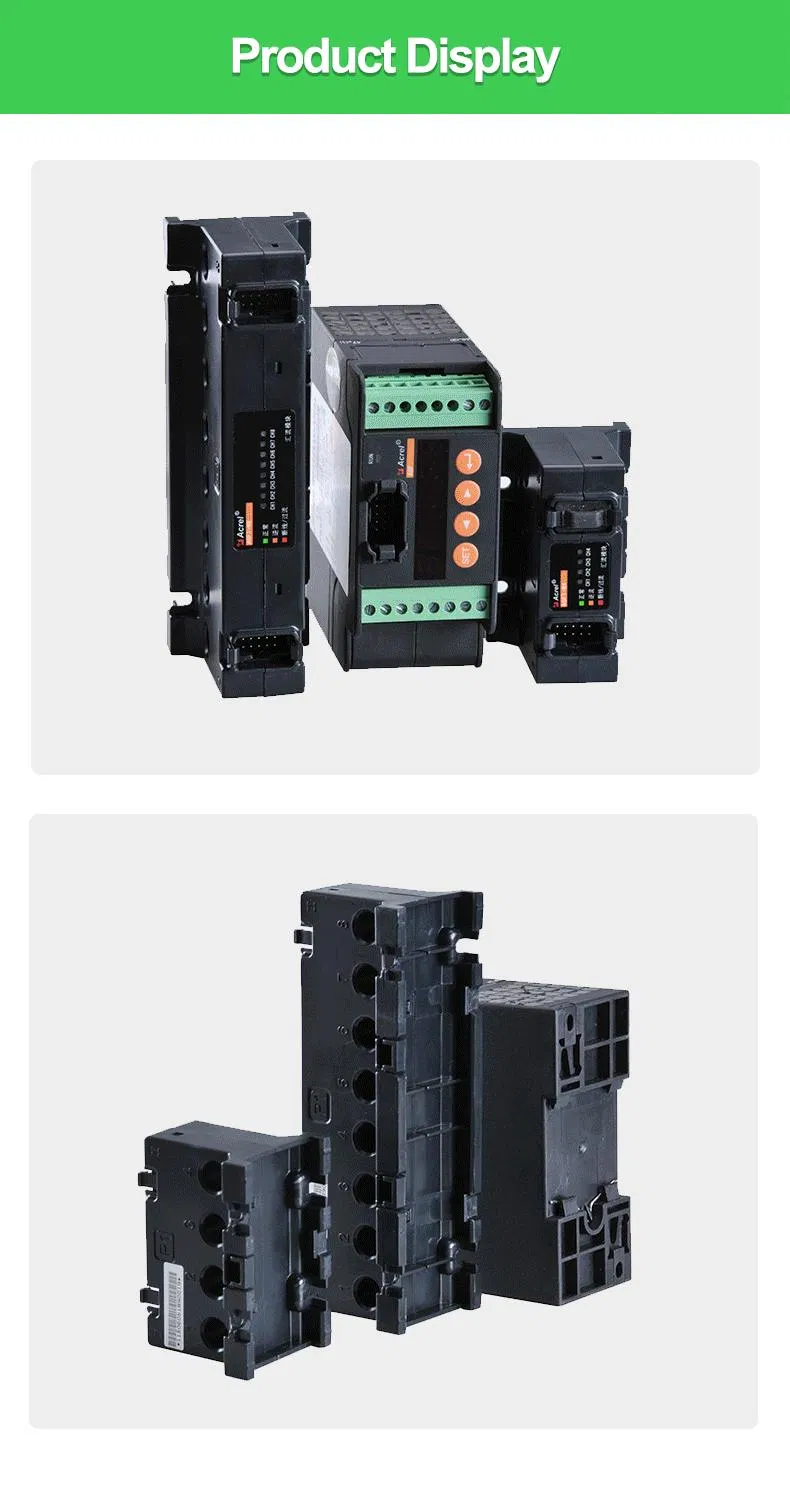

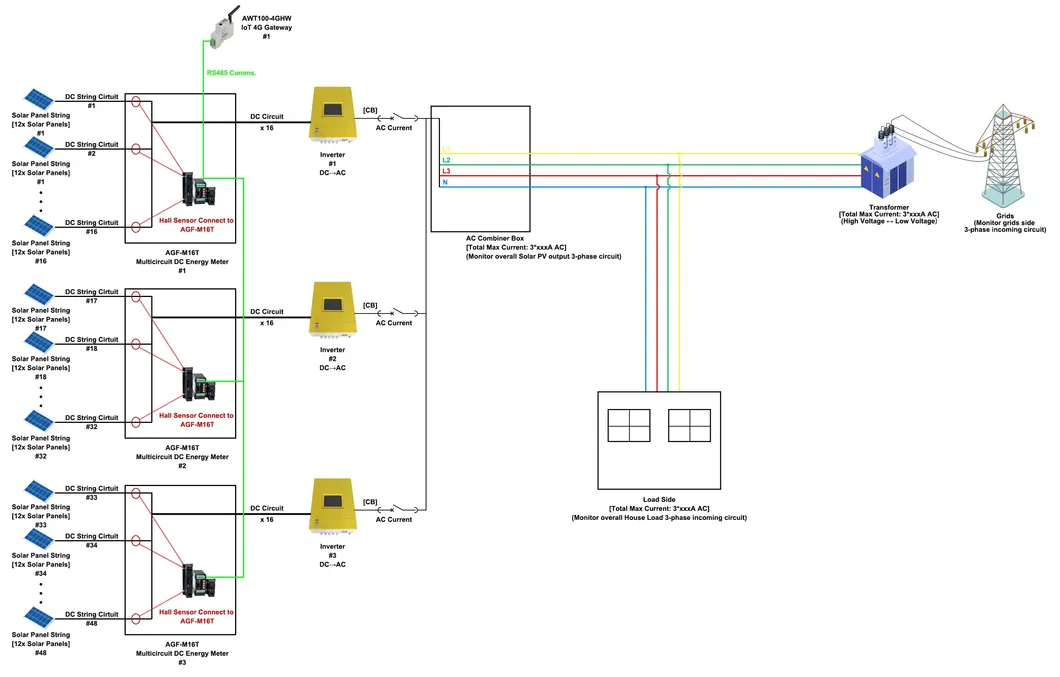

Modular connection via data lines.
| Item | Details / Range |
|---|---|
| Input Channels | 4, 8, 12, 16, 20, 24 |
| Rated Current | DC 0~20A |
| Response Time | 1s |
| Accuracy | 0.5 class |
| Communication | RS485/Modbus-RTU, 4800-38400bps |
| Switch Input | 3-way (optocoupler or dry contact) |
| Working Temp | -35~+65ºC (Display: -20~+70ºC) |
| Altitude | ≤3000m |
| Industrial Frequency Voltage | AC 2kV~3.5kV / 1min |
| EMC Standards | GB_T 17626.2/4/5/8 |
