ABB 3hac029818-001 Dsqc663 Drive Unit for ABB Robots

1 / 5

ABB 3hac029818-001 Dsqc663 Drive Unit for ABB Robots

Customization:	Available
Application:	Aerospace Industry, Automotive Industry, Electronics Industry, Food Industry, Metal Fabrication Industry, Pharmaceutical Industry, Plastic Industry
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Basic Specifications

Model NO.	3HAC029818-001	Drive Mode	Electric
Degrees of Freedom	Robot Spare Parts	Type	Articulated Robot
Transport Package	Carton	Origin	Estonia
HS Code	85044095	Production Capacity	1000/Year
Package Size	20.00cm * 18.00cm * 15.00cm	Gross Weight	0.500kg

Product Description

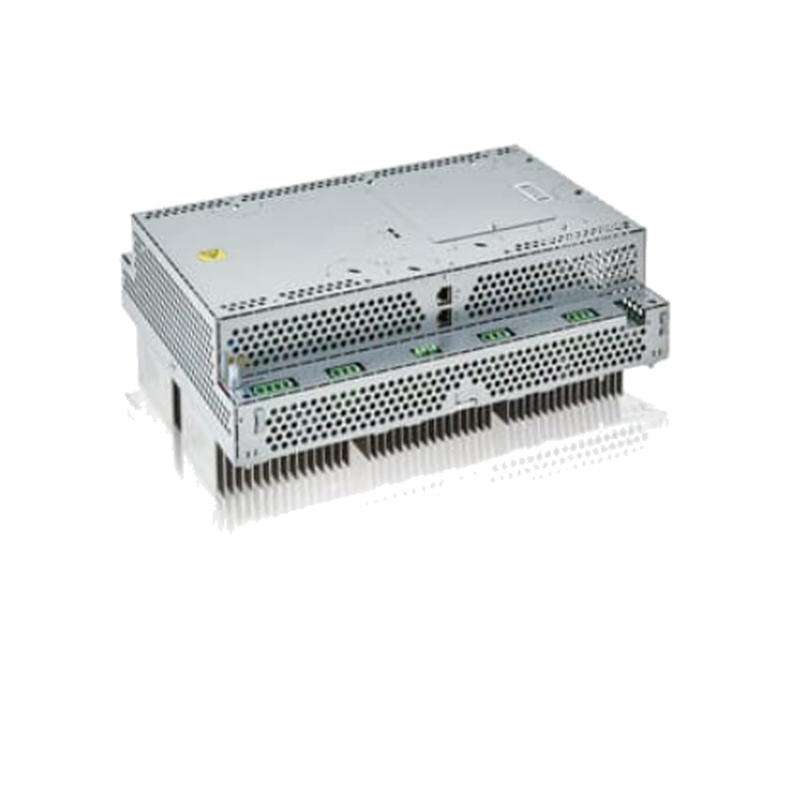

ABB DSQC 663 Drive Unit (3HAC029818-001) is a critical component designed for ABB's robot controllers like the IRC5. This module delivers precise power and control signals to the robot's motors, enabling accurate motion. It operates within a specific DC bus voltage and interfaces seamlessly with the robot's main computer.

Product Code	3HAC029818-001
Type	DSQC 663 Drive Unit
Application	ABB Robot Controllers (e.g., IRC5)
Function	Motor Power Control
Communication	Backplane with Main Computer

This drive unit is engineered for high reliability in continuous industrial operation. It features advanced monitoring circuits to protect against overcurrent and overheating. Its robust construction withstands vibrations typical in robotic cells, ensuring high uptime in production environments such as automated welding, material handling, and assembly.

Maintenance & Installation

Installation: Must be performed by qualified personnel with controller power disconnected. Adhering to ESD precautions is mandatory. A system start-up and calibration procedure is typically required after physical installation.

Maintenance: The unit requires no routine periodic maintenance. Ensure the controller cabinet is clean and cooling fans are functioning to prevent overheating. Periodically check that all electrical connections remain tight.

Frequently Asked Questions

What is the primary function of the ABB DSQC 663 drive unit?

The DSQC 663 regulates electrical power to the motors of an industrial robot. It amplifies low-power control signals from the main computer to high-power levels required for precise motor movement and executes complex control algorithms for torque and speed.

Which ABB robot controllers are compatible with this module?

It is primarily designed for the ABB IRC5 robot controller family, including single cabinet, dual cabinet, and spot weld variants. Always verify compatibility with your specific controller version using the spare parts manual.

What are the common symptoms of a failing DSQC 663?

Common signs include fault codes like "overcurrent" or "DC link under voltage," jerky robot movements, failure to maintain position, or unusual audible noises like clicking or buzzing from the controller cabinet.

Can a faulty DSQC 663 unit be repaired?

While technical repair is possible, it is generally recommended to replace faulty units with new or factory-reconditioned ones to ensure original safety specifications and prevent unplanned production downtime.

How can I troubleshoot communication errors with this unit?

Start by checking error logs and performing a power cycle. Inspect the physical backplane connections for cleanliness and ensure the unit is firmly seated. RobotStudio software can be used for real-time communication monitoring.

What is the difference between DSQC 663 and other IRC5 drive units?

The primary differences are power ratings and current output matched to specific robot axes. While they may look similar, units are not interchangeable arbitrarily; using the wrong model can cause equipment damage.
