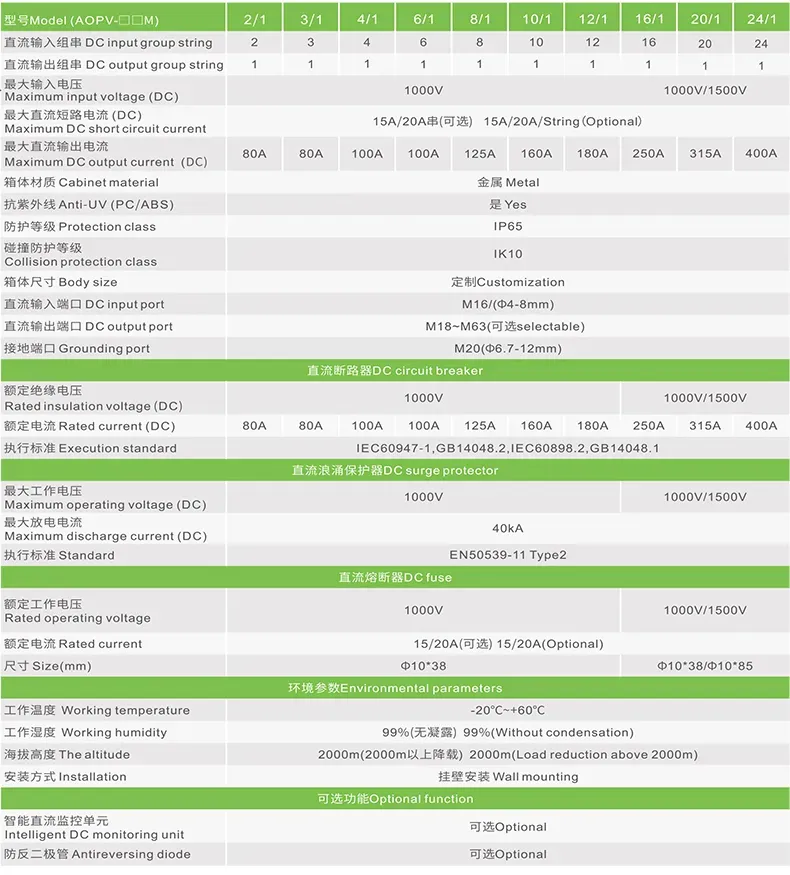

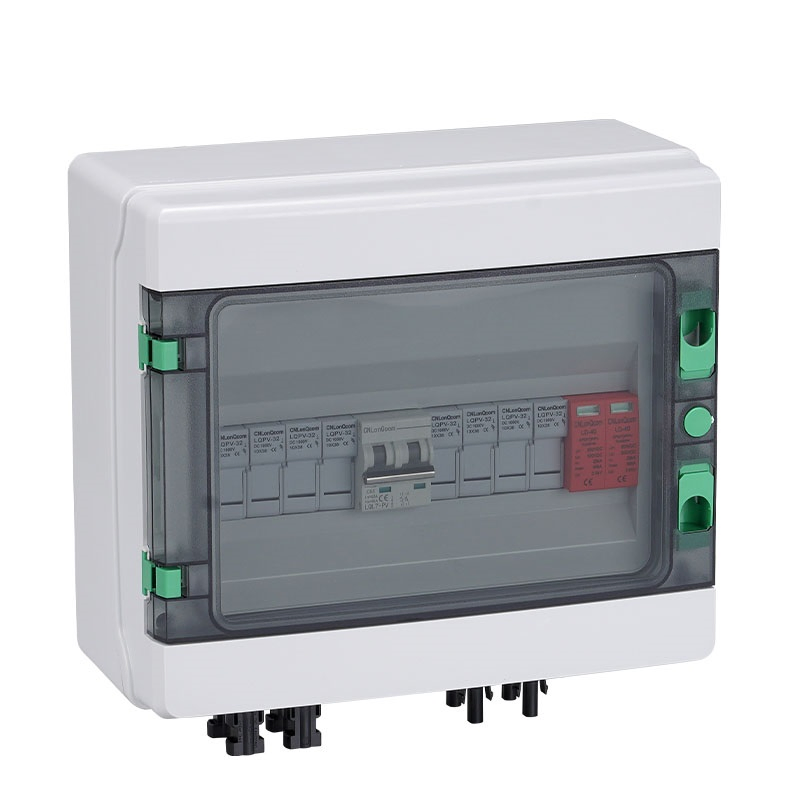

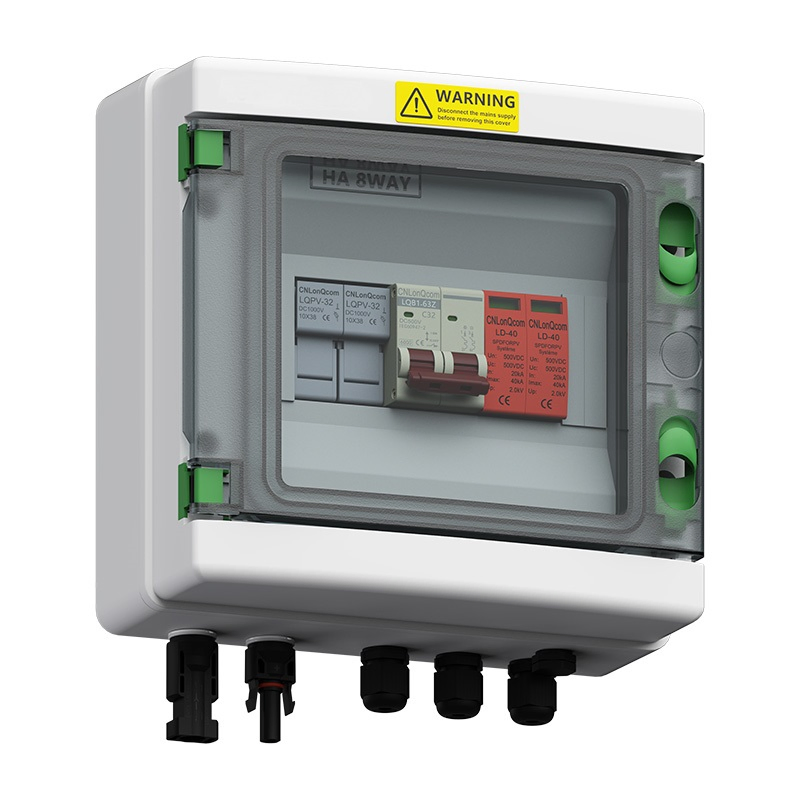

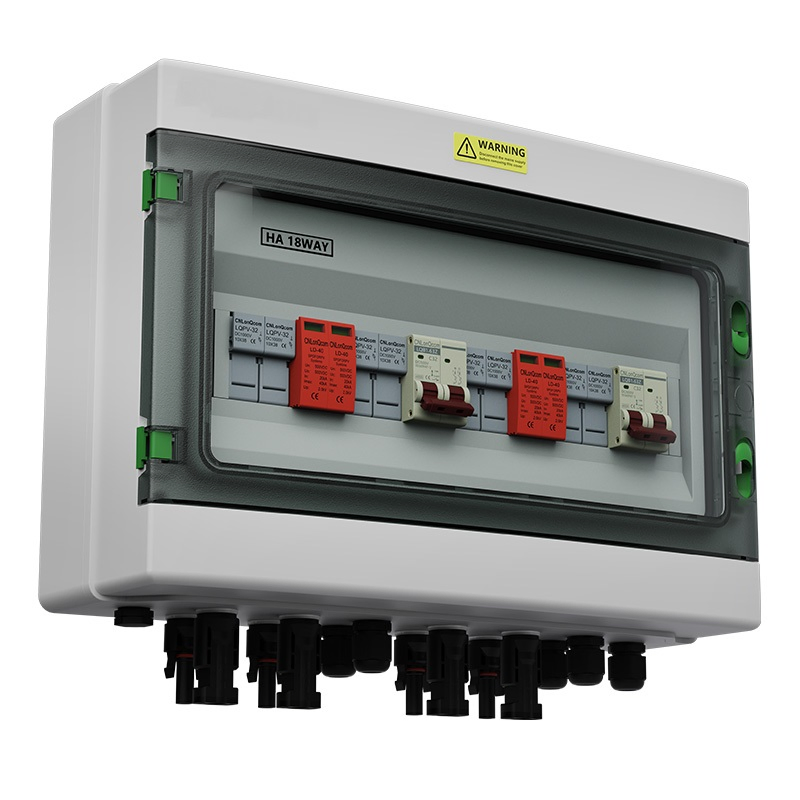

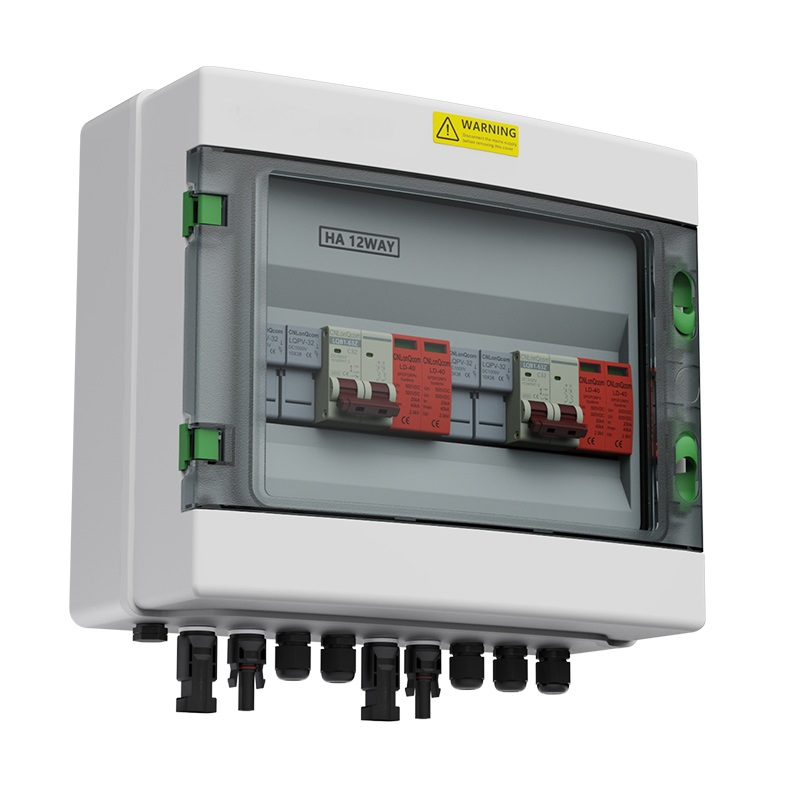

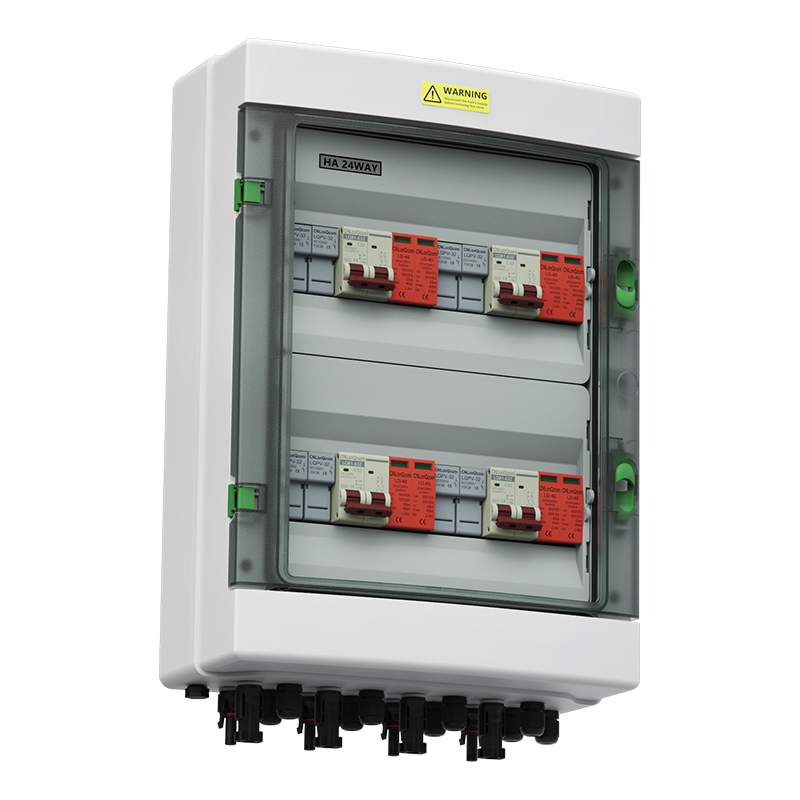

PV junction box 2 4 6 8 12 24 IN 1 OUT 2-24 Strings IP65 PV array Combiner Box. In the solar photovoltaic power generation system, in order to reduce the incoming line of solar photovoltaic cell array and inverter inspection, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add DC collector-shoe gear-PV combiner box.

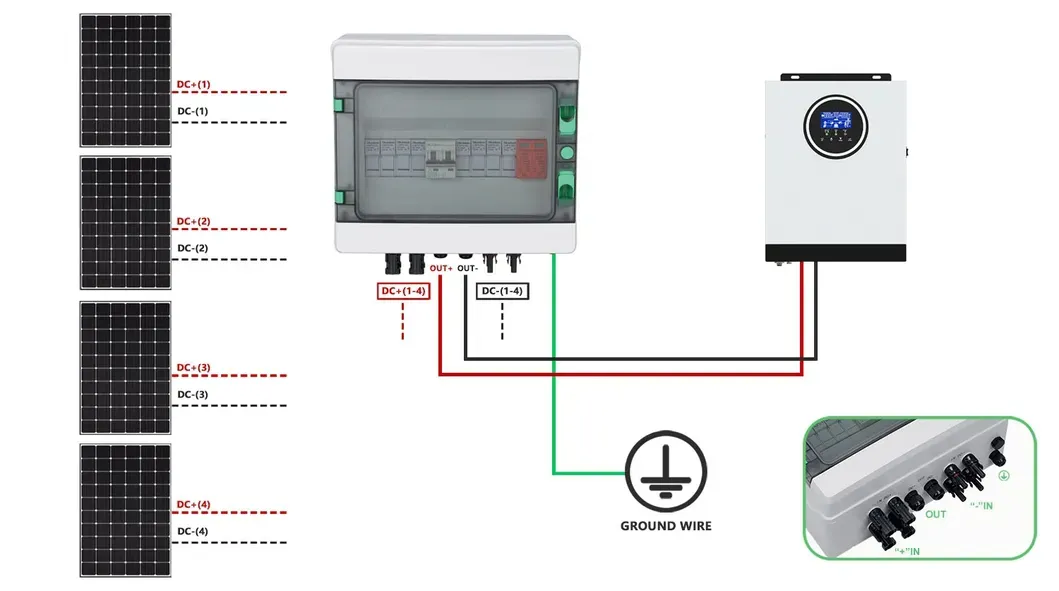

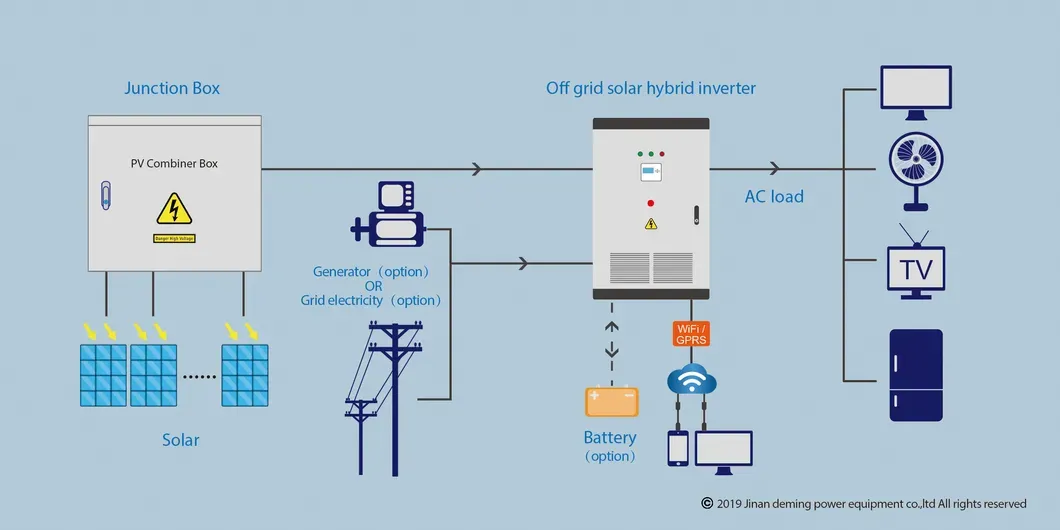

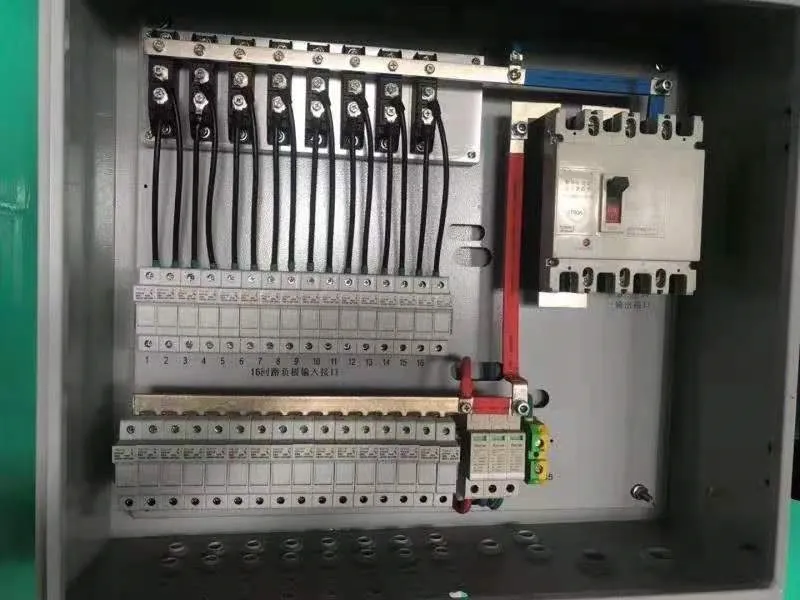

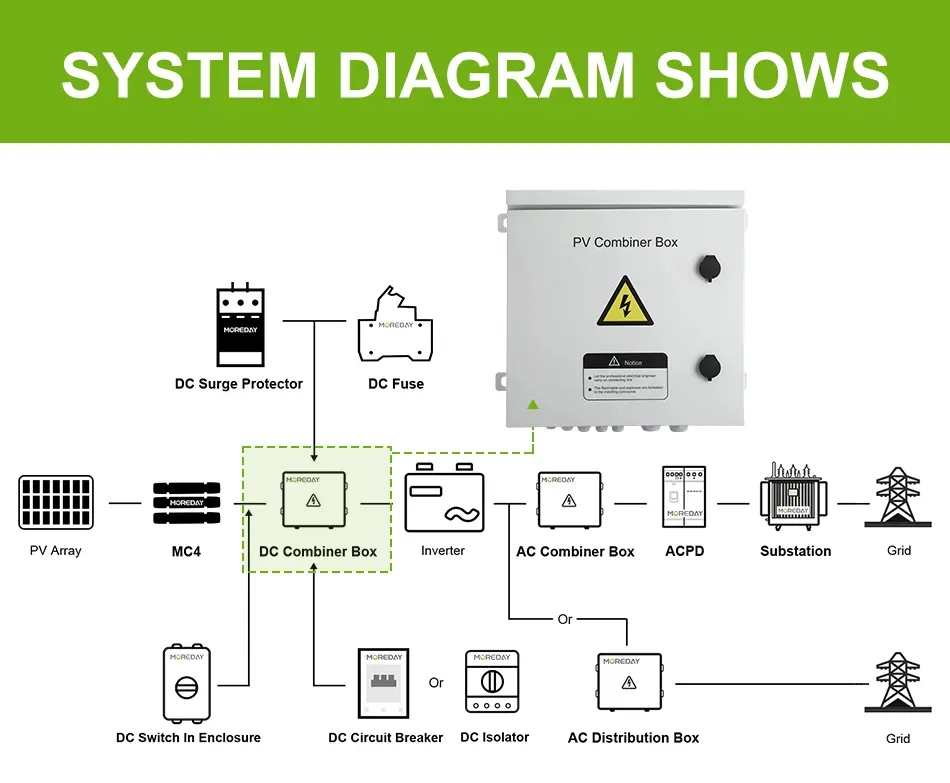

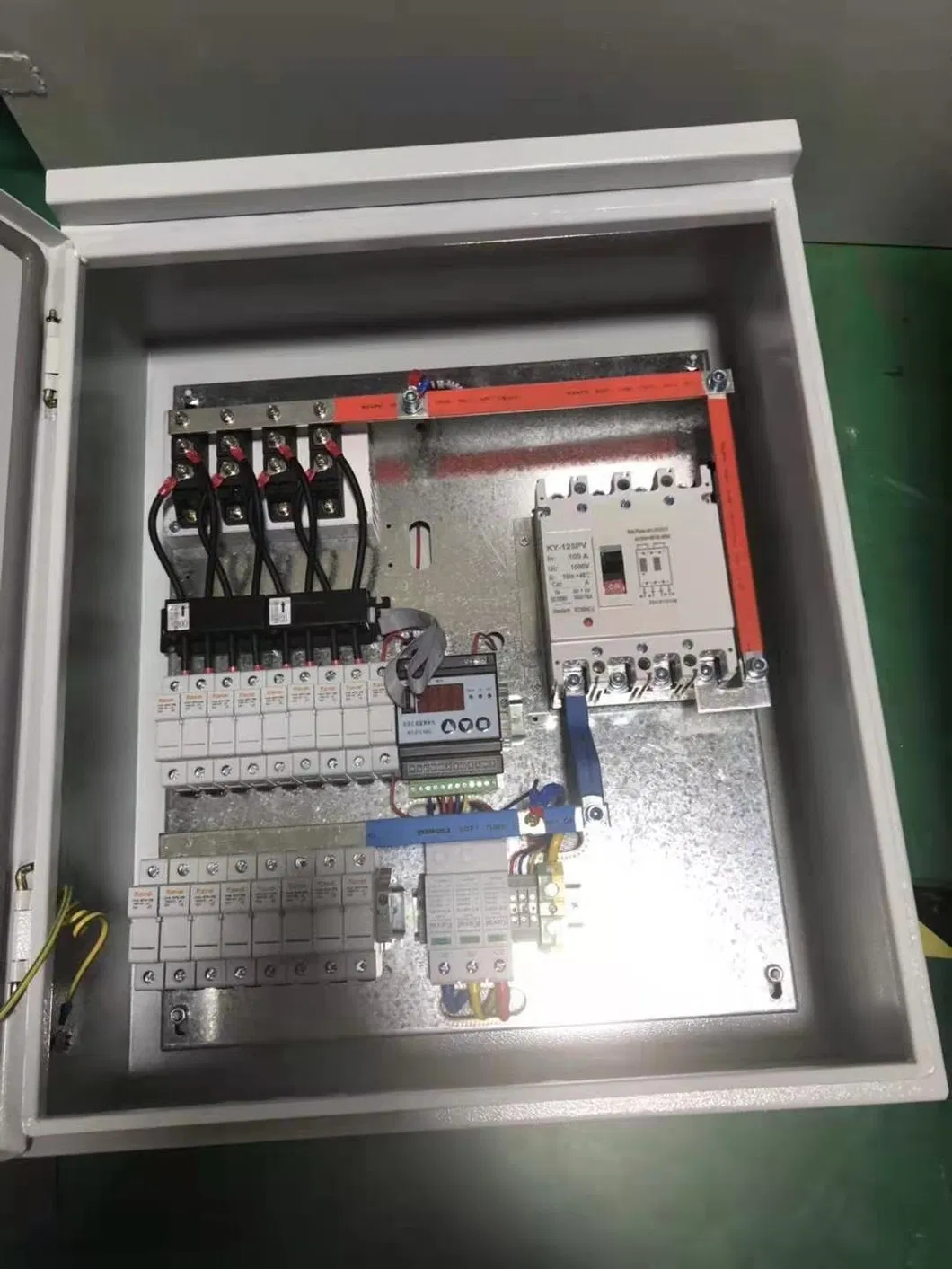

Users can connect a certain amount of photovoltaic cells with the same specification in series, form PV serials one by one, then connect several PV serials into PV combiner anti-thunder box. The output is then directed via lightning protector and circuit breaker to the PV inverter.
Frequently Asked Questions
What is the main purpose of a PV combiner box?
It is used to simplify the wiring between solar modules and inverters, providing centralized protection including over-current, over-voltage, and lightning protection.
What is the protection level for outdoor use?
This unit features an IP65/IP66 protection grade, making it fully dust-tight and protected against water jets, suitable for outdoor installation.
Can the number of input ways be customized?

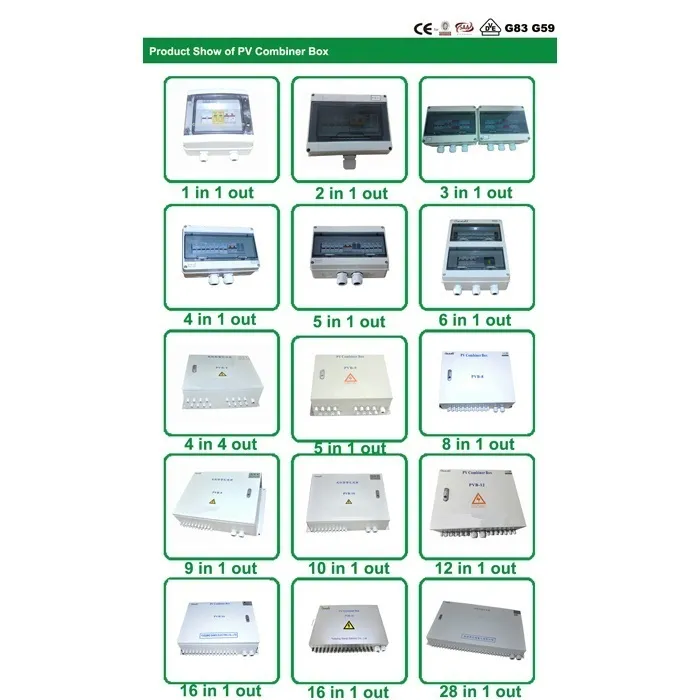

Yes, the input can be customized from 1 to 30 ways, and output from 1 to 5 ways depending on your system requirements.
What is the maximum DC voltage supported?
The combiner box supports wide DC voltage inputs, reaching up to 1000VDC to accommodate various solar array configurations.
Does the box include safety fuses?
Yes, it is equipped with special DC fuses for both positive and negative electrodes to ensure the safety of the back-end devices.
Is it easy to install on a wall?
Absolutely. The product is designed as a wall-mounted type, which simplifies installation and facilitates future maintenance and inspection.
