Product Description

📋 Basic Info.
Model NO.
MGV-DCPV4
Certification
ISO9001:2000, CCC, TUV CE CQC
Form
All-packaged Type
Operation Voltage
High Voltage
Size
1 Unit
Application Range
Power Plants
Shell Material
Plastic ABS
Shell Protection Grade
IP65
Name
PV Combiner Box
Input Current (Circuit)
15A
Max Output Current
30A
Strings
2
Voltage
500V
HS Code
8537109090
Production Capacity
500PCS/Month
📦 Packaging & Delivery
Package Size
29.00cm * 39.00cm * 24.00cm
Gross Weight
5.500kg
Transport Package
Paper / Wooden Carton
🛠️ Product Description

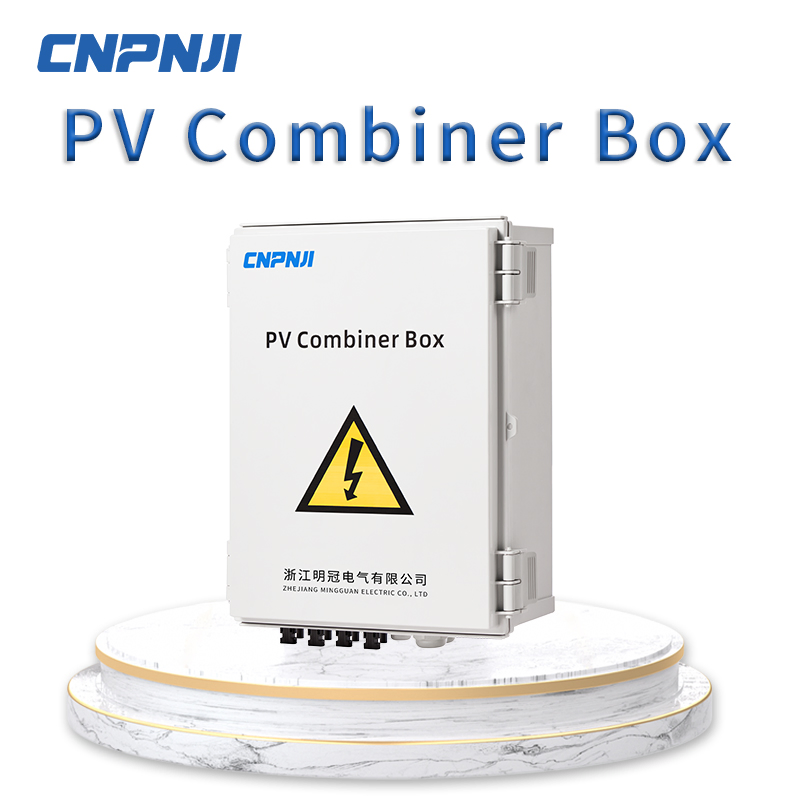

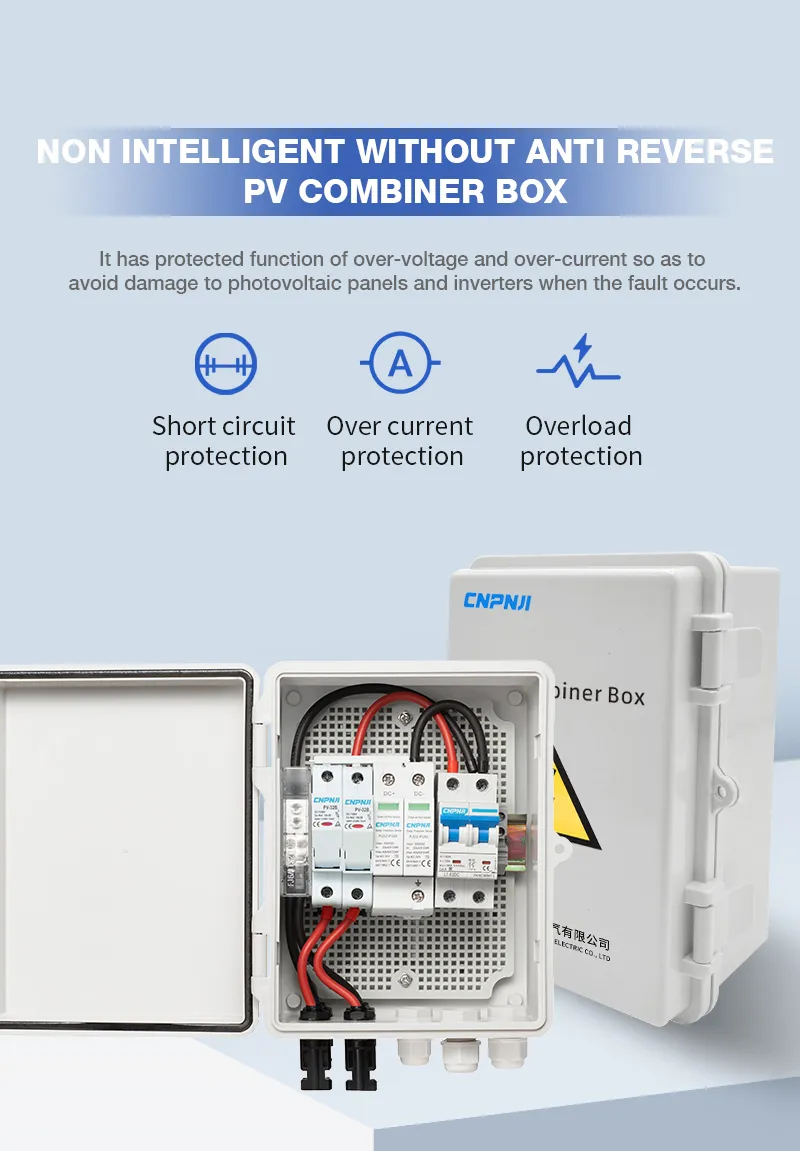

PV Combiner Box 1

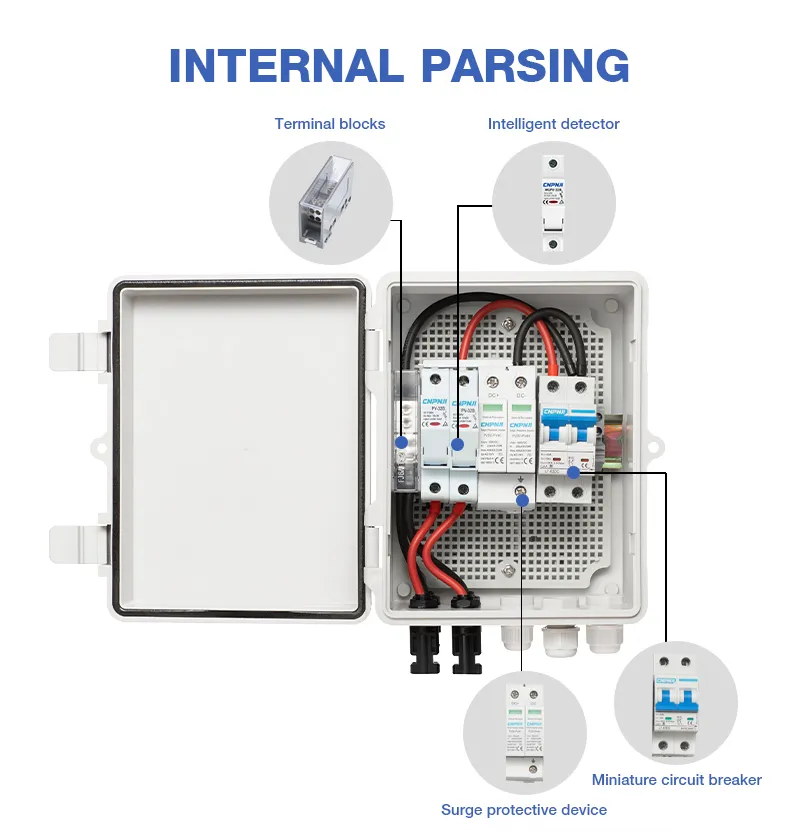

PV Combiner Box 2
PV Combiner Box 3
NamePV combiner box
System maximum DC voltage500V
Max input current per string15A
Max input strings2
Max output switch current30A
Number of inverter MPPT1
Nominal discharge current20kA
Max discharge current40kA
Voltage protection level2.8kV
Poles2P
Shell MaterialPlastic ABS
Installation methodWall mounting type
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
❓ Frequently Asked Questions
🔹 What is the maximum voltage support for this combiner box?
The system supports a maximum DC voltage of 500V, making it suitable for high-voltage power plant applications.
🔹 What is the protection rating of the shell?
The shell is made of Plastic ABS and has an IP65 protection grade, ensuring durability and resistance against dust and water.
🔹 How many strings and output circuits does it handle?
This model is designed for 2 input strings and provides 1 output string with a maximum switching current of 30A.
🔹 What kind of surge protection is included?
It features II grade protection with a nominal discharge current of 20kA and a maximum discharge current of 40kA.
🔹 How is this PV combiner box installed?
The unit is designed for wall mounting, providing a secure and stable setup for solar panel configurations.
🔹 What certifications does this product hold?
The product is certified by ISO9001:2000, CCC, and TUV CE CQC, meeting international quality and safety standards.
