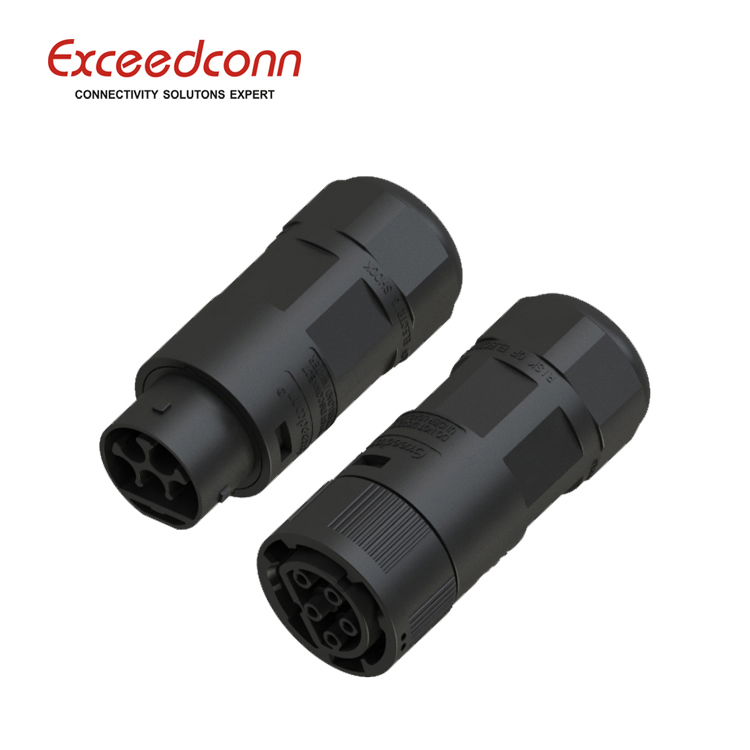

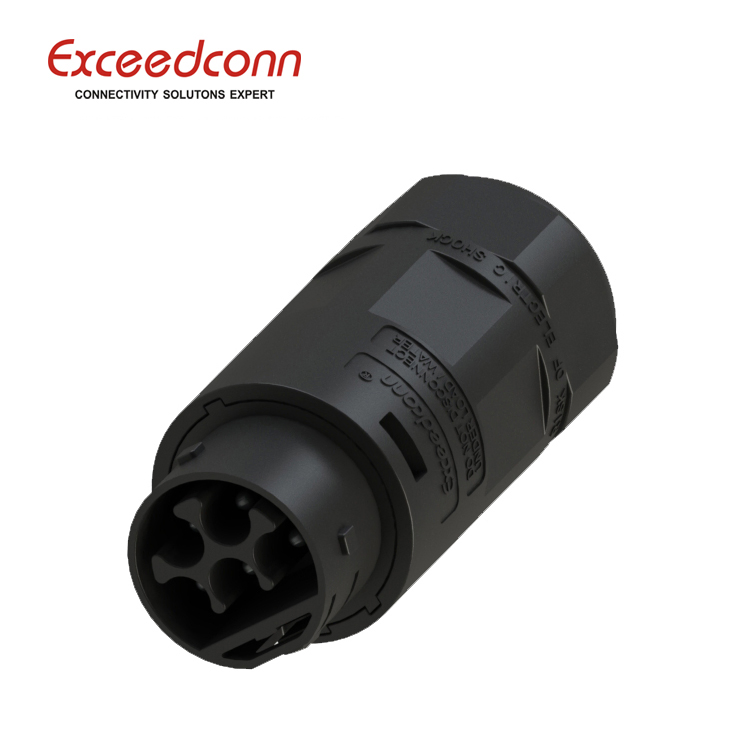

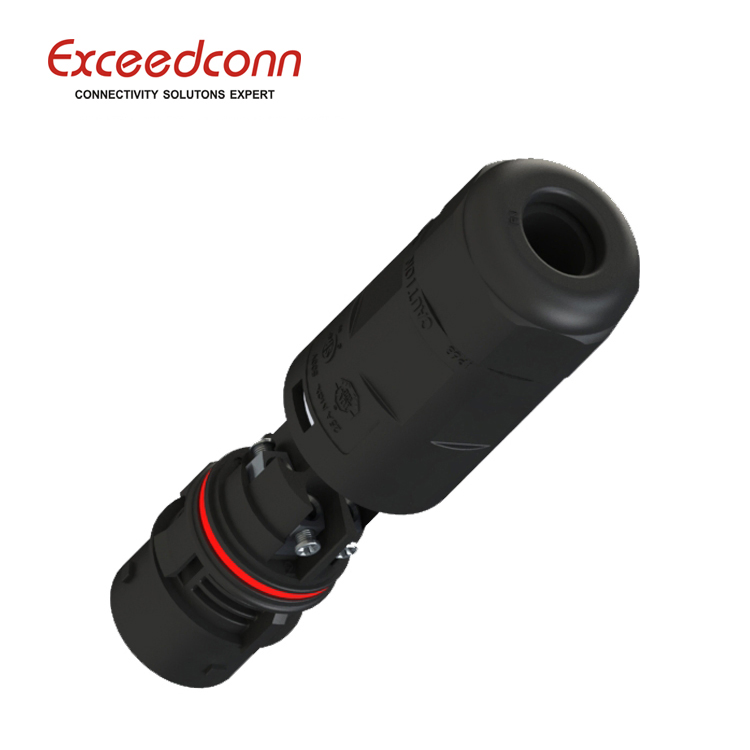

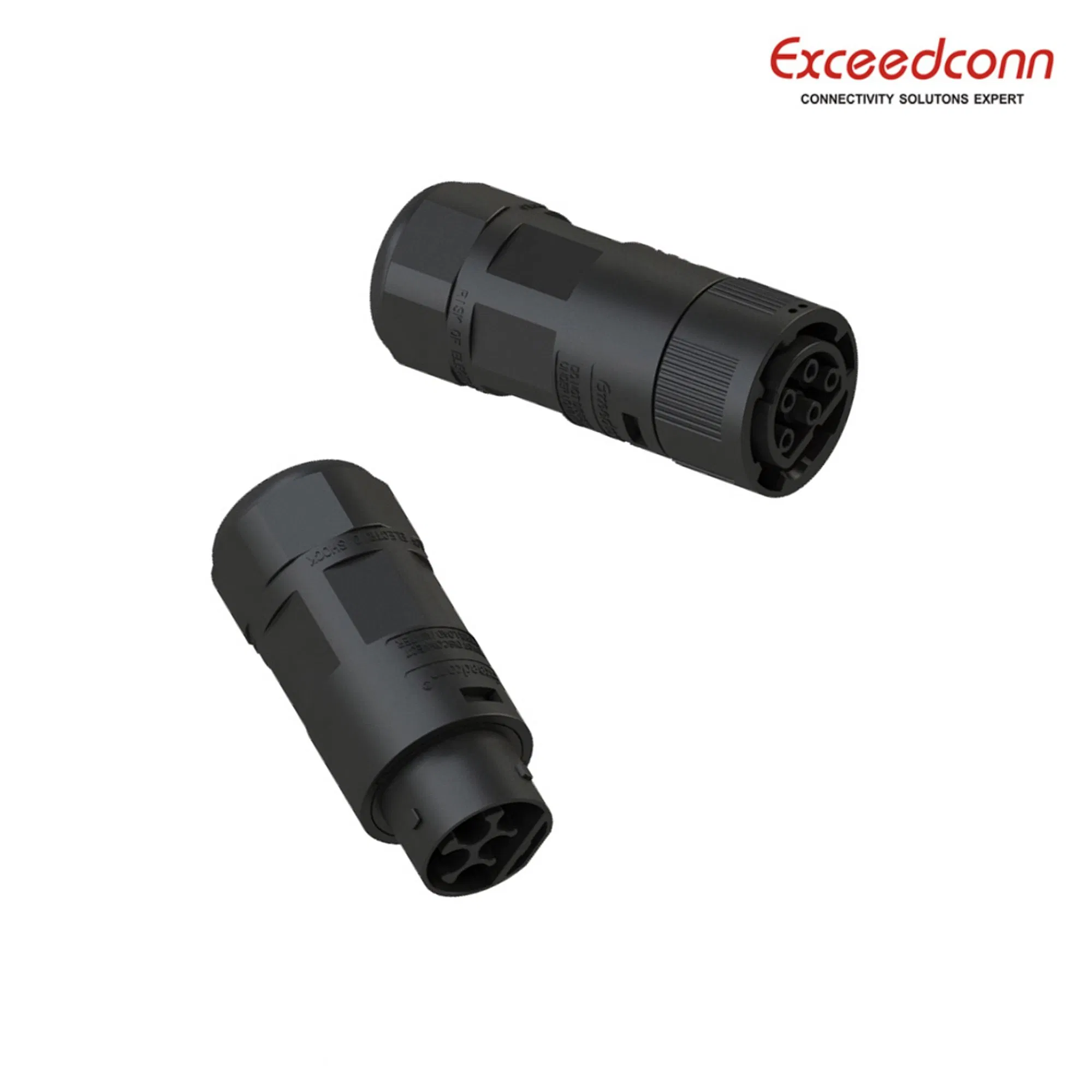

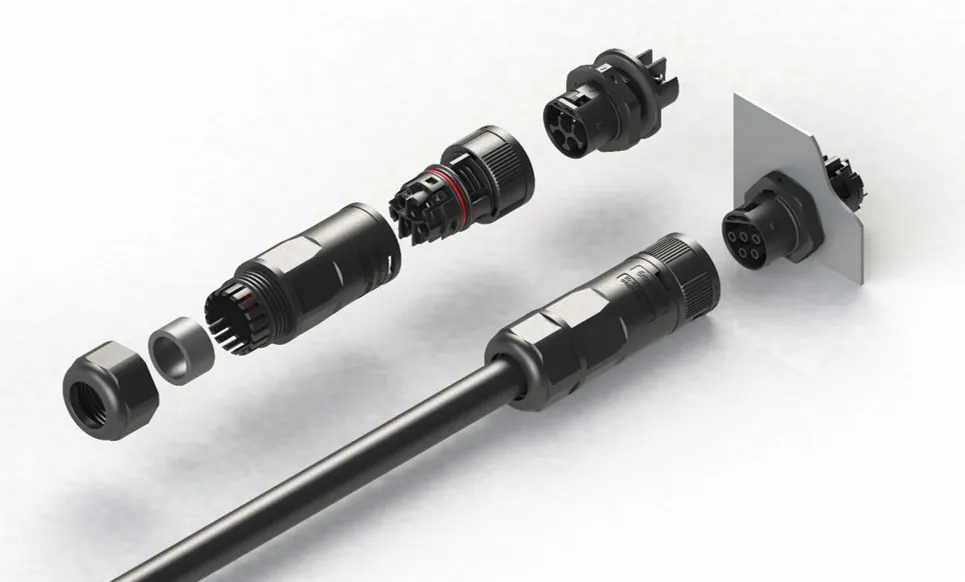

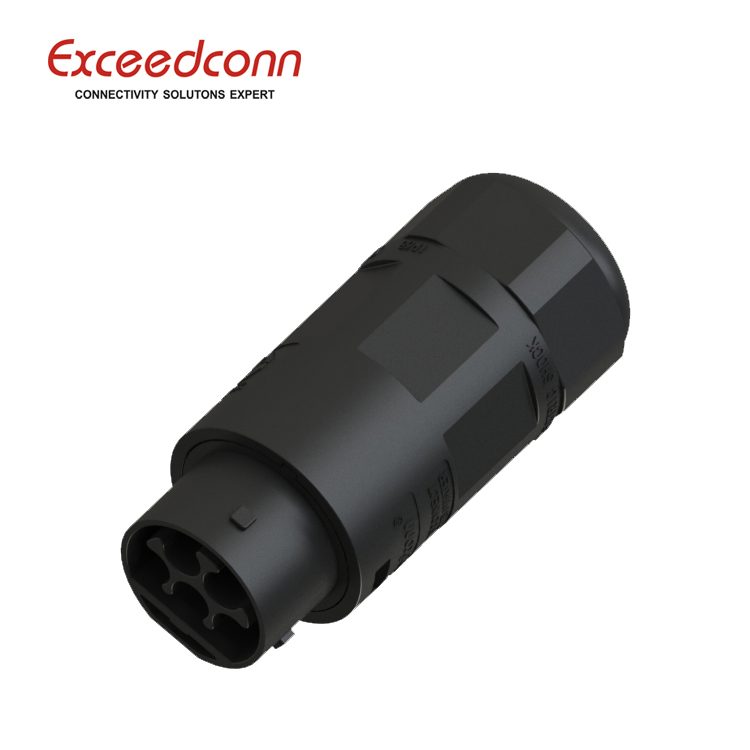

UL TUV Approved 5 Pin IP68 Waterproof AC PV Inverter Male Plug Connector
| Electrical Performance | |
|---|---|
| Rated Voltage | 500V AC |
| Rated Impulse Voltage | 4000V |
| Rated Current | 32A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N; |
| Insertion/Pullout Force | ≥120N |
| Cycle Frequency | 500 Times |
| Cable OD | 2.5~6mm² |
| Operational Environment & Material | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40ºC~+85ºC |
| Flammability Class | UL94 V-0 |
| Plastic Material | PA66 and PA66 30%GF |
| Conductor | Copper Alloy with Ni Plating |
| Sealing Element | Silicone |
We are committed to providing lighting system connection solutions, product R&D, manufacturing, and OEM services. Our products are widely used in the fields of city lighting, landscape, solar energy, and industrial control. Main customers are industry-leading enterprises.

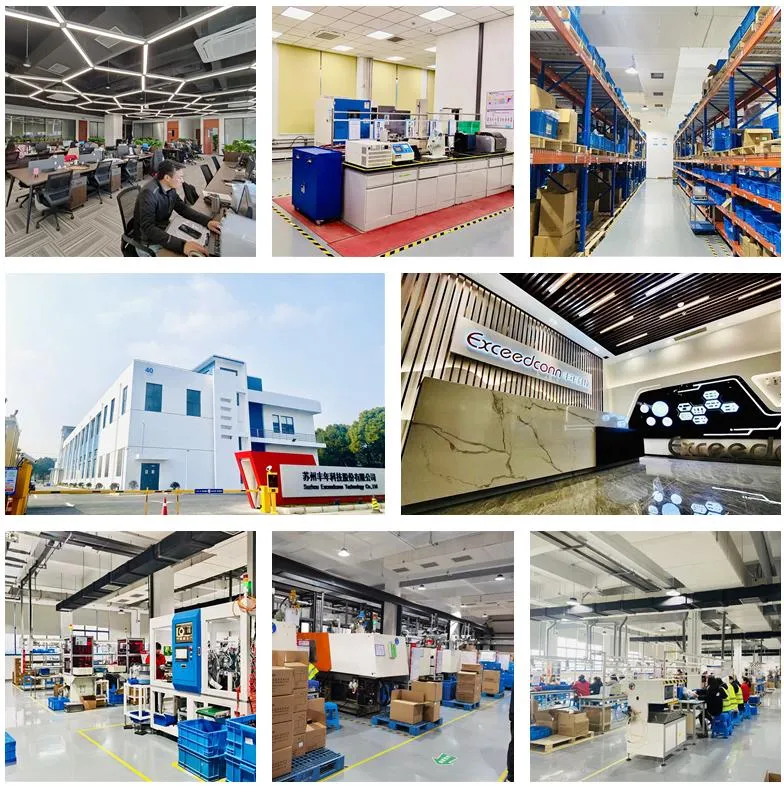

With many years of development, we own a professional and strong technical team. We can provide individualized connection solutions for different customers in different fields. We have more than 50 patents in connection solutions to date.
