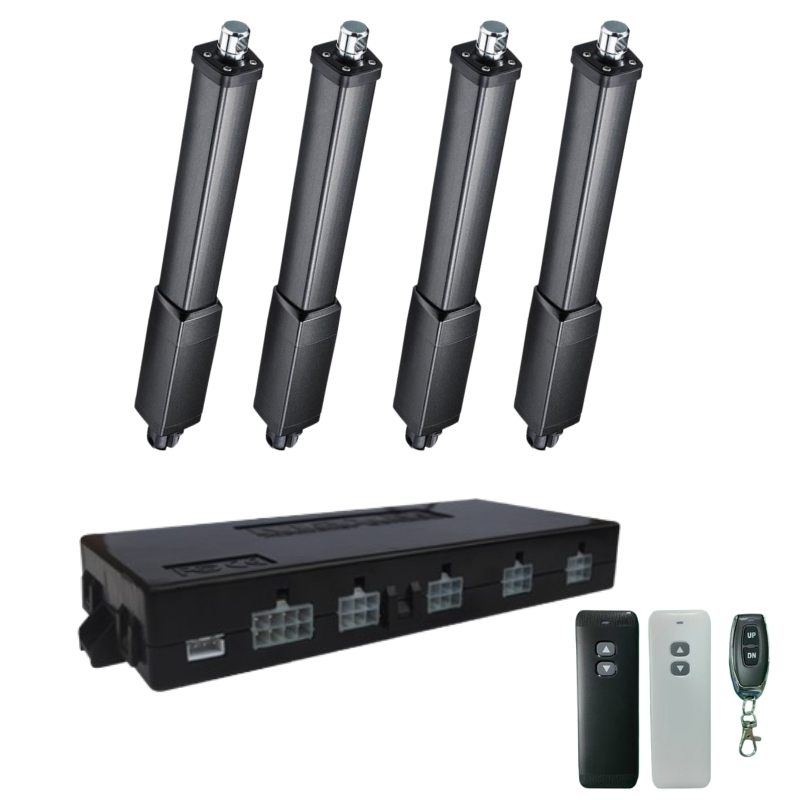

This electric linear actuators remote control kit features robust DC motor compact actuators and a four-channel remote control unit, enabling precise movement and positioning for heavy-duty applications. Ideal for automation projects, it offers easy installation and reliable performance across various industrial settings. Operate multiple actuators simultaneously from a distance with ease.

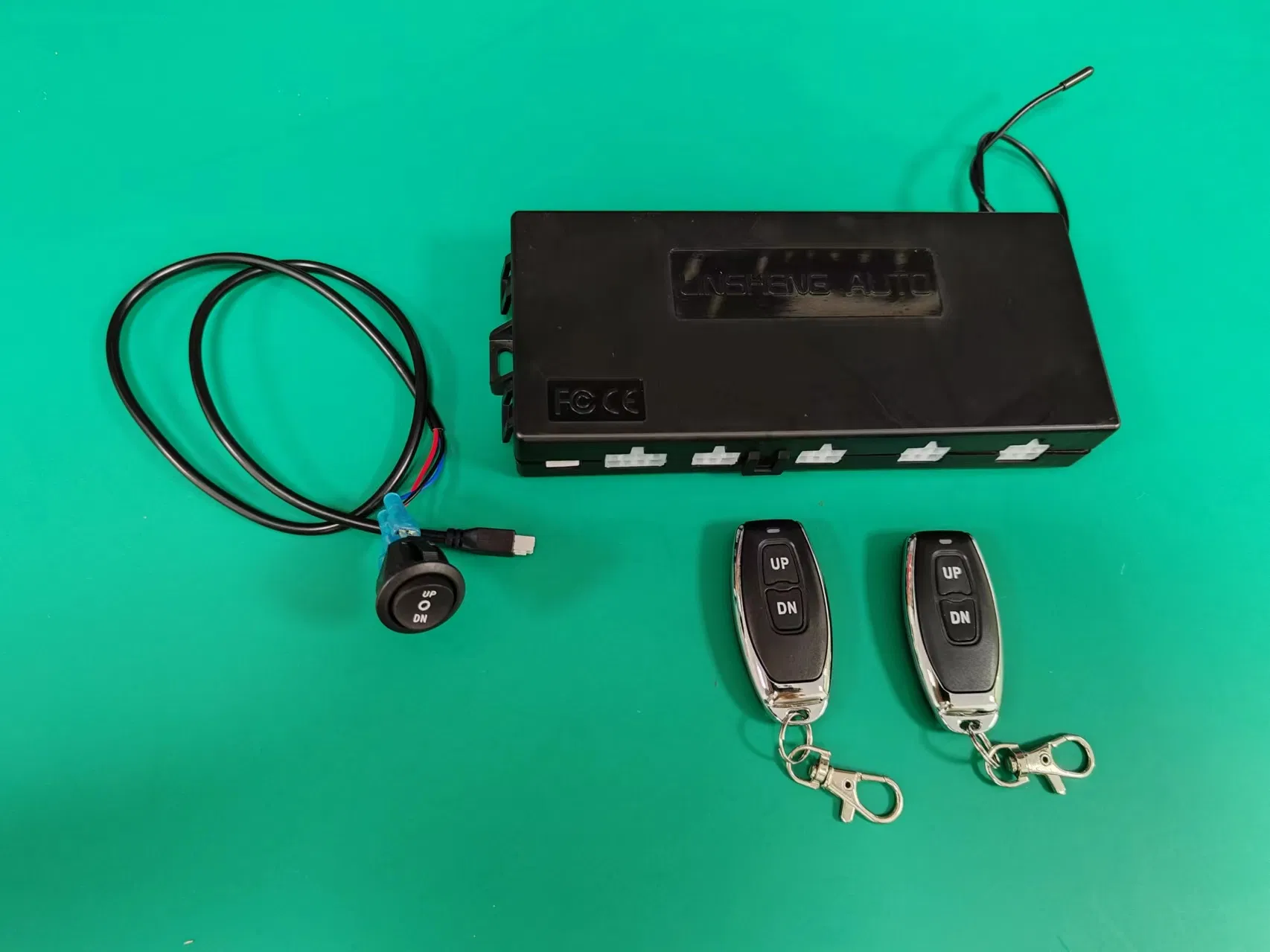

| Synchronize HALL Actuator Controller (LS-RSK-H4) | |
|---|---|
| Voltage | 12V~28VDC |
| Max. Current | 40A |
| Frequency | 433.92MHz |
| Remote Range | 30 meters |
| Operation | Dual (Wired-switch and wireless remote control) |
| Features | Overloading safety protection; Sync 2/3/4 Hall sensor actuators; Adjustable overcurrent Amps. |

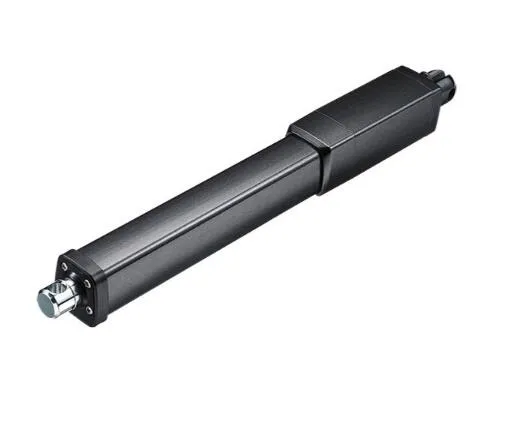

| Inline DC Actuator (LS-INLA Series) | |
|---|---|
| Voltage | 12V/24VDC |
| Stroke | 20~1000mm |
| Max. Loading | 4500N (Push); 3000N (Pull) |
| Max. Speed | Up to 27.5mm/s (no load) |
| IP Rating | IP69K |
| Features | Inline compact design; High thrust up to 450KG; Built-in limit switch. |
