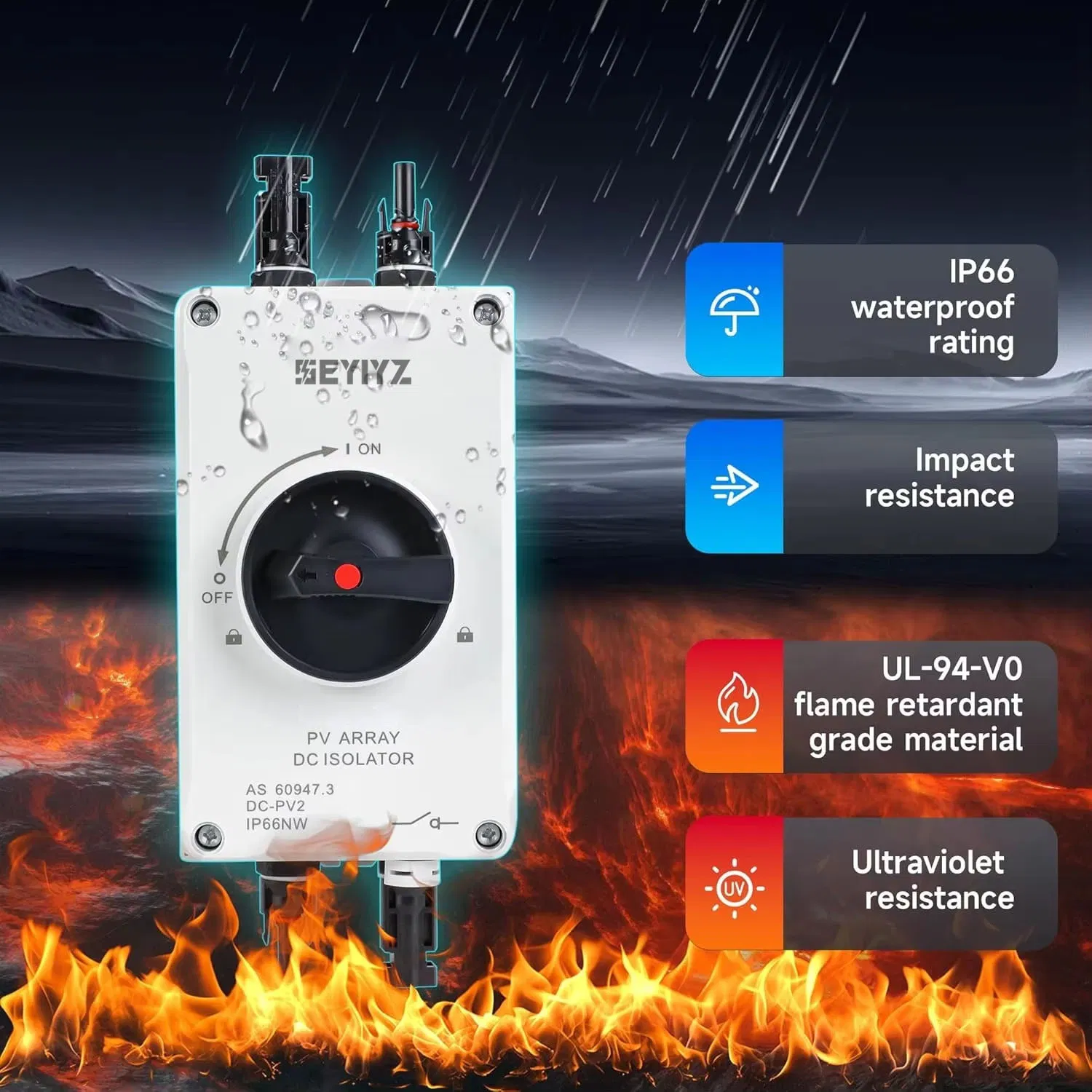

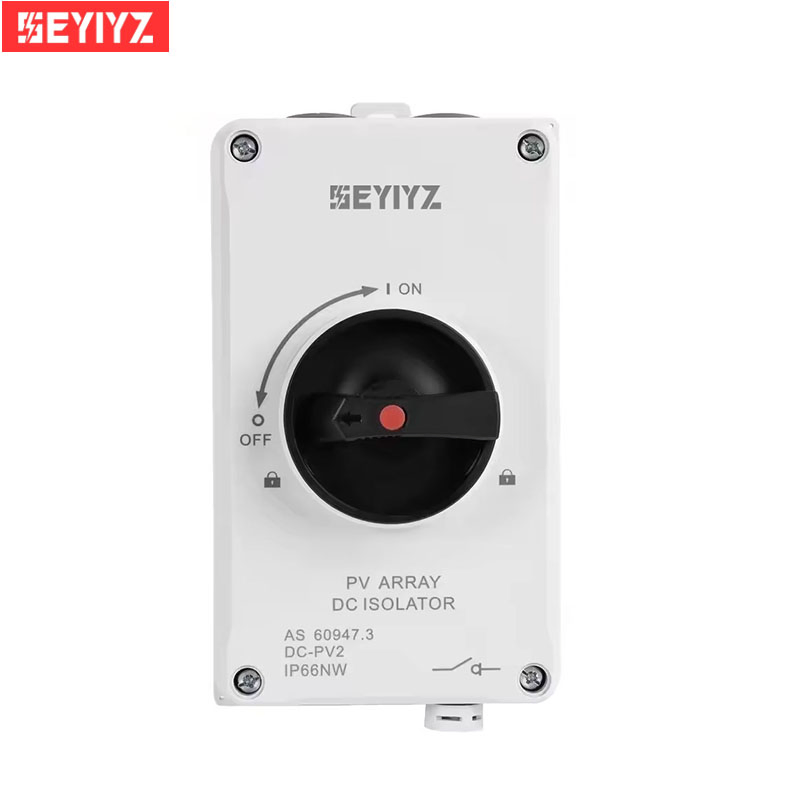

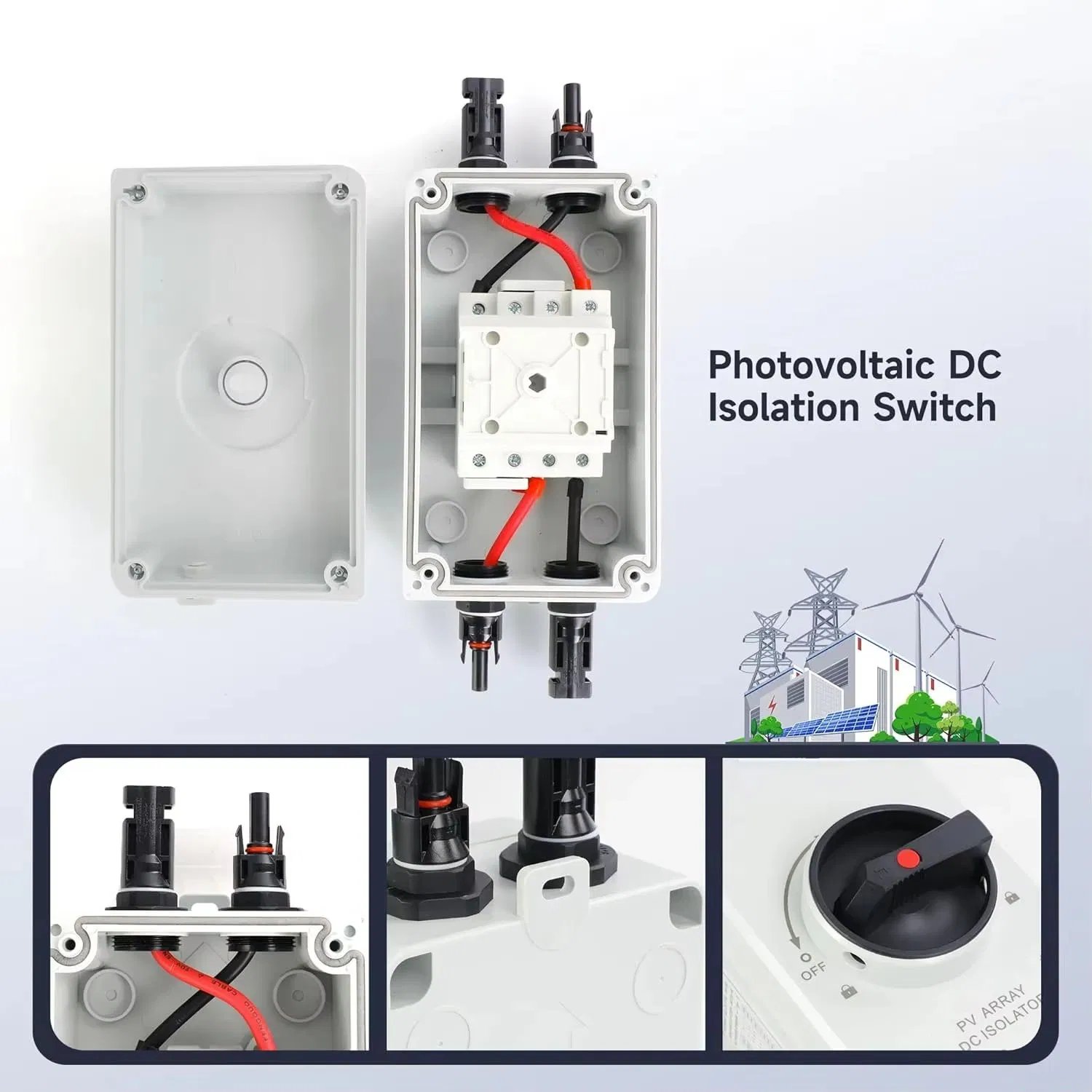

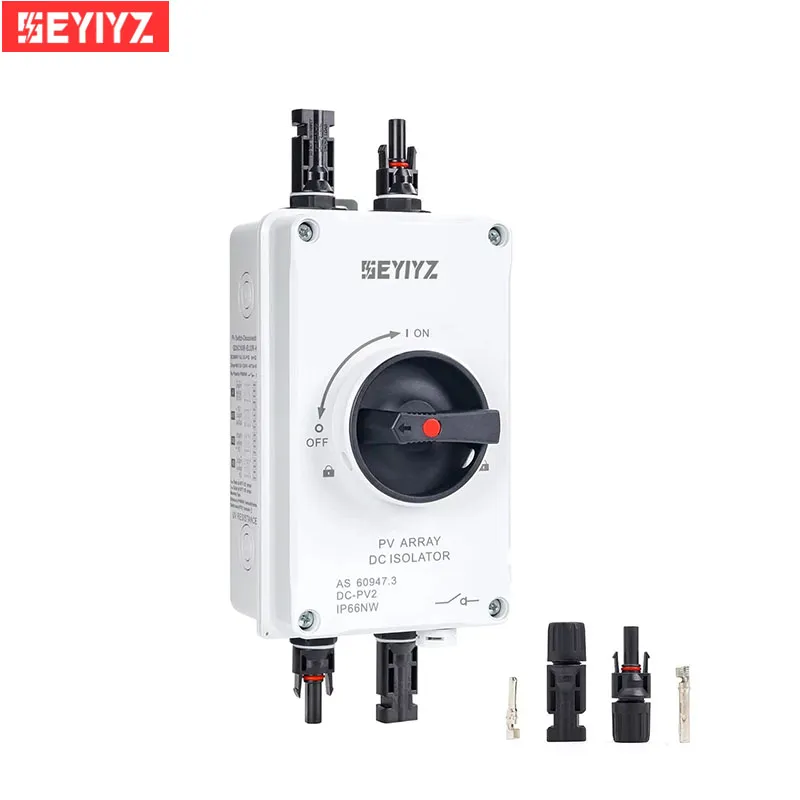

Photovoltaic Solar DC Isolation Switch 4P 1000V 32A

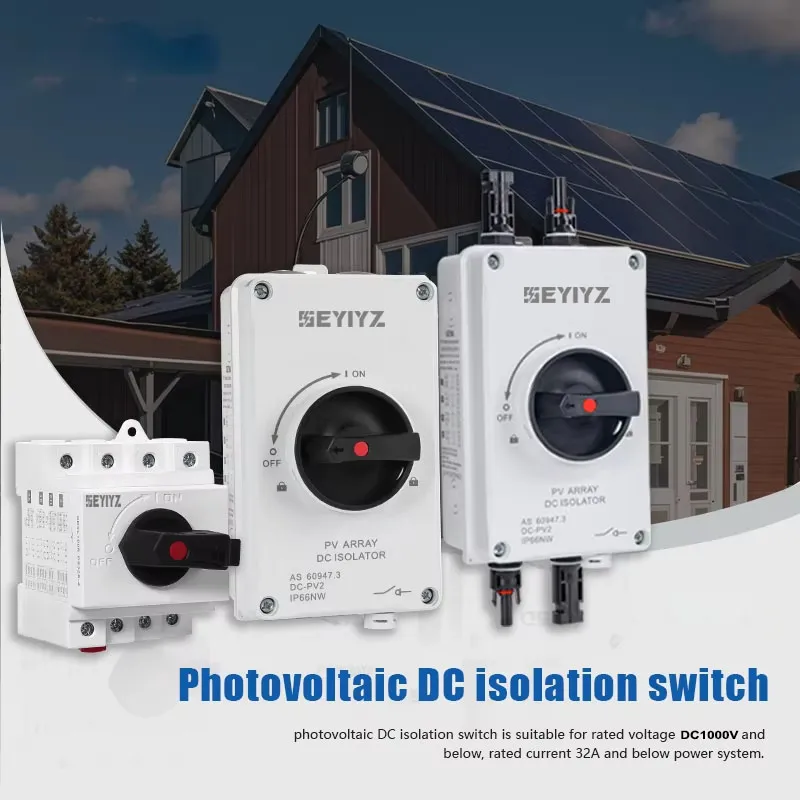

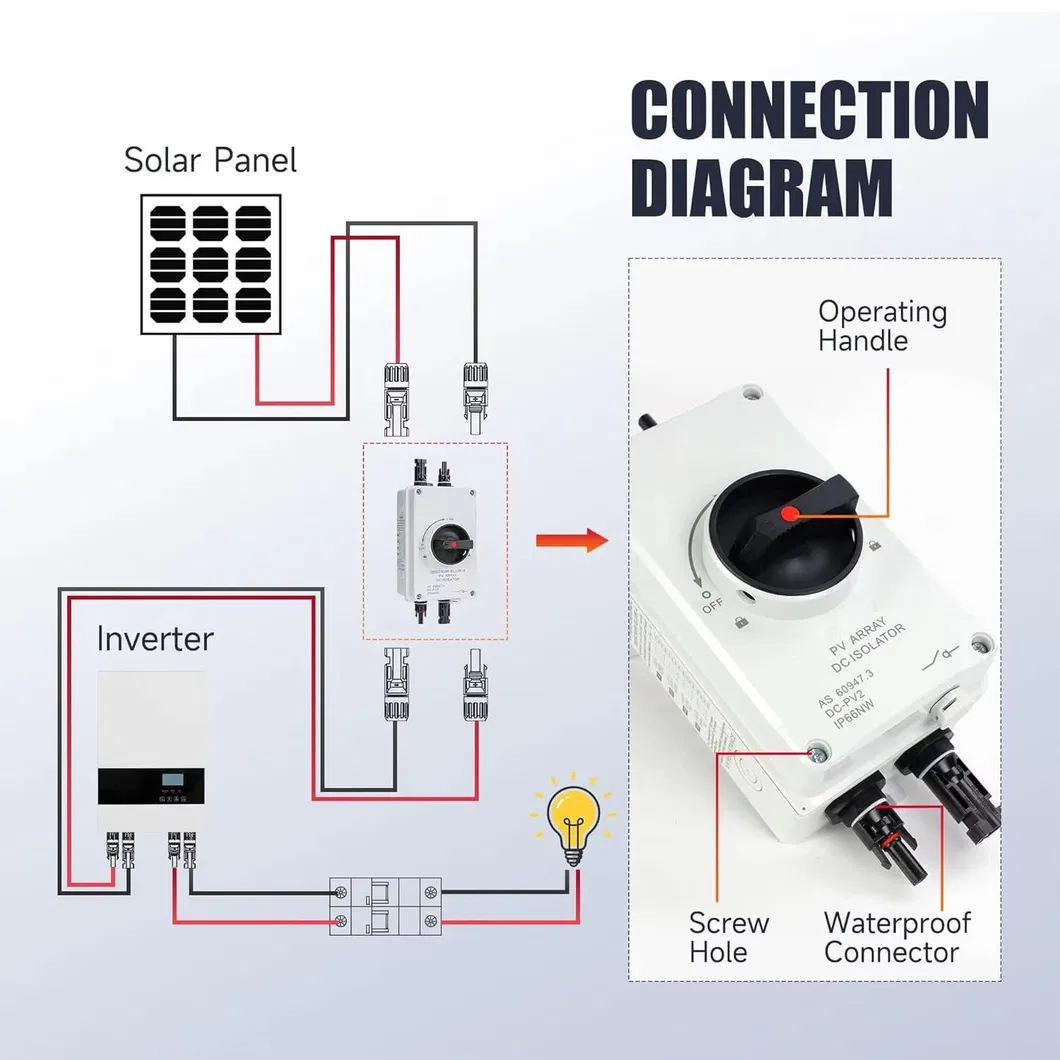

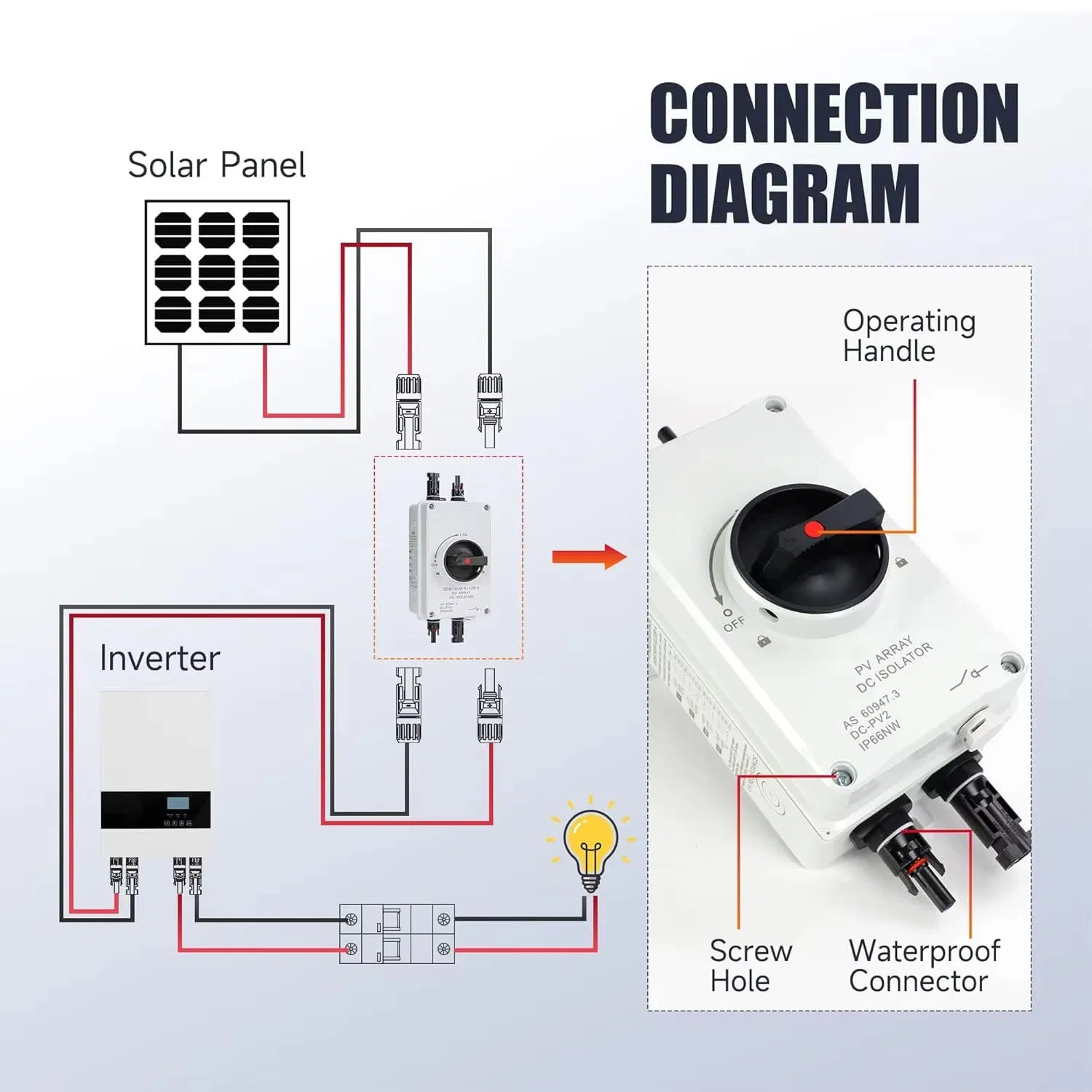

PV Switch-disconnector is suitable for rated voltage DC1200V and below, rated current 32A and below power system. The product can be used for infrequent connection and disconnection, which can isolate the disconnection line and disconnect 1~4 MPPT lines at the same time. It is suitable for isolating lines in DC transmission and distribution systems, such as cutting the direct current circuit between solar panels and inverters.
| Electrical Characteristics | |
|---|---|
| Standard | IEC60947-3, AS60947.3 |
| Utilization Category | DC-PV1 / DC-PV2 |
| Pole Count | 4P |
| Rated Operating Voltage (Ue) | 300V / 600V / 800V / 1000V / 1200V |
| Rated Insulation Voltage (Ui) | 1200V |
| Rated Short-time Withstand Current (Icw) | 1kA/1s(4,4S,4B), 1.7kA/1s(2H) |
| Rated Conditional Short-circuit Current (Icn) | 3kA |
| Rated Impulse Withstand Voltage (Uimp) | 8.0kV |
| Polarity | Non-polarity, "+" and "-" polarities interchangeable |
| Service Life & Environment | |
| Mechanical Cycles | 15,000 |
| Electrical Cycles | 300 |
| Storage Temperature | -40ºC to +85ºC |
| Mounting Type | Vertically or horizontally |
| Pollution Degree | 3 |
