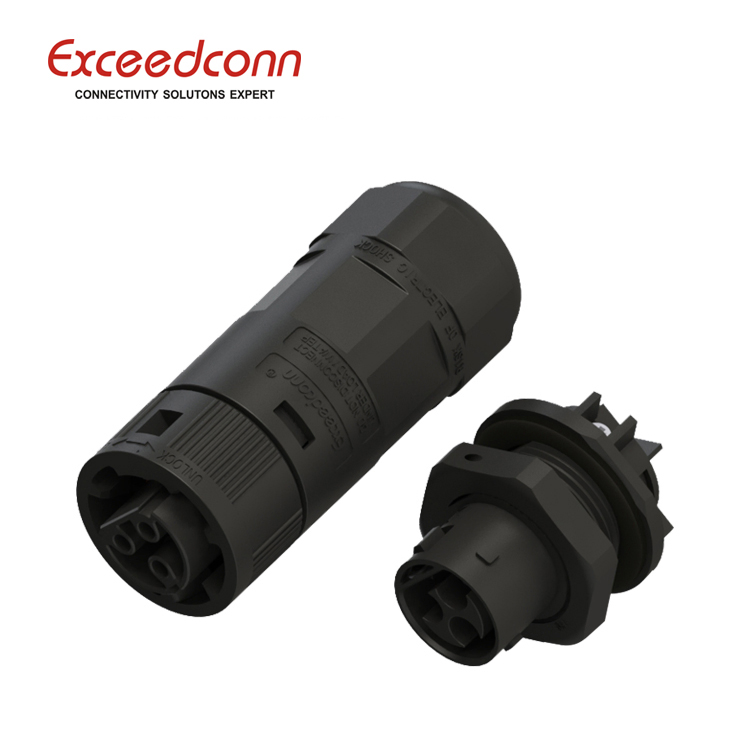

SDEV Charger
1 / 5
| Electrical Performance | |
| Rated Voltage | 250V AC |
| Rated Impulse Voltage | 4000V |
| Rated Current | 32A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N; |
| Insertion / Pullout force | ≥120N |
| Insert/Pullout Frequency | 500 cycles |
| Cable OD | 12~14mm |
| Operational Environment | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40ºC~+85ºC |
| Flammability class(Insulator) | UL94 V-0 |
| Material Info | |
| Plastic Material | PA66 and PA66 30%GF |
| Conductor | Copper Alloy with Ni Plating |
| Sealing Element | Silicone |
We are committed to providing lighting system connection solutions, product R&D, manufacturing, and OEM services. Our products are widely used in city lighting, landscape, solar energy, and industrial control fields. We own a professional technical team that provides individualized connection solutions across various industries.
With more than 50 patents in connection solutions, we adhere to a "rigorous, responsibility, cooperation" philosophy to provide high-quality products and services for connection needs.
