Product Description
Clean operating room air conditioning system solution.
Clean Surgical Air Conditioning System
According to the clean operating room design specifications, the clean air conditioning system must have core technical indicators such as constant temperature, constant humidity, fresh air treatment, air purification, and ensuring the positive and negative pressure difference in the controlled area. These systems provide multiple functions such as air purification, cooling, dehumidification, humidification, heating, and intelligent control.

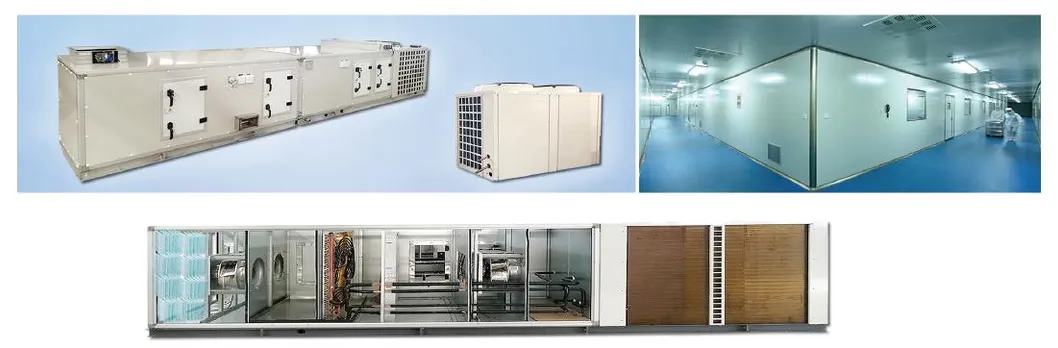

Solution 1: DC Frequency Conversion System
DC frequency conversion outdoor unit + clean operating room air conditioning unit + PLC intelligent control
Frequency conversion technology: Adjusts operating frequency according to temperature changes for high efficiency.
Low ambient temperature cooling: Achieves -20ºC low temperature cooling operation via EC fan and pressure sensors.
Low temperature air supply: Unique technology reduces evaporation temperature to a minimum air supply of 5ºC.
Precise temperature control: Reheating and preheating adjusted by SCR for accurate indoor climate.
Low ring temperature heating: Normal heating operation at an ambient temperature of -20°C using air jet enthalpy.

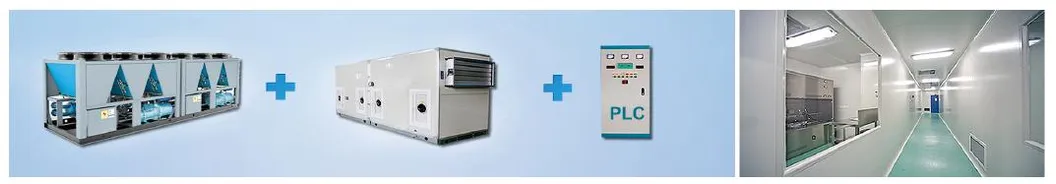

Solution 2: Four-Pipe Heat Pump Recovery
Four-pipe air-cooled heat pump heat recovery unit + clean operating room combined air conditioner + PLC control
Multi-function: Realizes energy recovery simultaneously during cooling and heating without extra hot water tanks.
Low-temperature efficiency: Heating operation at minus 20ºC with energy efficiency ratio higher than 2.1.
Energy saving: Combined cooling and heating energy efficiency ratio ≥ 9.0.
Intelligent control: Microcomputer PLC technology automatically detects status for energy-saving operation.
Fault self-check: Detects suction/exhaust pressure, temperature, and overcurrent automatically.

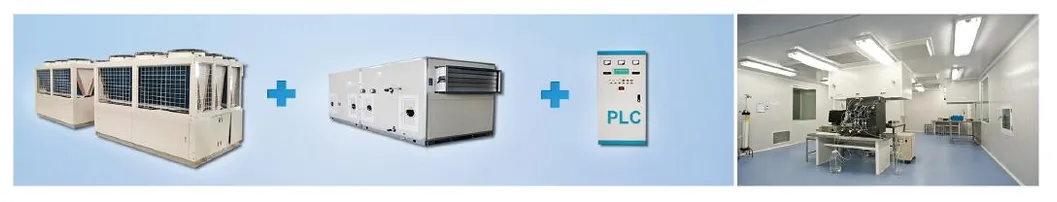

Solution 3: Air-Cooled Heat Pump System
Air-cooled heat pump + clean operating room combined air conditioning unit + PLC control
Precise temperature control: DC inverter compressor matches power to ambient temperature changes.
Intelligent defrosting: Super-cooling ice suppression technology combined with unique defrosting modules.
Smart cloud service: Supports PC client and mobile App real-time monitoring.
Frequently Asked Questions
Q1: What is the primary application for this Air Handling Unit?

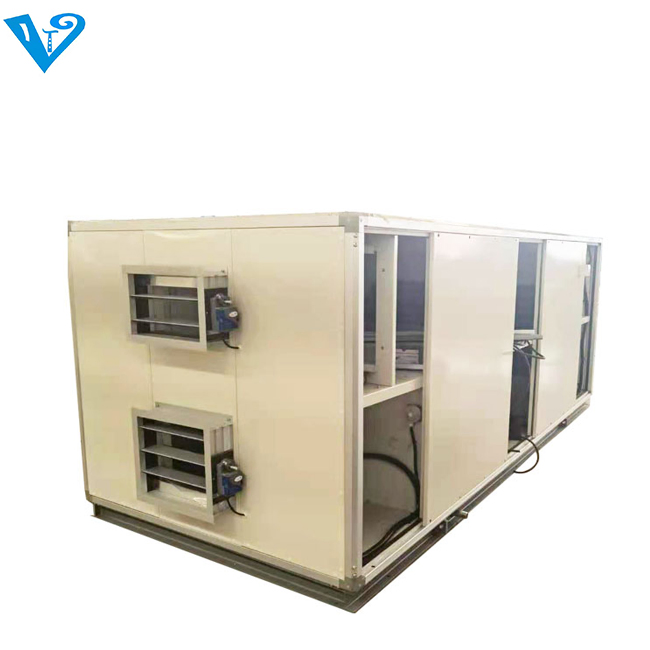

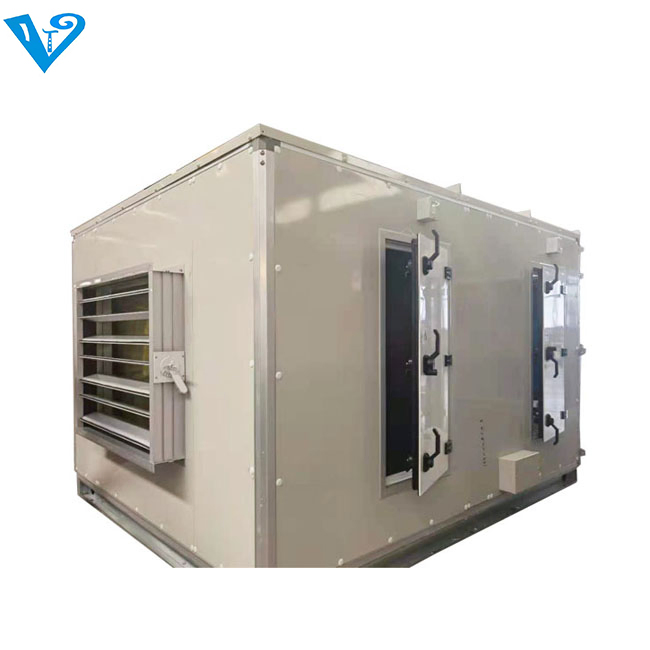

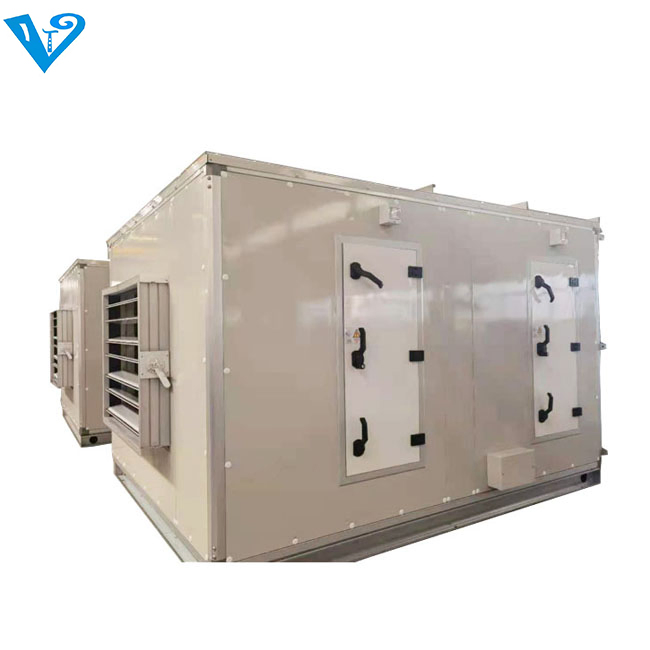

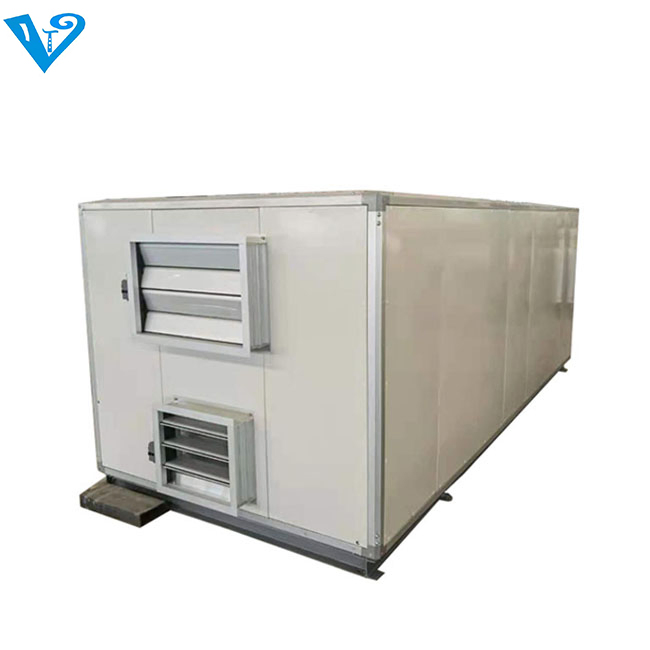

A: The AHU-02 is specifically designed for the medical field, particularly for clean operating rooms and surgical environments requiring high-level purification and climate control.
Q2: Can the system operate in extremely cold climates?
A: Yes, the system features advanced air jet enthalpy and EC fan technology that allow it to perform cooling and heating operations at ambient temperatures as low as -20ºC.
Q3: What materials are used for the air tubes?
A: The air tubes are constructed from Galvanized Sheet, ensuring ultrahigh corrosion durability and a long lifetime of over 20 years.
Q4: Does the system support remote monitoring?
A: Yes, Solution 3 includes Smart Cloud Services, allowing users to monitor the unit in real-time via PC clients or mobile applications.
Q5: What certifications does the product hold?
A: The unit is fully CE certified, meeting European safety and quality standards for industrial equipment.
Q6: How does the system ensure energy efficiency?
A: Efficiency is achieved through DC frequency conversion technology, PLC intelligent control, and four-pipe heat recovery systems that optimize refrigerant flow and power consumption.
