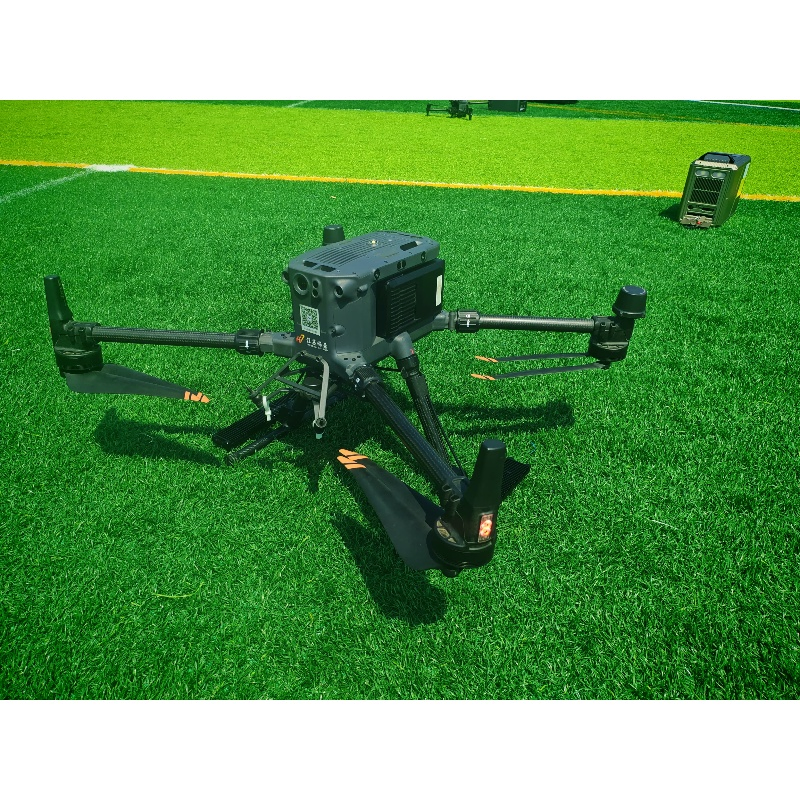

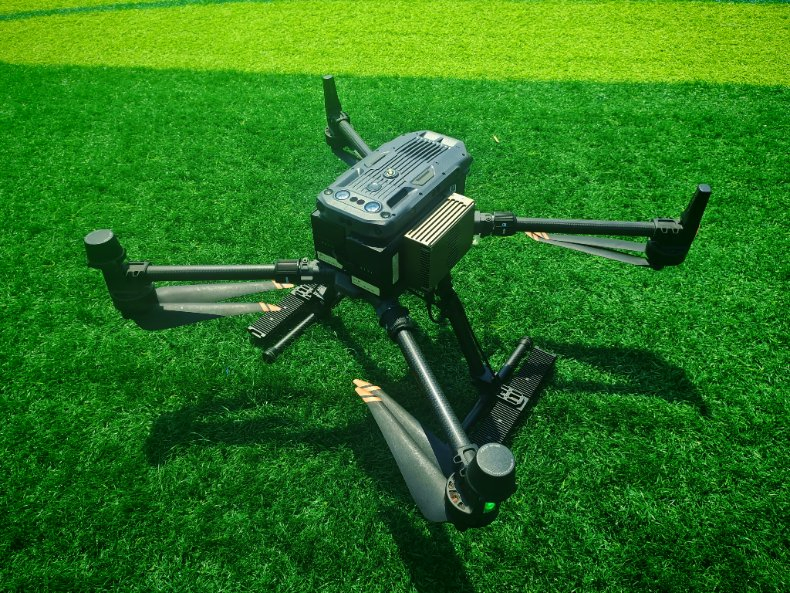

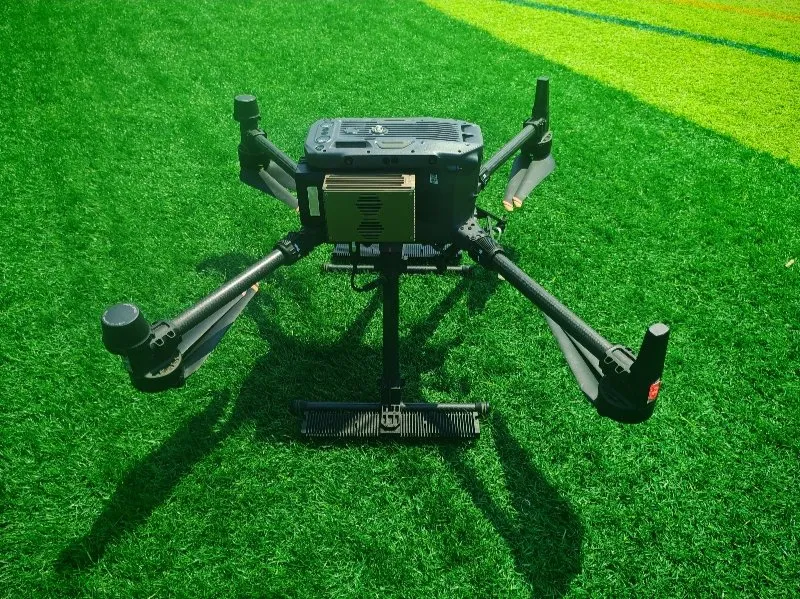

2000W Steady Long-Term Output Air Unit for Dji M350rtk Drone

1 / 5

2000W Steady Long-Term Output Air Unit for Dji M350rtk Drone

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

2000W Steady Long-Term Output Air Unit for DJI M350RTK Drone

Your M350RTK Drone needs solid power? This air unit delivers 2000W steady, no breaks—even during long flights. It fuels your gear without fizzling out, fits like a glove, and sets up in minutes. Tough enough for heavy use, it keeps your drone running strong when you need it most.

Basic Information

Model NO.	TPS110M-M350
Ground Power Module Output	≥3500W (Rated Long-Time)
Ground Power Weight	12.5 ±0.2kg
Tether Cable Length	Standard 110m, Optional 55m
Cable Outer Diameter	2.5±0.1mm

Air Module Output Power	2000W (Rated Long-Term)
Air Module Weight	765 ± 10g
Air Module Input Voltage	580-810VDC
Gross Weight	23.0±0.5kg
HS Code	8504401990

Function Characteristics

📦 1. Lightweight and Portable

Compact design, easy to carry by one person, supports rapid field deployment for mobile operations.

⚙️ 2. Intelligent Winch System

Follow the takeoff and landing of the UAV to synchronously cable reel in/out, adaptively cable tension auto management.

🔋 3. Smart Power Management

Constant voltage output prevents unnecessary charging/discharging, extending battery lifespan.

🖥️ 4. Real-Time Monitoring

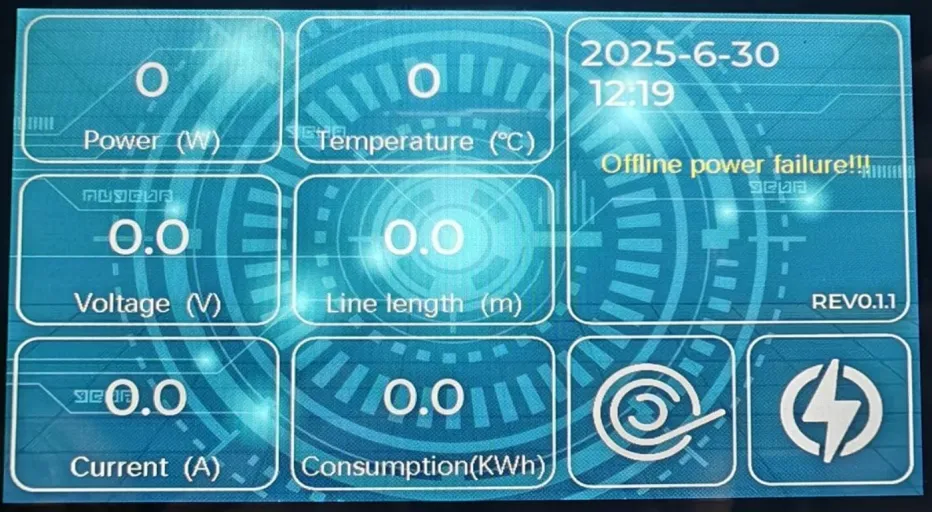

4.3-inch touchscreen displays power, voltage, current, temperature, and cable length data in real time.

🛡️ 5. Multiple Protections

Complete AC/DC isolation. Protection against overvoltage, undervoltage, overcurrent, and short circuit.

📶 6. Flexible Communication

Wired (USB Type-C/RJ45), Wireless (Bluetooth 5.0), and optional Optic fiber communication.

Technical Specification

Ground Power Module

Parameter	Value
Input Voltage	190~240Vac single-phase, 50/60Hz
Output Voltage	700~750Vdc adjustable
Rated Power	≥3500W
Size	D360W186H268 ±0.5mm
Operating Temperature	-20~45 ℃

Tether Cable

Parameter	Value
Material	Alloy lightweight aviation wire, composite fluoroplastic insulation
DC Resistance	8.3±0.2Ω (100m@20℃ loop)
Weight	12.0±1g/m
Diameter	2.5±0.1mm

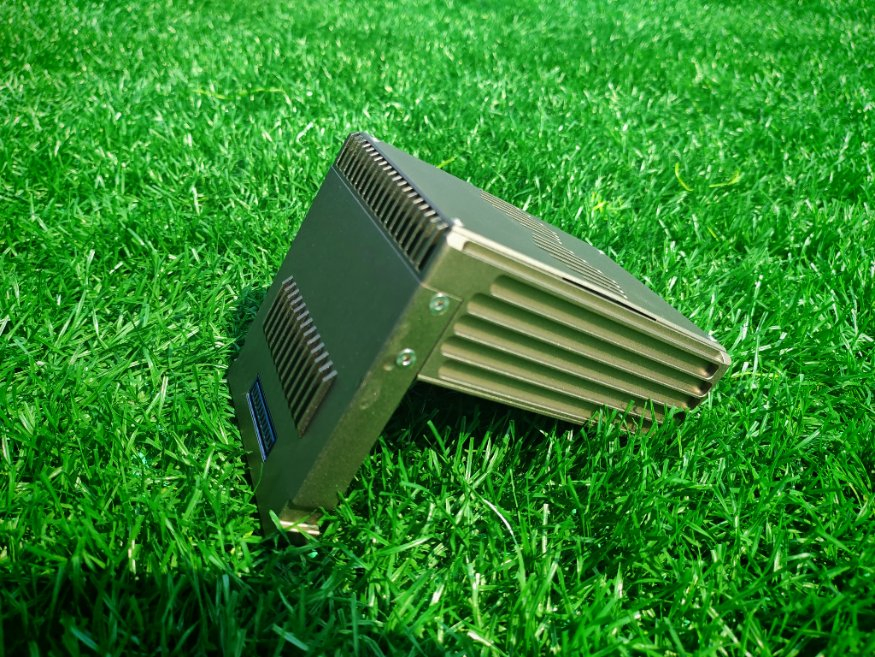

Air Module

Parameter	Value
Input Range	580~810Vdc
Output Voltage	50.5 ± 0.5Vdc (Constant)
Rated Output	2000W (Long-term)
Weight	765 ± 10g

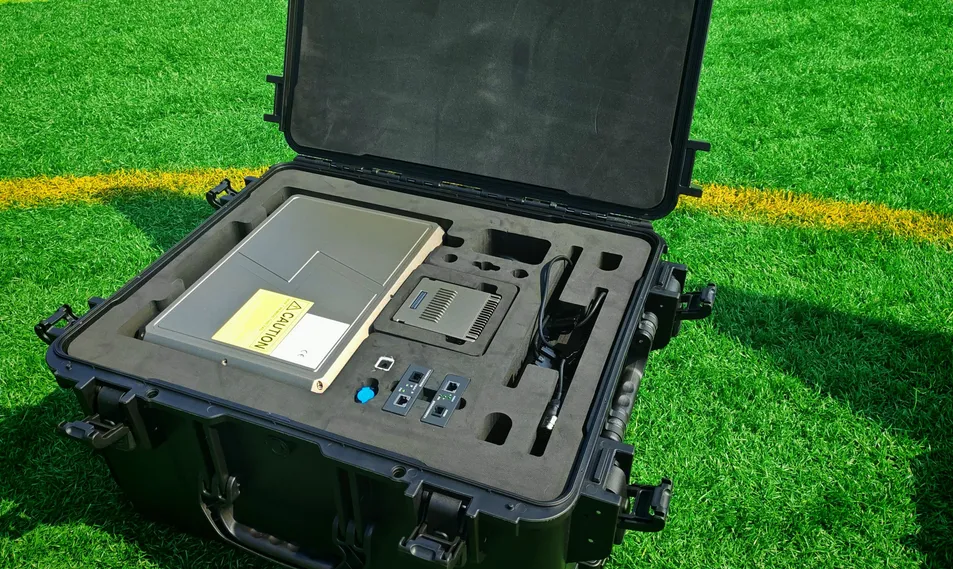

Product Configuration

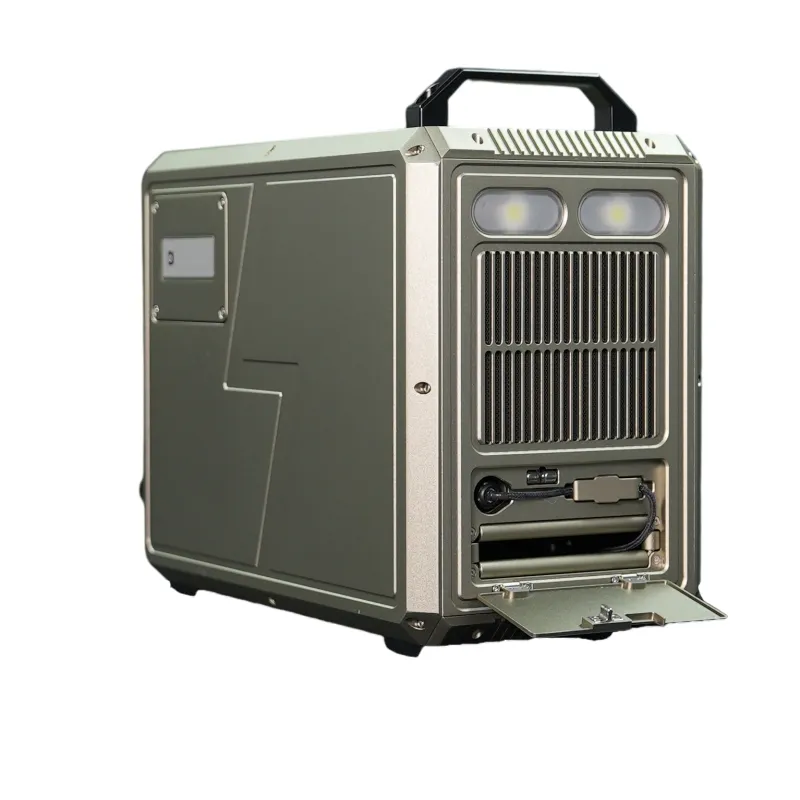

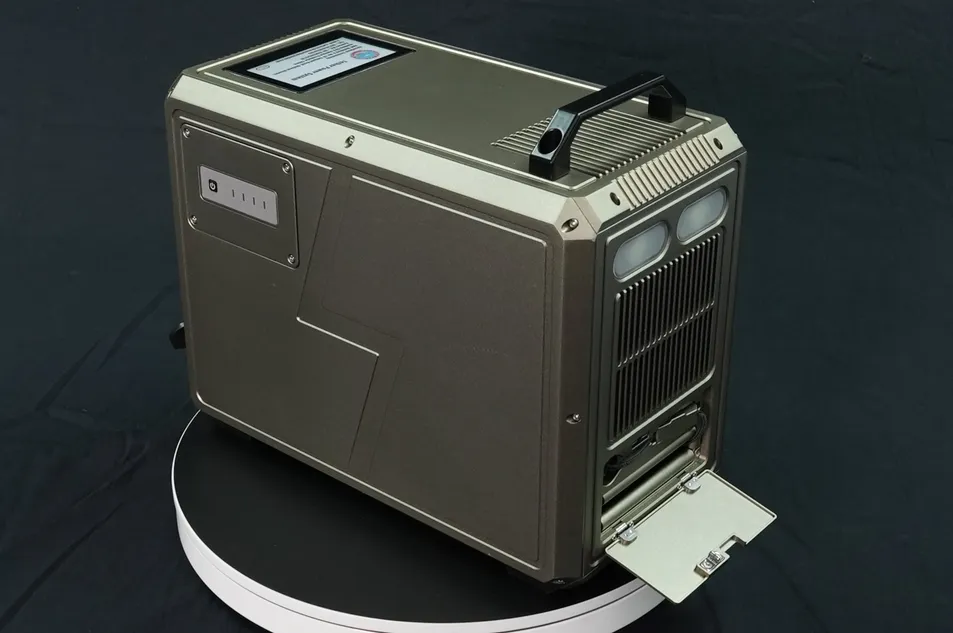

Ground Module

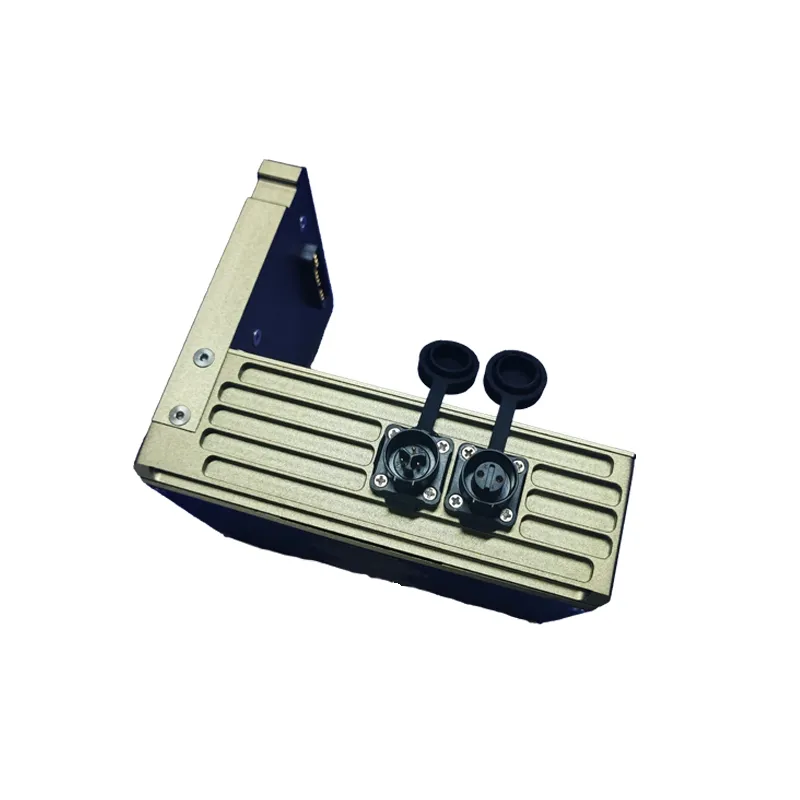

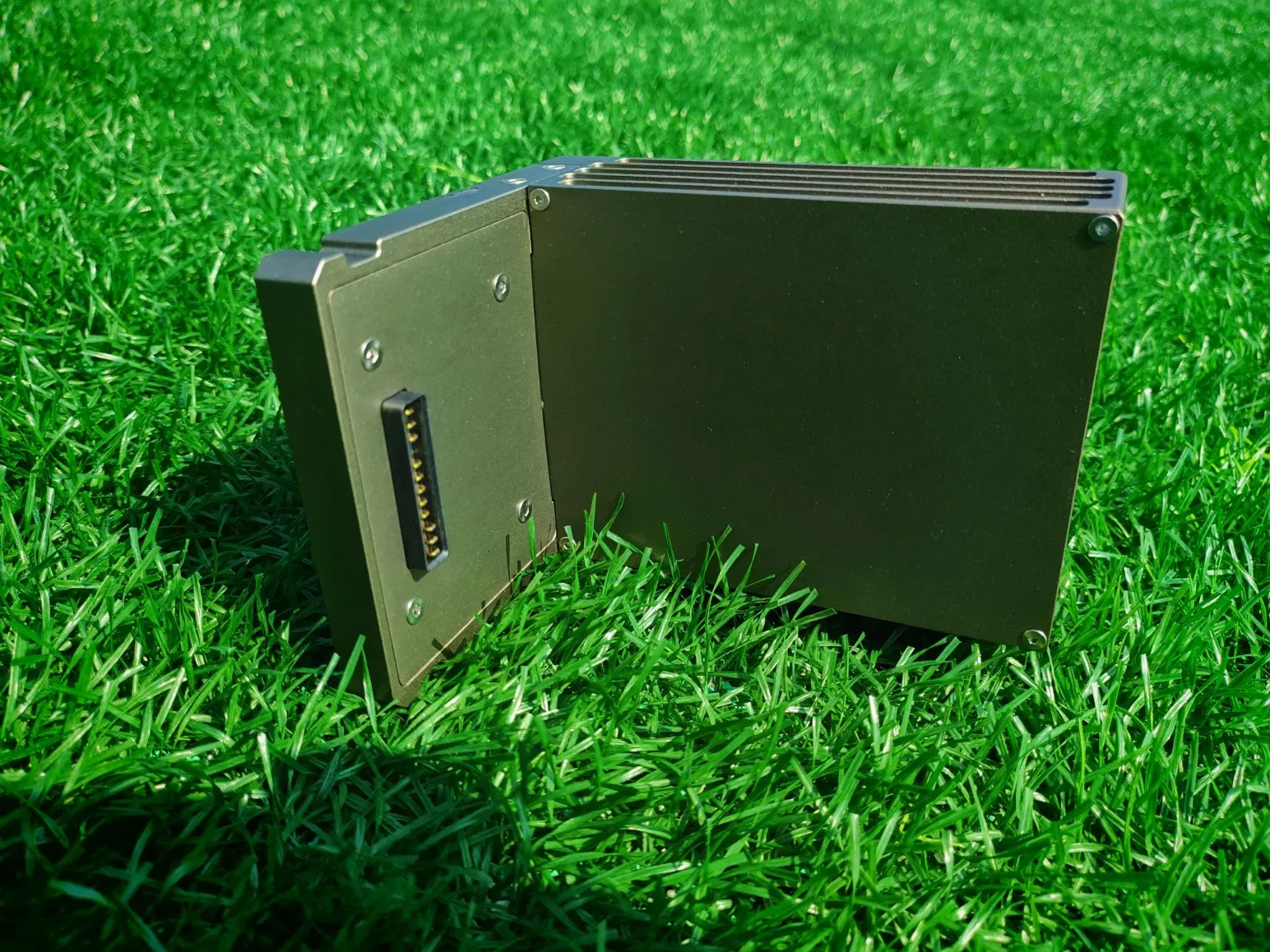

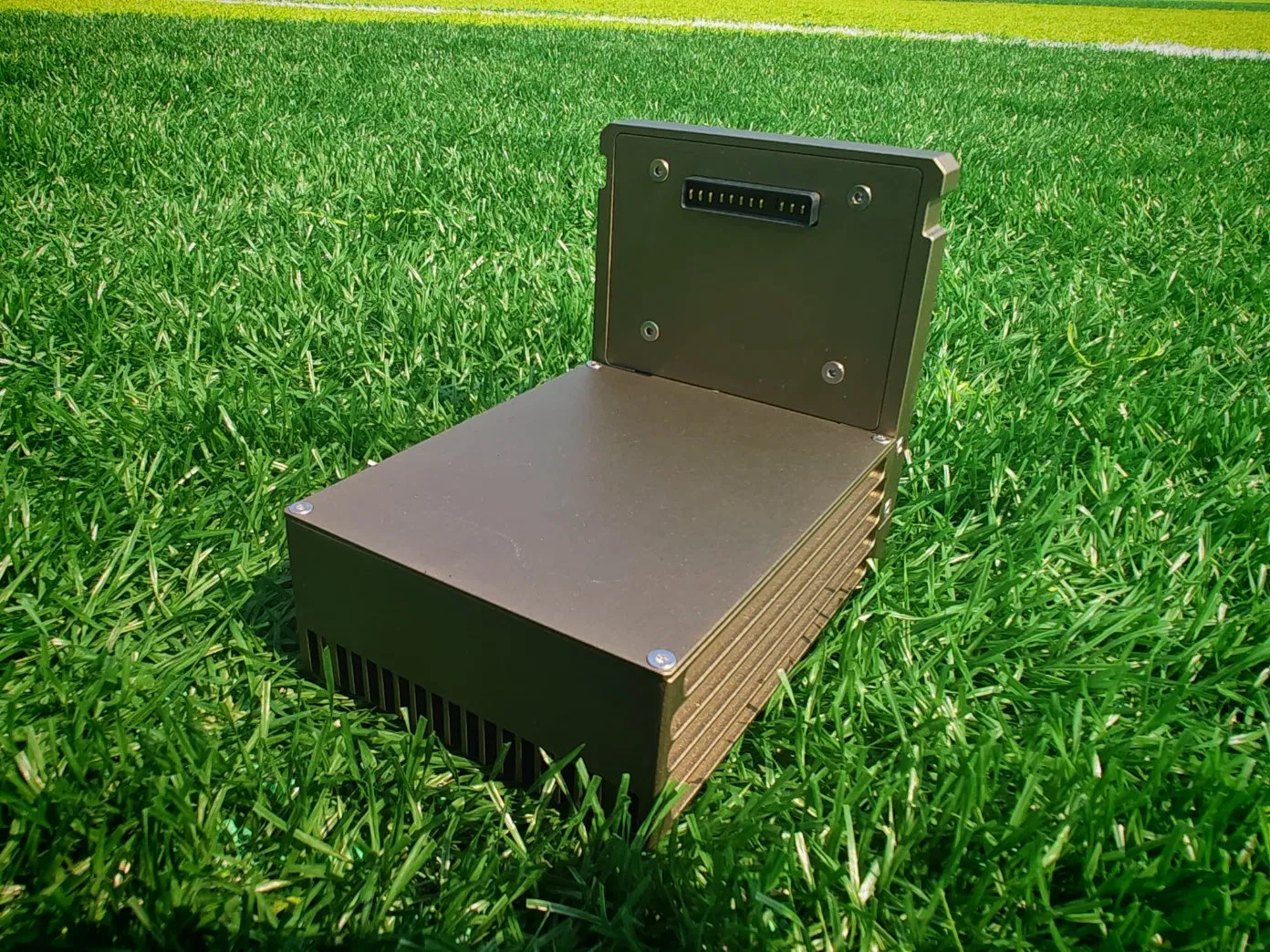

Air Module

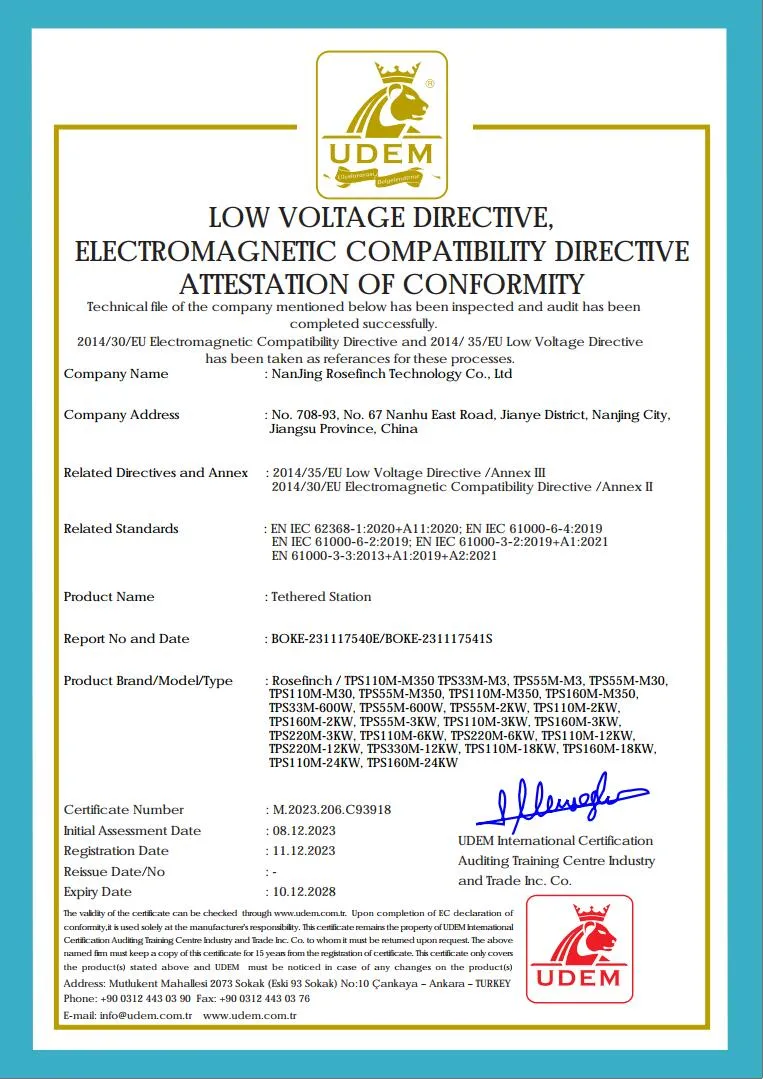

Certifications

Frequently Asked Questions

Q1: What is the rated output power of the Air Module?

A: The Air Module provides a rated long-term output power of 2000W, ensuring steady performance for high-demand drone operations.

Q2: How long is the standard tether cable?

A: The system comes with a standard 110m tether cable, with an optional 55m length available based on your requirements.

Q3: Does it support real-time data monitoring?

A: Yes, it features a 4.3-inch touchscreen that displays real-time power, voltage, current, temperature, and running logs.

Q4: What safety protections are built into the system?

A: The system includes complete AC/DC isolation and multiple protections such as overvoltage, undervoltage, overcurrent, and short circuit protection.

Q5: Can the winch system operate automatically?

A: Yes, the intelligent winch follows the drone's takeoff and landing to synchronously manage cable reeling and tension automatically.

Q6: What is the total weight of the tethered system?

A: The gross weight of the entire system including the plastic hard box transport package is approximately 23.0 ± 0.5kg.
