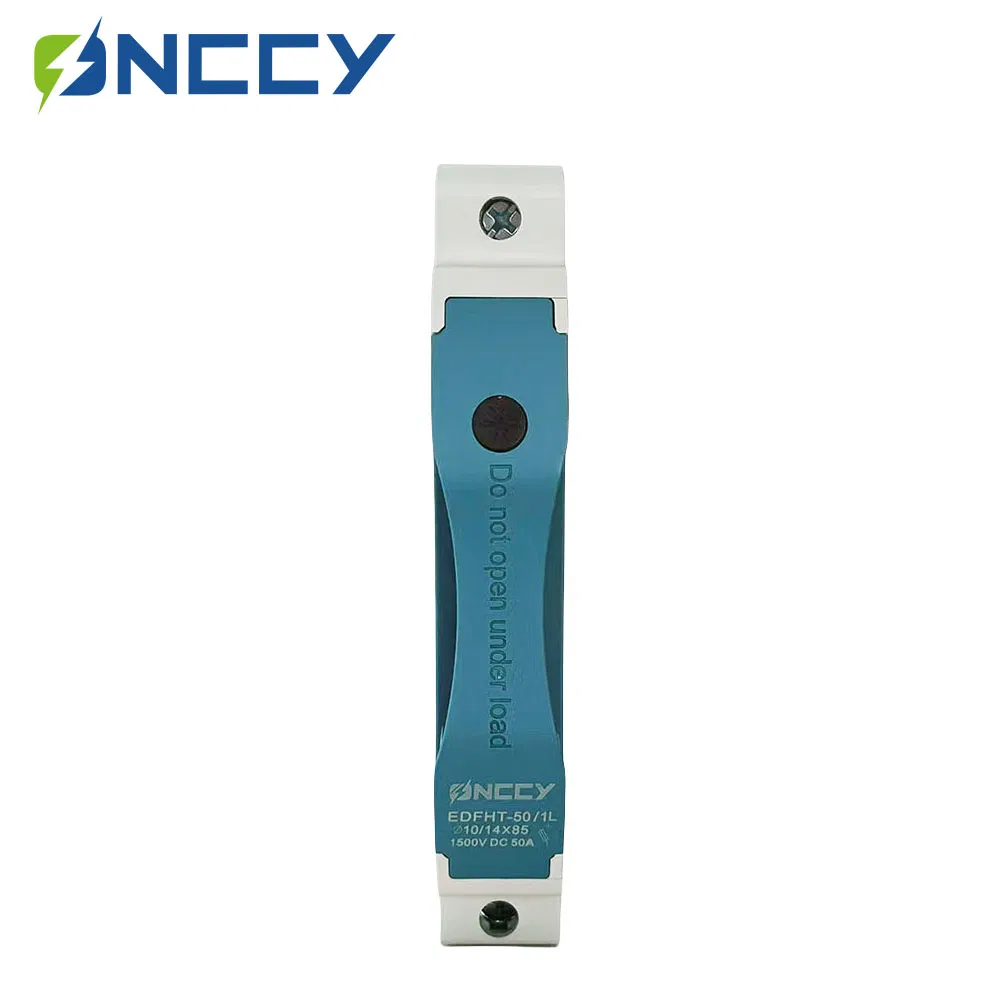

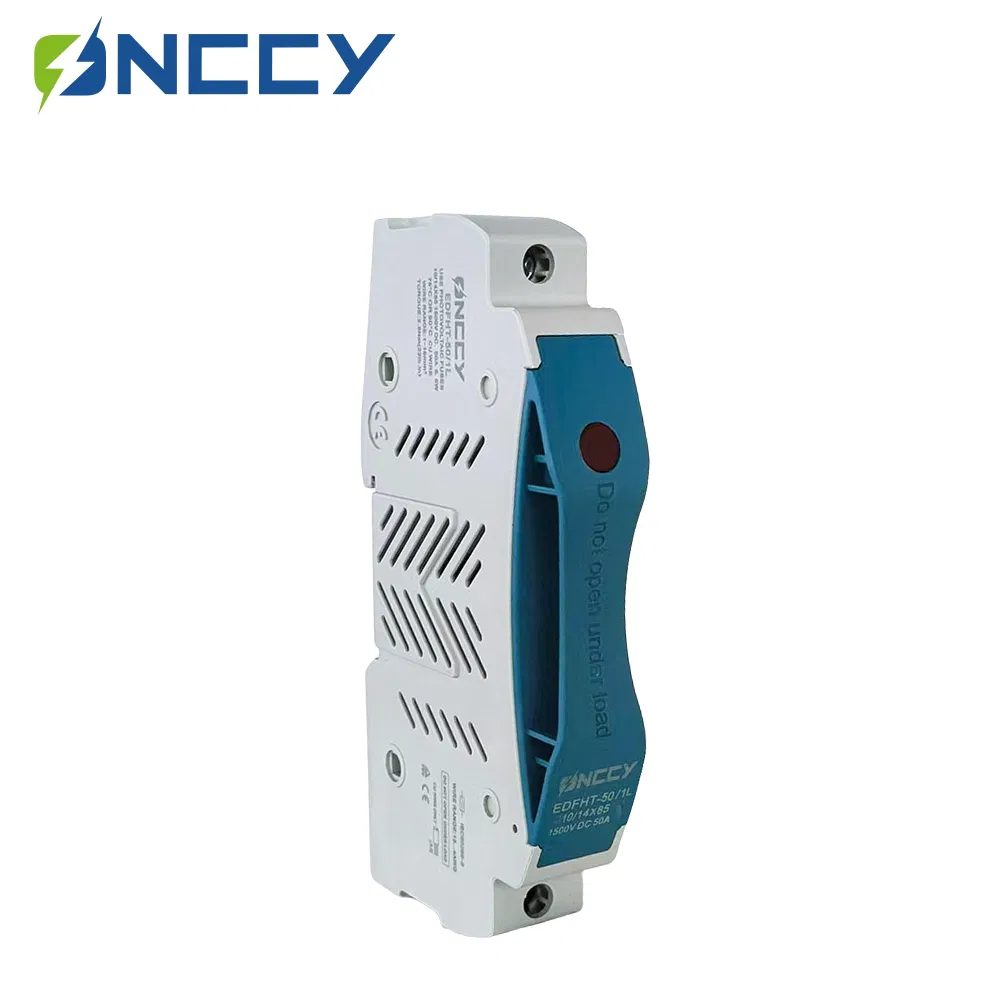

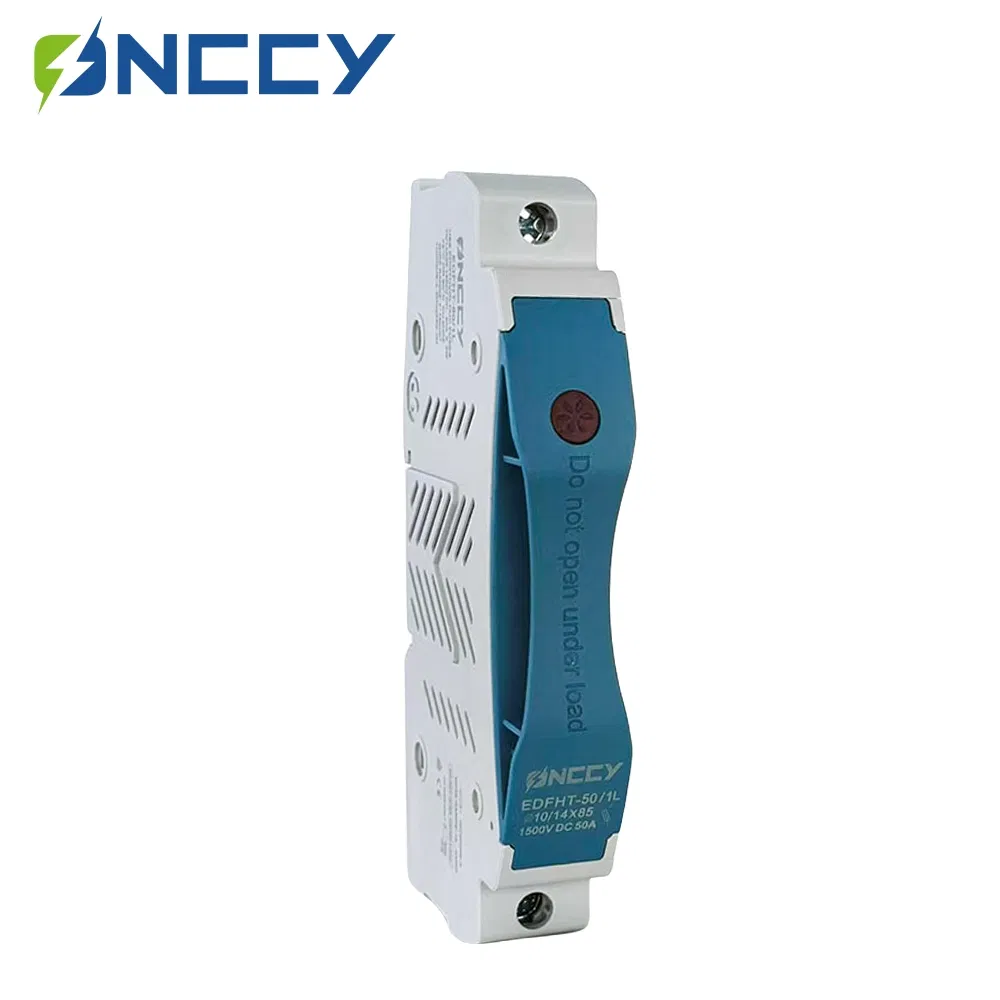

1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1 / 5
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System
1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System

1500VDC 50A DIN Rail Solar PV Fuse with LED Fuse Holder Protection for Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Basic Specifications
Model NO.
EDFHT-50/1L
Type
Auto Fuse Holder
Size of Fuse
10*38mm
Installation
DIN-Rail
Standard
IEC / European Standard
Voltage Ui
1000V
Current Range
1-50A
Rated Current
30A
Pole
1p/2p
Fuse Change Type
Pulling out
HS Code
85361000
Production Capacity
1,000,000 PC/Year
📦 Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
2.000kg
Transport
By Sea/Air
📄 Product Description

EDFH Series DC Fuse Holder 1000V

The EDFH Series is a specialized holder for fuses designed with short-circuit protection and fault prevention for photovoltaic (PV) power lines. It supports rated voltages up to 1000VDC (and meets IEC6026 standards). This holder is primarily utilized in DC combiner boxes within solar PV systems. When a PV panel or inverter experiences an overload or short circuit, the unit trips immediately to protect the PV panels and other critical electrical components in the DC circuit.

Key Product Benefits:
  • Tool-free installation and uninstallation of fuses.
  • Standard 35mm DIN rail mounting for easy integration.
  • Built-in short-circuit indicator for rapid fault identification.
  • Reliable protection for high-voltage DC applications.
🖼️ Product Gallery

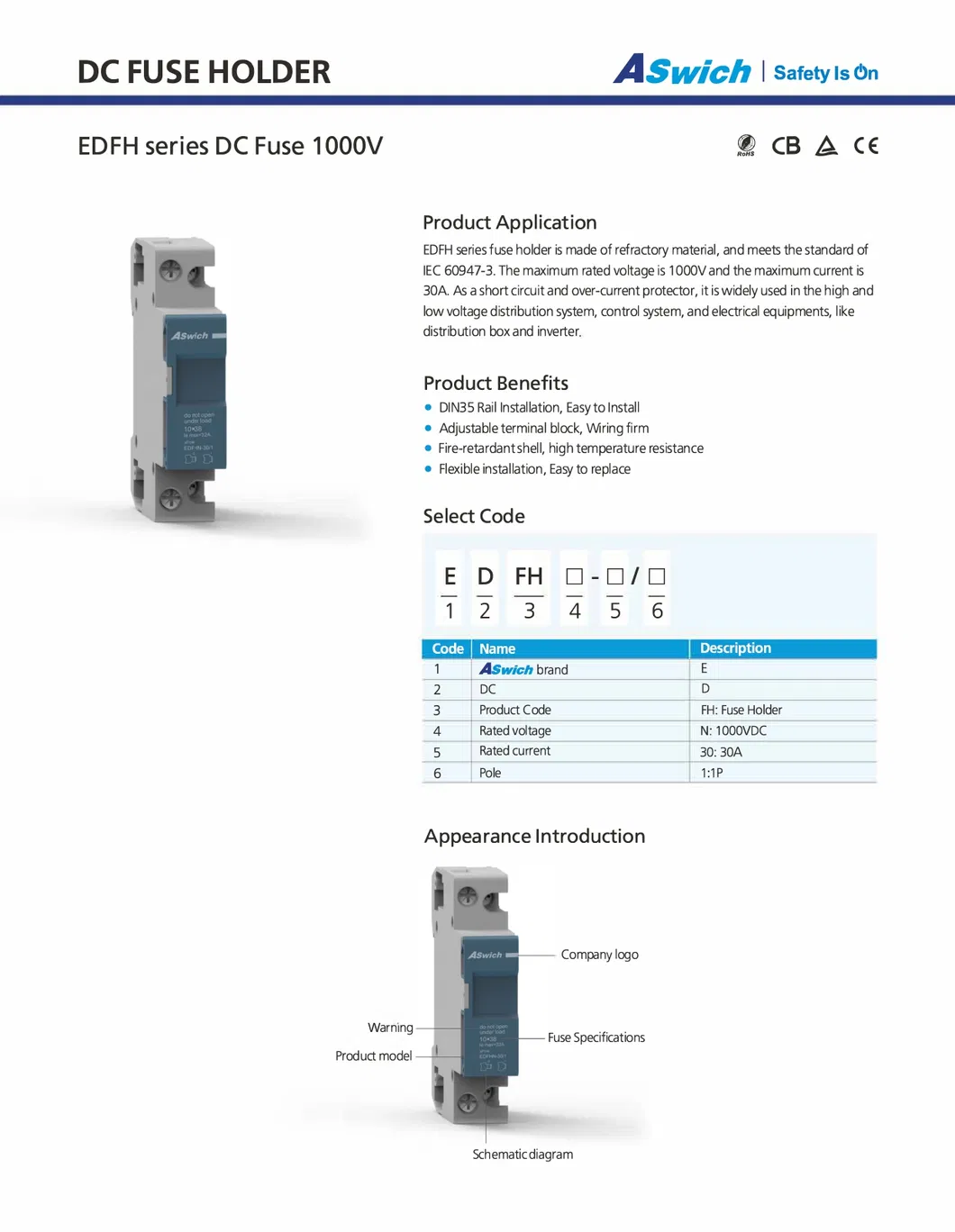

DC Fuse Holder Details
DIN Rail Fuse Holder
Solar PV Fuse Protection

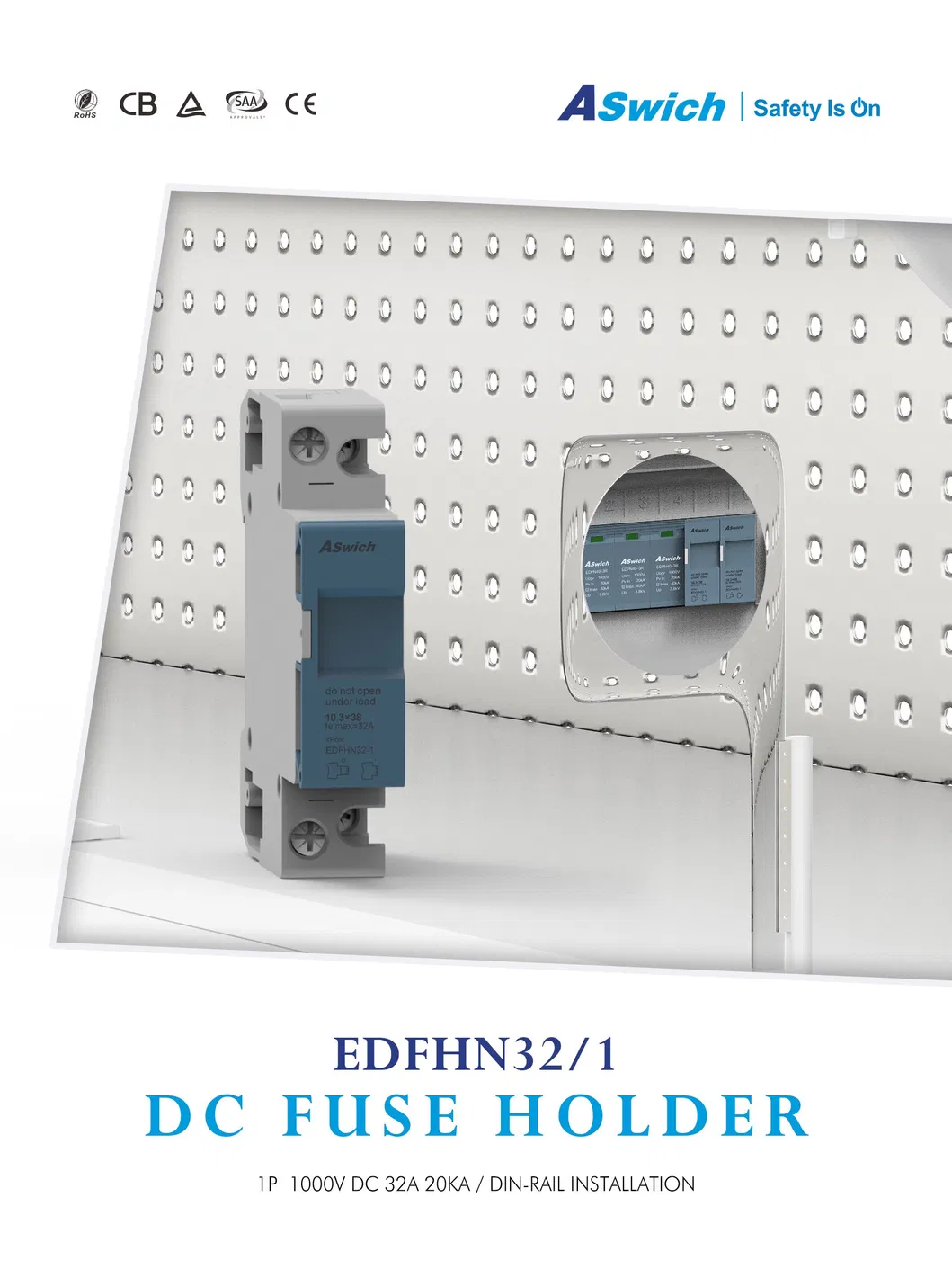

High Voltage Fuse Holder

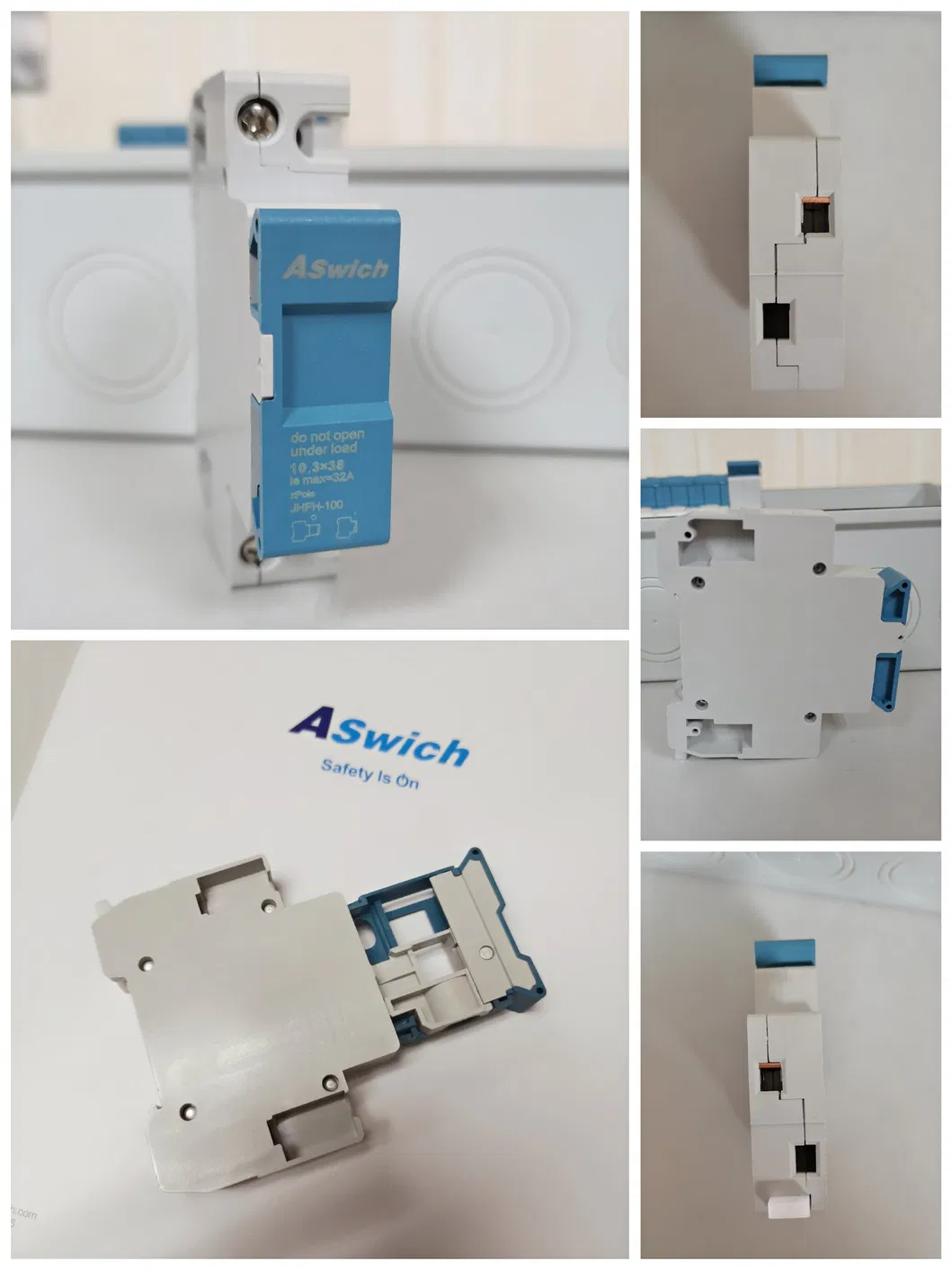

Fuse Holder Dimensions

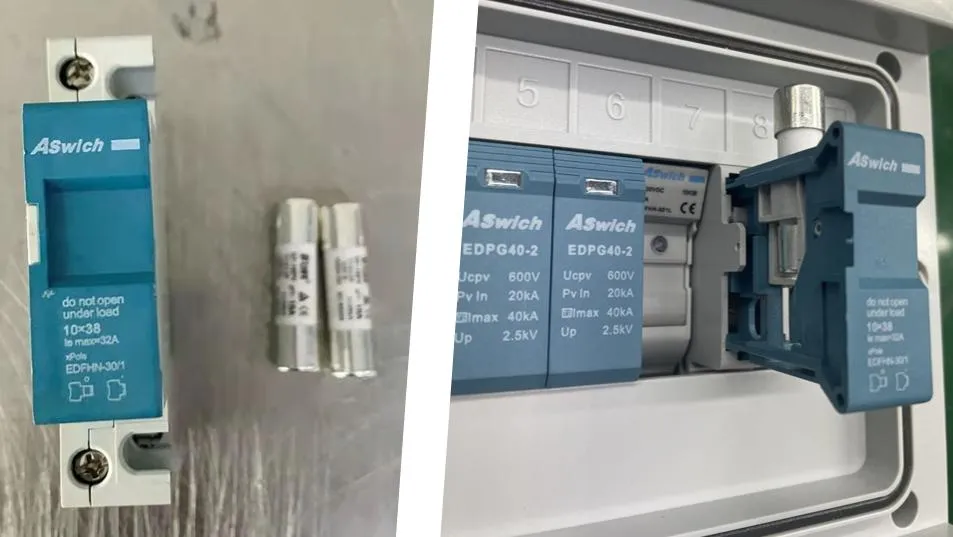

Installation View
🏭 Production & Quality
Production Facility 1
Production Facility 2

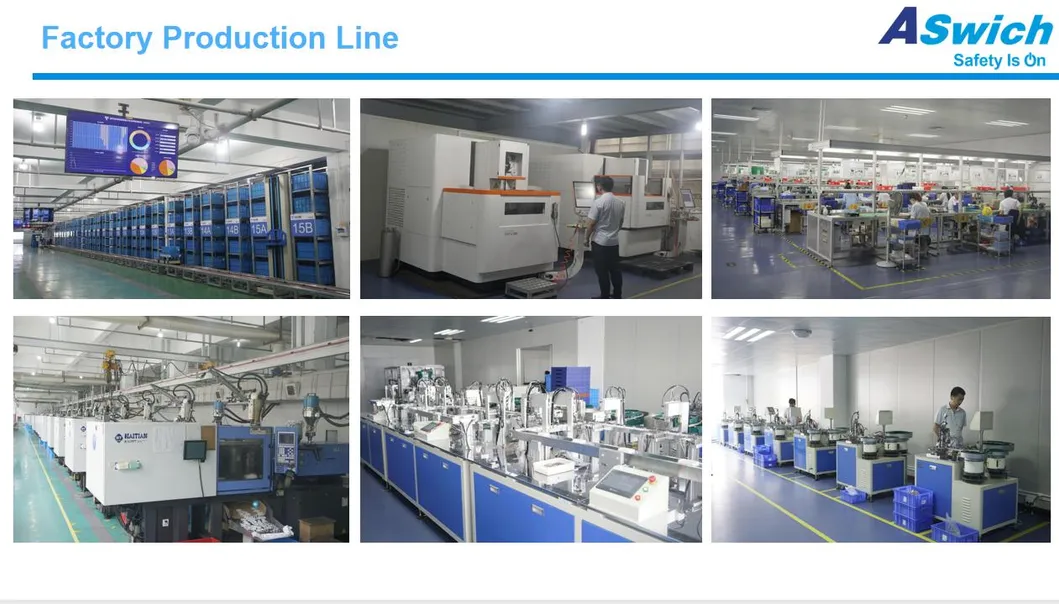

Production Facility 3
Production Facility 4
Quality Control
Testing Equipment
❓ Frequently Asked Questions
What is the primary application of the EDFH series fuse holder?
It is mainly used in DC combiner boxes for solar PV systems to provide short-circuit and overload protection for PV panels and inverters.
Does this fuse holder require specialized tools for maintenance?
No, the design allows for easy installation and removal of fuses without the need for any additional tools.
Is it compatible with standard industrial mounting?
Yes, it is designed for standard 35mm DIN rail mounting, making it compatible with most electrical cabinets.
How do I know if the fuse has tripped?
The EDFH series features a built-in short-circuit indicator that provides a visual cue when a fault occurs.
What is the maximum rated voltage for this holder?
The unit is rated for up to 1000V DC applications, ensuring safety in high-voltage solar environments.
What fuse size is compatible with this model?
This holder is specifically designed for 10*38mm fuses.
